SK518-TDHCC
COM-HPC Server Size (D/E) Carrier Board with PCIe/104, Slim-SAS Expansions Extreme Temperature -40°C to 85°C
- COM-HPC Server (D/E) Support Ampere Altra/Intel Ice-Lake HCC
- Intel Ice Lake Xeon D-2796TE, D-2775TE, D-2752TER
- PCIe/104 Express Expansion Slot for Rugged StackPC
- Multi-Expansion Slots :
4 x Slim-SAS(Vertical/Horizontal)
1 x mPCIe(Full Size)
2 x M.2 2280 M-Key(PCIe Gen4 x 4) - I/O : 2 x GbE, 4 x 10GbE, 1 x VGA, 2 x SATAIII, 2 x COM(RS232),4 x USB3.0, 2 x USB2.0
- 12V DC Input
- Dimension : 350 mm x 210 mm
- Extreme Temperature -40°C to 85°C
- Technical Profile
- Specifications
- Order Information
- Introduction
-
COM-HPC is short for Computer-On-Module for High Performance Computing; it is the idea of extending the Computer-On-Module concept to a full featured Server-On-Module that targeting the embedded computer space. COM-HPC features with higher performance, more interfaces than COMe. It is a highly integrated board with CPU, chipset, memory, and peripherals designed into a component module and PCIe/104 Express Expansion Slot for Rugged StackPC.

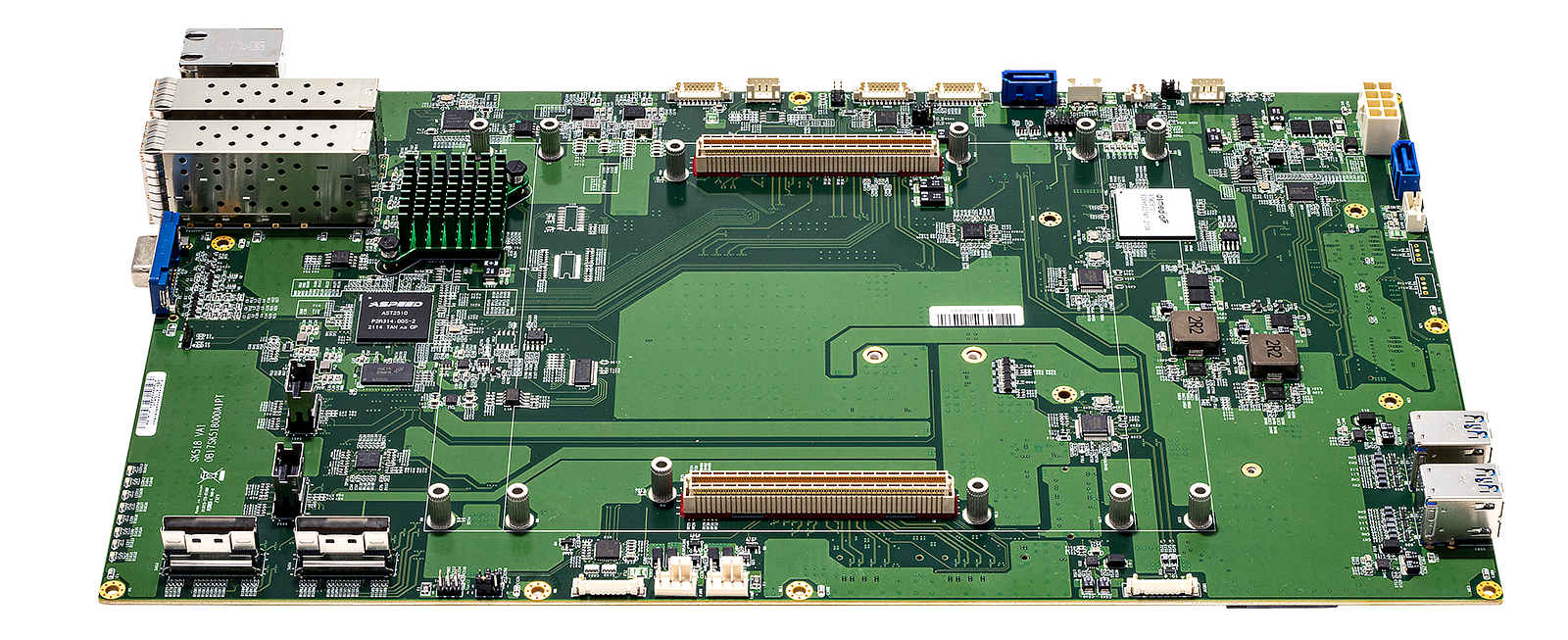

SK518 is based on COM-HPC Carrier Server Size E Form Factor, offers variety of on-board expansion slots, with 4 x Slim-SAS (Vertical and Horizontal), 1 x mPCIe(Full Size), 2 x M.2 2280 M-Key. The board also supports up to 6RDIMMs and onboard NVME/M.2/SATA interface. SK518 is driven by Ampere Altra Processor, features with up to 80 Arm-based cores which allows for more data to be processed with only 175W TDP to satisfy the demand of the greater performance and meanwhile lower the consumption of energy.
- Efficiency Product Design
-
In order to design all kinds of products in the shortest time, the COM-HPC provide a better way to improvement the process. SK518 does not only provide the COM-HPC carrier board, but also PCI/e 104 express expansion, slim-SAS, and M.2 and mini PCIe slot, will make the preliminary verification work more efficient.
The solutions include:
Multi-Expansion Slots
- PCIe/104 Express Expansion Slot
- 4 x Slim-SAS(Vertical/Horizontal)
- 1 x mPCIe(Full Size)
- 2 x M.2 2280 M-Key(PCIe Gen4 x 4)
- Ready For Harsh Environment
-
7StarLake COM-HPC has the capability to operate in harsh environment. It accepts the extend range of temperature from -40°C to 85°C. With outstanding computing capability and efficient thermal design, SK518 is very suitable for industrial, military/aerospace and transportation.
Efficiency product design.
- Block Diagram
| System | |
|---|---|
|
CPU |
Ampere Altra : Up to 80 Arm-based cores at 175W TDP Intel ICE-Lake HCC : Up to 20 cores at 118W TDP |
| GPU Module Options |
NVIDIA® RTX A4500, 115W, 16GB GDDR6, 5,888 CUDA Cores NVIDIA® RTX A2000, 60W, 8GB GDDR6, 2,560 CUDA Cores Intel® Arc™ A370M, 30-50W, 4GB GDDR6, 8Xe Cores Intel® Arc™ A730M, 80-120W, 12GB GDDR6, 24Xe Cores |
|
Memory type |
DDR4 R-DIMMs up to 768GB |
|
Chipset |
On CPU Module |
|
Storage |
SlimSAS/M.2/SATA interface |
|
Watchdog |
On CPU module : 1-255 sec. or 1-255 min. software programmable and can be generate system reset. |
|
Expansion Slot |
|
|
PCIe/104 (Type2) |
1 (2*PCIe x4/4*PCIex1/2*SATA) |
|
SlimSAS (Vertical) |
2 (PCIe x8) |
|
SlimSAS (Horizontal) |
2 (PCIe x8) |
|
MiniPCIe (Full Size) |
1 (PCIex1) |
|
M.2 |
2 (M.2 2280 M-Key) (PCIe Gen4 x 4) |
|
Display |
|
|
Chipset |
On CPU Module / AST2510 |
|
VGA |
1 |
|
Ethernet |
|
|
Chipset |
1 x Intel® I210iT 1 x C827 |
|
IPMI |
AST2500 by request |
|
External I/O |
|
|
VGA |
1 |
|
USB3.0 |
4 |
|
10GbE |
4 |
| GbE | 2 |
|
Internal I/O |
|
|
USB2.0 |
2(Header) |
|
DIDO |
1(4in/4out) |
|
SATAIII |
2 |
|
SATA Power |
2 |
|
Serial |
2 (RS232) |
|
SM BUS/I2C BUS |
1 |
|
LPC |
1 |
|
System Fan |
1 |
|
CPU Fan |
1 |
|
Front Panel Control |
1 |
|
Power Connector |
1(2 x 4-pin terminal block) |
|
Mechanical and Environmental |
|
|
Form Factor |
COM-HPC Carrier Server Size D/E |
|
Power Type |
DC-IN 12V |
|
Dimension |
350 mm x 210 mm |
|
Operating Temperature |
-40 to 85°C |
|
Storage Temperature |
-40 to 85°C |
|
Relative humidity |
10% to 90%, non-condensing |
|
Standard Compliance |
|
|
Standard Compliance |
CE/FCC |
|
OS |
|
|
OS |
On CPU Module |
