Military Computer Guide
7STARLAKE military computers are based on industry standard Commercial Off-The-Shelf (COTS) open, scalable, modular architecture-technologies that enable prime contractors and system integrators to deploy quickly while meeting size, weight, power and cost (SWaP-C) budgets.
- Panel Computer : 7StarLake’s Smart Display and Panel Computers are equipped with 6 to 20 programmable function keys made of rugged rubber, allowing configurability based on various mission requirements. These programmable function keys provide convenience and efficiency for users when in critical battle conditions.
- Xeon DE VMware Workstation : VMware software powers the world’s complex digital infrastructure. The company’s cloud, app modernization, networking, security, and digital workspace offerings help battlefield deliver any application on any cloud across any device. SR800 & AV800 series based on Intel Xeon DE platform covering multi-core processor up to 16 cores featured by D-1587 & D-2183IT.
- MXM-GPU Edge Computer : Traditionally, sensors on military vehicles collect massive amounts of battlefield data and store it locally before transporting it for analysis and interpretation by highly sophisticated, remote deep learning systems. Edge GPGPU systems allow extraordinary amounts of data to be collected and processed right on the battlefield in real time.
- MXM-GPU Rack-Mount Server : Our HORUS 420 & HORUS 430 series offers the high performance of various NVIDIA QUADRO MXM GPUs paired with the latest Intel Core and Xeon CPUs in a 2U fanless rugged chassis. With patented design in conduction cooled technology, this server series can survive in the harshest environments (MIL-STD-810, vibration up to 5 GRMS and shock up to 40 g).
Vehicle Mounted Command & Control System
Armored Ground Vehicles for transportation or combat are a core pillar for every armed force, and have been continuously evolving from a technology perspective. To reduce reaction time, system performance plays an indispensable role. Every aspect of the technology ecosystem — from computers to displays, to the underlying componentry — require top-notch performance, stable interconnectivity and near-zero latency.
Harnessing vast amount of information and data from various sources has become crucial in mission-effectiveness and real-time reaction is vital. That's why 7STARLAKE's Command, Control, Communications, Computers, Intelligence, Surveillance and Reconnaissance (C4ISR) solutions emphasize integrating ultra-high performance components in SWaP-C conscious designs. We focus on the capabilities to control - because control leads to dominance.
Defense Solution Guide
Sky12-P06
6 programmable Function Keys
1400 nits Sunlight readable & NVIS compatible
Sky15-P20
Cloud12-P06
Intel® 9th Gen Xeon E2276ML
Intel® 9th Gen i7-9850HL
Clound15-P20
Intel® Xeon E-2276ML with MXM-GPU
NVDIA Quadro RTX3000
AV800
Xeon® Skylake DE D2183IT
NVIDIA Tesla T4 GPU
SR800-X1
Xeon® D-1587
Quadro P3000 MXM GPU
SR800
Xeon® D-1587 VMware Certified
AES Hardware Secure Erase
SR800-X2
Xeon® D-1587 VMware Certified
AES Hardware Secure Erase
HORUS200
Xeon® D-1587 VMware Certified
AES Hardware Secure Erase
SR100-X4
Xeon E-2276ML / i7-9850HL
NVMe Up to 2TB SSD
SR200-X4
Core™ i7-9850HL
Quadro® MXM P3000 & RTX3000
SR700-X4E
Core™ i7-9850HL
Quadro® MXM P3000 & RTX3000
AV700
Core™ i7-6822EQ
10GbE SFP+
AV710
Xeon® E3-1505L
Quadro® MXM RTX3000
AV710-X1
Intel® Xeon® E-2276ML
Quadro® MXM RTX3000
HORUS420-R1
Xeon® E3-1268L / Core™i7-6700TE
Quadro® MXM RTX 3000
HORUS422
Xeon® E3-1268L / Core™i7-6700TE
SATA RAID 12 x 2.5" Swap SSD/HDD Tray
HORUS428
Xeon® E3-1268L / Core™i7-6700TE
SAS RAID 8 x 2.5" Swap SSD/HDD Tray

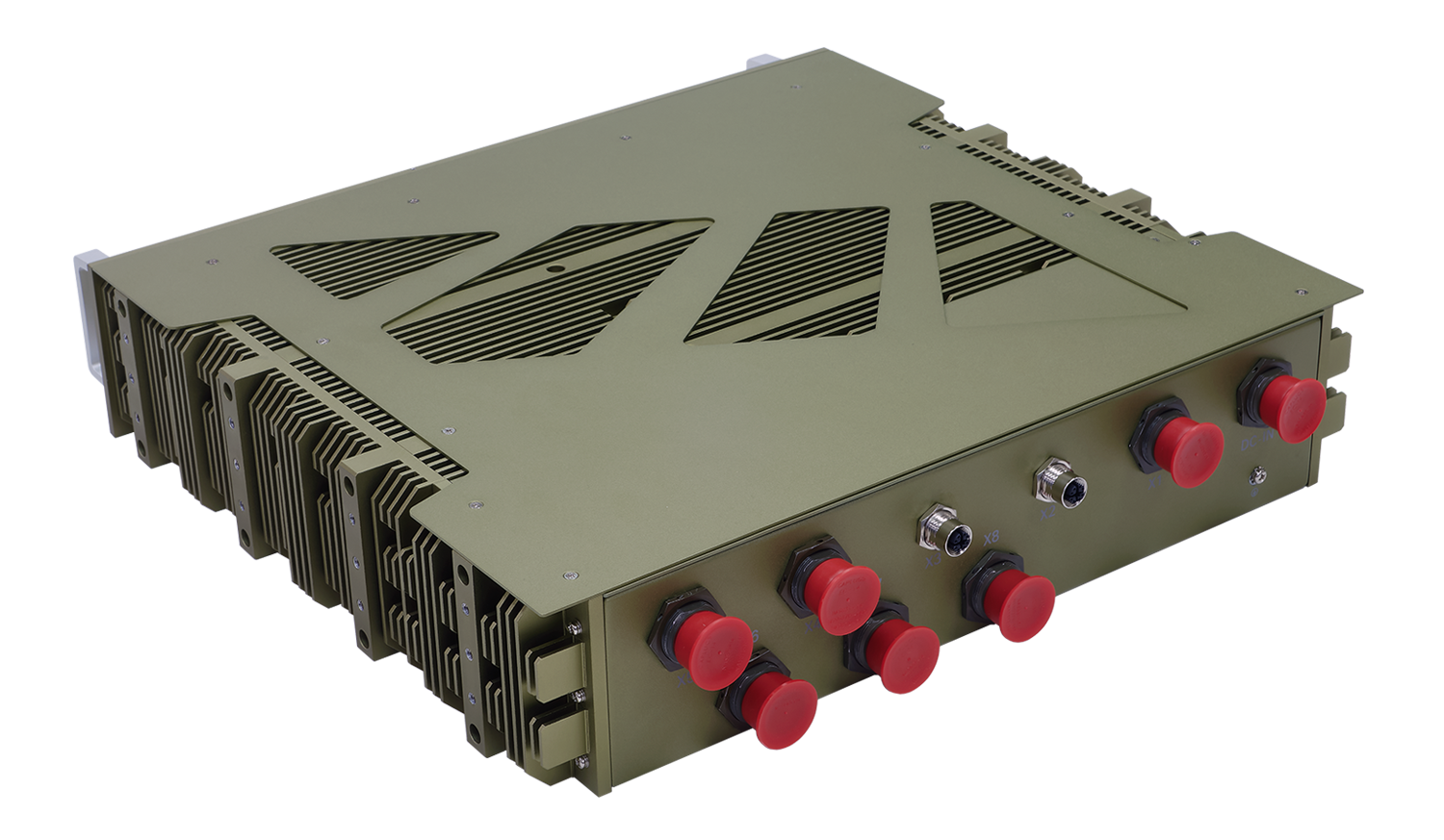

HORUS430-X1
Intel 9th i7-9850HE, NVIDIA GTX 1080 MXM
Dual 10 GbE SFP+

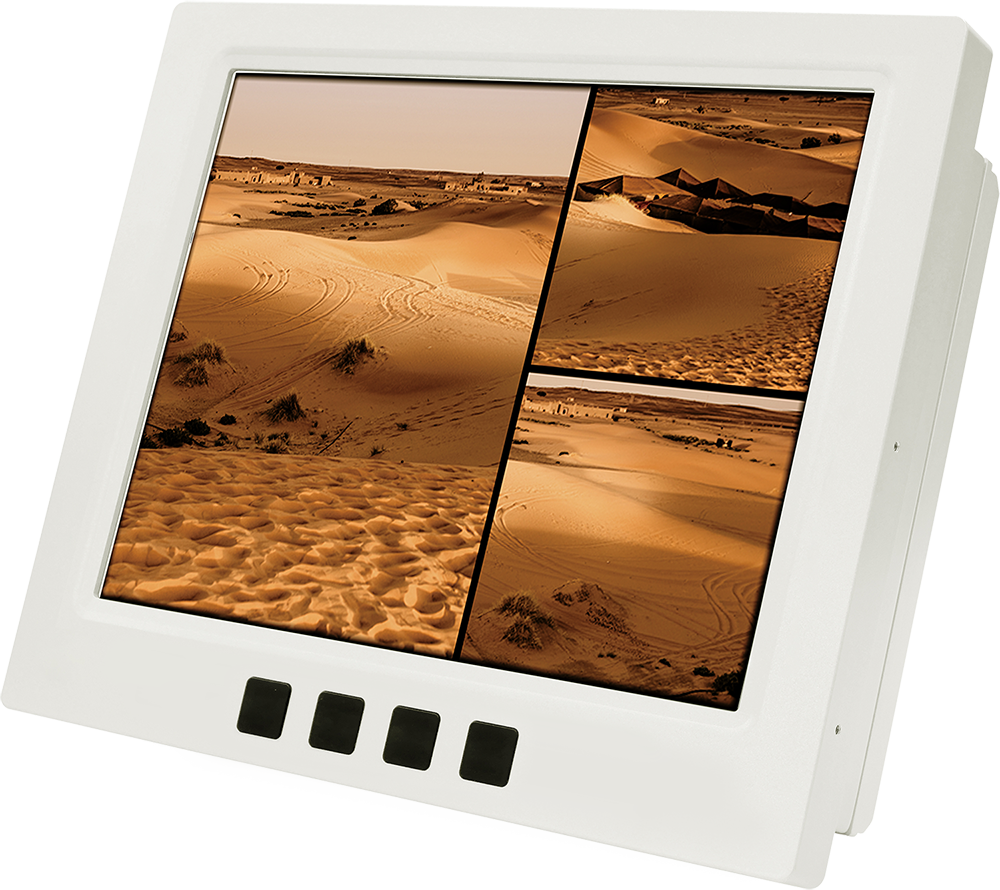

Product List 1- Panel Computer
| SKY12-P04 | SKY15-P20 | CLOUD12-P04 | CLOUD15-P20 | ||
| Photo |  |
 |
 |
|
|
| Panel | 12" TFT | 15" TFT | 12" TFT | 15" TFT | |
| Resolution | 1024x768 | 1024x768 | 1024x768 | 1024x768 | |
| Brightness | 1400 Nits | 1000 Nits | 1400 Nits | 1000 Nits | |
| Touch Panel | Glass-Film-Glass 5-Wire Resistor | Glass-Film-Glass 5-Wire Resistor | Glass-Film-Glass 5-Wire Resistor | Glass-Film-Glass 5-Wire Resistor | |
| Display Control | Power On/Off | Power On/Off | Power On/Off | Power On/Off | |
| LCD Brightness +/- | LCD Brightness +/- | LCD Brightness +/- | LCD Brightness +/- | ||
| Display mode Select (On/Off) | Display mode Select (On/Off) | Display mode Select (On/Off) | Display mode Select (On/Off) | ||
| N/A | Night Vision | N/A | Night Vision | ||
| Function Keys | 4 function keys | 20 function keys | 4 function keys | 20 function keys | |
| CPU | N/A | N/A | Intel Xeon E3-1505L | Intel Xeon E3-1505L | |
| GPU | N/A | N/A | QUADRO MXM RTX3000 | QUADRO MXM RTX3000 | |
| Memory / Storage | N/A | N/A | DDR4 up to 64 GB/ | DDR4 up to 64 GB | |
| Storage | N/A | N/A | mSATA SSD up to 512GB | mSATA SSD up to 512GB | |
| X1 | DC-in | DC-in | DC-in | DC-in | |
| X2 | USB | USB | 1 x COM ; 1 x USB | 1 x COM ; 1 x USB | |
| X3 | DVI | DVI | GbE LAN | GbE LAN | |
| X4 | VGA | VGA | GbE LAN | GbE LAN | |
| X5 | N/A | N/A | DVI or VGA | DVI or VGA | |
| Power Requirements | 9V~36V DC-IN | ||||
| Standard (DO-160) | MIL-STD-810 Vibration | 2.24 GRMS | |||
| MIL-STD-810 Shock | 20 g | ||||
| MIL-STD-461 | CE-102 / RE102 Options with EMI filter (CS101/CS114/CS115/CS/116) |
||||
| MIL-STD 1275 |
Options with MIL-STD-1275 / 461 PSU | ||||
Product List 2- Xeon DE VMware Workstation
| AV800 | AV710-X3 | SR800-X2 | SR800 | HORUS200 | ||
| Photo |  |
|
 |
|
 |
|
| CPU | D-2183IT | D-1577 | D-1587 | D-1587 | D-1587 | |
| RAM | 256 GB DDR4 ECC R-DIMM | 64 GB DDR4 ECC R-DIMM | 128 GB DDR4 ECC R-DIMM | 128 GB DDR4 ECC R-DIMM | 128 GB DDR4 ECC R-DIMM | |
| GPU | TESLA T4 | RTX3000 | N/A | N/A | ASPEED AST2400 | |
| PSU | 18V~36V | 18V~36V | 18V~36V | 12V~40V | 12V~40V | |
| Storage | NVMe | 1 | 1 | N/A | N/A | N/A |
| SATA SSD | 2 | 2 | 2 | 2 | 2 | |
| Standard DO-160 |
MIL-810 Vibration | 5 GRMS | ||||
| MIL-810 Shock | 25 g | |||||
| MIL-461 | Conductive Emission : CE 102 Radiated Susceptibility :RS 103 |
|||||
| Dimension | 405 x 154 x 316 mm | 400 x 230 x 120 mm | 260 x 350 x 102 mm | 260 x 350 x 102 mm | 430 x 385 x 44.6 mm | |
Product List 3- MXM-GPU Edge Computer
| Model Name | SR100-X4 | SR200-X4 | AV700 | SR700-X4E | AV710 | AV710-X1 | |
| Photo |  |
 |
 |
 |
 |
 |
|
| CPU | Intel® Core™ i7-9850HL | Intel® Core™ i7-9850HL | Intel® Core™ i7-6822EQ | Intel® Core™ i7-9850HL | Intel® Xeon® E3-1505L | Intel® Xeon® E-2276ML | |
| RAM | DDR4- 64GB | DDR4- 128GB | DDR4- 32GB | DDR4- 128GB | DDR4- 32GB | DDR4- 64GB | |
| SSD | mSATA 512GB | mSATA 512GB | mSATA 512GB | mSATA 512GB | mSATA 512GB | mSATA 512GB | |
| GPU | N/A | RTX3000 | N/A | RTX3000 | RTX3000 | RTX5000 | |
| GTX 1050Ti | GTX 1050Ti | GTX 1050Ti | |||||
| PSU | 9V~36V DC-IN EMI Filter Option for 28V MIL-461 PSU | 9V~36V DC-IN EMI Filter Option for 28V MIL-461 PSU | 9V~36V DC-IN EMI Filter Option for 28V MIL-461 PSU | 9V~36V DC-IN EMI Filter Option for 28V MIL-461 PSU | 9V~36V DC-IN EMI Filter Option for 28V MIL-461 PSU | 9V~36V DC-IN EMI Filter Option for 28V MIL-461 PSU | |
| Standard DO-160 |
MIL-810 Vibration | 10 GRMS | 10 GRMS | 10 GRMS | 10 GRMS | 7 GRMS | 7 GRMS |
| MIL-810 Shock | 75 g | 75 g | 75 g | 75 g | 40 g | 40 g | |
| MIL-461 EMI | Radiated Emission : RE 102 | ||||||
| Conductive Emission : CE 102 | |||||||
| Radiated Susceptibility : RS 103 | |||||||
| Dimension | 210 x 149 x 70 mm | 308 x 149 x 76 mm | 230 x 280 x 83 mm | 210 x 149 x 70 mm | 280 x 230 x 122 mm | 280 x 230 x 122 mm | |
Product List 4- MXM-GPU Rackmount Server
| HORUS420-R1 | HORUS422 | HORUS428 | HORUS430-X1 | ||
| Photo |  |
 |
 |
 |
|
| CPU | Intel® Xeon E3-1268L | Intel® Xeon E3-1268L | Intel® Xeon E3-1268L | Intel® Core™ i7-9850HL | |
| Intel® Core i7-6700TE | Intel® Core i7-6700TE | Intel® Core i7-6700TE | |||
| RAM | DDR4- 64GB | DDR4-64GB | DDR4-64GB | DDR4- 64GB | |
| SSD | SSD 4 x 2TB | SSD 12 x 2TB | SSD 8 x 2TB | mSATA 1TB | |
| GPU | NVIDIA® GTX 1050 Ti | NVIDIA® GTX 1050 Ti | NVIDIA® GTX 1050 Ti | NVIDIA MXM GTX1080 | |
| NVIDIA® RTX 2060S | NVIDIA® RTX 3000 | NVIDIA® RTX 3000 | |||
| PSU | 100V to 240V AC input redundant |
100V to 240V AC input | 12V DC-IN | MIL-STD-461/1275 18V-36V DC-Input |
|
| Standard DO-160 |
MIL-810 Vibration | 5 GRMS | 5 GRMS | 5 GRMS | 7 GRMS |
| MIL-810 Shock | 25 g | 25 g | 25 g | 40 g | |
| MIL-461 EMI |
Radiated Emission : RE 102 Conductive Emission : CE 102 |
RE 102 CE 102 RS 103 |
|||
| Dimension | 430 x 380 x 88 mm | 430 x 396 x 88 mm | 430 x 377x 88 mm | 422 x 379 x 88 mm | |
