SKY15-P20
Military Target Acquisition Display
- Military Target Acquisition Display
- Extended Temperature -40°C to 60°C
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 2.2 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 20G
- Sunlight Readable 1000 Nits
- 20 Programmable function keys
- Heavy-Duty Rugged Aluminum
- 18V~36V (28V) Ground Vehicle Power
- MIL-461 EMI Filter By Options
- Technical Profile
- Specifications

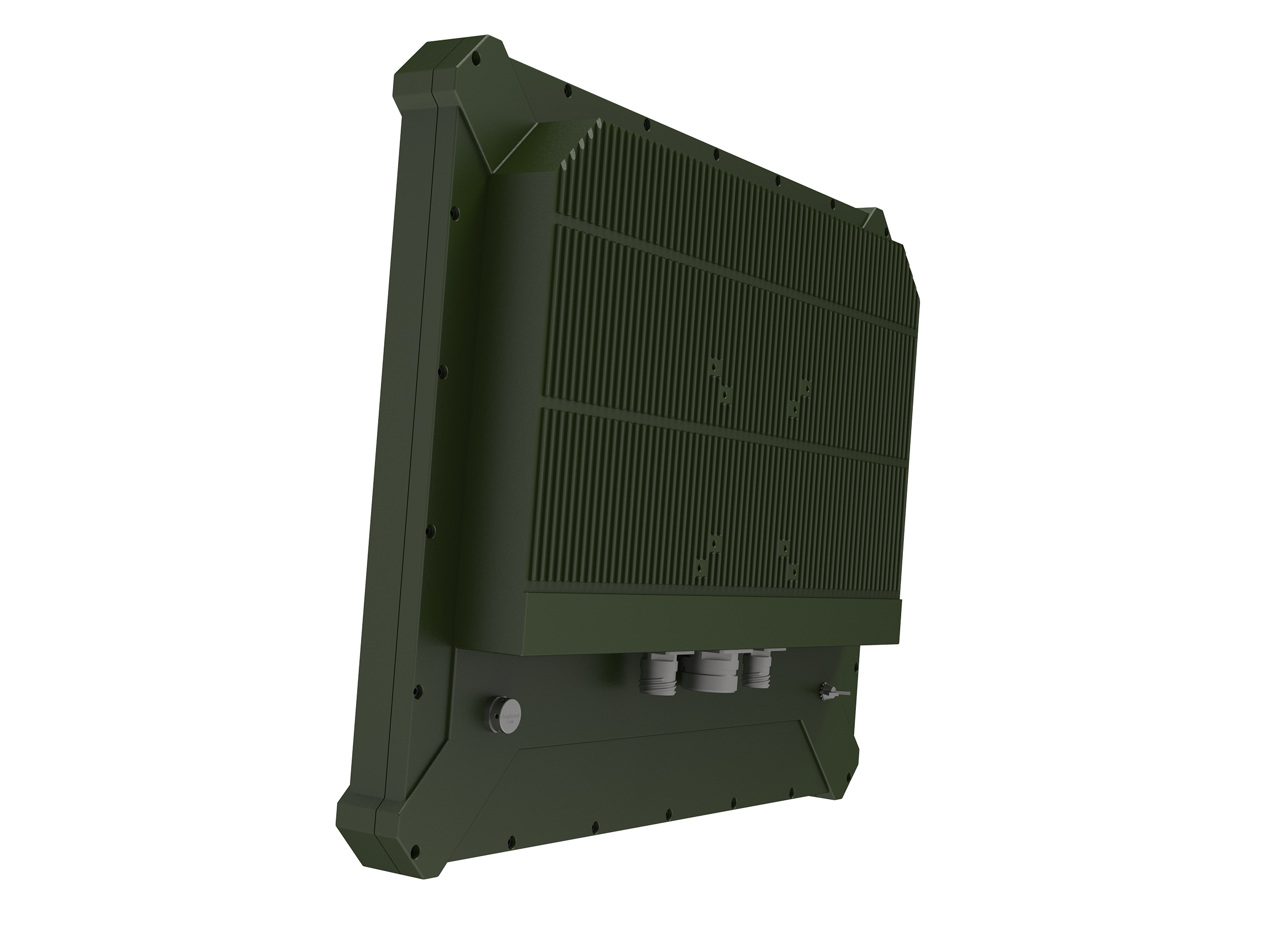

- Thermal Solution
- Introduction
-
7STARLAKE SKY15-P20 rugged mission panel displays which are featuring LCD super brightness up to 1000 nits and night vision (NVIS) under 1% nits, optical bonding of protective glass (GFG), touch screens, EMI filtering / EMI mesh shielding, anti-reflection/anti-glare (AR/AG) coatings, the rugged panel displays also designed with IP-65 waterproof and dust proof all-aluminum housings, support extended operating temperature range from -40°C to 60°C and flexibly support extended DC power input range from 9V to 36V.
- Unique Features
-
(1) Sunlight Readable up to 1000 Nits
SKY15-P20 ruggedized smart display can support sunlight-readable to meet high ambient light conditions such as direct sunlight, it also adopt our excellent optic bonding technical process, when bonded together the light passes through the bonded layers and is absorbed somewhat into the screen. Optical bonding is therefore important in making screens sunlight readable.
(2) Night Vision Mode Support
When system at night mode, the operator can adjust brightness by hard key to turn it to darker, the display brightness down to under 1% nits or other customized night vision mode immediately, and the display gets ready at low brightness right away once its trigger and protect the usage of night vision devices at once.
(3) MIL-DTL 38999
MIL-DTL-38999 is a high-performance cylindrical connector family designed to withstand the extreme shock, exposure and vibration that are commonplace in Defense and aerospace applications. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas
(4) G.F.G Resistive Touch Screen
GFG touch screens are operable with fingers, pens and gloves. The glass surfaces makes the glass-film-glass sensor very durable and scratch resistant (7H).
(5) Soft Touch Button
SKY15-P20 equipped up to 20 programmable function keys, 3 OSD keys,1 triple knob, 1 power button by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.
(6) IP65 Certified
SKY15-P20 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army and defense.
(7) MIL-STD 810 Compliance
SKY15-P20 compliances of MIL-STD-810 for shocks, vibration etc; SKY15-P20 is rigorously field-tested to meet or exceed MIL-STD810G a for extremely high & low temp. humidity, shock, and vibration.
(8) MIL-461/1275 EMI Filter
SKY15-P20 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.
(9) Intelligent Heater
Due to consider boot up in extreme cold environment, SKY15-P20 is designed /w intelligent heater to control temperature automatically.
(10) Waterproof Value
SKY15-P20 has completely waterproof to balance atmospheric pressure to meet different altitude environment.
|
15” TFT LCD Display & Resistor Touch screen |
||
|---|---|---|
|
Resolution |
1024 x 768 |
|
|
Brightness |
Up to 1000 Nits |
|
|
Aspect Ratio |
4:3 |
|
|
Contrast Ratio |
≧900 : 1 |
|
|
Touch Panel |
Glass-Film-Glass 5-Wire resistor touch panel |
|
|
System SPEC |
||
|
Dual Mode |
Day Mode: Ultra-Brightness 1000 nits; Night Mode: NVIS (Dimmable under 1% Nits) |
|
|
Function key |
20 user programmable function keys |
|
|
DC-IN |
9V~36V DC-IN, Option 28V DC |
|
|
Connectors |
||
|
DC-IN |
1x Amphenol TV07RW-11-54P |
|
| I/O ports | ||
| X1 | 1x VGA with MIL-38999 connector | |
| X2 | 1x DVI with MIL-38999 connector | |
| X3 | 1x USB2.0 with MIL-38999 connector | |
|
Applications |
||
|
Applications |
Marine, Naval, Ground and Airborne environment. |
|
|
Physical |
||
|
Dimension |
412 x 59 x 336 mm |
|
|
Weight |
12.35 kg (27.23 Ib) |
|
|
Chassis |
Aluminum Alloy, Corrosion Resistant. |
|
|
Finish |
Anodic aluminum oxide (Color Olive green) |
|
|
Ingress Protection |
IP65 Dust /water Proof |
|
|
MIL Compliance |
||
|
MIL-STD-810 (Operation Test) |
||
|
Low Temp. |
Method 502.5 Procedure 2 |
Exposure(24h x 3 cycle) at -10℃ min. |
|
High Temp. |
Method 501.5 Procedure 2 |
60ºC for 2 hrs after temperature stabilization. |
|
Humidity |
Method 507.5 Procedure 2 |
RH -95%. Test cycles: ten 24-hrs , functional test after 5th and 10th cycles |
|
Vibration |
Method 514.6 Category 20 |
10-500Hz 1.04Grms Test duration: 1 hr x 3 axis (total 3 hrs) |
|
Shock |
Method 516.6 Procedure 1 |
20G, 11mSec, 3 per axis |
|
MIL-STD-810 (Non-Operating Tests) |
||
|
Low Temp. |
Method 502.5 |
Exposure(24h x 7 cycle) at -20℃ min. |
|
High Temp. |
Method 501.5 Procedure 1 |
71ºC for 2 hrs after temperature stabilization. |
|
Vibration |
Method 514.6 Category 24 |
200 to 2000Hz Test duration: 1hr per axis; rms = 7.7 gs |
|
Shock |
Method 516.6 Procedure 1 |
20G, 11mSec, 3 per axis |
|
MIL-STD-461 |
||
|
CE102 |
Basic curve, 10kHz - 30 MHz |
|
|
RE102-4, (1.5 MHz) |
(1.5 MHz) -30 MHz - 5 GHz |
|
|
RS103 |
1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, |
|
|
Environmental Qualifications |
||
|---|---|---|
|
Regulatory |
CE ,FCC Compliance |
|
|
Operation Temp. |
-40°C to +60°C |
|
|
Storage Temp. |
-40°C to +85°C |
|
|
Green Product |
RoHS, WEEE compliance |
|

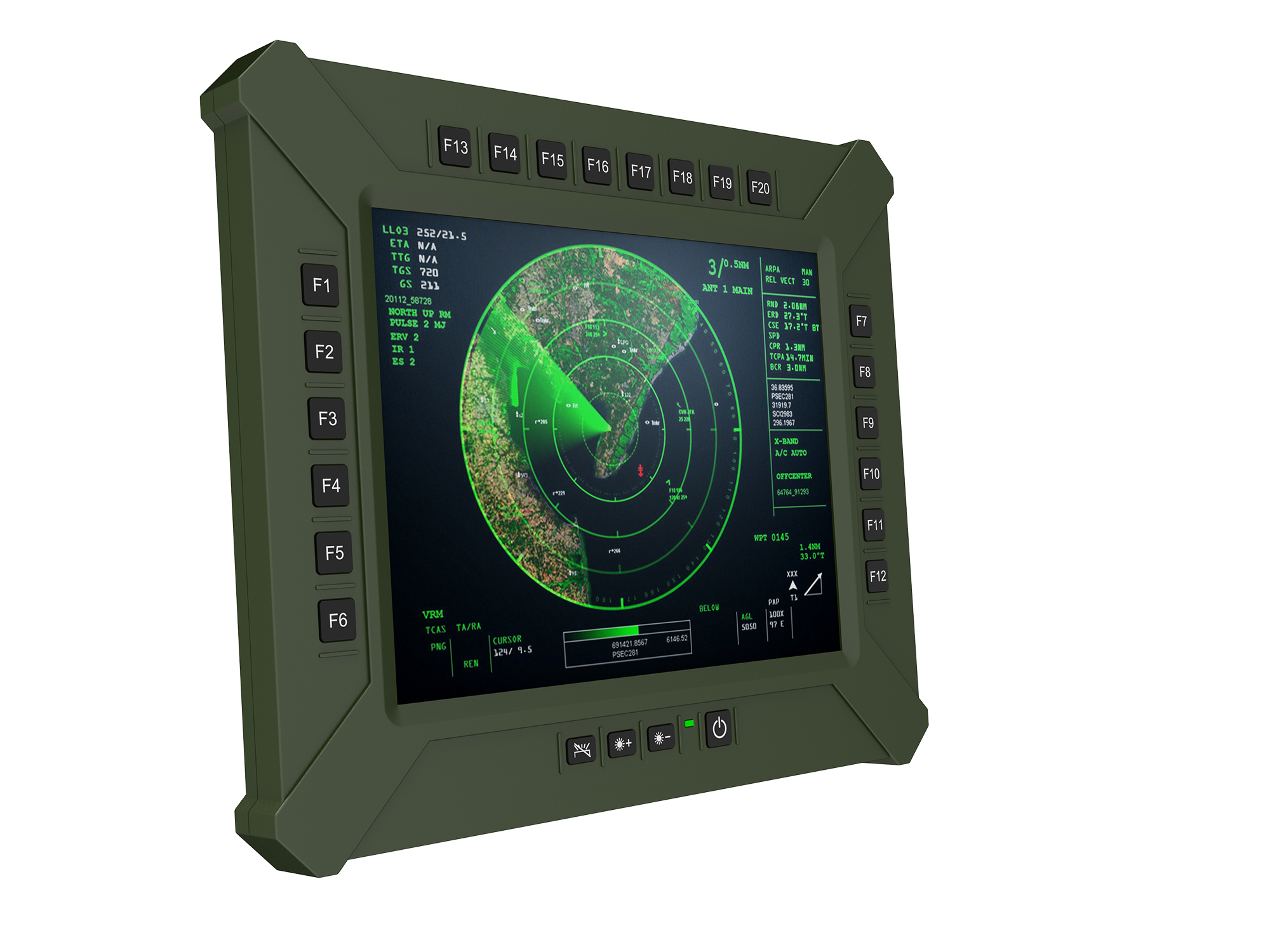

20 Programmable function keys
STACKRACK ruggedized mission displays equipped up to 20 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.
Optical bonding
Sky15-P20 adopts optical bonding with protective glass (GFG), it can offer surface light reflection and panel reflection losses lower than 3% which enhance its readability where installed in high humidity outdoor environments
Heater
Monitor usually challenges in extended temperature operation, Sky15-P20 especially implements heater in the system that allow Sky15-P20 can operate smoothly under temperature-30 degree for critical environment application
MIL-461F power solution
In order to meet military grades,Sky15-P20 equips EMI filter power solution that enables to meet MIL-STD-461F standard for harsh environment demand.
