1_Introduction

Purpose

This white paper provides an in-depth analysis of the IV320 and AV710, NV200 and NV300 HPC systems, highlighting their advanced technical capabilities and performance across various demanding applications.

Scope

This document examines the core hardware components, performance benchmarks, and potential use cases for these systems. In response to the evolving landscape of AI-driven asymmetric warfare, military integrators are continuously seeking robust computational systems that offer superior multifaceted-computing capabilities and can endure harsh environmental conditions, such as shock, vibration, and extreme temperature variations.

These systems cater to diverse applications requiring high computing power and ruggedness, ranging from ground surveillance and reconnaissance to mobile navigation and vehicle monitoring. The IV320, AV710, NV200 and NV300 are engineered to consolidate ISR (Intelligence, Surveillance, and Reconnaissance) platforms, heralding a new era of edge AI computing.
This paper delves into the technological advancements and capabilities of the IV320, AV710, NV200 and NV300, demonstrating how they enhance situational awareness, optimize decision-making, and provide a strategic advantage on the battlefield.

2_Overview of Mlitary Rugged Edge Systems

Key Features

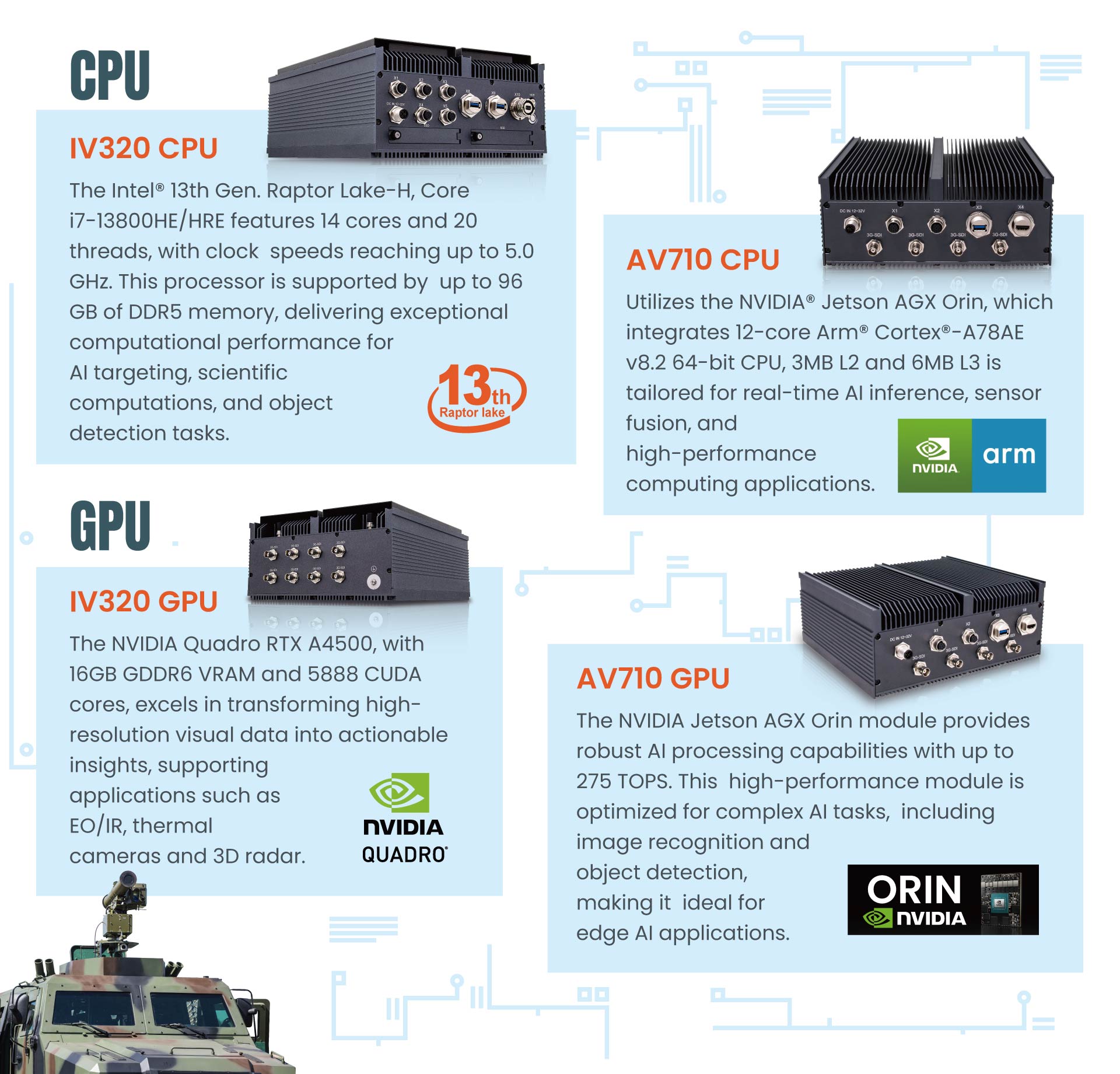

IntelⒹ 13th Gen. Raptor Lake-H Processor

Core i7-13800HE/HRE, featuring 14 cores and 20 threads with clock speeds up to 5.0 GHz, ensuring exceptional computational throughput.

8xChannel 3G-SDI Frame Grabber

Enables low-latency video capture and processing, creating a 360-degree protection screen for comprehensive situational awareness.

NVIDIAⒹ Quadro MXM RTX A4500

Equipped with 16GB GDDR6 and 5888 CUDA cores, this GPU excels in AI inference, 3D rendering, and processing high-resolution visual data.

Full IP65 Sealed Enclosure

Provides protection against dust, water, and extreme weather conditions, ensuring reliable operation in harsh environments.

MIL-STD-810 Compliance

Ensures resistance to shock and vibration, making it suitable for deployment in military and industrial settings.

Key Features

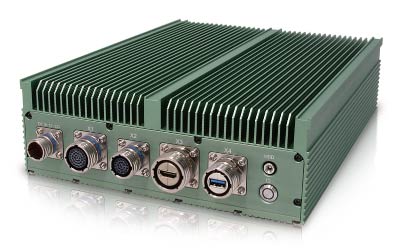

NVIDIAⒹ Jetson AGX Orin

Offers up to 275 TOPS of AI performance, making it ideal for AI and machine learning workloads, including autonomous systems, robotics, and smart city applications.

4CH 3G-SDI Frame Grabber

Supports capturing high-definition 1920x1080p video at 60/50fps from up to four 3G-SDI inputs, providing high-quality video streams for tactical decision-making.

MIL-STD-810 Compliance

robust performance under thermal, shock, vibration, and humidity conditions, with IP65 classification for environmental protection.

Compact Design

Dimensions of 250 x 220 x 100mm, making it suitable for space-constrained installations.

Extended Temperature Range

Operates reliably in temperatures ranging from -20 to +55°C, ensuring functionality in extreme conditions.

Key Features

NVIDIAⒹ Jetson AGX Orin

Offers up to 275 TOPS of AI performance, configurable power consumption 15W - 60W, designed for the demanding AI projects, like autonomous systems, robotics, and smart city applications.

NVIDIAⒹ Jetson Orin NX

Offers up to 100 TOPS of AI performance, configurable between 10W and 25W, Jetson Orin NX is a balanced option for power consumption and computing performance, targeting the market of drones, robotics and other embedded AI system.

Support GMSL2 Camera Input

Supports GMSL2 input, a SerDes technique, to carry high-speed video, bidirectional control data, and power over a single coaxial cable.

Ultra Compact Design

Being ultra-compact for edge AI deployment, SWaP-optimized for integration in highly space-constrained platforms

Extended Temperature Range

Operates reliably in temperatures ranging from -20 to +55°C, ensuring functionality in extreme conditions.

3_Technical Specifications

Video Input/ Output
3G-SDI is a broadcast-grade digital video interface standard that supports video resolutions up to 1080p at 60 frames per second. It enables high-speed, uncompressed digital video transmission over coaxial cables, providing superior image quality and minimal latency. This technology is crucial in professional video environments where maintaining signal integrity and high resolution is paramount.

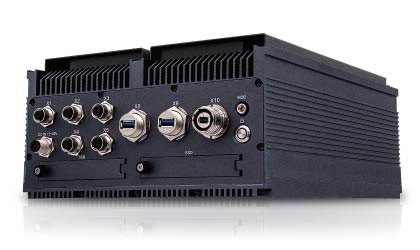

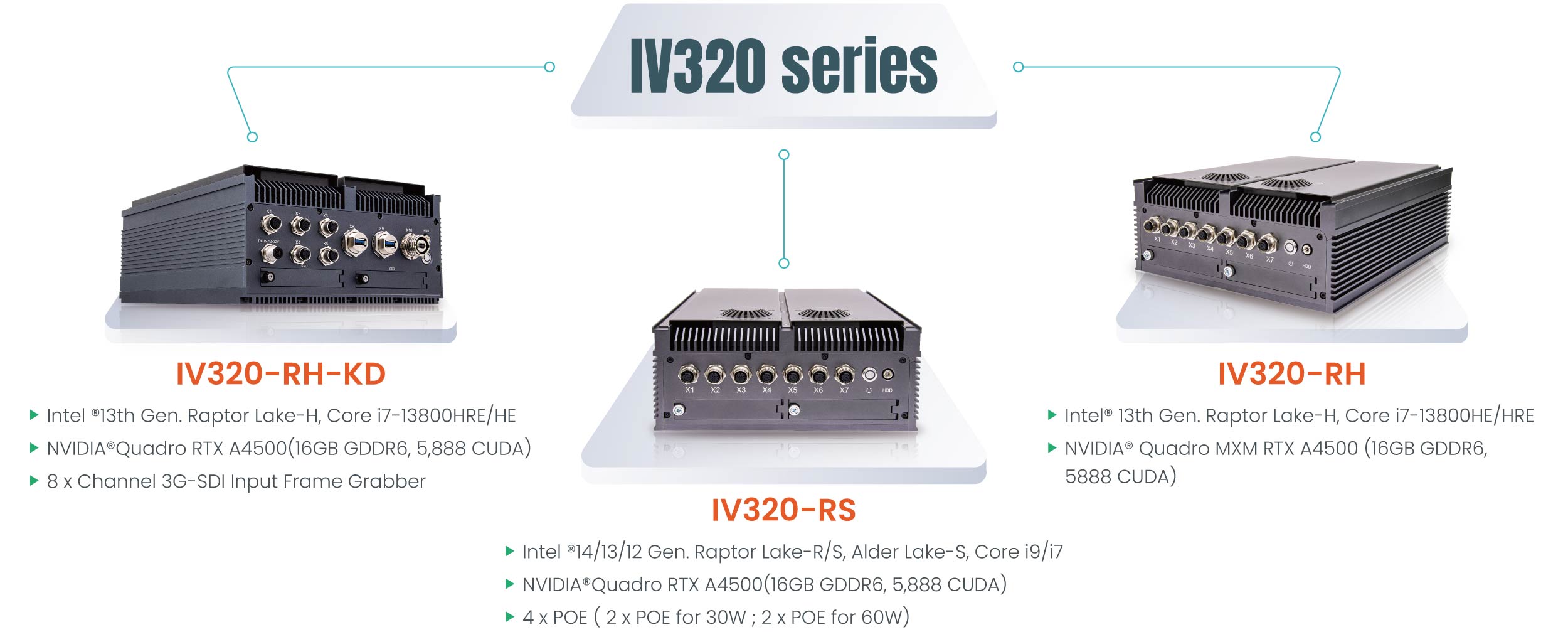

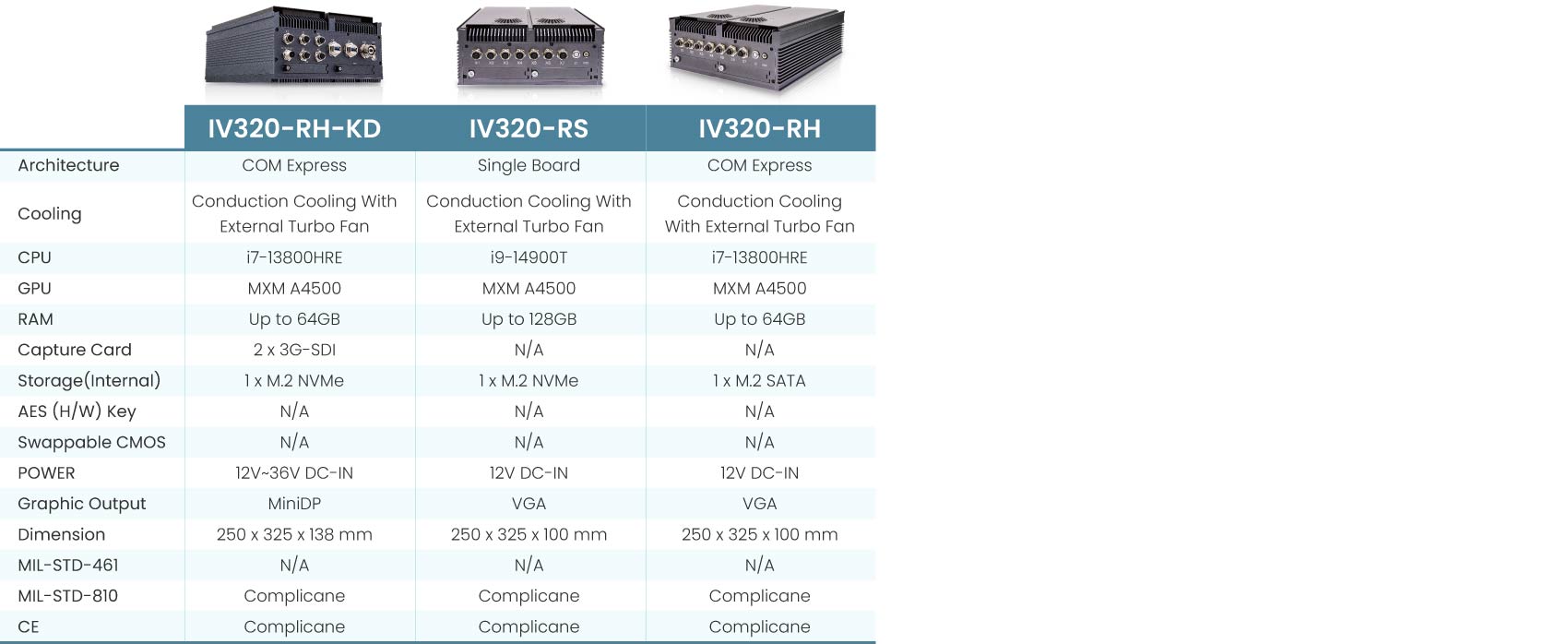

IV320

Equipped with an 8-channel 3G-SDI configuration, the IV320 is designed for demanding video applications that require simultaneous input from multiple video sources. This capability ensures comprehensive coverage and monitoring, essential for complex operations.

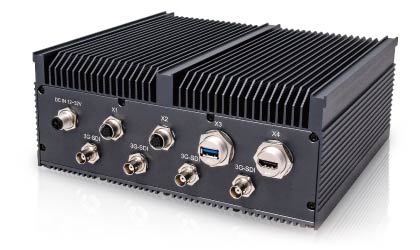

AV710

Featuring advanced video processing capabilities, the AV710 supports up to 4 channels 3G-SDI, making it ideal for environments where space and power efficiency are critical without compromising on video quality.

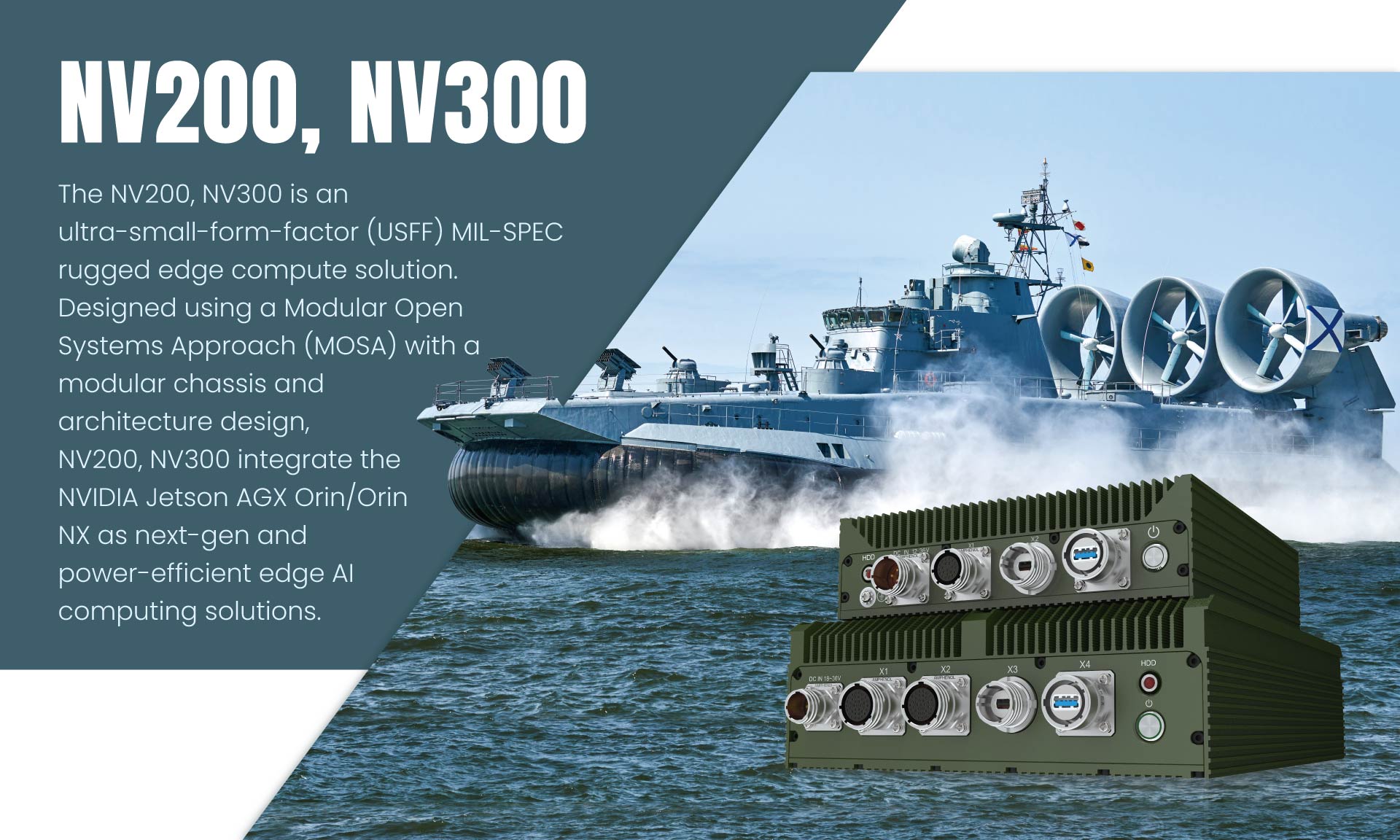

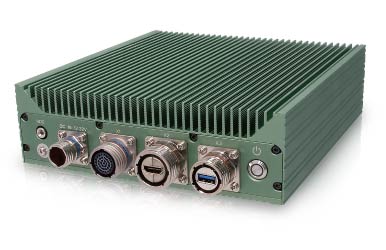

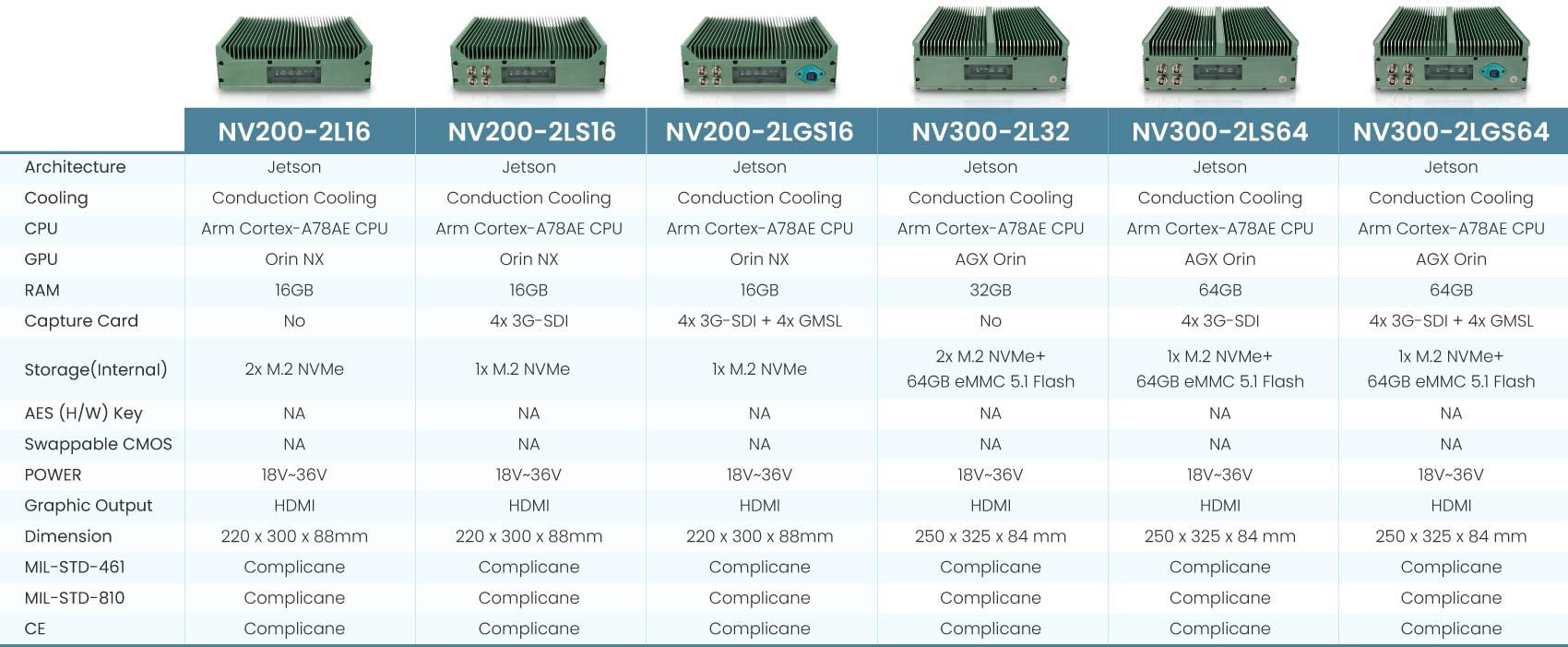

NV200 and NV300

Both models are equipped with 4-channel 3G-SDI configurations, providing robust and reliable video transmission for various applications. These systems are optimized for scenarios requiring multiple video feeds with high fidelity and low latency.

Frame Grabber Card
This component is vital for real-time data analysis and integration with central command systems for comprehensive ISR operations

Mini-PCIe Frame Grabber Card

《for HD-SDI & PAL in/out put》

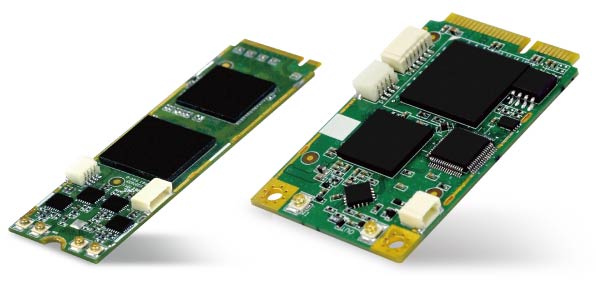

M.2 M-Key 2280 Frame Grabber Card

《for 3G-SDI & PAL in/out put》

4_High-Performance GPU Computing

GPU computing is essential for high-performance computing (HPC) applications, enabling accelerated data processing and complex computational tasks.

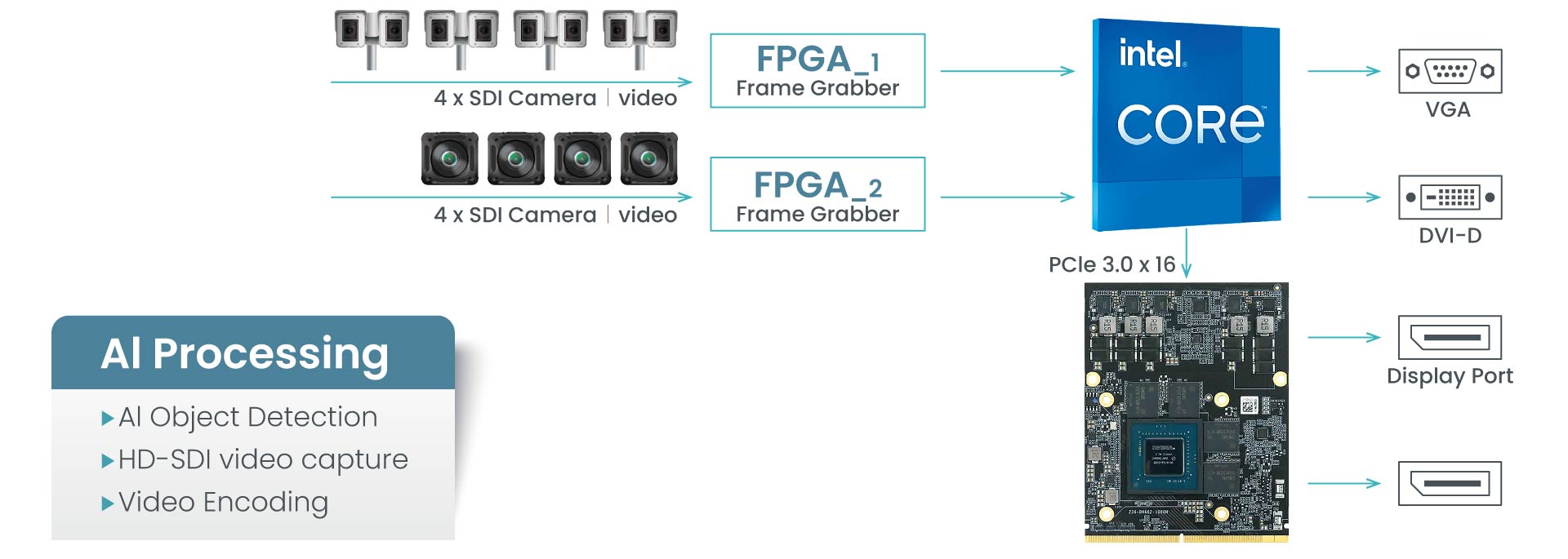

IV320 GPU Computing

The NVIDIA Quadro RTX A4500 supports advanced GPU computing capabilities with libraries such as CUDA and OpenCL. This GPU excels in AI inferencing, scientific simulations, and rendering tasks, providing substantial performance improvements in HPC workloads.

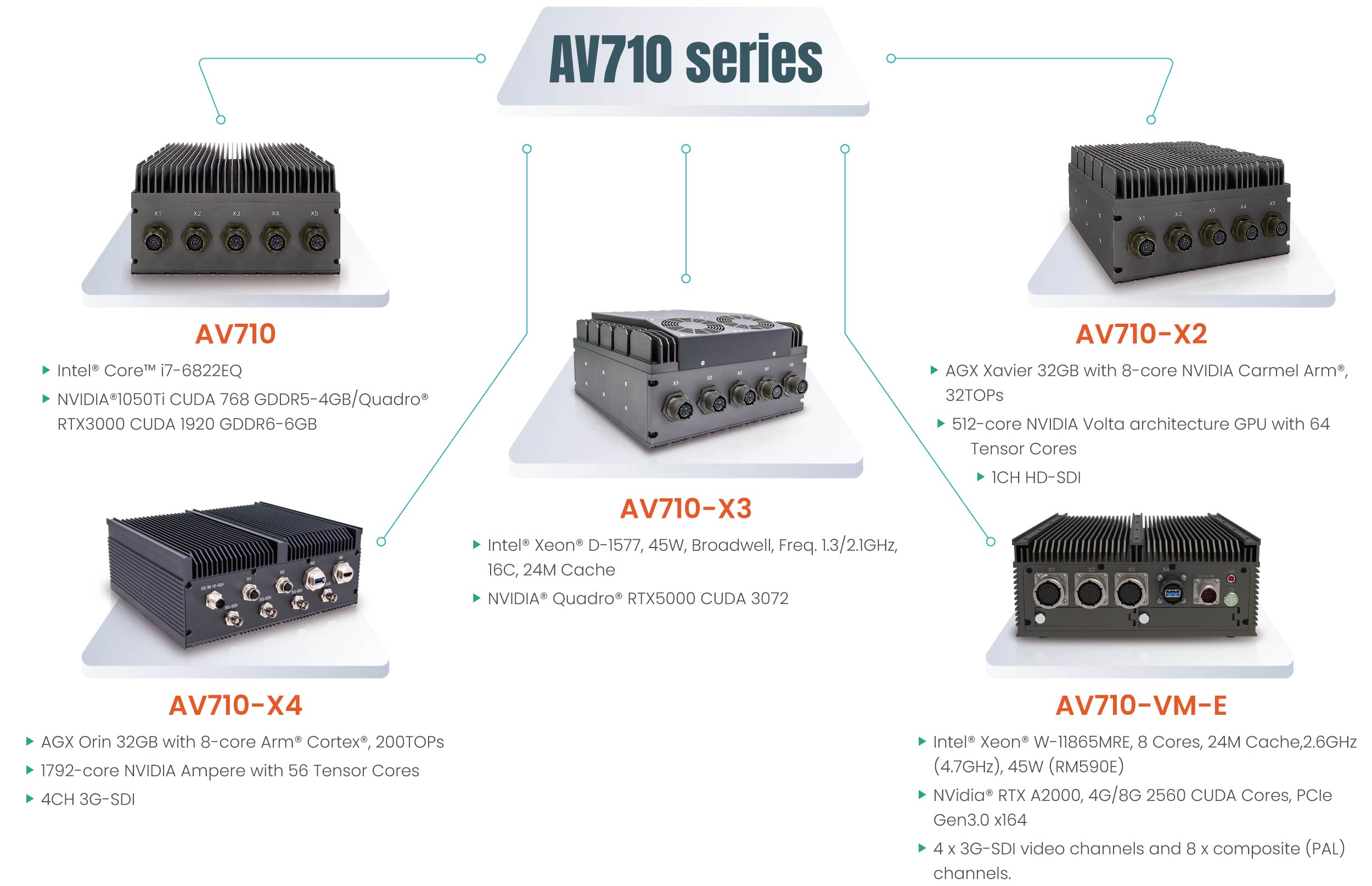

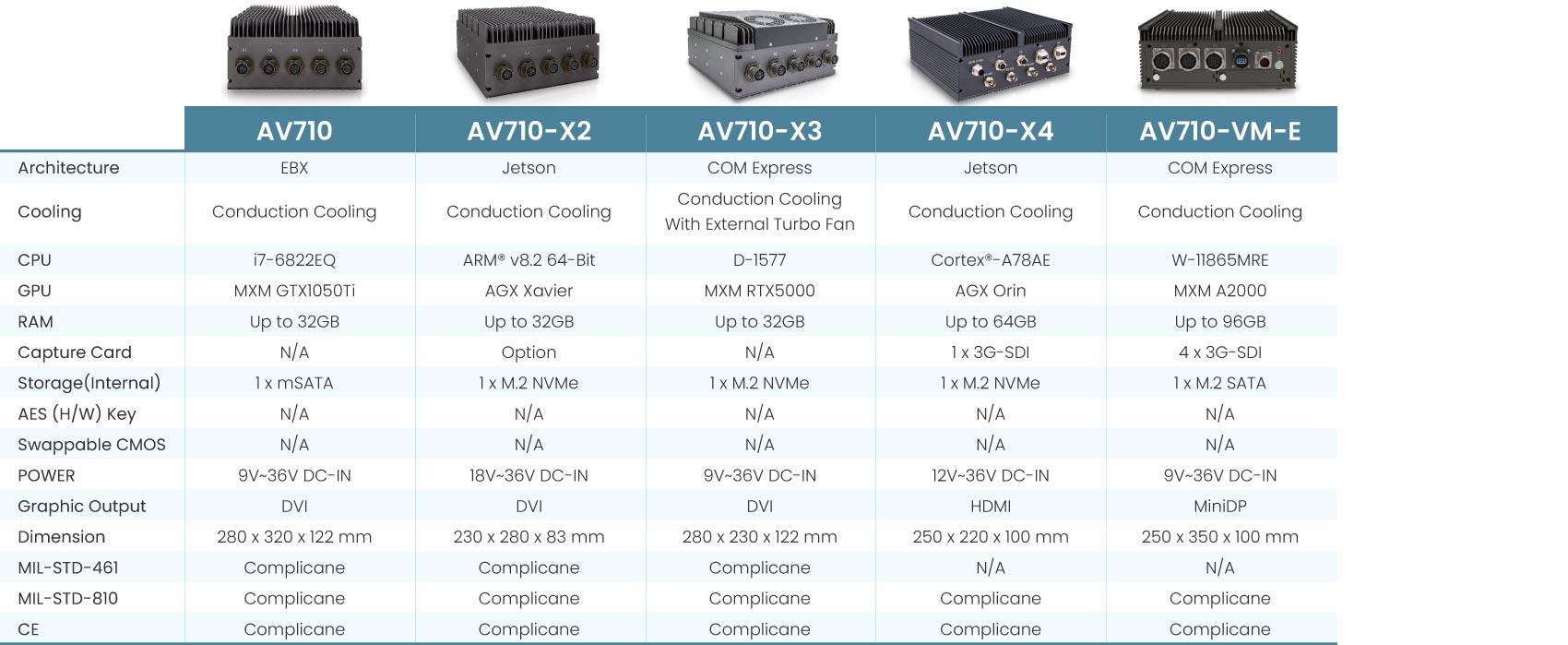

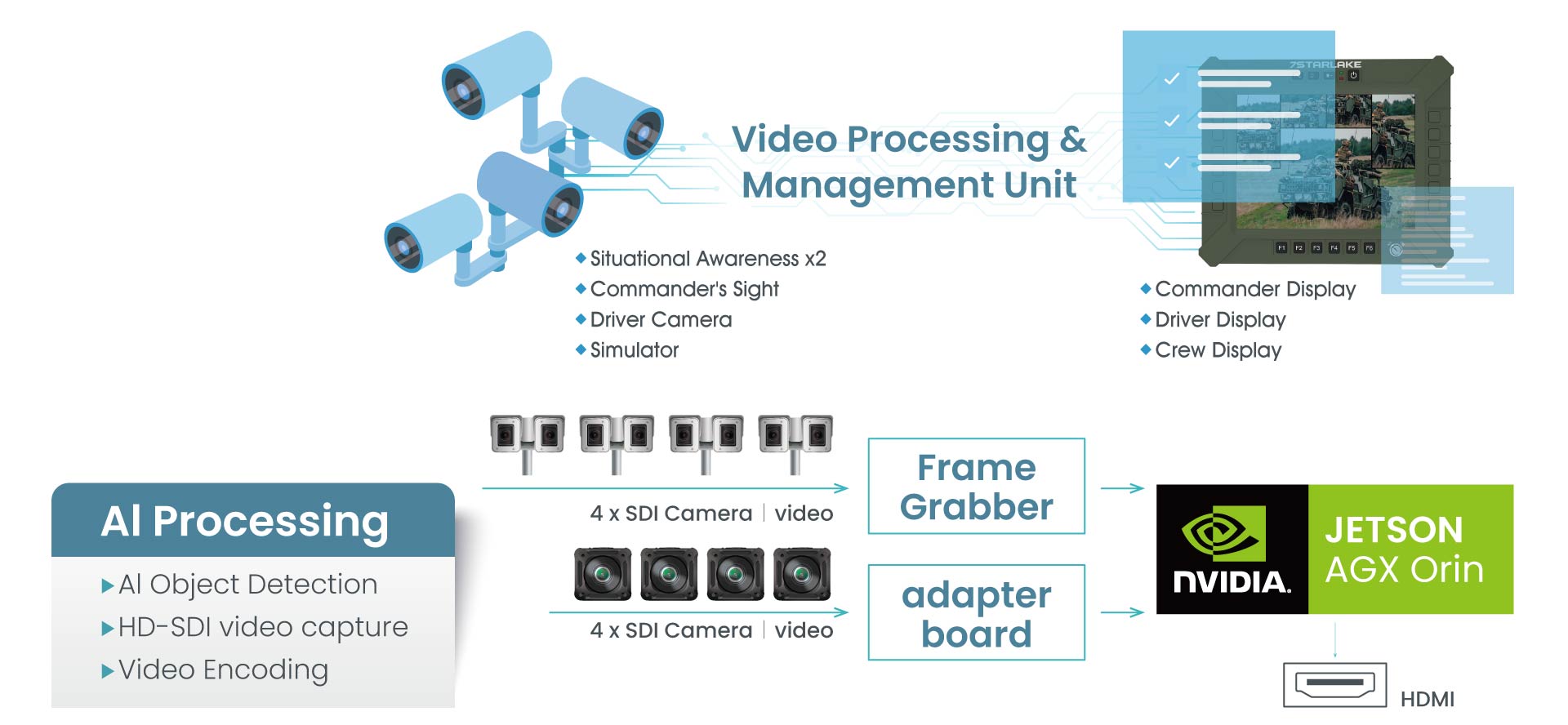

AV710 GPU Computing

The NVIDIA Jetson AGX Orin module is optimized for AI and machine learning workloads, featuring powerful CUDA cores for neural network computations. This enables efficient execution of tasks like image recognition and object detection, making it ideal for edge AI applications in constrained environments.

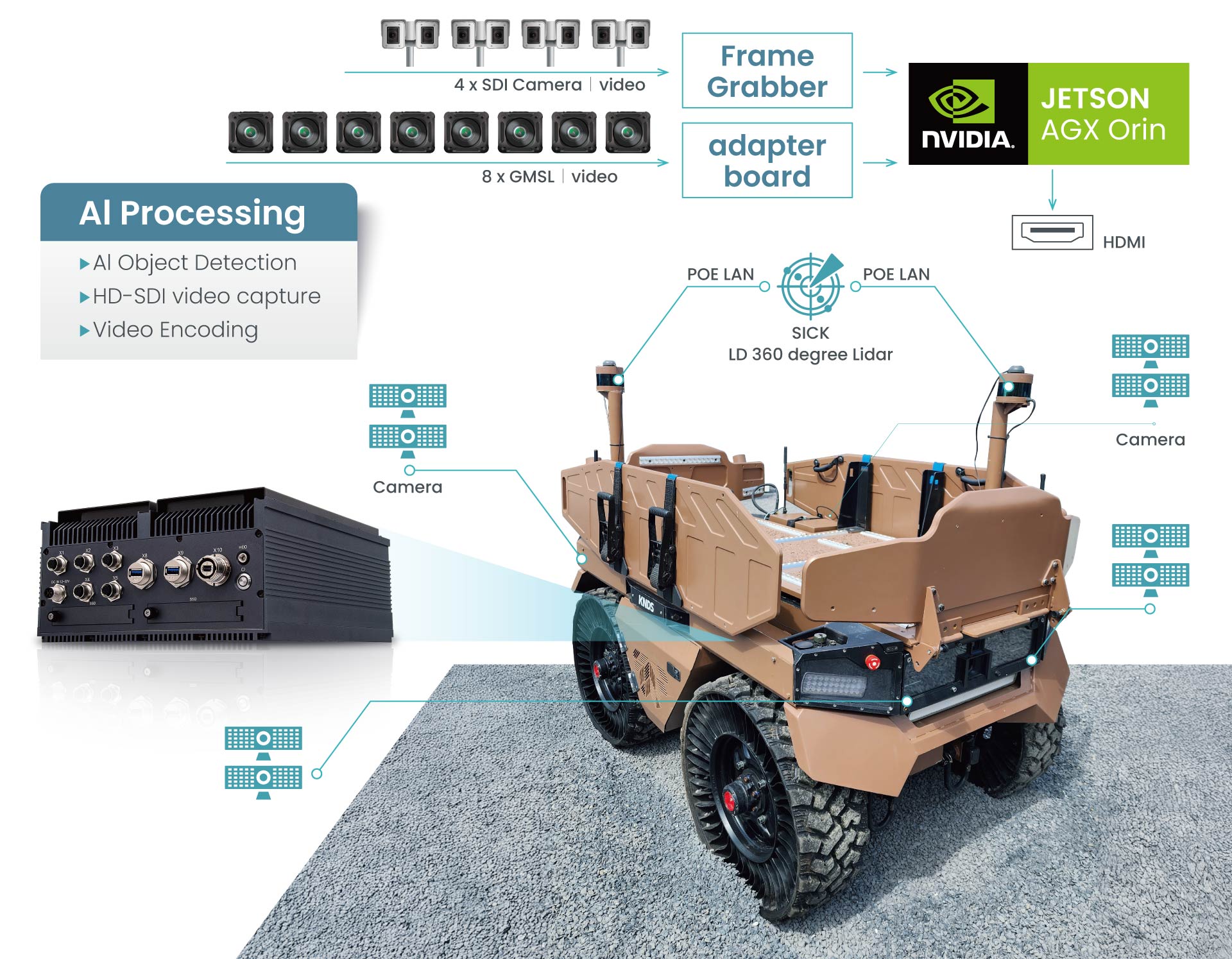

NV300 GPU Computing

The NVIDIA Jetson AGX Orin module offers top-tier performance for AI applications, featuring an Ampere GPU with 2048 CUDA and 64 Tensor cores, a 12-core ARM CPU, 32GB LPDDR5, and 64GB eMMC storage. It supports real-time AI inference, sensor fusion, and high-performance computing for demanding workloads.

NV200 GPU Computing

The NVIDIA Jetson Orin NX module is optimized for AI and machine learning workloads, featuring powerful CUDA cores for neural network computations. This enables efficient execution of tasks like image recognition and object detection, making it ideal for edge AI applications in constrained environments. It powers applications such as autonomous robots, smart cameras, drones, and IoT devices, providing advanced AI capabilities while maintaining energy efficiency and compact form factor.

5_Applications and Use Cases

Armored Vehicle Security

Implementing a 360-degree panoramic defensive bubble with the IV320’s 8x 3G-SDI channels and GPGPU integration, these systems provide early detection and tracking of air and surface targets, enhancing vehicle protection and decision-making capabilities in combat scenarios.

6_Conclusion

Summary

The IV320 , AV710, NV200 and NV300 HPC systems, powered by Intel and NVIDIA technologies, integrate advanced 3G-SDI and frame grabber capabilities to deliver high-performance computing solutions for defense and industrial applications. These systems enhance ISR capabilities, enable quick decision-making, and provide robust computational power in harsh environments.

7_Product Lists

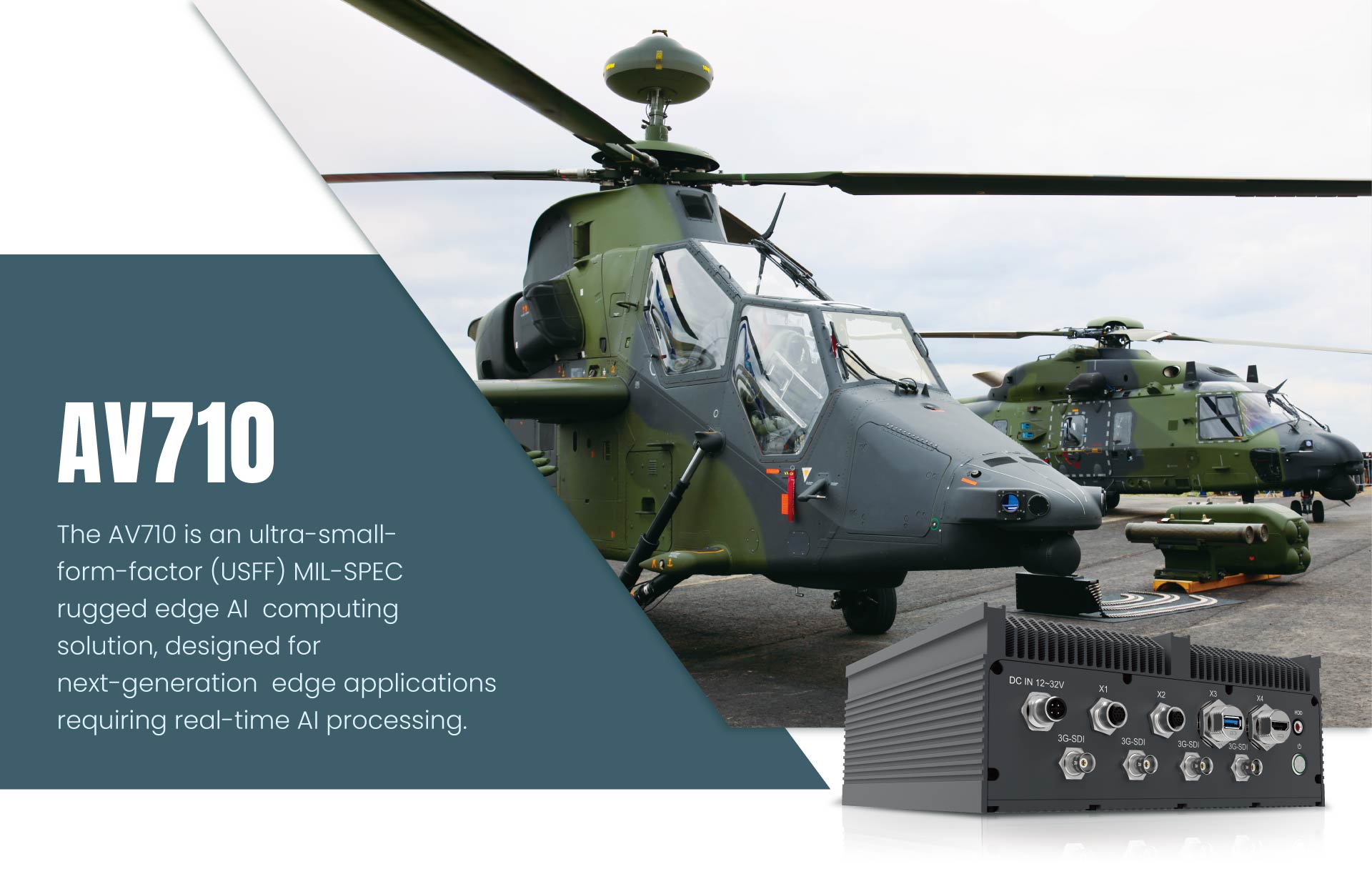

Product Lists_AV710

Future developments and enhancements for the AV710 will focus on increasing computational performance, expanding AI capabilities, and further ruggedizing these systems to meet evolving defense and industrial needs.

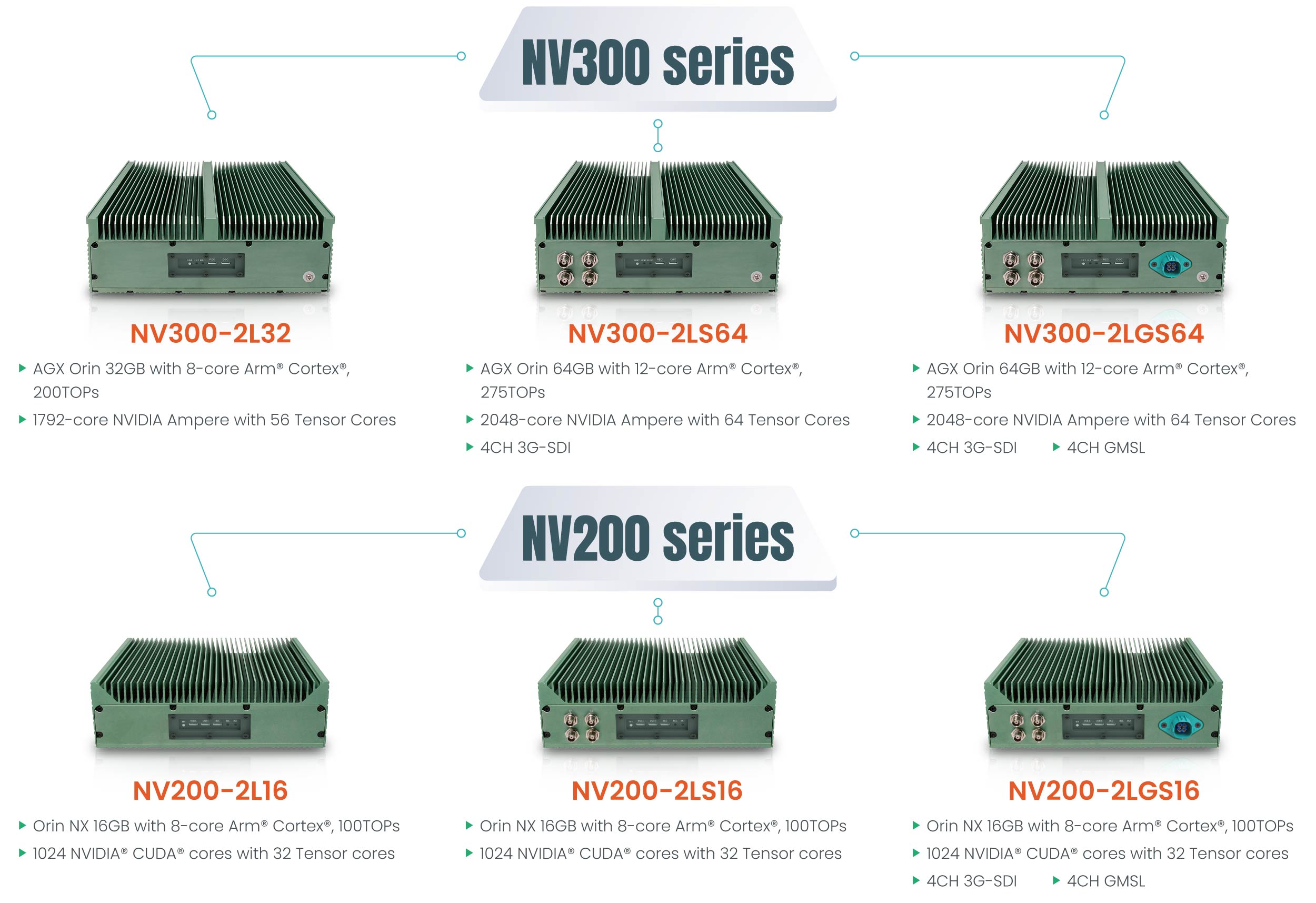

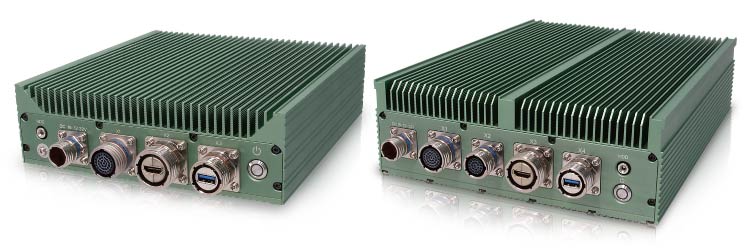

The NV200 and NV300 series

represent a robust and versatile range of video transmission solutions designed to meet the demanding requirements of various applications. These series are engineered to deliver high-performance, reliability, and advanced features for seamless integration into any professional video setup.

8_COMe T6/T7

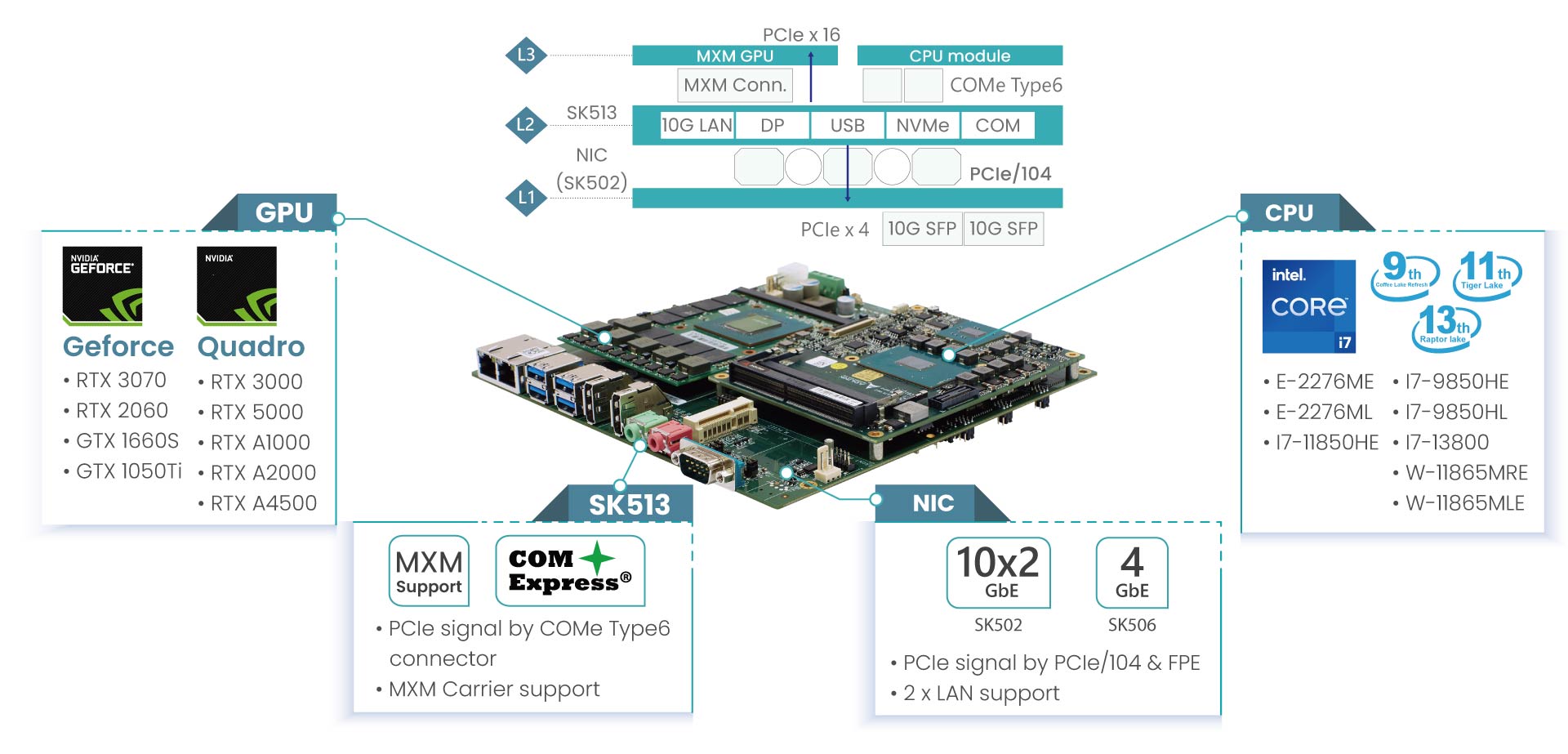

SFF COMe T7＞SK517

SFF COMe T6＞SK513/SK515P

9_Highlights

MIL-STD-810

High Temperature

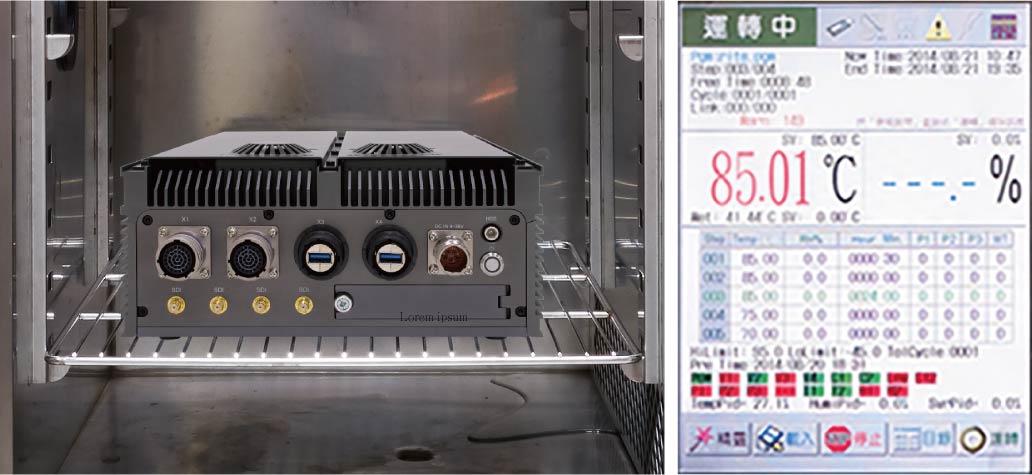

MIL-STD-810G Test Method 501.5 high Temp

(96 hours@75°C non-operating + 72 hours @ 75°C operating)

Low Temperature

MIL-STD-810G Test Method 502.5 Low Temp

(96 hours@-40°C non-operating +72 hours@-40°C operating

This testing method is broken down into two procedures.

Procedure I (storage) exposes the system to high temperatures while it is turned off, and its purpose is to test the durability of the materials that make up the system. The chamber temperature is 75°C and the test duration is 96 hours.
Procedure II (operation) is to test how the device puts up with heat while having it turned on and used.
The chamber temperatures used in an operational cyclical test is 75°C, and the test duration is 72 hours. The temperature needs to cycle from one end to the other a minimum of three times while testing that the device functions at every point in the test.

There are two parts in this test to determine whether the system can persevere in extremely cold environment.

Procedure I (storage) exposes the system to low temperatures while it is turned off, and its purpose is to test the durability of the materials that make up the system. The chamber temperature is -40°C and the test duration is 96 hours.
Procedure II (operation) testing involves slowly cooling the device to the low temperature and leaving it at that temperature for at least two hours, checking to see that it is still functioning during that time. The chamber temperature is -40°C and the test duration is 72 hours.

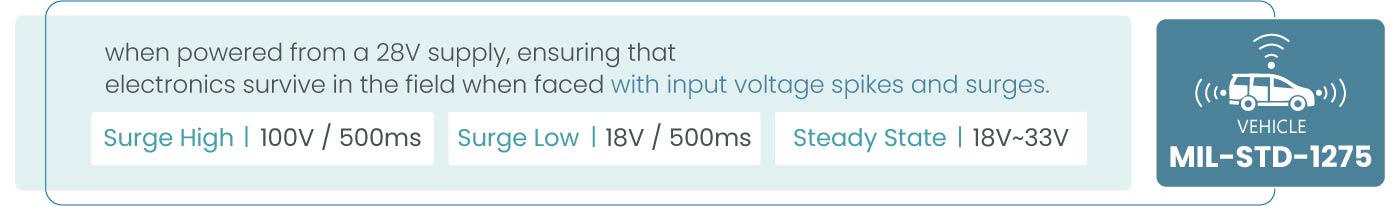

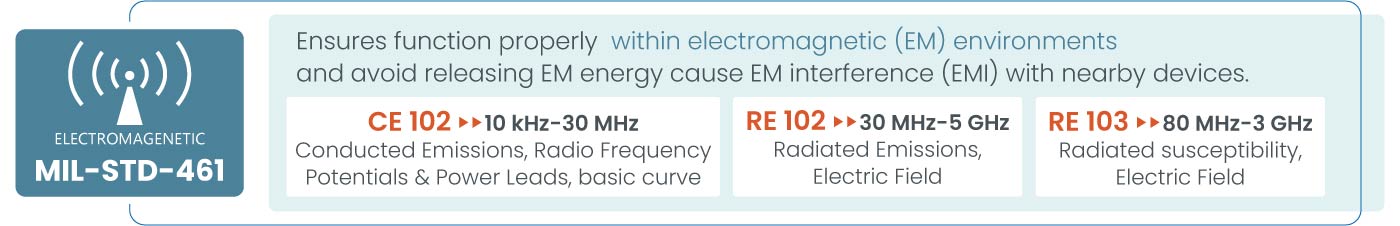

MIL-STD-461/ 1275 Certified

Electronic Warfare(EW) has become more and more common in battlefield, and maintaining Electromagnetic Spectrum Superiority is one of the key goals.
AV600/SR700 Series is certified with MIL-STD-461/1275, which ensure to withstand Voltage Spikes, control electromagnetic interference (EMI) emissions and maintain electromagnetic compatibility (EMC).
