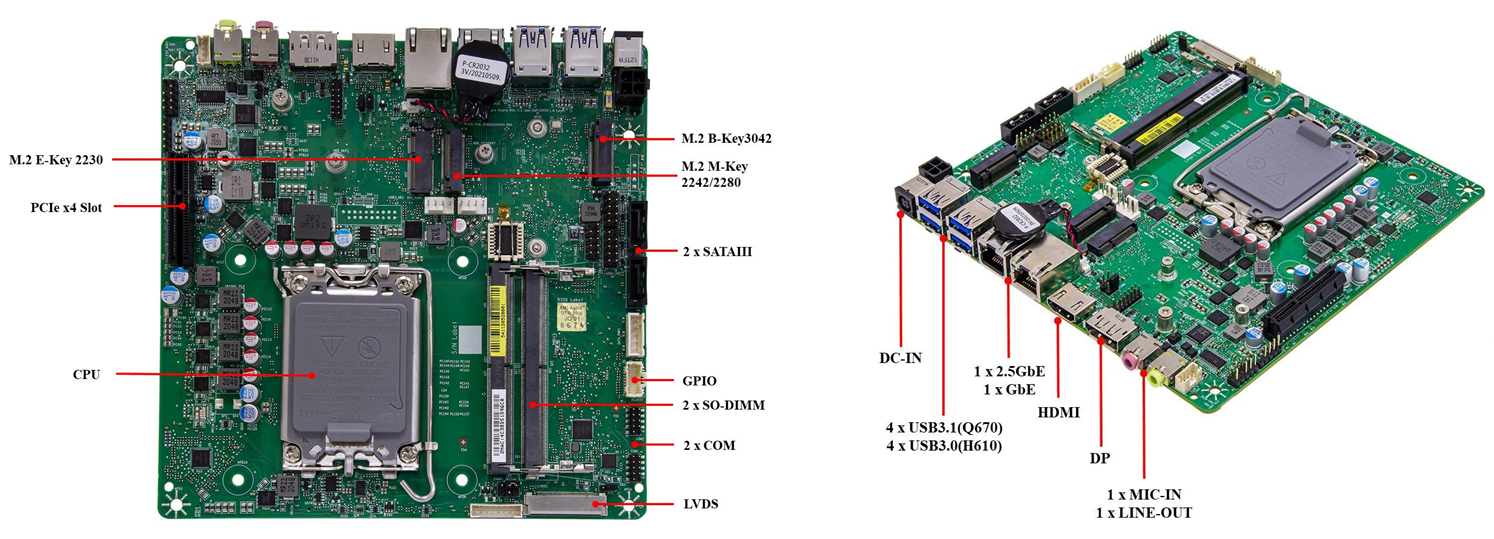

INS8367B

  • Support Intel® 12th Core™ i9/ i7/i5/i3 Alder Lake-S LGA1700 35W/65W Socket Processor
  • Intel® Q670 Chipset
  • 2 x DDR5 SO-DIMM up to 64GB
  • 6 x USB3.1 ; 5 x USB2.0
  • 1 x HDMI ; 1 x DP ; 1 x LVDS(eDP optional)
  • 1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x PCIe 3.0 x 4
  • 2 x SATAIII
  • 1 x 2.5GbE +1 x GbE LAN
  • DC-IN 12V
  • Operating Temperature : ET : -20°C ~ 70°C ; UT : -40°C ~ 85°C
