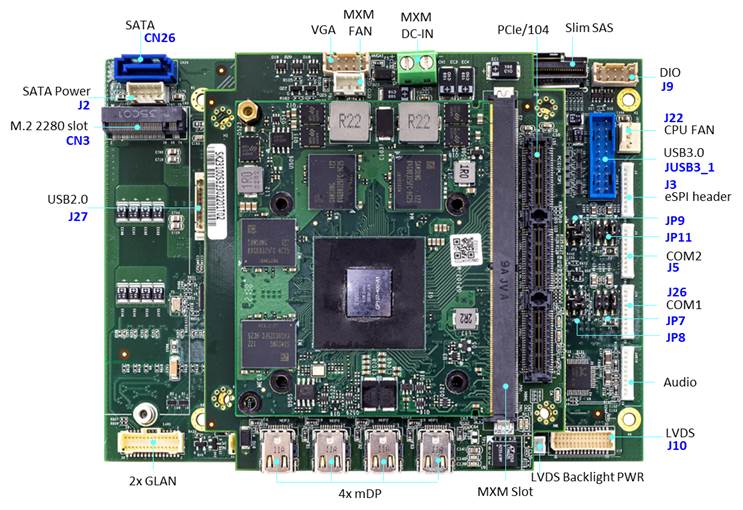

PCIe104-TH
PCIe/104 Processing Unit with Intel® 11th Tiger Lake (H)
- PCIe/104 Express Type2 Slot for Open Modular Architecture
- Standard MXM Type 3.1 Support NVIDIA QUADRO® GPU
- Intel® 11th Tiger Lake-H Xeon®/Core-I Processor, 8C, 4.7Ghz, 24MB cache
- NVIDIA® Ampere® Quadro MXM A4500 GPU ( 16GB GDDR6, 5888 CUDA)
- Multi-Expansions include Dual Mini PCIe Express Slots
- GPU can be targeted for 4 Mini Display port outputs
- Extreme Temperature support -40°C to 85°C
- Technical Profile
- Specifications
- Order Information
- What is PCIe/104?
-

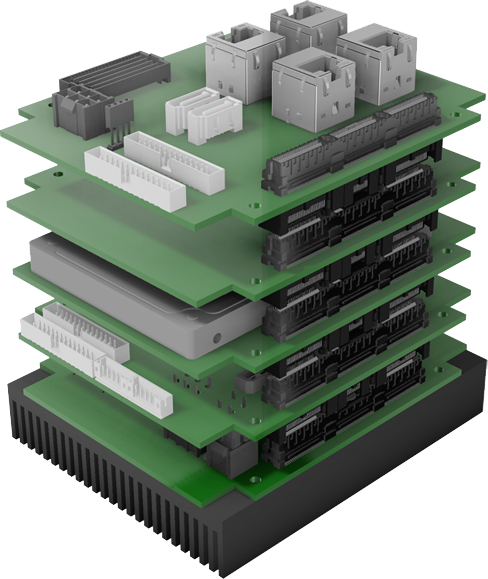

PC104 is an embedded computer standard defined by its compact footprint and its stacking bus structure. Fundamentally, PC104 is a modular, ruggedized version of the PC. Instead of using a backplane, PC104 modules mate together via stackable ISA, PCI, and PCIe bus connectors. Its vertically scalable design realizes high performance and reliable connectivity in a compact system and minimizes SWaPC. Stackable connectors and unequal corner mounting holes create a compact and modular rugged system. PCIe104X built-in bus connectors make instant expansion possible.
The heart of PCIe/104 architecture is its stacked-board technique. With standardize and stackable PCIe/104 connectors, multiple modules can be plugged and stacked into a block unit.
From common need like CPU, GPU and CAN to more customer-designed expansion like frame grabber and 10 GbE Fiber, PCIe/104 solution creates a simplified but diverse embedded system that can achieve every designer’s unique project requirements.

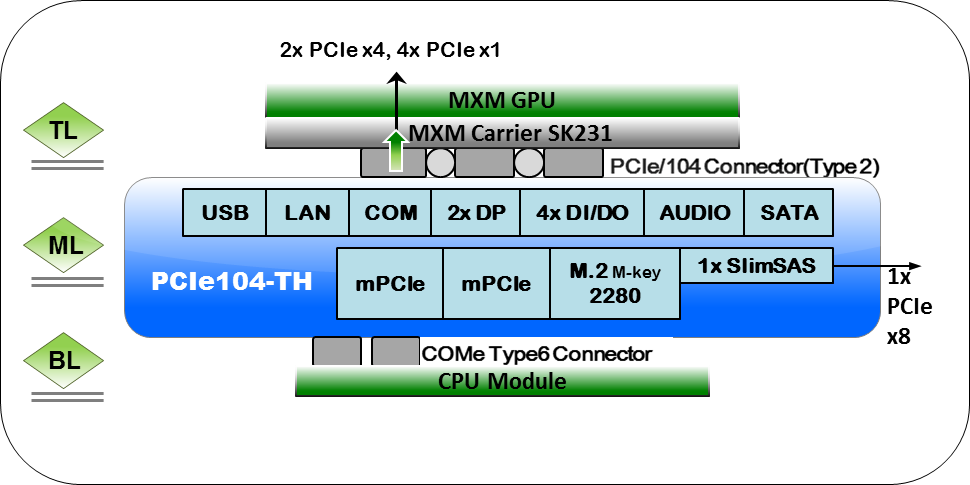

- Block Diagram
-
|
System |
||
|---|---|---|
|
CPU Options |
Intel® Core™ i7-11850HE, 45W, Tiger Lake 11th Gen, 8C , Freq. 2.6 /4.7 GHz, 24MB cache Intel® Xeon® W-11865MLE, 25W, Tiger Lake 11th Gen, 8C , Freq. 1.5 /4.5 GHz, 24MB cache Intel® Xeon® W-11865MRE, 45W, Tiger Lake 11th Gen, 8C , Freq. 2.1 /4.7 GHz, 24MB cache |
|
| GPU Options |
NVIDIA® Ampere RTX A1000, 35W, 4GB GDDR6, 2,048 CUDA Cores NVIDIA® Ampere RTX A2000, 36W/80W, 8GB GDDR6, 2,560 CUDA Cores NVIDIA® Ampere RTX A4500, 80W/130W, 16GB GDDR6, 5,888 CUDA Cores |
|
| PCH |
QM580E ( with i7-11850HE ) RM590E ( with W-11865MLE & W-11865MRE ) |
|
|
Memory |
DDR4 3200MHz SO-DIMM up to 96GB |
|
| On Board NVMe SSD | 64GB ( Only W-11865MRE SKU) | |
|
MXM Carrier |
SK231 |
|
|
Expansion |
||
| MiniPCIe Expansion |
1x Full-size mini PCIe 1 1x Full-size mini PCIe 2 support m-SATA |
|
|
PCIe/104 Expansion(Type2) |
2x PCIe x4 ; 4x PCIe x1 |
|
| M.2 | 1x M.2 2280, PCIe x4 | |
| SlimSAS | 1x SLimSAS 8i connector | |
Storage |
||
| SATAIII | 1x SATAIII | |
|
Display |
||
| Mini DP | 4x Mini Display Port outputs from GPU | |
| VGA |
1x VGA from GPU (option) |
|
| LVDS | 1x Dual channel 18/24bit LVDS | |
|
Ethernet |
||
|
Ethernet |
Intel® I226-LM GbE LAN (10/100/1000Mbit /2.5G) Ethernet ports |
|
| Ethernet | GbE LAN from CPU module | |
|
I/O |
||
|
USB |
2x USB3.0 |
|
| 2x USB2.0 | ||
|
COM port |
2x RS232/422/485 |
|
| DIO | 4x DI/ 4x DO | |
| eSPI | 1x 10Pin | |
|
Audio |
1x Line-out, 1x Mic-In |
|
|
Power System |
||
|
Input Power |
9V~36V DC-IN 12V DC-IN for CPU FAN |
|
| Input Power by MXM carrier board | 12V DC-IN for GPU FAN | |
|
Mechanical and Environment |
||
|
Dimensions |
146 mm x 110 mm |
|
|
Operating Temperature |
0°C to 55°C -40°C to 85°C (By Option) |
|
|
Storage Temperature |
-40°C to 85°C |
|
| Relative Humidity | 10% to 90%, non-condensing | |
|
Standard Compliance |
||
|
Standard Compliance |
CE/FCC |
|
| OS | ||
| OS Support |
Windows® 10 64bit Linux(Support by request) |
|

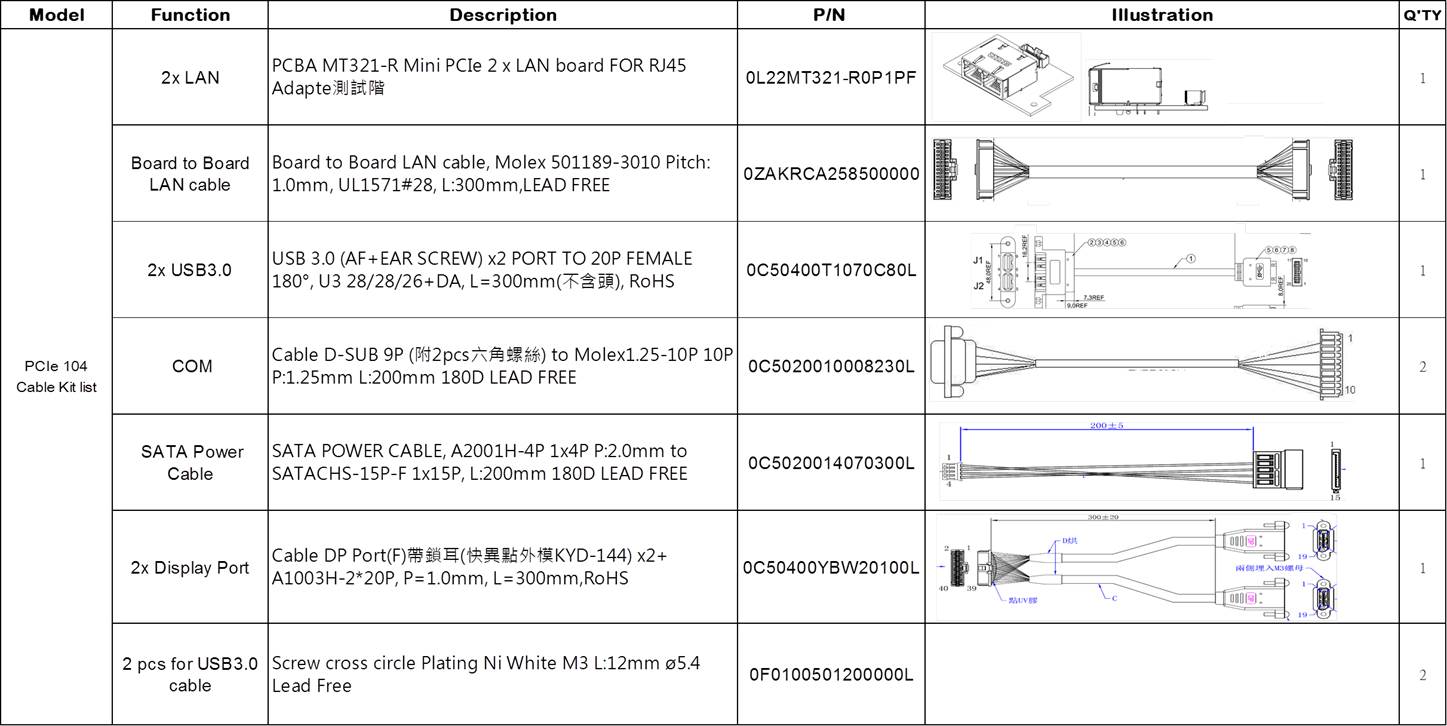

Cable Kit
