Introduction

The SR800-X2 equipped Ultra-High Performance Intel^® Xeon^® D-1736NT is fully qualified IP65 with D38999 connectors which can offer the highest performance capabilities and ready to handle multiple applications in harsh environments. SR800-X2 is designed to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog.
SR800-X2 is MIL-461/1275 EMI/EMC compliance  rugged workstation. It passes numerous environmental tests including Temperature, Altitude, Shock, Vibration, Voltage Spikes, Electrostatic Discharge and more. The sealed compact chassis shields circuit cards from external environmental conditions such as sand, dust, and humidity.

Ultra-High Intel^® Xeon^® ICE LAKE - D LCC Processor ( 8 Cores, 16 Threads, 15MB Cache )

ICE LAKE -D LCC :

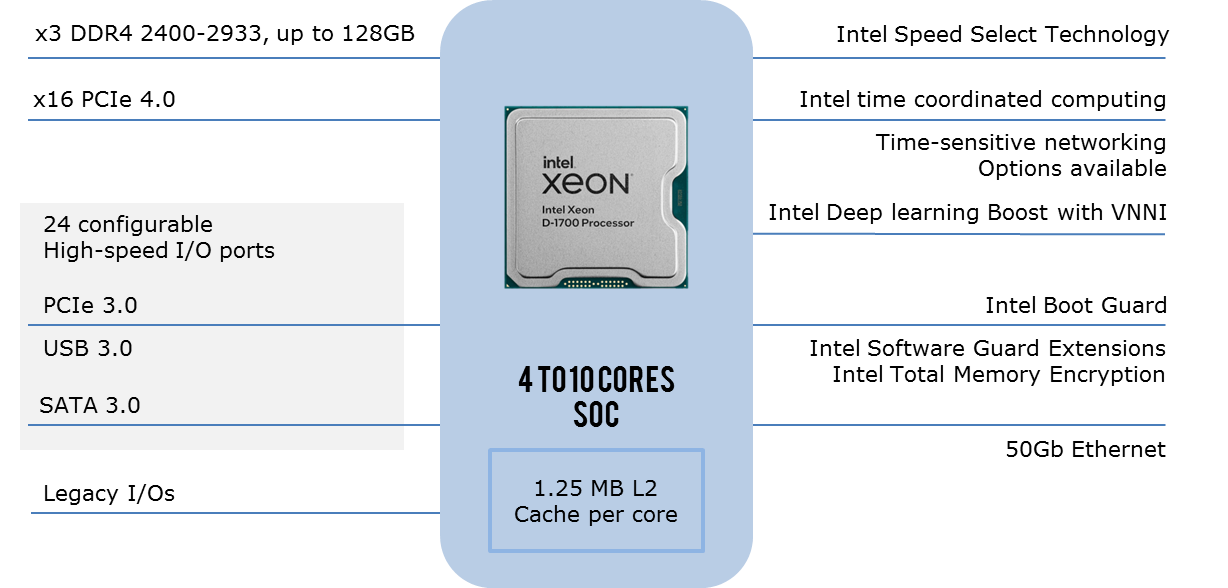

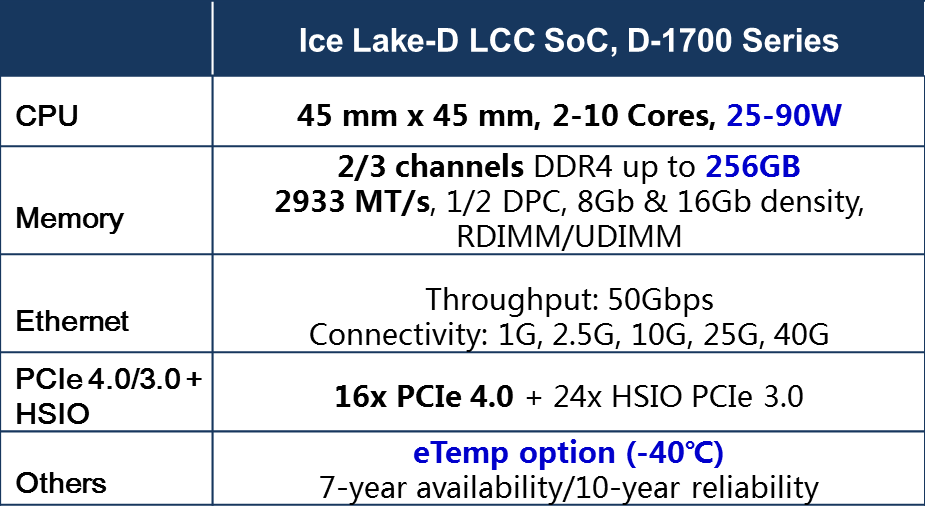

Intel^® Xeon^® processor D-1700 product family offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel^® Xeon^® reliability, availability, and serviceability (RAS) to the edge.



Enhanced performance per watt:

Intel^® Xeon^® processor D-1700 product family delivers exceptional value and unmatched performance density per watt. Its TDP of 47W to 90W, industry-leading 14 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.


Enabling more IoT Use Cases:

The Intel^® Xeon^® processor D-1700 product Family drives a host of new IoT opportunities for a wide range of environments, while addressing real-time optimization, and workload consolidation. Its temperature rating spans from -40°C to 85°C operating ambient conditions, which establishes new possibilities for Intel® architecture in markets that require robust products, like aerospace and industrial.







Unique Features

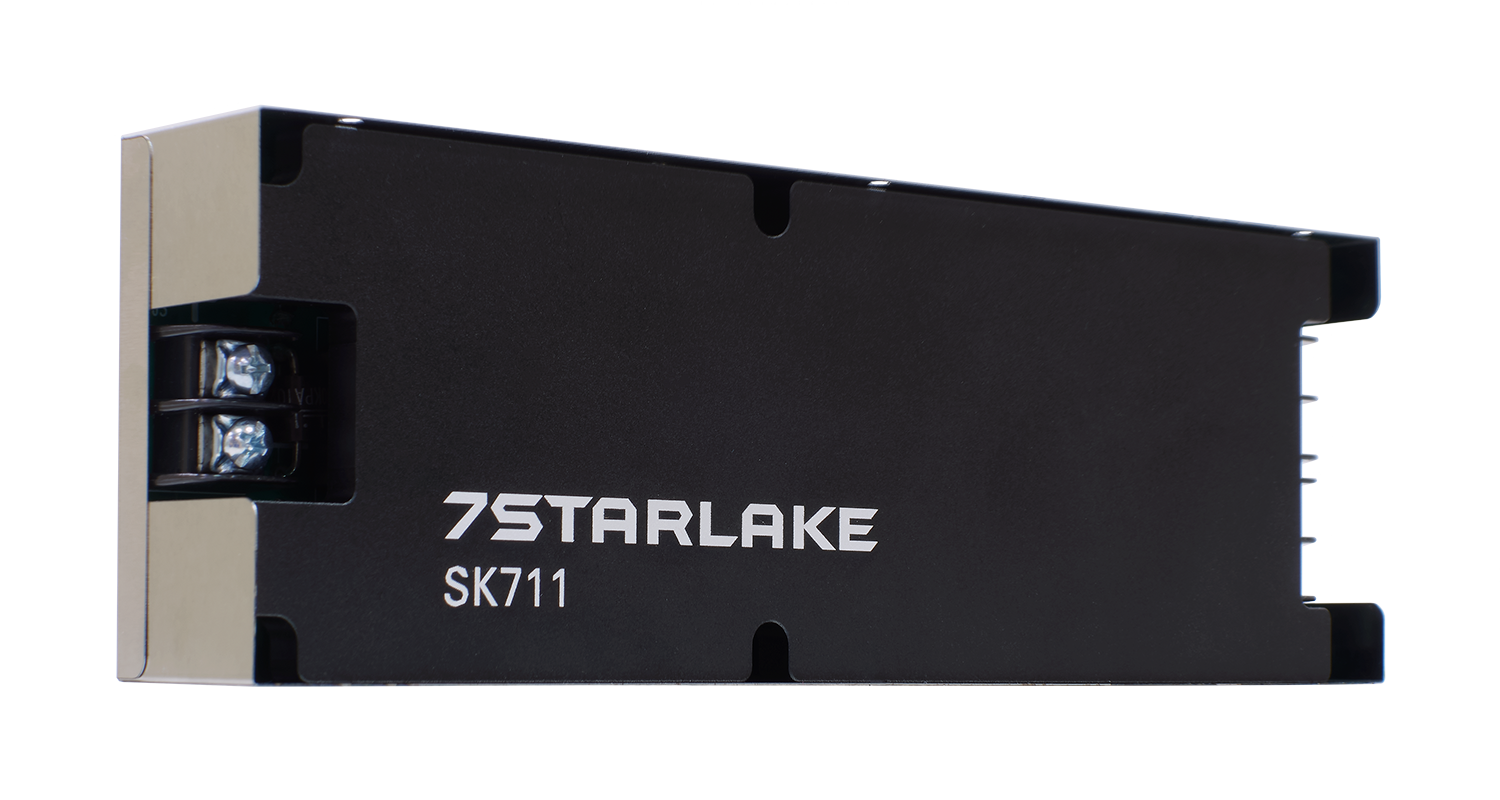

SK711, MIL-STD 461 EMI certified power module adopted by SR800-X2 & HORUS430, supports input range from 18V to 36V. Compliant with MIL-STD 461, SK711 performs as an ideal converter module for severe environment. The Cosel Hi-Rel DC/DC CONVERTER also provides ,Output Over Current Protection (OCP), Output Overvoltage Protection (OVP) and Over Temperature Protection (OTP) to made stability and safety. Module Compliance with MIL-STD-461C/D/E Standards. Furthermore, with parallel design, two SK711 combining can generate double power of 300W, supporting prominent system performance.

SK711 is a wide input board type converter supporting input range from 18V to 36V. Possessing military standard filter for EMI avoidance, SK711 guarantees the stability of voltage and electric current for system operation, especially suitable for application in military or other harsh environment. Furthermore, with parallel design, two SK711 can be combined for double power of 300W, supporting prominent system performance. Compliant with MIL-STD 461, extended operating temperature from -40 to 85°C, SK711 performs as an ideal converter module for severe environmental usage. The Cosel Hi-Rel DC/DC CONVERTER it also provides Output Over Current Protection (OCP), Output Overvoltage Protection (OVP) and Over Temperature Protection (OTP) to made stability and safety.

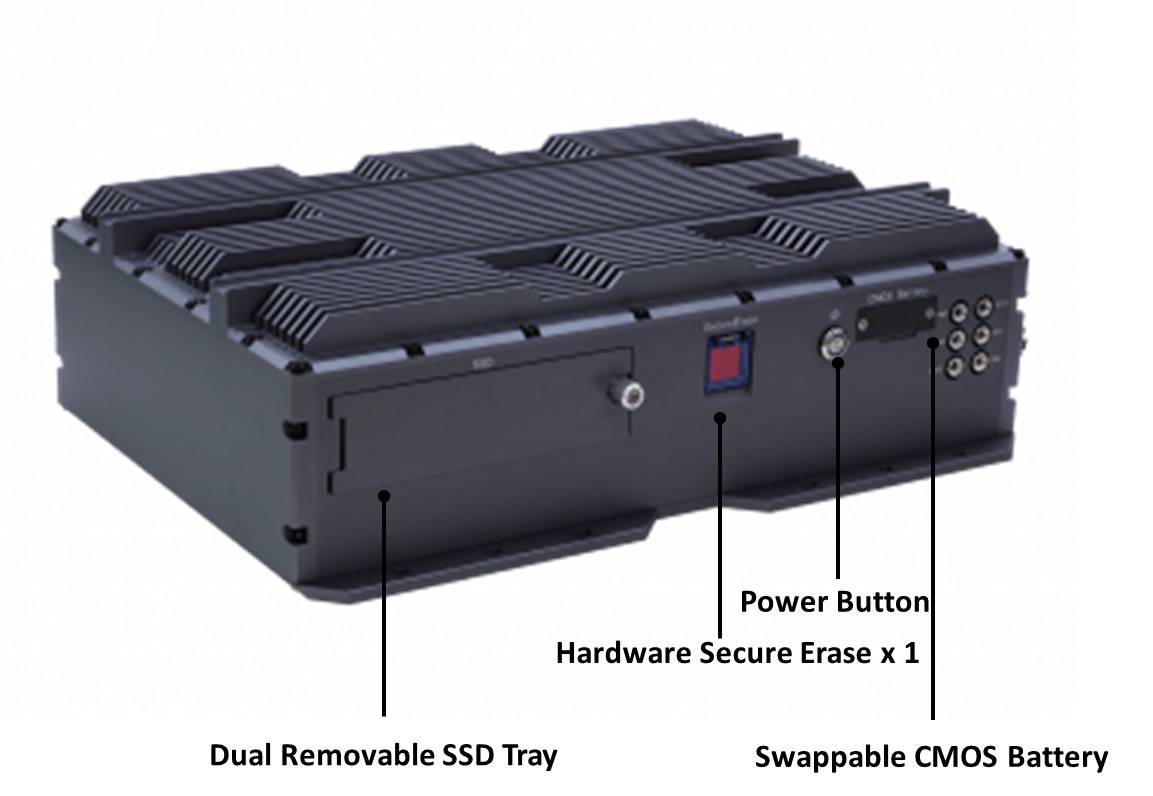

Swappable CMOS Battery

Generally, to exchange the battery from a rugged solution is complicated and has the possibility to affect the original function of water and dust resistance. SR800-X2 has an easy swappable battery tray allowing users to directly replace. A coin-cell battery can be seen when pulling the tray fully out of the computer; users just need to change with CR2032 battery and push the tray back and lock screw, then the replacement is completed.



Dual Removable SSD ( Solid-state Disk )

The dual Removable SSD (Solid-state Disk) provide a compact self-contained system to store and retrieve data from ruggedized and removable 2.5” Flash Disks and have been qualified to meet the most demanding MIL-STD-810 environments. The dual Removable SSD Disk System is the perfect DTU for military, aerospace, avionics and ground vehicle systems. These systems include flight management, cockpit instrument display, terrain awareness and warning, map systems, radar systems, cockpit/ground communications, navigation positioning, and satellite communications.

Hardware Secure Erase

Under emergency situation, when written data is required to be erased immediately, a Secure Erase Button is extremely indispensable. Instant Erase is a particular feature for SED ( Self Encryption Drive ) drive. It's faster than Quick Erase to make all written data invalid. The encryption and decryption is controlled by an AES key on the path; once the AES key is replaced by a new one, the data becomes unrecognizable.

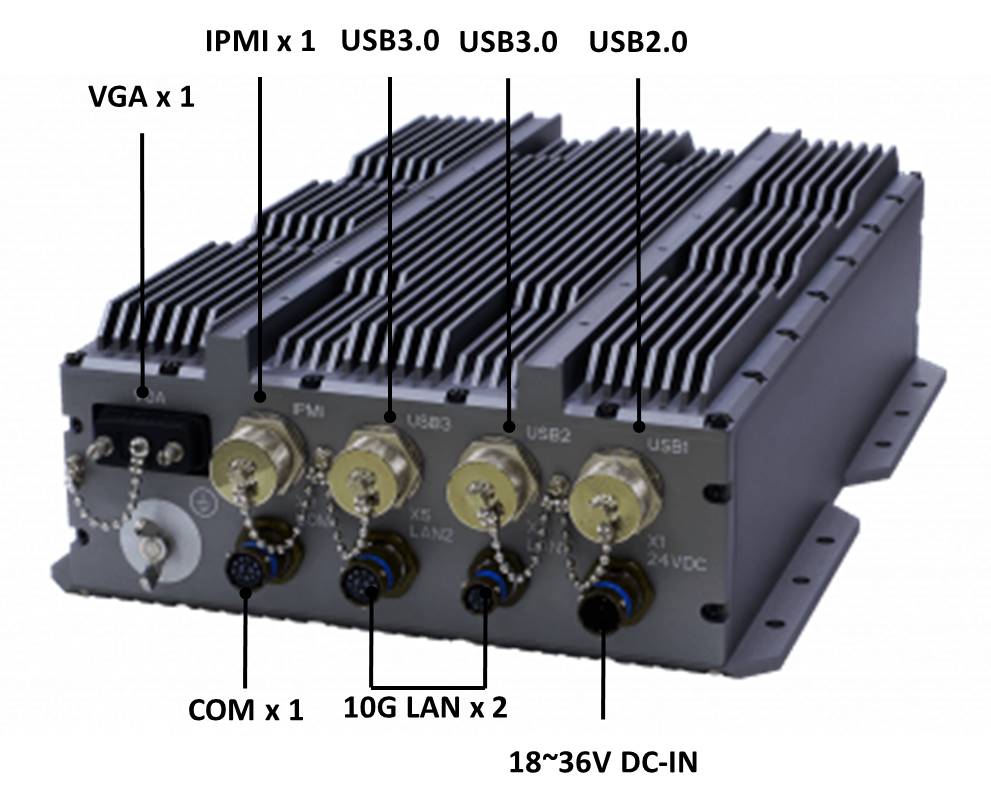

D38999 connectors offer the highest performance capabilities and reliability for both general duty and severe environment applications. This cylindrical connector family designed for cable-to-panel I/O applications in military, aerospace and other demanding hazardous situations. D38999 connectors are capable of operation within a temperature range -65 to 200°C. They are lightweight and can stand up to environmental challenges. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.
