7STARLAKE Introduces ROC230 Series Rugged 1U Fanless Xeon® SoC Servers for Mission-Critical Edge Applications
7STARLAKE, a leading provider of rugged military computing solutions, today announced the ROC230 Series, a new family of 1U ultra-short-depth, conduction-cooled servers powered by the high-performance Intel® Xeon® SoC. Designed for space-constrained deployments, the systems deliver exceptional edge computing for demanding defense and industrial applications.
Accelerated Edge Computing with Intel® Xeon® D-1700 Processor
Powered by the Intel® Xeon® D-1749NT processor (3.0GHz, 10 Cores, 20 Threads, 15MB Cache) based on the Ice Lake architecture, the ROC230 Series combines computing performance with power efficiency in a compact edge platform. Built for mission-critical edge and defense applications, it incorporates Intel® Xeon® reliability, availability, and serviceability to deliver the stability required in demanding operating environments, supporting real-time optimization and workload consolidation.
Conduction Cooling for Superior Thermal Performance and System Reliability
Built on a conduction-cooled architecture, the ROC230 Series incorporating heat pipes and heat spreaders, enables efficient thermal management with exceptional durability. Honeycomb ventilation on the top, sides, and rear enables efficient natural convection cooling, ensuring reliable fan operation. By minimizing reliance on forced-air cooling, the platform delivers low-maintenance performance while enhancing resistance to shock and vibration. This rugged design makes it well suited for defense and industrial applications where long-term system reliability is essential.
Flexible Deployment in Space-Constrained Environments
Featuring a compact 1U form factor with a 380 mm short-depth chassis, the ROC230 Series is designed for space-constrained deployments and flexible installation, supporting both rack-mount and standalone configurations. With four swappable SSD bays, the system enables flexible storage configurations, simplified maintenance, and rapid drive replacement to maximize uptime.
High-Bandwidth Networking for Real-Time Mission-Critical Applications
The ROC230 Series features 2 x 50GbE QSFP28 ports and 2 x 10GbE RJ45 ports, delivering the high-bandwidth connectivity required for real-time multi-sensor data fusion and tactical edge computing. A PCIe x16 expansion slot (HHHL) further enhances system versatility, supporting a wide range of high-speed networking, acceleration, storage, and I/O cards to meet evolving application requirements. Meeting the strict MIL-STD-810 requirement for extreme temperature operation from -20°C to 60°C, shock and vibration, the platform enables uncompromising reliability and seamless system integration for defense and edge environments.
Key Specifications
| ROC230-AC | ROC230-DC | |

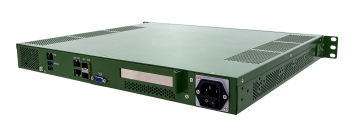

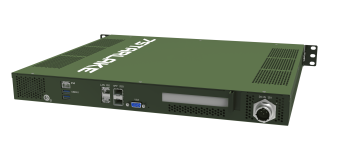

| Photo |  |  |
| Processor | Intel® Xeon® D-1749NT 10 Cores | Intel® Xeon® D-1749NT 10 Cores |
| Memory | Up to 128GB ECC RDIMM, DDR4-2666MT/s | Up to 128GB ECC RDIMM, DDR4-2666MT/s |
| Storage | 4 x 2.5” Swappable SATA III SSD | 4 x 2.5” Swappable SATA III SSD |
| Power Input | AC-IN 100-240V | DC-IN 12V w/DTL-38999 Connector |
| PCIe Expansion | 1 x PCIe x 16 slot (HHHL) | 1 x PCIe x 16 slot (HHHL) |
| Multi-display | 1 x VGA | 1 x VGA |
| LAN | 2 x 25GbE SFP28 2 x 10GbE RJ45 | 2 x 25GbE SFP28 2 x 10GbE RJ45 |
| IPMI | 1 x RJ45 | 1 x RJ45 |
| USB 2.0 | 2 x | 2 x |
| USB 3.0 | 2 x | 2 x |
| Thermal Type | Conduction Cooled | Conduction Cooled |
| Dimensions (W x D x H) | 430 x 380 x 44 mm | 430 x 380 x 44 mm |
About 7STARLAKE
7STARLAKE is a leading provider of cutting-edge rugged computing solutions, dedicated to developing innovative, SWaP-C-optimized, and combat-proven solutions for mission-critical applications. With decades of expertise in ultra-high-performance computing, we are committed to meeting the evolving requirements of prime contractors and system integrators across aerospace, defense, and transportation sectors. With a strong R&D and in-house design capabilities, 7STARLAKE delivers rapid customization and exceptional service, while maintaining the highest standards of durability, performance, and innovation, ensuring compliance with stringent certifications such as IP65 and MIL-STD-810/461.
