COM Express Type 6 carrier board w/PCIe 104, MXM, 9~36V DC-IN, Extended Temp. -40 to 85°C

  • COM Express Type 6 Support Intel® 9th Coffee Lake-H Processor
  • MXM Type 3.1 Support NVIDIA® GTX® / RTX® GPU
  • GPU Support Up to MXM RTX 5000 Ada (9728 CUDA, 16GB RAM)
  • PCI/104 Express Expansion Slot for Modular Open Structure
  • Multi-Expansion Slots include Dual Mini PCIe Express Slots, 1x M.2 Slot
  • Wide Range DC 9V~36V Input
  • Extreme Temperature Support -40°C to 85°C

Intel Gold

Download
Datasheet
Get A Quote
  • Technical Profile
  • Specifications
Introduction

Computer-On-Module (COM), is a highly integrated board with CPU, chipset, memory, and peripherals designed into a component module. COM Express Type 6 has become the most versatile and most scalable COM standard supporting everything from small-scaled and cost-sensitive applications up to high-end computing and graphics-intensive solutions.

7StarLake’s SK515P-T6CH COM Express defines Open Scalable Modular Architecture and pin-out Type 6 platform which is ensuring amazing computing performance and offering a broad range of I/O interfaces including intense graphics support, Digital Display Interfaces (Display Port, HDMI) and super-fast USB 3.0 to serve all kind of different application requirements.

SK515P-T6CH pin-out Type 6 is a complementary specification to the existing Type 6 pin-out. It is replacing the graphics support by offering multiple 10GbE-KR ports and defining 32 PCIe lanes. The Type 6 is an ideal definition to design server-grade platforms for applications requesting high data and network throughput.

SK515P-T6CH support a wide range of Intel processors, including  9th Coffee Lake-H. From low power consumption to high performance processing power, SK515P-T6CH is built to suit a wide range of computing applications from signal processing to unmanned vehicles. What’s more, SK515P-T6CH has the capability to operate in harsh environment. It accepts the extend range of temperature from -40 to 85°C. With outstanding computing capability and efficient thermal design, SK515P-T6CH is very suitable for industrial, military/aerospace and transportation.

Coffee Lake-H

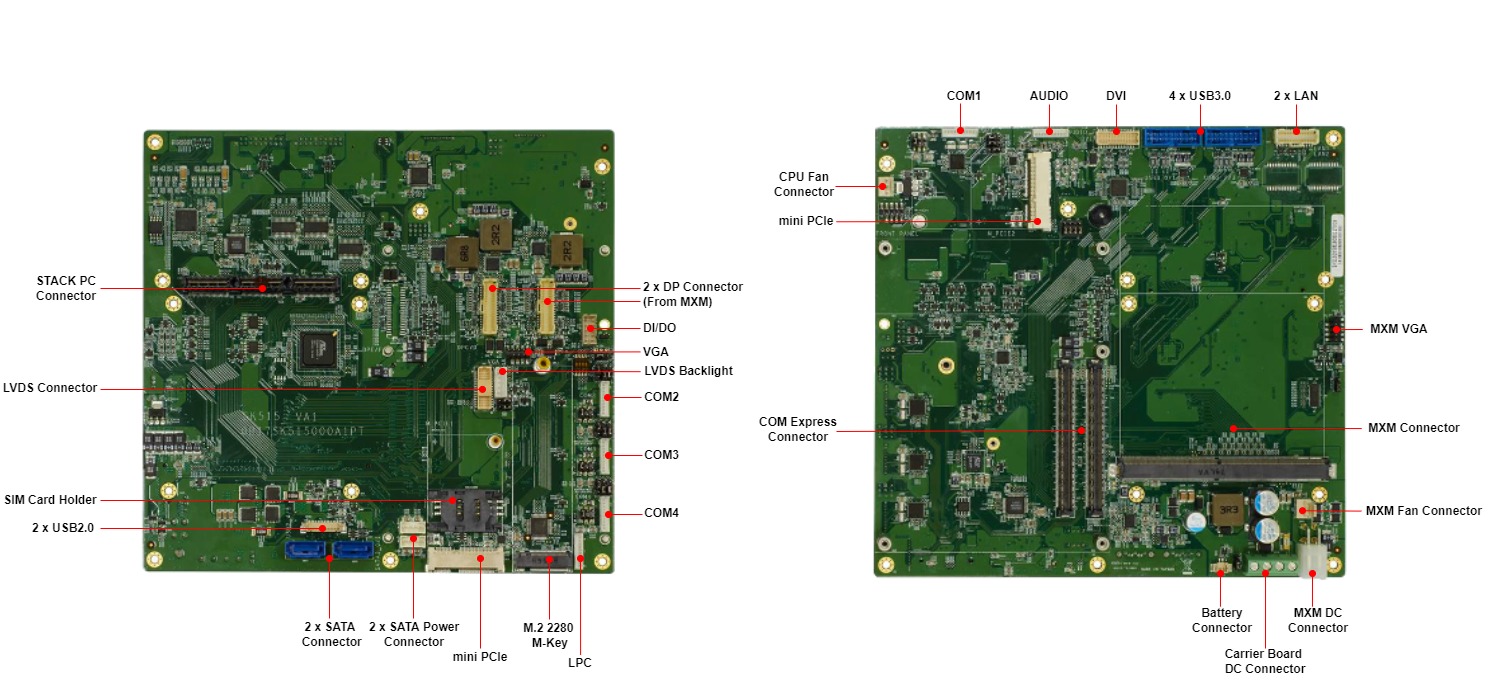

515
Rich Expansion Slot

SK515P-T6CH provides rich expansion to make the whole solutions easier. We could use PCIe 104 related product SK506, SK303, SK1050 and SK1660S：

12





  1. StackPC-FPE form factor
  2. PCIe/104 stackable bus structure
  3. Reliable Ethernet technology from Intel i350-AM4 controllers
  4. Total 6 independent LAN connections (2 from host board, 4 from Intel controllers)
  5. Flexible options for Ethernets through RJ45 or 10 pin headers
  6. High-performing bridgeless design supporting PCI Express Gen 2.1 5GT/s
  7. Extended temperature -40 to 85°C



  • SK401:
  1. Stack PC form factor
  2. PCIe/104 stackable bus structure
  3. Reserve PCI/104 connector for different stacking criteria
  4. Extended temperature -40 to 85°C



401

3
  1. PCI/104-Express, PCI & PCIe connectors (w/StackPC design)
  2. PCIe/104 stackable bus structure
  3. PCIe to PCI adapter function
  4. COM: 4 x RS232/422/485 with 5V/12V selectable and isolation function
  5. Extended temperature -40 to 85°C



  • NVIDIA Ampere RTXA2000/A4500 MXM 3.1 Graphics Module:
  1. Powered by NVIDIA RTX® A2000/A4500
  2. MXM 3.1Type-B Module
  3. A2000 High-speed 8GB GDDR6 Memory
  4. A4500 High-speed 16GB GDDR6 Memory
  5. A2000 2,560 new-gen. Pascal architecture CUDA cores
  6. A4500 5,888 new-gen. Pascal architecture CUDA cores
  7. Outputs 4 Channel Support
  8. Display Port 1.4 Ready
  9. Support NVIDIA CUDATM, OptimusTM, DirectX® 12, OpenGL® 4.5
MXM A2000

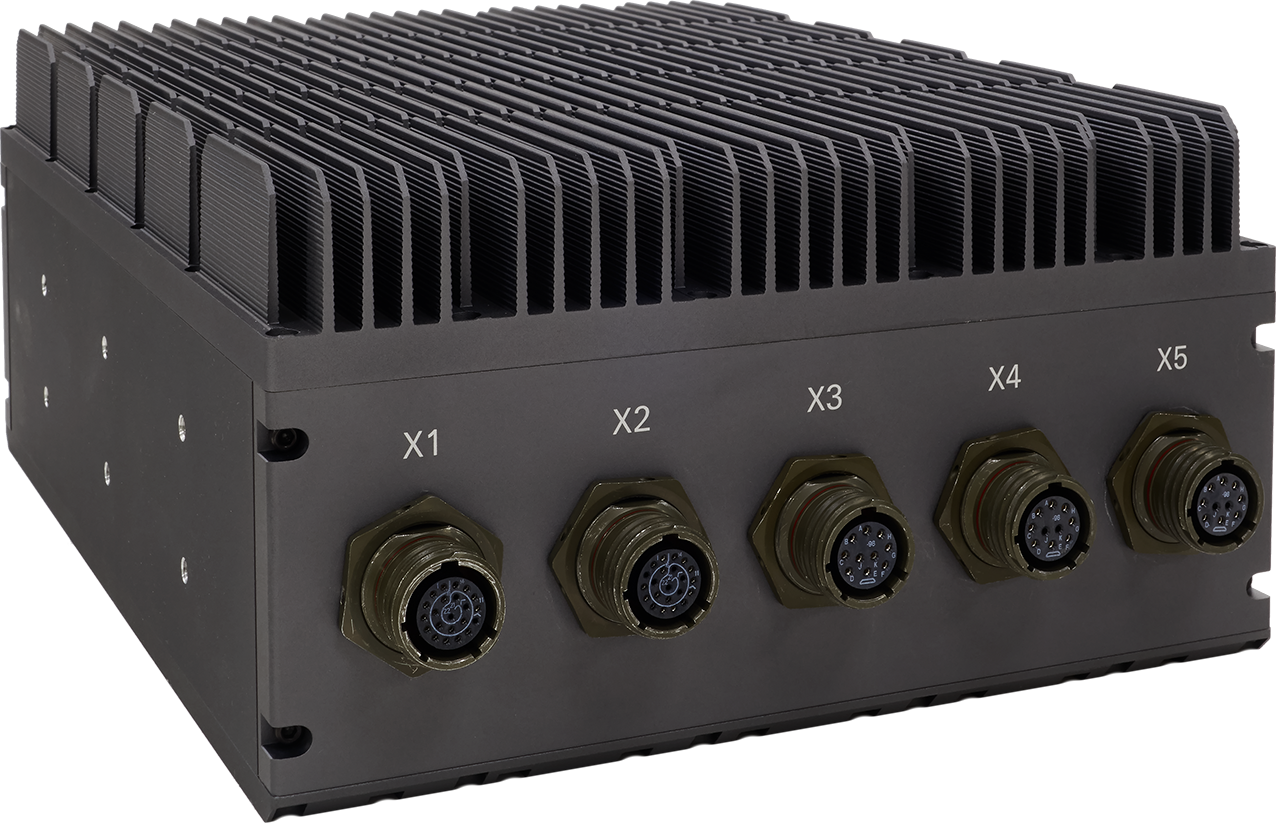

Targeting & Surveillance GPU Computer For Joint Battle Command Platform (JBC-P) , MIL-STD Fanless Rugged Computer with Intel® Core™i7-6822EQ , NVIDIA®GTX1050Ti CUDA 768 GDDR5-4GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB,IP65 protection, MIL-STD D38999 Connectors, 18~36V DC-in, Extended Temp. -40 to 70°C

  • GPGPU IP65 Mission Computer Design for Joint Battle Command Platform (JBC-P)
  • NVIDIA®GTX1050Ti CUDA 768 GDDR5-4GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB
  • Intel® Core™ i7-6822EQ Processor
  • Up To 32GB DDR4 Memory 1 x VGA, 2 x Gigabit Ethernet,2 x USB, 2 x COM
  • Rugged MIL-DTL-38999 connectors
  • 9~36V DC-in Options for DC/DC 18~36V DC-in (MIL461/1275)
  • Extended Temperature -40 to 70°C




HORUS430-X1_Red cap_01_w1500xh1000_0.png





System

COM Express CPU Options(Type6)

Intel® Xeon® E-2276ME, 45W Coffee Lake 9th Gen, 6C , Freq. 2.8 /4.5 GHz, 12MB cache

Intel® Xeon® E-2276ML, 25W Coffee Lake 9th Gen, 6C , Freq. 2.0 / 4.2 GHz, 12MB cache

Intel® Core™ i7-9850HE, 45W Coffee Lake 9th Gen, 6C, Freq. 2.7 / 4.4 GHz, 9MB cache

Intel® Core™ i7-9850HL, 25W Coffee Lake 9th Gen, 6C, Freq. 1.9 / 4.1 GHz, 9MB cache

GPU Module Options

NVIDIA® GeForce™ GTX 1660S, 95W, 6GB GDDR6, 1,048 CUDA Cores

NVIDIA® GeForce™ RTX 2060S, 175W, 8GB GDDR6, 2,176 CUDA Cores

NVIDIA® GeForce™ RTX 3080M, 135W, 16GB GDDR6, 6,144 CUDA Cores

NVIDIA® Ampere RTX A2000, 80W, 8GB GDDR6, 2,560 CUDA Cores

NVIDIA® Ampere RTX A4500, 80W/130W, 16GB GDDR6, 5,888 CUDA Cores

NVIDIA® Ada Lovelace RTX 3500 Ada, 115W, 12GB GDDR6, 5,120 CUDA Cores

NVIDIA® Ada Lovelace RTX 5000 Ada, 115W, 16GB GDDR6, 9,728 CUDA Cores

COM Express Compatibility

COM Express® Type 6
Expansion

Mini PCIe Expansion

2x Full-size Mini PCIe (1 with mSATA supported)

M.2 Expansion

1x 2280 M-key (SATA only)
PCIe/104 Expansion 4x PCIe x1、1x PCIe x4、5x USB2.0、1x LPC、1x SPI
SATAIII 2x SATAIII
Display

Display Port

2x Display Port outputs from GPU

VGA

1x output from COM Express®, 1x output from GPU

LVDS

1x dual channel 18/24bit LVDS
Ethernet

Gigabit Ethernet

2x 10/100/1000/2.5G Ethernet Ports(One from CPU module)
I/O

USB

4x USB3.0, 2x USB2.0

COM Port

4x RS232/422/485(function select by jumper)

Audio

1x Line-out, 1x MIC-In
SATA Power 2x SATA Power
DI/DO 4x DI/4x DO
CPU FAN 1x CPU FAN
MXM FAN 1x MXM FAN
Battery 1x Battery Header
Power System

Input Power_SYS

9V~36V (1x 4P Terminal Block)

Input Power_MXM

12V (ATX 4P)

Power Consumption

Varies per COM Express /MXM with different CPU and GPU models

RTC Battery

3V CR2032
Mechanical and Environment

Dimensions

190mm x 180mm

Operating Temperature

-40°C to 85°C

Storage Temperature

-40°C to 85°C

Relative Humidity

10% to 90%, non-condensing
Standard Compliance
Standard Compliance CE/FCC
OS
OS Support

Windows®10 64-bit

Linux(Support by request)
