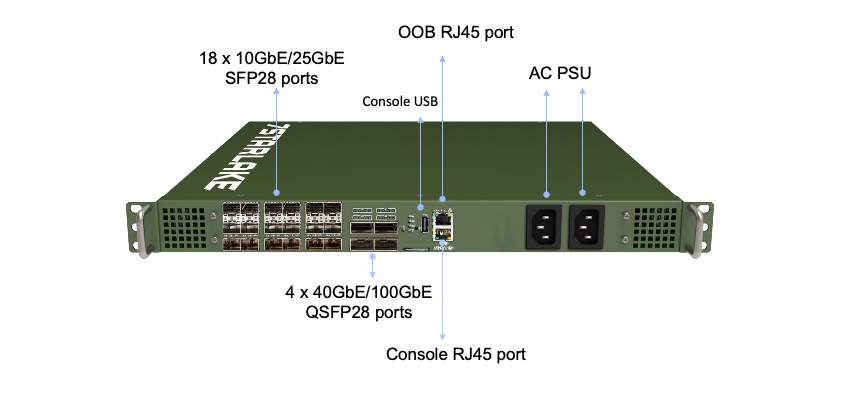

SN2010-AA switch is the ideal top of rack (ToR) solution for hyperconverged and storage deployments. Packed with 18 ports of 10/25GbE and 4 splittable ports of 40/100GbE, the SN2010-AA can deliver up to 1.7Tb/s aggregate throughput.

SN2010-AA, support low-latency line rate traffic for all packet sizes and are ONIE-bootable with support for Cumulus Linux, Mellanox Onyx™ (successor to MLNX-OS Ethernet) and other open-source operating systems with a broad installed base that drives the world’s most innovative data center infrastructures.

SN2010-AA introduces low latency for 10/25GbE and 100GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption

Distributed storage, hyperconverged, analytic and database solutions require the ability to scale out without compromising performance or high availability. High throughput, low latency and activeactive network switching capabilities are crucial when deploying clustered servers and storage. Many applications, such as Microsoft SQL Server, require 10/25GbE connectivity to many clients plus 40/100GbE connectivity to selected servers, storage systems or for network uplinks, and all with low latency.

SN2010-AA is the best fit with a mix of 10/25GbE and 40/100GbE ports that are all designed for zero packet loss. To support virtualization and private cloud, the SN2010-AA introduces hardware support for multiple tunneling protocols that enable increased reachability and scalability for today’s data centers. Implementing NVGRE and VXLAN tunneling encapsulations in the network layer of the data center increases flexibility to terminate an overlay tunnel either in the network or on the server endpoint

Appearance
