THOR200-M10
2U Half L3 Ruggedized Military Switch
- 10 Ports Full Gigabit Ethernet, including 8 x Gigabit/w M12 and 2 x 100/1000M SFP with D38999
- Layer 3 Managed Switch
- 10V~60V DC-IN
- Operating Temperature: -40℃ to +70℃
- IEEE 802.3u 100Base-FX Fast Ethernet Fiber
- IEEE 802.1p Class of Service (CoS)
- IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
- ITU-T G.8032 version 2 Ethernet Ring Protection Switching (ERPSv2)
- Technical Profile
- Specifications
- Introduction
-

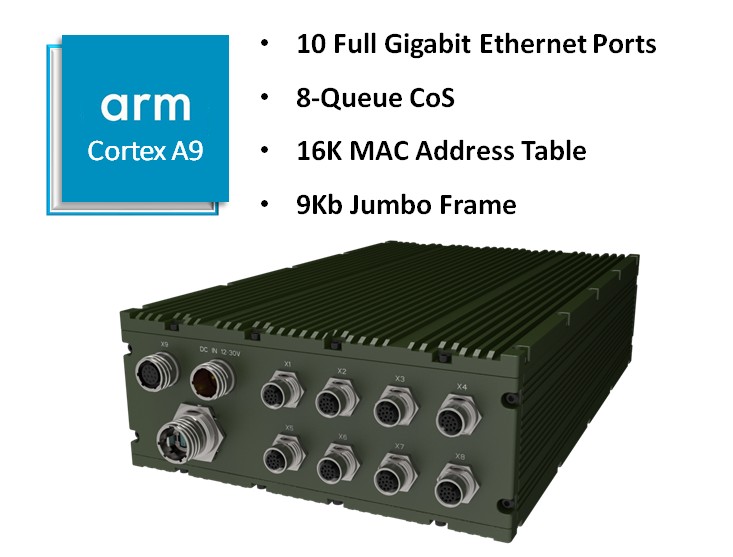

High Performance CPU & Full Gigabit Switching
・Powerful 1.2GHz ARM Cortex-A9 processor
・Non-blocking switch fabric design
・8 flexible Class of Service (CoS) queues
・16K MAC address table
・9Kb Jumbo Frame
・Fiber ports support both 100M and 1000M SFP
・DDM function for fiber connectivity monitoring
・Energy-Efficient Ethernet for power saving
L3 Management Switch Features
・Various configuration paths, including WebGUI, CLI, SNMP, Modbus TCP, LLDP topology control
・Layer 3 Switch features include VLAN, QoS, LACP/Trunk, Rapid Spanning Tree protocol…etc.
・IGMP Snooping v1/v2/v3, IGMP Query, 512 L2 Multicast Groups for video applications
ITU ERPSv2 PLUS Ring Technology
・ITU G.8032 v1/v2 ERPS Ring Redundancy & HW-based CFM for quick acknowledgement while GbE copper link failure, providing 20ms recovery time, seamless restoration.
・ERPSv2 available to replace Ring + Chain + Dual Homing
・Inter-Operability with 3rd party industrial switch and still remain fast recovery time.
・Support Enhanced RSTP for large ring network topology with up to 80 switches.
Layer 3 Dynamic Routing with Redundancy Protection
・RIPv1&v2, OSPFv2 for intra-domain routing within an autonomous system
・Efficient unicast/multicast static routing
・VRRPv2 guarantees sustainable routing in a single point of failure
IEC62443-4-2 Level 3 / 4 Cyber Security
・802.1X/RADIUS port-based access control
・IP Security/Port Security
・HTTPs/SSH Management IP secure access
・Supports advanced cybersecurity features, 802.1X MAB, TACAS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, advanced Port Security & L2-L7 Access Control List

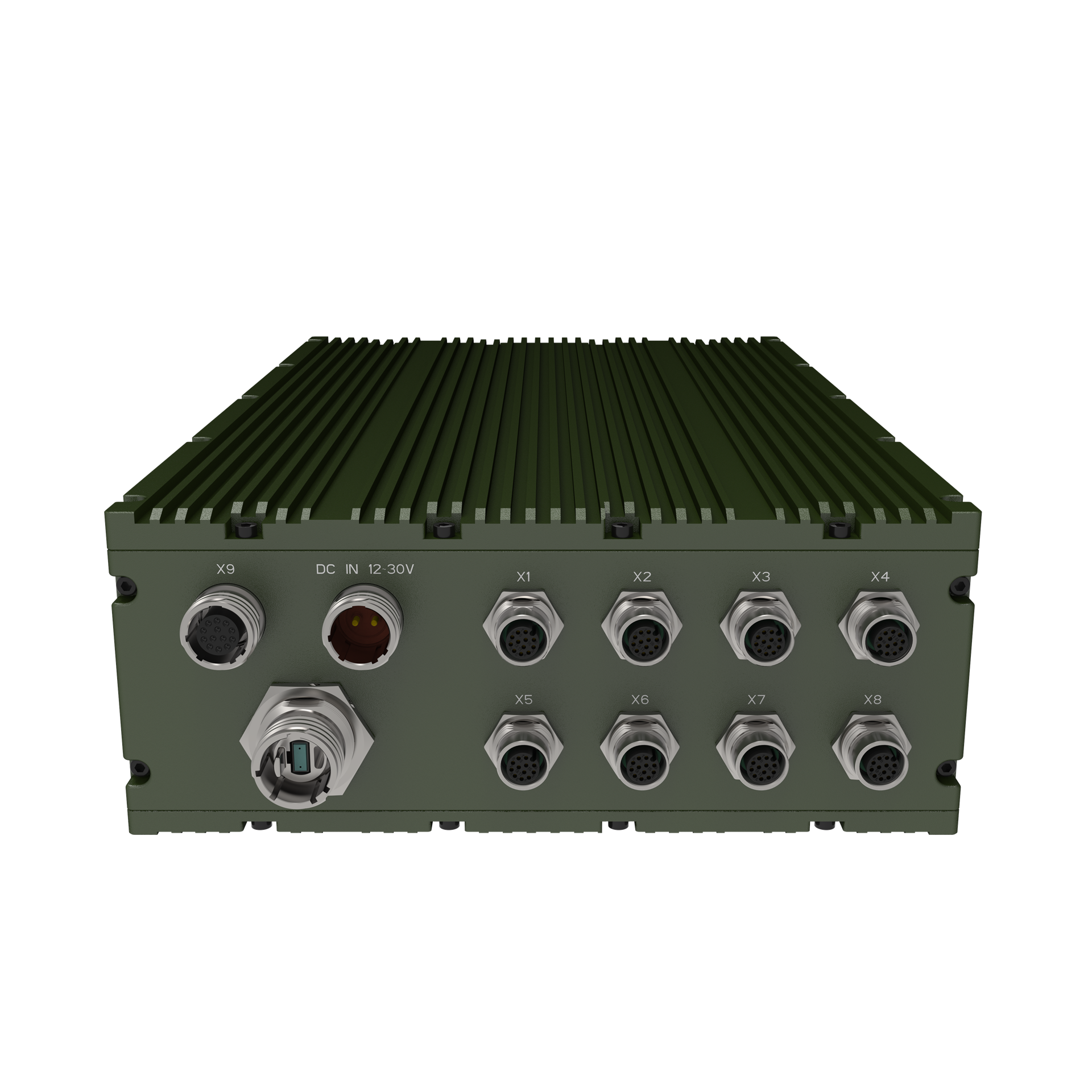

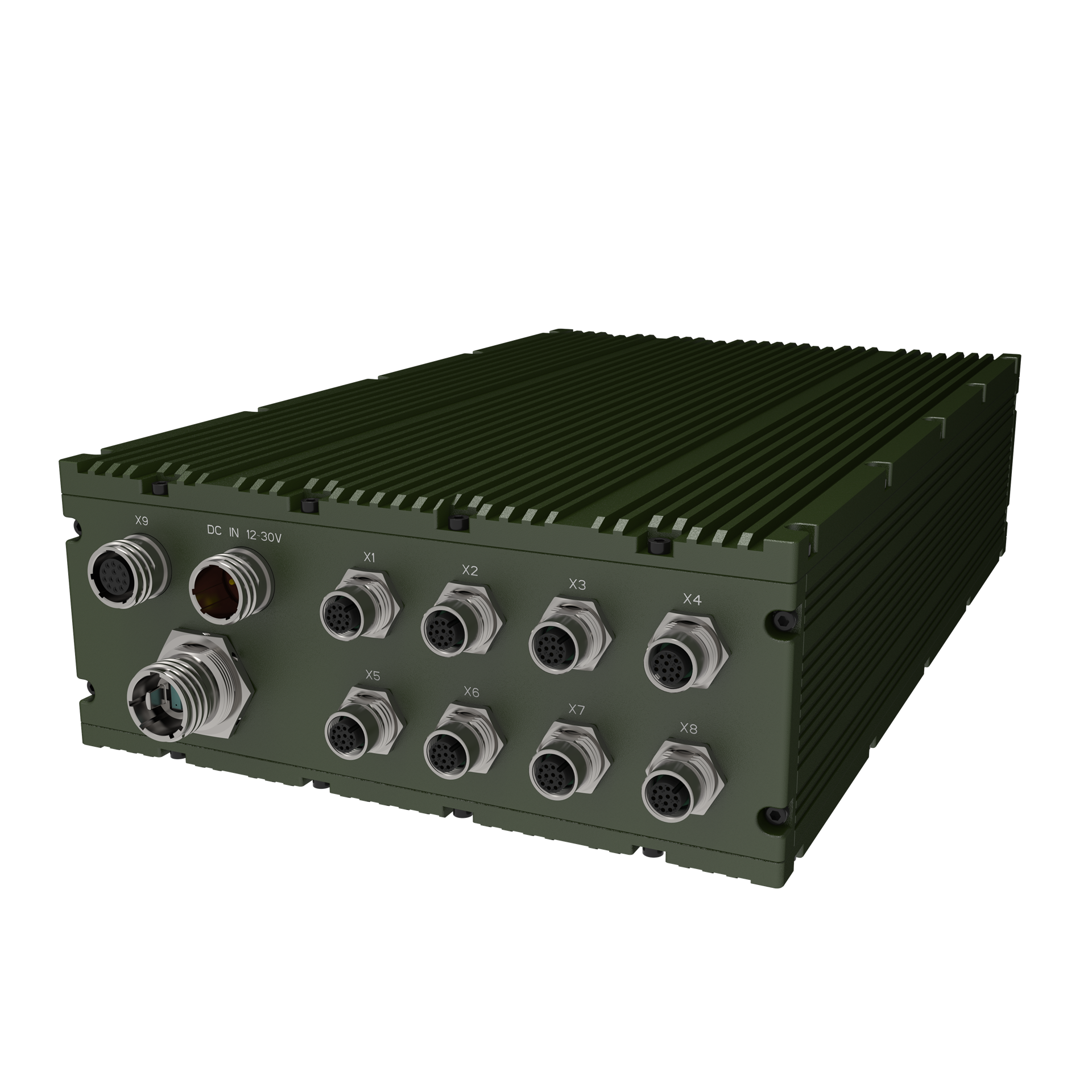

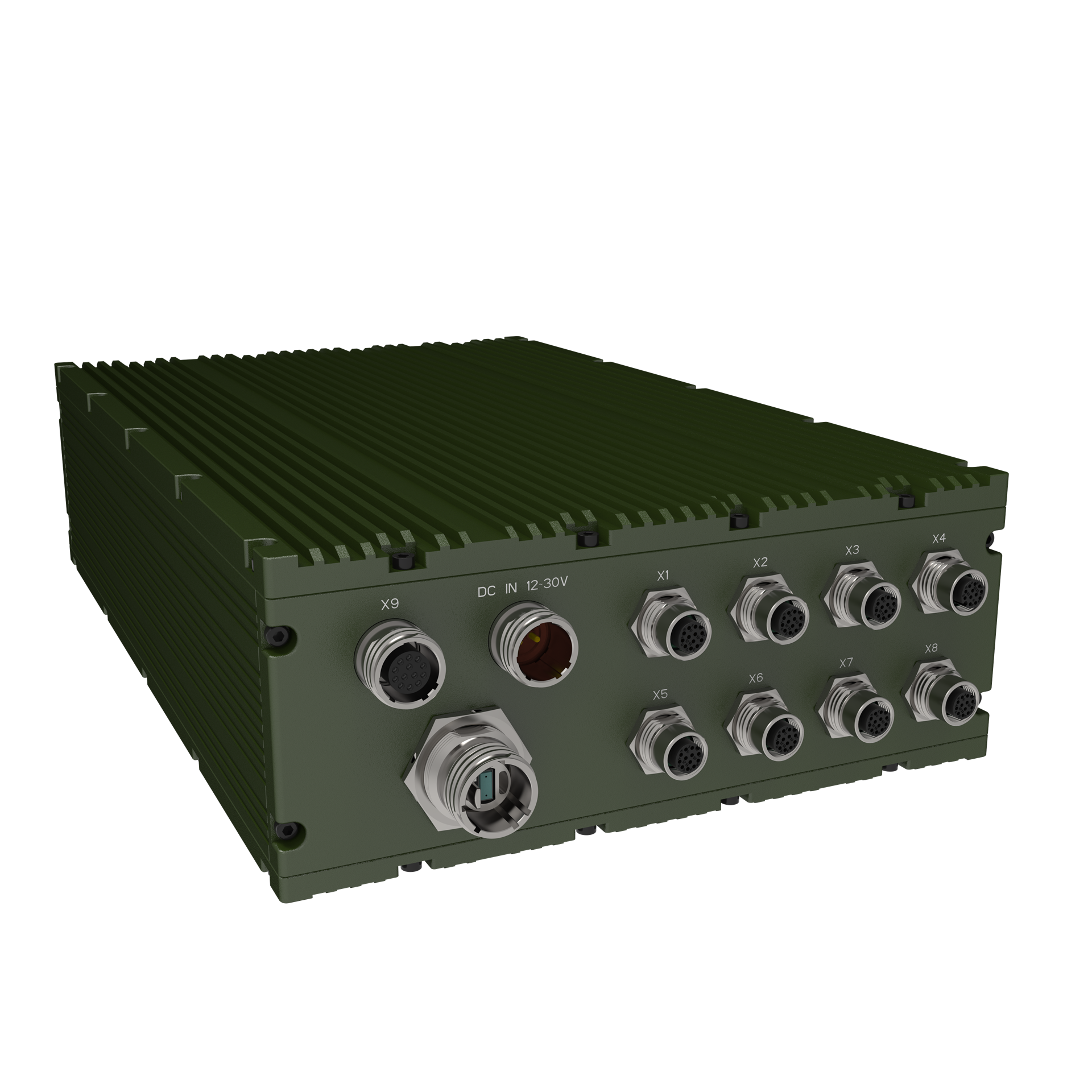

- Appearance
-
|
System |
|
|||
|---|---|---|---|---|
|
Processor |
Cortex-A9, max. 1.2GHz, DDR3 2Gb |
|
||
|
Switch Technology |
Store and Forward Technology with Non-Blocking Switch Fabric Internal Packet Buffer: 4Mb Forwarding Rate: 14.88Mpps/10-port (1,488,000pps/Gigabit port) |
|
||
|
Number of MAC Address |
16K |
|
||
|
Jumbo Frame |
9216 Bytes |
|
||
|
VLAN |
256 VLANs, VLAN ID 1~4094 |
|
||
|
IGMP Groups |
512 |
|
||
|
Traffic Prioritize |
8 Priority Queues per Port |
|
||
|
Routing Table |
4K |
|
||
|
I/O Port |
|
|||
|
Ethernet Port |

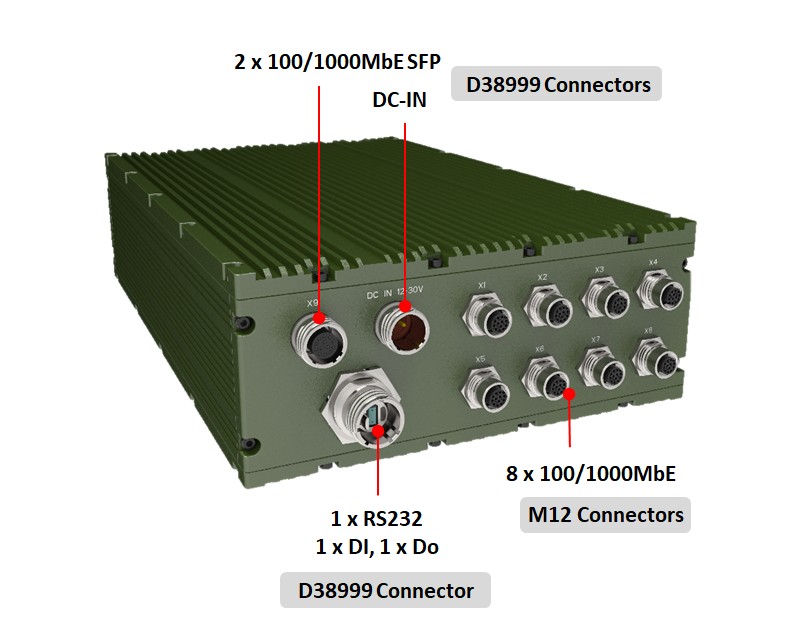

8 x 100/1000Base-T Auto-Negotiation with M12 Connector 2 x 100/1000M SFP with D38999 |
|||
|
Console |
1 x RS232 with D38999 |
|||
|
Digital Input, Digital Output |
1 x DI, 1 x DO with D38999 |
|||
|
Power Input |
1 x DC-IN with D38999 Connector |
|||
|
Software |
||||
|
Management |
WebGUI, Command Line Interface (CLI), IPv4/IPv6(RFC2460), Telnet, SNMP v1/v2c/v3, RMON, SNMP Trap, LLDP, DHCP Server/Client/Option 82, TFTP, System Log, SMTP |
|||
|
Traffic Management |
Flow Control, Rate Control, Storm Control, CoS, QoS, RFC 2474 DiffServ |
|||
|
Filter |
IGMP Snooping v1/v2/v3, IGMP Snooping Fast-Leave/Immediate-Leave, IGMP Query, GMRP, IEEE802.1Q VLAN, QinQ, GVRP, Private VLAN |
|||
|
Security |
IEEE 802.1X/RADIUS, TLS v1.2, Access Control List (ACL, MAC/IP/ARP filter), HTTPs/SSH secure login, First login password management |
|||
|
Advanced Security |
TACACS+, Mutli-user authentication, IEEE802.1x MAB, DHCP Snooping/IPSG, Dynamic ARP inspection, SFTP |
|||
|
Time Management |
NTP, IEEE 1588 Precision Time Protocol v2 |
|||
|
MIB |
ERPS MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RMON MIB Group 1, 2, 3, Private MIB |
|||
|
Diagnostic |
LLDP, Port Mirror, Ping, Port Statistic, Event Log |
|||
|
L3 Routing |
Static/Dynamic IP Routing, VLAN Routing, RIP v1/v2, OSPF v2, Static Multicast Route |
|||
|
Power Requirement |
||||
|
Power Input |
10V~60V DC |
|||
|
Mechanical |
||||
|
Dimensions |
220 x 350 x 88 mm (W x D x H) (TBD) |
|||
|
Weight |
6.6 kg (TBD) |
|||
|
Chassis |
Aluminum AL6061 |
|||
|
Heatsink |
Aluminum Alloy, Corrosion Resistant. |
|||
|
Finish |
Anodic aluminum oxide. |
|||
|
Cooling |
Natural Passive Convection/Conduction. No Moving Parts |
|||
|
Environmental |
||||
|
Reliability |
No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001/2000 Certified Quality Program. |
|||
|
Operating Temp. |
-40 to +70°C (ambient with air flow) |
|||
|
Storage Temp. |
-40 to +85°C |
|||
|
Relative Humidity |
0% to 95%, non-condensing. |
|||
|
Standards |
||||
| IEEE 802.3u | IEEE 802.3u 100Base-TX Fast Ethernet | |||
|
IEEE 802.3u |
IEEE 802.3u 100Base-FX Fast Ethernet Fiber |
|||
|
IEEE 802.3ab |
IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper |
|||
|
IEEE 802.3z |
IEEE 802.3z Gigabit Ethernet Fiber |
|||
|
IEEE 802.3x |
IEEE 802.3x Flow Control and back-pressure |
|||
|
IEEE 802.3az |
IEEE 802.3az (Energy Efficient Ethernet) |
|||
|
IEEE 802.1p |
IEEE 802.1p Class of Service (CoS) |
|||
|
IEEE 802.1Q |
IEEE 802.1Q VLAN and GVRP |
|||
|
IEEE 802.1AB |
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
|||
|
IEEE 802.1D |
IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) |
|||
| IEEE 802.1S | IEEE 802.1S Multiple Spanning Tree Protocol (MSTP) | |||
| IEEE 801.1AX/802.3ad | IEEE 801.1AX/802.3ad Link Aggregation Control Protocol (LACP) | |||
| IEEE 802.1x | IEEE 802.1x Port-based Network Access Protocol | |||
| IEEE 1588 | IEEE 1588 Precision Time Protocol v2 | |||
| ITU-T G.8032 | ITU-T G.8032 Version 2 Ethernet Ring Protection Switching (ERPSv2) | |||
