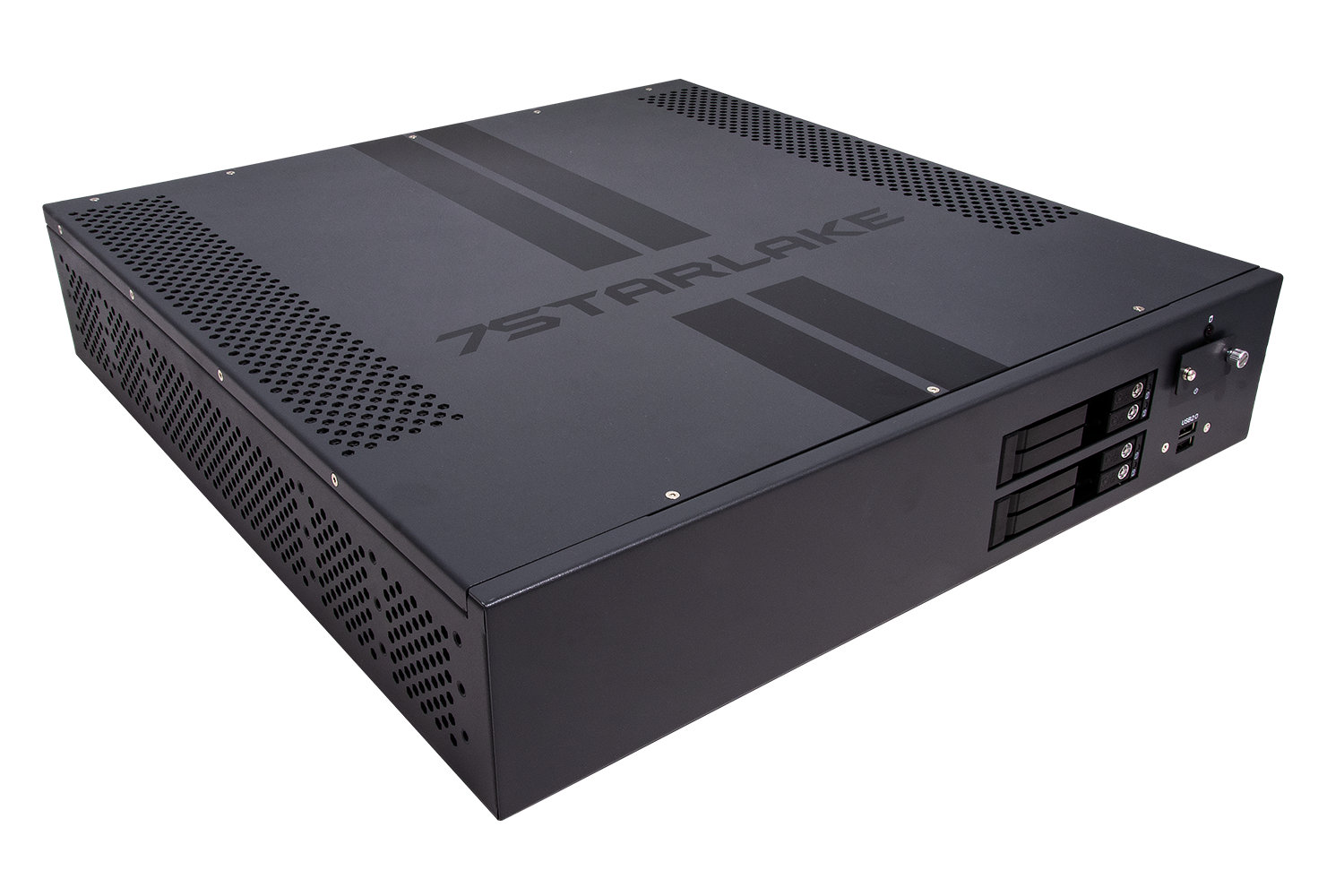

SCH400-AA
2U 19" Smart Grid Fanless Rackmount Server, Intel® Xeon® 10th Gen W-1200 / Core i processors up to 35W , 9~36V DC-IN Redundancy PSU
- Intel® Xeon® 10th Gen W-1200/ Core i Processor up to 35W
- DDR4 UDIMM up to 128GB
- 2 x LAN (RJ45), 4 x USB, 2 x DP, 1 x VGA, 1 x DVI-D
- 1 x IPMI, Options for 2 x 10GbE
- 4 x 2.5” Easy swap SSD/HDD Tray (Support RAID 0,1,5,10)
- 3 x PCIe Expansion Slots ( 1 x PCIe x 16, 1 x PCIe x 8, 1 x PCIe x 4)
- TPM on board ; FTDI for Optional
- 9V~36V DC-IN Redundancy
- Extended Temperature -20°C to 60°C
- Technical Profile
- Specifications
- Order Information
- Download
- Introduction
-
Gateways are rugged communication devices collecting numerous data, such as metering, status, events and fault report from any protection device while sending this information upstream to a control center, transferring commands issued from the control center to other devices. One example of a particular need for gateways is in the energy industry. The energy industry requires specific types of devices using specific protocols. With PLCs/PACs becoming popular in these applications, gateways has grown into a necessary part of Substation Automation Systems, and its reliability may affect the safety of whole system at a station level.
As a leading company specialized in energy related application, 7Starlake’s experienced team designed an extremely reliable Gateway system SCH400-AA, which is powered by 10th Generation Intelntel 10th Gen Xeon W-1290TE/Core i9-10900TE Processors, enabling highly efficient processing capability to deal with a large amount of data delivering between IEC-61850 devices and the Control Center. In advantage of other outstanding features, such as extended temperature -20~+60°C, dual 150W DC/DC redundant power supply, SCH400-AA is an undoubtedly best choice for Gateway application in Substation.
- Key Features
-
(1)Security Redundancy
Integrating TPM module, operating systems can require an authentication to protect keys, data or systems.
(3)Rich communication Interface
In advantage of SCH400-AA diverse I/O, 2 x RJ45 GbE LAN, 2 x RJ45 10GbE LAN(Options), 1 x IPMI, 4 x USB3.2, 2 x USB2.0, 2 x DP,1 x VGA, 1 x DVI-D, the SCH400-AA system can satisfy all our clients.
(5)IEC-61850-3
The standardization of IEC-61850 enables the integration of the equipment and systems from different suppliers, reducing the burden on the configuration and maintenance of these systems. The protocol also meets utilities’ requirements for long-term system expandability. Thus, there are more and more electric companies perform power-system automation by using IEC-61850 protocol with Intelligent electronic devices (IED)
(7)Network Redundancy
PRP/HSR network will be required as an efficient and cost effective solution in order to construct a seamless/bumpless communication infrastructure to ensure maximum system availability.
(2)Power Redundancy
The design of wide power range keeps the system’s reliability and you can expect longer life-span as well. Sudden drop or surge of power posts absolutely no threat to this smart system.
(4)IEEE-1613
The widespread use of multi-functional intelligent electronic devices with advanced communications capabilities has resulted in a new trend in substation automation systems. The intelligent electronic devices exchange messages over the substation local area network. Detail environment and testing requirements for communications networking devices in electric power substations.
(6)Data Redundancy
RAID function supports an assortment to help protect or speed up the performance of a computer's disk storage. RAID 0/1 function makes SCH400-AA to archive it.
(8)Extreme Temperature
Copper heat spreader, pure copper heat pipe and aluminum heat sink, with all these benefits of fanless design. To ensure high reliability and stability while SCH-406 working under wide range temperature from -20°C up to +60°C. And, with SCH400-AA special industrial extended range of temperature layout, it can also reduce the potential computer glitches caused by hardware incompatibility and losses of connectivity caused by shock and vibration.
- Why IEC 61850 Is Necessary
-
Although there are lots of protocols worldwide for substation automation, IEC 61850 is the only one that supports systems networked together to perform intelligent transmission and distribution protection, monitoring, automation, metering, and control. The standardization of IEC 61850 enables the integration of the equipment and systems from different suppliers, reducing the burden on the configuration and maintenance of these systems. The protocol also meets utilities’ requirements for long-term system expandability. Thus, there are more and more electric companies perform power-system automation by using IEC-61850 protocol with Intelligent electronic devices (IED)
|
System |
|
|---|---|
|
CPU |
Intel®10th Gen. XEON W 1200 ; Core i Processor up to 35W |
|
Memory type |
4 x DDR4 2933MHz UDIMM up to 128GB |
|
Expansion Slot |
1 x PCI e 3.0 x16 |
|
Storage Device |
4 x 2.5” Easy swap HDD/SSD Tray (Support RAID 0,1,5,10) |
|

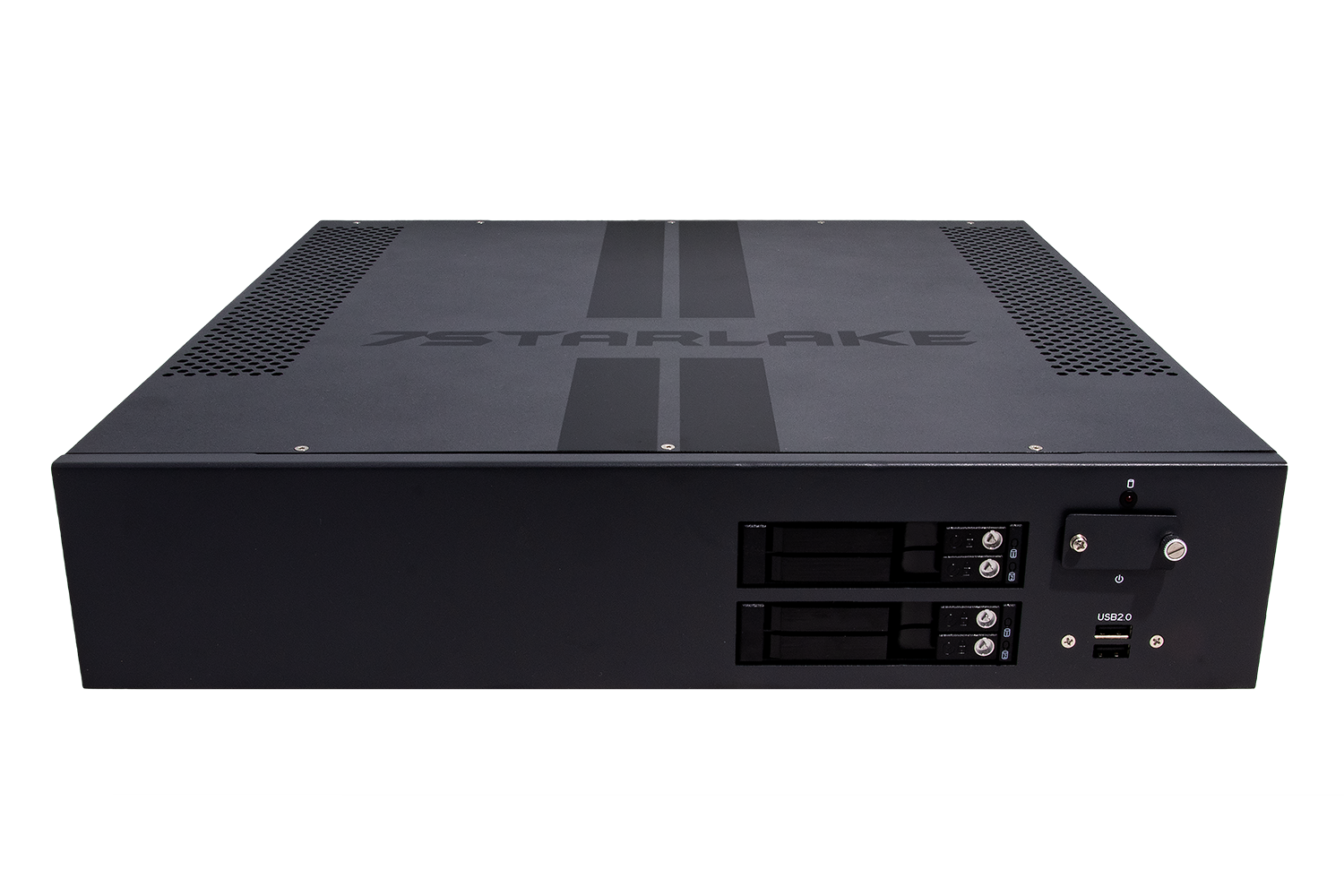

Front I/O |
|
|
Power Button |
1 x w/Indicator LED |
|
SSD Indicator |
1 |
| USB | 2 x USB2.0 |
| Swap Tray | 4 x SwapSSD Tray |
|

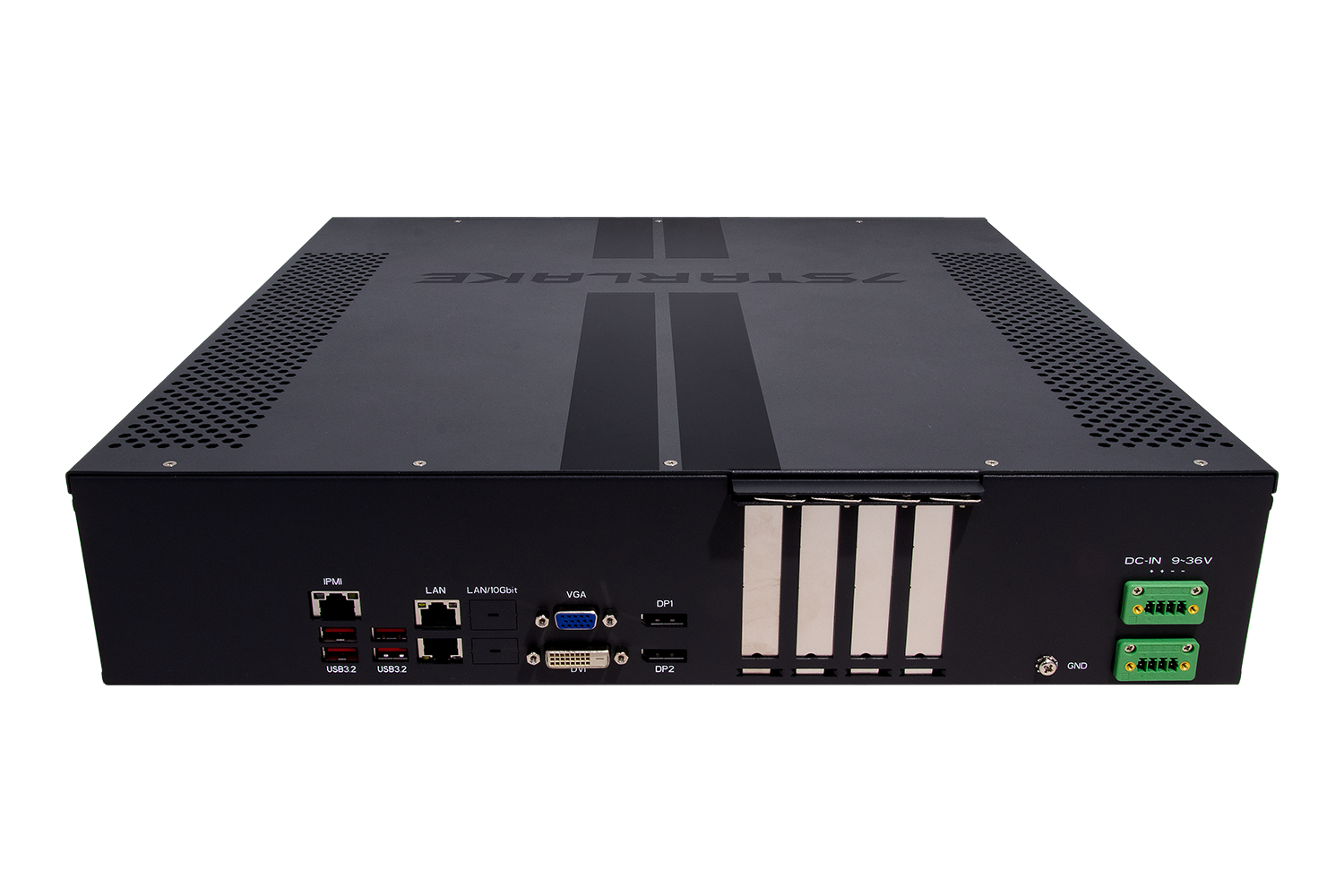

Rear I/O |
|
|
Power Input |
9~36V DC-IN Redundancy |
|
LAN |
2 x RJ45 GbE LAN ( Option 2 x 10GbE LAN) |
|
USB |
4 x USB 3.2 |
|
DisplayPort |
2 x DP 1 x DVI-D |
|
VGA |
1 |
|
Power |
|
|
Power Input |
9V~36V DC-IN, 2x 150W DC/DC Redundant Power Supply |
|
OS support list |
|
|---|---|
|
Windows |
Windows 10/11 x64 |
|
Linux |
Ubuntu, Red Hat |
|
Mechanical and Environmental |
|
|
Dimension |
430 x 450 x 88 mm ( W x D x H ) |
|
Operating Temp. |
-20°C to 60°C |
|
Storage Temp. |
-40°C to 85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Standards |
CE, FCC, MIL-STD 810G Compliance |
|
System Design |
Fanless |
|
Mounting |
2U Rackmount |
|
EMC |
CE, FCC compliant |
|
Green Product |
RoHS, WEEE compliance |
SCH-401
2U 19” Smart Grid Fanless Rackmount Server with Intel® 10th Gen. XEON W-1200 ; Core i Processor up to 35W ,2 x GbE, 6 x USB, 2 x DP, 1 x VGA, 1 x DVI-D, 1 x IPMI, 125V DC-IN, 2 x 200W DC/DC Redundant Power Supply, TPM/FTDI support, Operating Temperature -20~+60°C
SCH400-AA
2U 19” Smart Grid Fanless Rackmount Server with Intel® 10th Gen. XEON W-1200 ; Core i Processor up to 35W ,2 x GbE, 6 x USB, 2 x DP, 1 x VGA, 1 x DVI-D, 1 x IPMI, 9V~36V DC-IN, 2 x 150W DC/DC Redundant Power Supply, Operating Temperature -20~+60°C
SCH-406
2U 19” Smart Grid Fanless Rackmount Server with Intel® 10th Gen. XEON W-1200 ; Core i Processor up to 35W ,2 x GbE,2 x 10GbE, 6 x USB, 2 x DP, 1 x VGA, 1 x DVI-D, 1 x IPMI, 100~240V AC-IN, 2 x 200W AC/DC Redundant Power Supply, Operating Temperature -20~+60°C
