ROC289A
ROC289A
1U 19” DC-DC Fanless Server With Intel 14th Processor
- Intel®Bartlett Lake 12P/ Bartlett Lake-S 14th Gen Processor
- (up to 65W)
- PCH Q670E/R680E
- 2 x SO-DIMM DDR5 5200 MHz up to 64GB
- 3 x LAN, 6 x USB3.1 , 2 x USB2.0, 2 x DisplayPort,
- 2 x HDMI, 1 x Line-out/Mic-in
- 2 x 2.5”SATA HDD/SSD Easy Swap Tray
- DC-IN 12~36V
- Operation Temp. ET : -20°C to +60°C ; UT : -30°C to +70°C
Download
- Technical Profile
- Specifications
- Order Information
- IO Placement
| System | ||
|---|---|---|
|
High Performance Processor |
Intel® 13th /14th Core-i® Processor i7-13700TE (Frequency 3.6GHz, Turbo Boost Frequency up to 4.8GHz, 16-Core,24 Thread Support, 30MB Smart Cache) |
|
|
Memory Type |
DDR5 5200 MHz / 2 x 262-pin SO-DIMM / Max. 64 GB(Non-ECC/ECC) |
|
|
Chipset |
Intel® Q670E/R680E Chipset |
|
| Expansion | 1 x PCIe expansion slot (PCIe x16 HHHL) | |
| Display | ||
| DP | Resolution up to 4096 x 2304 @60Hz | |
| HDMI | Resolution up to 4096 x 2304 @60Hz | |
| Storage | ||
| HDD/SDD |
2 x 2.5” Solid State Disk (SSD) 2 x SATAIII |
|
| Ethernet | ||
|
Ethernet |
1 x Intel® I226-LM 2.5Giga LAN |
|

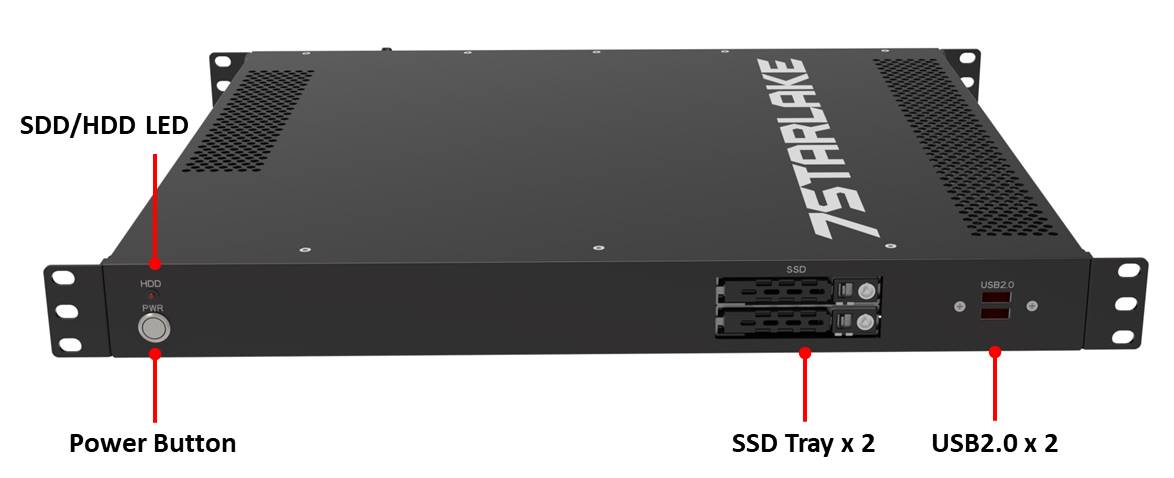

| Front I/O | ||
| Easy Swap SSD Tray | 2 | |
| Button | 1 x Power Button w/Indicator LED | |
| Indicator LED | SSD | |

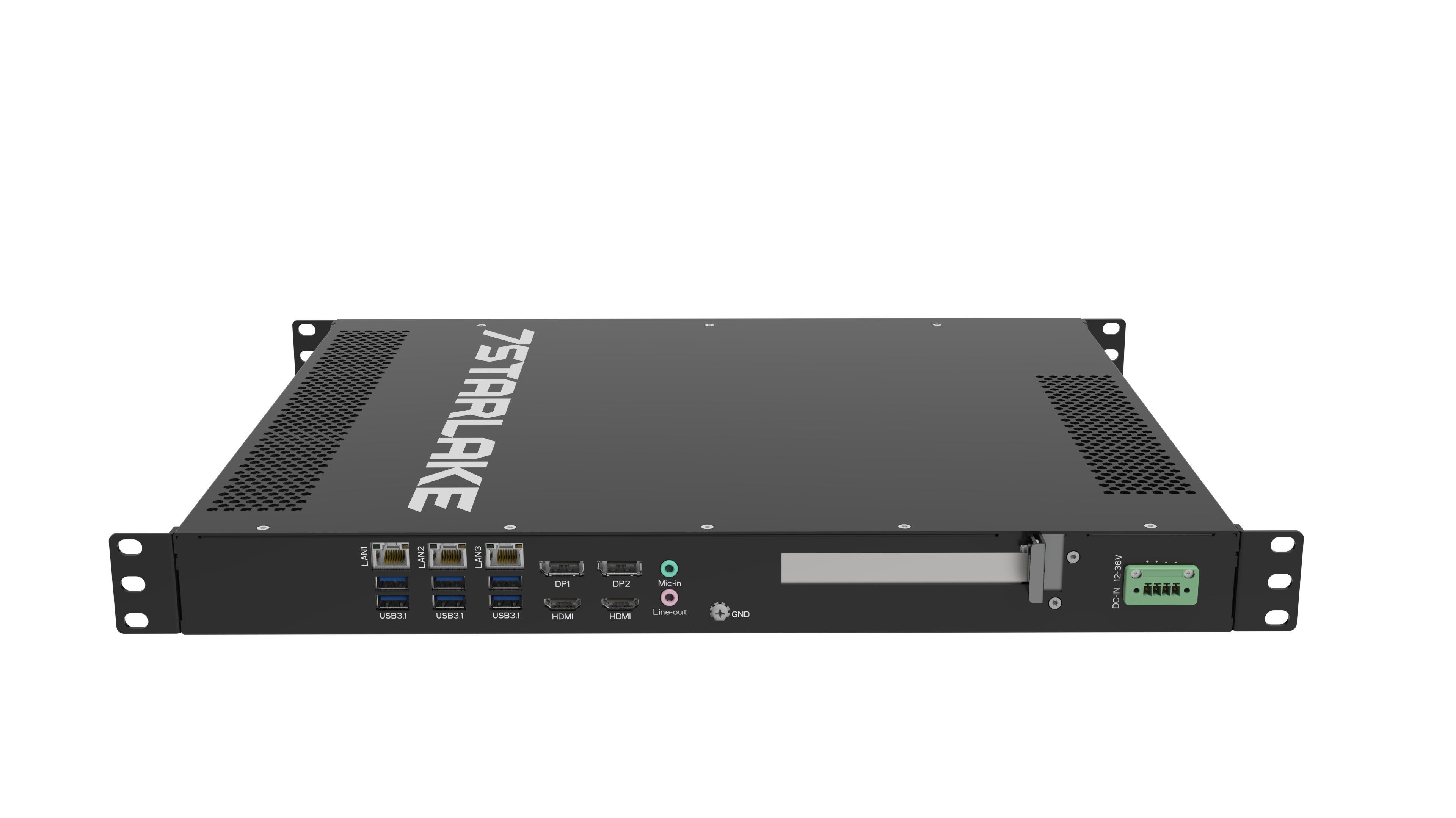

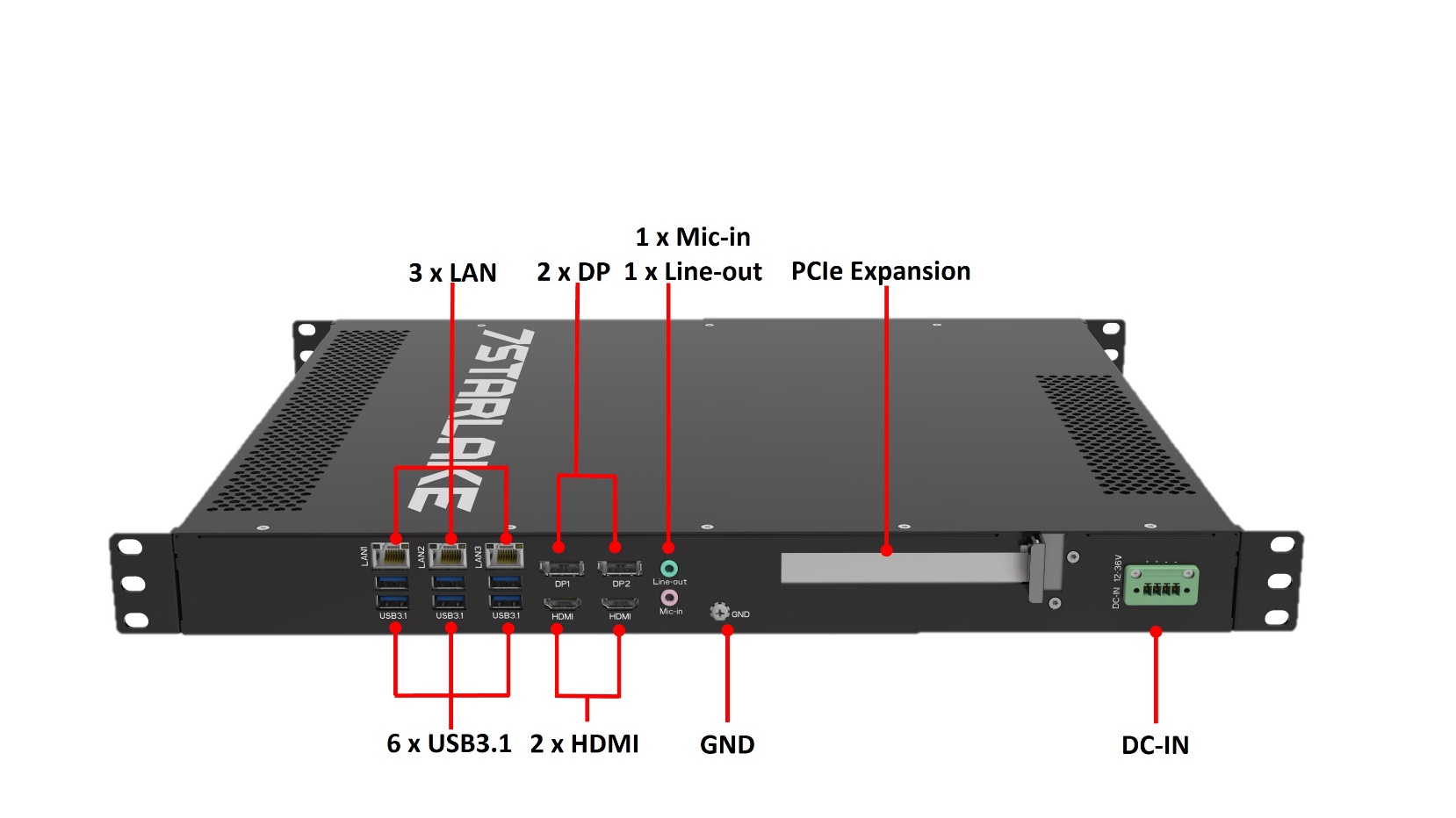

| Rear I/O | ||
| DisplayPort | 2 x DP | |
| HDMI | 2 x HDMI | |
| Ethernet | 3 x 2.5GbE RJ45 | |
| Audio | 1 x MIC, 1x Line-Out | |
| USB Port | 6 x USB 3.1(10Gb/s) | |
| PCIe expansion | 1 x PCIe expansion slot (PCIe x16 HHHL) | |
|
DC-IN |
1 x DC-IN plug |
|
| Power Requirement | ||
| Power Input | DC-IN 12~36V | |
| Applications, Operating System | ||
|
Applications |
Commercial and Industrial Platforms, Embedded Computing, Process Control, Intelligent Automation and manufacturing applications |
|
|
Operating System |
Windows 10/11 64Bit |
|
| Physical | ||
|
Dimensions |
430 x370 x 44.4 mm (W x D x H) |
|
|
Chassis |
SECC |
|
|
Heatsink |
Aluminum Alloy, Corrosion Resistant |
|
|
Finish |
Anodic aluminum oxide |
|
| Environmental | ||
| Green Product | RoHS design to meet | |
| Operating Temperature | ET : -20°C to +60°C UT : -30°C to +70°C |
|
| Storage Temperature | -40°C to +85°C | |
| Relative Humidity | 5% to 95%, non-condensing | |
| EMC | CE and FCC design to meet | |
ROC288A-ET
1U 19” DC-DC Fanless System with Intel® Raptor Lake-R/S 14th/13th Processor(Up to 65W), Q670E/R680E, 2 x DDR5 SO-DIMM up to 64GB, 2 x DisplayPort, 2 x HDMI,6 x USB3.1, 2 x USB2.0, 12~36V DC-IN, Operating Temp. -20°C to +60°C
ROC288A-UT
1U 19” DC-DC Fanless System with Intel® Raptor Lake-R/S 14th/13th Processor(Up to 65W), Q670E/R680E, 2 x DDR5 SO-DIMM up to 64GB, 2 x DisplayPort, 2 x HDMI,6 x USB3.1, 2 x USB2.0, 12~36V DC-IN, Operating Temp. -30°C to +70°C
