HORUS580-3U Military Liquid Cooling Server – Dual Intel 5th/4th Xeon-SP, Dual 350W GPU Support
HORUS580-3U Military Liquid Cooling Server – Dual Intel 5th/4th Xeon-SP, Dual 350W GPU Support

3U Military Liquid Cooling Server – Dual Intel 5th/4th  Xeon-SP, Dual 350W GPU Support

  • Intel® 4/5th XEON® SP Processor Silver, Gold, Platinum CPUs
  • Self Contained All In One Liquid Cooling Up to 1.5KW
  • Up to 3 selection PCIe 5.0 slot
    • 2x PCIe 5.0 x16 FHFL slot(s) - 350W Double Width GPU
    • 1x PCIe5.0x16 HHHL slot(s)—NIC or RAID Card
  • 8x 2.5” Swappable SATA SSD or 8x U.2 NVMe
  • 2x 10G LAN,1x IPMI LAN,2x USB2.0,1x VGA
  • DC18V~36V or 100/240V AC
  • MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
  • MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
  • MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
  • MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 20G
Download
Datasheet
e-DM
Get A Quote
  • Specifications

System

Processor

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors,

Dual Socket E (LGA-4677)

CPU Core Count

5th Up to 64C/128T; Up to 320MB Cache

4th Up to 60C/120T; Up to 112.5MB Cache

Memory Type

DDR5 on 5th -5600MT/s RDIMM ; RDIMM-3DS , Up to 4TB in 8+8 DIMM slot

DDR5 on 4th-4800MT/s RDIMM ; RDIMM-3DS , Up to 4TB in 8+8 DIMM slot

Graphic

PCIe 5.0 x16 dual-width, full-height, full-length (FHFL)

TPM

Chipset: Infineon, Type: TPM 2.0

IPMI

ASPEED AST2600 IPMI 2.0 with iKVM & vMedia support

BIOS

AMI UEFI BIOS

USB

2x USB2.0 ports: rear I/O Type-A

Ethernet

1x RJ45 Dedicated IPMI

2x RJ45(10GbE)

Power Type

18V~36V DC IN or 100/240V AC (option)

Storage

8x 2.5” Swappable SATA SSD or 6x Swappable Tray U.2

COM Port

1x RS232 (option)

CAN Bus

4x Can Bus (option)

Dimension

440mm(W) x 600mm(D) x 132mm(H)

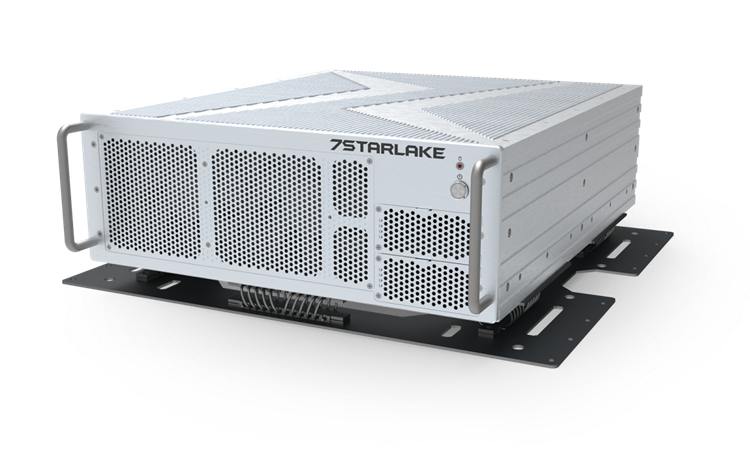

Front I/O

Power Button

1x

SSD LED Indicator

1x

Swappable SSD Tray

8x

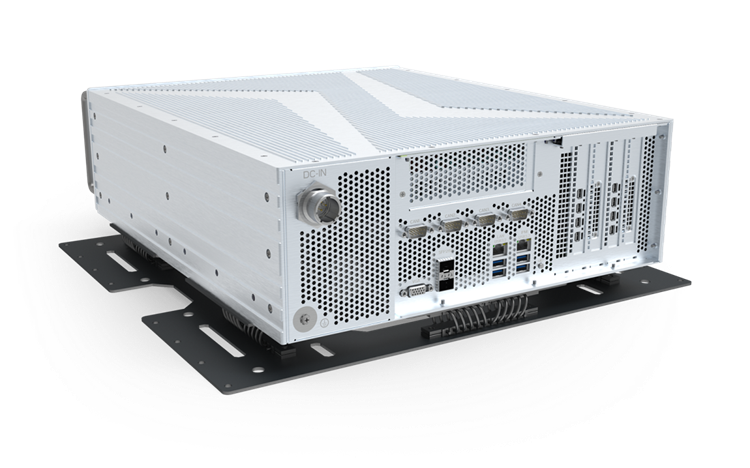

Rear I/O

DC-IN

1x

UID Button/LED

1x

IPMI LAN

1x

USB2.0

2x

10G LAN

2x

VGA

1x

Thermal Solution

All in one ,Liquid cooling in closed-loop evaporative system

Environmental

MIL-STD-810 Test

Method 500.5, Procedures I and II (Altitude, Operation):

12,192M, (40,000 ft) for the initial cabin altitude (18.8Kpa or 2.73 Psia)

Method 500.5, Procedures III and IV (Altitude, Non-Operation):

15,240, (50,000 ft) for the initial cabin altitude (14.9Kpa or 2.16 Psia)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Method 507.5, Procedure II (Temperature & Humidity)

Method 509.7 Salt Spray (50±5)g/L(Optional for Conformal Coating)

Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration)

Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration)

Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock)

Method 516.6, Shock-Procedure I Operating (Mechanical Shock)

Reliability

Rugged Air Cooling.

Designed & Manufactured using ISO 9001 Certified Quality Program.

Storage Temp.

-40°C to +80°C

Relative Humidity

5% to 95%, non-condensing.
