THOR200-X11-TX
2U/2 Military GPU Server
- MIL-STD810 Thermal, shock, vibration,
- Humidity / EMI / EMC conditions
- Intel® Tiger Lake-H i7-11850HE, Xeon W-11865MLE Processors (up to 8 cores)
- NVIDIA RTX™ A2000 (2048 CUDA)
- Up to 64GB DDR4 SO-DIMM
- 4CH 3G-SDI support 1080p60 H.264 H/W Encode
- 2x isolated CANbus 2.0B
- 2x Swappable SSD Tray
- Compliant with MIL-STD-810
- 18V~36V MIL-STD-461/MIL-STD-1275
- Technical Profile
- Specifications
- Order Information
- Download
- Introduction
-
THOR200-X11-TX is driven by Intel 11th Gen. Tiger Lake-H processor. Tiger Lake processor supports outstanding CPU and graphics performance with up to 8 cores and 16 threads. THOR200 highlight on its rugged design and high functionality, the system especially installed MIL-STD D38999 connector and full IP65 protection allow system withstand in any kind of harsh environment. THOR200-X11-TX supports extended temperature from -40°C to 60°C and wide range 18V~36V DC input can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself
- 3G-SDI(Serial Digital Interface)
-
Maintaining image quality when receiving analog and digital video over extended distances has proved challenging. However, high-definition, real-time image acquisition in wide areas is crucial for automatic intrusion detection, tracking, and classification of an unlimited number of threats.
As new technologies emerge to enable video transmission at lower data rates while preserving image quality, 3G-SDI, with a bitrate of 2.97 Gb/s, can transmit 1080p signals over distances up to 100 meters. This makes it a new star in high-end surveillance and unmanned systems, allowing simple designs or upgrades with full HD cameras.
By transmitting uncompressed video streaming over a single coaxial cable with ultimate low latency, 3G-SDI is particularly valued for its ability to transmit both video and audio signals through a single cable in an uncompressed, raw data format, ensuring high stability and maintaining the original data quality.
Most 3G-SDI connections utilize BNC connectors, known for their secure locking mechanism that prevents loosening and connectivity issues. This further enhances the reliability and stability of the connection, making it suitable for professional applications.
In summary, the 3G-SDI's robustness, ease of deployment, real-time high-resolution monitoring capabilities, and long-distance transmission support make it an indispensable tool in military deployment.
- Frame Grabber Card
-
No machine vision system is complete without cameras and sensors. Frame grabber cards come into play to streamline the integration of cameras with computing systems. This crucial component enables the high-speed acquisition of high-resolution images with special synchronization features in real-time. Acting as the bridge between video cameras and computing systems by capturing individual images for analysis, frame grabber cards provide real-time data that can be processed using different machine vision algorithms depending on the application.
The THOR200-X11-TX, with its extremely compact size, enables users to capture up to 4 channels of SD, HD, or 3G-SDI video footage in real-time. It is a flexible solution that allows data to be captured from a wide range of sources, such as multi-faceted cameras and sensors. Designed with 3G-SDI standards, the THOR200-X11-TX offers uncompressed H.264 digital video signal transmission, including embedded audio, and supports input resolutions up to 1920 x 1080 at 60/50fps. The SDI standard provides a nominal 2.970 Gbit/s interface, specifically suited for applications such as in-vehicle, broadcasting, and surveillance.
- System Diagram

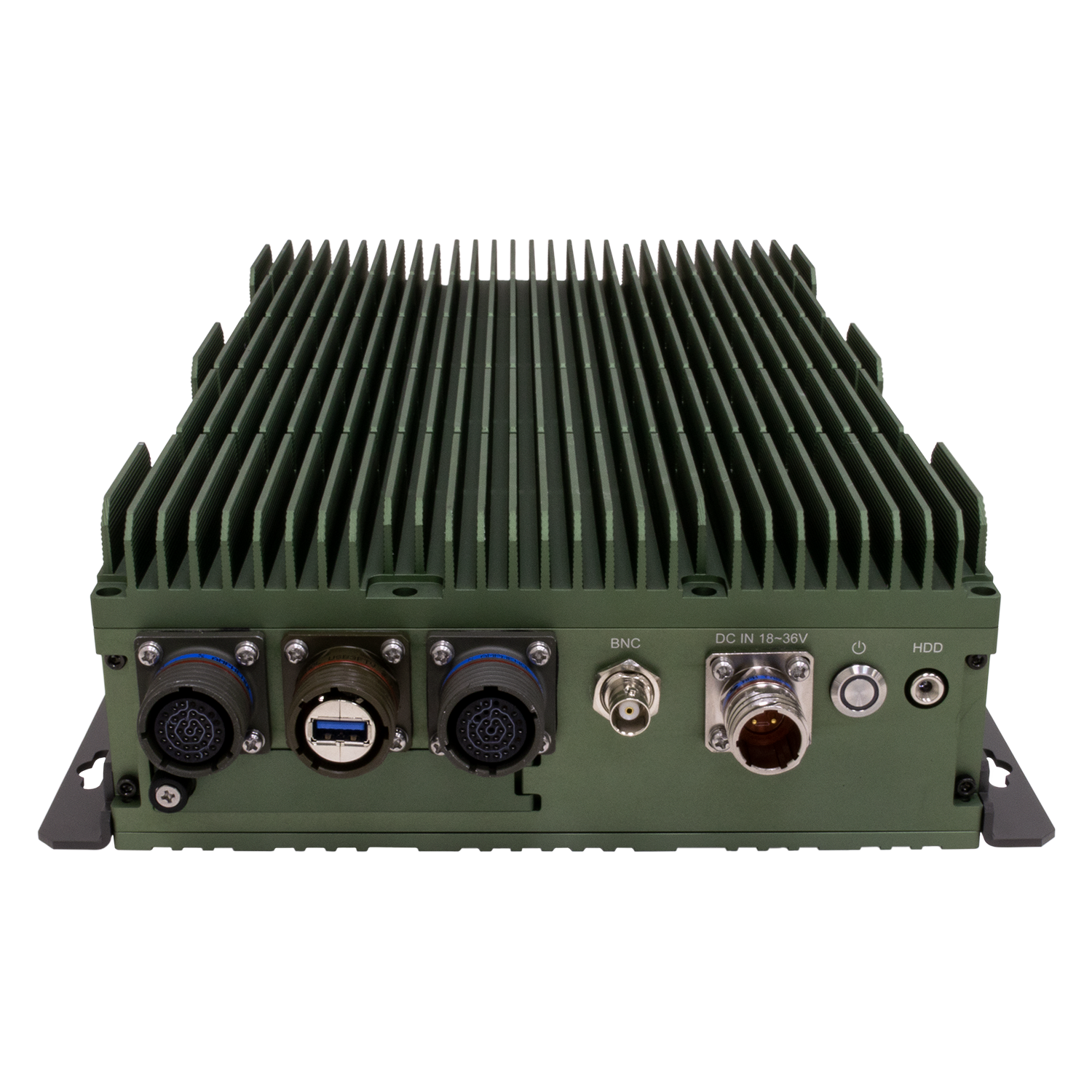

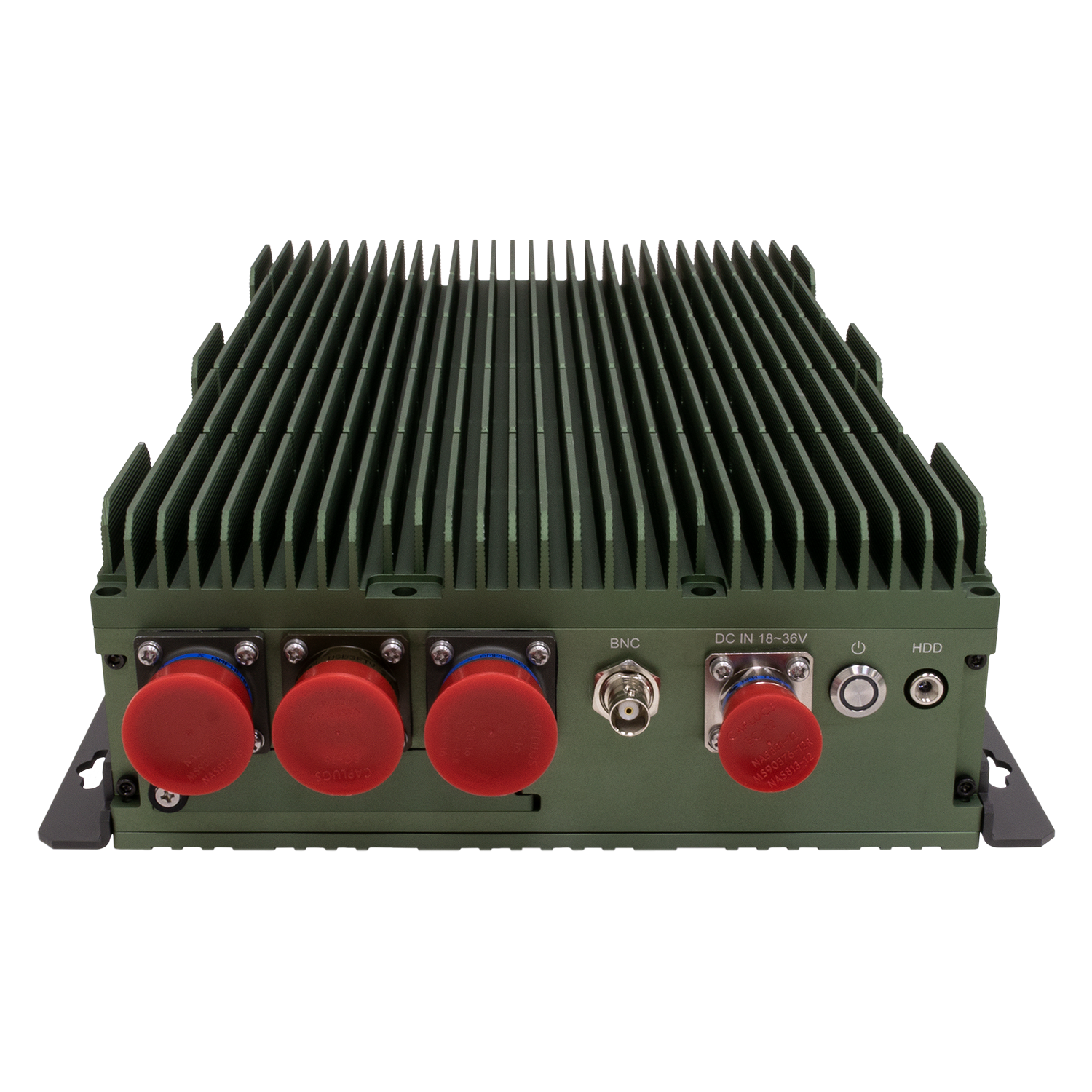

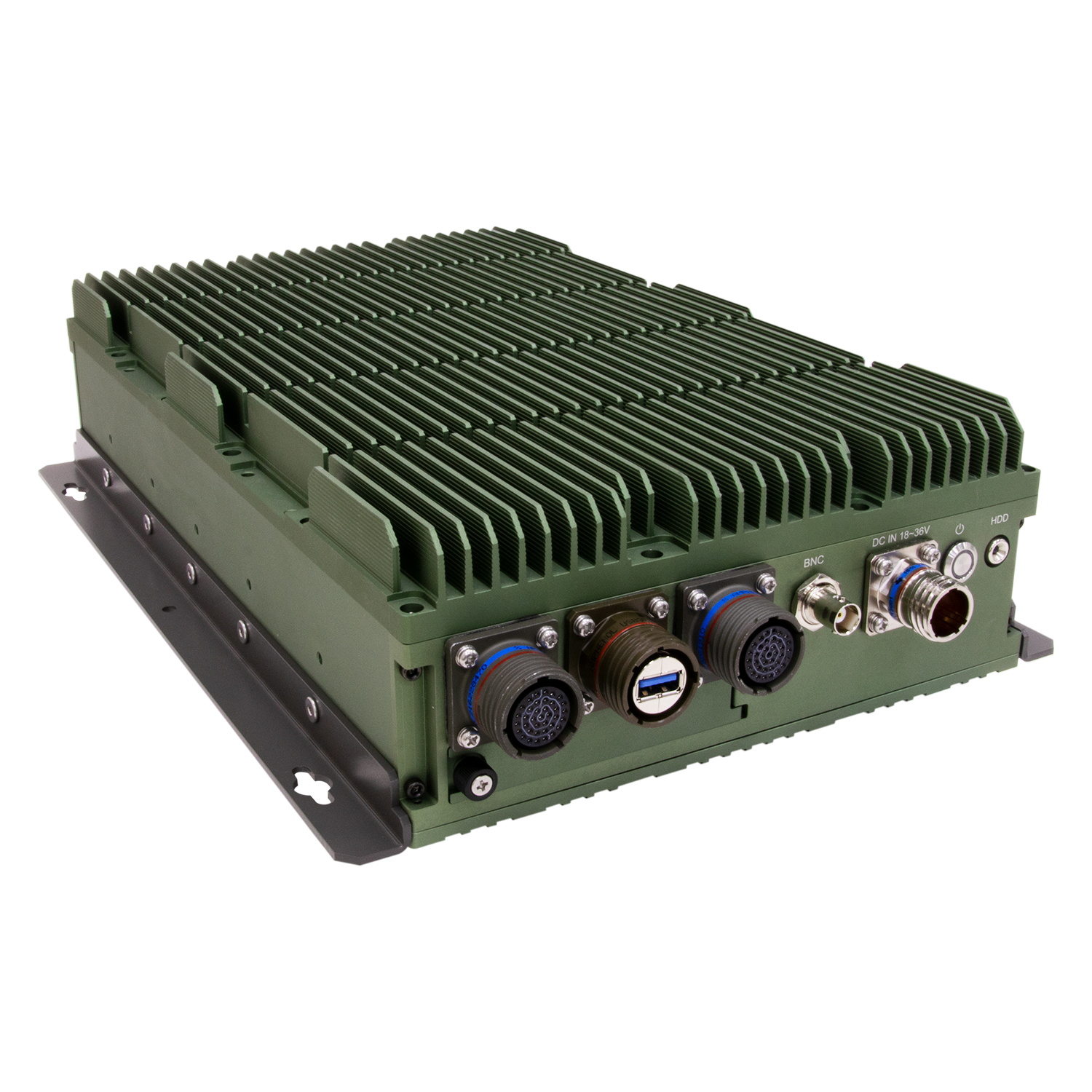

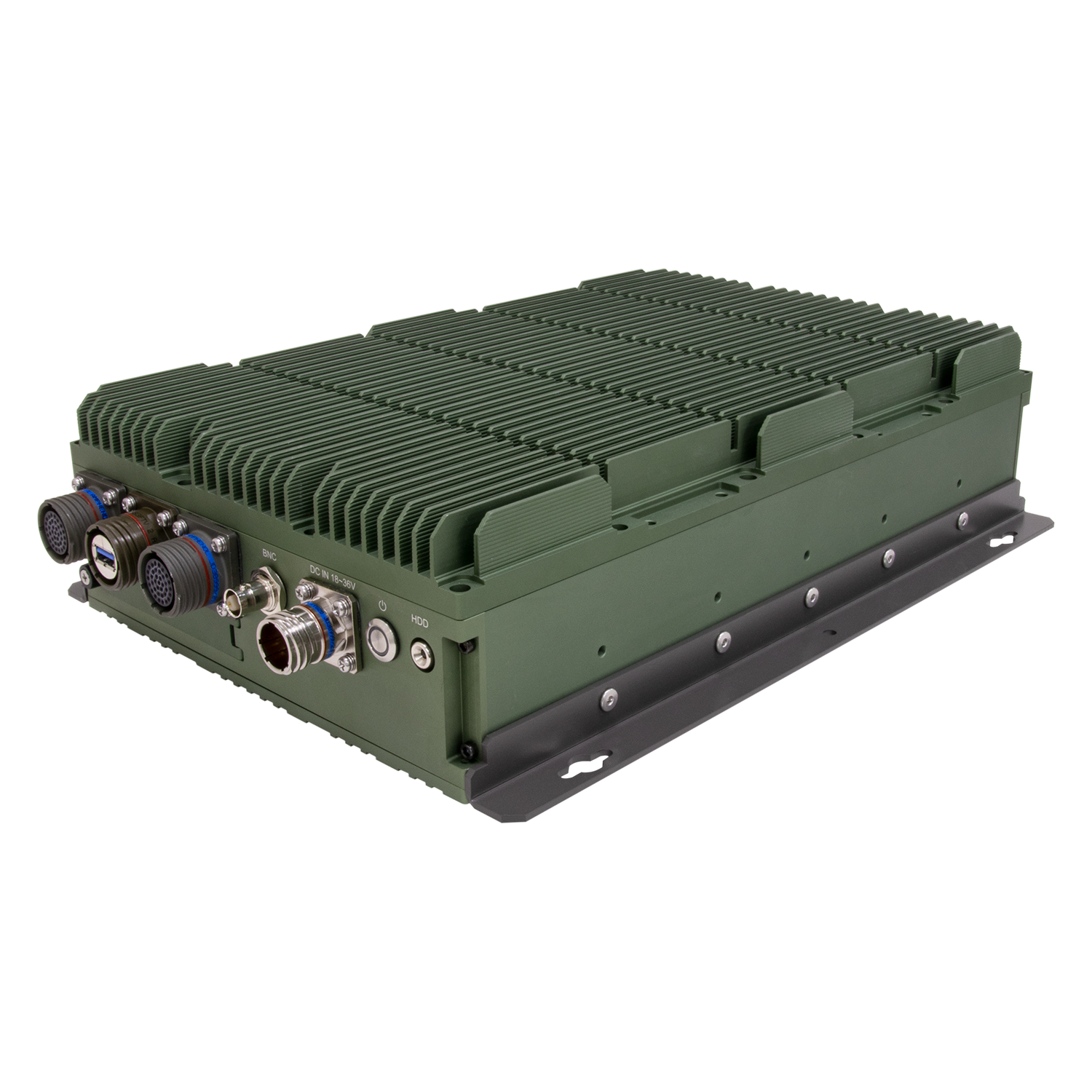

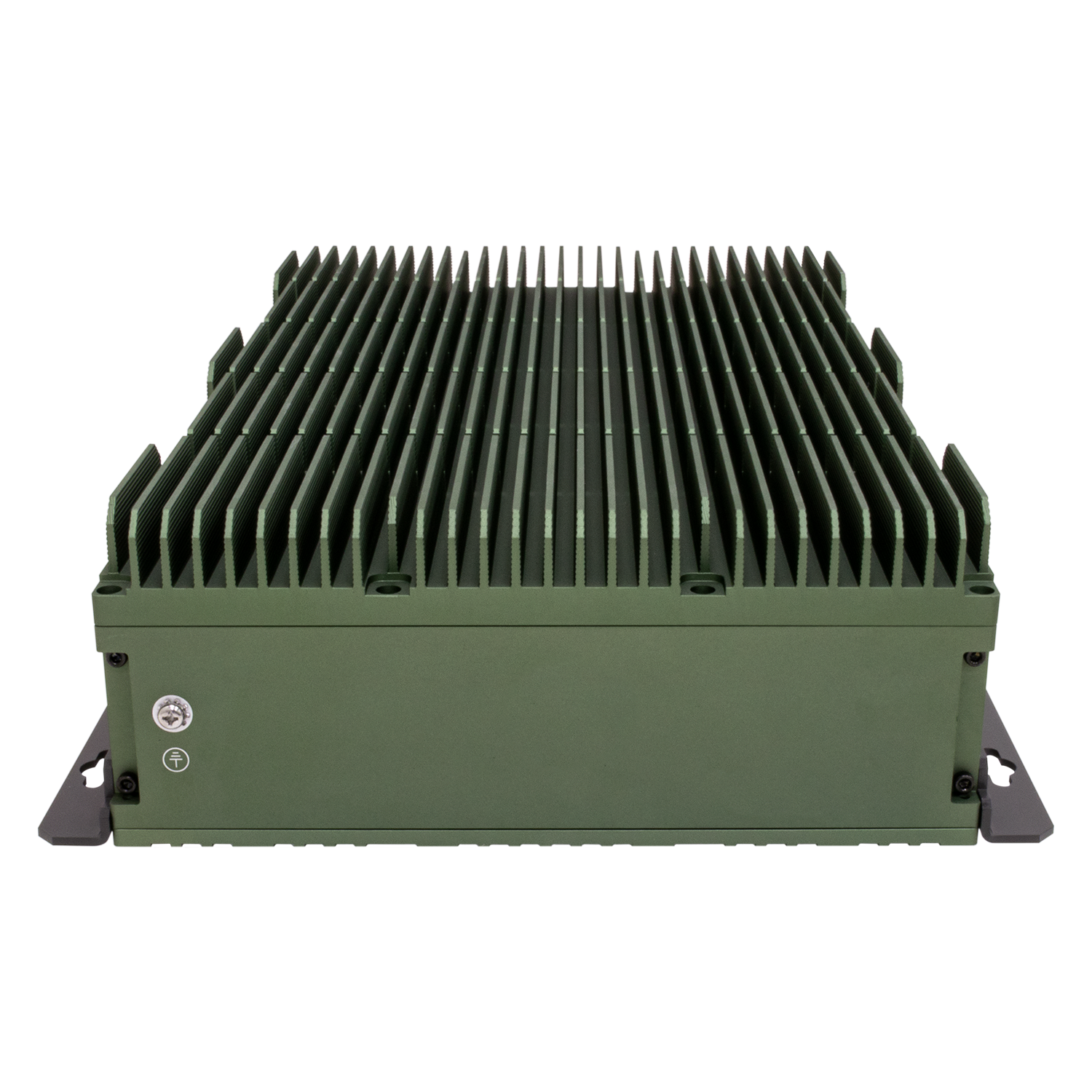

- Appearance
![THOR200-X11-TX](/sites/default/files/inline-images/THOR200-X11_20221115.jpg)
System | |
---|---|
Processor |
Intel® Core™ i7-11850HE, 2.6/4.7 GHz, 24MB, 45W, 8C/16T Intel® Xeon® W-11865MLE, 1.5/4.5 GHz, 24MB, 25W, 8C/16T |
Memory type | Up to 64GB DDR4 SO-DIMM |
Chioset | Intel® QM580E |
Graphic |
Embedded NVIDIA® RTX™ A2000 - Ampere Architecture - 2560 CUDA® cores, 20 RT Cores, and 80 Tensor Cores - 4GB GDDR6 memory, 128-bit |
TPM | Chipset: Infineon, Type:TPM 2.0 |
BIOS | AMI UEFI BIOS |
USB |
4x USB 3.0, 2x USB 2.0 |
Ethernet |
2x 10/100/1000 Ethernet Ports (1X LAN form mini-PCIE LAN module card) |
HD-SDI | 1 x single 3G-SDI support 1080p60 H.264 H/W Encode |
Power Type |
18V ~ 36V DC IN MIL-STD 461 EMI DC Module |
Storage |
2x 2.5” SATA SSD (2x Swappable SSD Tray) |
COM Port |
2x RS232/422/485 (function select by jumper) |
CANbus | 2x isolated CANbus 2.0B |
Operating Temperature |
-40 to +60°C |
Dimension | 220 mm(W) x 350 mm(L) x 88 mm(H) |
Front I/O | |
X1 |
4x USB 2.0, CANbus x 2, VGA with D38999 connector |
X2 |
1x USB 3.0 with D38999 connector |
X3 |
2x LAN 2x RS232 with D38999 connector |
X4 |
HD-SDI with BNC connector |
X5 |
1x DC-in with D38999 connector |
Environmental | |
Standard |
MIL-STD-810 MIL-STD-461/ MIL-STD-1275 12V~36V DC-Input |
THOR200-X11-EHG2 |
THOR200-X11-TX |
THOR200-D15EG |
||
CPU | I7-11850HE(8C) | I7-11850HE(8C) | Xeon D-1577(16C) | |
GPU | NVIDIA RTX A2000 | NVIDIA RTX A2000 | NVIDIA RTX A2000 | |
RAM | DDR4 Up to 64GB | DDR4 Up to 64GB | DDR4 Up to 96GB | |
RAID | RAID 0/1 | RAID 0/1 | RAID 0/1 | |
Storage | 2x2.5" SATA Drive | 2x2.5" SATA Drive | 2x2.5" SATA Drive | |
PSU | 18V~36V MIL-STD-416 | 18V~36V MIL-STD-416 | 18V~36V MIL-STD-416 | |
I/O | 1x USB3.0 | 1x USB3.0 | 1x USB3.0 | |
4 x USB2.0; 2 x RS232 | 4 x USB2.0; 2 x RS232 | 4 x USB2.0; 2 x RS232 | ||
2 x LAN | 2 x LAN | 2 x LAN | ||
1 x DVI | HD-SDI, CANbus | 1 x DVI | ||
1 x VGA | 1 x VGA | 1 x VGA | ||
1 x DC | 1 x DC | 1 x DC |
