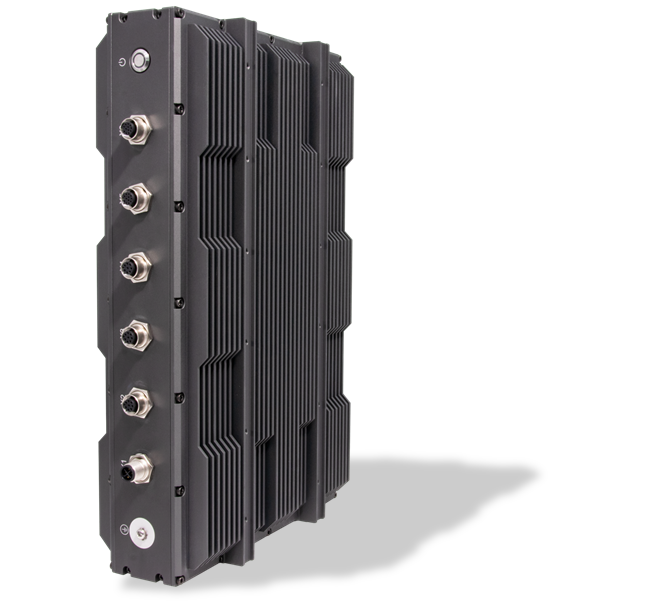

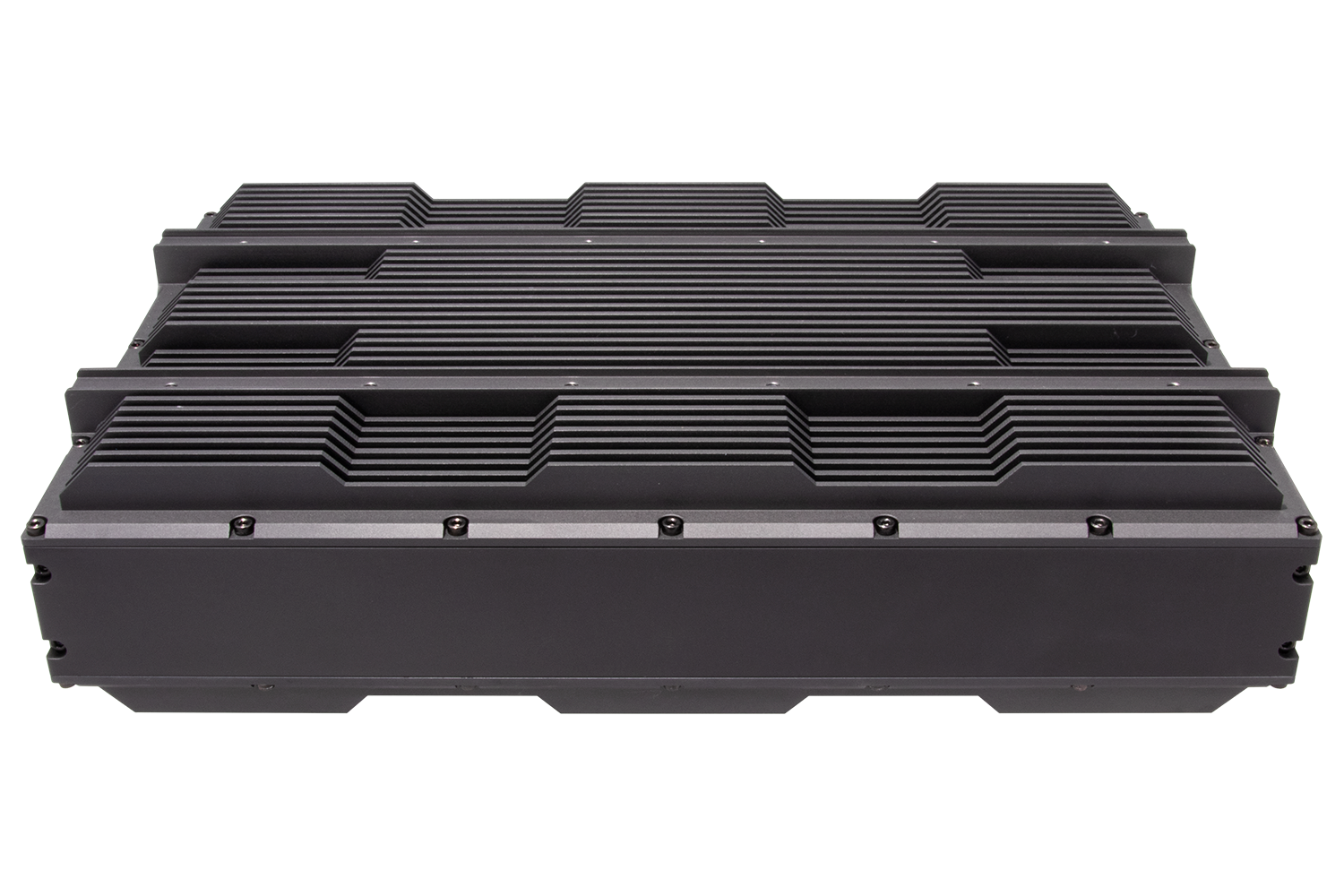

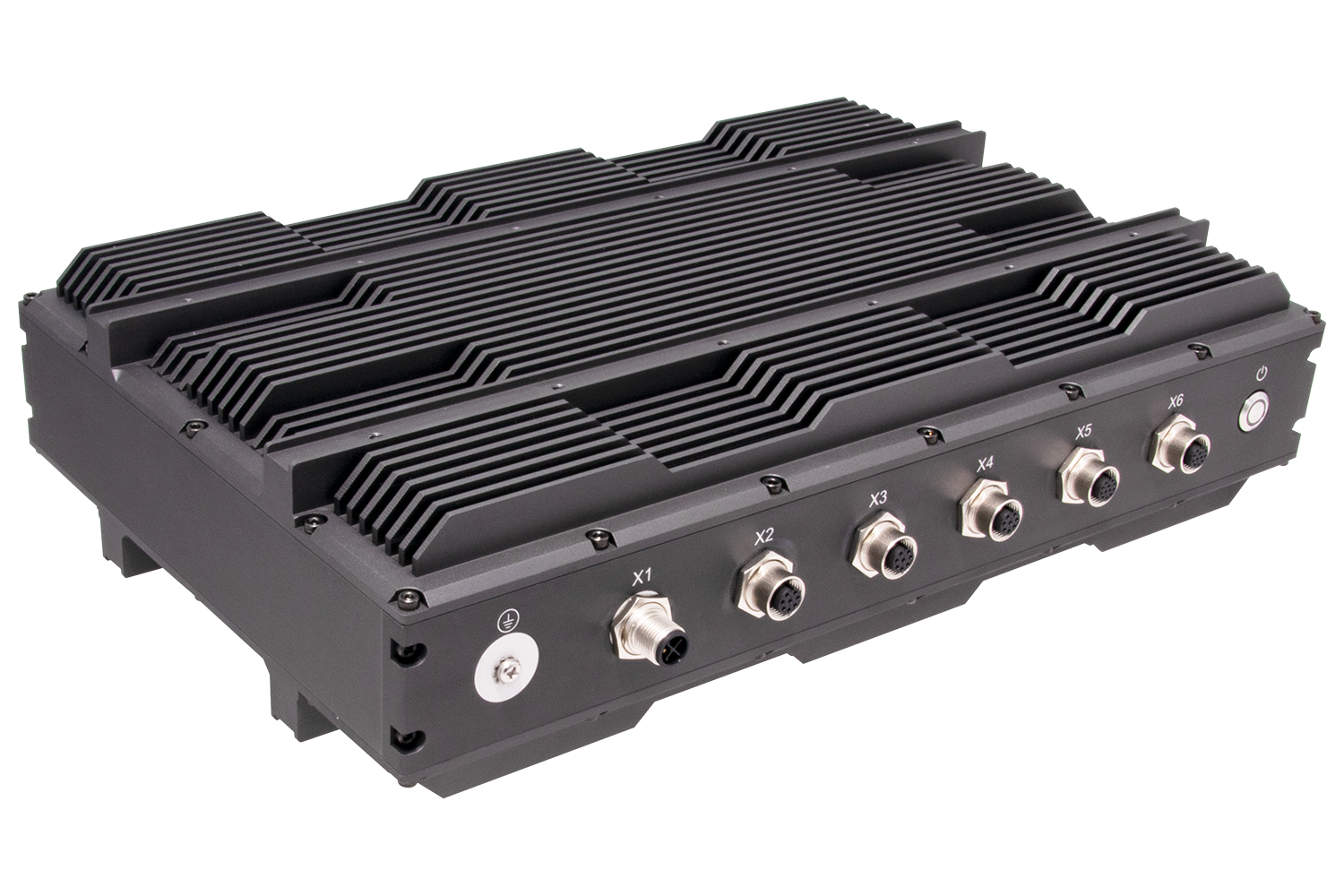

SR700-X4M-A20X
IP65 Military MXM-GPU Computer Support Extreme Temp. -40~+70 Degree
- IP65 Rating Military MXM-GPU Fanless Computer
- Counter-Drone visualisation platform incorporating sensor-data fusion
- NVIDIA MXM A2000 8GB RAM, 2560 CUDA
- Intel 9th Gen Coffee Lake(H)® Xeon® ,Core ™ Processor 45W
- PCIe/104 Rugged Expansion Slot for Stackable MXM GPU
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 75G
- MIL-STD-810 Temperature Method 501.5 502.5: ◎ Operating Temp High 70°C
- MIL-STD-810 Temperature Method 501.5 502.5: ◎ Operating Temp Low -40°C
- Technical Profile
- Specifications
- Download
Introduction
SR700-X4M-A20X rugged system is a powerful system configured with 9th Gen Intel® Xeon® processor with up to 6 cores and 25W TDP and chipset soldering onboard, delivering an amazing level of CPU performance.
Besides its extreme rugged design, high functionality, SR700-X4M-A20X is designed under MIL-STD-810 and IP65 protection, possessing high adaptation toward dust, humidity, shock, vibration, extreme temperatures and electromagnetic interference characteristics.
SR700-X4M-A20X is the perfect solution to military purposes, such as defense, marine navigation and aviation technology. It also can withstand and survive in the harshest surroundings with extended temperature operation from -40 to 60℃.

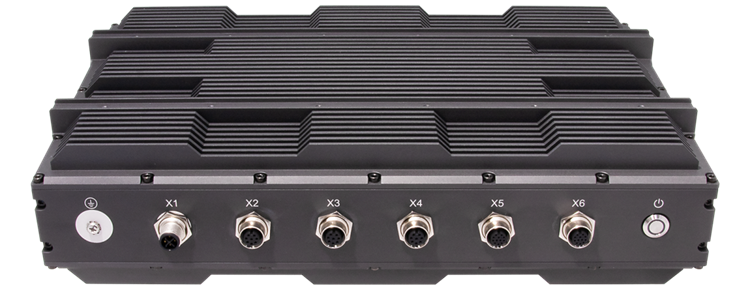

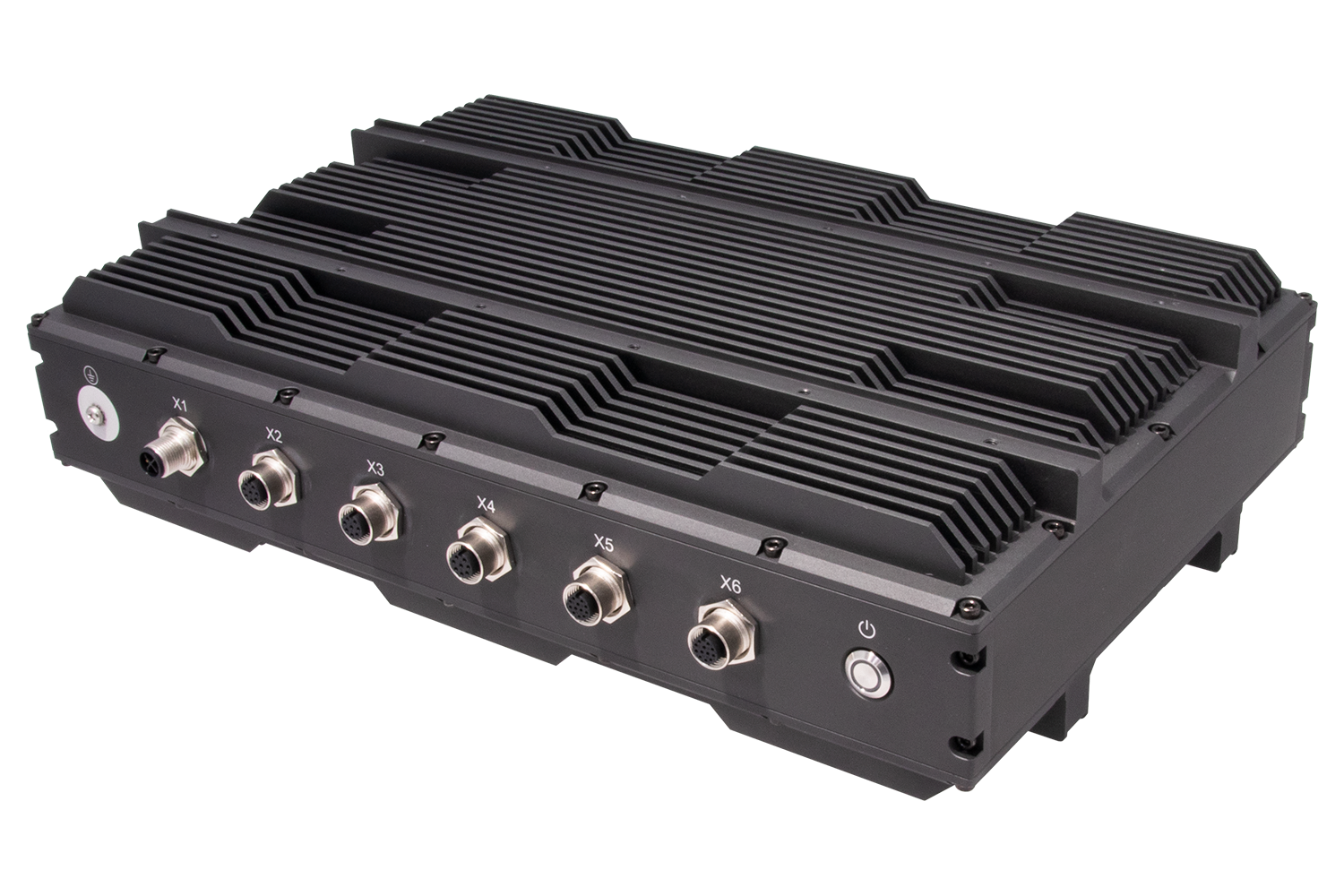

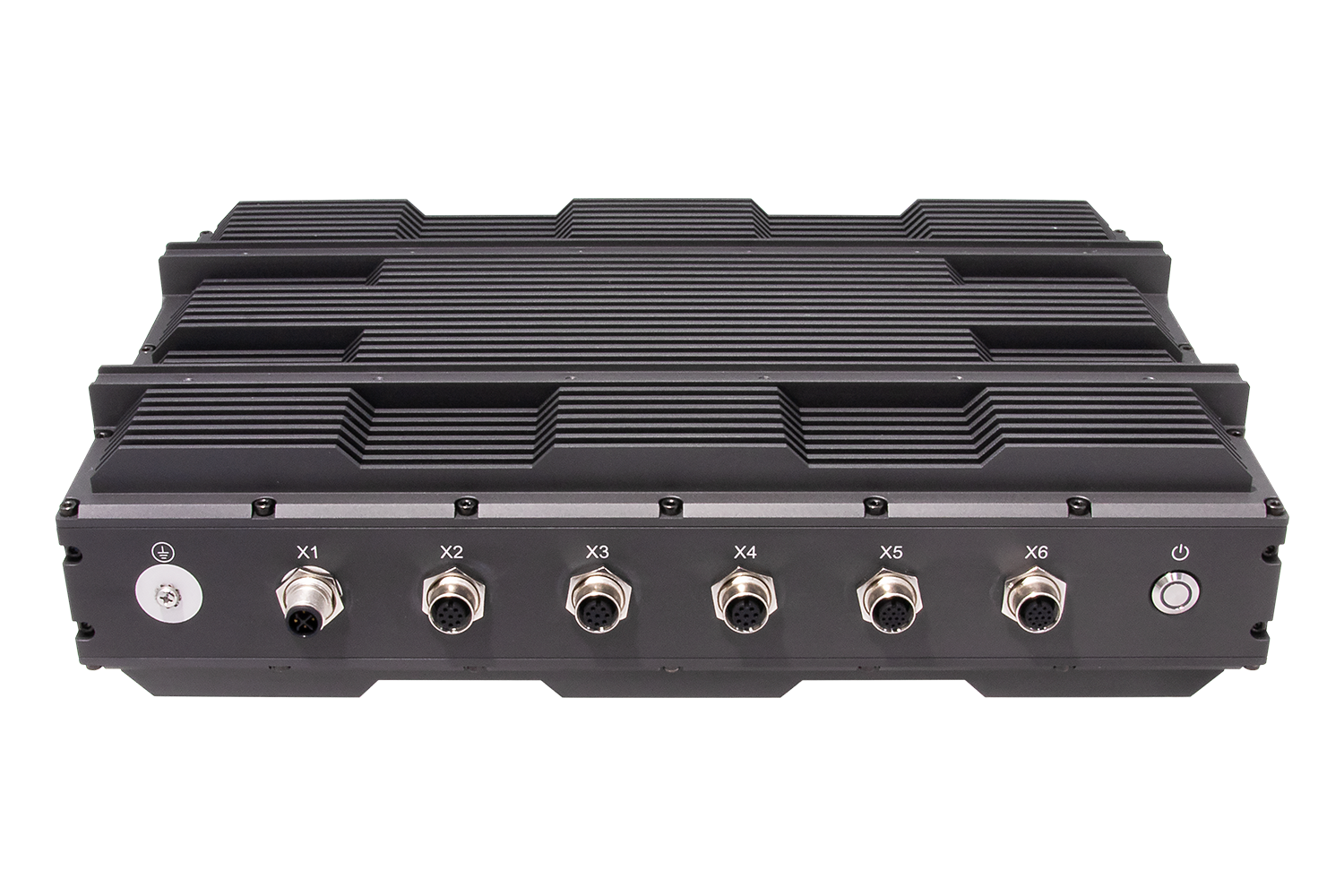

Features
- GND screw
- X1 : DC-IN with M12 connector
- X2 : 2x USB2.0 with M12 connector
- X3 : 1x 1GbE LAN with M12 connector
- X4 : 1x 1GbE LAN with M12 connectors
- X5 : 1x RS232/485 with M12 connector
- X6 : 1x VGA with M12 connector
- Power button
Thermal Solution for Fanless System Design

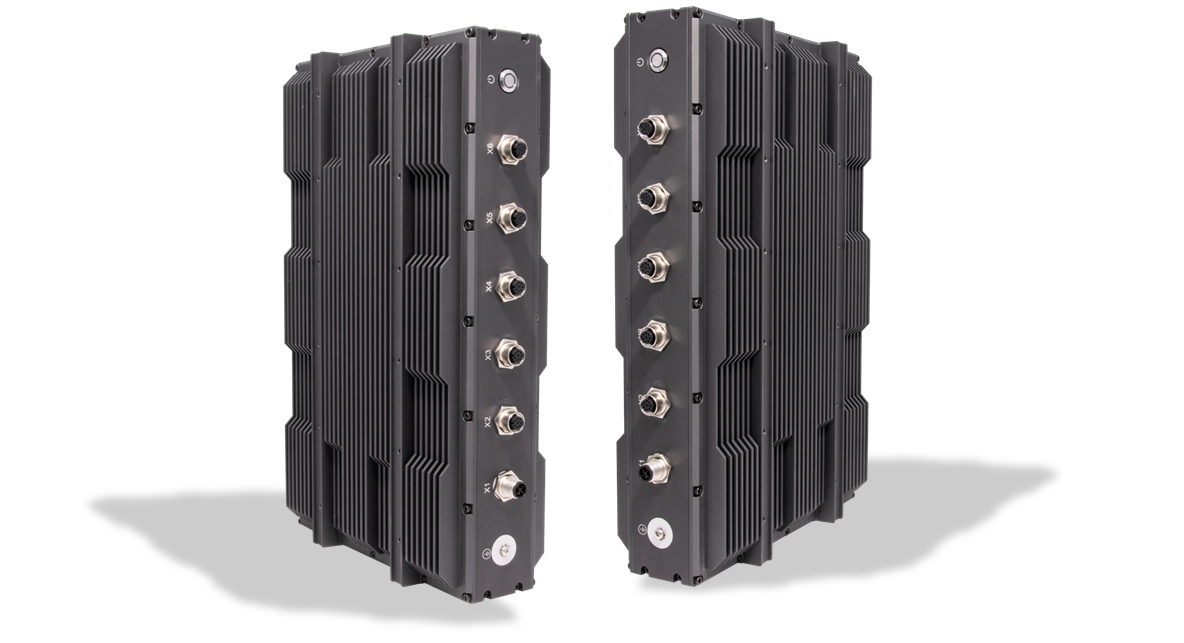

The unique design of 7StarLake's stack rack series integrate both horizontal and vertical placement. Dual-sided aluminum heat sink further secures extreme heat dissipation. 7StarLake incorporates exceptional heat radiating material with exceptional CNC cutting design. Fanless method relies heavily on the precise calculation of the efficiency of each heat dissipating component. Superior fanless design guarantees silent operation that enhances the flexibility of mobility and prevents the intrusion of dust and debris. SR700-X4 supports -40°C up to 60°C extended temperature operation, achieving ultimate reliability and stability.

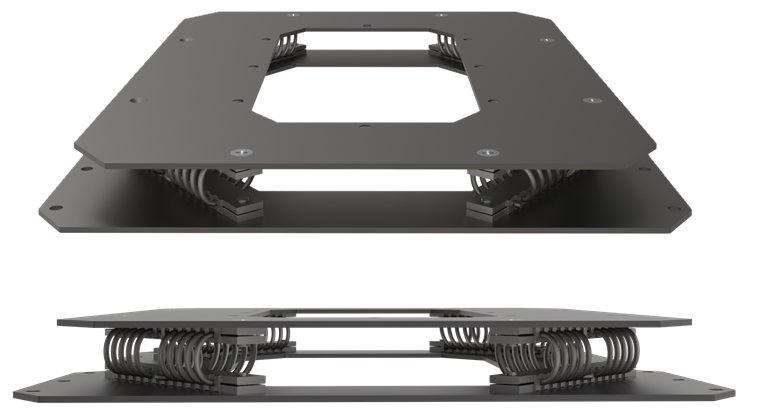

Wire Rope Vibration Isolator Design for Higher Vibration Resistance
7StarLake has especially design a Wire Rope Vibration Isolator for SR700-X4-series.
The Wire Rope Vibration Isolator may sustain higher vibration resistance of the product itself. A Wire Rope Vibration Isolator is widely apply on supporting Military equipment because it may absorb and protect the object from vibration damage in any axes simultaneously, with the protection it may extended the product life operating under long hour vibration environment and vibration shock. The isolator is long life maintenance free tool and it may unload whenever required. Besides, Wipe Rope Vibration Isolators may survive under extreme temperature, corrosion, radioactivity, extreme dry or high humidity and UV Radiation environment.
MIL-STD 810 Compliant & Full IP65 Anti-water / Dust Protection
SR stands for Stack & Rack, which means that our SR series systems are capable of stacking and rack mount cabinet placement. With key components such as CPU, memory, and storage devices all soldered onboard, the possible risk of damages caused by sudden impact of vibration and bumping can be diminished to the minimum. MIL-STD tests are established by the US government to simulate how materials would hold up to harsh environments. SR700-X4 is rigorously field-tested to meet or exceed MIL-STD810 & IP65 criteria for extremely high & low temperature, humidity, shock, and vibration. SR700-X4 has complete resistance to dust and water, making it even more ruggedized and reliable. SR700-X4 can stand against the intrusion of dust, accidental contact, and water. Not just commercial grade waterproof and dustproof, it can reach Dust Tight level, which guarantees complete protection against ingression. Even the strong power of water jet won't post a threat to it, now this is true ruggedness embodied.
MIL-STD-461
MIL-STD-461 is a military standard that establishes the control of electromagnetic interference (EMI) emissions and susceptibility characteristics of electronic, electrical & electromechanical equipment and subsystems for military equipment. EMI encompasses any undesired signals, “noise”, generated by electronic equipment. Keeping EMI under control is crucial for military applications, because if it’s out of control, the military will be detected by the enemy and it might cause a great loss. To design a product that meets strict requirements, engineers should possess extensive knowledge of both electrical and mechanical design to avoid unintentional generation, propagation and reception of electromagnetic energy, which may cause unwanted effects, for example, physical damage in operational equipment.

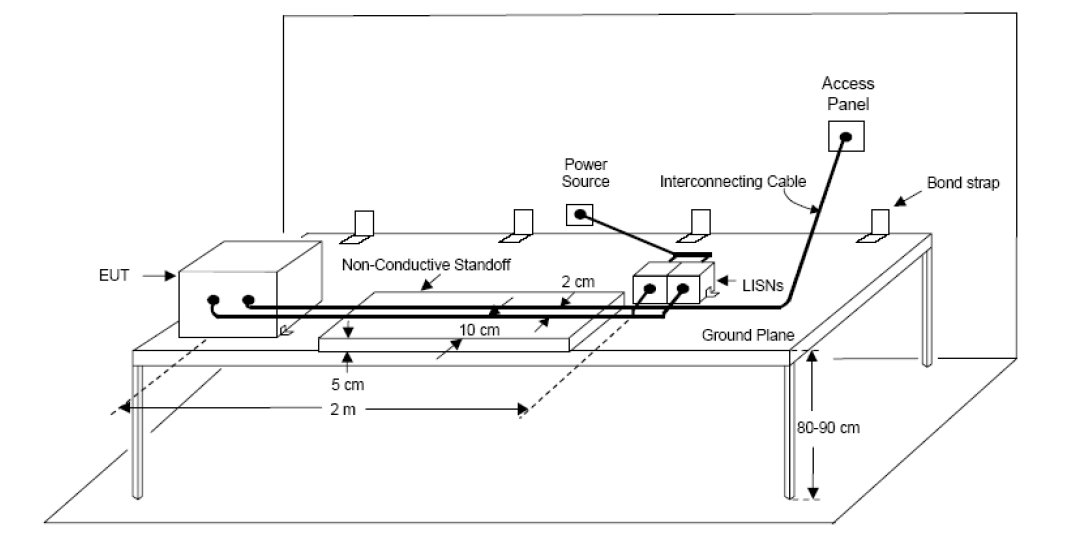

▲ Block diagram of MIL-STD-461 test configuration

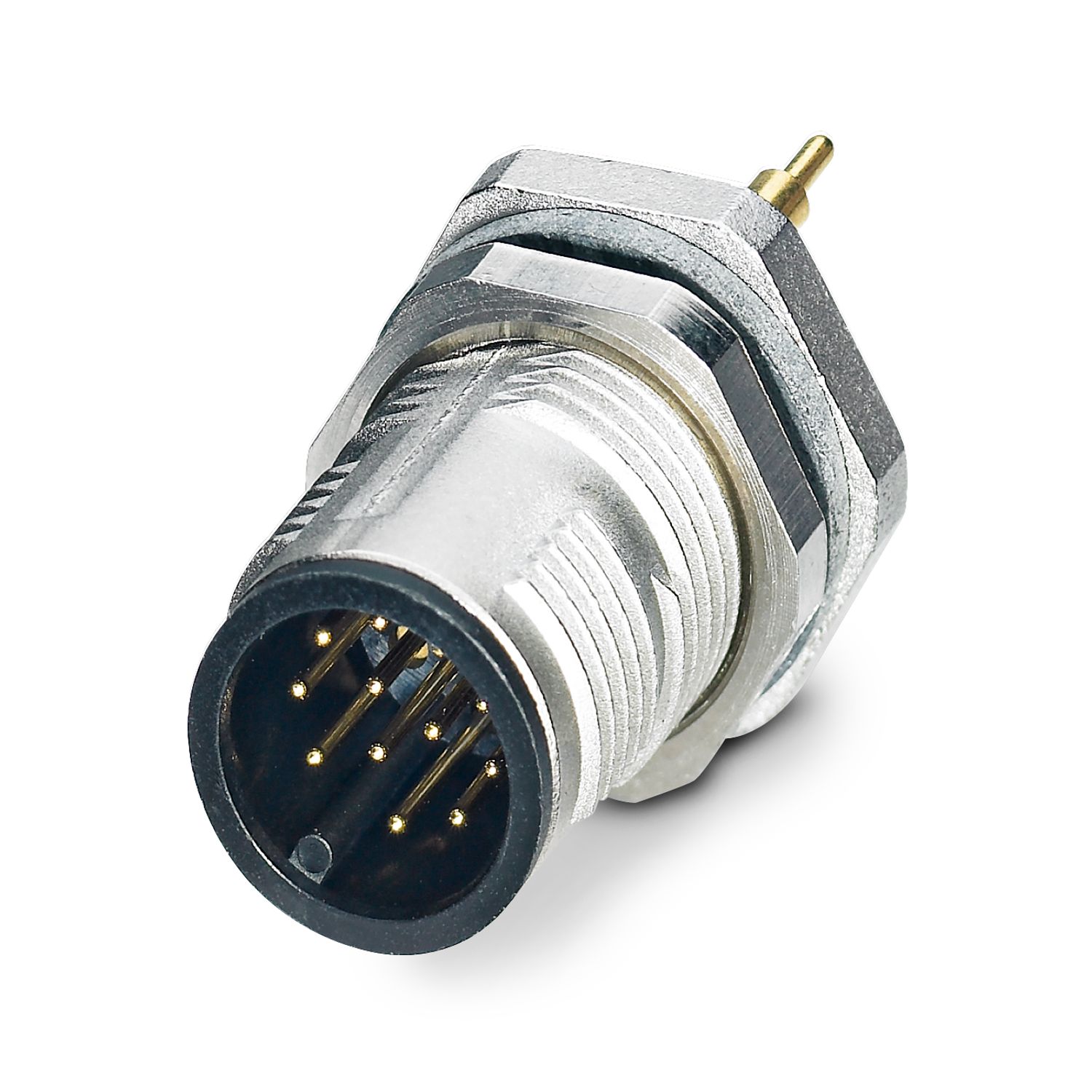

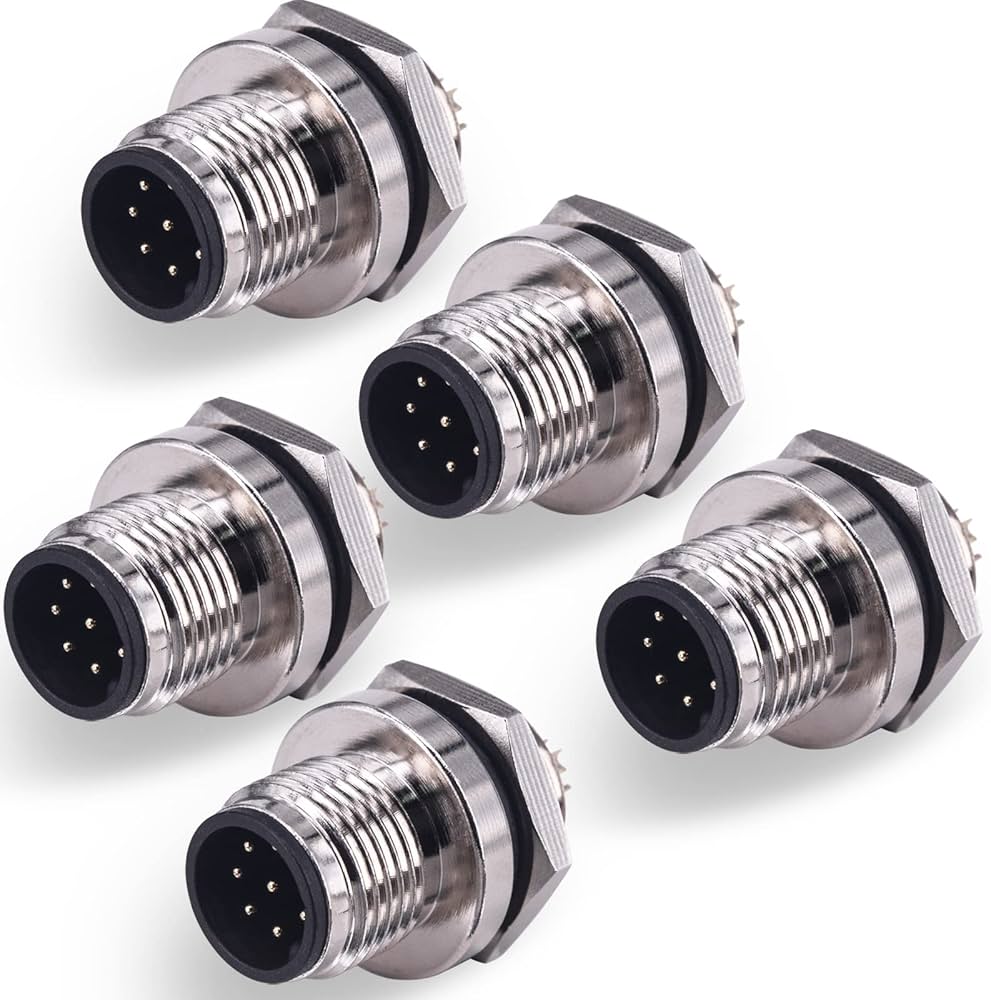

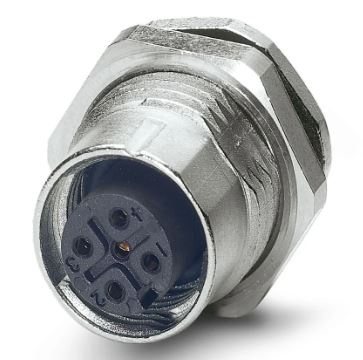

Rugged Connectors ( M12 & other MIL-STD variations )
Robust and reliable M12 connectors are implemented for SR700-X3. Compact design meets rugged capability, M12 connectors can seal the connector area securely, operation can continue uninterrupted even under the most severe conditions. What makes SR700-X3 stand out from standard commercial grade product is the fact that all the connectors can be customized to U.S. Military standard connectors (D38999 series) from the famous connector manufacturer Amphenol.

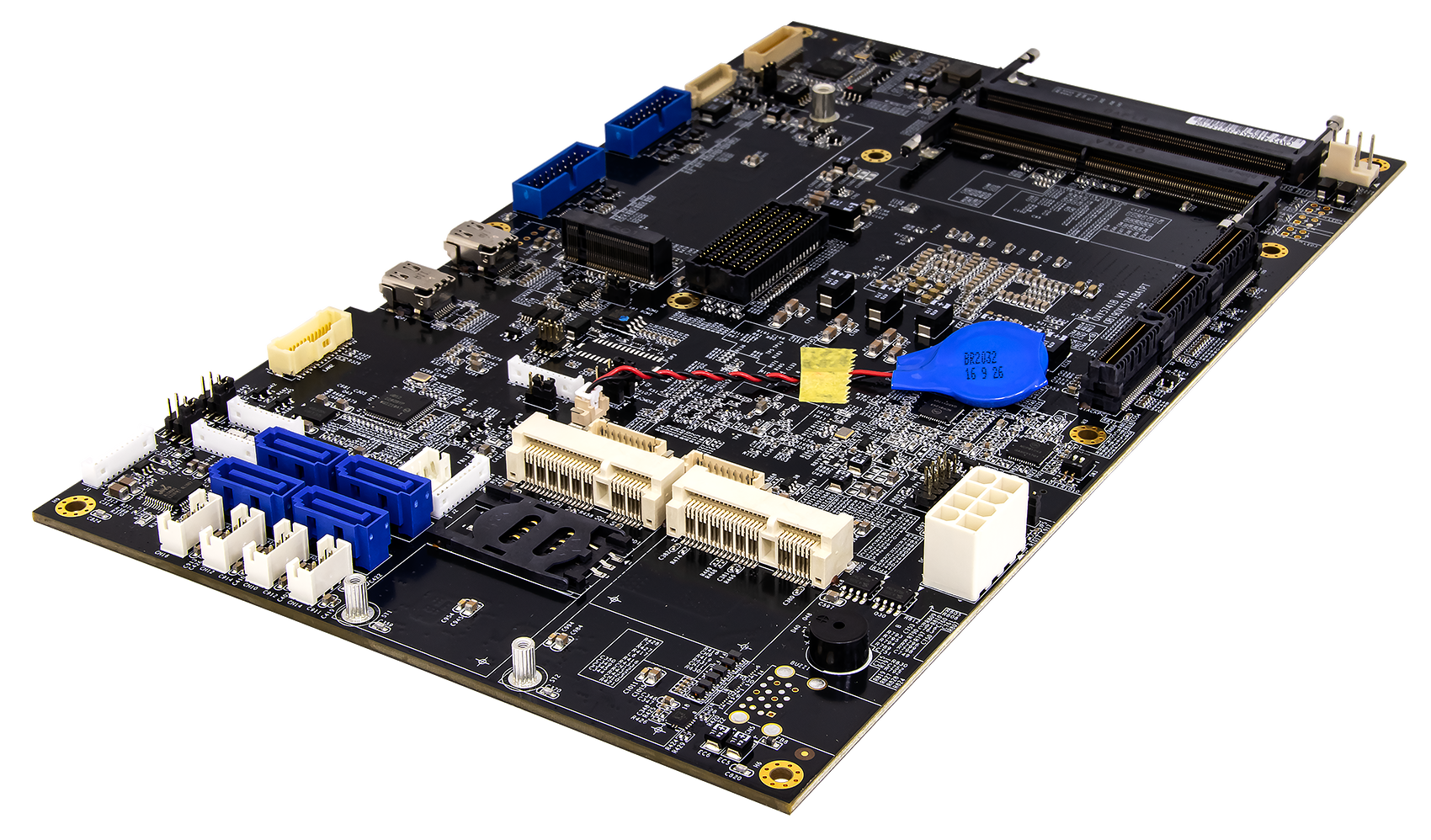

System main board: OXY5741B
OXY5741B EBX SBC measures 243*146 mm, providing extraordinary computing performance under extreme environment. It is powered by 9th / 8th Gen Intel® Xeon® / Core ™. Featuring Intel’s Xeon E-2276ML and ruggedised open-standard EBX architecture, 7StarLake EBX series is built tentatively and triumphs on environmental testing. It still operates effectively under harsh environments ranging from -40°C to 85°C so that it is a perfect solution for defence, transportation, and automation applications. More key functions such as stackable PCIe/104 expansion ability, flexible I/O, and NVMe Gen 3.0 PCIex4 for fast and large capacity storage.
|
System |
||
|---|---|---|
|
High Power Processor |
Intel® Core™ i7-9850HE, 45W, Coffee Lake 9th Gen, 6C, Freq. 2.7/4.4 GHz, 9M Cache, Intel® Core™ i7-9850HL, 25W, Coffee Lake 9th Gen, 6C, Freq. 1.9/4.1 GHz, 9M Cache, Intel® Xeon® E-2276ME, 45W, Coffee Lake 9th Gen, 6C, Freq. 2.8/4.5 GHz, 12M Cache, Intel® Xeon® E-2276ML, 25W, Coffee Lake 9th Gen, 6C, Freq. 2.0/4.2 GHz, 12M Cache |
|
|
Chipset |
CM246 |
|
|
memory type |
4 x DDR4 2666 MHz SO-DIMM up to 128GB |
|
|
Graphic |
Quadro® RTX A2000 CUDA 2560 GDDR6-4/8GB |
|
|
Ethernet |
I219LM +I210iT |
|
|
Audio codec |
ALC887 |
|
|
Power Type |
DC-DC 9V~36V, Options for MIL-STD 461 18V~36V DC |
|
|
Storage |
1x 2TB M.2 2280 NVMe SSD 1x 2TB SATA III 2.5” SSD |
|
|
Expansion slot |
||
|
M.2 |
1 x M.2 (M-key, type:2280, SATA/PCIe 3.0x4 NVMe) |
|
|
Mini-PCI |
2 x Full size (PCIe x1,USB 2.0 and micro SIM Card) |
|
|
Front I/O |
||
|
X1 |
DC-IN with M12 connector |
|
|
X2 |
2x USB2.0 with M12 connector |
|
|
X3 |
1x 1GbE LAN with M12 connector |
|
|
X4 |
1x 1GbE LAN with M12 connectors |
|
|
X5 |
1x RS232/485 with M12 connector |
|
| X6 | 1x VGA with M12 connector | |
|
Applications, Operating System |
||
|
Applications |
Military Platforms Requiring Compliance to MIL-STD-810 where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions. |
|
|
Operating System |
Windows 10 32/64Bit Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20 |
|
| Physical | ||
| Dimension | 360 x 230 x 86 mm (WxDxH) | |
| Weight | 8.6 Kg ( 18.9 lbs ) | |
| Chassis | Aluminum Alloy, Corrosion Resistant | |
| Heatsink | Aluminum Alloy, Corrosion Resistant | |
| Finish | Anodic aluminum oxide ( Color Iron gray ) | |
| Cooling | Natural Passive Convection/Conduction. No Moving Parts. | |
| Connectors | IP65 Waterproof Connectors | |
| Ingress Protection | IP65 | |
| Environmental | ||
| Operating Temp | -40°C to 60°C | |
| Storage Temp. | -40°C to 85°C | |
| Relative Humidity | 5% to 95%, non-condensing | |
| MIL-STD-810 | Method 507.5, Procedure II ( Temperature & Humidity ) Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) Method 501.5, Procedure I ( Storage/High Temperature ) Method 501.5, Procedure II ( Operation/High Temperature ) Method 502.5, Procedure I ( Storage/Low Temperature ) Method 502.5, Procedure II ( Operation/Low Temperature ) Method 503.5, Procedure I ( Temperature shock ) |
|
| Reliability | No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program. |
|
| Green Product | RoHS, WEEE compliance | |
