SR800-E16
SR800-E16
Military IP65 hC2 Command Server powered by 5th Intel® Xeon® SP Processor
- Heavy Duty In-Vehicle IP65 Mission Server
- 5th Intel® Xeon® Scalable processor
- Features 10GbE-LR Fiber network connection via rugged connectors
- Integrated TPM 2.0 and ASPEED AST2600 BMC for IPMI 2.0
- Easy maintenance with swappable dual U.2 NVMe SSDs and CMOS battery trays
- Flexible power system supporting a wide 10V to 40V DC-IN
- IP65 rated, designed to meet MIL-STD-810, 461, and 1275
- Coated with anti-yellowing and anti-aging finish for military standards.
- Compact rugged chassis design measuring 281 x 500 x 138 mm
- Operating temperature range spanning from -46°C up to 71°C
- Technical Profile
- Specifications
- Order Information

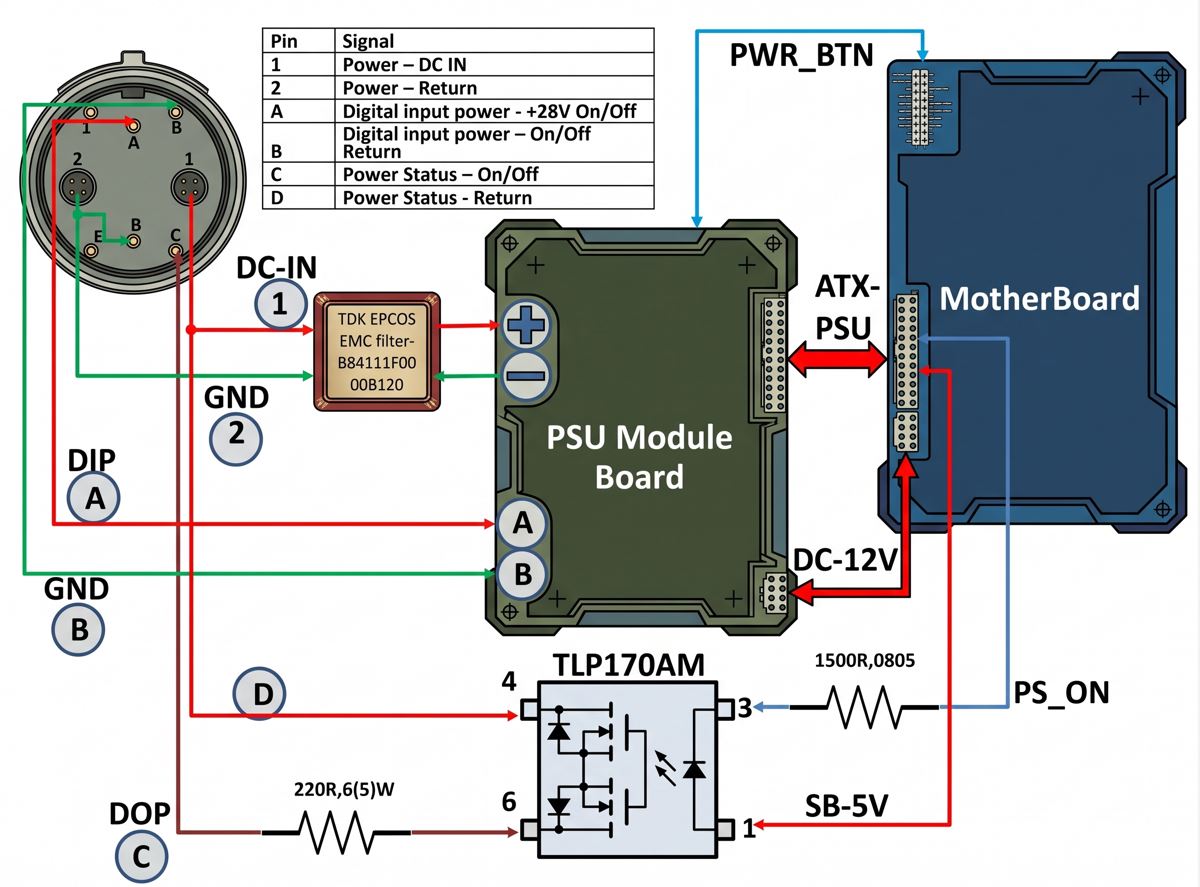

- Power Block Diagram
-
This Power Module features military-grade remote power control and status feedback (DIP/DOP). It utilizes optocoupler isolation (TLP170AM) to safely manage power signals and return system status, ensuring high stability and safety in harsh vehicular environments.
|
System |
|
|---|---|
|
High Performance Processor |
Intel® Xeon® Gen 4th/5th Scalable processor
|
| Chipset | Intel C741® Chipset |
| Storage Controller |
Integrated PCH RAID, supported RAID Levels: 0, 1, 5, 10 (for SATA drives) |
| Memory Type |
48GB ECC RDIMM, DDR5-4400MT/s |
|
TPM |
TPM 2.0(Integrated TPM 2.0 module provides Common Criteria EAL 4 security) |
| FAN | ASPEED AST2600 BMC on board (Dedicated IPMI 2.0 LAN for remote management - AST2600 |
| RTC Backup | PCH C741 RTC uses CR2032 backup power for retention when main power is removed. |
|
Storage |
|
| SSD | 2 x 2.5" 1TB U.2 NVMe 3D-TLC SSD |

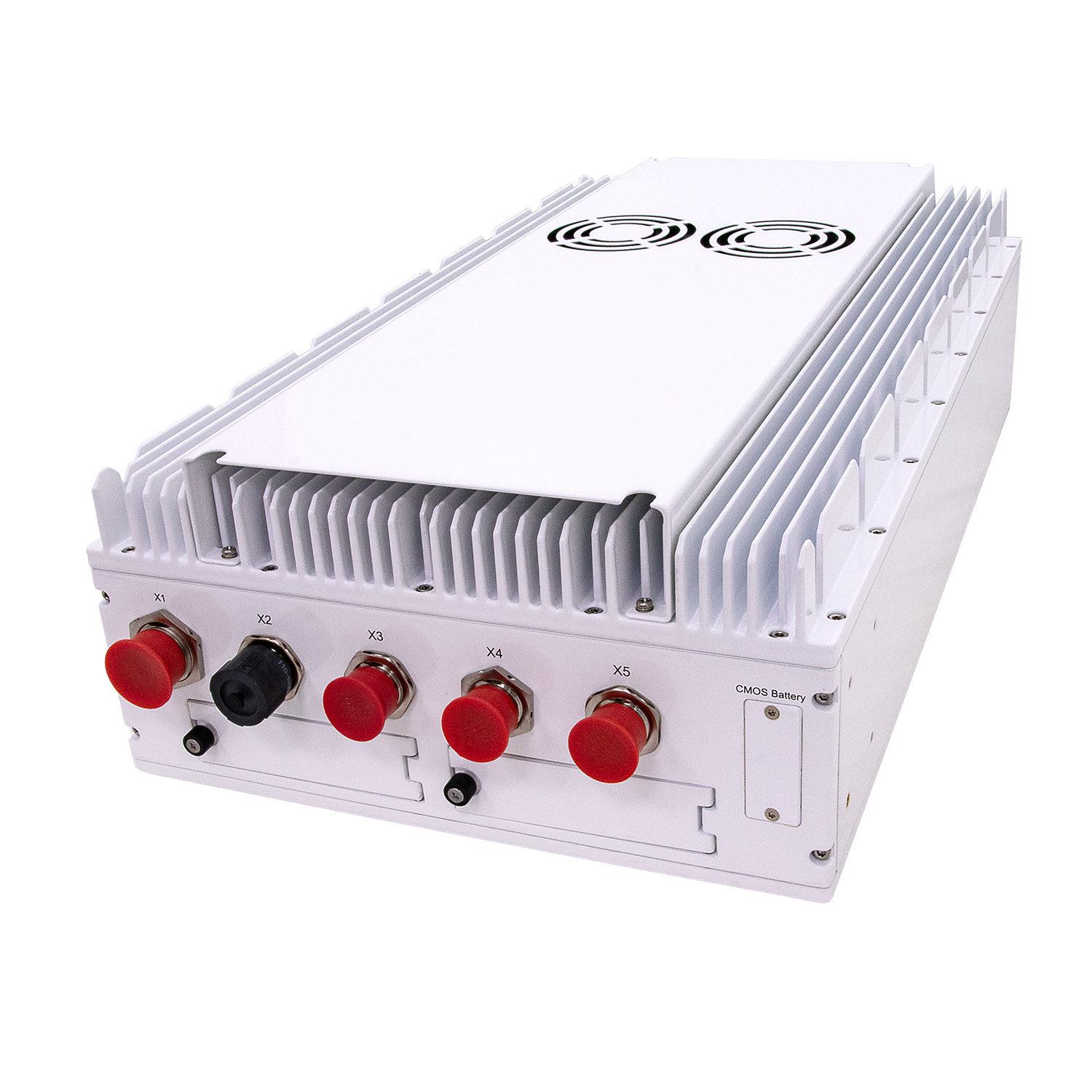

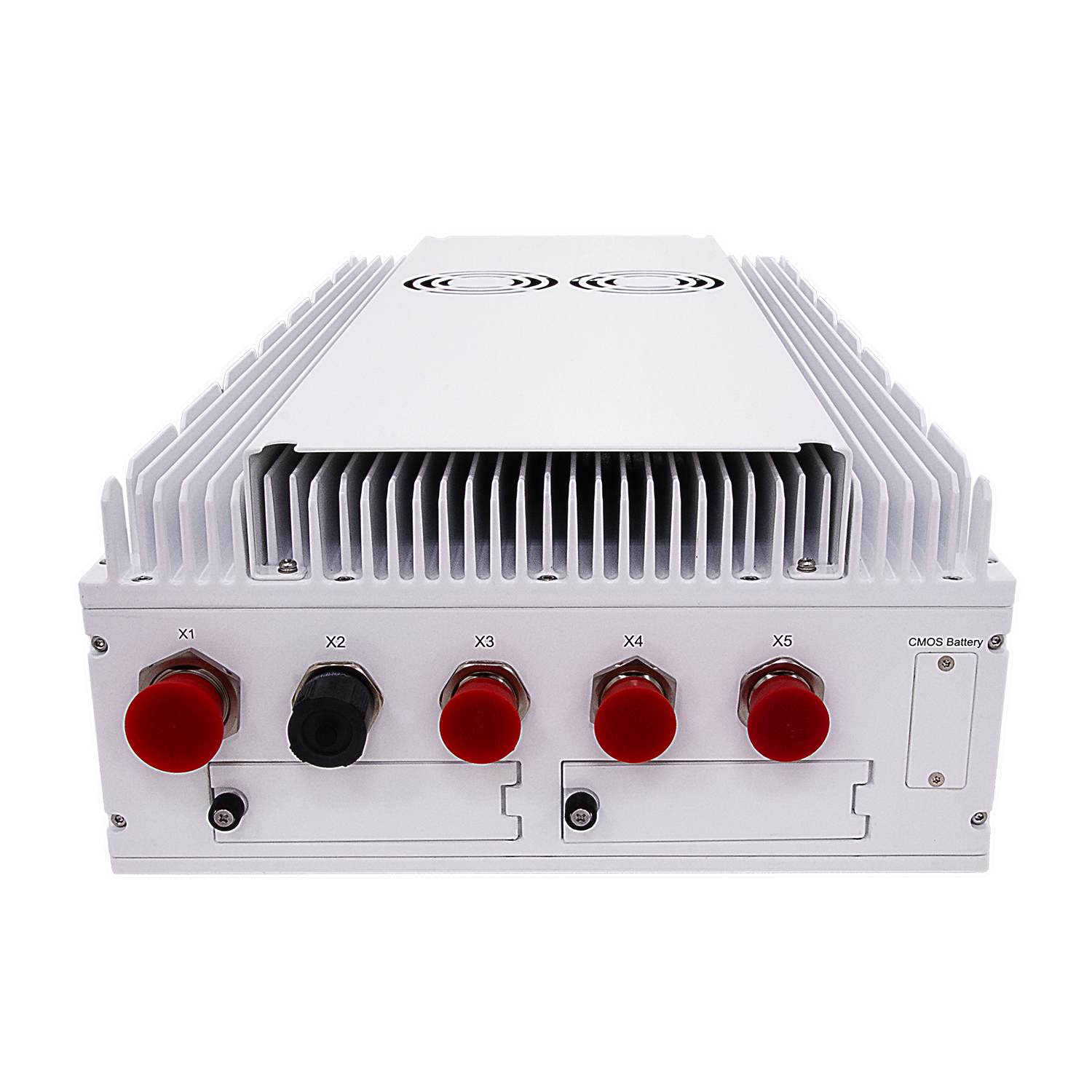

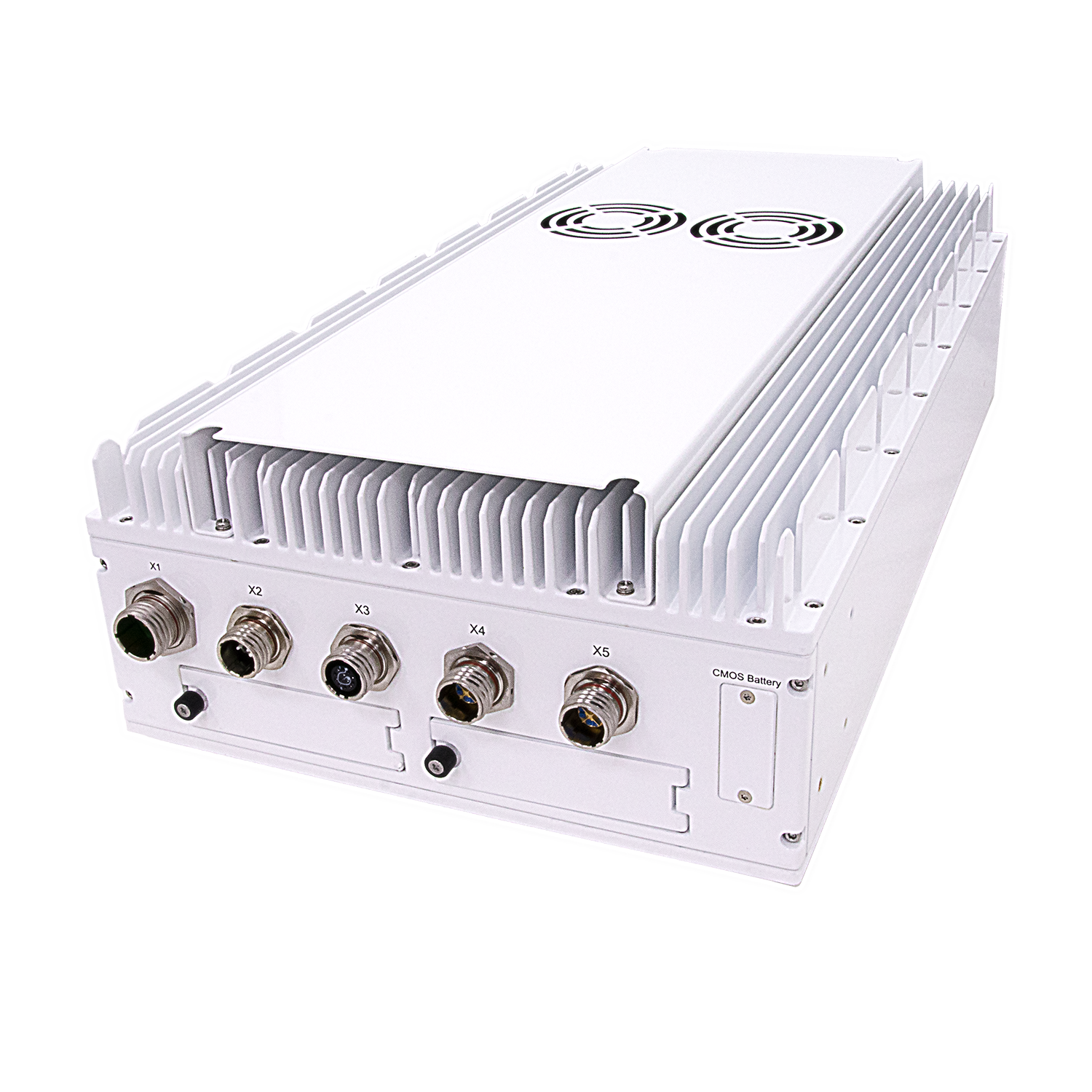

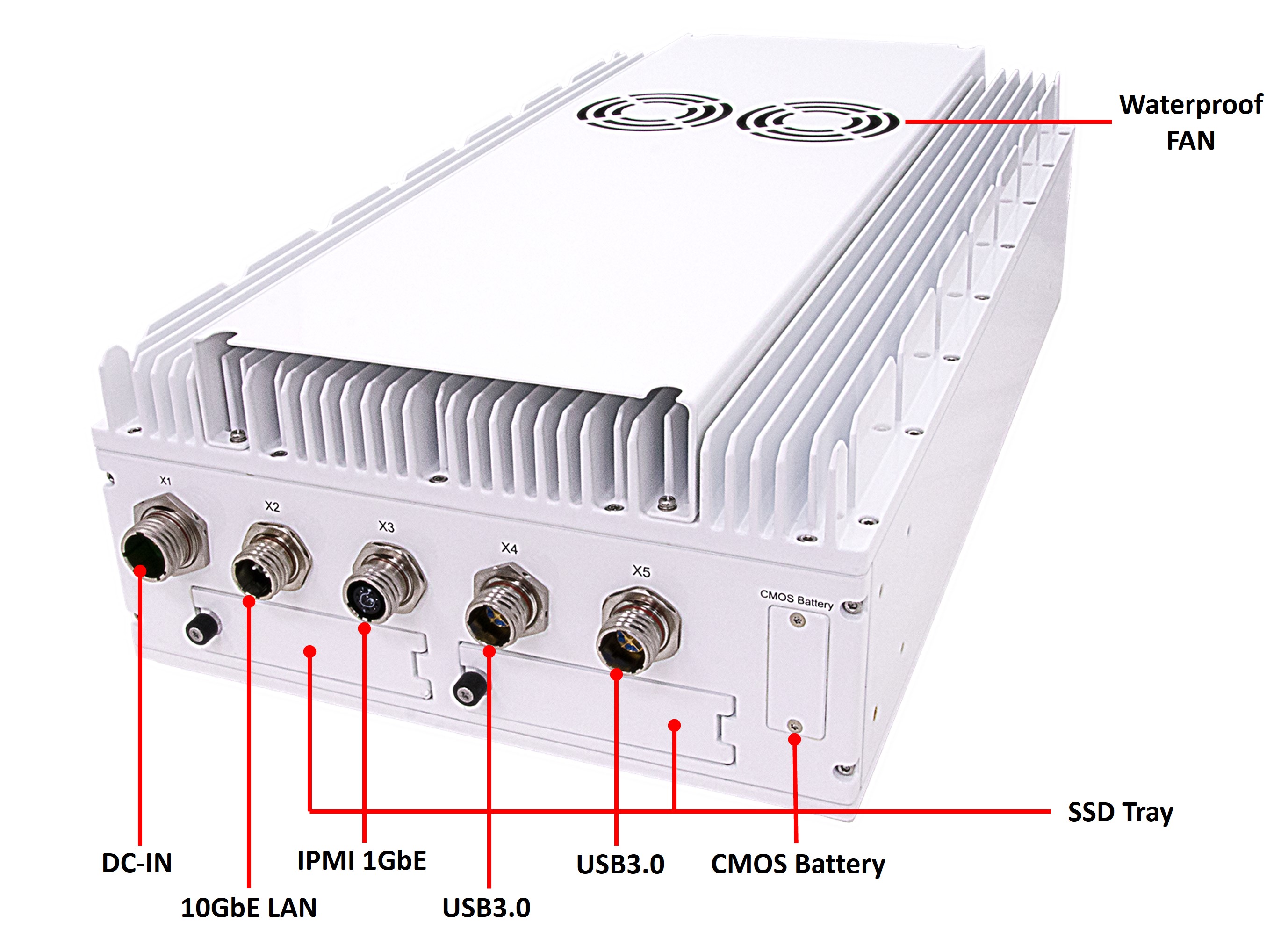

| Front I/O | |
| X1 | 10~40V DC-IN w/TVS07RF-13-26P(Substitute 8D7-13F26PN) |
| X2 | 10GbE-LR Fiber 1310m w/FS801-11J02AKE |
| X3 | Dedicated IPMI 1GbE LAN w/ 24FB35SA |
| X4 | USB3.0 w/TV07UCOM-USB3SF11S(Substitute TV07UCOM-USB3CF11S) |
| X5 | USB3.0 w/TV07UCOM-USB3SF11S(Substitute TV07UCOM-USB3CF11S) |
| SSD Tray | 2 x Swappable SSD Tray (Swappable SSD trays allow quick, easy, tool-less drive removal) |
| CMOS Tray | 1 x Swappable CMOS Tray |

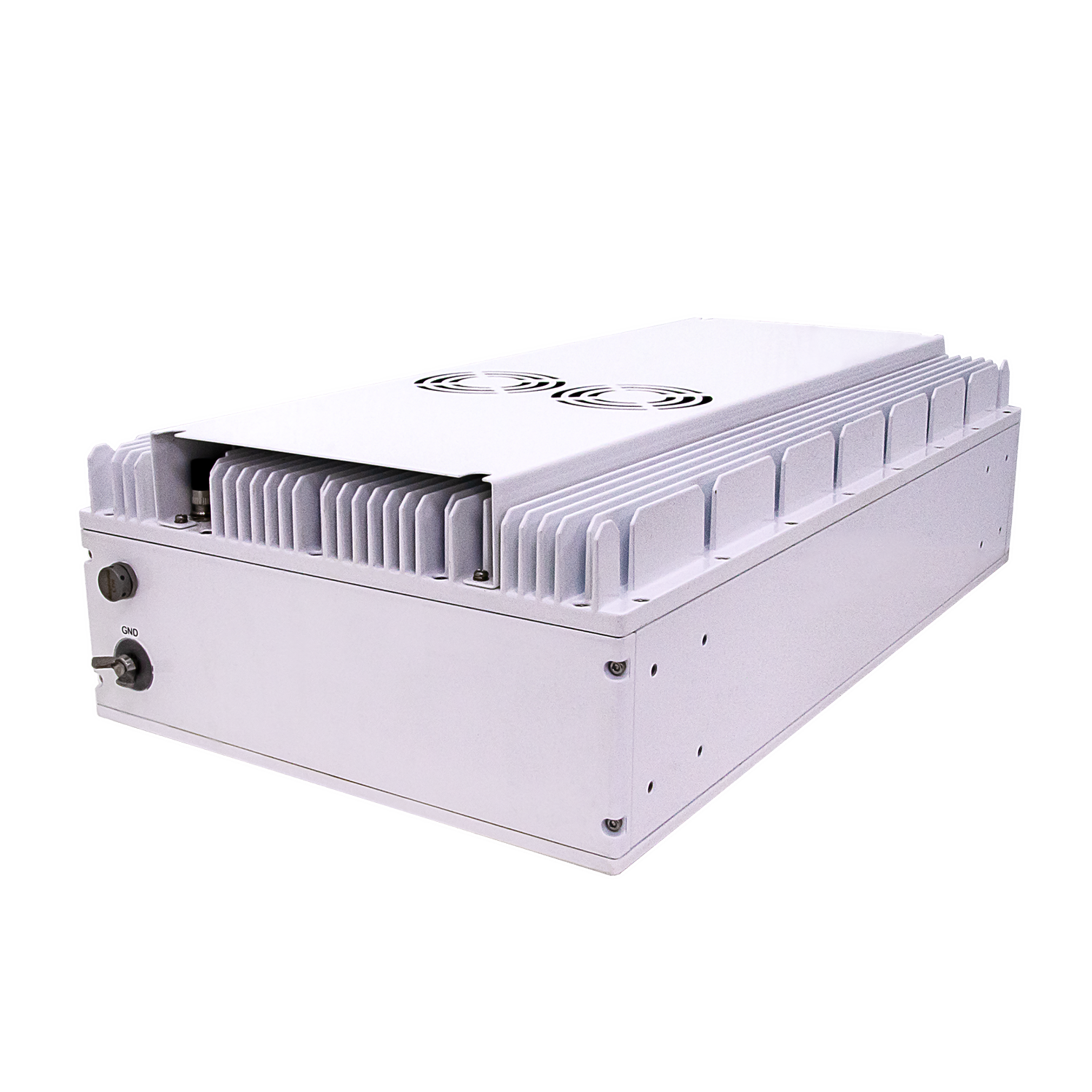

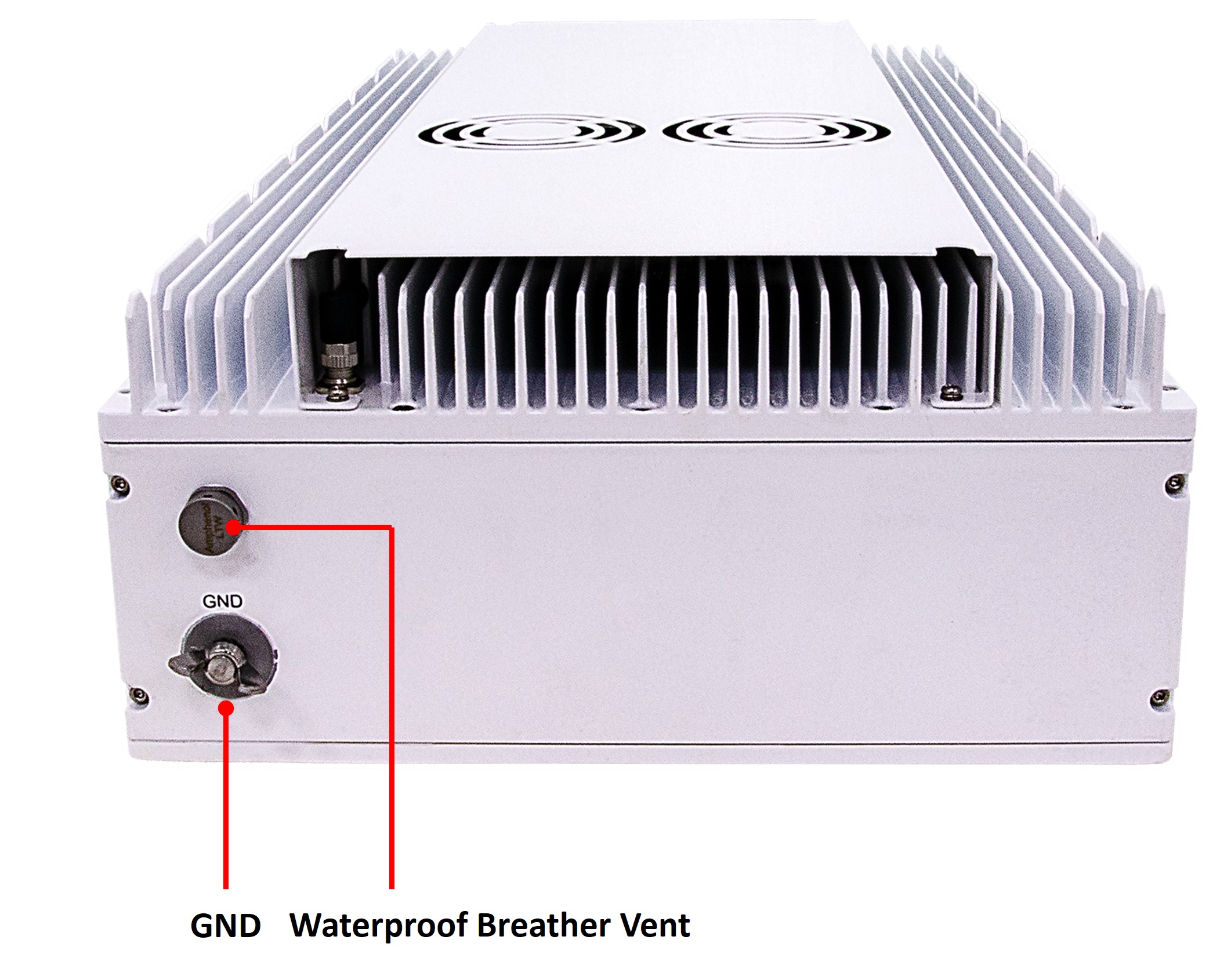

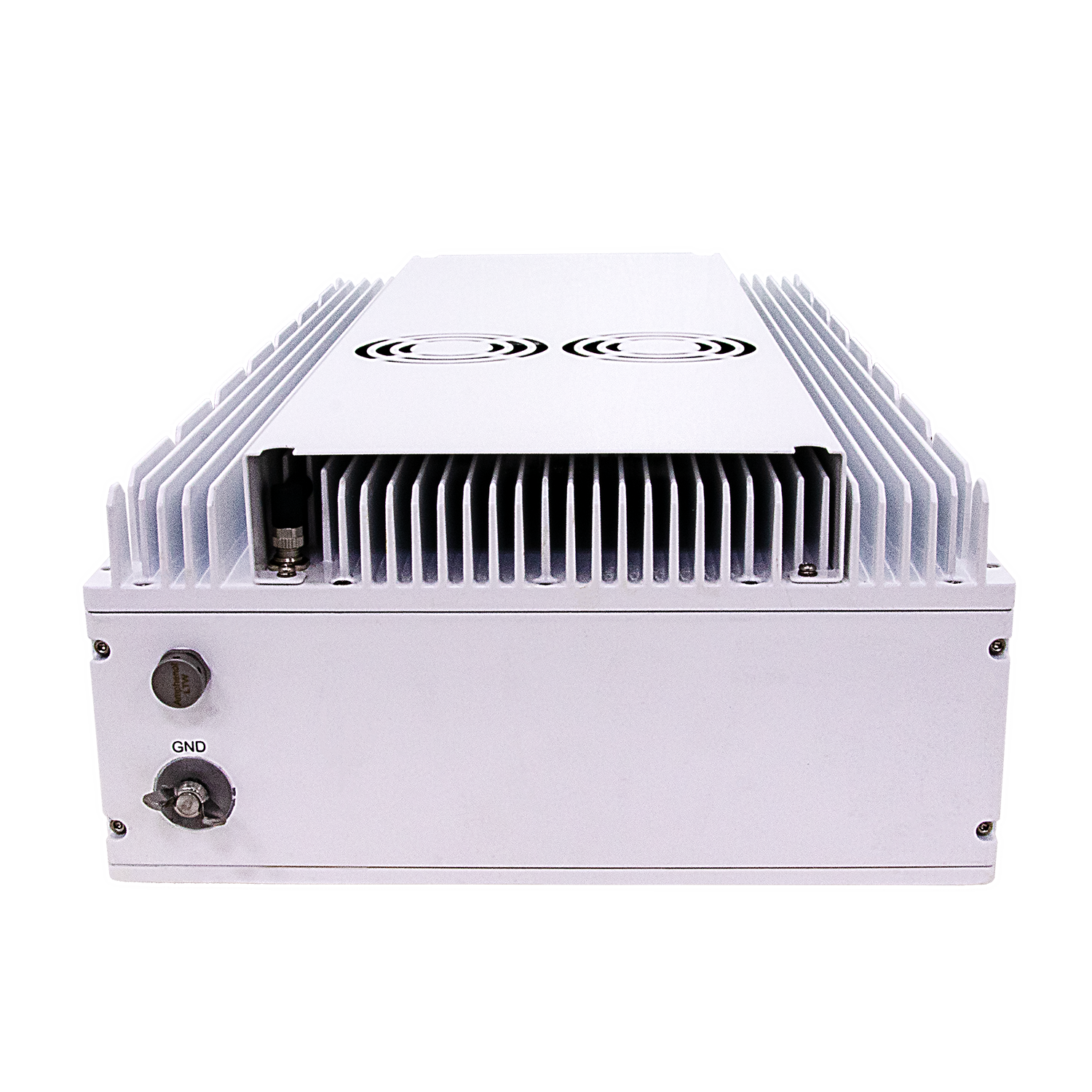

| Rear I/O | |
| GND | 1x GND |
| Pressure Relief Valve |
|
| Power Requirement | |
| Power | 10-40V DC-IN |
| Operating System | |
| Operating System |
Windows 10 64-bit Enterprise Windows 10 64bit Pro Workstations Windows 10 IoT 64-bit Enterprise Windows 11 64-bit Enterprise Windows 11 64bit Pro Workstations Windows 11 IoT 64-bit Enterprise Windows Server 2019 64-bit Windows Server 2022 64-bit Windows Server 2025 64-bit RHEL 8.5 64bit RHEL 8.6 64bit RHEL 9.0 64bit RHEL 9.2 64bit CentOS 8.5 64bit CentOS 8.6 64bit Rocky Linux 8.5 64-bit openSUSE Leap 15.4 64-bit SLES 15 SP3 64-bit Ubuntu 22.04 64-bit Server Ubuntu 21.10 64-bit Server VMware ESXi 7.0u3d x64 VMware ESXi 8.0x64 |
| Physical & Environment | |
|
Dimensions (W x D x H) |
281 x 500 x 138 mm |
| Weight |
20 KG (W/O external I/O cable) |
| Operating Temperature |
-46°C to +71°C |
| Storage Temperature | -46°C to +85°C |
| MIL-STD-461 | |
| MIL-STD-1275 | MIL-STD-1275 Design to meet |
| MIL-STD-810 | MIL-STD-810 Design to meet |
SR800-E16
Military IP65 Rugged Command Server powered by 4th/5th Gen Intel® Xeon® Scalable Processor, featuring DDR5 ECC RDIMM, swappable U.2 NVMe SSD trays, 10GbE Fiber, IPMI 2.0, TPM 2.0, Amphenol circular connectors, and 10–40V DC-IN, operating from -46°C to 71°C.
