IV320-RH-A50

IP65 NVIDIA 5000Ada GPU Computer with Intel® 13^th Raptor Lake-H Processor

IP65 sealed enclosure for harsh, wet and dusty environments.
Intel® 13th Raptor Lake-H, Core i7-13800HRE, 14C, 20T, 5.0Ghz
NVIDIA® Quadro MXM RTX 5000Ada (16GB GDDR6, 9728 CUDA)
1× 10GbE data input for sensor payload connectivity
2 x 2.5” SATA SSD Easy Swap Tray
Operating Temperature:
Permission Mode: -20°C to +50°C
Stress Mode: -20°C to +40°C
Wide Range 12V-32V DC-IN
MIL-STD-810 Anti-Vibration, Shock

System
CPU	Intel^® 13th Raptor Lake Core i7-13800HE/HRE, 14C, 20T, 2.5/5.0GHz, 24M Cache, TDP 45W.
Memory Type	Dual DDR5 DIMMs 5200MHz, Up to 64GB
Display
GPU	NVIDIA^® Quadro RTX 5000Ada - (9728 CUDA Cores)
Storage
HDD/SSD	2 x 2.5” Easy swap HDD/SSD Tray

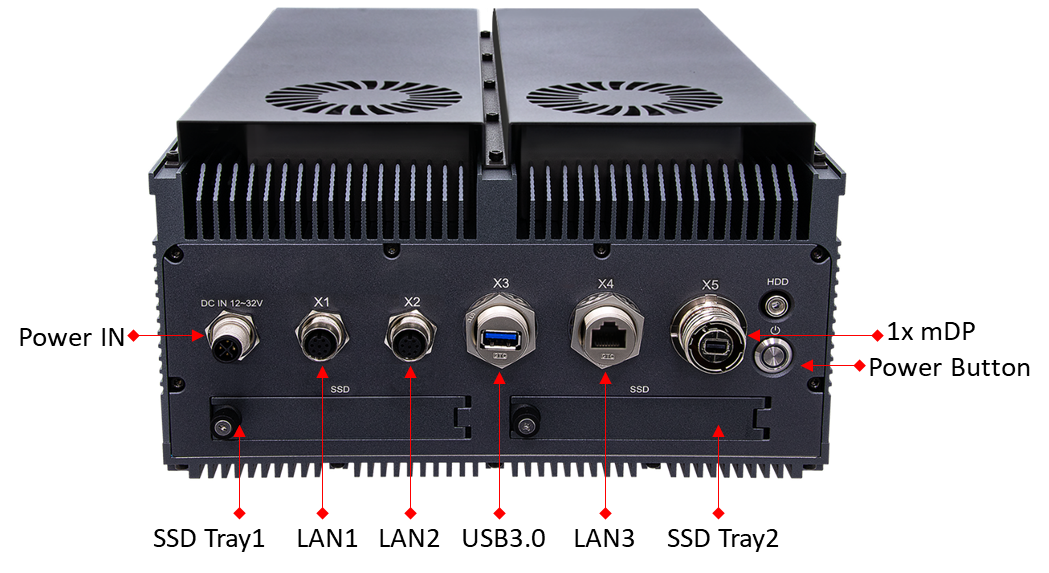

Front I/O
Power	1 x DC-IN 12~36V with M12 connector
X1	1 x 2.5GbE LAN with M12 connector
X2	1 x 2.5GbE LAN with M12 connector
X3	1 x USB3.0 Type-A with M20 connector
X4	1 x 10GbE RJ45 port with M20 connector
X5	1x mini-DP with D38999 connector
Power	1 x Power Button with LED backlight
Storage Device	2 x 2.5” Easy swap HDD/SSD Tray

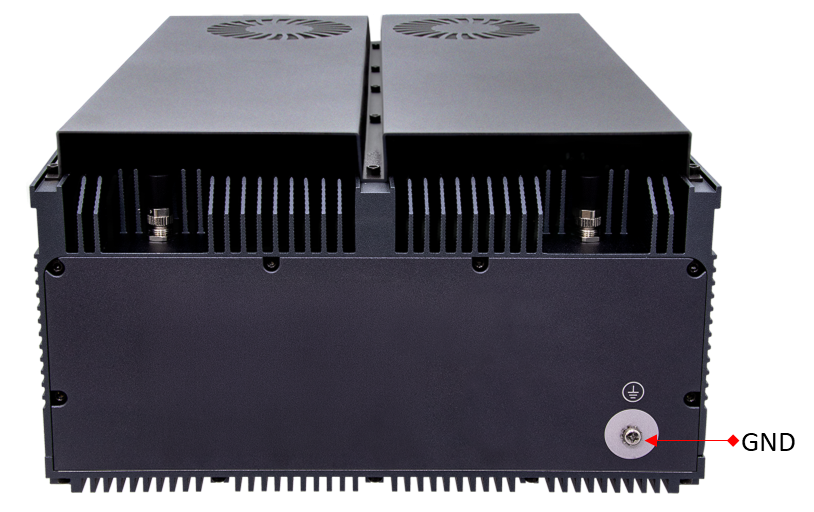

Rear I/O
Ground Screw	1 x M4 Screw
Operating Temperature
Permissible Mode Temp.	-20°C to +50°C
Stress Mode Temp.	-20°C to +40°C
Operating System
Windows	Windows 10
Linux	Fedora 20, Ubuntu 13.04, Ubuntu 13.10, Ubuntu 14.04

Rugged GPU Computing platform supporting NVIDIA® QUADRO Ada 5000 and Intel® 13th-Gen Core™ processor +10 GbE LAN
