IV320-RS-F10G
IV320-RS-F10G
IP66 Tactical Maritime Edge GPU Computer
- AI Optimized IP66 Rugged GPU Computer
- Enabling Persistent Maritime ISR with Autonomous, Coordinated USVs
- Support Intel® 14/13th Gen. Raptor Lake-R/S, Core i9/i7
- Up to 64GB DDR5 5200 MHz SO-DIMM, non-ECC
- Support NVIDIA® RTX 4000 SFF Ada (20GB GDDR6, 6,144 CUDA); NVIDIA L4 (24GB GDDR6, 7,424 CUDA) w/Fan Kit
- Rugged waterproof D38999/M20/M12 connectors
- 3 x LAN (10GbE/2 x 2.5GbE), 1 x COM; 1 x miniDP; 1 x USB3.0
- Extended Operating Temperature -20°C to +60°C
- MIL-STD-810 for Wide Temperature, Anti-Vibration and Shock
- Technical Profile
- Specifications

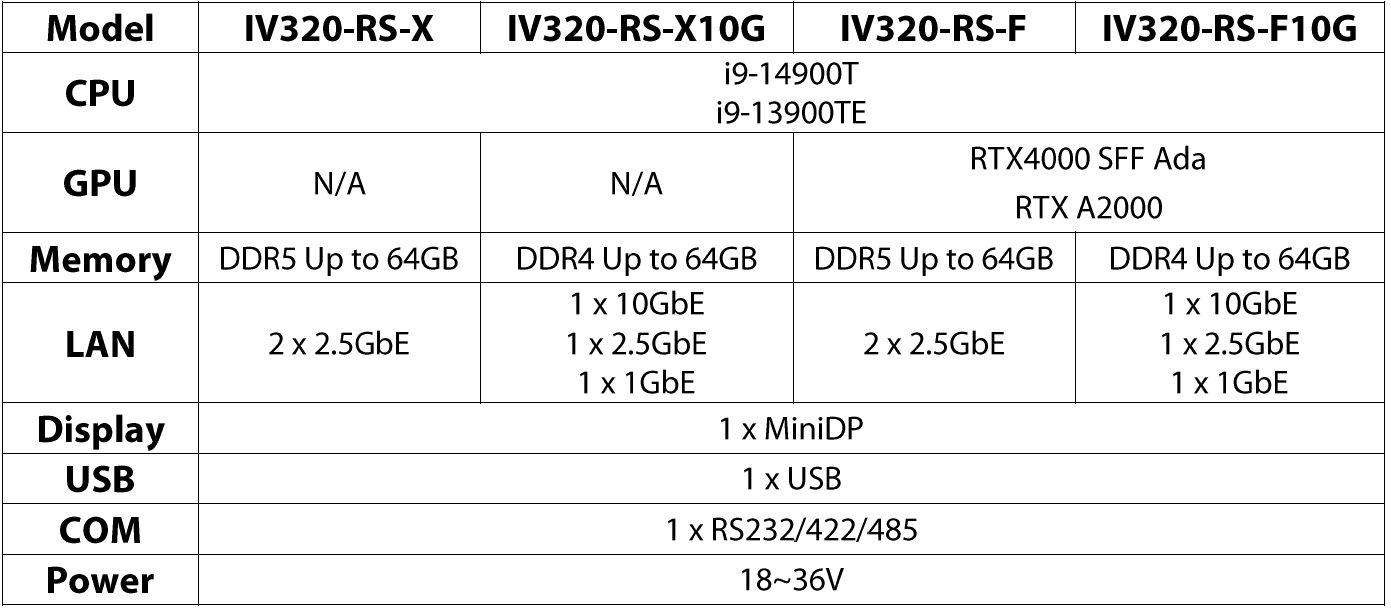

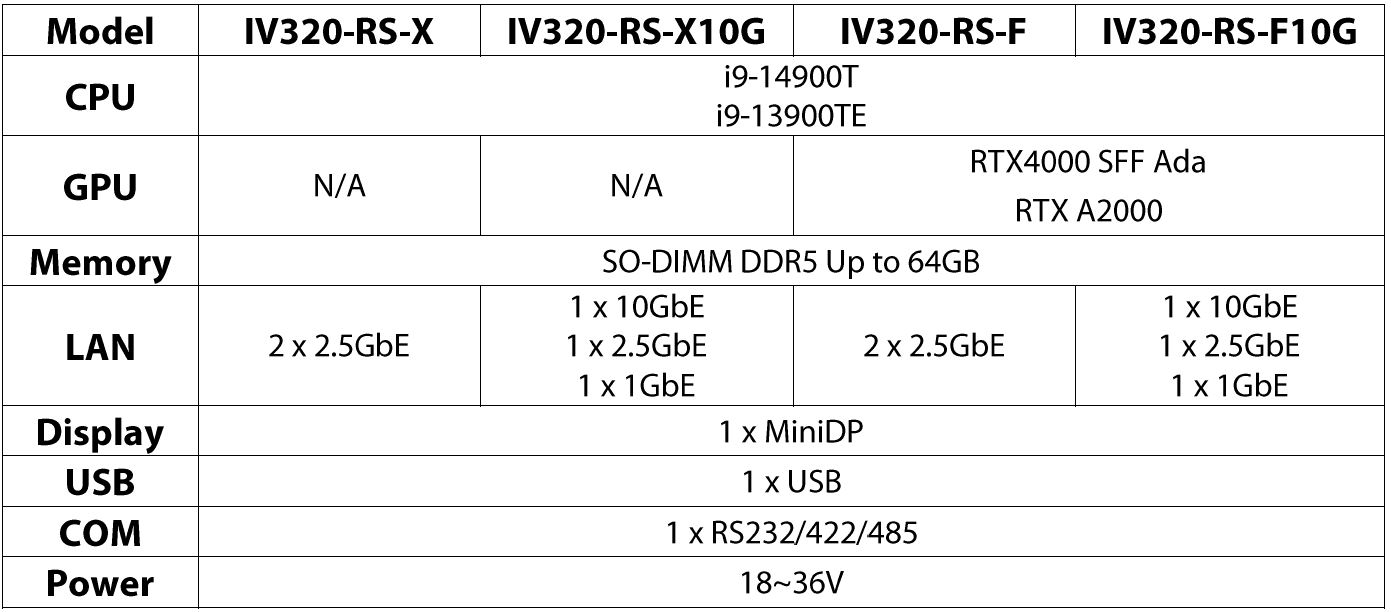

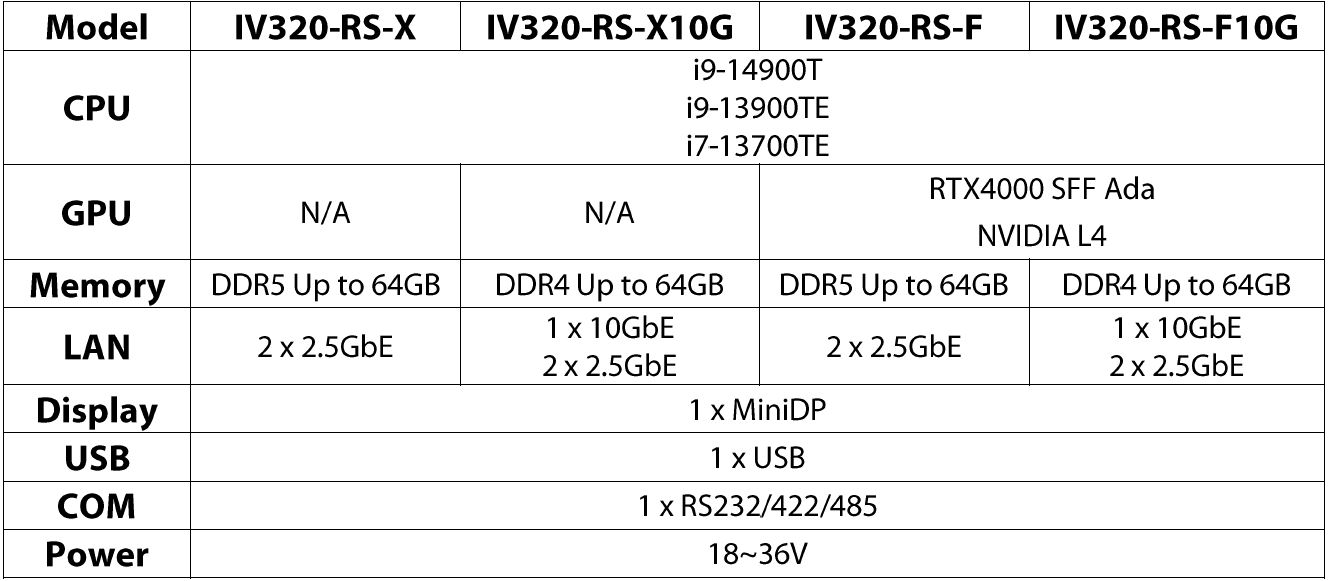

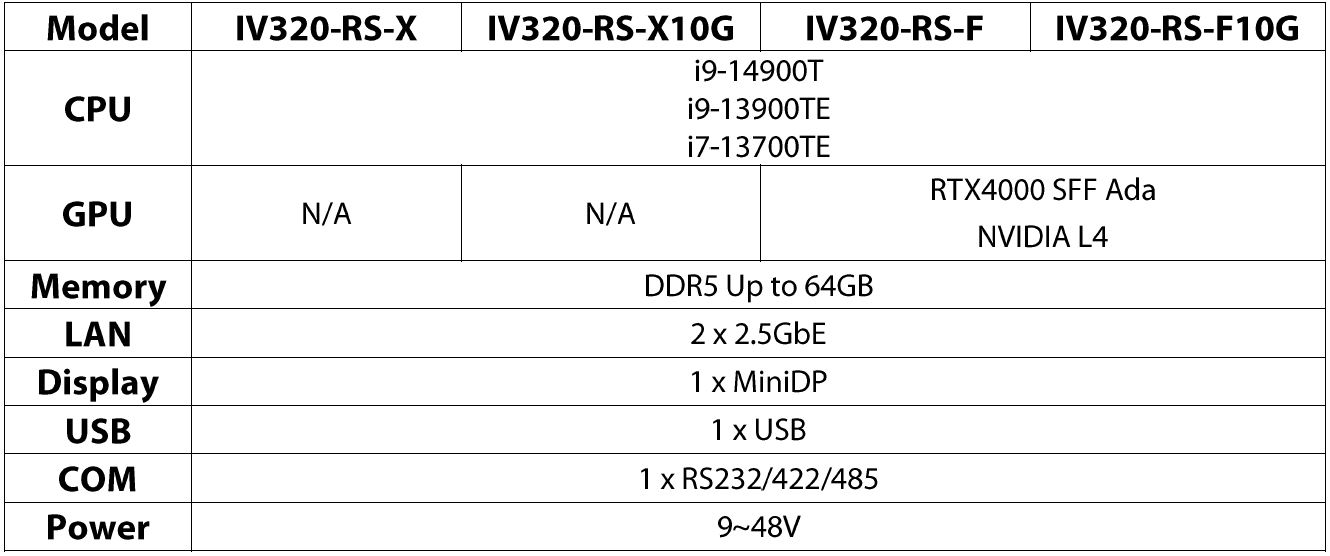

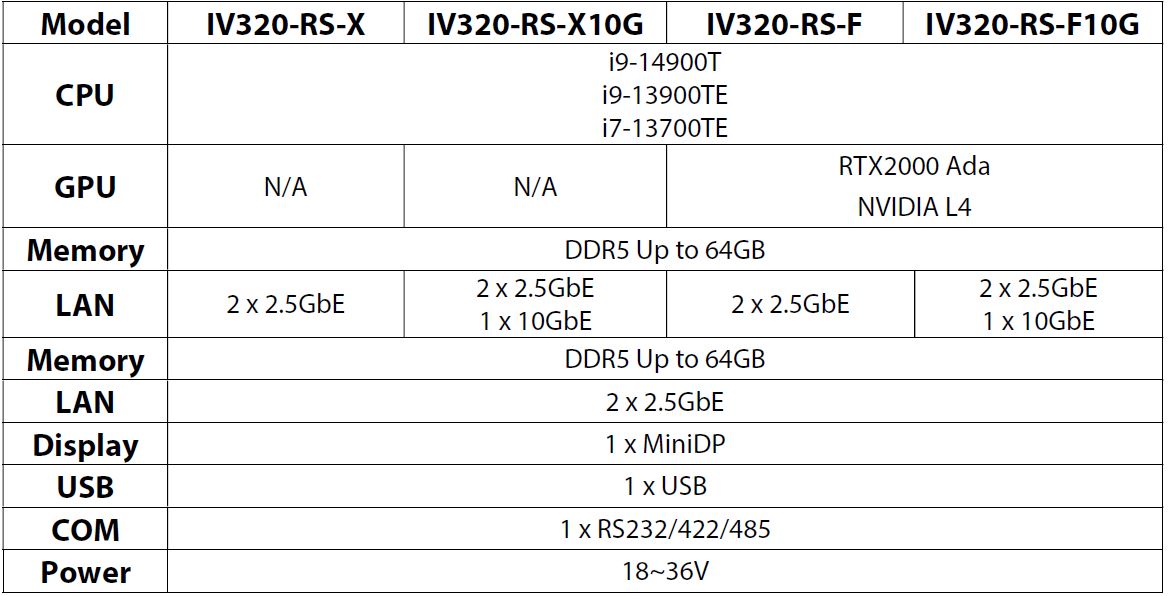

- Order Information
- Intel 13th Gen Raptor Lake Processor
-
Powered by Intel® 13th Gen Raptor Lake processors, the IV320-RS-F10G maritime GPU edge computer delivers advanced Edge AI capabilities. The Raptor Lake architecture significantly boosts performance through higher core counts—driven primarily by additional Efficient Cores (E-Cores)—expanded L2 cache, and increased clock speeds. Flagship configurations support up to 8 Performance Cores (P-Cores) and 16 Efficient Cores (E-Cores), providing a total of 24 cores to handle compute-intensive maritime workloads.
The x86 hybrid architecture includes two distinct core types, dynamically allocating workloads to optimize performance and power efficiency based on application requirements:
- P-Cores (Performance Cores): Built on the Golden Cove architecture, optimized for high-performance and compute-intensive tasks.
- E-Cores (Efficient Cores): Based on the Gracemont architecture, designed for low-power operation and efficient multitasking.
- AI-accelerated Computing and High-performance Graphics
-

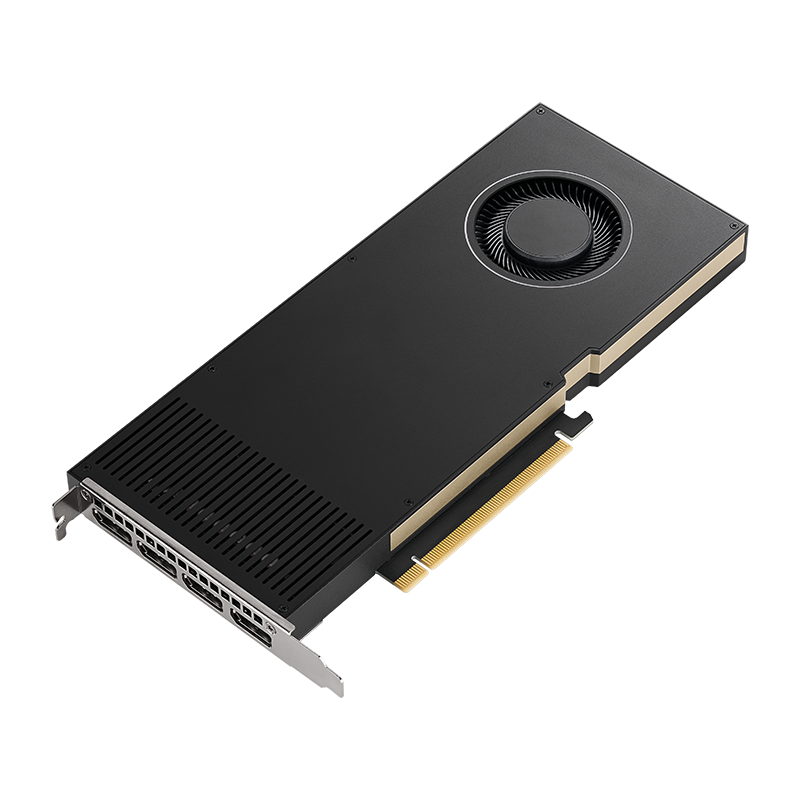

Built on NVIDIA Ampere architecture, the NVIDIA RTX A4000 delivers AI-accelerated compute and high-performance graphics with uncompromised computing accuracy and reliability. The RTX A4000 combines 48 second-gen RT Cores, 192 third-gen Tensor Cores, and 6,144 CUDA cores with 16GB graphics memory and error-correction code (ECC). It also features a power-efficient, single-slot PCIe form factor that fits into a wide range of workstation chassis, backed by NVIDIA GPUDirect for Video support and NVIDIA Mosaic technology.
- Full IP66 Sealed Enclosure
-
Dirt, dust, and moisture in outdoor environments can adversely affect system performance. Exposure to high humidity or dusty conditions may lead to operational failures. The IV320-RS-F10G features a fully IP66-rated sealed enclosure, specifically designed to meet the protection requirements of electrical and electronic systems. It provides reliable protection against dust ingress, condensation, water spray, and low-pressure water jets from any direction, making it suitable for most outdoor enclosure applications.

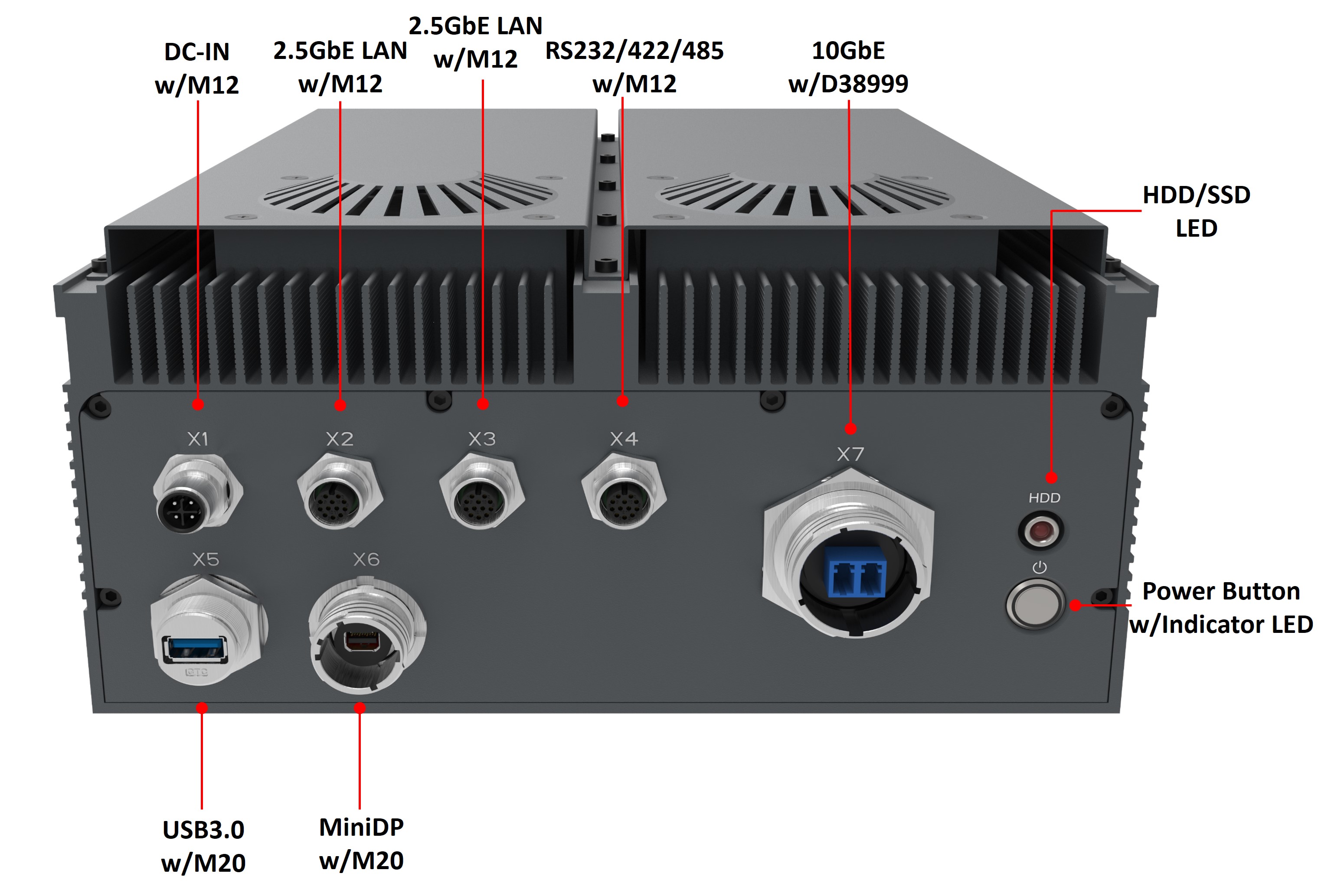

- Appearance
|
System |
|
|---|---|
|
CPU |
Intel® 14th Raptor Lake-R Core i9-14900T, 24C (8P+16E), 32T, 1.1/5.5GHz, 36M Cache, TDP 35W (Turbo mode 106W) |
|
Memory type |
Up to 64GB DDR5 5200 MHz SO-DIMM, non-ECC |
|
Chipset |
Intel® Q670 Chipset |
|
GPU |
NVIDIA® RTX 4000 SFF Ada |
|
Expansion Slot |
1 x PCIe 4.0 x 16 |
|
Storage |
|
|
SATA |
2 x 2.5” SSD SATAIII Internal |
| TPM | |
| TPM | Onboard TPM2.0 |
|
Front I/O |
|
| X1 | 1 x DC-IN w/M12 waterproof connector |
| X2 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X3 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X4 | 1 x RS232/422/485 w/M12 waterproof connector |
| X5 | 1 x USB3.0, with M20 waterproof connector |
| X6 | 1 x miniDP w/M20 waterproof connector |
| X7 | 1 x 10Giga LAN w/D38999 waterproof connector |
| SSD LED | 1 x SSD LED |
| Switch | 1 x IP66 power button |
|
Rear I/O |
|
|
Others |
Antenna(Option) |
|
GND |
1 x GND |
|
Power |
|
|
Power input |
9V~48V DC-IN |
|
Operating System |
|
|
OS |
Windows® 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) |
|
Physical |
|
|
Dimensions |
250 x 325 x 100 mm (W x L x H) |
|
Chassis |
Aluminum Alloy |
|
Heatsink |
Heatsink Aluminum Alloy, Corrosion Resistant |
| FAN Kit | W/GPU SKU |
|
Environmental |
|
|
Green Product |
RoHS, WEEE compliance |
|
Operating Temp. |
-20°C to +60°C |
|
Storage Temp. |
-40°C to +85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
MIL-STD-810 (Design To Meet) |
MIL-STD-810 Design to meet : Method 501, Operational Temperature, high / Procedure II: +50°C, two-hour dwell, four cycles Method 501, Storage Temperature, high / Procedure I: +70°C, two-hour dwell, four cycles Method 502, Operational Temperature, low / Procedure II: -20°C, two-hour dwell, four cycles Method 502, Storage Temperature, low / Procedure I: -40°C, two-hour dwell, four cycles Method 514, Vibration / Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514, Vibration / Category 20/Operating (Category 20 & 24, Vibration) Method 516, Shock / Procedure V Non-Operating (Mechanical Shock) Method 516, Shock / Procedure I Operating (Mechanical Shock) |
