CPT200-S
Fanless Computer with Intel® Raptor Lake-S 14/13th Gen
- Intel® Raptor Lake-S Core™ i Processor
- DDR5-4800 SO-DIMM up to 96G (non-ECC /ECC)
- 8 x USB3.2, 4 x 2.5GbE LAN, 3 x COM
- Multi Display: HDMI/VGA/DP
- 1 x Swappable 2.5'' SSD Tray
- 1 x PCIe Expansion
- System Power Wide Range DC-IN 9~48V
- Operating Temperature -20°C to 60°C
- Optional Expansion: PoE (RJ45)/CANBUS/DIDO
- Technical Profile
- Specifications

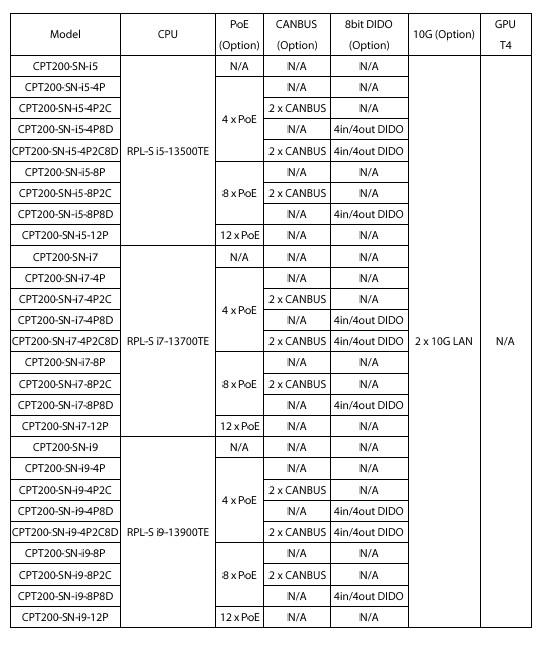

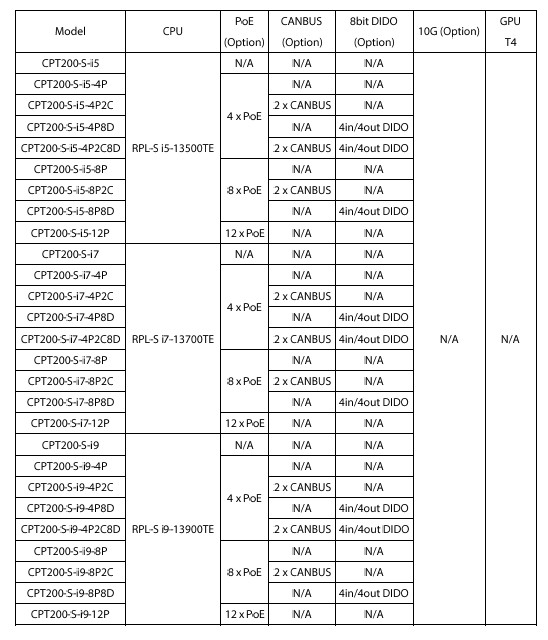

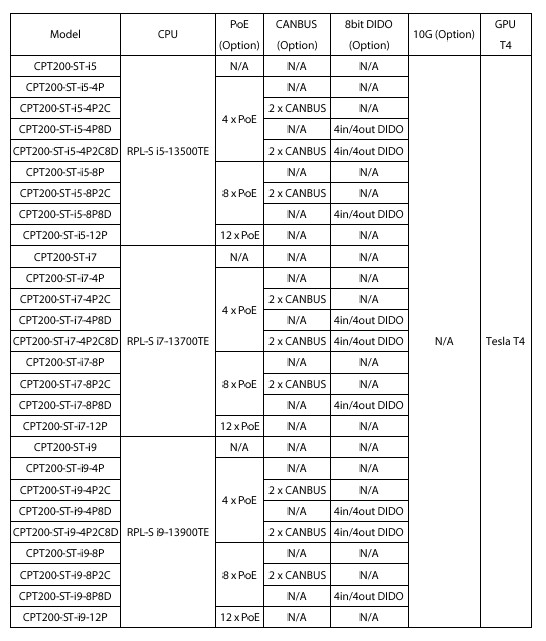

- Order Information
- Introduction
Purpose-built for rugged environments and demanding applications, the IP66-rated fanless embedded CPT200-S offers robust protection against dust, water, and harsh conditions. With 1 x PCIe expansion slot, it provides flexibility for system upgrades and add-on cards, making it ideal for deployment in transportation systems, heavy-duty vehicles, mining trucks, and outdoor industrial consoles.
- High-Performance Processing Power
-
Powered by the latest Intel® 14th/13th Gen Raptor Lake-S Core™ i9/i7/i5/i3 processors (up to 65W), the CPT200-S delivers up to 1.35× greater performance than previous generations, ensuring faster data processing and improved multitasking for demanding applications. Its optimized architecture provides lower latency, higher throughput, and reduced power consumption, enabling reliable operation in mission-critical environments. This powerful platform is designed to support real-time monitoring, edge AI, predictive maintenance, and data-intensive industrial control.
- Flexible Connectivity and Expansion
-
The CPT200-S supports DDR5-4800 SO-DIMM memory up to 96GB (Non-ECC / ECC) and offers extensive connectivity with 8× USB 3.2, 4× 2.5GbE LAN ports, and 3× COM ports, ensuring seamless integration with a wide range of peripherals, sensors, and network devices. Its triple-display output via HDMI, VGA, and DP provides versatile visualization options for control rooms or multi-screen dashboards. A swappable 2.5'' SSD tray provides convenient storage management in the field, reducing system downtime. For specialized industrial and transportation applications, optional expansion features include PoE (RJ45) for powering network devices, CANBUS for vehicle communication systems, and DIDO for digital input/output control, further enhancing adaptability.
- Rugged Design, Fanless Reliability
-
Built to perform under extreme conditions, the CPT200-S operates reliably in temperatures ranging from -20°C to 60°C. Its durable aluminum enclosure not only delivers a sleek industrial appearance but also supports advanced fanless thermal management. Resistant to vibration and high heat, the CPT200-S is built to ensure uninterrupted performance in challenging environments such as transportation hubs, smart infrastructure, energy systems, and outdoor deployments.

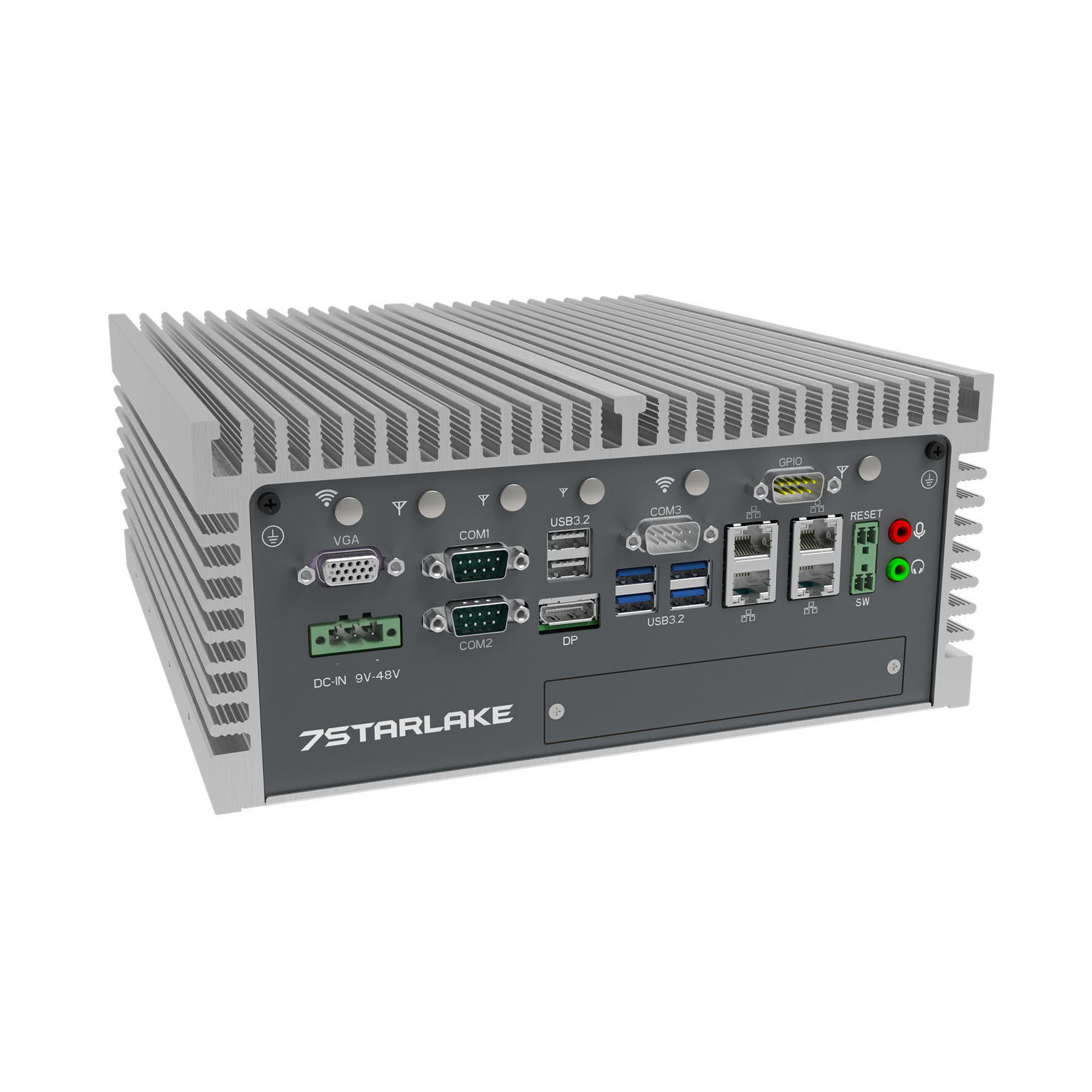

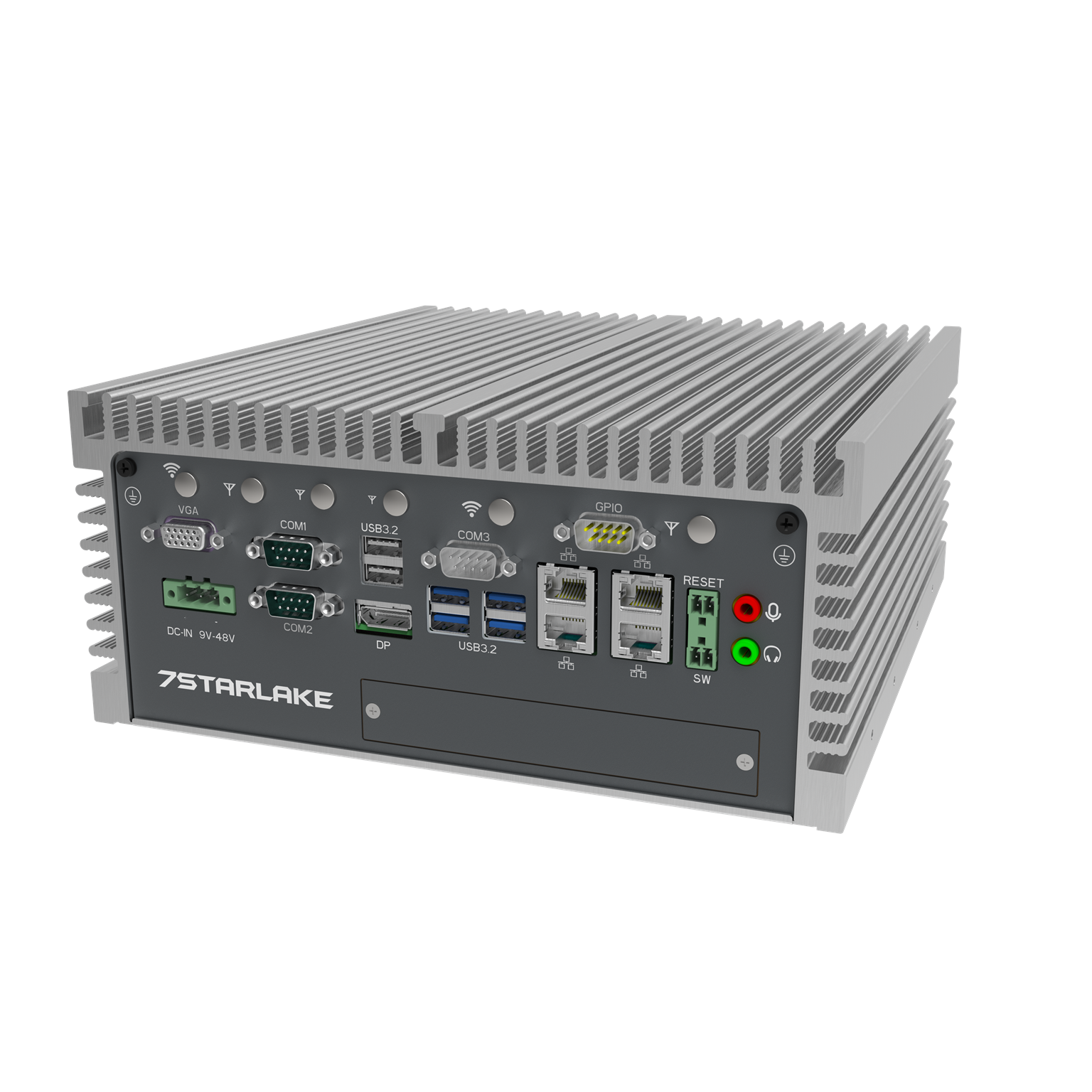

- Appearance
|
System |
|
|---|---|
|
CPU |
14th/13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3/Celeron/Pentium (Up to 65W) |
|
Chipset |
Intel® R680E |
|
Memory type |
2 x 262-pin SO-DIMM / DDR5 4800 MHz / Max. 96 GB (Non-ECC / ECC) |
|
Storage Device |
1 x 2.5” Removable SSD Tray, 1 x Internal 2.5” SSD Tray |
|
Expansion |
|
|
M.2/mPCIe |
1 x M.2 M key 2242/2260/2280 (PCIe4.0x4,SATAIII) w/OS Storage 1 x M.2 B key 3042/3052/2260 (PCIex1,USB,SATAIII) w/4G,5G 1 x M.2 E key 2230 (PCIex1,USB) w/wifi,BT 1 x mPCIe (PCIex1,USB,SATAIII) |
|

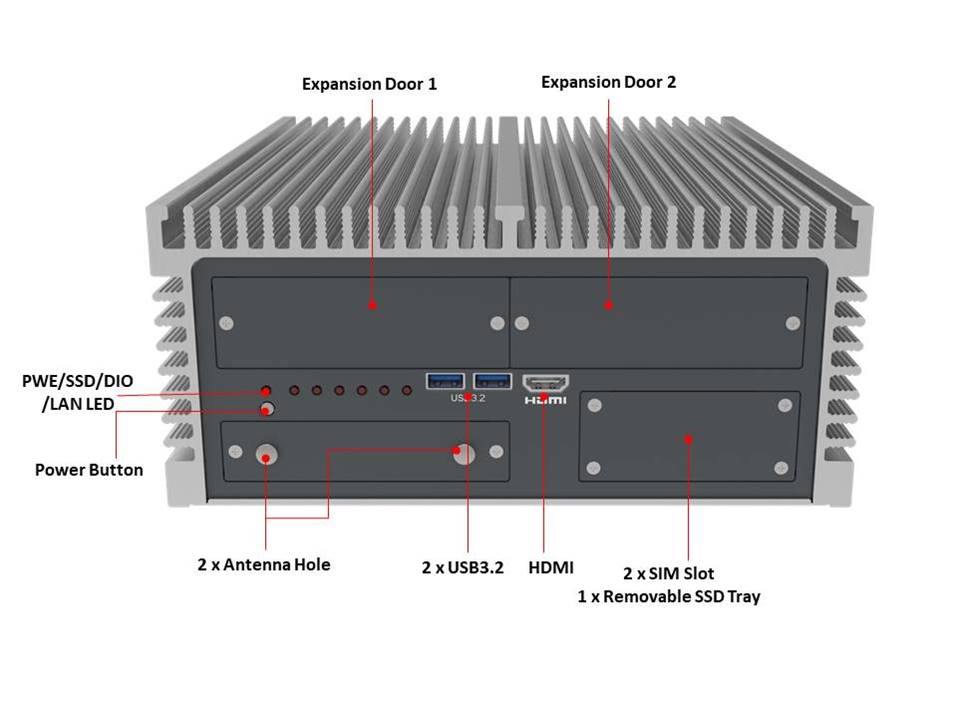

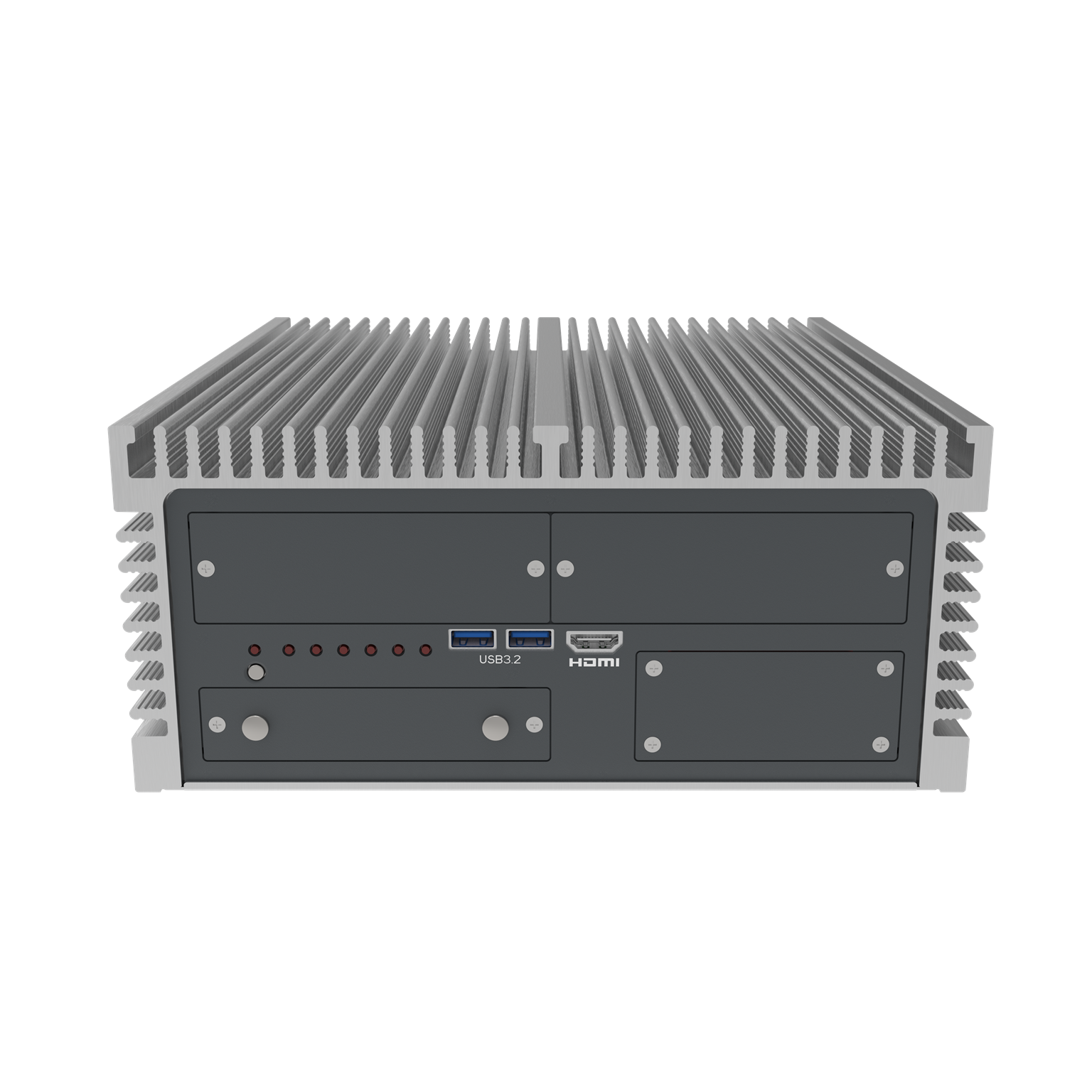

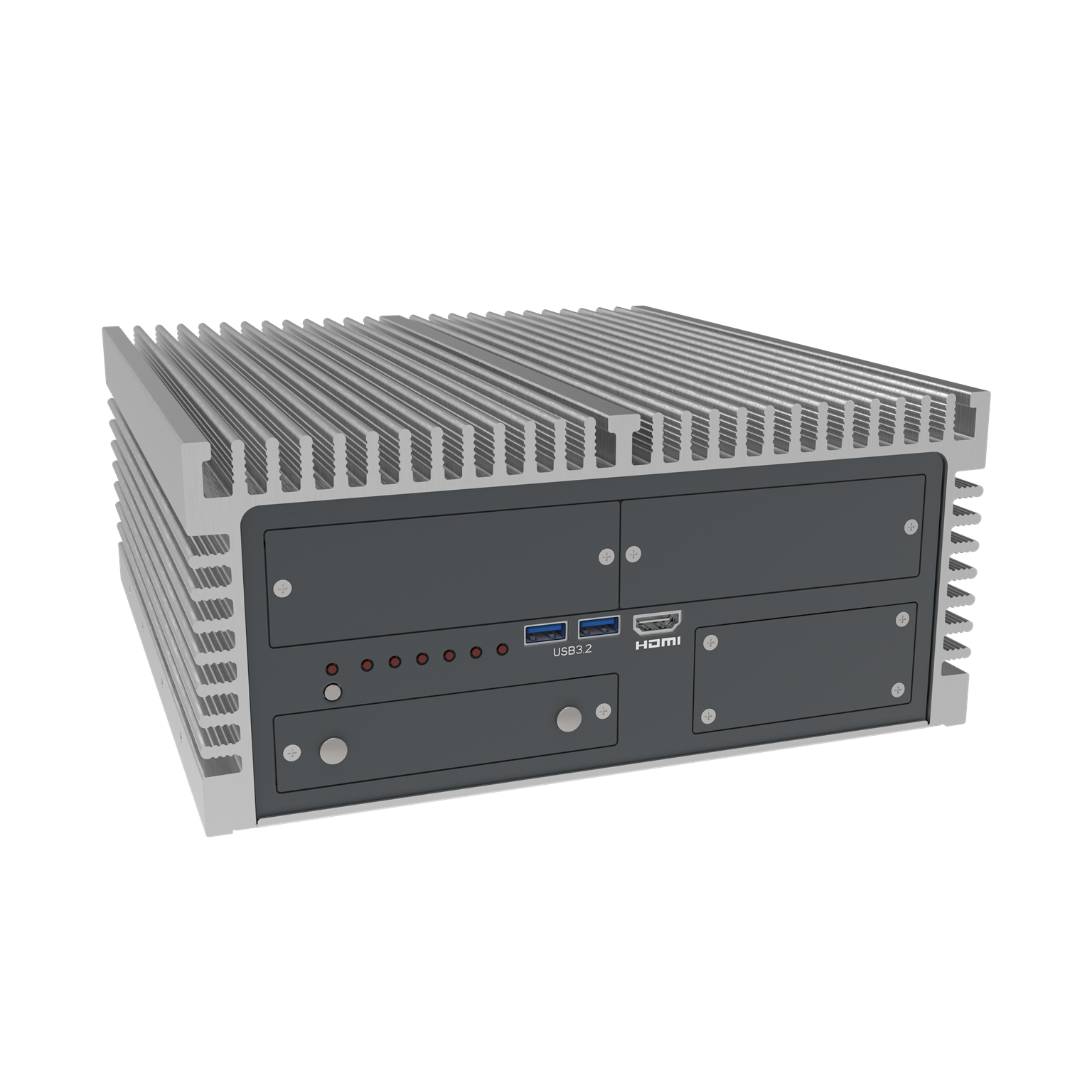

Front I/O |
|
|
HDMI |
1 x HDMI |
|
USB |
2 x USB 3.2 Gen2 x2 |
|
SIM Slot |
2 |
|
I/O XpansionDoor |
3 |
|
Swappable SSD Tray |
1 |
|
Power Button |
1 |
|
PWR LED |
1 |
|
HDD LED |
1 |
|
GPIO LED |
1 |
|
LAN ACT LED |
4 |
|

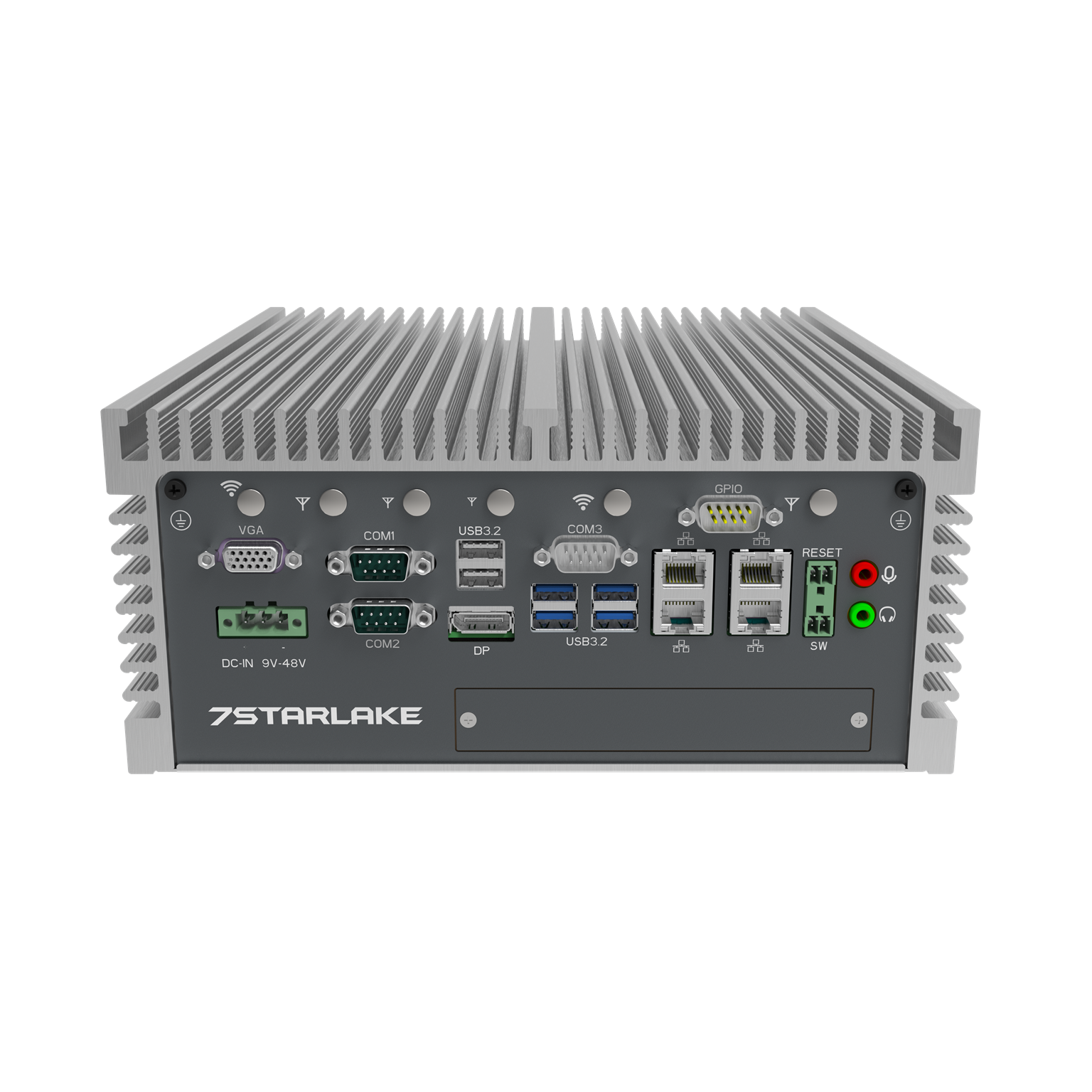

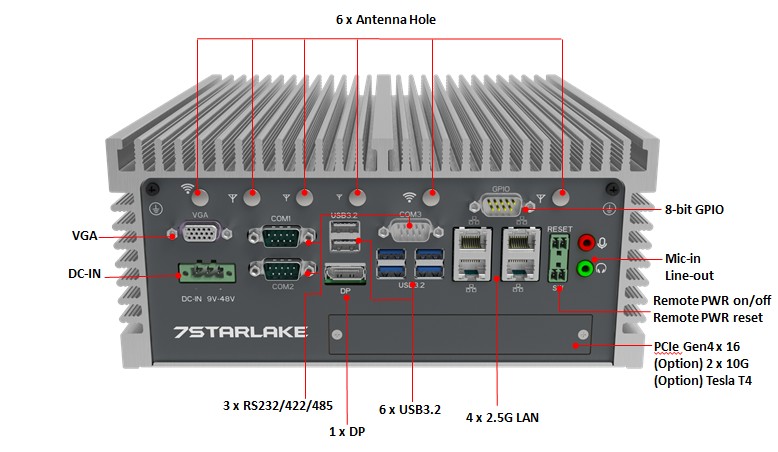

Rear I/O |
|
|
COM |
3 x RS232 / 422 / 485 |
|
Ethernet |
4 x RJ45 |
|
USB |
6 x USB3.2 Gen2 x 2 |
|
GPIO |
8 bit (4in/4out) |
|
DisplayPort |
1 x DP |
|
VGA |
1 x VGA |
|
Terminal Block |
1 x Terminal Block Remote Power ON/OFF 1 x Terminal Block Remote Reset |
|
AUDIO |
1 x Mic-in, 1 x Line-out |
|
PCIe Expansion |
PCIe Gen4 x16 |
|
Power Requirement |
|
|
Power Input |
DC-IN 9~48V |
|
Applications, Operating System |
|
|
Operating System |
Windows 10/11 64Bit; Linux (support by request) |
|
Physical |
|
|
Dimensions (W x D x H) |
248 x 268 x 108 mm |
|
Chassis |
Aluminum |
|
Heatsink |
Aluminum Alloy, Corrosion Resistant |
|
Finish |
Anodic aluminum oxide |
|
Environmental |
|
|
Green Product |
RoHS designed to meet |
|
Operating Temperature |
35W TPD Processor: -20°C to 60°C 65W TPD Processor: -20°C to 50°C |
|
Storage Temperature |
-40°C to 85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
EMC |
CE and FCC designed to meet |
|
MIL-STD-810 Environment Testing Standards |
|
|
Method 501, Operational Temperature, high |
Procedure II: +60°C, two-hour dwell, four cycles |
|
Method 501, Storage Temperature, high |
Procedure I: +70°C, two-hour dwell, four cycles |
|
Method 502, Operational Temperature, low |
Procedure II: -20°C, two-hour dwell, four cycles |
|
Method 502, Storage Temperature, low |
Procedure I: -30°C, two-hour dwell, four cycles |
|
Method 514, Vibration |
Category 24/Non-Operating (Category 20 & 24, Vibration) |
|
Method 514, Vibration |
Category 20/Operating (Category 20 & 24, Vibration) |
|
Method 516, Shock |
Procedure V Non-Operating (Mechanical Shock) |
|
Method 516, Shock |
Procedure I Operating (Mechanical Shock) |
|
Method 507, Humidity |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) |
Fanless Computer with Intel 14/13/12th Gen. Core i9/i7/i5/i3 Processor up to 65W , 96G SO-DIMM DDR5 4800MHz (Non-ECC / ECC), 4 × 2.5GbE RJ45, 8 x USB3.2, 1 x DP, 1 x HDMI, 1 x VGA, 3 x COM, 8-bit GPIO, 1 x SwapSSD Tray, 1 x Internal SSD Tray, 1 x PCIe Expansion, DC-IN 9~48V, Operating Temperature -20°C~+60°C
