CPT200X3
Fanless IP66 In-Vehicle GPU Computer | Rugged AI for Autonomous Vehicles and Industrial Robotics
- Intel® Raptor Lake-S Core™ i Processor
- NVIDIA L4 GPU
- DDR5-4800 SO-DIMM up to 96G (non-ECC /ECC)
- 4 x 2.5GbE LAN w/M12
- 2 x RS232/422/485 w/M12
- 4 x RJ45 Intel i210-IT GbE LAN with PoE+ w/M12
- 2 x CANBus 2.0B, 8-bit Isolated DIDO w/M12
- 2 x 10GbE LAN w/M12
- 1 x DC-IN w/M12
- M20 Connectors: 1 x USB 3.0, 1 x MiniDP
- 2 x Internal 2.5” SSD Tray
- Operating Temperature -20°C to 60°C
- MIL-STD-810 Standards for Shock, Vibration and Wide Temperatures
- Technical Profile
- Specifications

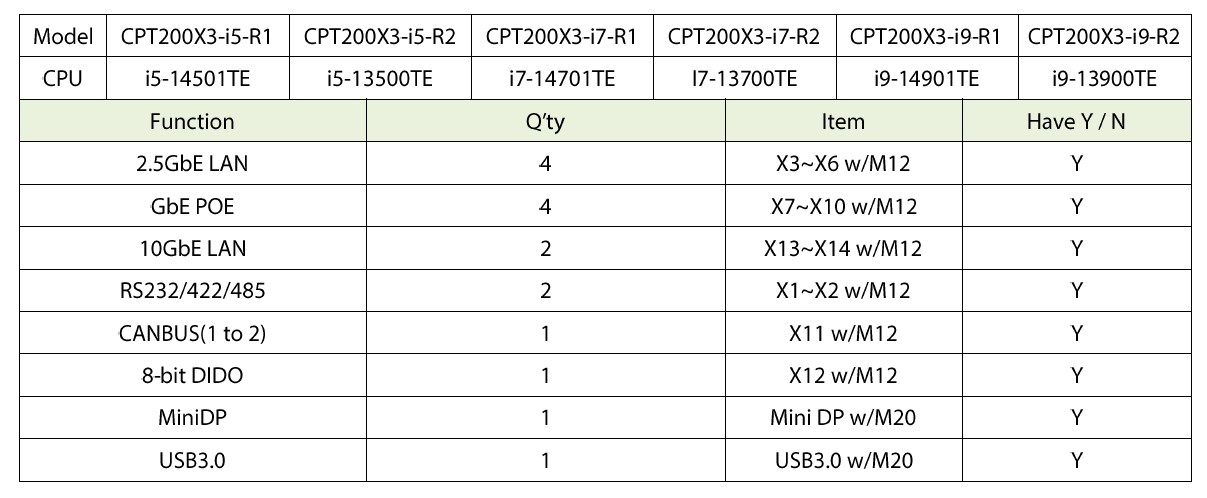

- Order Information
- Introduction
High Performance Processing, AI Power Ready
The IP66 Fanless In-Vehicle GPU Computer CPT200X Series is purpose-built for mission-critical edge applications. Powered by the Intel® Raptor Lake-S Core™ i Processor and NVIDIA L4 GPU with support for up to 96GB of DDR5-4800 SO-DIMM (Non-ECC /ECC) memory, it delivers outstanding performance for real-time AI workloads, machine vision, and autonomous control. Its compact, fanless architecture ensures dependable, silent operation even under the harshest environmental conditions.

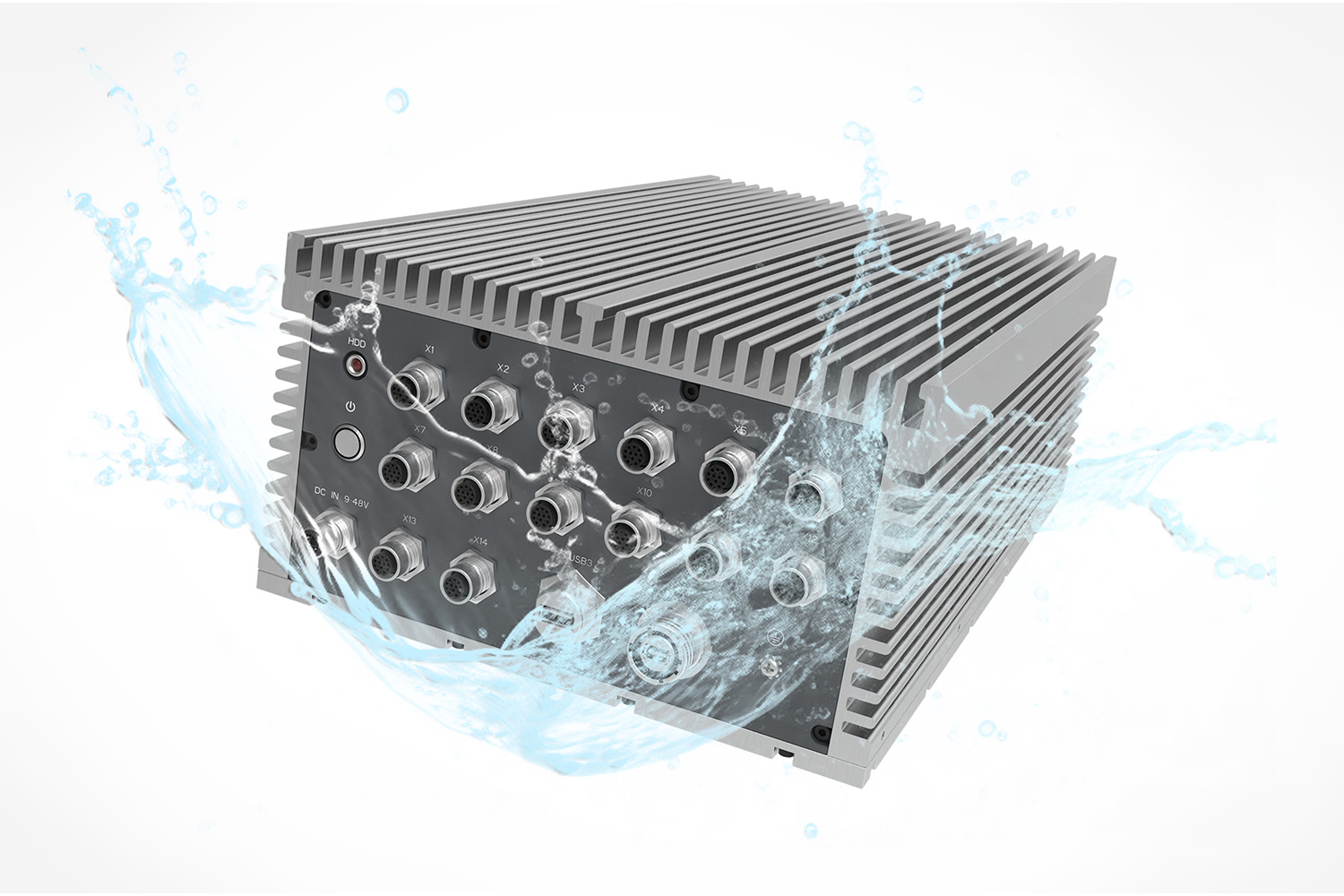

Designed for autonomous electric mining trucks, robotic arms, and other industrial automation systems, the CPT200X3 provides a robust platform for next-generation smart machinery. With IP66-rated protection, it withstands dust, water, and extreme conditions, and the MIL-STD-810 standards ensures resilience against shock, vibration, and wide temperature ranges from -20°C to 60°C. This makes it an ideal solution for rugged deployments.
Industrial-Grade, Rugged Connectivity
Connectivity and flexibility are central to the CPT200X3. Its M12 connectors support 4 x 2.5GbE LAN, 2 x RS232/422/485, 4 x PoE LAN, 1 x 8-bit DIDO, 2 x CANBUS, 2 x10G LAN, and 1 x DC-IN, delivering compact, vibration-resistant, and reliable connections suited for harsh transportation environments.
It also features 1 x USB 3.0 and 1 x MiniDP with M20 connectors for high-resolution display output, offering larger cable capacity and robust sealing for secure, high-power performance in demanding conditions.
Whether powering autonomous fleets in mining operations or enabling high-precision robotics in factories, the CPT200X3 GPU Computer is built to deliver reliability, efficiency, and performance under the most demanding conditions.

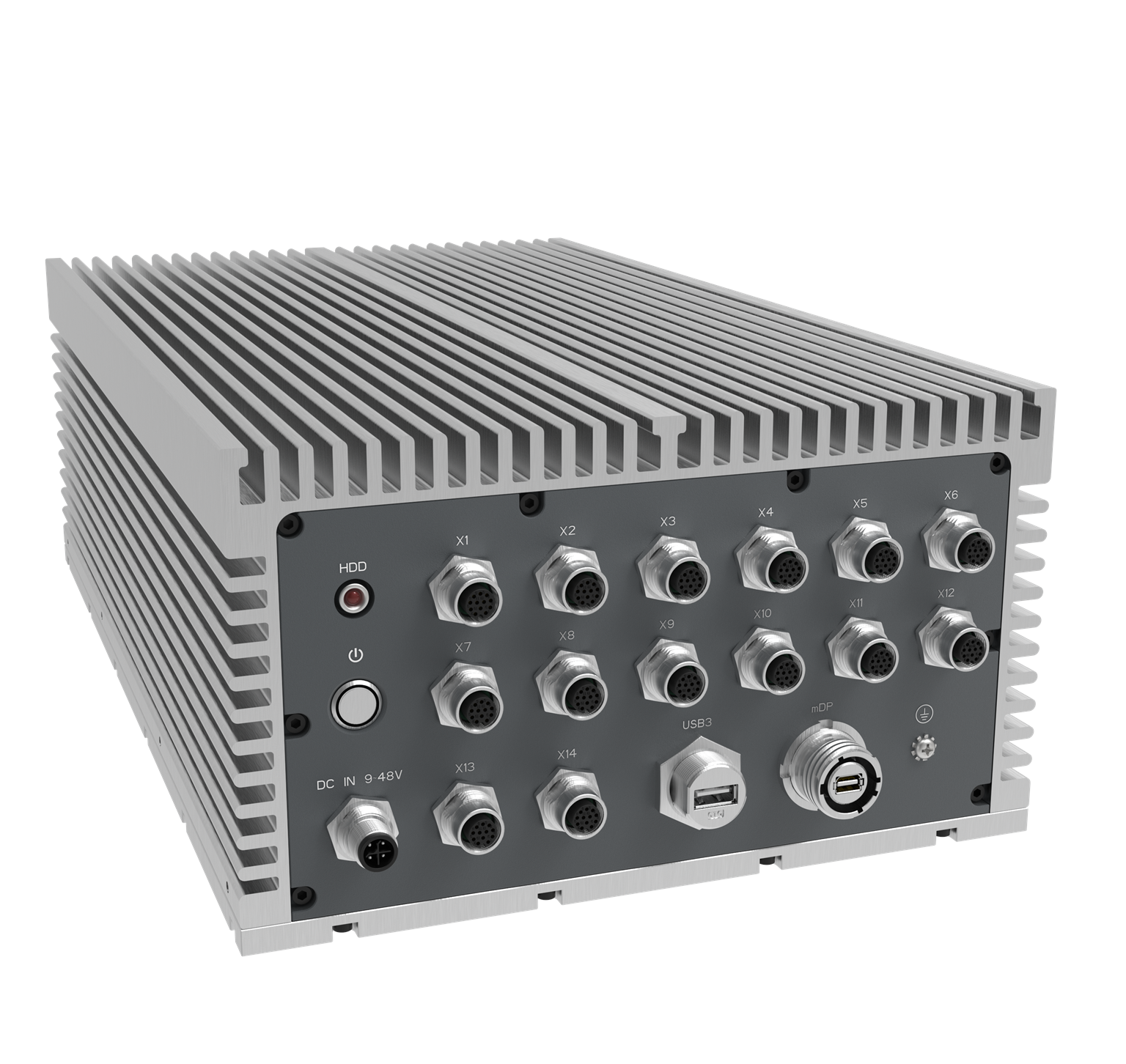

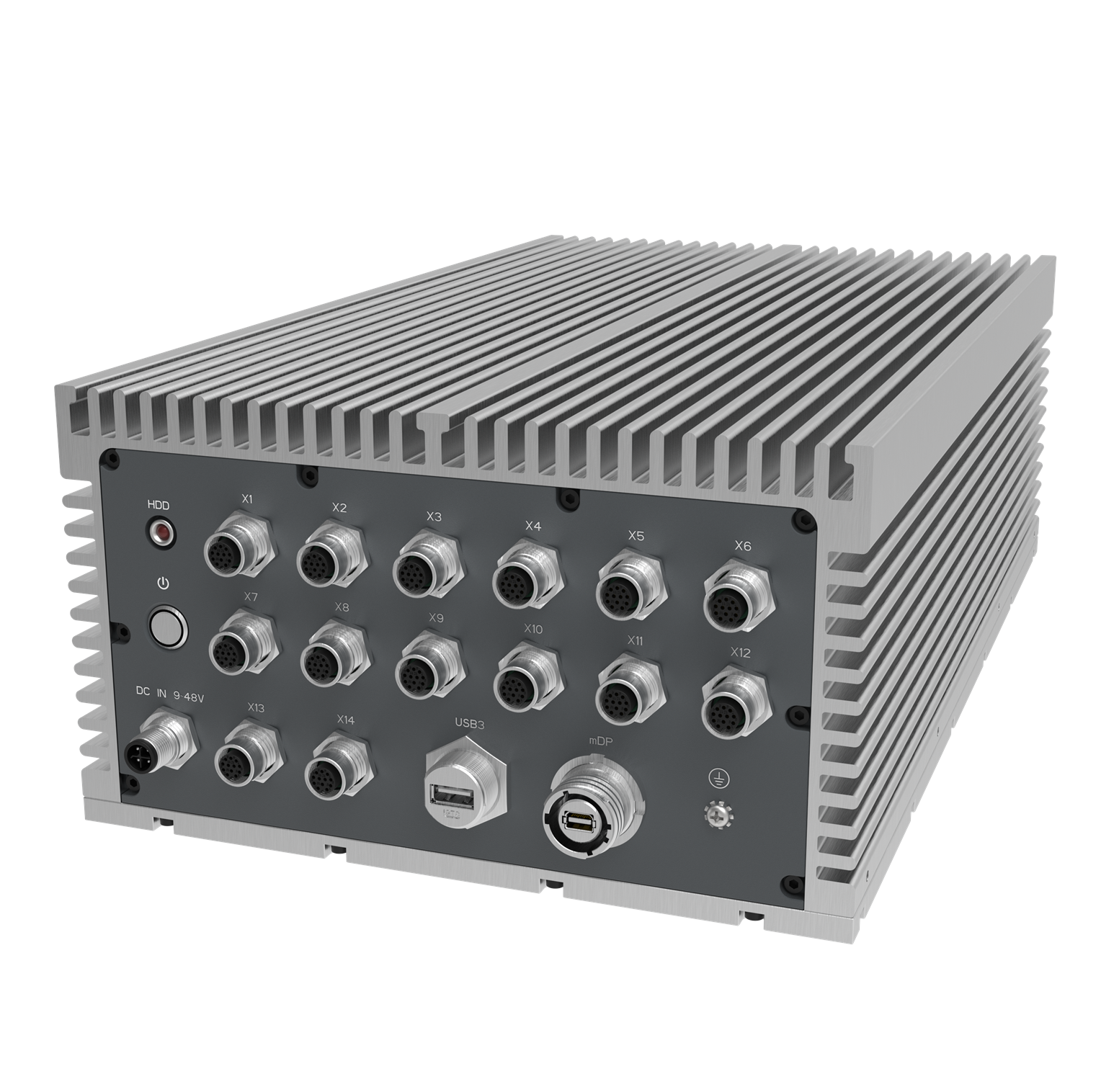

- Appearance
|
System |
|
|---|---|
|
CPU |
14th/13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 35W) |
|
Chipset |
Intel® R680E |
|
GPU |
1 x NVIDIA L4 |
|
Memory type |
2 x 262-pin SO-DIMM / DDR5 4800 MHz / Max. 96 GB (Non-ECC / ECC) |
|
Storage Device |
2 x 2.5” Internal SSD Tray |
|
Expansion |
|
|
M.2 |
1 x M.2 M key 2242/2260/2280 (PCIe4.0x4, SATAIII) w/OS Storage 1 x M.2 B key 3042/3052/2260 (PCIex1,USB, SATAIII) w/4G,5G 1 x M.2 E key 2230 (PCIex1,USB) w/Wi-Fi, BT 1 x mPCIe (PCIex1,USB,SATAIII) |
|

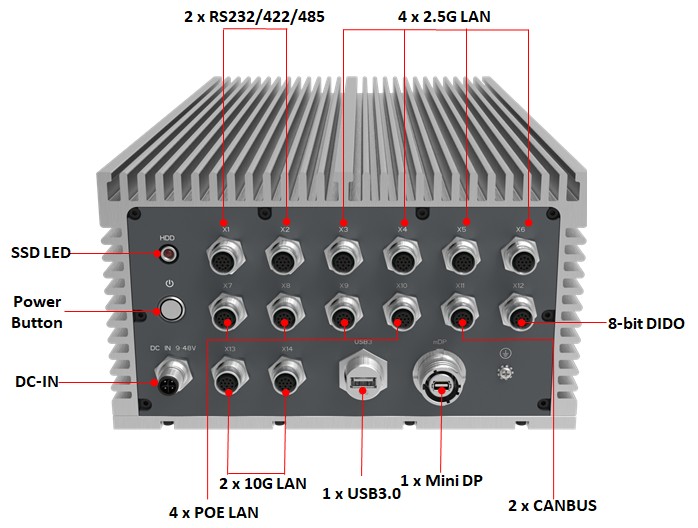

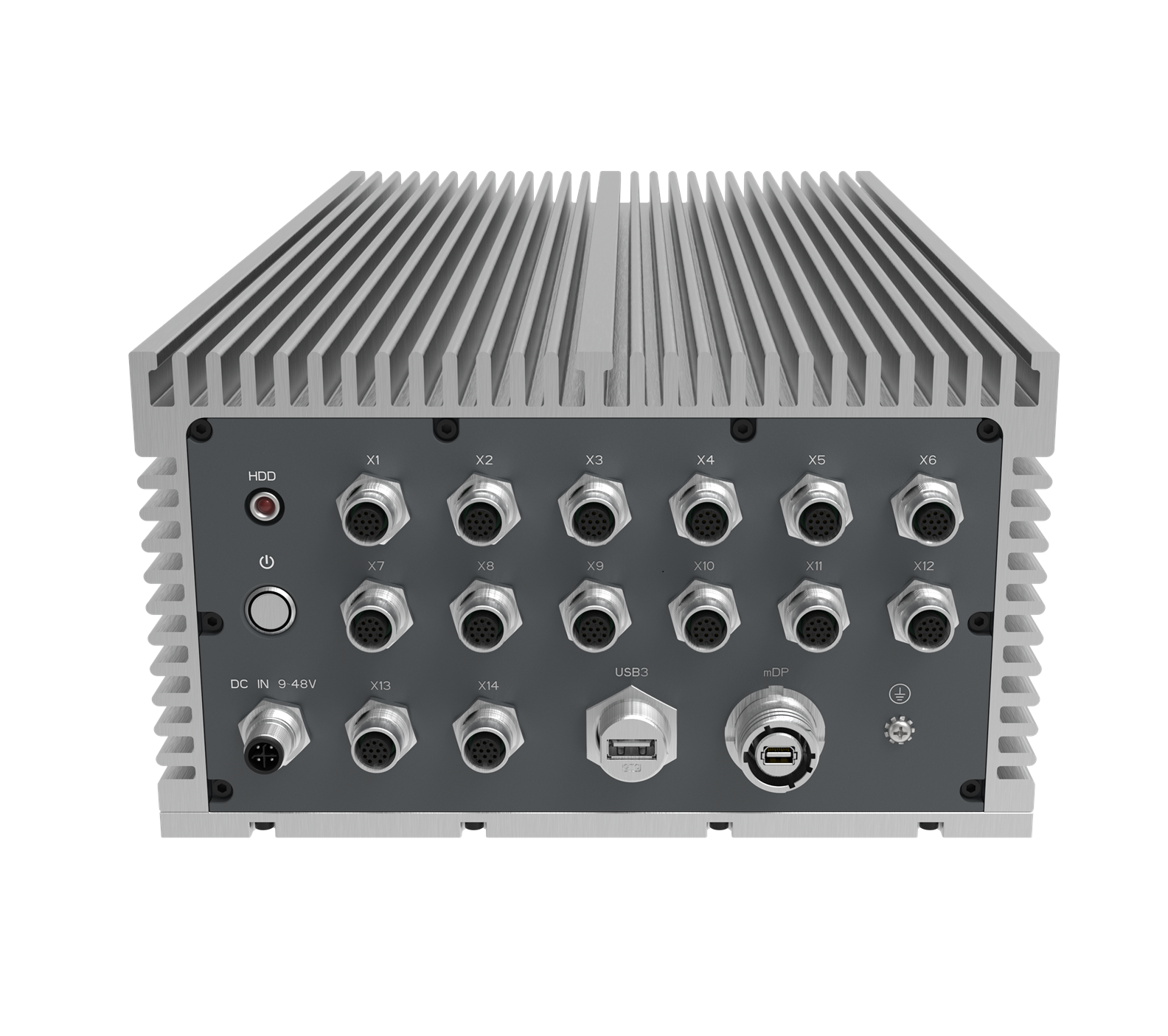

Front I/O |
|
|
COM |
2 x RS232/422/485 w/2 x M12 |
|
LAN |
4 x 2.5GbE LAN w/4 x M12 |
| PoE |
4 x PoE LAN w/4 x M12 |
| CANBUS |
2 x CANBUS w/1 x M12 |
| DIDO |
1 x 8-bit DIDO w/1 x M12 |
|
USB3.0 |
1 x USB3.0 w/1 x M20 |
|
Display |
1 x MiniDP w / 1 x M20 |
|
Power Input |
1 x DC-IN w/ 1 x M12 (9~48V) |
|

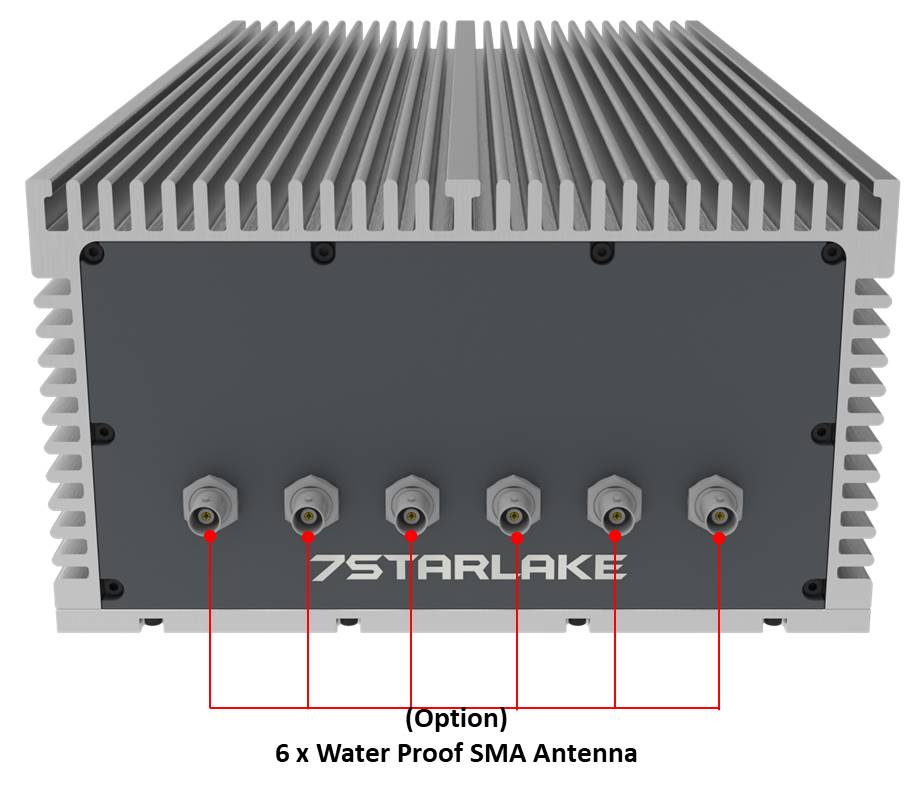

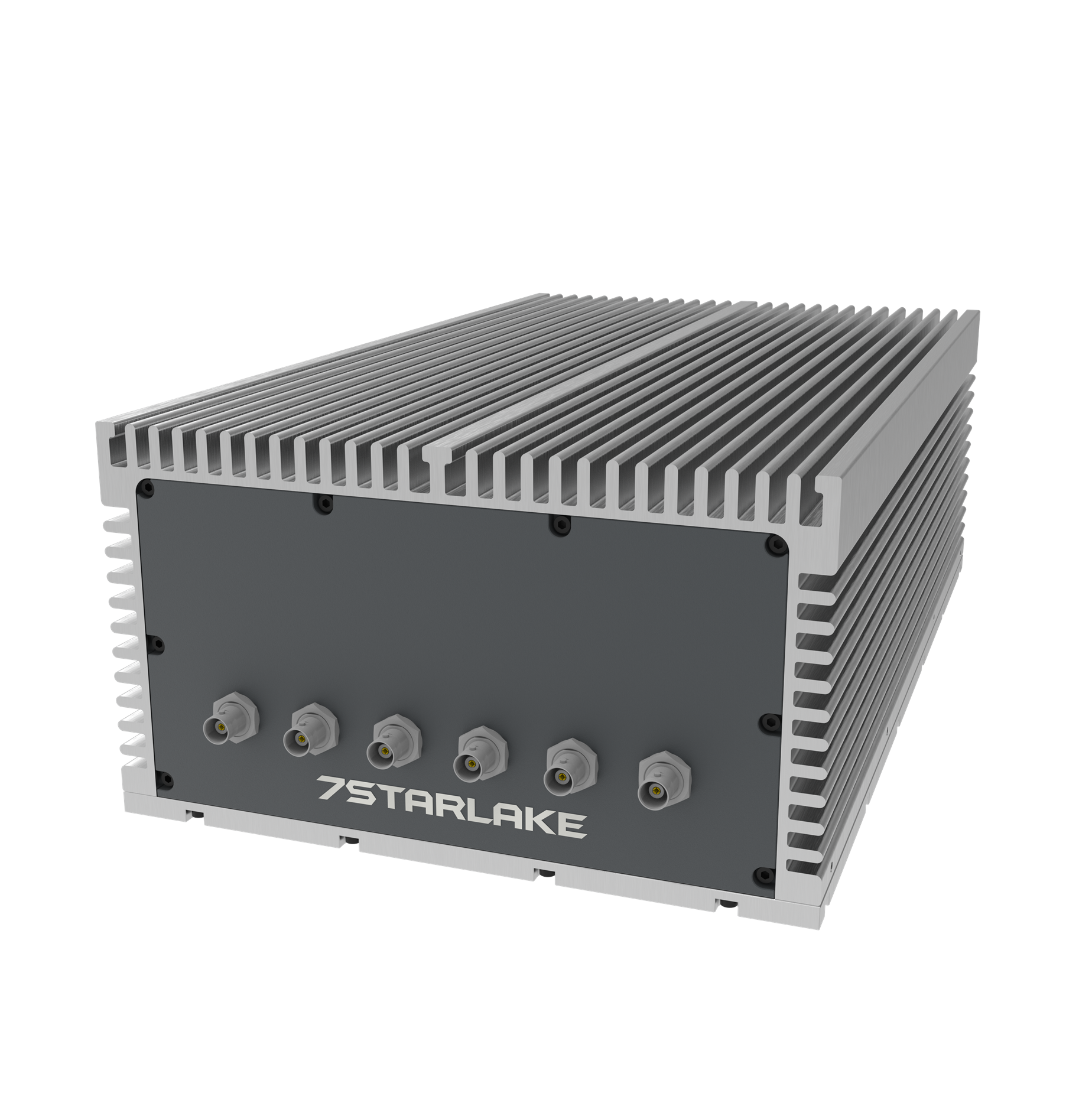

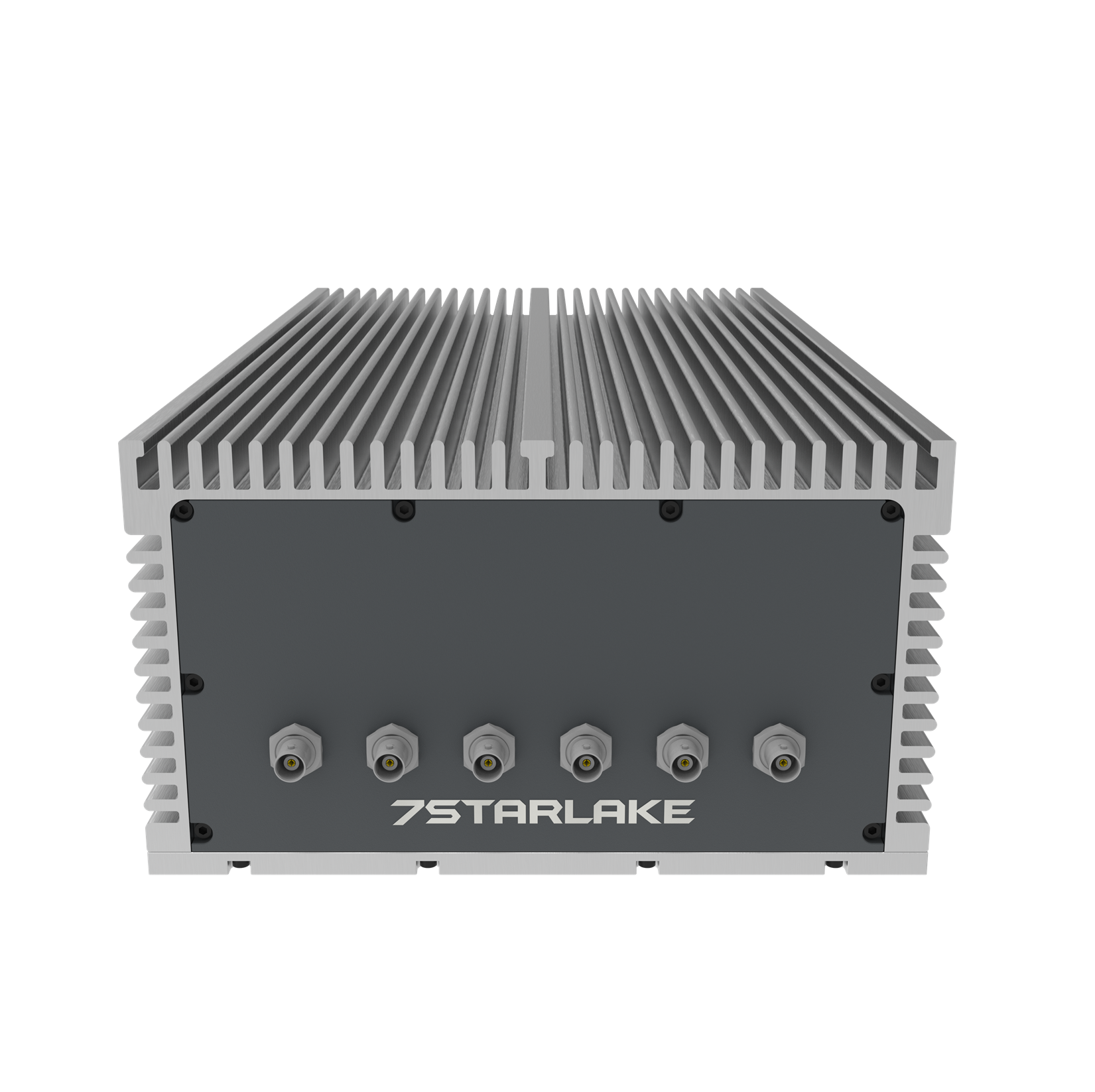

Rear I/O |
|
|
(Option)Antenna |
6 x Water-proof SMA Connector |
|
Power Requirement |
|
|
Power Input |
DC-IN 9~48V |
|
Operating System |
|
|
Operating System |
Windows 10/11 64Bit Linux (support by request) |
|
Physical & Environment |
|
|
Dimensions (W x D x H) |
248 x 425 x 141.2 mm |
|
IP |
IP66 designed to meet |
|
Green Product |
RoHS designed to meet |
|
Operating Temperature |
-20 to 60°C |
|
Storage Temperature |
-40°C to 85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
EMC |
CE and FCC designed to meet |
|
MIL-STD-810 Environment Testing Standards |
|
|
Method 501, Operational Temperature, High |
Procedure II: +60°C, two-hour dwell, four cycles |
|
Method 501, Storage Temperature, High |
Procedure I: +70°C, two-hour dwell, four cycles |
|
Method 502, Operational Temperature, Low |
Procedure II: -20°C, two-hour dwell, four cycles |
|
Method 502, Storage Temperature, Low |
Procedure I: -30°C, two-hour dwell, four cycles |
|
Method 514, Vibration |
Category 24/Non-Operating (Category 20 & 24, Vibration) |
|
Method 514, Vibration |
Category 20/Operating (Category 20 & 24, Vibration) |
|
Method 516, Shock |
Procedure V Non-Operating (Mechanical Shock) |
|
Method 516, Shock |
Procedure I Operating (Mechanical Shock) |
|
Method 507, Humidity |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) |
CPT200X3
Fanless Embedded In-Vehicle GPU System with Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processor up to 65W , 96G SO-DIMM DDR5 4800MHz, 4 × 2.5GbE RJ45 w/M12, 2 x RS232/422/485 w/M12, 1 x miniDP w/M20, 1 x USB3.0 w/M20, 2 x 10G w/M12, 4 x POE w/M12, 2 x CANBUS/8 Bit DIDO w/M12, 2 x Internal SSD Tray, 1 x 72W NVIDIA L4, 1 x DC-IN w/M12, 9~48V, Operating Temperature -20°C to +60°C
