7STARLAKE military computers are based on industry standard Commercial Off-The-Shelf (COTS) open, scalable, modular architecture-technologies that enable prime contractors and system integrators to deploy quickly while meeting size, weight, power and cost (SWaP-C) budgets.



Defense Solution
  • Panel Computers 7StarLake’s Smart Display and Panel Computers are equipped with 6 to 20 programmable function keys made of rugged rubber, allowing configurability based on various mission requirements. These programmable function keys provide convenience and efficiency for users when in critical battle conditions.
  • MXM-GPU EDGE Computers : Traditionally, sensors on military vehicles collect massive amounts of battlefield data and store it locally before transporting it for analysis and interpretation by highly sophisticated, remote deep learning systems. Edge GPGPU systems allow extraordinary amounts of data to be collected and processed right on the battlefield in real time.
  • MXM-GPU Rack-Mount Server : Our HORUS 420 & HORUS 430 series offers the high performance of various NVIDIA QUADRO MXM GPUs paired with the latest Intel Core and Xeon CPUs in a 2U fanless rugged chassis. With patented design in conduction cooled technology, this server series can survive in the harshest environments (MIL-STD-810, vibration up to 5 GRMS and shock up to 40 g).
  • Xeon DE VMware Workstations : VMware software powers the world’s complex digital infrastructure. The company’s cloud, app modernization, networking, security, and digital workspace offerings help battlefield deliver any application on any cloud across any device. SR800 & AV800 series based on Intel Xeon DE platform covering multi-core processor up to 16 cores featured by D-1587 & D-2183IT.






Vehicle Mounted Command & Control System

Ground Defense image-01

Green

Armored Ground Vehicles for transportation or combat are a core pillar for every armed force, and have been continuously evolving from a technology perspective. To reduce reaction time, system performance plays an indispensable role.  Every aspect of the technology ecosystem — from computers to displays, to the underlying componentry — require top-notch performance, stable interconnectivity and near-zero latency.

Ground Defense image-02

Green

Harnessing vast amount of information and data from various sources has become crucial in mission-effectiveness and real-time reaction is vital. That's why 7STARLAKE's Command, Control, Communications, Computers, Intelligence, Surveillance and Reconnaissance (C4ISR) solutions emphasize integrating ultra-high performance components in SWaP-C conscious designs. We focus on the capabilities to control - because control leads to dominance.








Defense Solution Guide



Defense Solution Guide




Defense DisplayIP65Sunlight readable

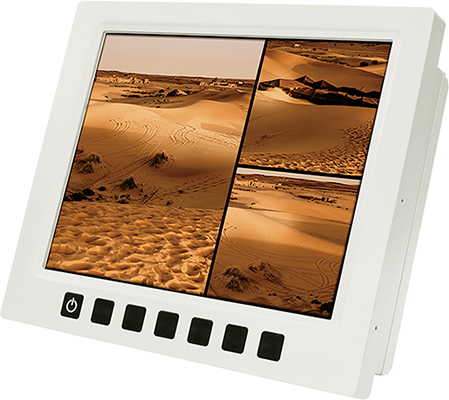

Sky12-P06
Sky12-P06

6 programmable Function Keys

1400 nits Sunlight readable & NVIS compatible

SKY-15
Sky15-P20
20 Programmable Function Keys

1000 nits Sunlight readable & NVIS compatible

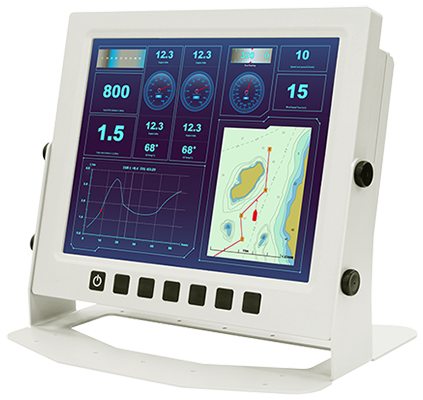

Cloud12-P06
Cloud12-P06

Intel® 9th Gen  Xeon E2276ML

Intel® 9th Gen i7-9850HL



SKY-15
Clound15-P20

Intel® Xeon E-2276ML  with MXM-GPU

NVDIA Quadro RTX3000




Xeon DE Server

Xeon-D2183NVIDIA TESLA

AV800-X1A
AV800-X1A

Xeon® Skylake DE D2183IT

NVIDIA Tesla T4 GPU

Xeon-D1587NVIDIA QUADRO

SR800-X1
SR800-X1

Xeon® D-1587

Quadro P3000 MXM GPU


Xeon-D1587

SR800
SR800

Xeon® D-1587 VMware Certified

AES Hardware Secure Erase

Xeon-D1587

SR800
SR800-X2

Xeon® D-1587 VMware Certified

AES Hardware Secure Erase


Xeon-D1587

HORUS200
HORUS200

Xeon® D-1587 VMware Certified

AES Hardware Secure Erase








MXM-GPU ComputerNVIDIA QUADRO

Xeon-E2276

SR100-X4
SR100-X4

Xeon E-2276ML / i7-9850HL

NVMe Up to 2TB SSD

Core i7-9850HL

SR200-X4
SR200-X4

Core™ i7-9850HL

Quadro® MXM P3000 & RTX3000


Core i7-9850HLIP65
SR700
SR700-X4E

Core™ i7-9850HL

Quadro® MXM P3000 & RTX3000

Core i7-6thIP65
AV700
AV700

Core™ i7-6822EQ

10GbE SFP+




E1305LIP65

AV710
AV710

Xeon® E3-1505L

Quadro® MXM RTX3000



XEON-E2276
IP65
AV710
AV710-X1

Intel® Xeon® E-2276ML

Quadro® MXM RTX3000


Xeon-D1577IP65
AV710-X3
 AV710-X3

Intel® Xeon DE D-1577

Quadro® MXM RTX5000








MXM-GPU Storage Server

NVIDIA QUADRO

Redundant

RAID

HORUS420
HORUS420-R1

Xeon® E3-1268L / Core™i7-6700TE

Quadro® MXM RTX 3000

HORUS422A
HORUS422

Xeon® E3-1268L / Core™i7-6700TE

SATA RAID 12 x 2.5" Swap SSD/HDD Tray




HORUS422A
HORUS428

Xeon® E3-1268L / Core™i7-6700TE

SAS RAID 8 x 2.5" Swap SSD/HDD Tray

HORUS430-X1
HORUS430-X1

Intel 9th  i7-9850HE, NVIDIA  GTX 1080 MXM

Dual 10 GbE SFP+






Key Features






Product List 1- Visual Computer





Sky12-P06 SKY-15 Cloud12-P06 SKY-15

Model Name

SKY12-P06

SKY15-P20

CLOUD12-P06

CLOUD15-P20

Panel

12" TFT

15" TFT

12" TFT

15" TFT

Resolution

1024x768

1024x768

1024x768

1024x768

Brightness

1400 Nits

1000 Nits

1400 Nits

1000 Nits

Touch Panel

Glass-Film-Glass 5-Wire Resistor

Glass-Film-Glass 5-Wire Resistor

Glass-Film-Glass 5-Wire Resistor

Glass-Film-Glass 5-Wire Resistor

Display Control

Power On/Off

Power On/Off

Power On/Off

Power On/Off

LCD Brightness +/-

LCD Brightness +/-

LCD Brightness +/-

LCD Brightness +/-

Display mode Select (On/Off)

Display mode Select (On/Off)

Display mode Select (On/Off)

Display mode Select (On/Off)

Night Vision

Night Vision

Night Vision

Night Vision

Function Keys

6 function keys

20 function keys

6 function keys

20 function keys

Power Requirements

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

MIL-STD-810 Vibration

2.24 GRMS

2.24 GRMS

2.24 GRMS

2.24 GRMS

MIL-STD-810 Shock

20 g

20 g

20 g

20 g

MIL-STD-461

MIL-STD-461E EMI/EMC Compliance

MIL-STD-461E EMI/EMC Compliance

MIL-STD-461E EMI/EMC Compliance

MIL-STD-461E EMI/EMC Compliance

CPU

N/A

N/A

Intel Xeon E3-1505L or

Xeon E-2276ML

Intel Xeon E3-1505L or

Xeon E-2276ML

GPU

N/A

N/A

Options

QUADRO MXM RTX3000

Memory

N/A

N/A

DDR4 up to 64 GB

DDR4 up to 64 GB

Storage

N/A

N/A

mSATA SSD up to  512GB

mSATA SSD up to 512GB

X1

DC-in

DC-in

DC-in

DC-in

X2

USB

USB

1 x COM ; 1 x USB

1 x COM ; 1 x USB

X3

DVI

DVI

GbE LAN

GbE LAN

X4

VGA

VGA

GbE LAN

GbE LAN

X5

N/A

N/A

VGA

VGA








Product List 2- Xeon DE VMware Server



AV800-X1A SR800-X1 SR800 SR800 HORUS200

Model Name

AV800-X1A

SR800-X1

SR800-X2

SR800

HORUS200

CPU

D-2183IT

D-1587

D-1587

D-1587

D-1587

GPU

TESLA T4

RTX3000

N/A

N/A

ASPEED AST2400

PSU

18V~36V

18V~36V

18V~36V

10V~40V

10V~40V

AES (H/W)

N/A

N/A

YES

YES

YES

Storage(1)-NVMe

1

1

N/A

N/A

N/A

Storage(2)-SATA SSD

2

2

2

2

2

MIL-810 - Vibration

5 GRMS

5 GRMS

5 GRMS

5 GRMS

5 GRMS

MIL-810 - Shock

32 g

32 g

32 g

32 g

32 g

MIL-461

Conductive Emission

- CE 102

Radiated Susceptibility

- RS 103

Conductive Emission

- CE 102

Radiated Susceptibility

- RS 103

Conductive Emission

- CE 102

Radiated Susceptibility

- RS 103

Conductive Emission

- CE 102

Radiated Susceptibility

- RS 103

Conductive Emission

- CE 102

Radiated Susceptibility

- RS 103






Product List 3- MXM-GPU Computer



SR100-X4 SR200-X4 AV700 SR700 AV710 AV710-X3 AV710-X3

Model Name

SR100-X4

SR200-X4

AV700

SR700-X4E

AV710

AV710-X1

AV710-X3

CPU

Intel® Core™ i7-9850HL

Intel® Core™ i7-9850HL

Intel® Core™ i7-6822EQ

Intel® Core™ i7-9850HL

Intel® Xeon® E3-1505L

Intel® Xeon® E-2276ML

ntel® Xeon® D-1577

RAM

DDR4- 64GB

DDR4- 32GB

DDR4- 32GB

DDR4- 64GB

DDR4- 32GB

DDR4- 32GB

DDR4- 64GB

SSD

mSATA 512GB

mSATA 512GB

mSATA 512GB

mSATA 512GB

mSATA 512GB

mSATA 512GB

mSATA 512GB

GPU

N/A

RTX3000

 GTX 1050Ti

N/A

RTX3000

 GTX 1050Ti

RTX3000

GTX 1050Ti

RTX5000

RTX5000

PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

9V~36V DC-IN EMI Filter  Option for 28V MIL-461 PSU

DO-
160

MIL-810 Vibration 10 GRMS 10 GRMS 10 GRMS 10 GRMS 7 GRMS 7 GRMS 7 GRMS

MIL-810 Shock

75 g

75 g

75 g

75 g

40 g

40 g

40 g

MIL-461 EMI

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS
103





Radiated Susceptibility
- CS 101
- CS 114
- CS 115

Radiated Susceptibility
- CS 101
- CS 114
- CS 115

Radiated Susceptibility
- CS 101
- CS 114
- CS 115

Radiated Susceptibility
- CS 101
- CS 114
- CS 115

Radiated Susceptibility
- CS 101
- CS 114
- CS 115

Dimension

210 x 149 x 70 mm

308 x 149 x 76 mm

230 x 280 x 83 mm

210 x 149 x 70 mm

280 x 230 x 122 mm

280 x 230 x 122 mm

280 x 230 x 122 mm






Product List 4- MX-GPU Rackmount Computer



HORUS420-R1 HORUS422 HORUS428 HORUS430-X1

Model Name

HORUS420-R1

HORUS422

HORUS428

HORUS430-X1

CPU

Intel® Xeon E3-1268L
Intel® Core i7-6700TE

Intel® Xeon E3-1268L
Intel® Core i7-6700TE

Intel® Xeon E3-1268L
Intel® Core i7-6700TE

Intel® Core™ i7-9850HL

RAM

DDR4- 32GB

DDR4-64GB

DDR4-64GB

DDR4- 64GB

SSD

SSD 4 x 2TB

SSD 12 x 2TB

SSD 8 x 2TB

mSATA 1TB

GPU

NVIDIA® GTX 1050 Ti
NVIDIA® RTX 2060S

NVIDIA® GTX 1050 Ti
NVIDIA® RTX 3000

NVIDIA® GTX 1050 Ti
NVIDIA® RTX 3000

NVIDIA MXM GTX1080

PSU

100V to 240V AC input
redundant

100V to 240V AC input

12V DC-IN

MIL-STD-461/1275
18V-36V DC-Input

DO-160

MIL-810 Vibration

5 GRMS

5 GRMS

5 GRMS

5 GRMS

MIL-810 Shock

25 g

25 g

25 g

25 g

MIL-461 EMI

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS 103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS 103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS 103

Radiated Emission:
- RE 102
Conductive Emission
- CE 102
Radiated Susceptibility
- RS 103







Radiated Susceptibility
- CS 101
- CS 114
- CS 115

Dimension

430 x 380 x 88 mm

430 x 396 x 88 mm

430 x 377x 88 mm

422 x 379 x 88 mm
