SK515P-T6RH
- COMe Type 6 Support Intel® 13th Raptor Lake-H Processor
- MXM Type 3.1 Support NVIDIA® GTX® / RTX® GPU
- Support MXM RTX 5000 Ada (9728 CUDA, 16GB RAM)
- PCI/104 Express Expansion Slot for Modular Open Structure
- Multi-Expansion Slots include Dual Mini PCIe Express Slots, 1x M.2 Slot
- 2 x SATA, 4x DI/4X DO, 4x USB3.0, 2x USB2.0
- Wide Range DC 9V~36V Input
- Extreme Temperature Support -40°C to 85°C
- Technical Profile
- Specifications
- Order Information
- Download

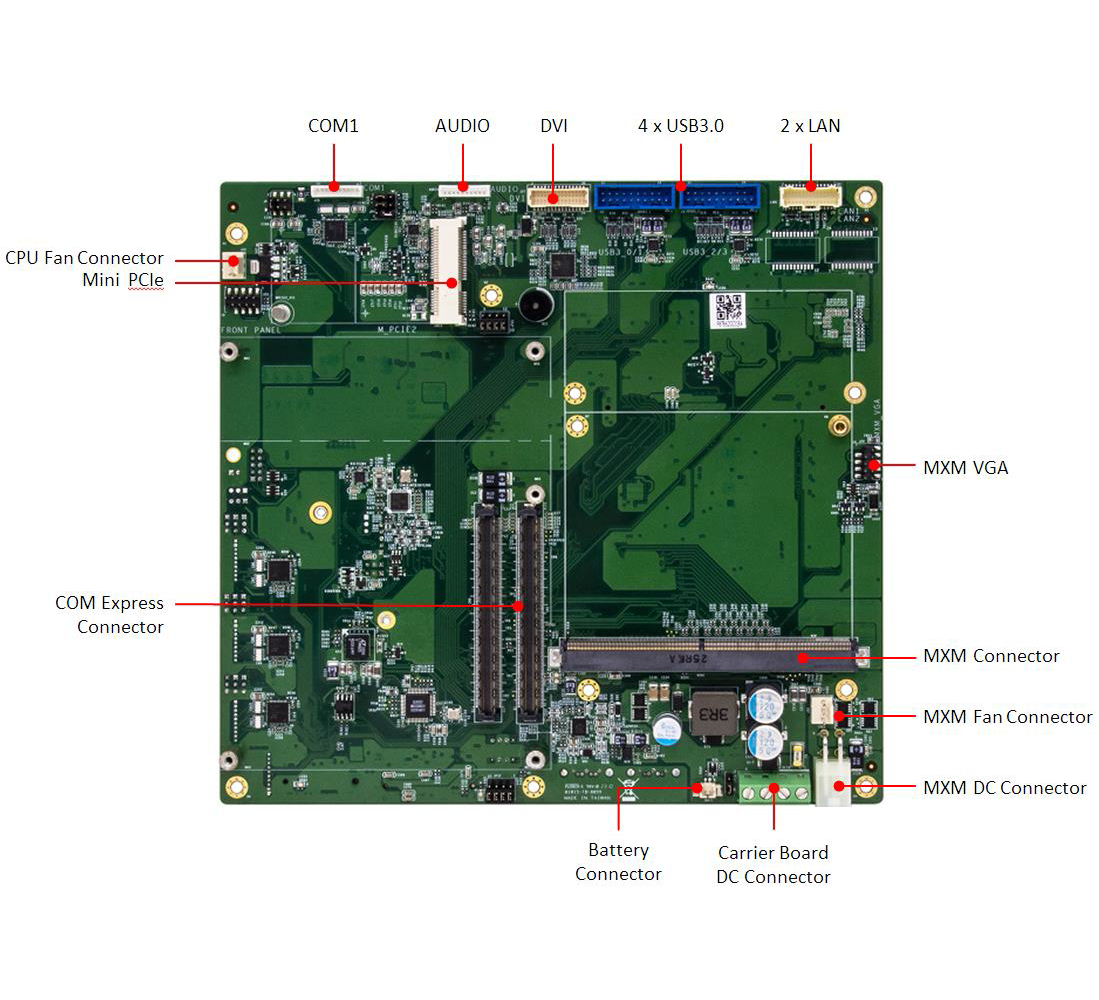

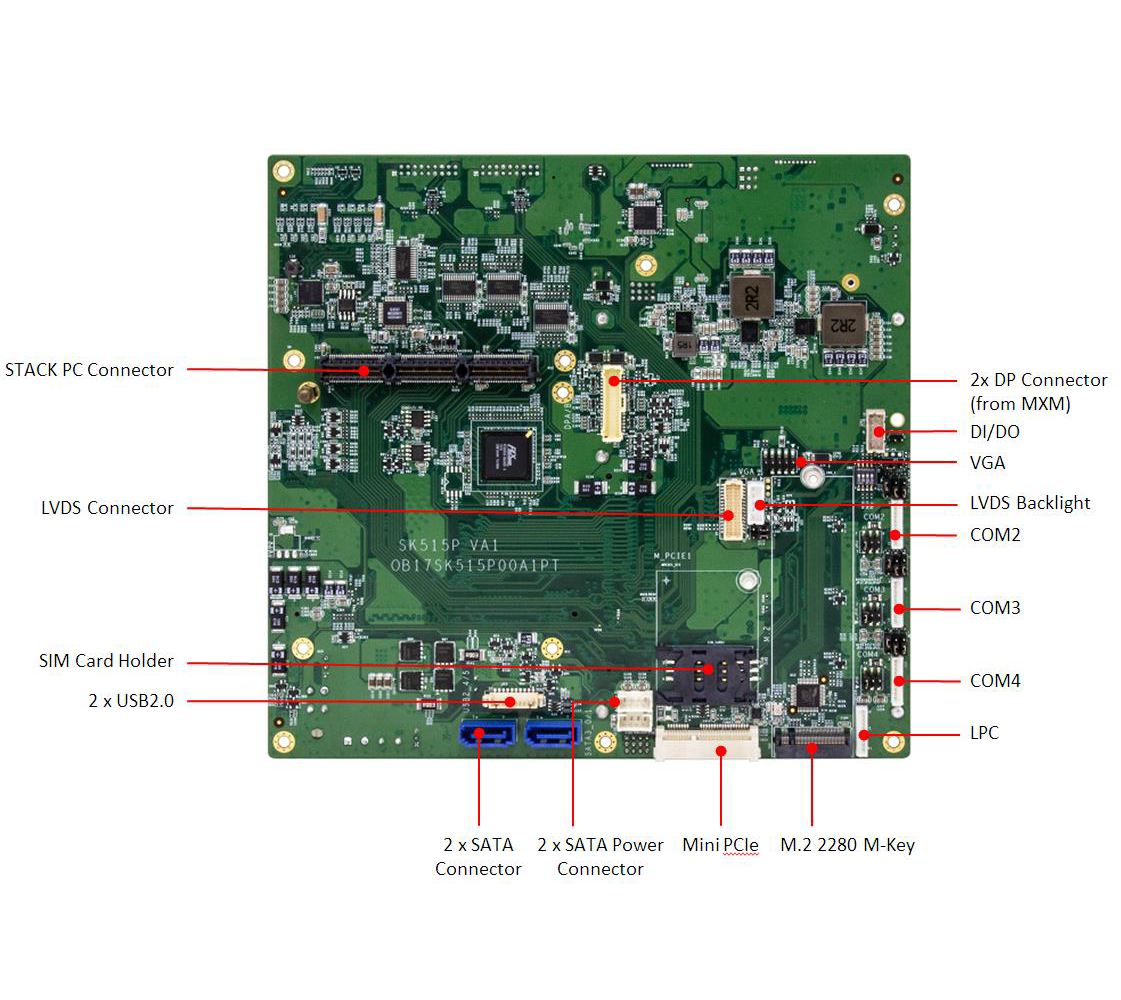

- Introduction
-
Computer-On-Module (COM), is a highly integrated board with CPU, chipset, memory, and peripherals designed into a component module. COM Express Type 6 has become the most versatile and most scalable COM standard supporting everything from small-scaled and cost-sensitive applications up to high-end computing and graphics-intensive solutions.
7StarLake’s SK515P-T6RH COM Express defines Open Scalable Modular Architecture and pin-out Type 6 platform which is ensuring amazing computing performance and offering a broad range of I/O interfaces including intense graphics support, Digital Display Interfaces (Display Port, VGA, LVDS) and super-fast USB 3.0 to serve all kind of different application requirements.
SK515P-T6RH pin-out Type 6 is a complementary specification to the existing Type 6 pin-out. It is replacing the graphics support by offering multiple 10GbE-KR ports and defining 32 PCIe lanes. The Type 6 is an ideal definition to design server-grade platforms for applications requesting high data and network throughput.
SK515P-T6RH support a wide range of Intel processors, including 13th Gen core i7-13800HE and Industrial Temp grade of i7-13800HRE, feature advanced hybrid architecture with Performance and Efficient cores for optimized power usage. What’s more, SK515P-T6RH has the capability to operate in harsh environment. It accepts the extend range of temperature from -40 to 85°C. With outstanding computing capability and efficient thermal design, SK515P-T6RH is very suitable for industrial, military/aerospace and transportation.
- Rich Expansion Slot
-
SK515-T6 provides rich expansion to make the whole solutions easier. We could use PCIe 104 related product SK506, SK303, SK1050 and SK1660S：
- StackPC-FPE form factor
- PCIe/104 stackable bus structure
- Reliable Ethernet technology from Intel i350-AM4 controllers
- Total 6 independent LAN connections (2 from host board, 4 from Intel controllers)
- Flexible options for Ethernets through RJ45 or 10 pin headers
- High-performing bridgeless design supporting PCI Express Gen 2.1 5GT/s
- Extended temperature -40 to 85°C
-
SK401:
- Stack PC form factor
- PCIe/104 stackable bus structure
- Reserve PCI/104 connector for different stacking criteria
- Extended temperature -40 to 85°C
- PCI/104-Express, PCI & PCIe connectors (w/StackPC design)
- PCIe/104 stackable bus structure
- PCIe to PCI adapter function
- COM: 4 x RS232/422/485 with 5V/12V selectable and isolation function
- Extended temperature -40 to 85°C
-
NVIDIA Ampere RTXA2000/A4500 MXM 3.1 Graphics Module:
- Powered by NVIDIA RTX® A2000/A4500
- MXM 3.1Type-B Module
- A2000 High-speed 8GB GDDR6 Memory
- A4500 High-speed 16GB GDDR6 Memory
- A2000 2,560 new-gen. Pascal architecture CUDA cores
- A4500 5,888 new-gen. Pascal architecture CUDA cores
- Outputs 4 Channel Support
- Display Port 1.4 Ready
- Support NVIDIA CUDATM, OptimusTM, DirectX® 12, OpenGL® 4.5

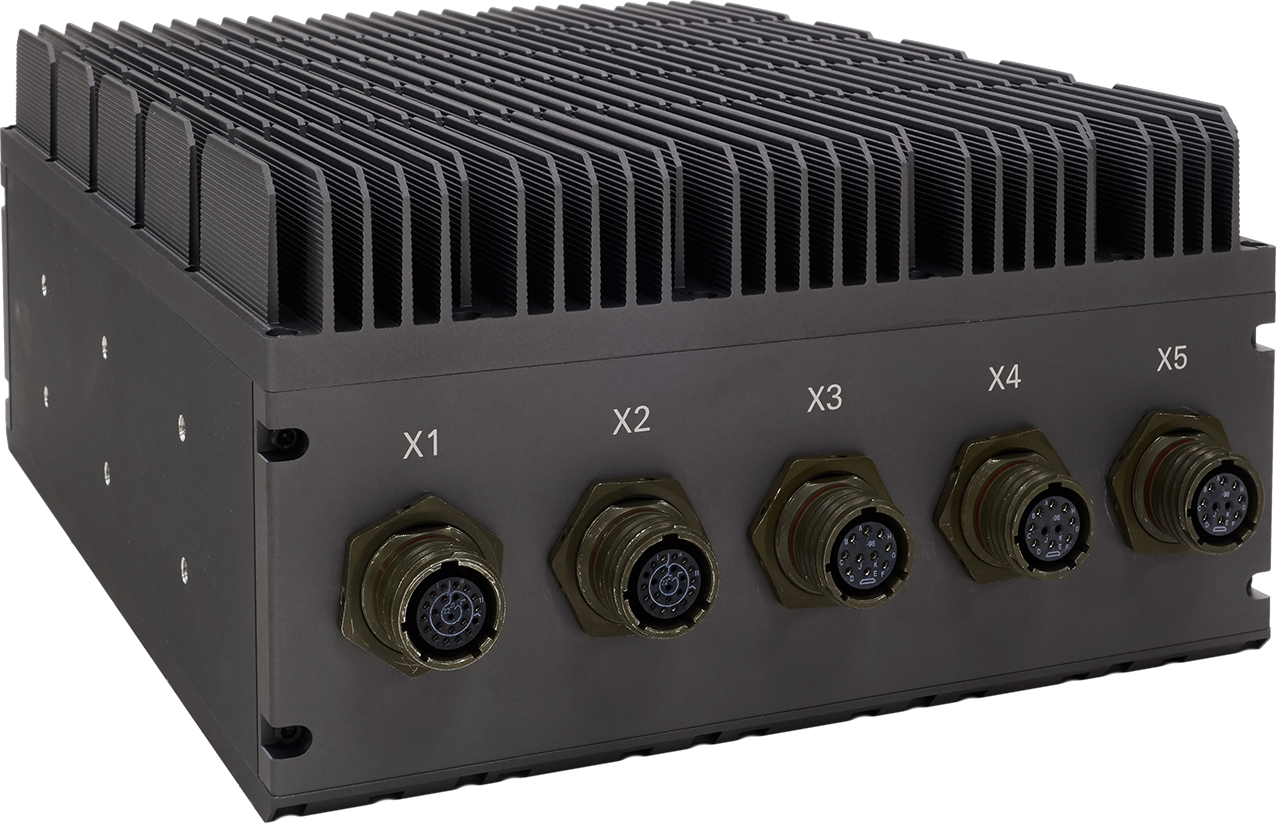

Targeting & Surveillance GPU Computer For Joint Battle Command Platform (JBC-P) , MIL-STD Fanless Rugged Computer with Intel® Core™i7-6822EQ , NVIDIA®GTX1050Ti CUDA 768 GDDR5-4GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB,IP65 protection, MIL-STD D38999 Connectors, 18~36V DC-in, Extended Temp. -40 to 70°C
- GPGPU IP65 Mission Computer Design for Joint Battle Command Platform (JBC-P)
- NVIDIA®GTX1050Ti CUDA 768 GDDR5-4GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB
- Intel® Core™ i7-6822EQ Processor
- Up To 32GB DDR4 Memory 1 x VGA, 2 x Gigabit Ethernet,2 x USB, 2 x COM
- Rugged MIL-DTL-38999 connectors
- 9~36V DC-in Options for DC/DC 18~36V DC-in (MIL461/1275)
- Extended Temperature -40 to 70°C
| System | |
|---|---|
|
COM Express CPU Options(Type6) |
Intel® Core™ i7-13800HE, 45W Raptor Lake 13th Gen, 14C , Freq. 2.5 /5.0 GHz, 24MB cache Intel® Core™ i7-13800HRE, 45W Raptor Lake 13th Gen, 14C , Freq. 2.5 /5.0 GHz, 24MB cache |
|
GPU Module Options |
NVIDIA® Ampere RTX A2000, 80W, 8GB GDDR6, 2,560 CUDA Cores NVIDIA® Ampere RTX A4500, 80W/130W, 16GB GDDR6, 5,888 CUDA Cores NVIDIA® Ada Lovelace RTX 3500 Ada, 115W, 12GB GDDR6, 5,120 CUDA Cores NVIDIA® Ada Lovelace RTX 5000 Ada, 115W, 16GB GDDR6, 9,728 CUDA Cores |
|
COM Express Compatibility |
COM Express® Type 6 |
| Expansion | |
|
Mini PCIe Expansion |
2x Full-size Mini PCIe (1 with mSATA supported) |
|
M.2 Expansion |
1x 2280 M-key (SATA only) |
| PCIe/104 Expansion | 4x PCIe x1、1x PCIe x4、5x USB2.0、1x LPC、1x SPI |
| SATAIII | 2x SATAIII |
| Display | |
|
Display Port |
2x Display Port outputs from GPU |
|
VGA |
1x output from COM Express |
|
LVDS |
1x dual channel 18/24bit LVDS |
| DVI | 1x |
| Ethernet | |
|
Ethernet |
2x 10/100/1000/2.5G Ethernet Ports(One from CPU module) |
| I/O | |
|
USB |
4x USB3.0, 2x USB2.0 |
|
COM Port |
4x RS232/422/485 |
|
Audio |
1x Line-out, 1x MIC-In |
| SATA Power | 2x SATA Power |
| DI/DO | 4x DI/4x DO |
| CPU FAN | 1x CPU FAN |
| MXM FAN | 1x MXM FAN |
| Battery | 1x Battery Header |
| Power System | |
|
Input Power_SYS |
9V~36V (4P Terminal Block) |
|
Input Power MXM |
12V (ATX 4P) |
|
Power Consumption |
Varies per COM Express /MXM with different CPU and GPU models |
|
RTC Battery |
3V CR2032 |
| Mechanical and Environment | |
|
Dimensions |
190mm x 180mm |
|
Operating Temperature |
-40°C to 85°C |
|
Storage Temperature |
-40°C to 85°C |
|
Relative Humidity |
10% to 90%, non-condensing |
| Standard Compliance | |
| Standard Compliance | CE/FCC |
| OS | |
| OS Support |
Windows®10 64-bit Linux(Support by request) |
