F20 ATR 1/2 Short Mission Computer
F20 ATR 1/2 Short Mission Computer

1/2 Short ATR

  • MIL-STD 810 Thermal, shock, vibration,
  • Humidity / EMI / EMC conditions
  • 9th / 8th Gen Intel® Xeon® / Core ™ processor
  • IP67 Chassis with D38999 connectors
  • DDR4 up to 128GB
  • Dual Redundant MIL-STD-1553 connections
  • Dual ARINC 429 input connections
  • Compliant with MIL-STD-810G/461D / 462D/ 464E/1474E/1686C/1472G
  • MIL-STD-704 / MIL-STD-461/ MIL-STD-1275 10V~40V DC-Input
  • Extreme Temperature : -40°C to 60°C

 Intel Gold

Download
Datasheet
Get A Quote
  • Technical Profile
  • Specifications
  • Download
Introduction

7Starlake excels in designing unparalleled military computers for harsh environments. From polar regions to the desert, from jungle environments to high altitude, 7Starlake’s rugged computers have the capability to withstand the operational environment. Comply to MIL-STD standards exacting levels of conformity, 7Starlake products can operate at full capacity in extreme conditions. 7Starlake believes in meeting 100% of our customers’ expectations for the design, quality of build, and customer service levels in the supply of rugged and custom-built computer systems.

F1-20
ARINC 429

ARINC 429 is the worldwide standard for data transmission in aircraft electronics. It is adopted mostly for commercial aircraft and transport aircraft network protocol standard. Communications, guidance, altitude, altitude reference, flight management, and more are all needed to work together to accomplish a successful flight. The physical connection wires are twisted pairs carrying balanced differential signaling.

The ARINC 429 unit of transmission is a fixed-length 32-bit frame, which the standard refers to as a 'word'. The bits within an ARINC 429 word are serially identified from Bit Number 1 to Bit Number or simply Bit 1 to Bit 32.

ARINC 429
MIL-STD-1553

MIL STD 1553 is US Military Department of Defence standard that was initially published in 1973.

MIL STD 1553 is a differential serial bus. Also, it is a dual redundant data bus.  Each node is connected to each of the redundant buses.  Secondly, if one should fail, communications can still continue.

There are three types of operating nodes for 1553 Bus:

•A Bus Controller initiates all messages, traffic and commands the remote terminals to transmit/receive data.

•Remote Terminal interfaces the 1553 Bus and Sub System Bridge to other 1553 Buses.  It responds to the bus controller.

•The Bus Monitor listens to messages and records them.

MIL-STD 1533

IT Block Diagram
F1-40 Block diagram
MIL-STD-810 & Full IP65 protection

F20 is designed to meet strict SWaP requirements and to withstand harsh environments, including extreme temperature, shock/vibration, sand/dust, and salt/fog. With ruggedized design and high functionality, the IP65 and MIL-STD resistance F20 is the ideal tactical vehicle on the battlefield.

MIL-STD-810
System main board : EBX SBC-OXY5741A
OXY5741A

The EBX SBC OXY5741A provides extraordinary computing performance under extreme environment. It is powered by 9th / 8th Gen Intel® Xeon® / Core ™. Featuring Intel’s Xeon E-2276ME and ruggedized open-standard EBX architecture, PERFECTRON EBX series is built tentatively and triumphs on environmental testing. It still operates effectively under harsh environments ranging from -40 to 85°C so that it is a perfect solution for defence, transportation, and automation applications. More key functions such as stackable PCIe/104 expansion ability, flexible I/O, and NVMe Gen 3.0 PCIex4 for fast and large capacity storage, all contribute to this versatile architecture that can meet clients’ needs.

Choosing an embedded architecture for computer systems can be a formidable task. This kind of stackable and mezzanine architecture often results in tradeoffs that include off-the-shelf or custom design requirements. PCIe/104 compact, ruggedized, easily expandable traits support a lot of expansion flexibility in systems. This architecture evolved to address these resulting issues by keeping the common background while eliminating limitations. OXY5741 employs PCIe/104 technology to reduce constraints and create flexibility of expansion. Its M.2 extension offers M-key (M-Key 2280 optional), and PCIe 3.0 x 4 NVMe. Additionally, OXY5741 provides 3.0 ports for data redundancy by supporting RAID 0/1.

OXY5741A

F1-20

System

High Power Processor

Xeon E-2276ME (6 Cores/12 Threads, 12M Cache, up to 4.50 GHz), 45W

Xeon E-2276ML (6 Cores/12 Threads, 12M Cache, up to 4.20 GHz), 25W

Memory type

16GB DDR4 2400MHz SO-DIMM (up to 128GB)

ECC for Xeon SKU

Chipset

CM246

Graphic

Intel® UHD Graphics 630

ARINC 429

6 Channels of ARINC-419/429/575/717

Channels: 4 RX/TX and 2 RX Only Channels. w/ mini-PCIe card

(Alta-dt MPCIE-A429)

STA -1553

1-2 INDEPENDENT,

DUAL REDUNDANT (A/B) MIL-STD-1553 CHANNELS w/ mini-PCIe card

(Alta-dt MPCIE2-1553)

TPM

TPM 2.0 (SLB9665)

BIOS

AMI UEFI BIOS

COM

3x RS-232

USB

1x USB2.0

Ethernet

1x Intel I210-IT

1x I219-LM GbE

Power Type

10V ~ 33V DC IN

Storage

1x 2.5” SATA SSD, H/W AES 32GB

GPIO

4x GPIO

Operating Temperature

-30°C to +60°C

Dimension

123.95(W) x 318(L1) x 269.88(H)mm

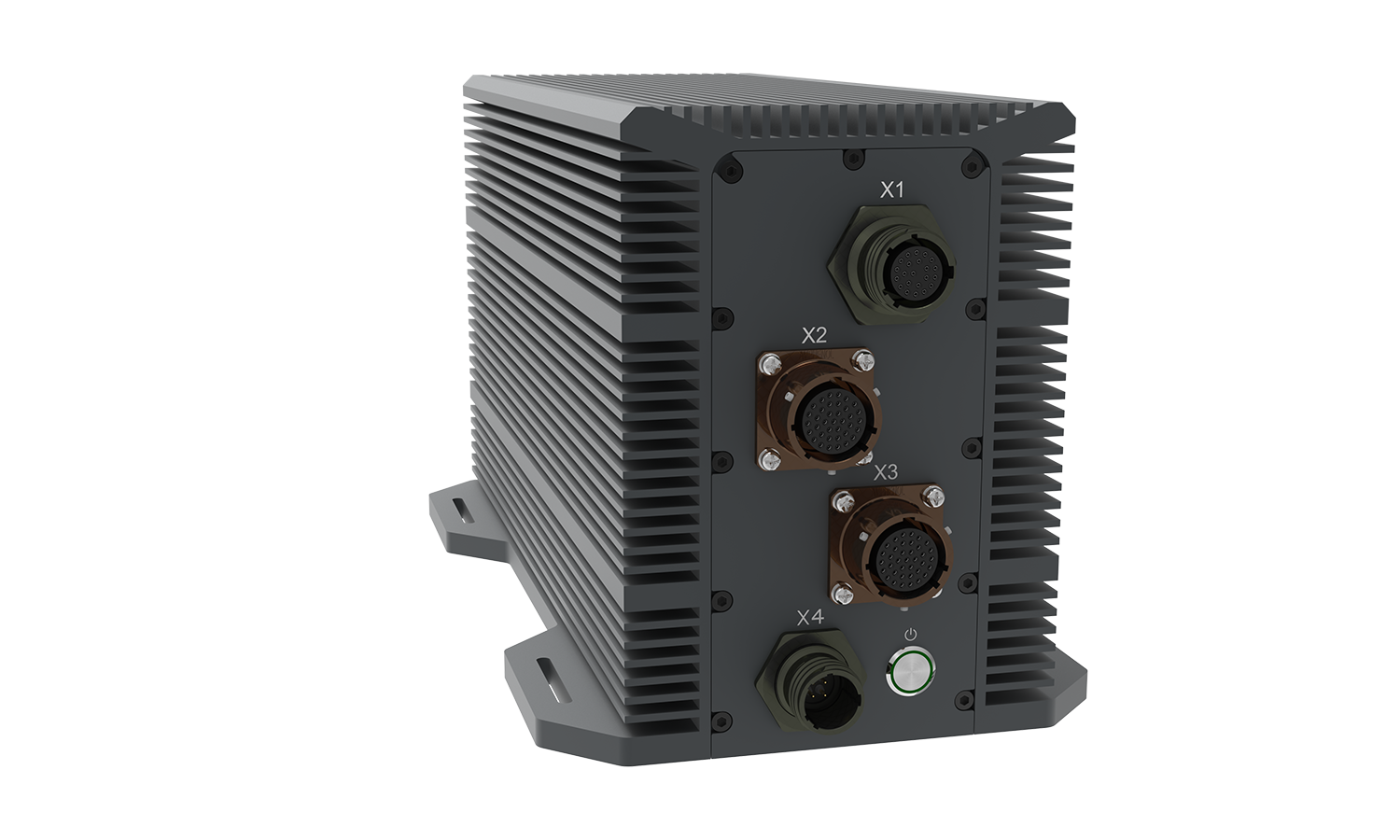

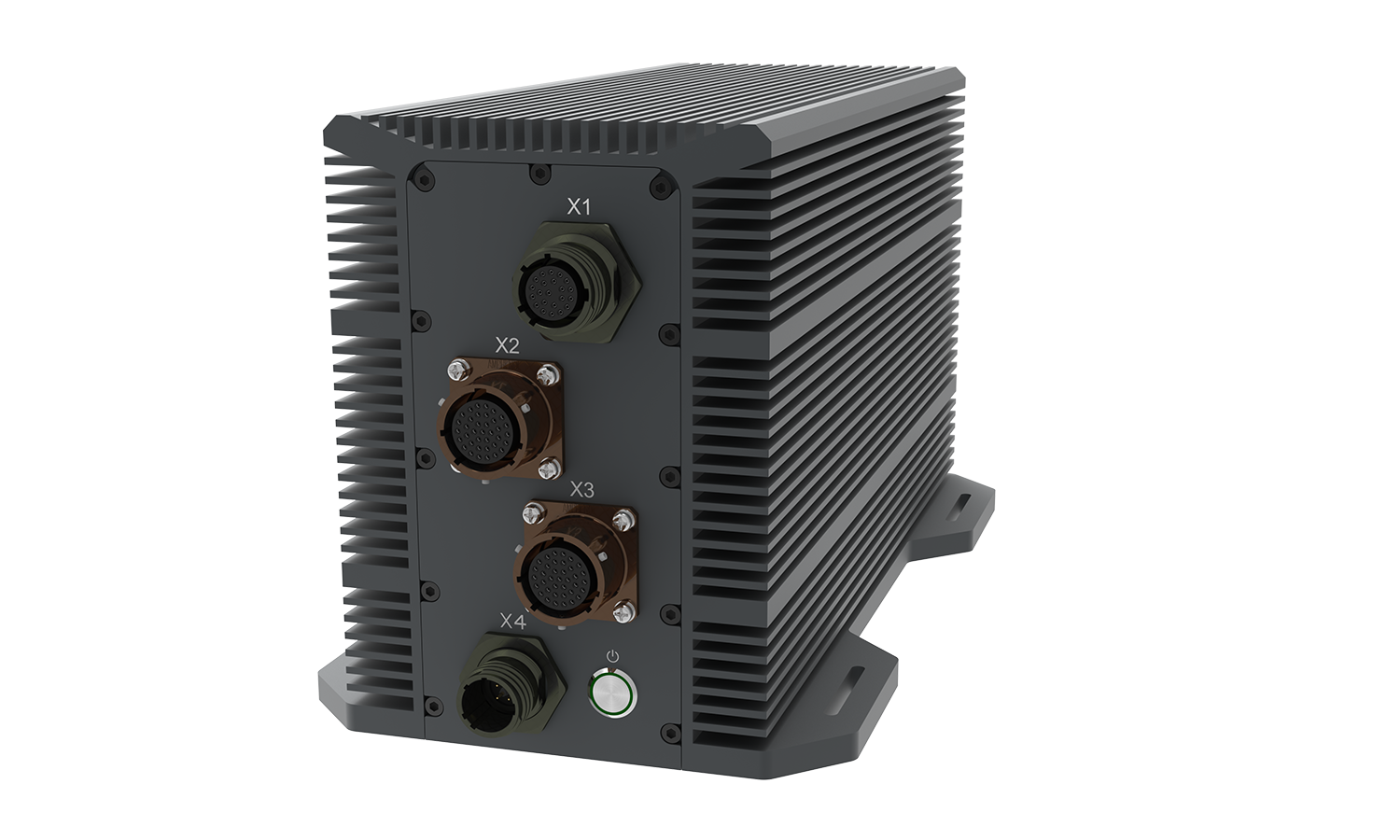

FRONT I/O



X1

2x LAN + 1x USB2.0 with 22 PIN D38999 connector

X2

3x RS232 with 37pin D38999 connector

X3

1x ARINC429+1x MIL-1553 + 4x ch GPIO with 37pin D38999 connector

X4

DC IN with D38999 connector

Environmental



MIL-STD-810 Test

Method 500.5, Procedures I and II (Altitude, Operation):

12,192M, (40,000 ft) for the initial cabin altitude (18.8Kpa or 2.73 Psia)

Method 500.5, Procedures III and IV (Altitude, Non-Operation):

15,240, (50,000 ft) for the initial cabin altitude (14.9Kpa or 2.16 Psia)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Method 507.5, Procedure II (Temperature & Humidity)

Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration)

Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration)

Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock)

Method 516.6, Shock-Procedure I Operating (Mechanical Shock)

Reliability

No Moving Parts; Passive Cooling.

Designed & Manufactured using ISO 9001 Certified Quality Program.

EMC

MIL-STD-461 :

CE102 basic curve, 10kHz - 30 MHz

RE102-4, (1.5 MHz) -30 MHz - 5 GHz

RS103, 200 MHz - 3.2 GHz, 50 V/m equal for all frequencies

EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV

EN 61000-4-3: 10V/m

EN 61000-4-4: Signal and DC-Net: 1 kV

EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV

CE and FCC
