F50
Airborne Liquid Cooled RF SoC Enabled GPU ATR
- Radar Signal & Data Processing Subsystem
- Intel Xeon 6 Granite Rapids-D 6726P-B, 42 Cores 2.3GHz/3.5 GHz
- NVIDIA RTX A6000 Pro (Blackwell )Integrated (24064 CUDA)
- 512GB RDIMM ECC DDR5-6400 MHz
- 2 x 8TB U.2 NVMe SSD
- Support ARINC429/MIL-STD-1553
- 8 ADC/8 DAC RFSoC for Options
- Designed to meet MIL-STD-810/ 461 Standards
- Trusted Platform Module (TPM) 2.0 support
- Technical Profile
- Specifications

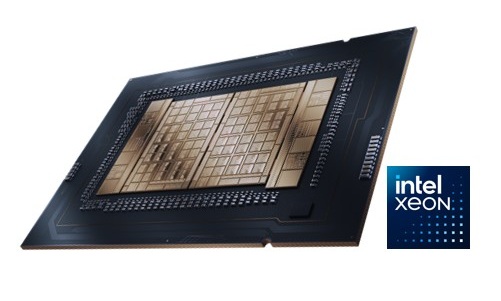

- High-Performance Intel® Xeon® Granite Rapids-D 6 SoCs with VMware v8 Support
-
Powered by the Intel® Xeon® Granite Rapids-D processor, the F50 Airborne Liquid-Cooled AI Super Server is equipped with a high-performance NVIDIA Pro 6000 GPU and two U.2 NVMe slots for high-speed storage access and expansion. The Xeon® Granite Rapids-D 6726P-B SoC features 42 cores with base and turbo frequencies of 2.3 GHz and up to 3.5 GHz, delivering exceptional performance for demanding workloads, including database management, virtualization, and cloud computing. Supporting VMware v8 and later and offers a seven-year extended supply lifecycle, it is ideal for long-term IoT and embedded deployments.
The platform supports DDR5-6400 memory with ECC for enhanced reliability, and leverages Intel® Hyper-Threading Technology to maximize processing efficiency. It also provides comprehensive security and virtualization features, including Intel® Boot Guard, Intel® Trusted Execution Technology, Intel® AES New Instructions (AES-NI), Intel® Software Guard Extensions (Intel® SGX), Intel® Virtualization Technology (VT-x), VT-x with Extended Page Tables (EPT), and Intel® Virtualization Technology for Directed I/O (VT-d), ensuring secure and efficient operation in demanding environments.

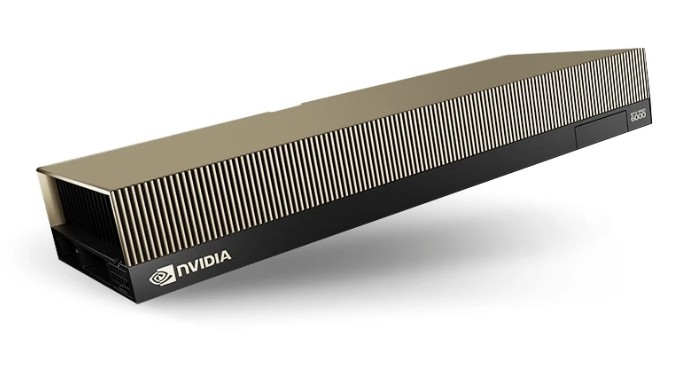

- Edge AI Inference, NVIDIA Pro 6000 Tensor Core GPU
-

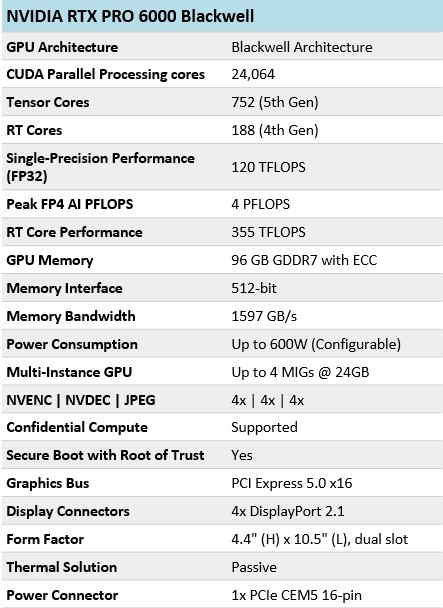

The F50 is a ruggedized AI inference platform purpose-built for advanced acceleration workloads, including voice, video, image, and recommendation services. Powered by the NVIDIA RTX PRO 6000 Tensor Core GPU, the platform delivers up to 120 TFLOPS of FP32 performance, peak FP4 AI performance of up to 4 PFLOPS, and 355 TFLOPS of ray tracing capability. Leveraging a PCIe Gen 5 x16 high-speed interface, the F50 enables real-time inference on trained neural network models, ensuring high throughput and low latency in demanding operational environments.
The F50 utilizes 7STARLAKE's Open Modular, Scalable Architecture and provides an optimized cooling solution for the NVIDIA RTX PRO 6000 Tensor Core GPU, ensuring stable system operation in harsh environments. Whether it's for outdoor use, manufacturing plants, or other challenging environments, the F50 can withstand tough conditions while delivering top-notch AI performance.

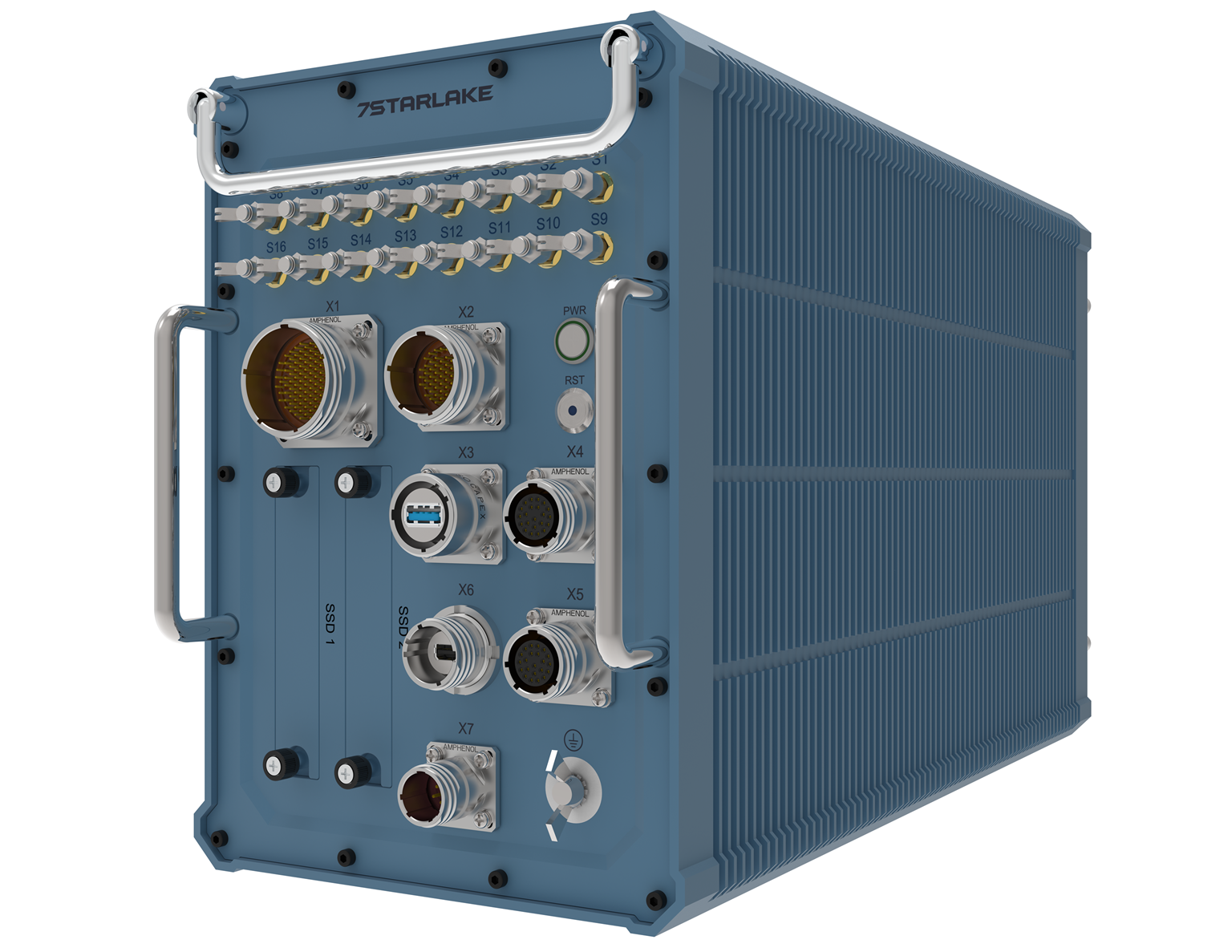

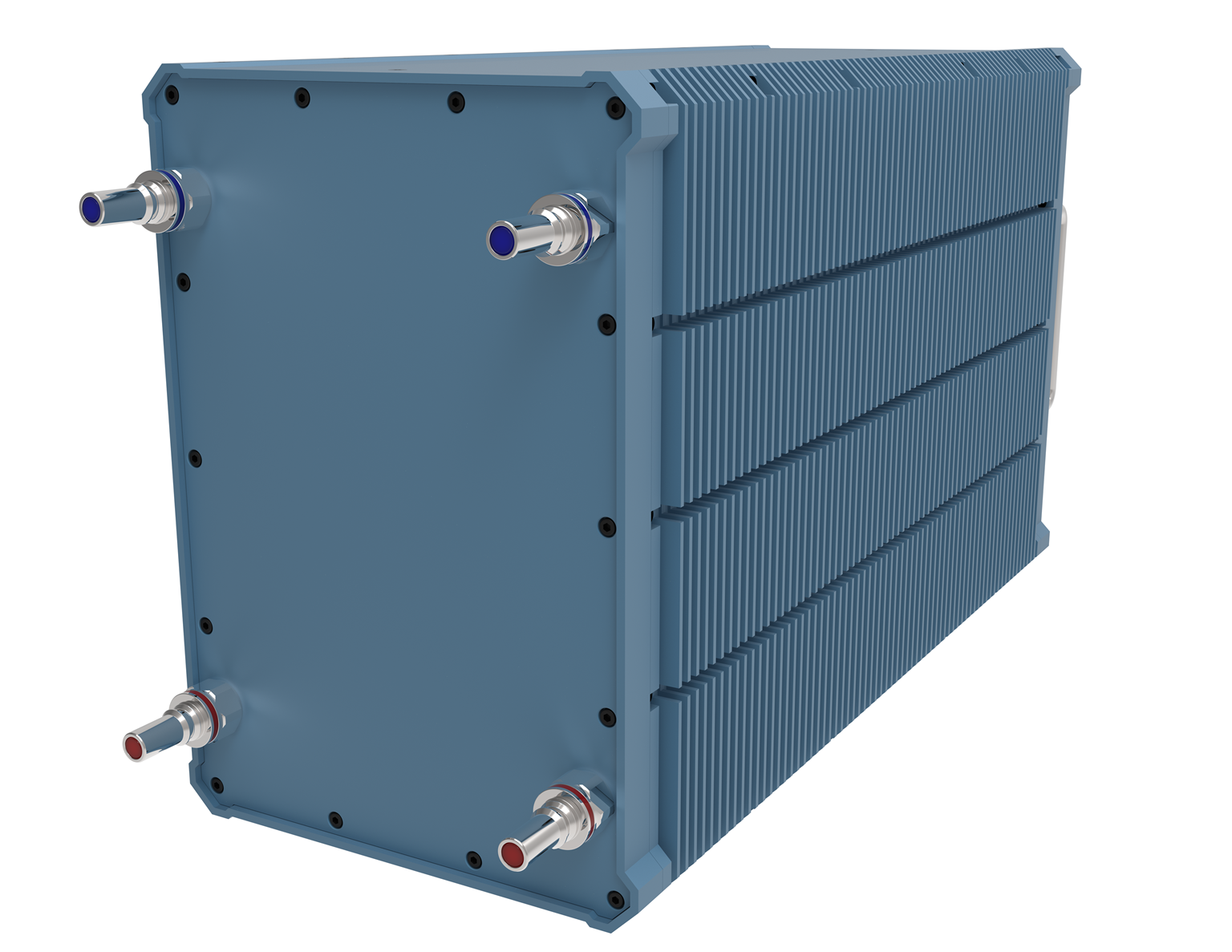

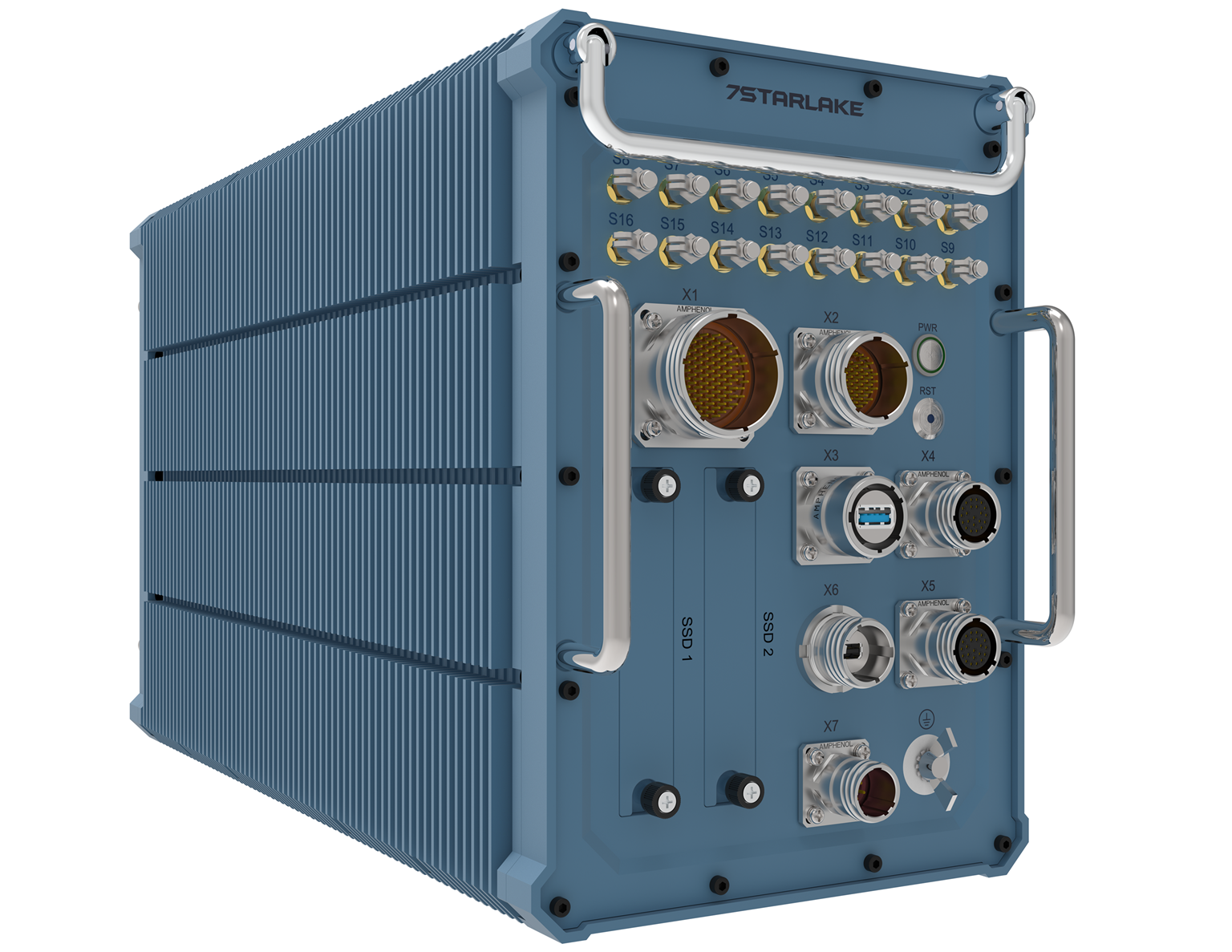

- Appearance
|
System |
|||
|---|---|---|---|
|
Processor |
Intel® Xeon® Granite Rapids-D Processor 6726P-B (Frequency 2.3GHz, Turbo Boost Frequency up to 3.5GHz), 42 Core, 84 Thread Support, 168MB Smart Cache TDP 235W |
||
|
Memory Type |
512GB RDIMM ECC DDR5 6400MHz |
||
|
Chipset |
SoC |
||
|
GPU |
|||
|
NVIDIA |
Nvidia RTX PRO 6000 Tensor Core GPU |
||
|
AI TFLOPS |
752 |
||
|
CUDA Cores |
24064 |
||
|
Memory |
96 GB GDDR7, 1792 GB/sec |
||
|
Graphics Output |
|||
|
1x VGA |
ASPEED AST2600 |
||
|
Resolution |
Up to 1920 x1200 @60Hz 32bpp |
||
|
Storage |
|||
|
HDD/SSD |
2 x 8TB NVMe U.2 SSD |
||
|
I/O |
|||
|
X1 (RS232/422/485/CAN/LAN/DIO) |
1x Amphenol TV07RW13-35SN (55PIN) |
||
|
X2 (ARINC429/MIL-STD-1553) |
1 x Amphenol TV07RW‐13‐98S (37PIN) |
||
|
X3 (USB3.0) |
1 x Amphenol USB3FTV7AZNF312 |
||
|
X4 (QSFP28 100G) |
1 x Amphenol FSI MPOFTV70ZNN |
||
|
X5 (QSFP28 100G) |
1x Amphenol FSI MPOFTV70ZNN |
||
|
X6 (DVI/VGA) |
1 x Amphenol TV07RW‐13‐98S (10PIN) |
||
|
X7 (DC-In) |
1 x Amphenol TV07RW-13-04P (4PIN) |
||
|
Dedicated LED |
2 x Red/Green LEDs (SSD) |
||
|
Hardware |
Trusted Platform Module (TPM) 2.0, Silicon Root Trust (RoT) -NIST 800-193 Compliant |
||
|
Features |
UEFI Secure Boot/ Secure Firmware Updates |
||
|
Power Requirement |
|||
|
Power Input |
18V~36V DC-Input (MIL-STD 461 optional) |
||
|
Applications, Operating System |
|||
|
Applications |
C4ISR, Commercial and Military Platforms Requiring Compliance to MIL-STD-810 Process Control, where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions |
||
|
OS Support List A |
Windows 10 64bit Enterprise, Windows 10 64bit Pro Workstations, Windows 10 IoT 64bit Enterprise, Windows 11 64bit Enterprise (OR001), Windows 11 64bit Pro Workstations (OR001), Windows 11 IoT 64bit Enterprise (OR001), Windows Server 2019 64bit, Windows Server 2022 64bit |
||
|
OS Support List B |
RHEL 8.5 64bit, RHEL 8.6 64bit, RHEL 9.0 64bit, RHEL 9.2 64bit, CentOS 8.5. 64bit, Oracle 8.5 64bit, Oracle 8.6 64bit, Rocky Linux 8.5 64bit, openSUSE Leap 15.4 64bit, SLES 15 SP3 64bit, Ubuntu 22.04 64bit Server, Ubuntu 21.10 64bit Server. |
||
|
VMware |
VMWare ESXi 7.0u3d x64, VMWare ESXi 8.0x64 |
||
|
Physical |
|||
|
Dimensions |
190 x 370 x 269 mm (W x D x H) |
||
|
Estimated Weight |
18 kg (39.68 lbs) final weights dependent on specific configuration |
||
|
Chassis |
Aluminum Alloy, Corrosion Resistant |
||
|
Finish |
Anodic aluminum Oxide |
||
|
Cooling |
Liquid Cooling |
||
|
Ingress Protection |
IP65 |
||
|
MIL-STD-810 Standards |
|||
|
High Temperature |
High Temperature Storage |
+74°C per MIL-STD-810G/501.5/I for 7 cycles |
|
|
High Temperature |
High Temperature Operation |
55°C per MIL-STD-810G/501.5/II for 3 cycles |
|
|
Low Temperature |
Low Temperature Storage |
-46°C for 72 hours per MIL-STD-810G/502.5/I |
|
|
Low Temperature |
Low Temperature Operation |
-33°C per MIL-STD-810G/502.5/II |
|
|
Vibration |
C-130(J/K) aircraft |
Test duration 400 minutes per axis (x,y,z), simulating 120 flight hours including 20 landings and takeoffs |
|
|
Functional Vibration |
vibration experienced on Ford F-550 in neutral gear |
||
|
|
Tactical Transportation test Not Operational |
Test duration: 120 minutes per axis to simulate 500,000 km driving distance. |
|
|
Shock |
Road Transportation |
10 Grms, 11ms, 3 (X, Y, Z) axes, Sawtooth Pulse |
|
|
Immersion |
Method 502.5 |
Test according to IEC 60529/ IP65 |
|
|
MIL-STD-461 Standards |
|||
|
Conducted Emissions |
CE102 |
10KHz to 10MHz (Figure CE102-1) |
|
|
Power Leads |
|||
|
Conducted Susceptibility |
CS101 |
30Hz to 150KHz (Figure CS101-1: Curve #2) |
|
|
Power Leads |
|||
|
Conducted Susceptibility, bulk cable injection |
CS114 |
10KHz to 200MHz, curves 3&4 (10 kHz to 2 MHz: Curve #3 2MHz to 200MHz: Curve #4)
|
|
|
Conducted Susceptibility, bulk cable injection |
CS115 |
impulse excitation (5A) |
|
|
Conducted Susceptibility, damped sinusoidal transients, cables and power leads |
CS116 |
10KHz to 100MHz (10A) |
|
|
Radiated Emissions electric filed |
RE102 |
2MHz to 18GHz (Figure RE102-4) |
|
|
Radiated Susceptibility electric filed |
RS103 |
2Mhz to 18GHz, 50V/m (2MHz to 100MHz: 50V/m 100MHz to 18GHz: 50V/m) |
|
|
|
|
|
|
