ROC280-MA
1U Ultra Short Depth Military Rugged Air Cooled Server
- 1U Ultra Short Depth Military Rugged Air Cooled Server
- MIL-STD-810 Thermal, Shock, Vibration, Humidity
- Intel® 13/14th Core® i7-13700TE Processor
- DDR5 64GB, 2 x LAN ,2 x DP, 2 x HDMI, 4 x USB Ports
- DC 12V~36V MIL-461 EMI FIlter
- Removable Rugged 2xSSD Cage
- Extended Temperature -20 to 60°C
- MIL-STD-461/1275 Compliance
- Technical Profile
- Specifications
- Order Information
Technical Profile
- Introduction
-
ROC280-MA, 1U Ultra Short depth Rugged Air Workstation is driven by Intel® Core i®i7-13700TE (4.8GHz, 16 Cores, 24 Threads, 30MB Cache), providing superior performance in data processing and supporting high flexibility in application. ROC280-MA is an ideal solution for C4ISR with its design under consideration of efficiency, security, convenience, and ruggedness. ROC280-AG equipped with triple 2.5-Gigabit Ethernet, undeniably a great system for simultaneous data handling. Designed with removable solid-state disk and hardware secure erase enhance the mobility of this solution, plus MIL-STD-1275/704/461/810G Compliance, ROC280-MA can be highly adaptable in harsh and unpredictable environment.
- Unique Features
-
Accordion
MIL-STD-1275/704 Power Supply with Voltage Transient Protections
ROC280-MA is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.
The GAIA Hi-Rel DC/DC CONVERTER it also provides under voltage Lockout (UVLO), Output over Current Protection (OCP), Output Overvoltage Protection (OVP) and Over Temperature Protection (OTP) to made stability and safety.

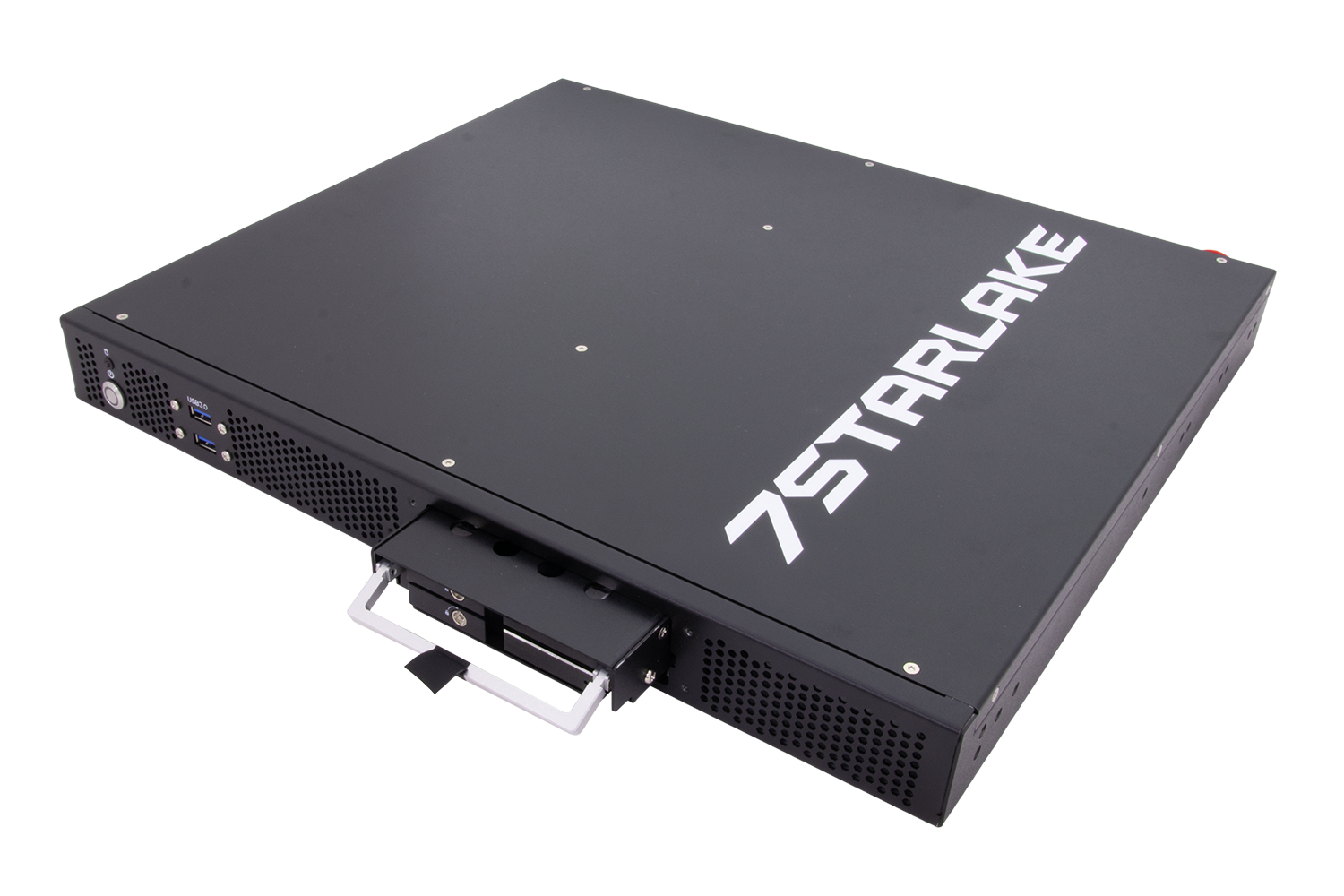

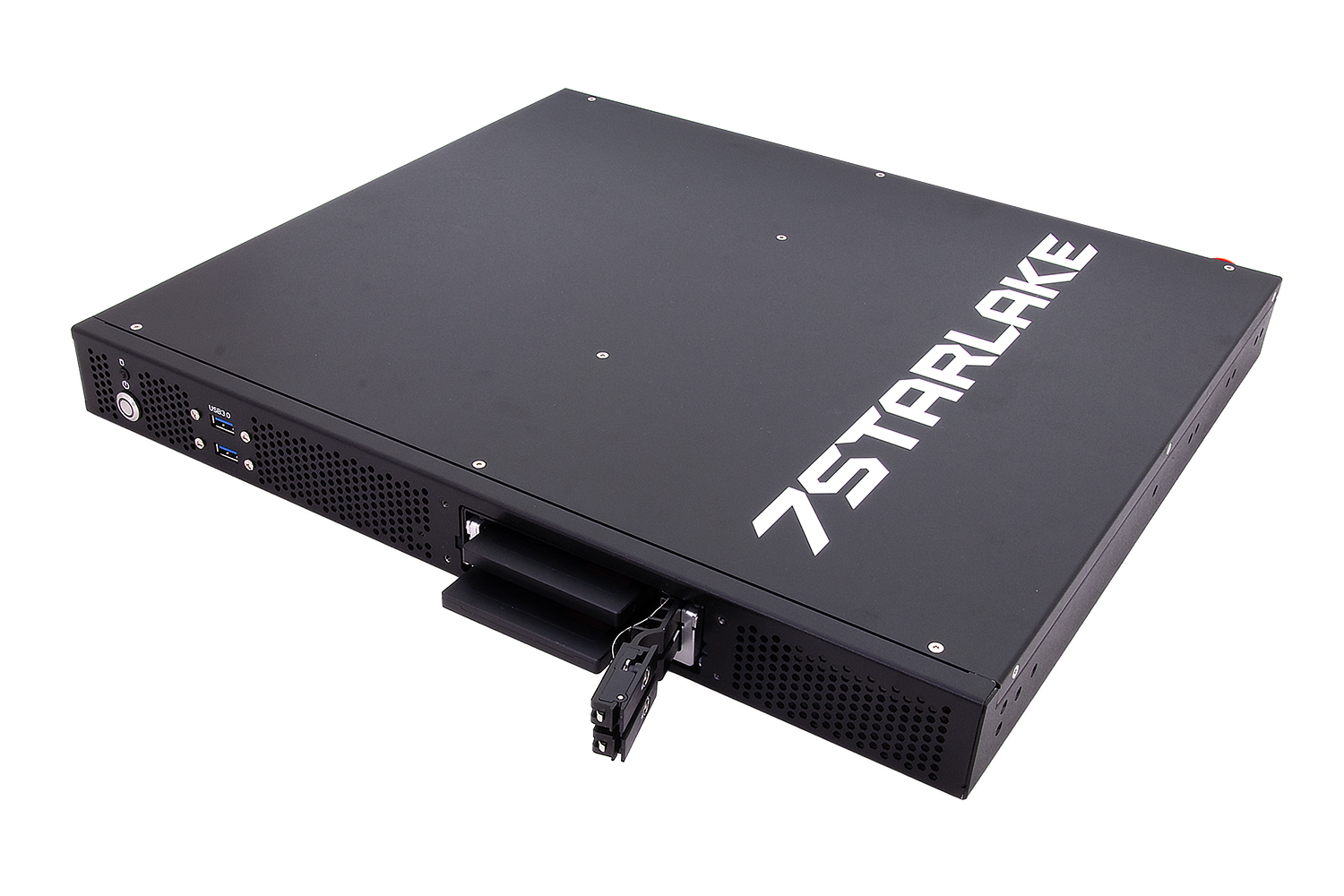

Dual Removable SSD ( Solid-state Disk )
The dual removable SSD featuring with easy-handle, quick and easy swap for maintenance and replacement. Providing compact self-contained system to store and retrieve data, removable and ruggedized SSD supports HORUS200 to suitably apply in military and ground vehicle systems, especially for command and control center when high flexibility and mobility is needed or for sudden evacuation.
Swappable CMOS Battery(Option)
Generally, to exchange the battery from a rugged solution is complicated and has the possibility to affect the original function of water and dust resistance. HORUS200 has an easy swappable battery tray allowing users to directly replace. A coin-cell battery can be seen when pulling the tray fully out of the computer; users just need to change with CR2032 battery and push the tray back and lock screw, then the replacement is completed.
Hardware Secure Erase(Option)
Under emergency situation, when written data is required to be erased immediately, a Secure Erase Button is extremely indispensable. Instant Erase is a particular feature for SED ( Self Encryption Drive ) drive. It's faster than Quick Erase to make all written data invalid. The encryption and decryption is controlled by an AES key on the path; once the AES key is replaced by a new one, the data becomes unrecognizable.
MIL-STD-810G designed for high environmental adaptation
ROC280-MA is designed to meet MIL-STD-810G standard. MIL-STD-810G standard is considered the upmost principle, which guarantees the system achieves superior quality and stability when operate under various environment, especially applied in military and ground vehicle system, which can possibly run through unpredictable terrain or condition, causing sudden shock and occasional vibration.
Specifications
| System | |
|---|---|
|
High Performance Processor |
Intel® 13th /14th Core-i® Processor i7-13700TE (Frequency 3.6GHz, Turbo Boost Frequency up to 4.8GHz, 16-Core,24 Thread Support, 30MB Smart Cache) |
| CHIPSET | Q670 |
|
Memory |
DDR5 5200 MHz / 2 x 260-pin SO-DIMM / Max. 64 GB (Non-ECC) |
| Display | |
| DP | Resolution up to 4069 x 2304 @60Hz |
| HDMI | Resolution up to 4069 x 2304 @60Hz |
| Storage | |
| Storage Device |
2x 2.5" Solid State Disk (SSD) 2x SATAIII |
| Ethernet | |
| Ethernet |
1 x Intel® I226-LM 2.5Giga LAN |

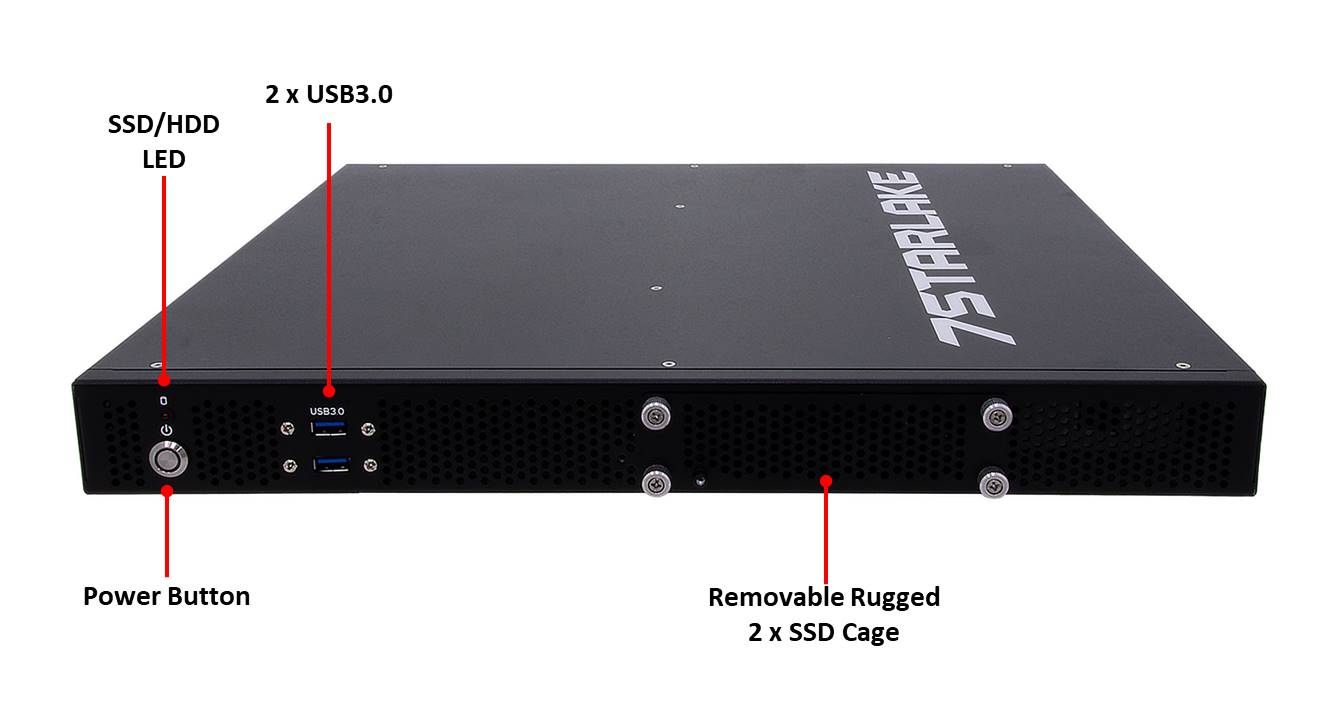

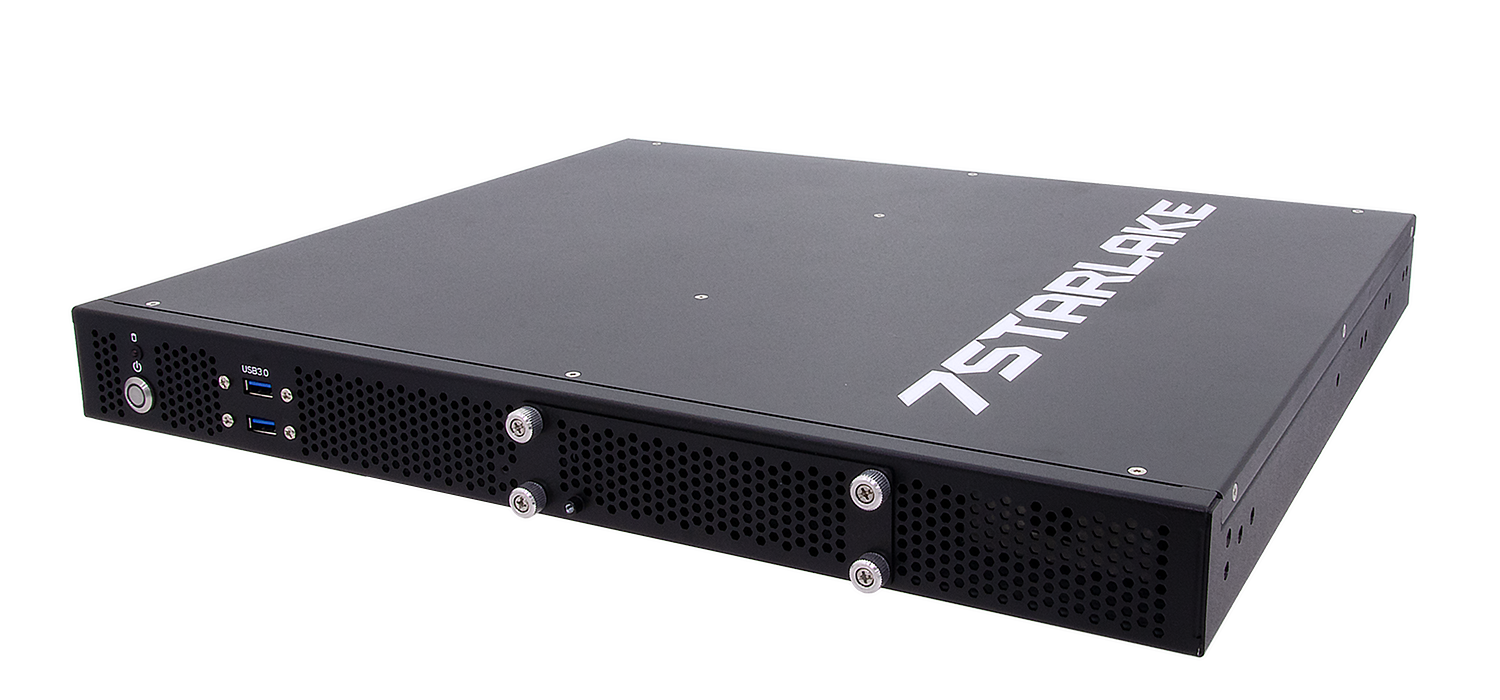

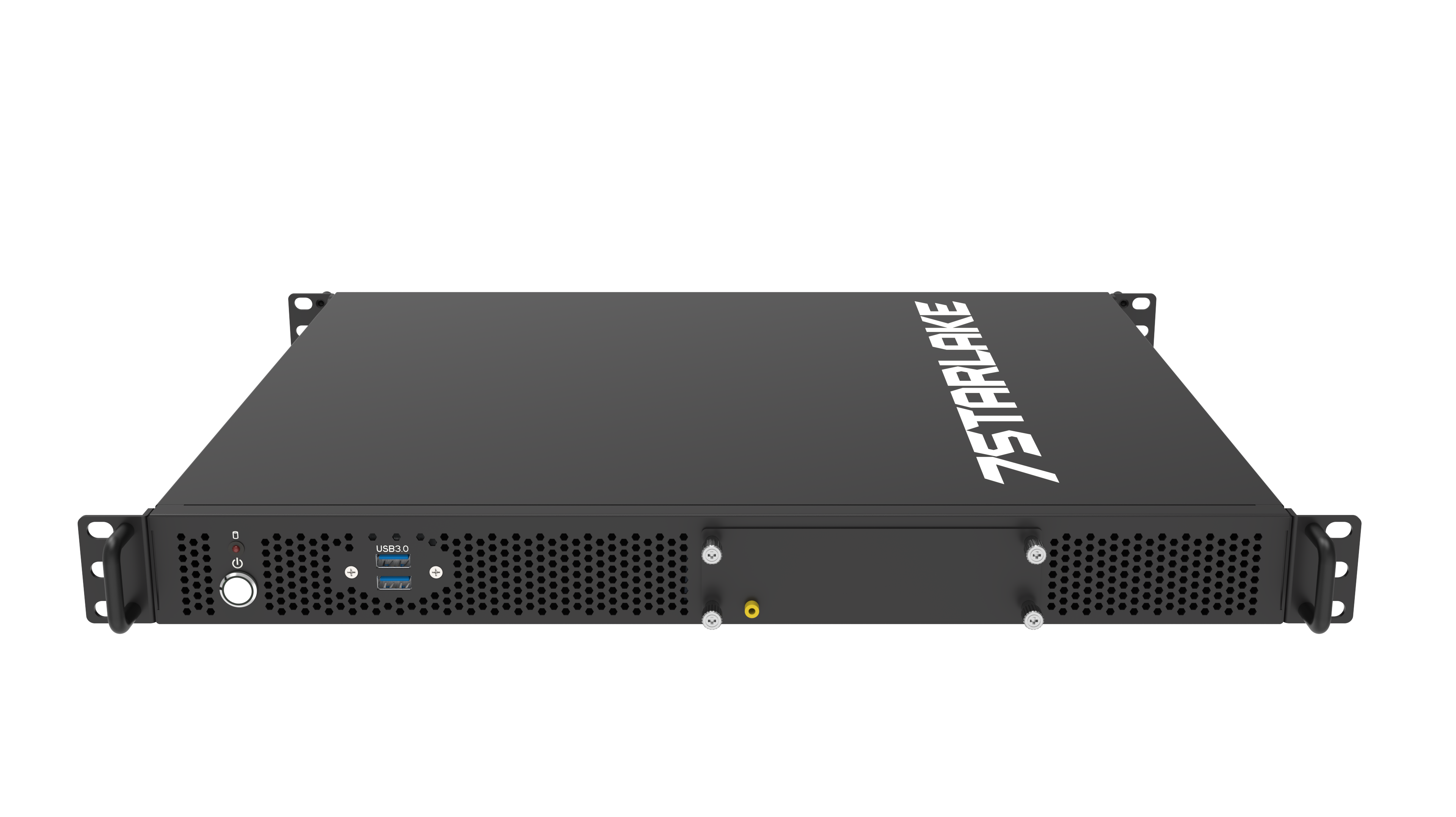

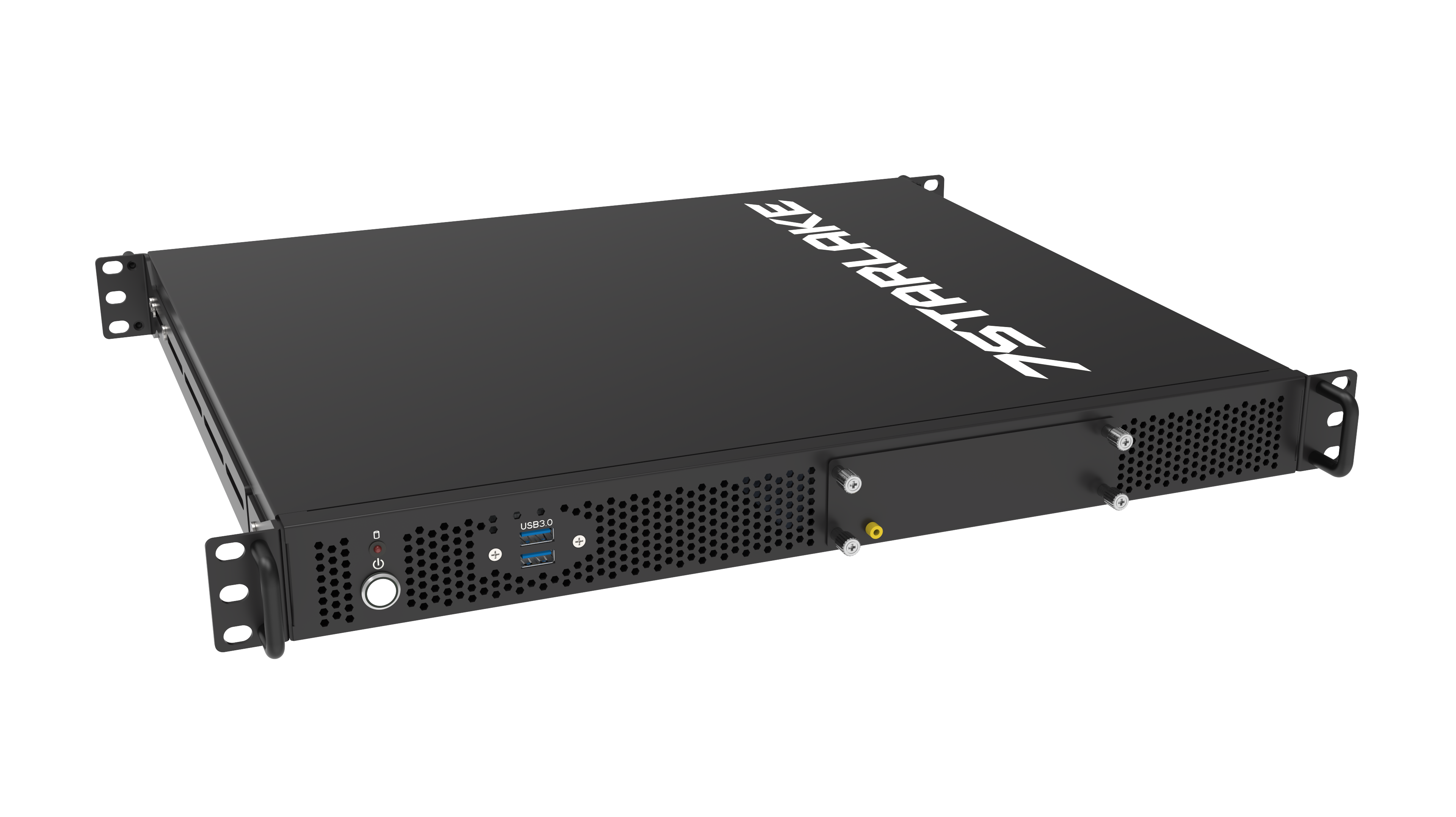

| Front I/O | |
| USB | 2 x USB3.0 |
| Indicator LED | 1 x HDD/SSD LED |
| SSD Cage | Removable Rugged 2 x SSD Cage |
| Button | 1 x Power Switch with Dedicated LED |

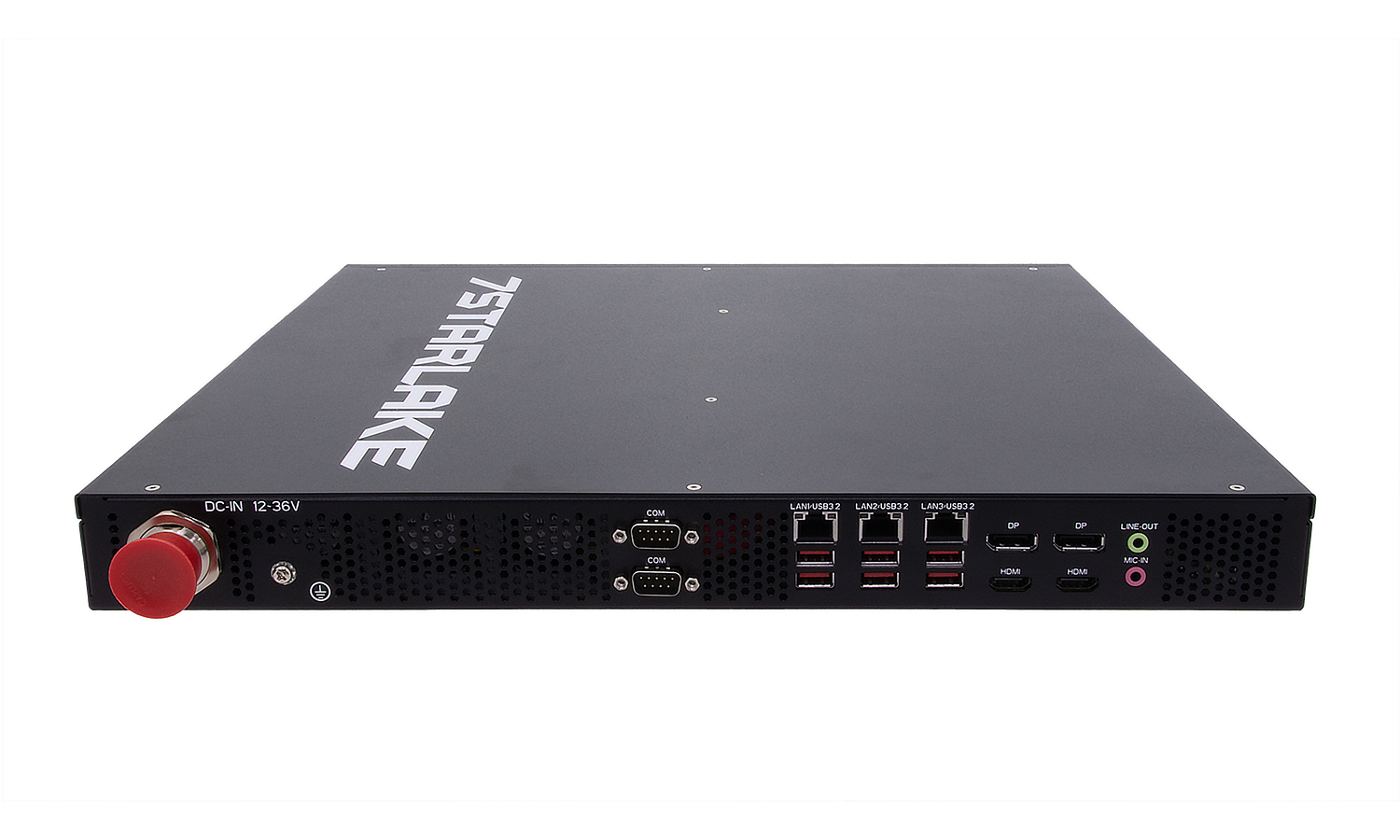

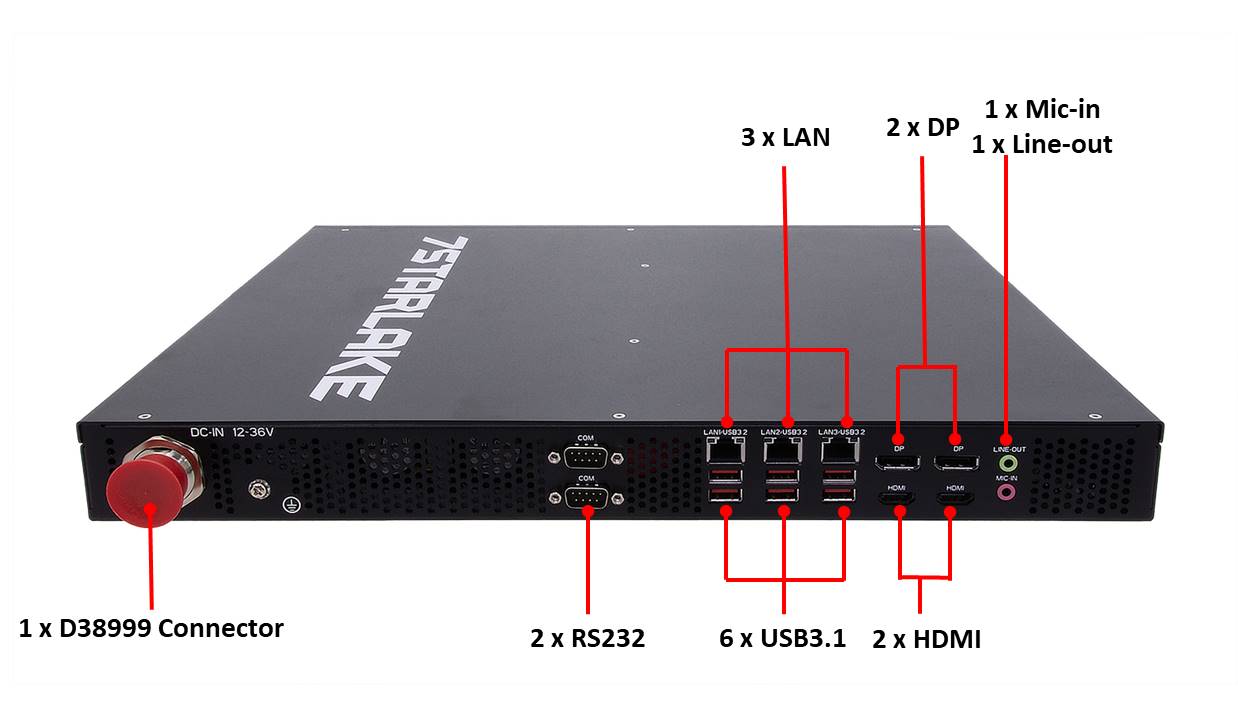

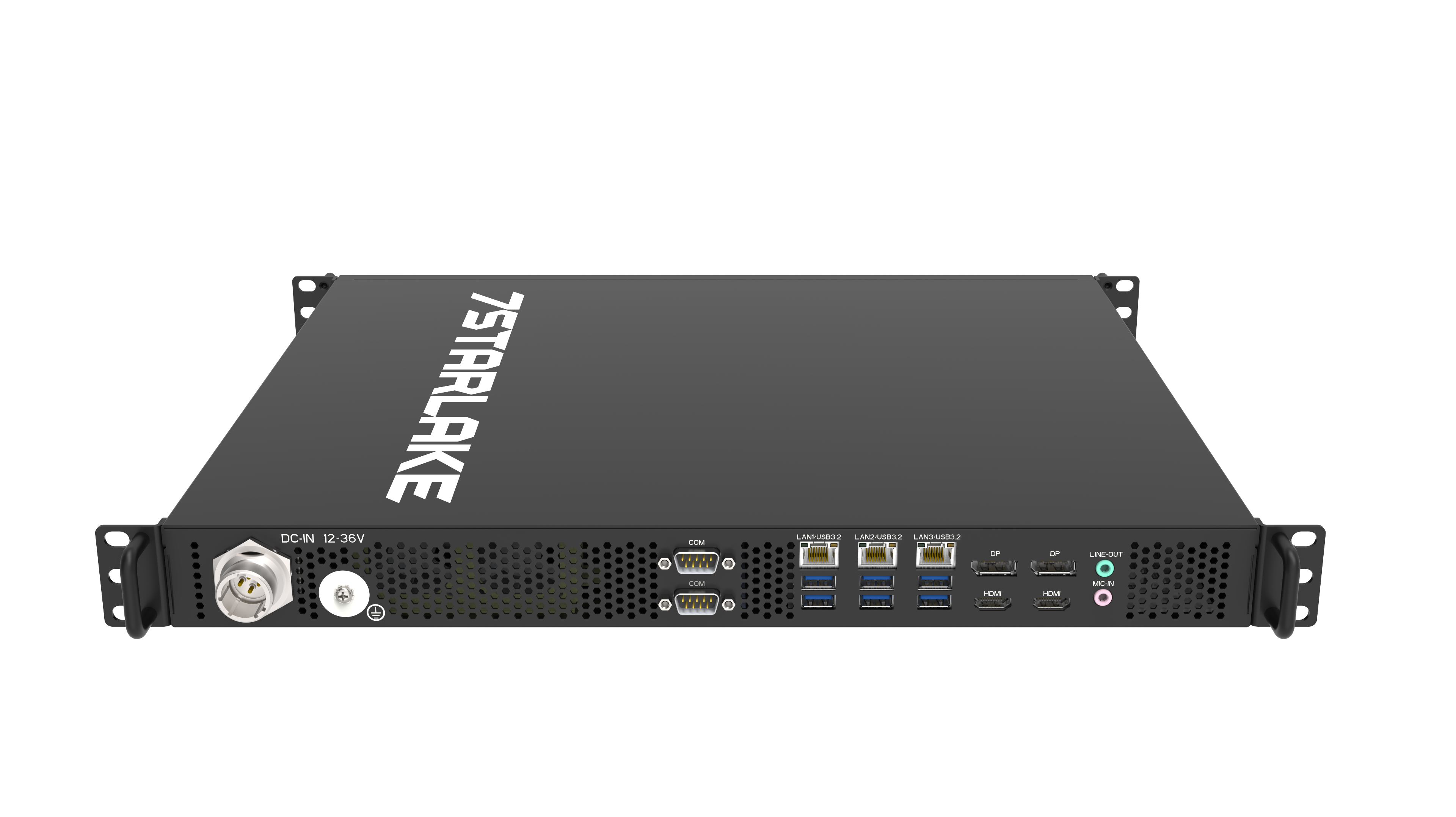

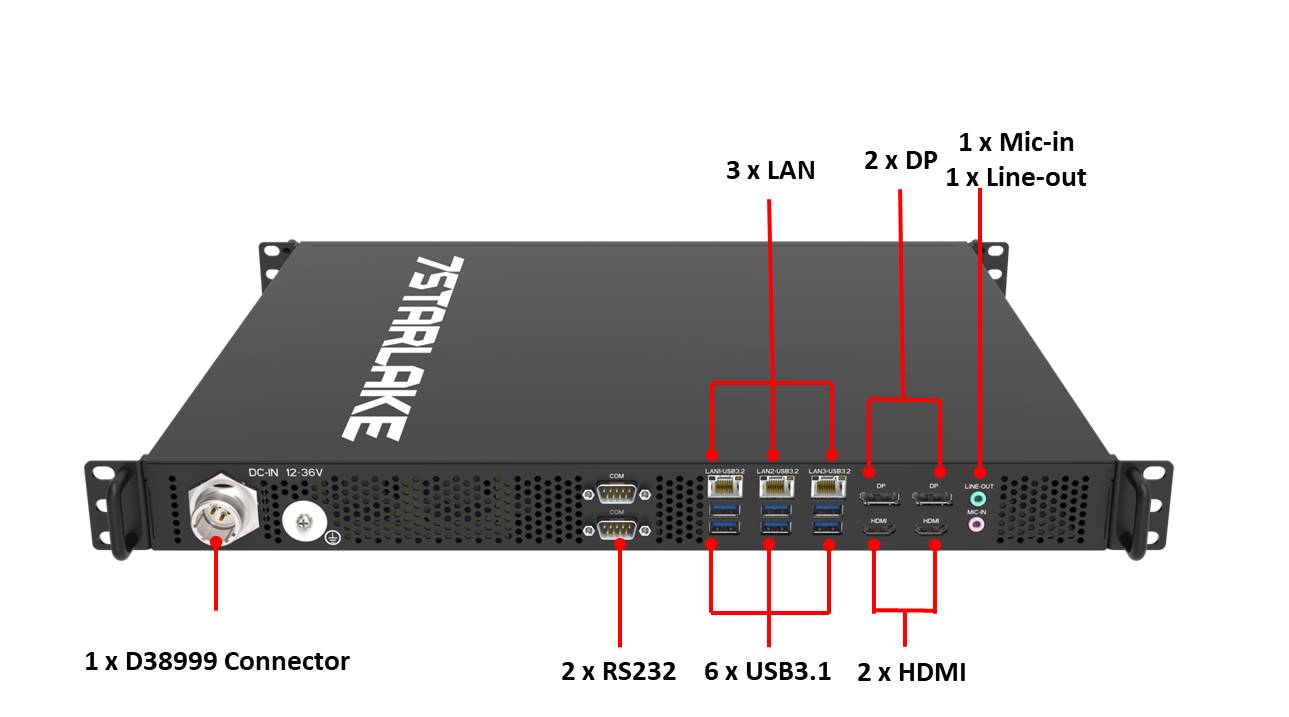

| Rear I/O | |
| Ethernet | 3 x 2.5GbE |
| DP | 2 x DP |
| HDMI | 2 x HDMI |
| USB | 6 x USB3.1 |
| COM | 2 x RS232 |
| AUDIO | 1x Mic-in ; 1x Line-out |
| Power | 1 x D38999 Connector |
| Power Requirement | |
| Power Input |
DC-IN 12~36V |
| Operating System | |
| Operating System | Windows 10/11 64 Bit, Linux by option |
| Physical | |
| Dimension (W x D x H) | 430 x 380 x 44 mm |
| Chassis | SECC |
| Environmental | |
| MIL-STD-810 |
Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) Method 507.5, Procedure II (Temperature & Humidity) Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration) Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration) Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6, Shock-Procedure I Operating (Mechanical Shock) Option : MIL-STD-167-1 / MIL-STD-901 |
| EMC |
EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-3: 10V/m EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV CE and FCC MIL-STD-461 (Options): CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies |
| Thermal | Air Cooled |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 10% to 95%, non-condensing |
Order Information
ROC280-MA
1U Ultra Short Depth Military Rugged Air Cooled Server with Intel® Raptor Lake-R/S 14th i7-13700TE Processor, Q670, 2 x DDR5 SO-DIMM up to 64GB, 2 x DisplayPort, 2 x HDMI, 6 x USB3.1, 2 x RS232, 2 x USB2.0, removable rugged 2 x SSD Cage, 12~36V DC-IN D38999 connector with MIL-STD-461/1275 compliance, Operating Temp. -20~+60°C
