SN3420-D22

High-Performance ToR Switching with Advanced Routing

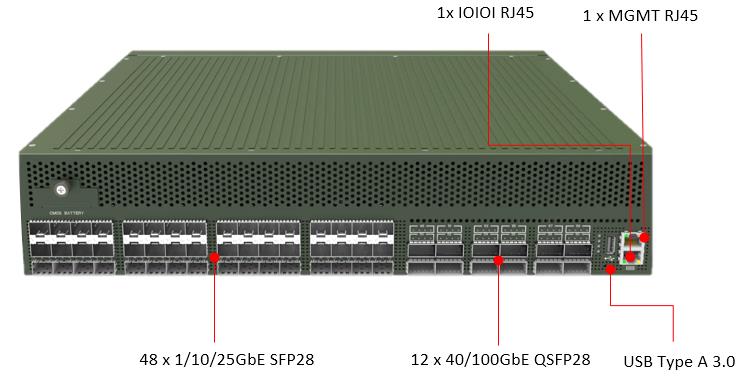

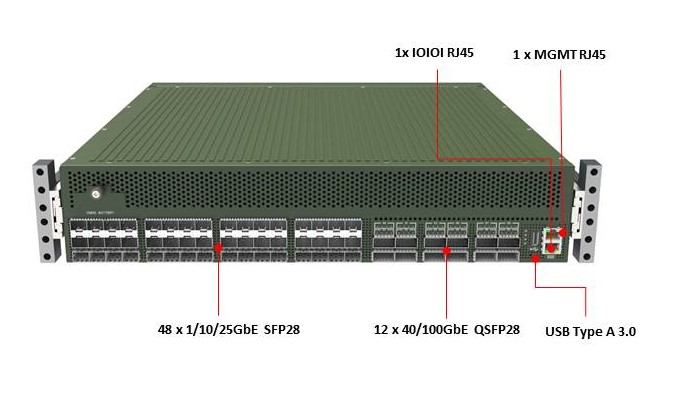

Based on NVIDIA Spectrum (Mellanox) SN3420, the SN3420-D22 is a rugged, high-performance Top-of-Rack (ToR) Ethernet switch that delivers 48 ports of 10/25GbE and 12 ports supporting 40/100GbE, offering scalable, high-availability connectivity for next-generation workloads. Purpose-built for modern edge deployments, the SN3420-D22 provides robust Layer 2 and Layer 3 switching with support for advanced IPv4 and IPv6 routing protocols like OSPF and BGP, ensuring low latency and efficient packet processing for demanding workloads.

Open Networking for Maximum Flexibility

The SN3420-D22 is designed for open networking environments, offering flexibility for various network configurations. It supports ONIE (Open Network Install Environment), enabling the easy installation and deployment of compatible operating systems. This switch is compatible with widely adopted open network operating systems, including NVIDIA Cumulus Linux, SONiC, and other Linux-based NOS options.

Environmental and Durability Specifications

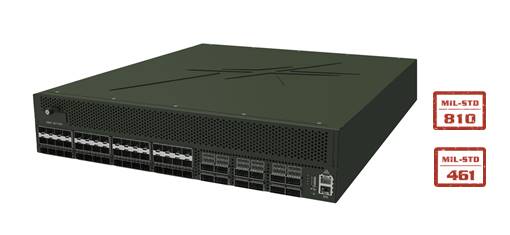

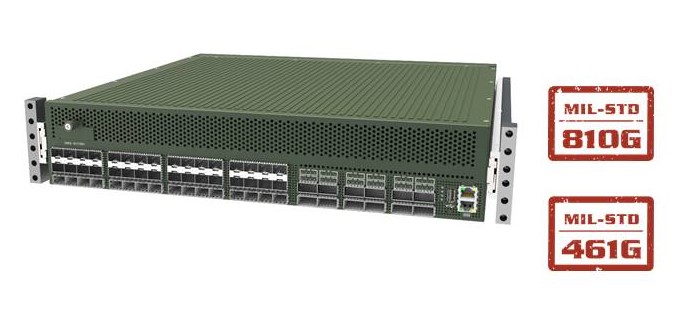

The SN3420-D22 is engineered for reliable, high-density switching in controlled environments, with an operating temperature range of 0°C to 45°C. It complies with MIL-STD-810 standards, meeting vibration and shock requirements—ensuring durability during both operation and transport. The device also meets MIL-STD-461 standards (upon request) for electromagnetic interference control, addressing both emissions and susceptibility. This ensures stable performance in electrically dense or sensitive environments.
