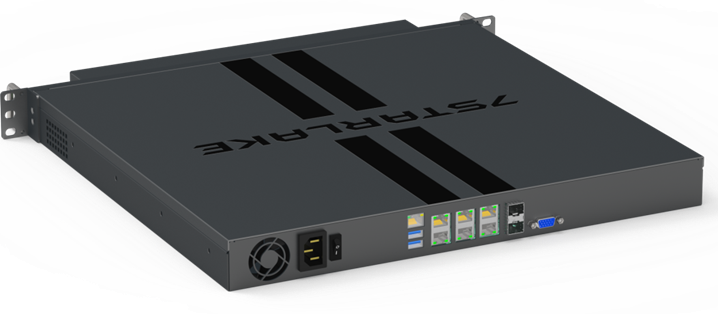

THOR11-D27
1U MXM-GPU Server Ice Lake-D HCC 20 Core
- Intel® Xeon® Ice Lake-D HCC D-2796NT, 20 Cores (2.0 GHz) Processor
- MIL-STD 810, Vibration, Shock, Thermal
- NVidia MXM RTX A2000 Module
- 4xNVMe Gen 4.0 U.2, 2xSATA SSD ( Total 6 Bays)
- 6 x Removable Anti-Drop Storages Tray
- Up to 512GB LRDIMM/256GB RDIMM
- MIL-STD-461 EMI 18V-36V or IEC61000 AC100~240V PSU
- Dual 25GbE SFP, Dual 10Gbase-T, Quad 1Gbase-T
- Extreme Temperature Support -20°C~+60°C
- 1U Rugged Short Depth lighweight chassis
- Technical Profile
- Specifications
- Order Information
- INTRODUCTION
-
The THOR11-D27 shipboard server packs high-performance multi-core processing into an ultra-low profile rack space. With 1 PCIe add-on expansion slot and NVidia MXM module the 1U server can support RAID, x16 graphics, or other technologies for specific workstation requirements. The THOR11-D27 shipboard server is the ideal powerhouse workstation for optimizing rack space and performance.
Intel® Xeon® D-1700 and D-2700 processors are high-performance SoCs with integrated Ethernet in high-density Ball-Grid Array packages. They deliver server-class computing, hardware-based security, and high-bandwidth I/Os for embedded and rugged applications at the edge.
The Intel® Xeon® D-1700 and D-2700 processors with up to 20 cores, with Integrated AI acceleration, support for hard-real-time workloads, extreme temperature range and industrial use conditions.1 This makes them ideal for demanding applications in high-bandwidth video analytics, as well as manufacturing, aerospace, etc.
Intel® Xeon® D processors, enhanced for IoT, are a high-density platform that packs server-class computing and I/Os, plus accelerated AI, into compact BGA packages for soldered-down embedded and rugged designs.
Extended operating temperature ranges and industrial-class reliability make Intel® Xeon® D-1700 and D-2700 SoCs ideal for high-performance rugged equipment and sealed fanless devices that must run nonstop in the toughest environments.
NVIDIA Quadro RTXA2000 MXM or PEG RTXA4000
THOR11-D27 supports 1 x NVIDIA Quadro RTXA2000 MXM Module or PEG RTXA4000; can power the planets most reliable mainstream workstations. Designed into a 140-watt package, RTXA2000 or RTXA4000 is powered by NVIDIA Ampere architecture, supplying innovative multi-precision performance to accelerate a vast range of modern applications. THOR11-D27 w/ Quadro RTXA2000 or RTXA4000 GPU accelerates diverse cloud workloads. These include high-performance computing, data analytics, deep learning training and inference, graphics and machine learning. RTXA2000 MXM or PEG RTXA4000 features multi-precision Turing Tensor Cores. It comes in a very compact MXM form factor, helping THOR11-D27 deliver ground-breaking performance at scale.
- MAIN FEATURE
-
- 1U rack short depth server
- Lightweight, all aluminum enclosure
- 6 x front access Anti-Drop Storages Tray
- Support Intel® ICELAKE-D HCC Processor up to 20 Cores
- Up to 512GB LRDIMM/256GB RDIMM DDR4 3200MHz
- Support for 1 PCIe GEN4.0 x16 add-on slots
- Latest NVidia MXM RTXA2000 2560CUDA Module or PEG RTXA4000 6144CUDA
- Total 8 LANS support (2x25GbE SFP, 2X10GBase-T,4X1GBase-T)
- RAID configurable data storage
- MIL-STD-461 EMI 18-36V or IEC61000 AC100~240V PSU
- EMI Power filter
- MIL-STD Environment
-
- Operating Temperature High: 50°C, MIL-STD-810G, Method 501.5, Procedure I
- Operating Temp Low: 0°C, MIL-STD-810G, Method 502.5, Procedure I
- Non-Operating Temperature High: 70°C, MIL-STD-810G, Method 501.5, Procedure II
- Non-Operating Temperature Low: -40°C, MIL-STD-810G, Method 502.5, Procedure II
- Operating Altitude: Up to 15,000 ft., MIL-STD-810G, Method 500.5
- Non-Operating Altitude: Up to 45,000 ft., MIL-STD-810G, Method 500.5
- Humidity: MIL-STD-810G, Method 507.5, Procedure Ib (Natural Cycle B3)
- Shock: MIL-STD-810G, Method 516.6, 30 g’s, Saw-tooth, 11ms & MIL-DTL-901E, Grade A, Class II; Type B
- Vibration: MIL-STD-167, Type I, Deck Mounted Equipment
- EMI/EMC: MIL-STD-461F, RE101, RE102 (Shipboard Level 1), RS103, CE101, CE102, CS101, CS114, CS116
- Airborne Noise: MIL-STD-740-1 compliance: 43.7dBA (Idle), 52.5dBA (50%), 54.6dBA (80%).
|
System |
|
|---|---|
|
CPU |
Intel IceLake-D SoC, High Core Count 4/8/16/20 Cores, up to 120W |
|
Memory type |
Up to 512GB LRDIMM/256GB RDIMM, 4CH DDR4 3200MHz in 4 Slots |
|
Chipset |
SoC |
|
GPU |
NVidia RTX A2000 MXM or PEG RTX A4000 |
|
Storage |
|
|
HDD/SSD |
6 x NVMe or SATA III SSD |
|
Ethernet |
|
|
Ethernet |
Dual 25GbE SFP28 (SoC) Dual 10GBase-T (Intel X550-AT2) Quad 1GBase-T (Intel i350-AM4) |
|
RAID |
Support RAID 0,1,5,10 |
|
OS support list |
|
|
Windows |
Windows 10 64bit |
| Power | AC 110/220V 300W Power Supply |
| Requirement | MIL-STD-461 EMI 18~36V 300W DC Power Supply |
| Dimension | 179x 400 x 44 mm ( W x D x H ) |
| Weight | under 12KG |
| Front I/O | |
| HDD LED | 1 x HDD LED (Red) |
| SSD | 6 x Hot Swap SSD tray |
| Power On LED | 1 x Power on LED (Green) |
| Power On | 1 x Power On switch |
| Rear I/O | |
| Power Switch | 1 x AC Power on switch |
| AC IN | 1 x AC IN |
| IPMI | 1x IPMI |
| USB 3.0 | 2 x USB 3.0 |
| LAN-1 | 2 x 25GbE SFP28 |
| LAN-2 | 2 x 10GBase-T |
| LAN-3 | 4 x 1GBase-T |
| VGA | 1 x VGA |
| Environment | |
| Ingress Protection | IP54 (IP65 Optional) |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| RoHS | RoHS Compliant |
THOR11-D27-M-20C-12V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia MXM RTXA2000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 12V DC-in, operating temperature -20~+50 °C
THOR11-D27-M-20C-18V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia MXM RTXA2000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 18~36V DC-in, operating temperature -20~+50 °C
THOR11-D27-M-20C-AC
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia MXM RTXA2000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 100~240V AC-in, operating temperature -20~+50 °C
THOR11-D27-M-16C-12V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia MXM RTXA2000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 12V DC-in, operating temperature -20~+50 °C
THOR11-D27-M-16C-18V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia MXM RTXA2000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 18~36V DC-in, operating temperature -20~+50 °C
THOR11-D27-M-16C-AC
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia MXM RTXA2000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 100~240V AC-in, operating temperature -20~+50 °C
THOR11-D27-P-20C-12V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia PEG RTXA4000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 12V DC-in, operating temperature -20~+50 °C
THOR11-D27-P-20C-18V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia PEG RTXA4000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 18~36V DC-in, operating temperature -20~+50 °C
THOR11-D27-P-20C-AC
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia PEG RTXA4000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 100-240V AC-in, operating temperature -20~+50 °C
THOR11-D27-P-16C-12V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia PEG RTXA4000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 12V DC-in, operating temperature -20~+50 °C
THOR11-D27-P-16C-18V
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia PEG RTXA4000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 18~36V DC-in, operating temperature -20~+50 °C
THOR11-D27-P-16C-AC
Intel® ICE-LAKE-D HCC 1CPU/1GPU Server with Xeon® D-2796NT Processor, NVidia PEG RTXA4000, 2 x 25G SFP28 2 x 10GbE 4 x 1GbE, 4xU.2 + 2xSATA 100-240V AC-in, operating temperature -20~+50 °C
