PER800-S4L4
MIlitary NVIDIA Ada L4 Xeon® SP Server
- Edge AI Inference NVIDIA Ada Lovelace L4 & Xeon® SP
- Ultra-High-Performance Intel® Xeon® SP
- NVIDIA Ada Lovelace L4 Tensor Core GPU Integrated (7424 CUDA and 30.3 TFLOPS, 24GB GDDR6)
- 512GB RDIMM ECC DDR5-5600 MHz
- 2 x 8TB U.2 NVMe for Fast & Mass Storage with SED
- RoHS and REACH Compliance
- Technical Profile
- Specifications
- Edge AI Inference, NVIDIA Ada Lovelace L4 Tensor Core GPU & INTEL XEON SP 5411N
-

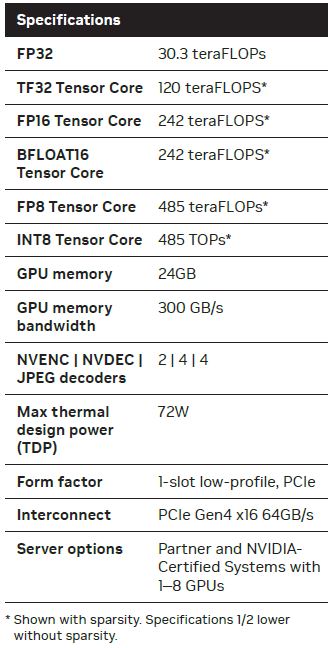

The PER800-S4L4 is a ruggedized AI inference platform designed specifically for advanced inference acceleration applications such as voice, video, image, and recommendation services. This platform is powered by the NVIDIA Ada Lovelace L4 Tensor Core GPU, which features 30.3 TFLOPS in FP32 and 485 TOPs in INT8 PCIe Gen 4 x 16 high speed bus for real-time inference based on trained neural network models.
In addition to the powerful GPU, the PER800-S4L4 is equipped with an Intel® XEON Sapphire Rapids processor and two U.2 NVMe slots for fast storage access. This combination of stunning inference performance, a powerful CPU, and expansion capability makes the PER800-S4L4 the perfect ruggedized platform for versatile edge AI applications.
The PER800-S4L4 utilizes 7STARLAKE's Open Modular, Scalable Architecture and provides an optimized cooling solution for the NVIDIA Ada Lovelace L4 Tensor Core GPU, ensuring stable system operation in harsh environments. Whether it's for outdoor use, manufacturing plants, or other challenging environments, the PER800-S4L4 can withstand tough conditions while delivering top-notch AI performance.
Overall, the PER800-S4L4 is an ideal solution for customers looking for a ruggedized AI inference platform that can handle a variety of edge computing applications with ease.
- Ultra-High Performance Intel Xeon SP Performance with
VMware8.x Support -
Intel XEON Sapphire Rapids: The Intel Xeon Sapphire Rapids
Technology is a fully support based on Intel® Boot Guard, Intel® Trusted Execution Technology, Intel® AES New Instructions, Intel® Software Guard Extensions (Intel® SGX), Supports virtualization (VMware v8 and upwards), Intel® Virtualization Technology (VT-x), Intel® Virtualization Technology for Directed I/O (VT-d), Intel® VT-x
with Extended Page Tables (EPT) technology delivers exceptional performance for demanding workloads, such as database management, virtualization, and cloud computing. The processor also supports DDR5-5600 memory with ECC for enhanced reliability, and Intel Hyper-Threading Technology for increased processing efficiency.
For applications where space is at a premium, the Intel Xeon Sapphire Rapids Technology offers an integrated Platform Controller Hub C741 chipset technology, offering an inspiring level of design simplicity. The Intel Xeon Sapphire Rapids Gold 5411N Technology also offers a seven-year extended supply life for Internet of Things designs..
|
System |
||
|---|---|---|
|
High Performance Processor |
Intel® Xeon® Sapphire Rapids Processor Gold 5411N (Frequency 1.9GHz, Turbo Boost Frequency up to 3.9GHz), 20 Core, 40 Thread Support, 45MB Smart Cache TDP 165W |
|
|
Memory type |
512GB RDIMM ECC DDR5 5600MHz |
|
|
Chipset |
Intel C741 |
|
|
GPU |
||
|
NVIDIA |
TESLA Ada Lovelace L4 Tensor Core GPU |
|
| TFLOP | 30.3 | |
| CUDA Cores | 7424 | |
| Memory | 24 GB GDDR6, 300 GB/sec | |
|
Graphics Output |
||
| 1x VGA | ASPEED AST2600 | |
| Resolution | Up to 1920x1200@60Hz 32bpp | |
|
Storage |
||
|
HDD/SSD |
2 x 8TB U.2 NVMe SSD with SED |
|
|
Side I/O |
||
| 10GbE | 2 x 10GbE | |
| VGA | 1 x VGA | |
| USB3.0/2.0 | 1 x USB3.0/2.0 | |
| 1GbE | 2 x 1GbE | |
| IPMI | 1x IPMI | |
| AC-IN | 1 x AC-IN | |
| Button | 1 x Power Switch with Dedicated LED | |
| Dedicated LED | 2 x Red/Green LEDs ( SSD) | |
|
Power Requirement |
||
| Power Input | AC 800W max | |
|
Physical |
||
|
Dimension |
389 x 88 x 438 mm (D x H x W) |
|
|
Estimated Weight |
10Kg |
|
|
Chassis |
Aluminum Alloy, Corrosion Resistant |
|
|
Finish |
Anodic aluminum oxide |
|
| Cooling | Air Force Fan cooling | |
|
Environmental |
|
|
| Operating Test | ||
| Low air pressure | Method 500.5 Procedure 2 Operation/Air Carriage 4572m (15.000 ft) | |
| Low Temperature | Method 502.5 Procedure 2 -20°C, 4 hours, ±3°C | |
| High Temperature | Method 501.5 Procedure 2 +55°C, 4 hours, ±3°C | |
| Humidity | Method 507.5 85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycle | |
| Vibration | Method514.6 5-500Hz, Vertical 7.7Grms, 40mins x 3axis | |
| Shock | Method 516.6 20 Grms, 11ms, 3 axis | |
| Non-Operating Test | ||
| Low Temperature | Method 502.5 -33°C, 4 hours, change rate:≦20°C/ Hour ; -15°C, 72hours (By request) | |
| High Temperature | Method 501.5 Procedure 1 +71°C, 4 hours, change rate:≦20°C; Hour +68°C, 240 hours (By request) | |
| Vibration | Method514.6 5-500Hz, Vertical 7.7Grms, 40mins x 3axis | |
| Shock | Method 516.6 20 Grms, 11ms, 3 axes | |
