HORUS200-X1
1U Short Depth Shipboard Fanless Server with Xeon® D-1749NT
- 1U 385 mm Short Depth Fanless Rugged Server
- MIL-STD 810, MIL-STD 461 EMI
- Intel Ice Lake Xeon D-1749NT(10xC)
- Up to 128GB Registered ECC RDIMM DDR4-2666MHz
- 2 x 25G SFP28, 2 x 10G RJ45, 1x IPMI
- 1x VGA , 2 x USB 3.0, 1 x GND
- Hardware Secure Erase (AES Key)
- Windows 10/11/Server, Linux, VMware Compatible
- 18V-36V DC MIL-461 EMI FILTER Power Supply
- Extreme Temperature -20°C to +60°C
- Technical Profile
- Specifications
- Order Information
- Introduction
-
HORUS200-X1, 19" 1U short depth (385mm) Rackmount Fanless Workstation is driven by Intel® Xeon®D-1749 (3.0GHz, 10 Cores, 20 Threads, 15MB Cache), providing superior performance in data processing and supporting high flexibility in application. HORUS200-X1 is an ideal solution for C4ISR with its design under consideration of efficiency, security, convenience, and ruggedness. HORUS200-X1 equipped with dual 25-Gigabit and dual 10-Gigabit Ethernet, undeniably a great system for simultaneous data handling. Designed with removable solid-state disk and hardware secure erase enhance the mobility of this solution, plus MIL-STD-1275/461/810G Compliance, HORUS200-X1 can be highly adaptable in harsh and unpredictable environment.
* C4ISR: A military terminology. Command, Control, Communications, Computers, Intelligence, Surveillance, Reconnaissance
- Ultra-High Intel® Xeon® D Processor ( 10 Cores, 20 Threads, 15MB Cache )
-
Ice Lake Xeon D:
Intel® Xeon® processor D-1749NT product family offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge.
Enhanced performance per watt:
Intel® Xeon® processor D-1749NT product family delivers exceptional value and unmatched performance density per watt. Its TDP of 67W to 90W, industry-leading 10 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.
Enabling more IoT Use Cases:
The Intel® Xeon® processor D-1749NT product Family drives a host of new IoT opportunities for a wide range of environments, while addressing real-time optimization, and workload consolidation. Its temperature rating spans from -20°C to 60°C operating ambient conditions, which establishes new possibilities for Intel® architecture in markets that require robust products, like aerospace and industrial.
- Unique Features
-
Dual 25-Gigabit Ethernet for Virtual Machine
HORUS200-X1 equipped with dual 25GbE FIberLAN, allowing system to run under high-speed and stable transmission.
Comparing to general 10GbE LAN, 25GbE LAN provides key improvements in terms of bandwidth, latency, scalability, reliability and application performance. Moreover, 25GbE LAN is able to support Virtual Machine application, which is a considerable function for parallel working system. Allowing multiple operation environments which are isolated from one another, yet through the same server, Virtual Machine enable several tasks to be done in one server simultaneously, suitable for limited space or portable control and command center.
Swappable CMOS Battery
Generally, to exchange the battery from a rugged solution is complicated and has the possibility to affect the original function of water and dust resistance. HORUS200-X1 has an easy swappable battery tray allowing users to directly replace. A coin-cell battery can be seen when pulling the tray fully out of the computer; users just need to change with CR2032 battery and push the tray back and lock screw, then the replacement is completed.
Dual Removable SSD ( Solid-state Disk )
The dual removable SSD featuring with easy-handle, quick and easy swap for maintenance and replacement. Providing compact self-contained system to store and retrieve data, removable and ruggedized SSD supports HORUS200-X1 to suitably apply in military and ground vehicle systems, especially for command and control center when high flexibility and mobility is needed or for sudden evacuation.
Hardware Secure Erase
Under emergency situation, when written data is required to be erased immediately, a Secure Erase Button is extremely indispensable. Instant Erase is a particular feature for SED ( Self Encryption Drive ) drive. It's faster than Quick Erase to make all written data invalid. The encryption and decryption is controlled by an AES key on the path; once the AES key is replaced by a new one, the data becomes unrecognizable.
MIL-STD-810G designed for high environmental adaptation
HORUS200-X1 is designed to meet MIL-STD-810G standard. MIL-STD-810G standard is considered the upmost principle, which guarantees the system achieves superior quality and stability when operate under various environment, especially applied in military and ground vehicle system, which can possibly run through unpredictable terrain or condition, causing sudden shock and occasional vibration.

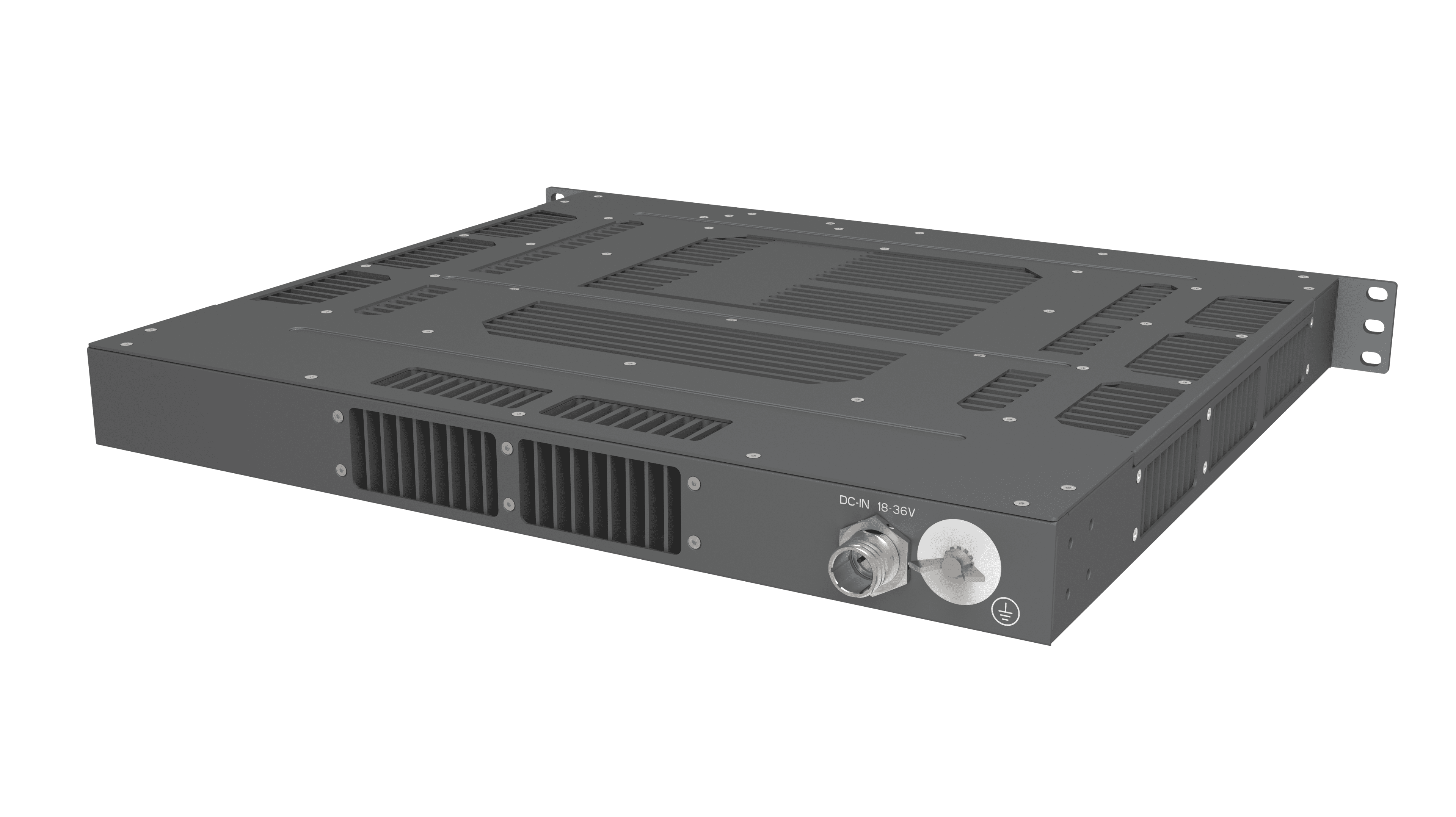

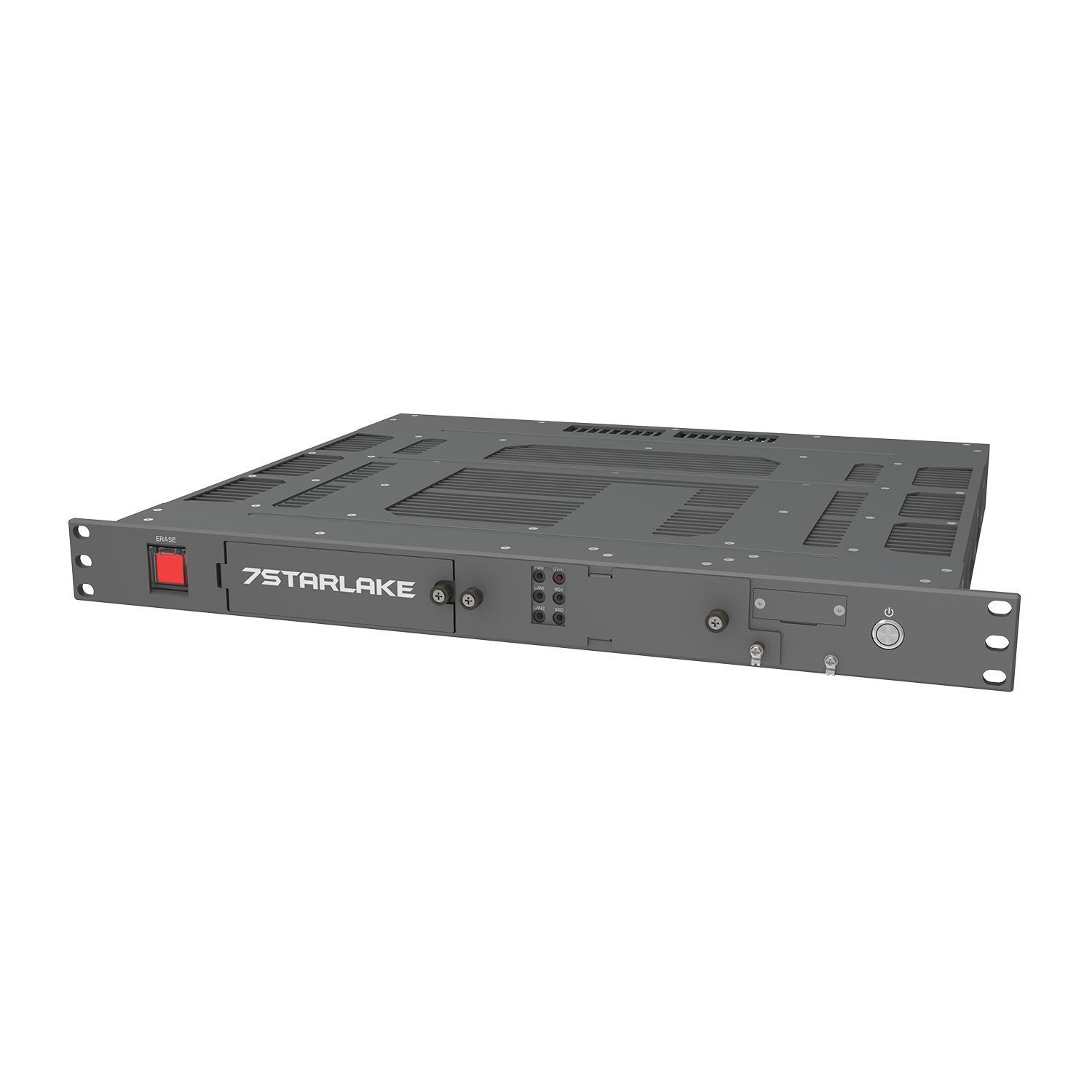

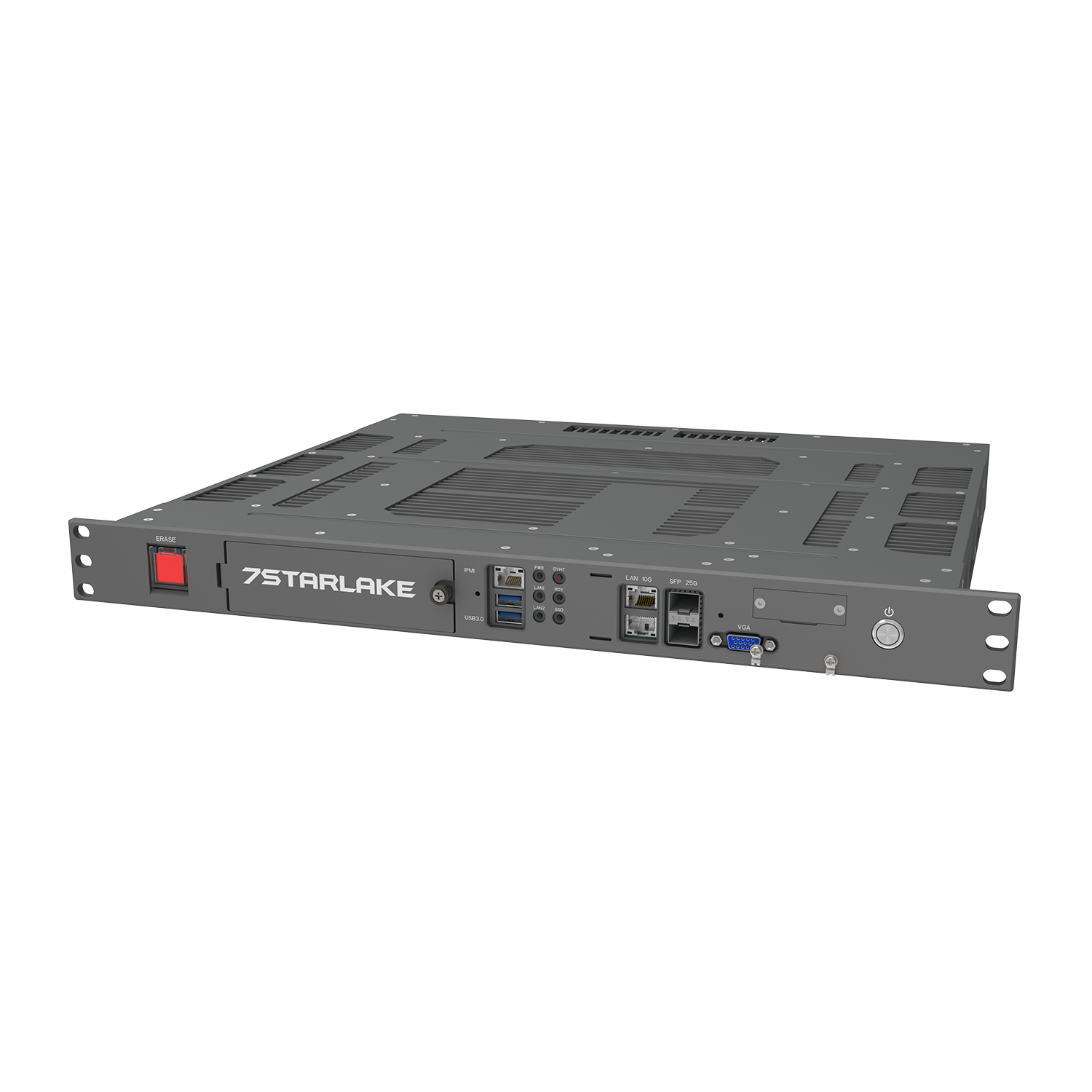

- Appearance
-
|
System |
|
|---|---|
|
High Performance Processor |
Intel® Xeon® D-1736NT (2.7GHz, 8 Cores, 16 Threads, 15MB Cache) Intel® Xeon® D-1749NT (3.0GHz, 10 Cores, 20 Threads, 15MB Cache) |
|
Memory type |
Up to 128GB ECC RDIMM, DDR4-2666MT/s |
|
Chipset |
SoC, integrated with CPU |
|
IPMI |
ASPEED AST2600 BMC |
|
Expansion Slot |
1 x PCIe x16 (HHHL) |
|
Storage |
|
|
SDD |
2 x 2.5" Swappable SATAIII SSD |
|
Ethernet |
|
|
Ethernet |
2 x Intel® SoC 25G SFP28 2 x Intel® X550-AT2 10G RJ45 |
|

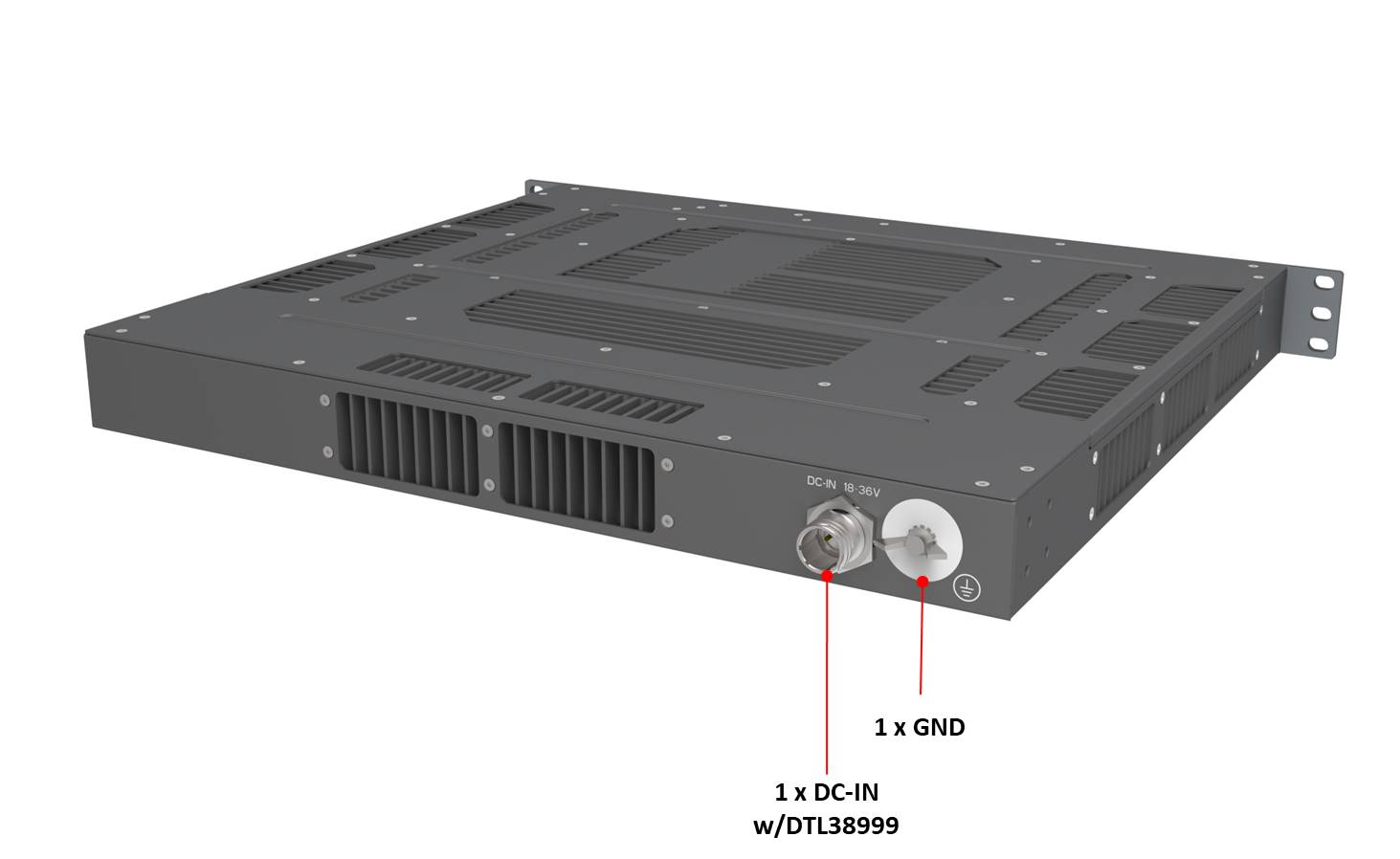

Front I/O |
|
|
DC-IN |
1 x DC-IN w/DTL38999 |
| GND | 1 x GND |
|

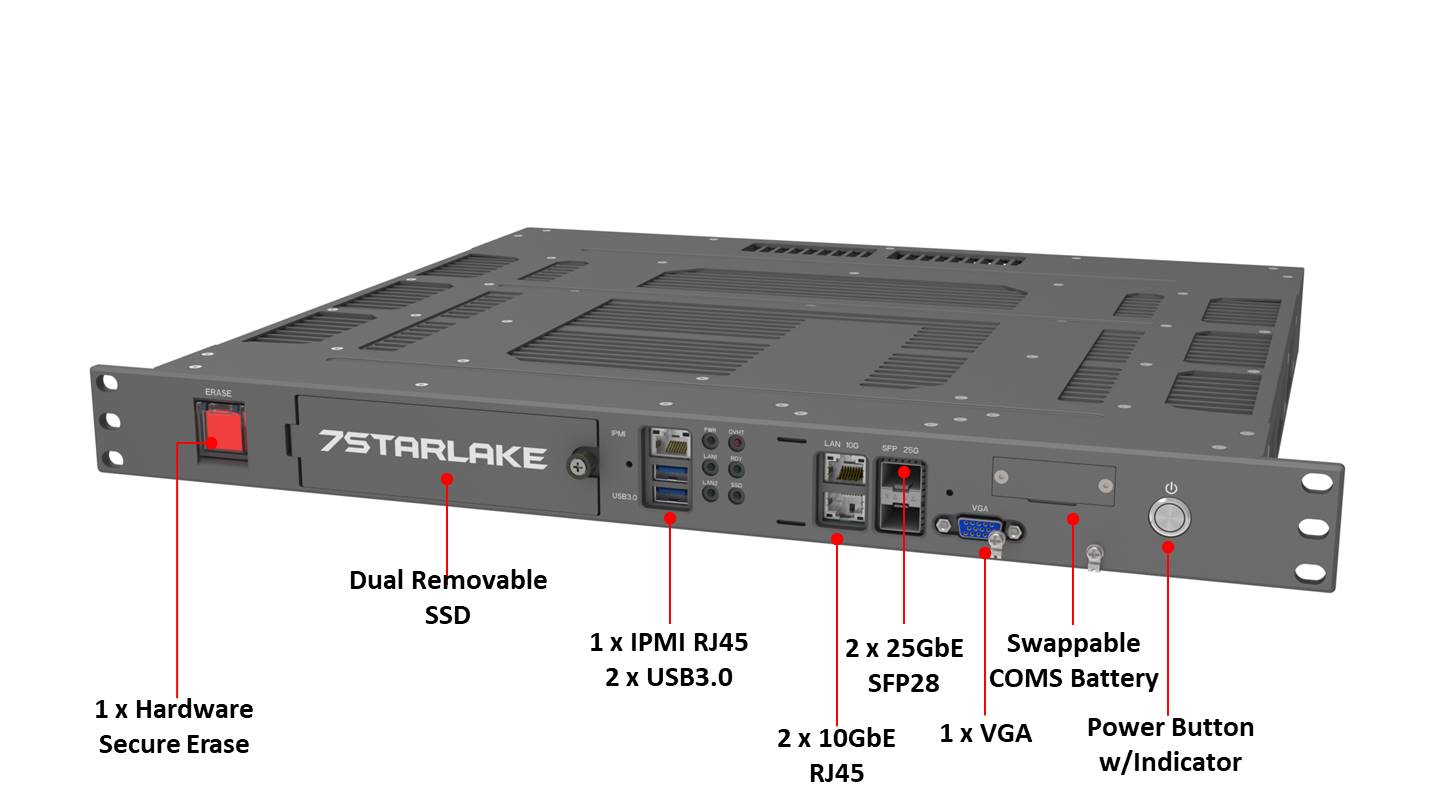

Rear I/O |
|
|
Button |
1 x Secure Erase Button ( SSD2 support AES Secure Erase ) |
|
USB |
2 x USB3.0 |
|
Ethernet |
2 x 25GbE SFP28 2 x 10GbE RJ45 1 x IPMI |
|
Display |
1 x VGA |
|
Dedicated LED |
2 x SDD LED |
|
SSD/HDD Tray |
1 x Dual 2.5" SSD Easy Swap Tray |
|
CMOS Battery Tray |
1 x Removable CR2032 CMOS Battery Tray |
|
Power Requirement |
|
|
Power Input |
MIL-STD-461, DC-IN 18~36V |
|
Operating System |
|
|
Operating System |
Windows 10 64bit Enterprise Windows 10 64bit Pro Workstations Windows 10 IoT 64bit Enterprise Windows 11 64bit Enterprise Windows 11 64bit Pro Workstations Windows 11 IoT 64bit Enterprise Windows Server 2019 64bit Windows Server 2022 64bit RHEL 8.3 64bit RHEL 8.4 64bit CentOS 8.3 64bit CentOS 8.4 64bit Oracle 8.3 64bit Oracle 8.4 64bit SLES 12 SP5 64bit SLES 15 SP3 64bit Ubuntu 20.04.3 64bit Server Ubuntu 21.10 64bit Server FreeBSD 12.1 VMWare ESXi 7.0u3 x64 |
|
Physical & Environment |
|
|
Dimension (W x D x H) |
430 x 385 x 44.4 mm |
|
Operating Temperature |
-20 to 60°C |
|
Storage Temperature |
-40 to 85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Green Product |
RoHS Design to meet |
|
Reliability |
No Moving Parts; Passive Cooling. |
|
MIL-STD-810 |
MILS-STD-810 Design to meet : Method 501, Operational Temperature, high / Procedure II: +50°C, two-hour dwell, four cycles Method 501, Storage Temperature, high / Procedure I: +70°C, two-hour dwell, four cycles Method 502, Operational Temperature, low / Procedure II: -20°C, two-hour dwell, four cycles Method 502, Storage Temperature, low / Procedure I: -40°C, two-hour dwell, four cycles Method 514, Vibration / Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514, Vibration / Category 20/Operating (Category 20 & 24, Vibration) Method 516, Shock / Procedure V Non-Operating (Mechanical Shock) Method 516, Shock / Procedure I Operating (Mechanical Shock) |
|
EMC |
MIL-STD-461 Design to meet : CE102-Conducted emissions, power leads, 10KHz to 10MHz RE102-Radiated emissions, electric filed, 30MHz to 5GHz RS103-Radiated susceptibility, electric filed, 80MHz to 3GHz EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV |
HORUS200-X1-8C
1U Short Depth Ruggedized Shipboard Server with Intel® Xeon® D-1736NT(8C) (TDP : 67W) Processor, Up to 128GB ECC RDIMM, DDR4-2666MT/s, 1 x IPMI, 4 x Ethernet, 1 x VGA, 2 x USB, 2 x Swappable SSD, 1 x Removable CMOS Battery, Secure Erase Button,18~36V DC-IN w/DTL38999, Operating Temp. -20~60°C
HORUS200-X1-10C
1U Short Depth Ruggedized Shipboard Server with Intel® Xeon® D-1749NT(10C) (TDP : 90W) Processor, Up to 128GB ECC RDIMM, DDR4-2666MT/s, 1 x IPMI, 4 x Ethernet, 1 x VGA, 2 x USB, 2 x Swappable SSD, 1 x Removable CMOS Battery, Secure Erase Button,18~36V DC-IN w/DTL38999, Operating Temp. -20~60°C
