THOR11-X6
Radar Signal & Data Processing Subsystem
- Intel® Xeon® 6 Granite Rapids D SoC 6553P-B (36C), CPU TDP 235W
- 1U Short Depth 400 mm
- Intel Quick Assist Technology, Intel vRAN Accelerator, Extended Temperature
- Up to 512GB ECC RDIMM DDR5-6400MT/s
- 1x M.2 NVMe Up to 8TB SSD
- GPU Options for Nvidia L4 or L40S
- 100~264 VAC 1200W Redundancy PSU
- 8 x 25GbE SFP28 with Intel SoC
- Onboard TPM2.0
- IEEE1588 v2 & Synchronous Ethernet support, timing module with DPLL/OCXO design up to 8 hours hold-over
- 2 x SMA for PPS (1 x Input ,1 x Output), 1 x SMA for GNSS input
- Operating Temperature Support -20°C to +60°C
- RTOS Support: RedHawk, VxWorks
- Technical Profile
- Specifications
- Introduction
-
The THOR11-X6 is a high-performance 1U rackmount server purpose-built for radar data processing and advanced computing workloads. Powered by the latest Intel® Xeon® 6 Granite Rapids processor, it delivers exceptional processing power with support for DDR5 memory up to 6400MT/s, ensuring low latency and high-bandwidth performance. With up to 512GB RDIMM and SSD storage up to 8TB, it handles data-intensive tasks with ease.
Built for mission-critical operations on air, land, or water, the THOR11-X6 offers redundant 1200W power supply and wide operating temperature from -20°C to 60°C, ensuring reliability in harsh conditions. Eight 28GbE SFP28 ports and a 1GbE-T with shared IPMI provide high-throughput networking and remote manageability. The compact 1U design allows for flexible integration without compromising on performance or durability. Whether supporting real-time analytics, AI workloads, or radar signal processing, the THOR11-X6 is engineered to meet the demands of modern infrastructure. Rugged, reliable, and powerful, the THOR11-X6 is ready for the future of military computing.
- Intel® Xeon® 6 Granite Rapids D Processors
-
Powered by the Intel® Xeon® 6 Granite Rapids D 6553P-B processors, the THOR11-X6 is built for high-performance, rugged edge computing. Its robust architecture ensures sustained peak performance, enabling reliable operation in the most demanding environments without compromise.
- 36 Cores/ 72 Threads: Enables parallel processing for compute-intensive workloads in mission-critical applications.
- 235W TDP: Balances high processing power with thermal efficiency, perfect for conduction-cooled platforms.
- Extended Temperature Range: Engineered for true military-grade reliability in harsh and rapidly changing environments.
- Intel® QuickAssist Technology (QAT): Provides built-in hardware acceleration for encryption, decryption, and compression, significantly offloading these tasks from the CPU and improving system throughput for secure data communications and storage.
- Intel® AVX-512 Support: Advanced Vector Extensions enable high-performance parallel processing for AI inference, signal processing, real-time analytics, and sensor fusion, critical for defense and edge applications requiring rapid data processing at the tactical level.
- Block Diagram

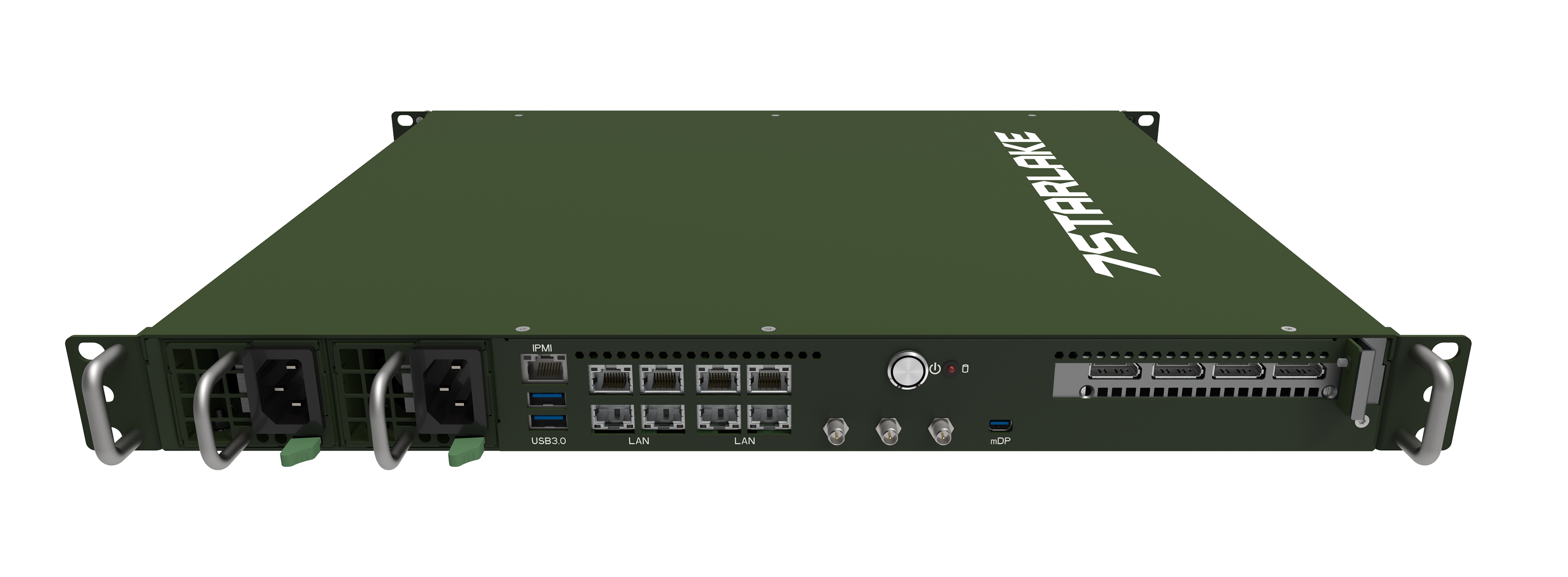

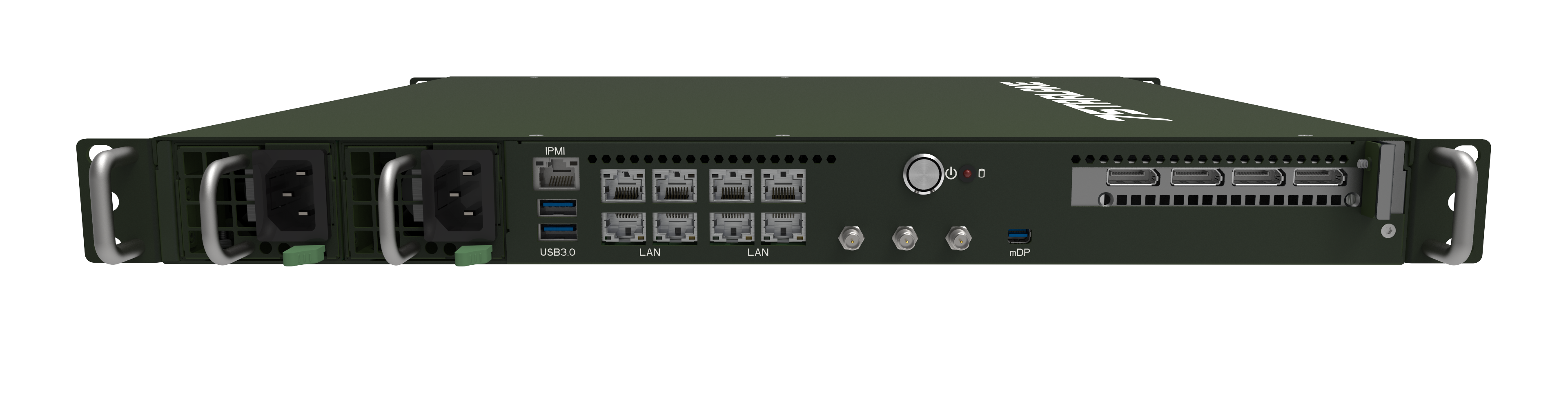

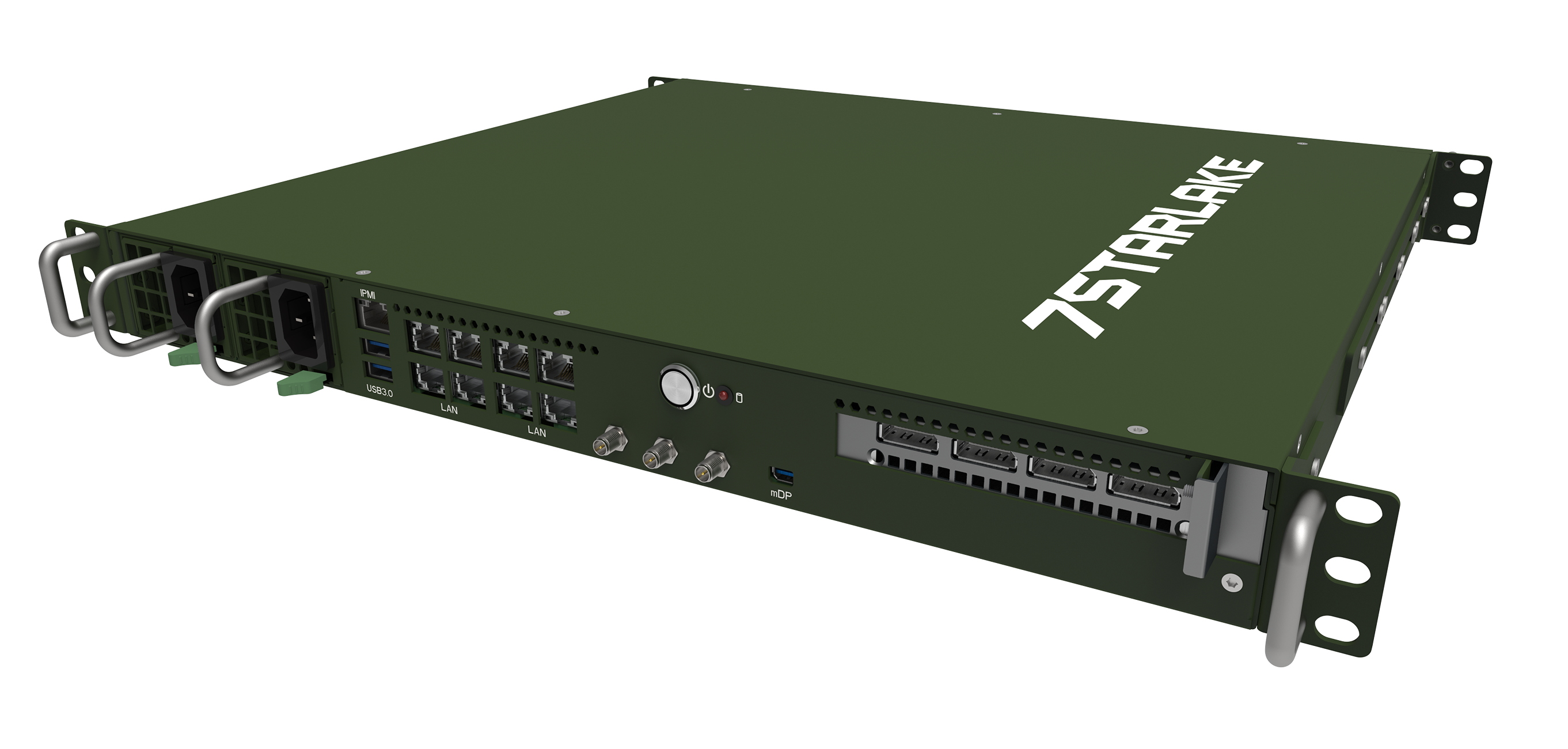

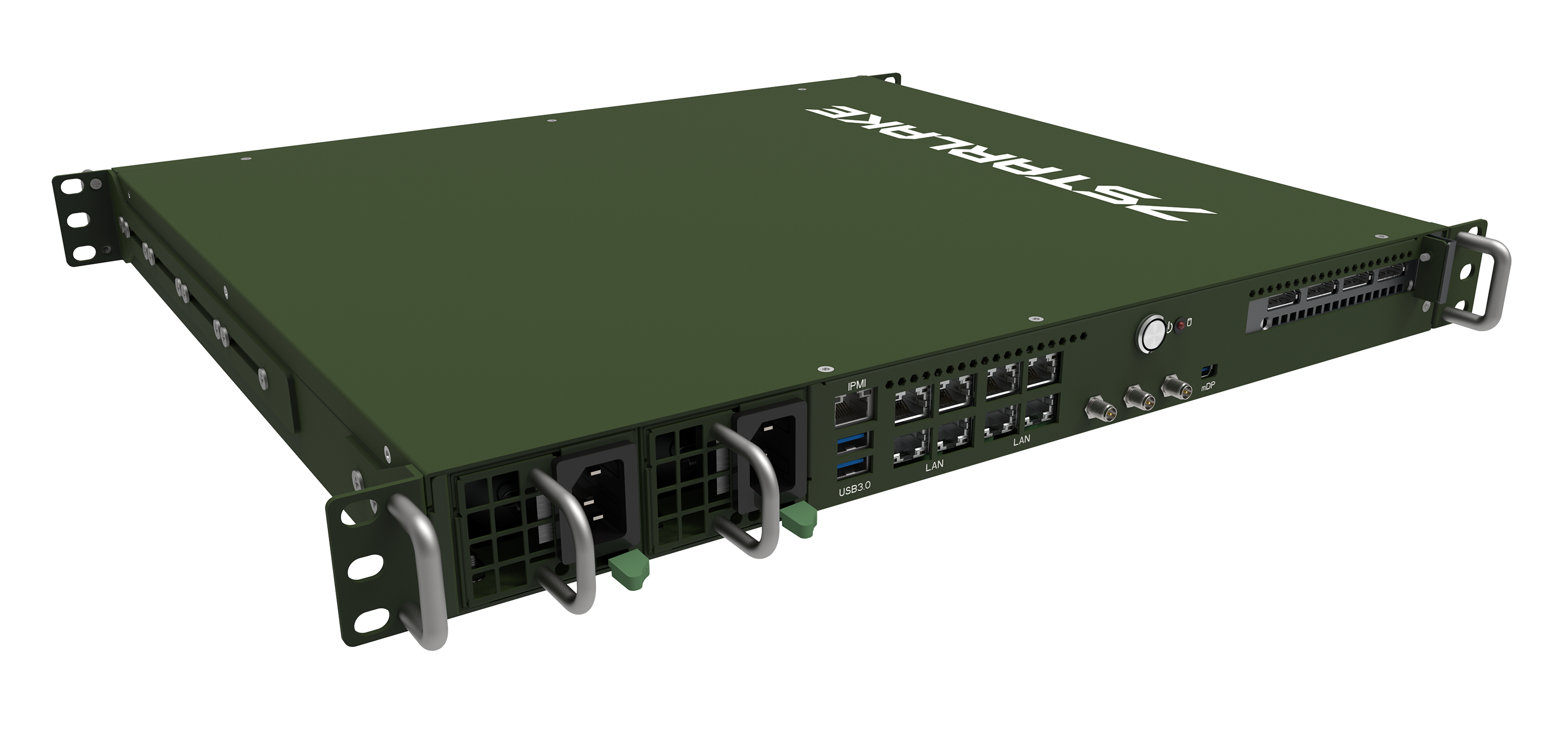

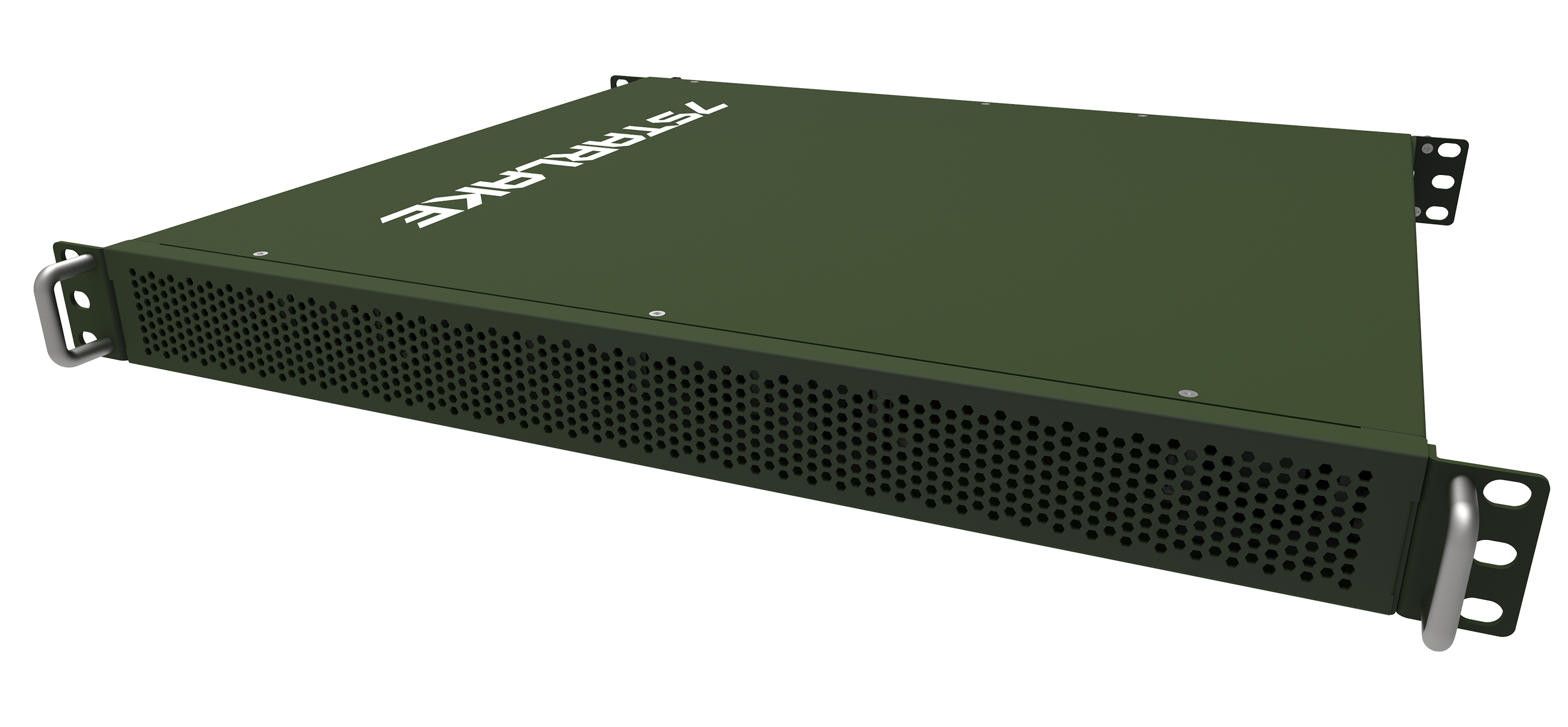

- Appearance
-
| System | |
|---|---|
| CPU | Intel® Xeon® 6 SoC 6553P-B, 36C, CPU TDP 235W |
| Memory type | Up to 512GB RDIMM, 4CH DDR5 4800/6400 MH in 4 Slots |
| Chipset | SoC |
| IPMI | ASPEED AST2600 |
| GPU | Options for TESLA L4 or L40S |
| Storage | |
| HDD/SSD | 1x M.2 NVMe Up to 8TB PCIe 4.0 x4 slot (M-Key 2280) |
| Ethernet | |
| Ethernet |
8 x 25GbE SFP28 with Intel SoC+1 x IPMI shared LAN 1 x GbE RJ45 |
| MCIO | 2 x PCIe 5.0 x 8 via MCIO connector slots |
| OS | |
| OS Support | Windows 11, RHEL 9.4 64bit, RHEL 9.5 64bit, Oracle 9.4 64bit, Oracle 9.5 64bit, Rocky Linux 9.4 64bit, Rocky Linux 9.5 64bit, SLES 15 SP6 64bit, Ubuntu 24.04.1 64bit Server, VMWare ESXi 8.0U2 |
| RTOS Support | RedHawk, VxWorks |
| Power | |
| Power Requirement | 100~264 VAC 1200W Power Supply 18~36V 800W DC Power Supply (optional) |
| Front I/O | |
| Switch | 1 x Power On switch |
| IPMI | 1 x IPMI shared LAN 1 x GbE RJ45 |
| USB | 2 x USB 3.0 |
| LAN | 8 x 25GbE SFP28 |
| Antenna | 3 x SMA: 2 x PPS (input/ Output), 1 x GNSS |
| Display | 1 x mDP |
| Environment | |
| Dimensions | 410 x 400 x 44 mm ( W x D x H ) final size is dependent on specific configuration |
| Weight | ≦ 12 kg final size is dependent on specific configuration |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -10°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
|
MIL-STD-810 Environment Testing Standards |
|
|---|---|
|
Method 501, Operational Temperature, high: |
Procedure II: +60°C, two-hour dwell, four cycles |
|
Method 501, Storage Temperature, high: |
Procedure I: +75°C, two-hour dwell, four cycles |
|
Method 502, Operational Temperature, low: |
Procedure II: -20°C, two-hour dwell, four cycles |
|
Method 502, Storage Temperature, low: |
Procedure I: -20°C, two-hour dwell, four cycles |
|
Method 514, Vibration: |
Category 24/Non-Operating ( Category 20 & 24, Vibration ) |
|
Method 514, Vibration: |
Category 20/Operating ( Category 20 & 24, Vibration ) |
|
Method 516, Shock: |
Procedure V Non-Operating ( Mechanical Shock ) |
|
Method 516, Shock: |
Procedure I Operating ( Mechanical Shock ) |
|
Method 507, Humidity: |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) |
|
Method 509, Salt fog: |
Each cycle consists of 24 hours in salt-fog conditions of 5%NaCl, 95% relative humidity and 35 °C followed by 24 hours of drying in an environment with less than 50% relative humidity (optional) |
|
Method 500, Altitude (Low Pressure): |
15,000 feet transport, -200÷2500[m] ground operation and exposed to +55°C and -20°C operation (optional) |
|
Method 510, Sand-Dust: |
Procedure I: Blasting dust, 12 hours (optional) |
|
Method 508, Fungus: |
28 days, mixed spore, 30°C 95% RH (optional) |
|
MIL-STD-461 ELECTROMAGNETIC Testing Standards |
|
|
CE102 |
Conducted emissions, power leads, 10KHz to 10MHz |
|
RE102 |
Radiated emissions, electric filed, 30MHz to 5GHz |
|
RS103 |
Radiated susceptibility, electric filed, 80Mhz to 3GHz |
|
CS101 |
Conducted susceptibility, power leads, 30Hz to 150KHz (Figure CS101-1: Curve #2) (optional) |
|
CS114 |
Conducted susceptibility, bulk cable injection, 10KHz to 200MHz, curves 3&4 (10 kHz to 2 MHz: Curve #3 2MHz to 200MHz: Curve #4) (optional) |
|
CS115 |
Conducted susceptibility, bulk cable injection, impulse excitation (5A) (optional) |
|
CS116 |
Conducted susceptibility, damped sinusoidal transients, cables and power leads, 10KHz to 100MHz (10A) (optional) |
|
CS118 |
Personnel borne electrostatic discharge (optional) |
