THOR22-H42-X50
THOR22-H42-X50

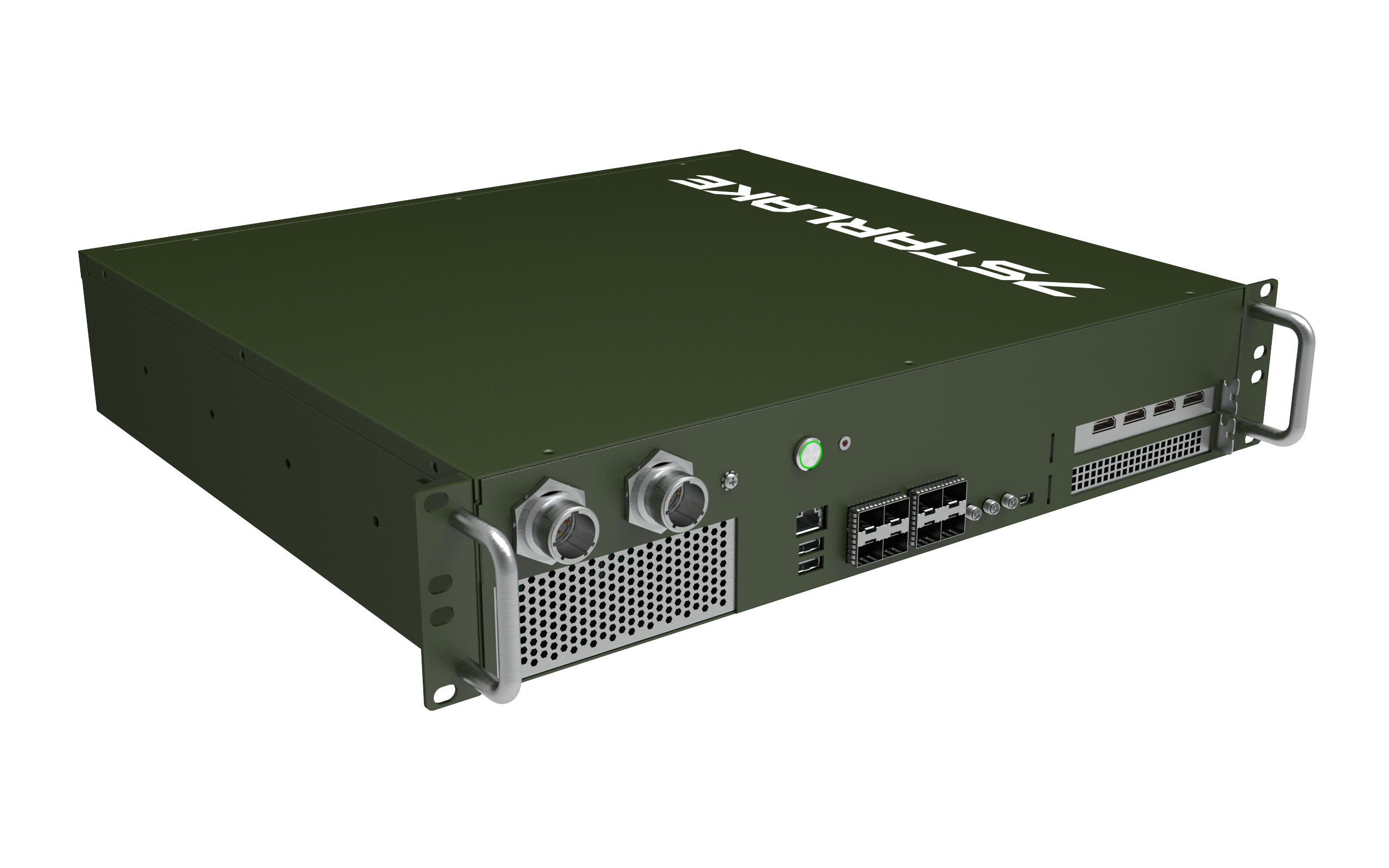

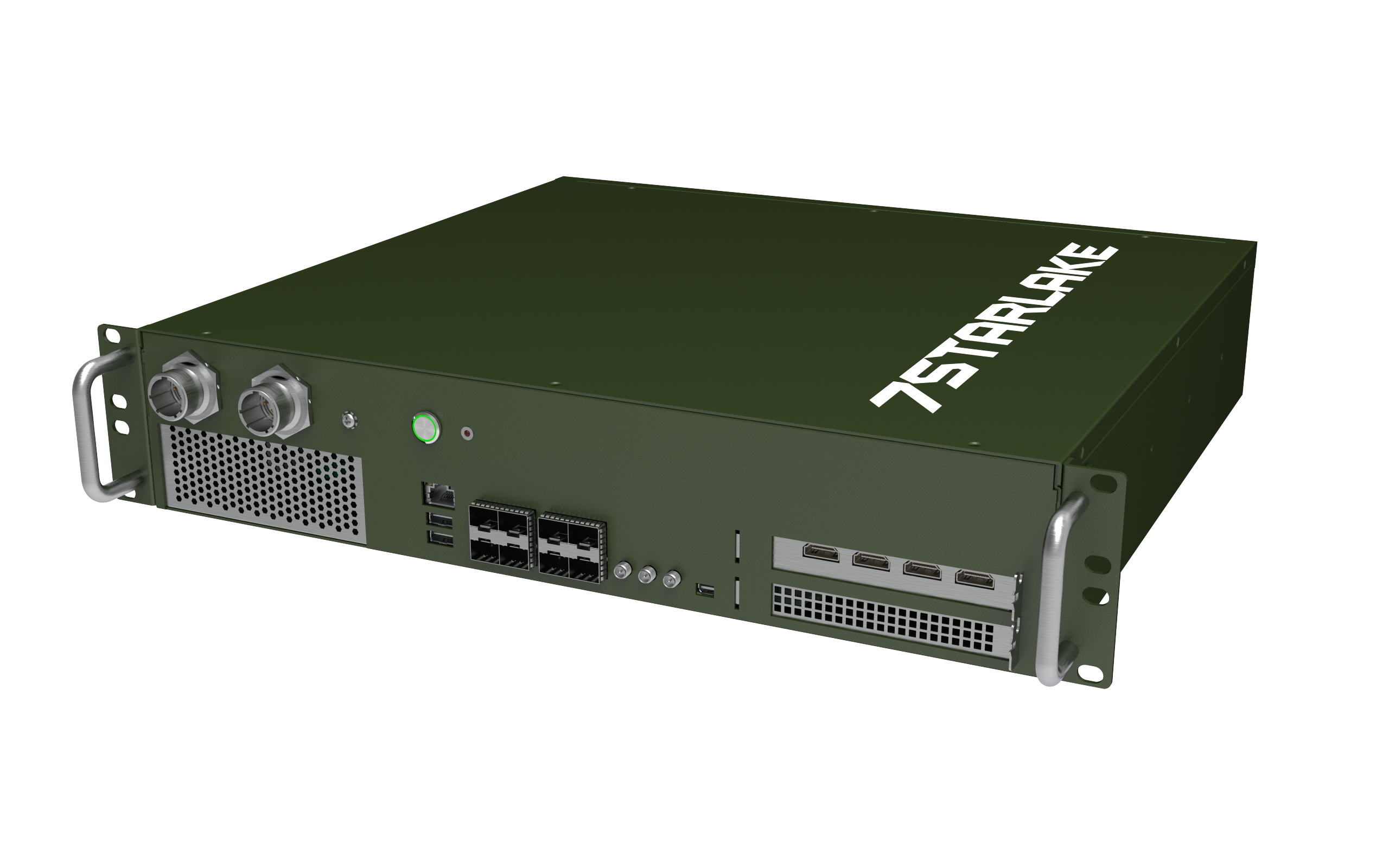

Military 2U GPU Server
- Intel® Xeon® 6726P-B, 42Cores 2.3/3.5GHz Processor
- DDR5 6400MT/s RDIMM ECC up to 512GB
- 1TB M.2 NVMe SSD / 2 x 8TB U.2 NVMe SSD
- 100~240 VAC 860W Redundancy PSU
- 8 x 25G SFP28 ; 1 x 1G IPMI
- NVIDIA RTX PRO 5000 Blackwell MXM GPU
- Power Input Connector by MIL-DTL-38999 Series
- Operation Temp. : -20 ~ +55 °C
- Vibration: MIL-STD-810G Method 514.7
- Shock : MIL-STD-810G Method 516.7
- Technical Profile
- Specifications

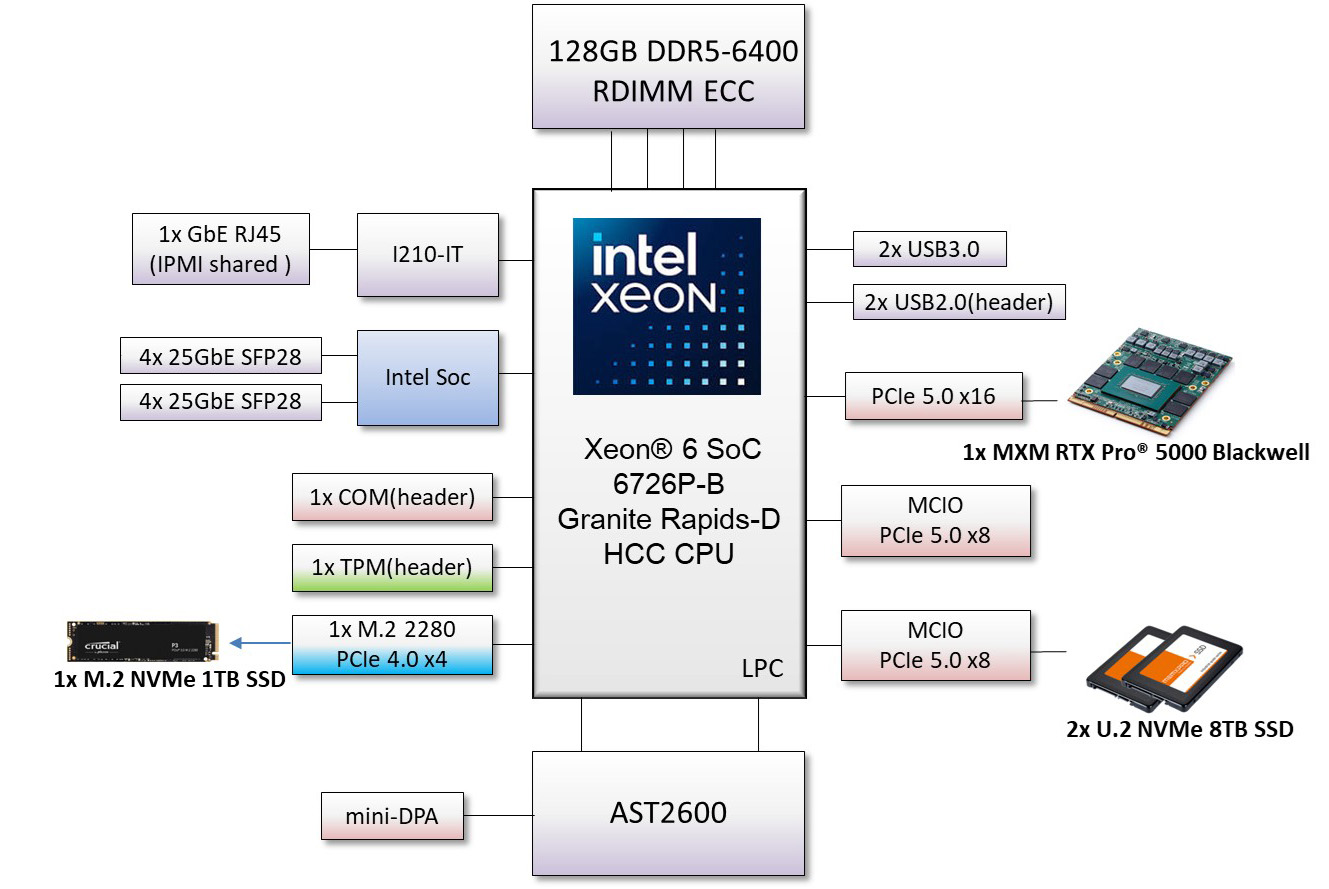

Block Diagram
|
System |
|||
|---|---|---|---|
| CPU | Intel® Xeon® 6726P-B, 42Cores 2.3/3.5GHz Processor TDP 235W | ||
| GPU | NVIDIA RTX PRO 5000 Blackwell MXM | ||
| Memory Type | 128GB DDR5 RDIMM ECC up to 6400 MHz | ||
| Chipset | SoC (Ref. Platform: Supermicro X14SDV-42C-SP9F) | ||
|
Storage |
|||
| OS | 1 TB M.2 NVMe SSD | ||
| Data | 2 x 8 TB U.2 NVMe SSD | ||
| Expansion Slots | |||
| NVIDIA RTX PRO 5000 Blackwell MXM GPU | |||
| Ethernet |
8 x 25G SFP28 1 x 1G IPMI (Management) |
||
| OS | Windows, Linux Support | ||
| Power | 100~264 VAC 2 x 860W Redundancy PSU | ||
| Dimension | 430 x 400 x 88 mm (W x D x H); Depth: Maximum 400mm (TBD) | ||
| Weight | ≦ 12kg | ||

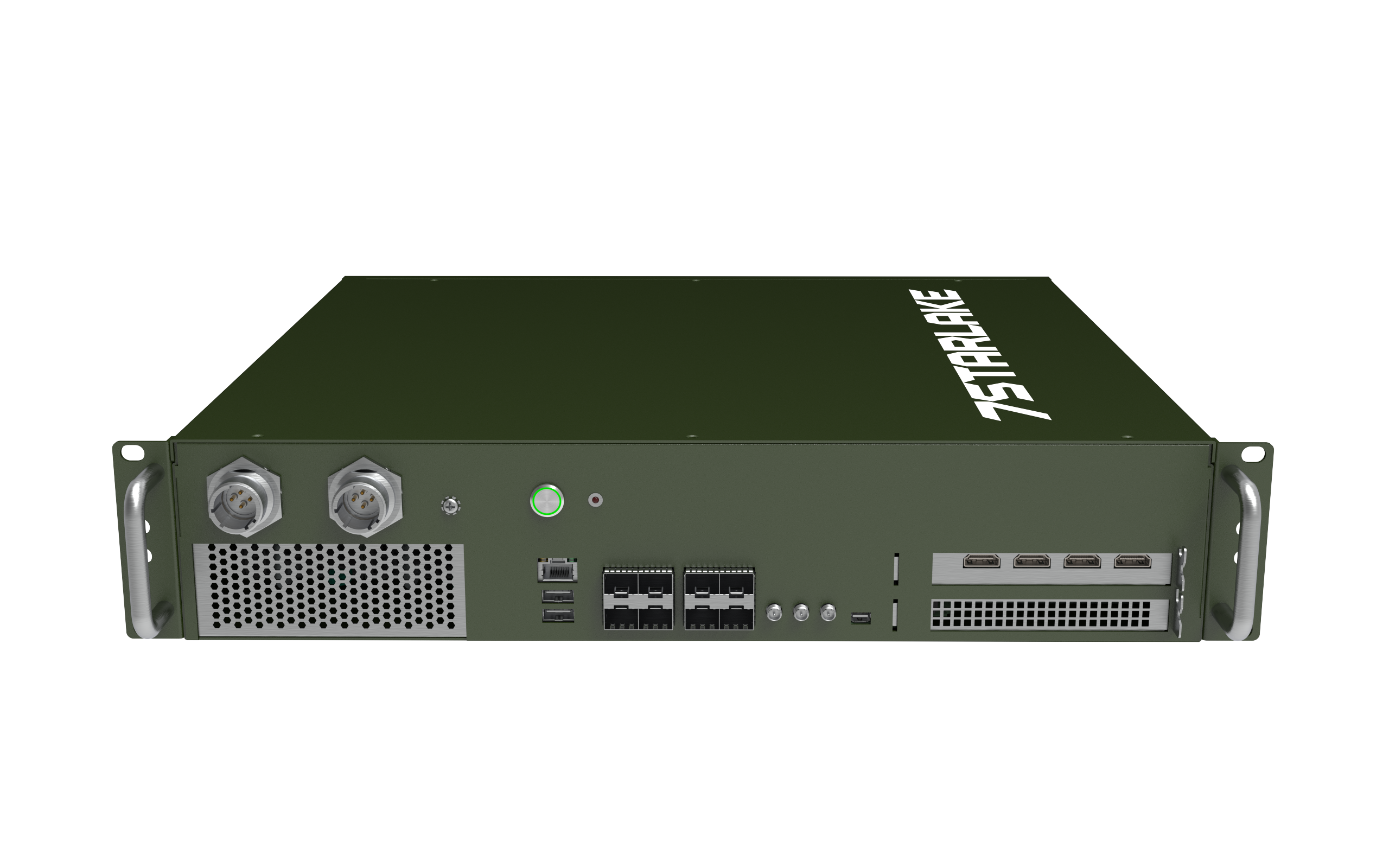

| Front I/O | |||
| IPMI | 1 x 1G IPMI | ||
| USB | 2 x USB 3.0 | ||
| LAN1-8 | 8 x 25G SFP28 | ||
| Display | 1 x VGA | ||
| LED | 1 x HDD LED (Red) 1 x Power on LED (Green) | ||
| AC-IN | 2 x 860W Redundant PSU by DTL-38999 Circular Connector | ||
| Environment | |||
| Operating Temp. | -20°C to +55°C | ||
| Storage Temp. | -40°C to +71°C | ||
| Relative Humidity | 5% to 95%, non-condensing | ||
| RoHS | RoHS Compliant | ||
| Vibration | MIL-STD-810G, Method 514.7 | ||
| Shock | MIL-STD-810G, Method 516.7 | ||
| Acoustic Noise |
85 dBA or less at 35 °C (marked TBC in the DPS) |
||
