IP65 Military IceLake D-2700 series GPU Server

  • Intel XEON DE-2796NT 20 Cores 2.0GHz Max Turbo 3.10GHz
  • 256GB RDIMM ECC DDR4-2933
  • NVIDIA RTX Ada 5000 9728 CUDA cores PCIe Gen 4.0 X16
  • 2 x 1GBase-T, 2 x 10GBase-T LAN
  • 4 x RS232/422/485
  • 2 x 2TB 2.5” Swappable SATA Drive with AES function
  • KVM USB dongle
  • Hardware Secure Erase(AES) button, Swappable CMOS battery
  • MIL-STD 18V~36V EMI DC Input , Options for MIL-STD-704/ 461/ 1275 10V~40V DC
  • Extreme Temperature -20°C to 60°C

 Intel Partner 7STARLAKE

Download
Datasheet
Get A Quote
  • Technical Profile
  • Specifications
INTRODUCTION
AV800-D27-A50



AV800-D27-A50 is 7STARLAKE ruggedized AI Inference platform specifically designed for Intel® Xeon® Ice Lake D-2796NT Processor(20 Cores, 2.0GHz Max Turbo 3.10GHz), NVIDIA MXM RTX Ada 5000.

With built-in acceleration Intel® Deep Learning Boost, AV800-D27-A50 is able to deliver server-class and high-end performance for rugged IoT devices. Combining stunning inference performance and high-bandwidth networks, AV800-D27-A50 is the perfect HPC platform for versatile edge AI applications.

Designed with NVIDIA MXM RTX Ada 5000 (Ada Lovelace Architecture-Based 9728 CUDA cores, 76 RT Cores, and 304 Tensor Cores), AV800-D27-A50 will help achieve powerful performance for data-intensive industries such as medical, defense, and transportation.

I.    Ultra-High Performance Intel® Xeon® D Processor ICELAKE-D HCC:


Intel® Xeon® processor D-2700 product family offers hardware and software scalability up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge.

 圖片8_0.png   圖片7_1.png

Enhanced performance per watt:

Intel® Xeon® processor D-2700 product family delivers exceptional value and unmatched performance density per watt. Its TDP of 100W, industry-leading 10 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.

II.    NVIDIA Quadro RTX Ada 5000 MXM

AV800-D27-A50 supports 1x NVIDIA RTX Ada 5000 MXM Module; can power the planets most reliable mainstream workstations. Designed into a 115-watt package, RTX Ada 5000 is powered by NVIDIA Ada Lovelace architecture, supplying innovative multi-precision performance to accelerate a vast range of modern applications. AV800-D27-A50 w/ Quadro RTX Ada 5000 GPU accelerates diverse cloud workloads. These include high-performance computing, data analytics, deep learning training and inference, graphics and machine learning. RTX Ada 5000 MXM features multi-precision Turing Tensor Cores. It comes in a very compact MXM form factor, helping AV800-D27-A50 deliver ground-breaking performance at scale.


III.    NVMe U.2 Conduction Cooled Pack

A Quantum Leap in Speed : NVMe Gen 4.0x4

In the world of NVMe interface architecture, a direct connection to the CPU is established through the PCIe interface, allowing for efficient memory-like access as data transactions exclusively follow the PCIe bus protocol. The Super High-Performance Gen 4.0x4 NVMe drive stands out with an impressive read/write speed of 7,880MB per second, disrupting the conventional use of hard drives in SATA and SAS. This innovative technology ensures not only a superior bandwidth for data transmission but also guarantees optimal operational efficiency, especially when managing data-intensive tasks crucial for key operations.

MIL-STD Environment
  • Operating Temperature High: 50°C, MIL-STD-810G, Method 501.5, Procedure I
  • Operating Temp Low: 0°C, MIL-STD-810G, Method 502.5, Procedure I
  • Non-Operating Temperature High: 70°C, MIL-STD-810G, Method 501.5, Procedure II
  • Non-Operating Temperature Low: -40°C, MIL-STD-810G, Method 502.5, Procedure II
  • Operating Altitude: Up to 15,000 ft., MIL-STD-810G, Method 500.5
  • Non-Operating Altitude: Up to 45,000 ft., MIL-STD-810G, Method 500.5
  • Humidity: MIL-STD-810G, Method 507.5, Procedure Ib (Natural Cycle B3)
  • Shock: MIL-STD-810G, Method 516.6, 30 g’s, Saw-tooth, 11ms & MIL-DTL-901E, Grade A, Class II; Type B
  • Vibration: MIL-STD-167, Type I, Deck Mounted Equipment
  • EMI/EMC: MIL-STD-461F, RE101, RE102 (Shipboard Level 1), RS103, CE101, CE102, CS101, CS114, CS116
  • Airborne Noise: MIL-STD-740-1 compliance: 43.7dBA (Idle), 52.5dBA (50%), 54.6dBA (80%).
Appearance

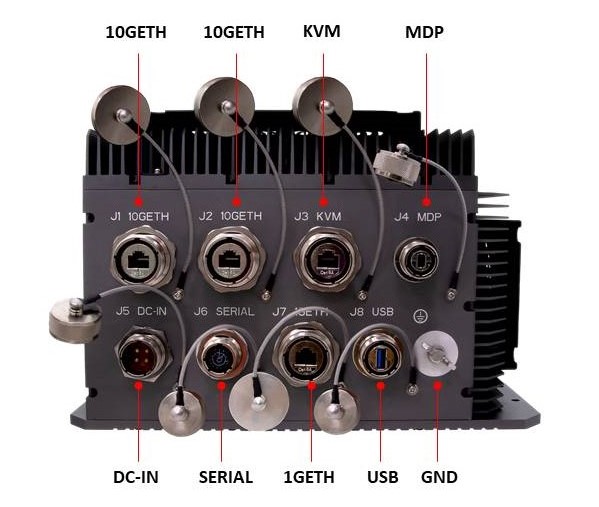

AV800-D27-A50_IO_front

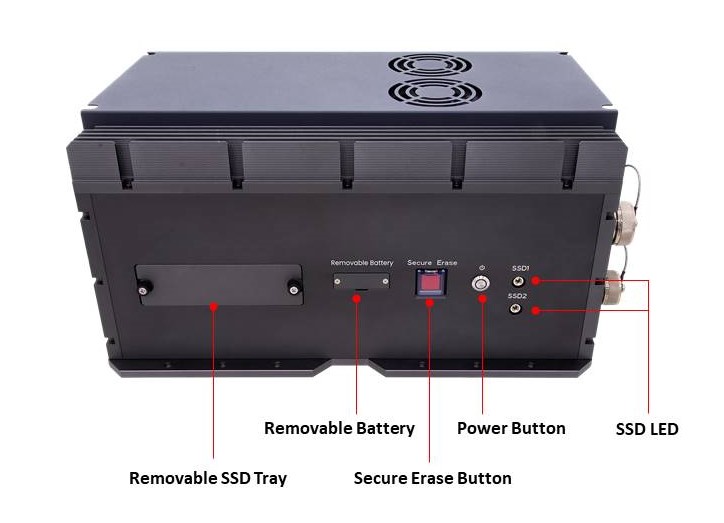

AV800-D27-A50_IO_left



System

CPU

Intel® XEON™ DE 2796NT, 20 Core, 3.1GHz

Memory type

4 x DDR4-2933 RDIMM ECC up to 256GB

Chipset

 Intel® SoC Integrated

GPU

NVidia® RTX Ada 5000 9728 CUDA Cores PCIe Gen 4.0 x 16

KVM

 KVM USB dongle

LAN

 2 x 1GBase-T , 2 x 10GBase-T LAN

Storage

2 x 2TB 2.5” SSD with AES function

Power Type

 18V~36V EMI DC Input , Options for 10V~36V DC- IN

Operating Temperature

 -20° to +60° C

Dimension

 405mm x 316mm x 195mm (W x L x H)

Weight

 N.W. 19.4 Kg (42.7 lbs.)

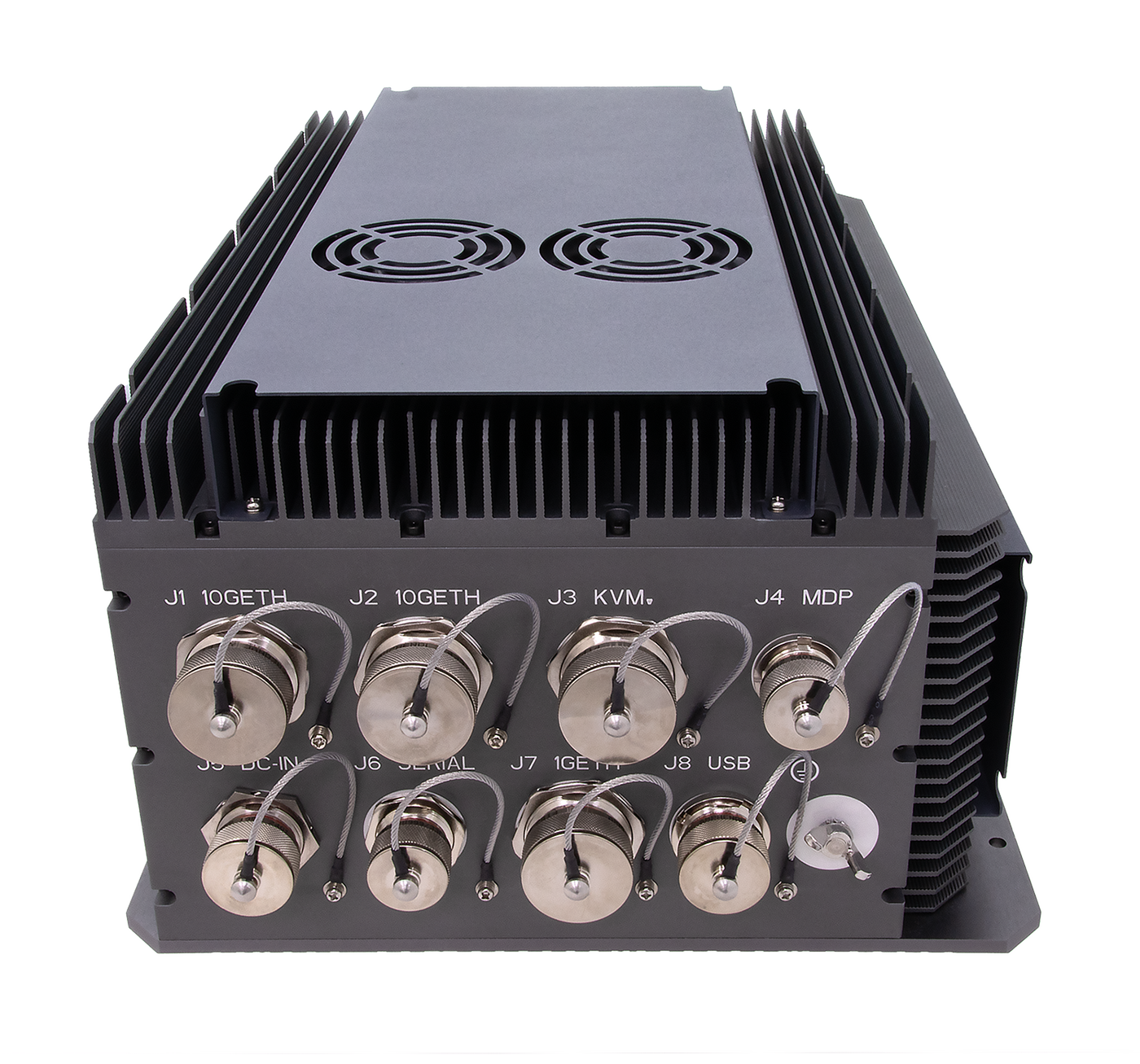

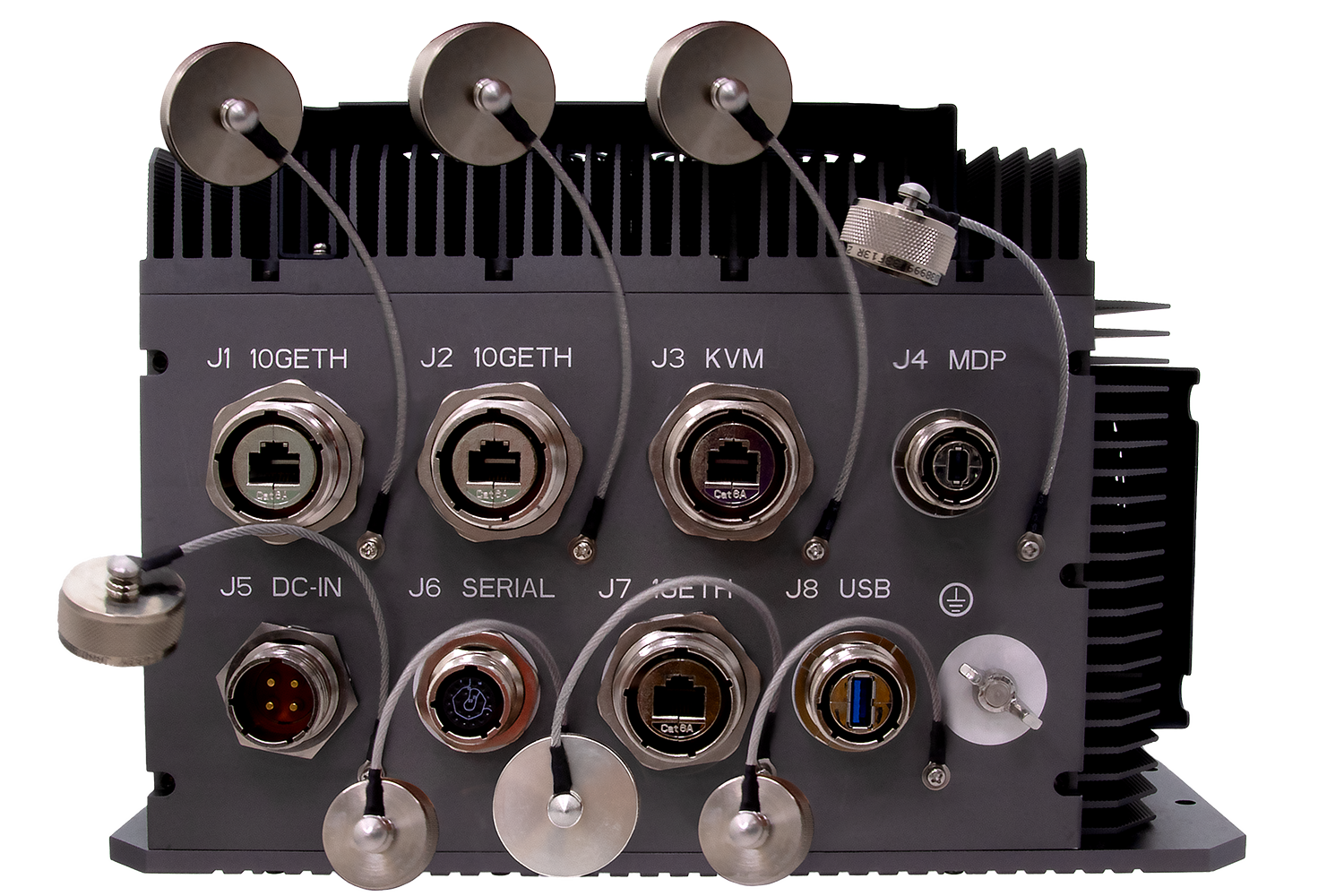

Front I/O

J1

1 x 10GBase-T Amphenol RJFTV6A7SA1N

J2

1 x 10GBase-T Amphenol RJFTV6A7SA1N

J3

1 x KVM LAN Amphenol RJFTV6A7SA1N

J4

1 x Mini DP Amphenol MDPFTV7ANF312

J5

1 x DC-In Amphenol TVS07RF-15-4P

J6

1 x RS232, 1 x RS422, 1 x RS485 Amphenol TVS07RF-13-35S

J7

1 x 1GBase-T Amphenol RJFTV6A7SA1N

J8

 1 x USB 3.0 Amphenol USB3FTV7AZNF312

Environmental


MIL-STD-810 Test

Method 500.5, Procedures I and II (Altitude, Operation):

12,192M, (40,000 ft) for the initial cabin altitude (18.8Kpa or 2.73 Psia)

Method 500.5, Procedures III and IV (Altitude, Non-Operation):

15,240, (50,000 ft) for the initial cabin altitude (14.9Kpa or 2.16 Psia)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Method 507.5, Procedure II (Temperature & Humidity)

Method 509.7 Salt Spray (50±5)g/L

Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration)

Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration)

Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock)

Method 516.6, Shock-Procedure I Operating (Mechanical Shock)
Reliability

No Moving Parts; Passive Cooling.

Designed & Manufactured using ISO 9001 Certified Quality Program.
MIL-STD-461

CE102 basic curve, 10kHz - 30 MHz

RE102-4, (1.5 MHz) -30 MHz - 5 GHz

RS103, 200 MHz - 3.2 GHz, 50 V/m equal for all frequencies

EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV

EN 61000-4-3: 10V/m

EN 61000-4-4: Signal and DC-Net: 1 kV

EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV

CE and FCC
MIL-STD-1275

Steady State – 20V~33V,

Surge Low – 18V/500ms,

Surge High – 100V/500ms

Emitted spikes

Injected Voltage surges

Emitted voltage surges

Voltage ripple (2V)

Voltage spikes

Starting Operation

Reverse polarity
MIL-STD-704

Load Measurements (LDC101)

Steady State Limits for Voltage (LDC102)

Voltage Distortion Spectrum (LDC103)

Total Ripple (LDC104)

Normal Voltage Transients (LDC105)

Power Interrupt (LDC201)

Abnormal Steady State Limits for Voltage (LDC301)

Abnormal Voltage Transients (LDC302)

Emergency Steady State Limits for Voltage (LDC401)

Starting Voltage Transients (LDC501)

Power Failure (LDC601)

Phase Reversal (LDC602)

Operating Temp.

 -20°C to +60°C

Storage Temp.

 -40 to +85°C

Relative Humidity

 5% to 95%, non-condensing.
