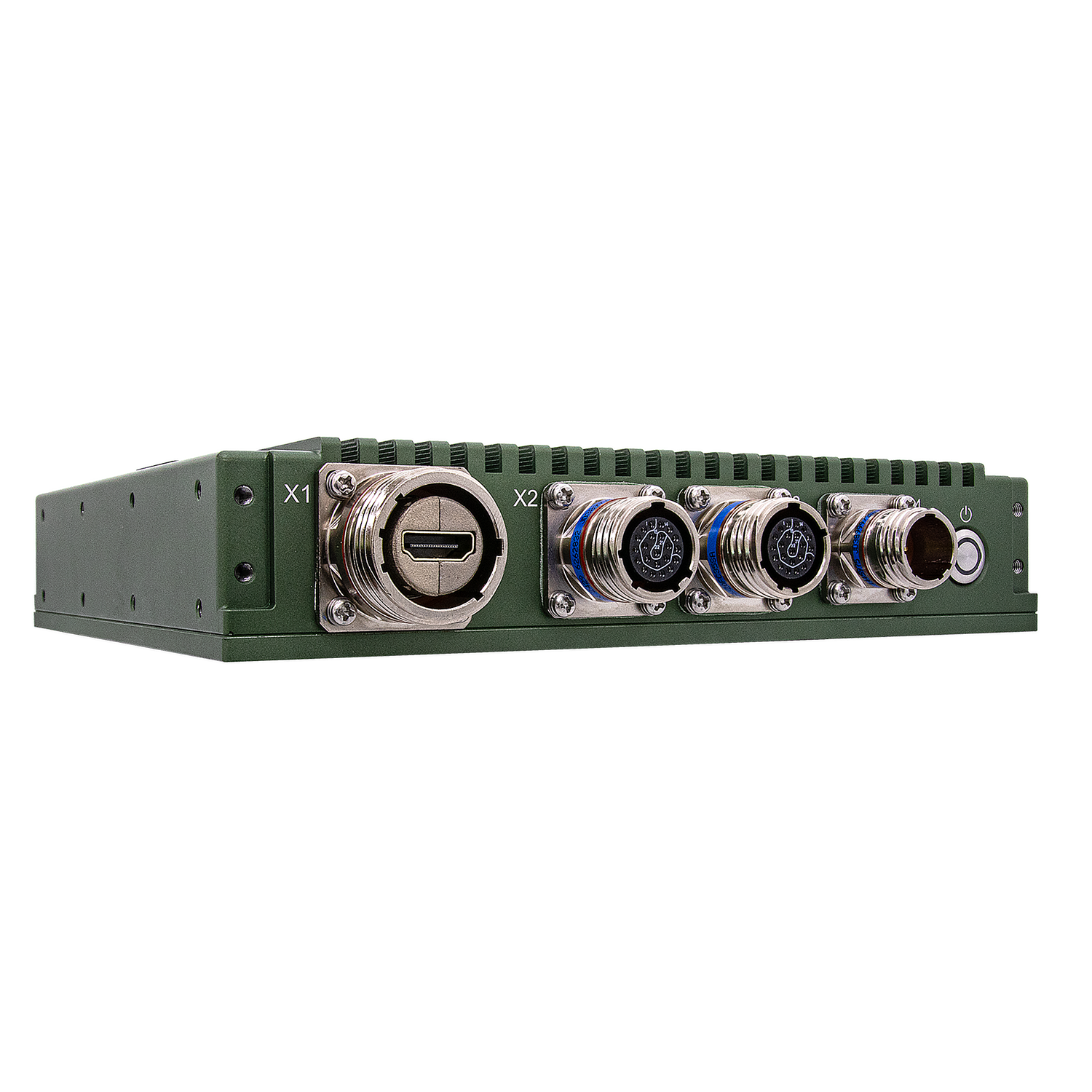

THOR100S-X13D
1U Half Rack Military Computer
- Ultra Short Depth 200mm 1U Half Rugged Computer
- Intel® 13th Rpator Lake-P i7-1370PE Processor
- DDR5 up to 32GB
- Anti-Vibration up to 10 Grms, Shock 75G
- IP65 classified
- Support SATAIII RAID 0/1
- MIL-STD-461 EMI Filter DC 9V~36V
- Extended Temperature: -40°C ~+60°C
- Size : 220x200x44 mm (W)x(D)x(H)
- Technical Profile
- Specifications
- Order Information
- Download
- THOR100S-X13D
-
THOR100S-X13D is a 1U rack rugged computer with only 200 mm
depth, tailored to meet the demand of 24/7 non-stop high performance in stringent and restricted environment. With anti-vibration capability up to 10 Grms, anti-shock up to 75G, as well as an extended operation temperature from -40°C to +60°C, THOR100S-X13D is designed with ruggedness in mind to offer high endurance and reliable performance. Targeting military applications where the deployment environment is most extreme and challenging, THOR100S-X13D is IP65 classified and equipped with a D38999 connector for I/O expansion (1 HDMI, 2 LAN, 2 USB 2.0, and 1 RS232/422/485). Furthermore, considering the electromagnetic interference (EMI) that might cause the malfunction, crash, or fail of the device,THOR100S-X13D's MIL-STD-461 EMI filter guarantees the stability of voltage and electric current for system operation.Intel® 13th Raptor Lake-P processors
THOR100S-X13D is driven by i7-1370PE processor, which has 14 cores(6 P-cores and 8 E-cores) and calculate 20 threads in parallel, with frequency 1.50 GHz (Max. 4.80 GHz). Via fully-upgraded hybrid performance architecture (configuration of a mix of performance and efficiency cores) , the larger, performance-driven cores (P-core) handle compute-intensive and AI workloads, while the smaller, energy-efficient cores take care of high-density and scale-out workloads in the background.
Ultimate Durability
Emphasizing its rugged design and advanced functionality, THOR100S-X13D is equipped with a MIL-STD D38999 connector, ensuring durability in the face of challenging environments. The system's full IP65 protection enables it to withstand harsh conditions with ease.
Designed to operate in extreme temperatures, the THOR100S-X13D supports an extended range from -40 to 60°C. Additionally, its MIL-STD-461 power adheres to a wide input range of 9V to 36V DC, safeguarding the system against voltage surges and enhancing the reliability of critical components. In essence, the THOR100S-X13D stands as a resilient and high-performance solution for demanding applications.
- Diagram
- Block Diagram
-
| System | ||
|---|---|---|
|
High performance Processor |
Intel® Core™ i7-1370PE Processor |
|
|
Memory type |
Memory Type DDR5 5200MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
|
| Expansion Slot |
1 x M.2 2280 M-Key (PCIe 4.0 x 4) 1 x Half Size mSATA/mPCIe x 1 (default: mSATA, select with BIOS) |
|

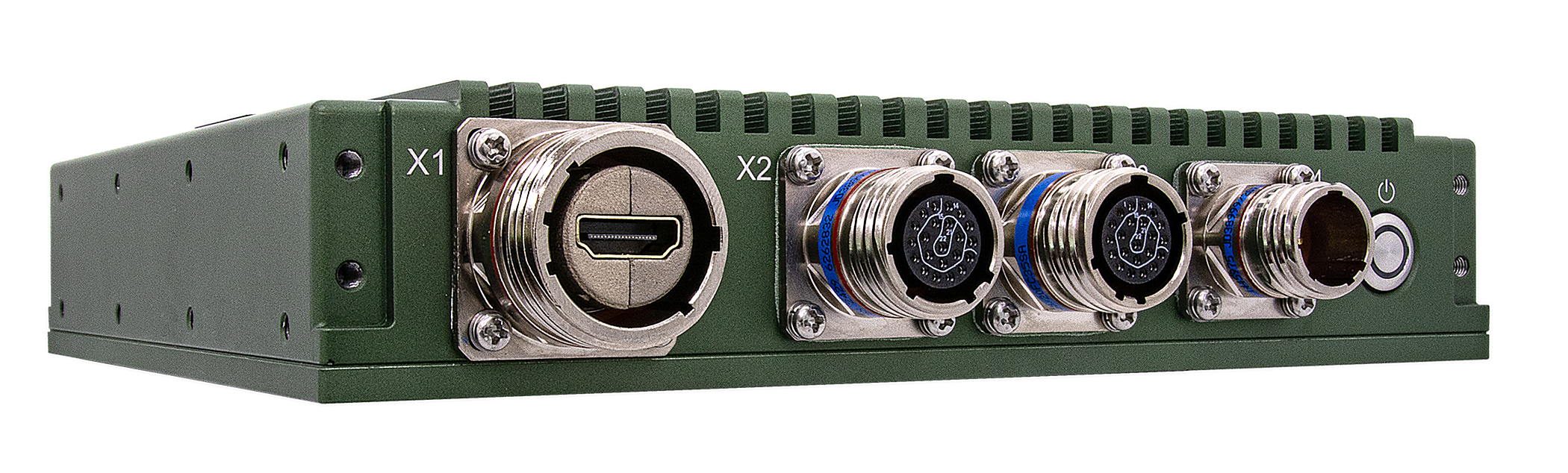

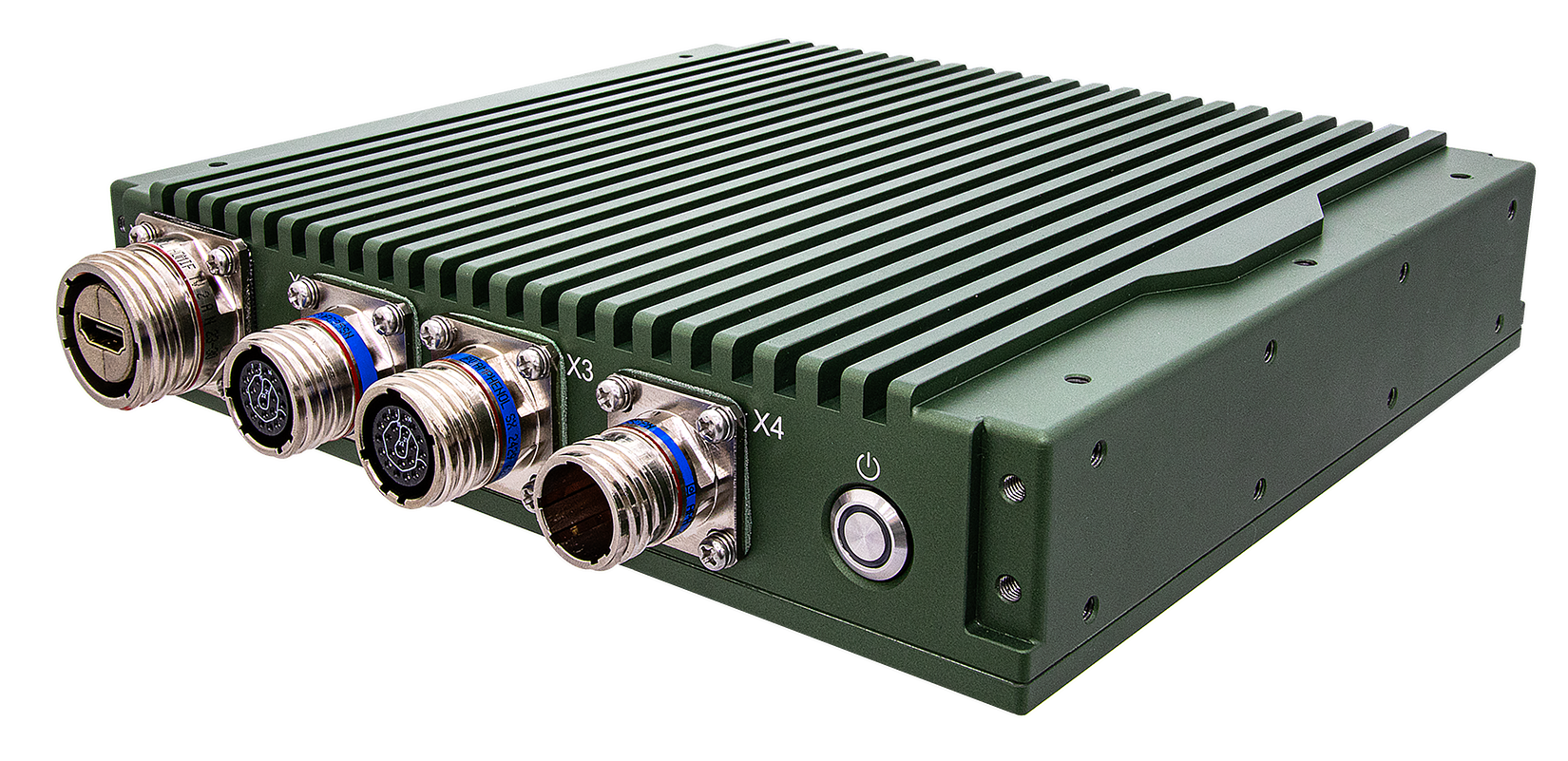

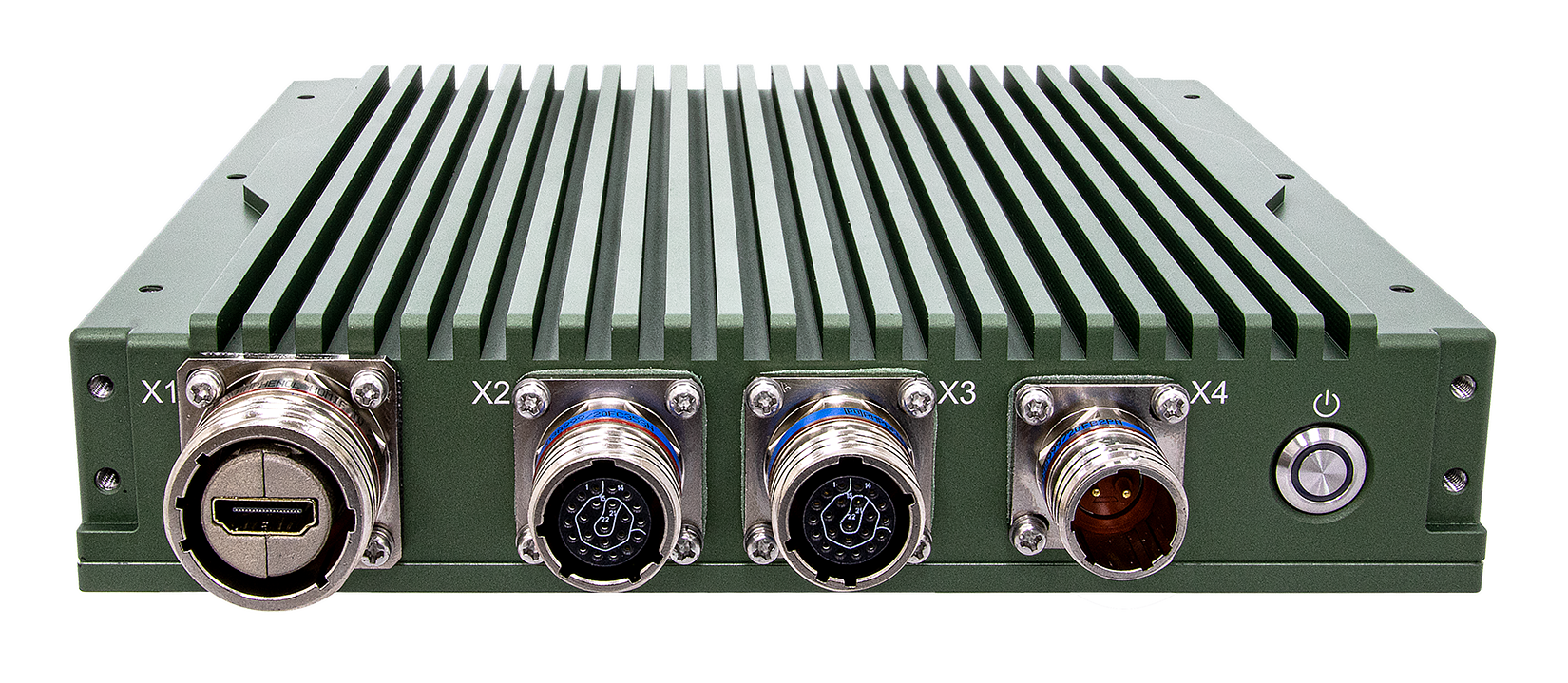

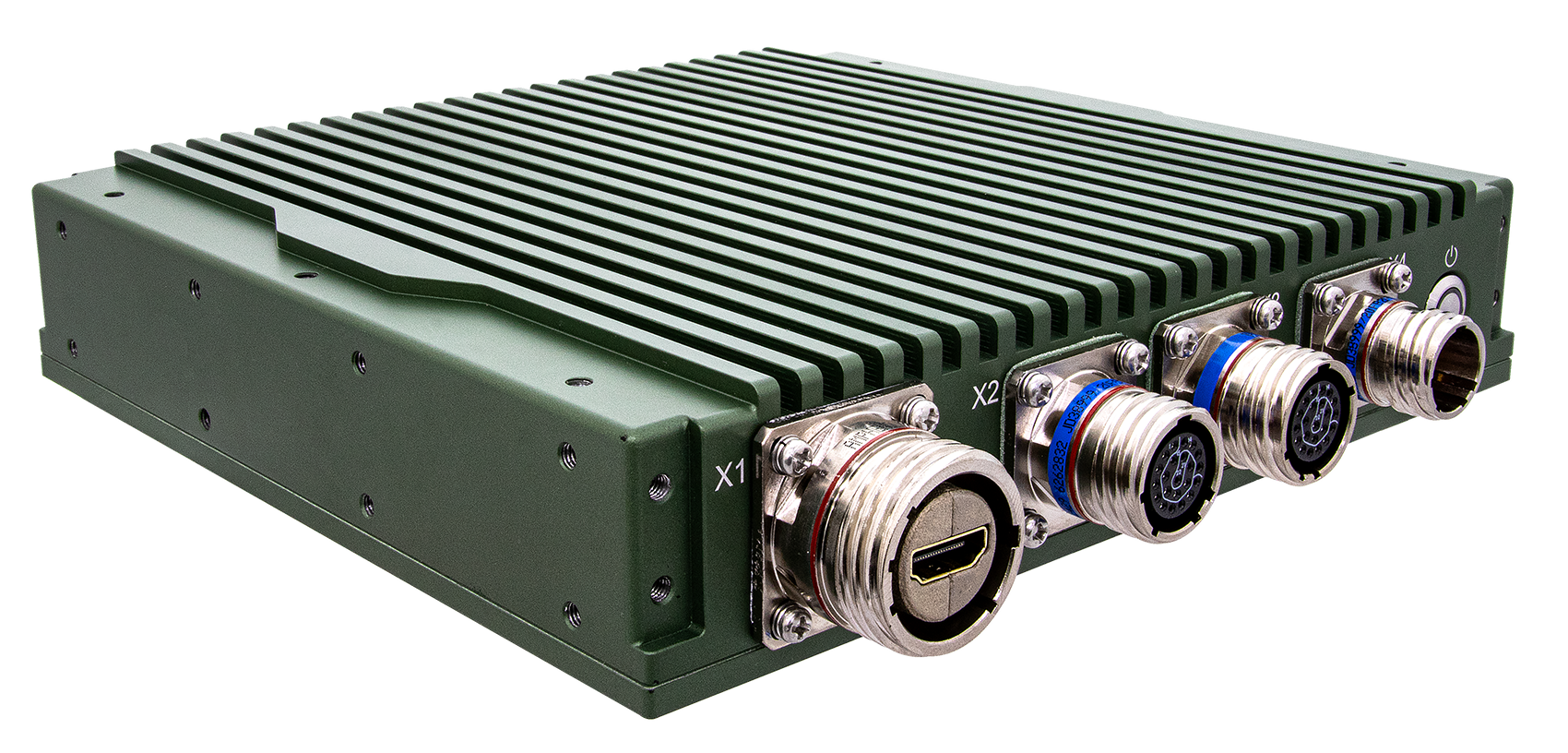

| Display | ||
| Chipset | Intel® Iris Xe Graphics | |
| HDMI | HDMI 1.4 x 1, 3840 x 2160 @30Hz | |
| Storage | ||
| SSD | SATAIII SSD– up to 2TB Capacity support RAID 0/1 | |
| Ethernet | ||
| Chipset | Intel ® I219 Giga LAN + I226 2.5 Giga LAN | |
| Front I/O | ||
|
X1 |

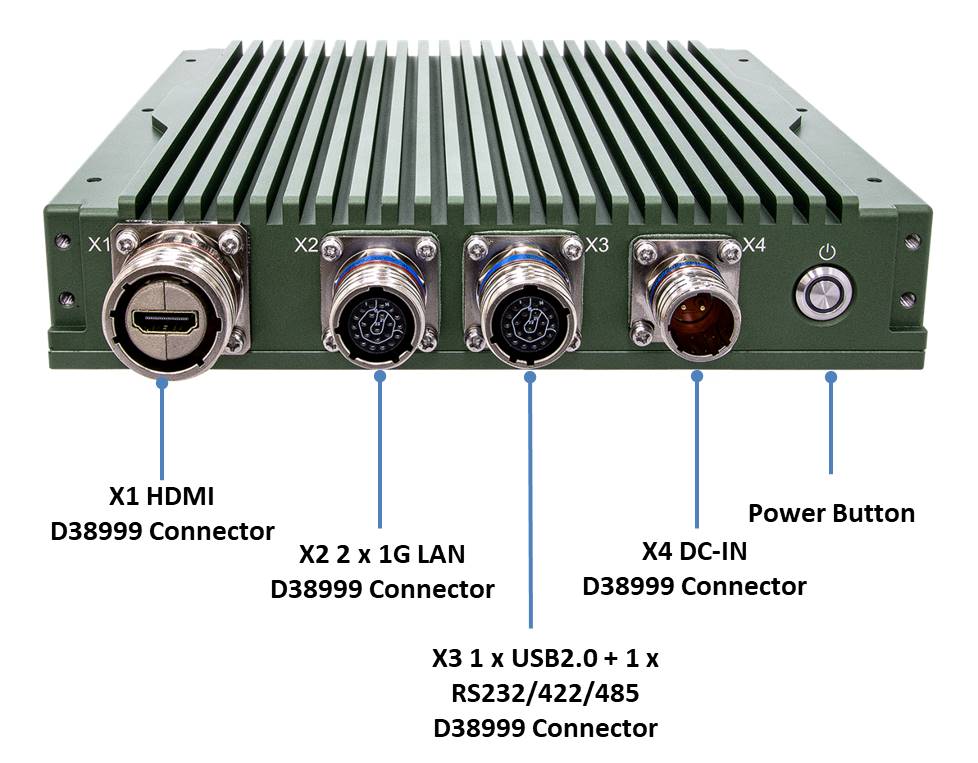

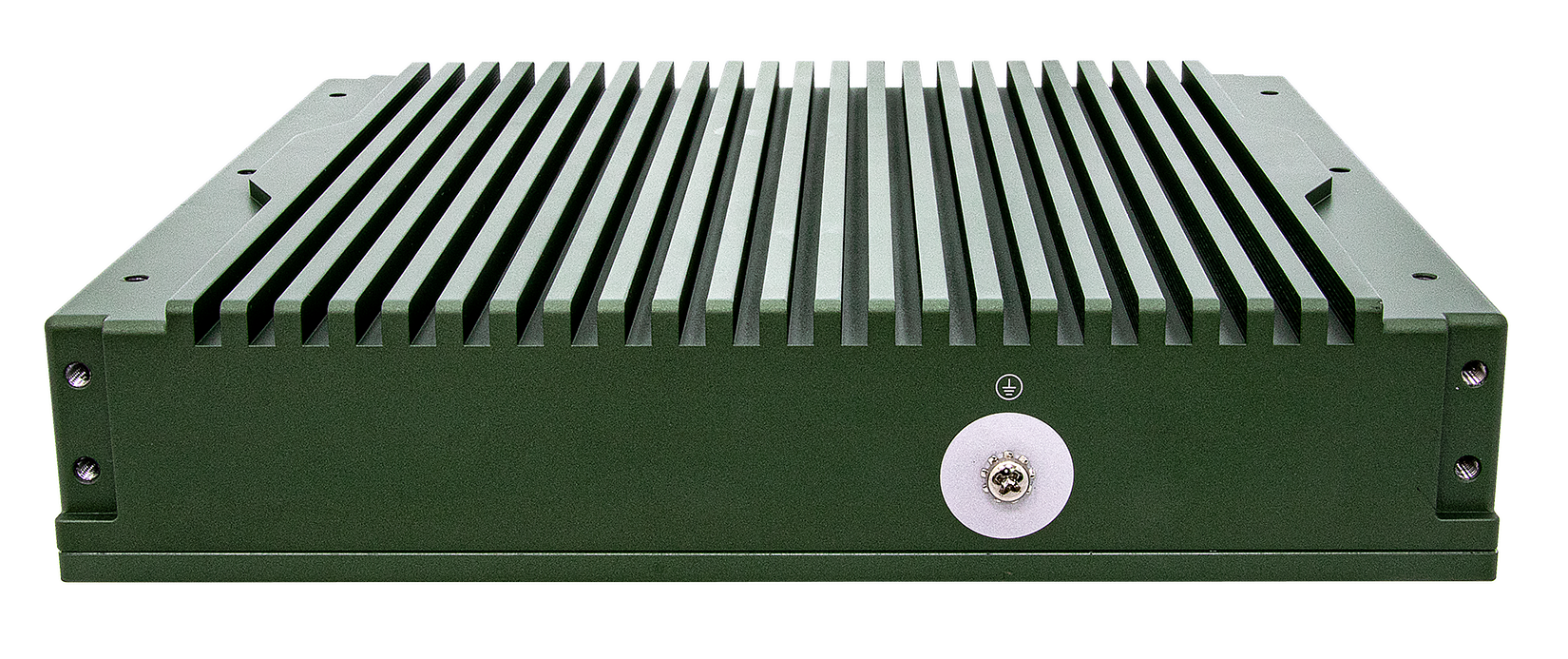

HDMI with D38999 connector | |
| X2 | 2 x LAN with D38999 connector | |
| X3 | 2 x USB2.0 +1x RS232/422/485 with D38999 connector | |
| X4 | 9~36V DC-IN with D38999 connector | |
| Button | Water Resistive Power Button with dual-color LED Backlight | |
| Rear I/O | ||
| Ground Screw | 1 | |
| Power Requirement | ||
| Power Input | 9V to 36V DC-IN support MIL-STD-461 | |
| Power Type | AT/ATX Mode Select by Jumper | |
| Applications, Operating System | ||
| Applications | Military Platforms Requiring Compliance to MIL-STD-810 Embedded Computing, Process Control, Intelligent Automation and manufacturing applications where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions. |
|
| Physical | ||
| Dimension (W x D x H) | 220 x 200 x 44 mm | |
| Weight | 2 Kg | |
| Chassis | Aluminum AL6061 | |
| Heatsink | Aluminum Alloy, Corrosion Resistant. | |
| Finish | Anodic aluminum oxide (Color) | |
| Cooling | Natural Passive Convection/Conduction. No Moving Parts. | |
| Ingress Protection | IP65 | |
| Environmental | ||
| EMC | DC-DC 18 to 36V (300W max) MIL-STD 461 | |
| Applications, Operating System | ||
| MIL-STD-461 | CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies |
|
| MIL-STD-810 (Compliance) |
Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock). |
|
| Reliability |
No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001/2000 Certified Quality Program. |
|
| EMC | CE and FCC compliance | |
| Green Produc | RoHS, WEEE compliance | |
| Weight | 15Kg (33.06Ibs) | |
| Operating Temp. | -40 to 60°C | |
| Storage Temp. | -40 to 85°C | |
| Relative Humidity | 5% to 95%, non-condensing. | |
THOR100S-X13D
1U Half Rack Military Computer with Intel® i7-1370PE , 9V to 36V DC-IN, Extended Temp
-40 to 60°C
