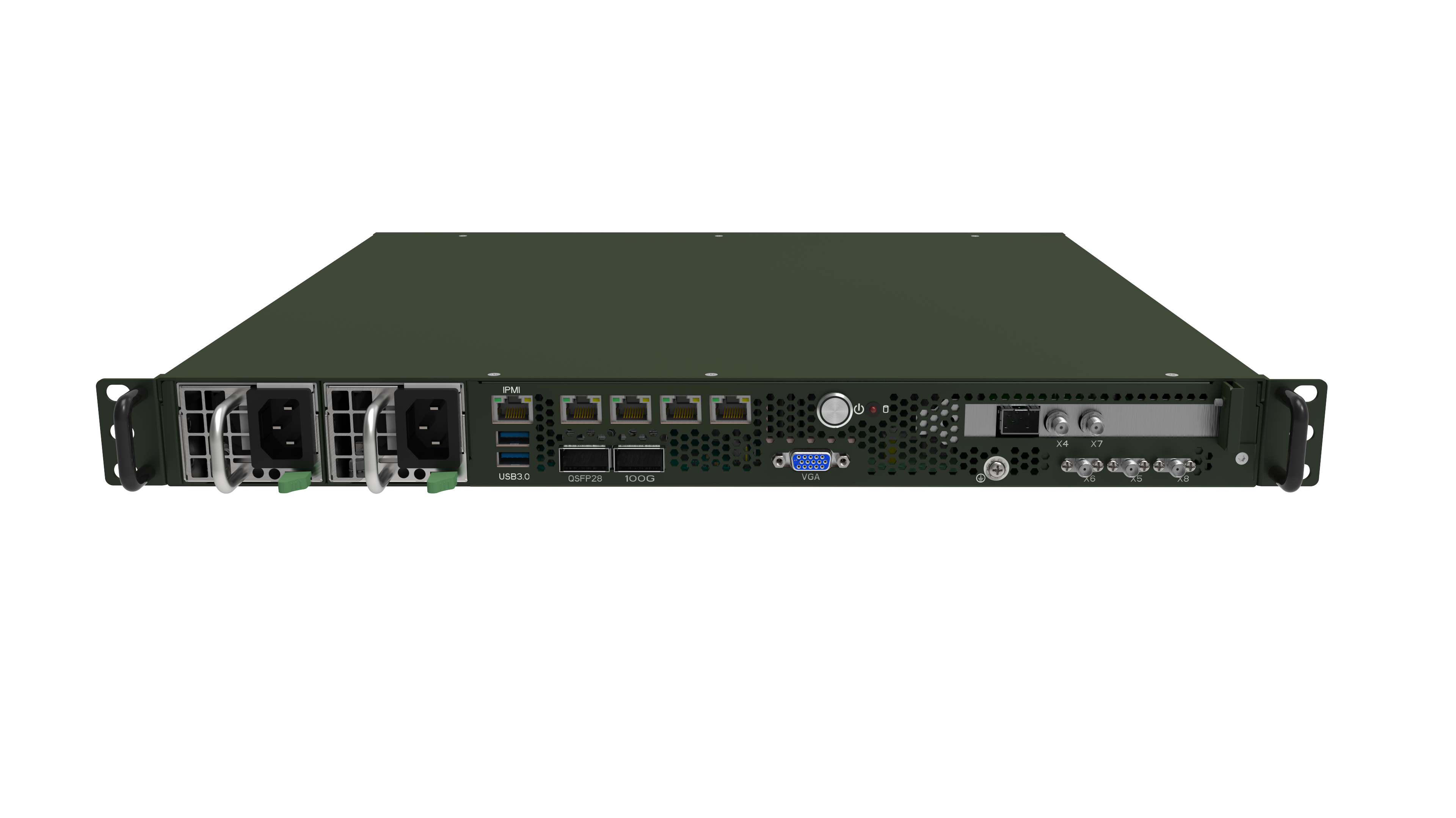

THOR11-H20

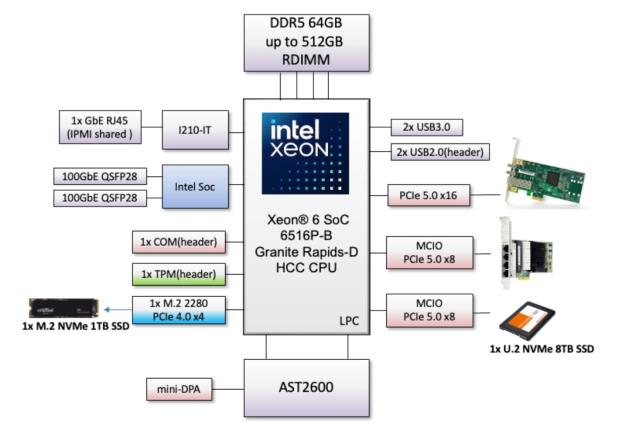

Powered by the server-grade Intel® Xeon® Granite Rapids-D HCC 6516P-B processor (20 cores, 40 threads, 2.3 GHz, 145 W TDP), the THOR11-H20 Military Visualzation Super Computer integrates Intel® vRAN Boost to deliver up to 2.4× higher capacity for radio access network (RAN) workloads. It is engineered to provide an optimal balance of high performance and energy efficiency, enabling superior server consolidation across a broad range of data center and network infrastructure applications. By leveraging Intel’s built-in accelerators for vRAN, media processing, AI, and network security, the solution addresses the growing demands of network and edge deployments in an AI-driven world, offering up to 70% improvement in performance per watt compared to previous generations while maximizing operational efficiency.

Designed for military visualization and mission-critical computing, this supercomputer configuration delivers the reliability and performance required for real-time situational awareness, simulation, and command-and-control environments. Equipped with 128GB DDR5 RDIMM ECC memory up to 6400 MT/s, it ensures fast data processing for complex visualization workloads. High-speed NVMe storage options—up to 1TB M.2 or 8TB U.2 SSD— enable rapid access to large terrain models, sensor data, and simulation outputs. An 860W redundant power supply supporting 100–264 VAC provides continuous, resilient operation in demanding military deployments where uptime is non-negotiable.

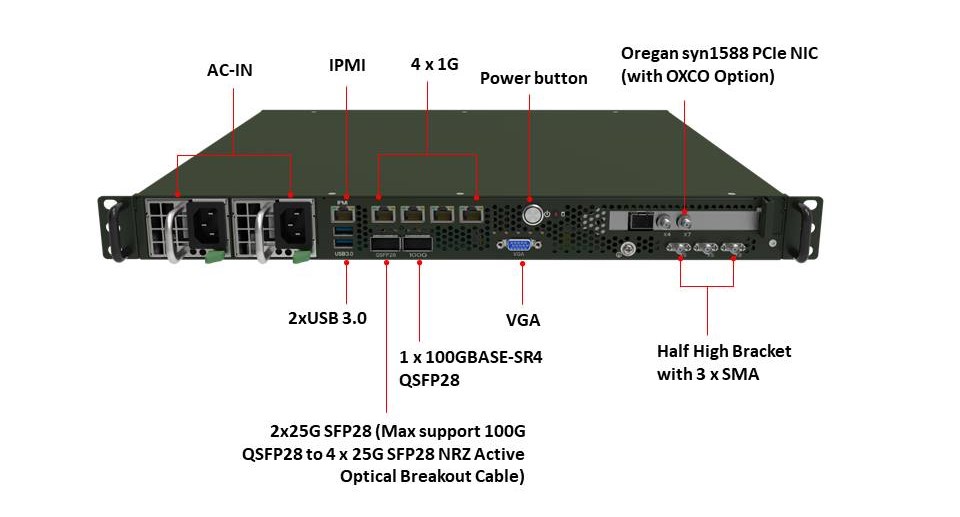

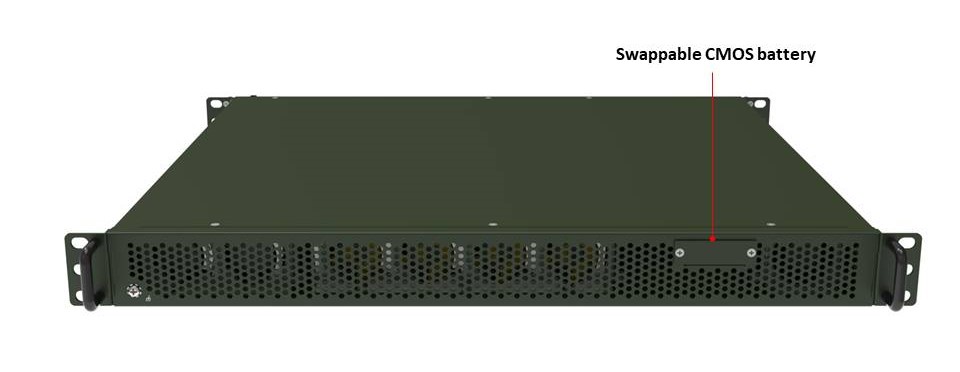

The Oregano Syn1588 PCIe NIC delivers high-performance networking combined with ultra-precise time synchronization for mission-critical environments. Supporting 100GbE QSFP28, dual 25GbE SFP28, and quad 1GbE Base-T interfaces, it provides flexible, multi-speed connectivity for demanding data center and edge workloads. Built on a specialized architecture for deterministic timing, it enables precision time synchronization to ensure accurate, low-latency coordination across distributed systems. The half-height bracket design integrates three SMA antenna connectors for 5G, LTE, Wi-Fi, and GNSS, enhancing wireless connectivity and deployment flexibility. A swappable CMOS battery further improves serviceability, enabling fast, tool-less maintenance and reducing system downtime in long-term, mission-critical installations.
