PS2-24
Dual Display -24" Portable GPU Server
- Dual 24" Full HD 1920 X1080 Portable GPU Server
- Optional for UFD 3840 X 2160
- MIL-STD-810 Thermal, shock, vibration, Humidity/EMI/EMC Resistance
- Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors
- NVIDIA Quadro RTX A4000 GPU (6,144 CUDA)
- 3 x PCIe Expansion Slots
- Redundant AC 100-240V Input
- MIL-STD-461 18V-36V DC-Input (optional)
- Extreme Temperature: -20°C to +50°C
- Technical Profile
- Specifications
- Order Information
- Introduction
-
Engineered for mission-critical operations, this 24” dual-display tactical HMI delivers powerful computing and superior situational awareness in harsh environments. Powered by Intel® Xeon® 6700P processor with up to 8 DDR5 RDIMM/MRDIMM slots, it ensures high-performance data processing for real-time decision-making. Integrated with NVIDIA RTX A4000 GPU (6,144 CUDA cores), the platform enables advanced AI inference, video analytics, and multi-source data visualization.
The IP65-rated dual 1000-nit sunlight-readable multi-touch displays provide clear visibility in extreme outdoor conditions, enhancing operational efficiency. Designed for rugged deployments, it complies with MIL-STD-810 standards for shock, vibration, and temperature, and supports extended operating ranges from -20°C to +55°C. With redundant AC 100–240V power input, the system ensures reliable and continuous operation in demanding tactical scenarios.

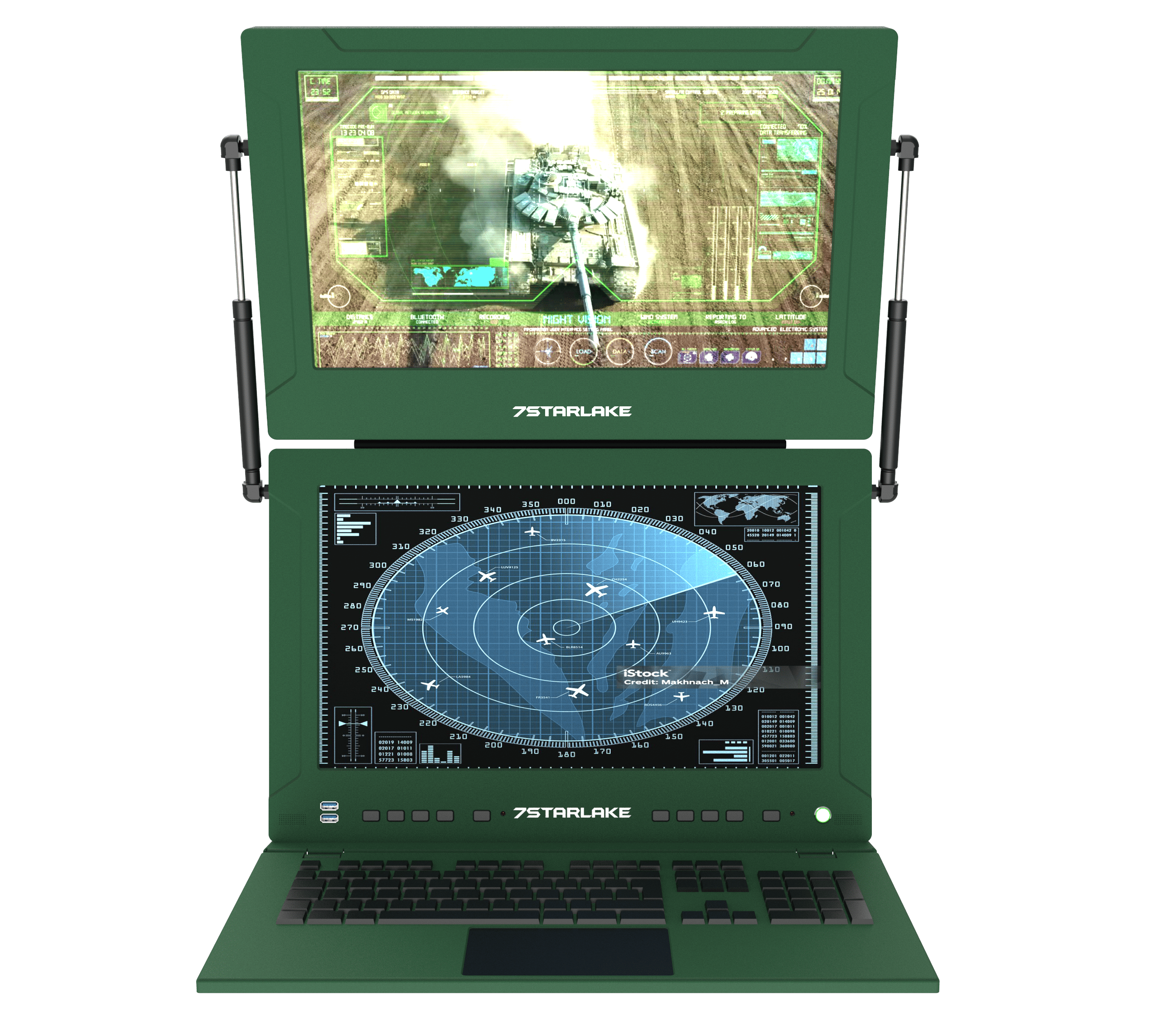

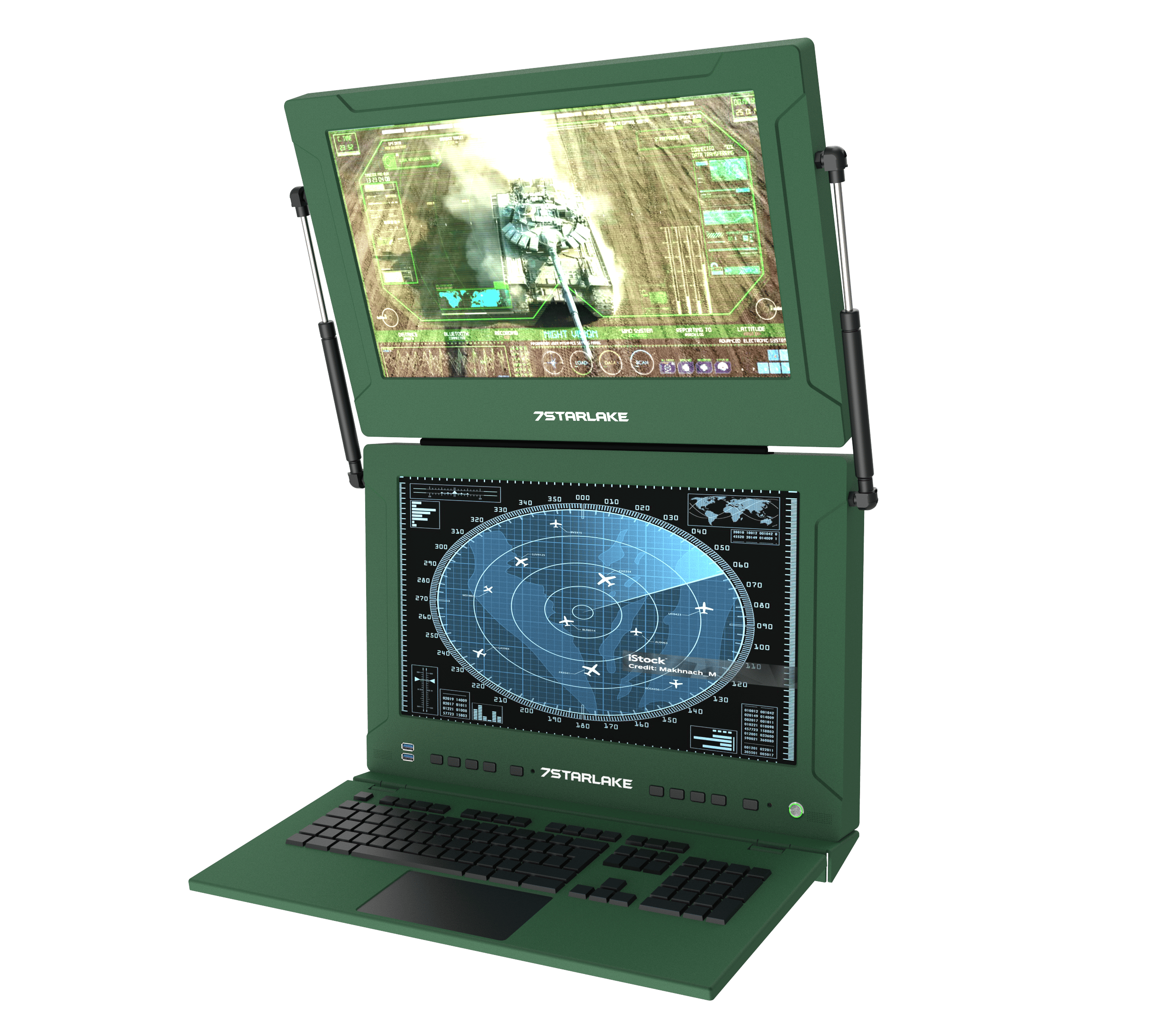

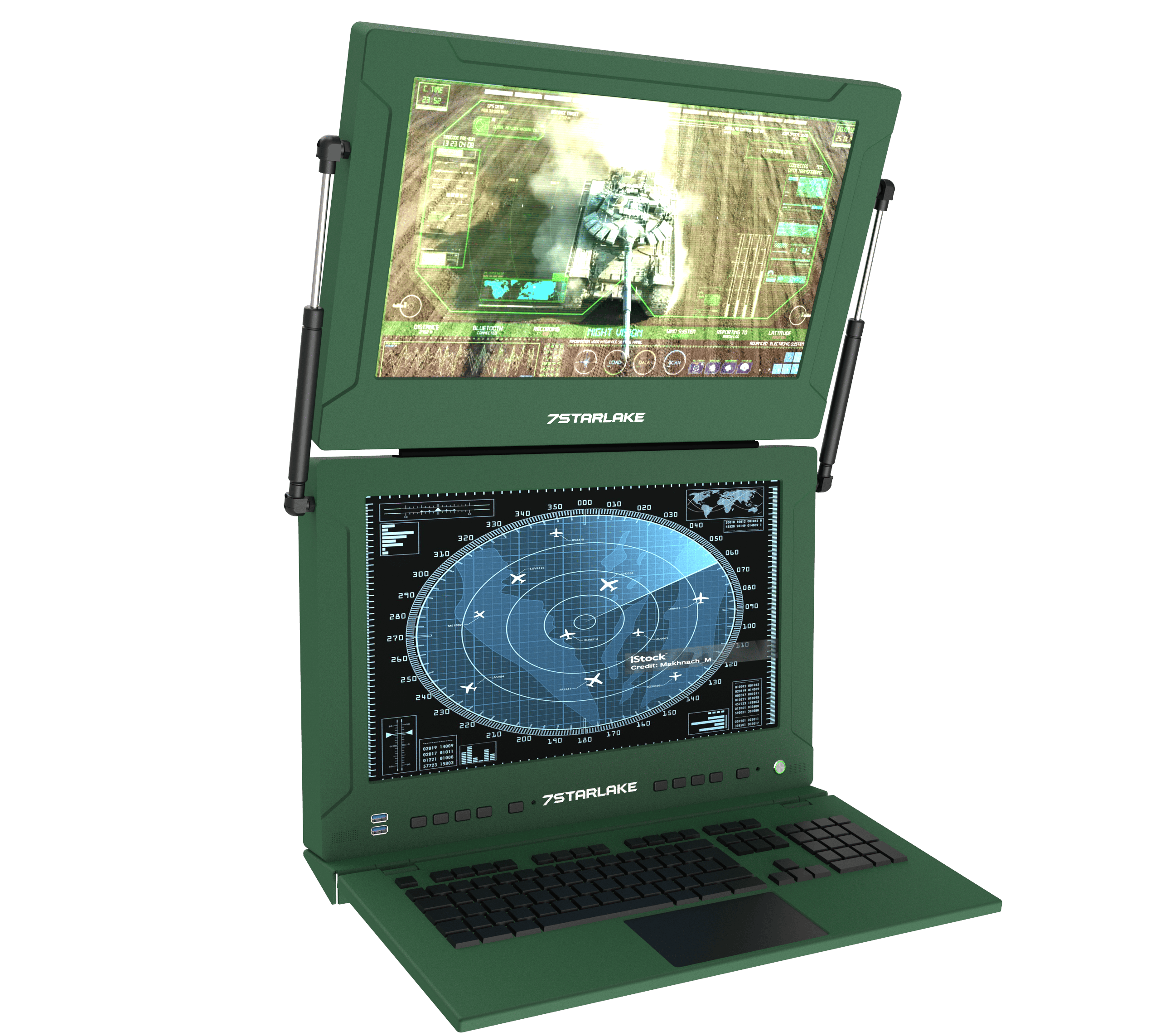

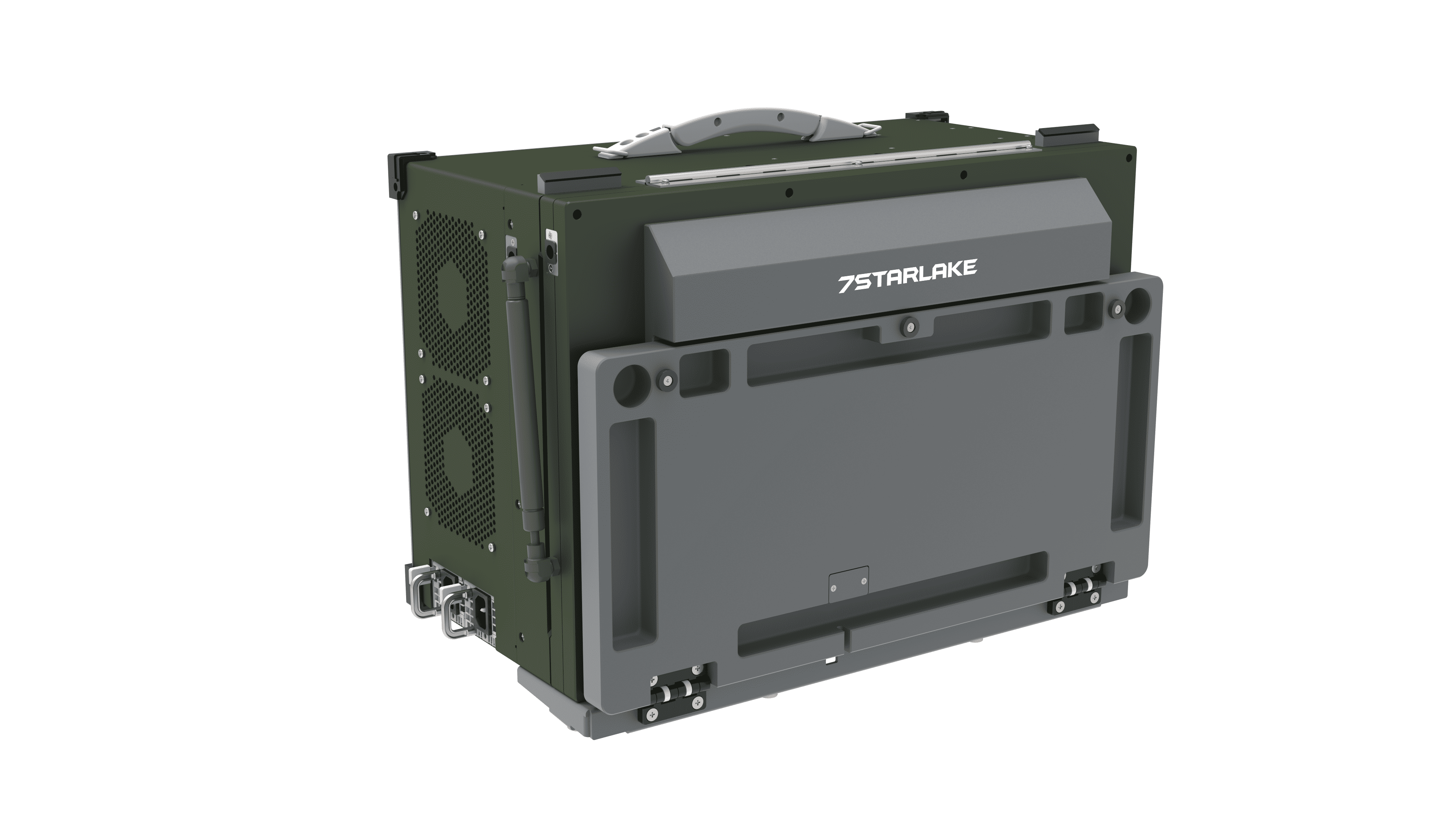

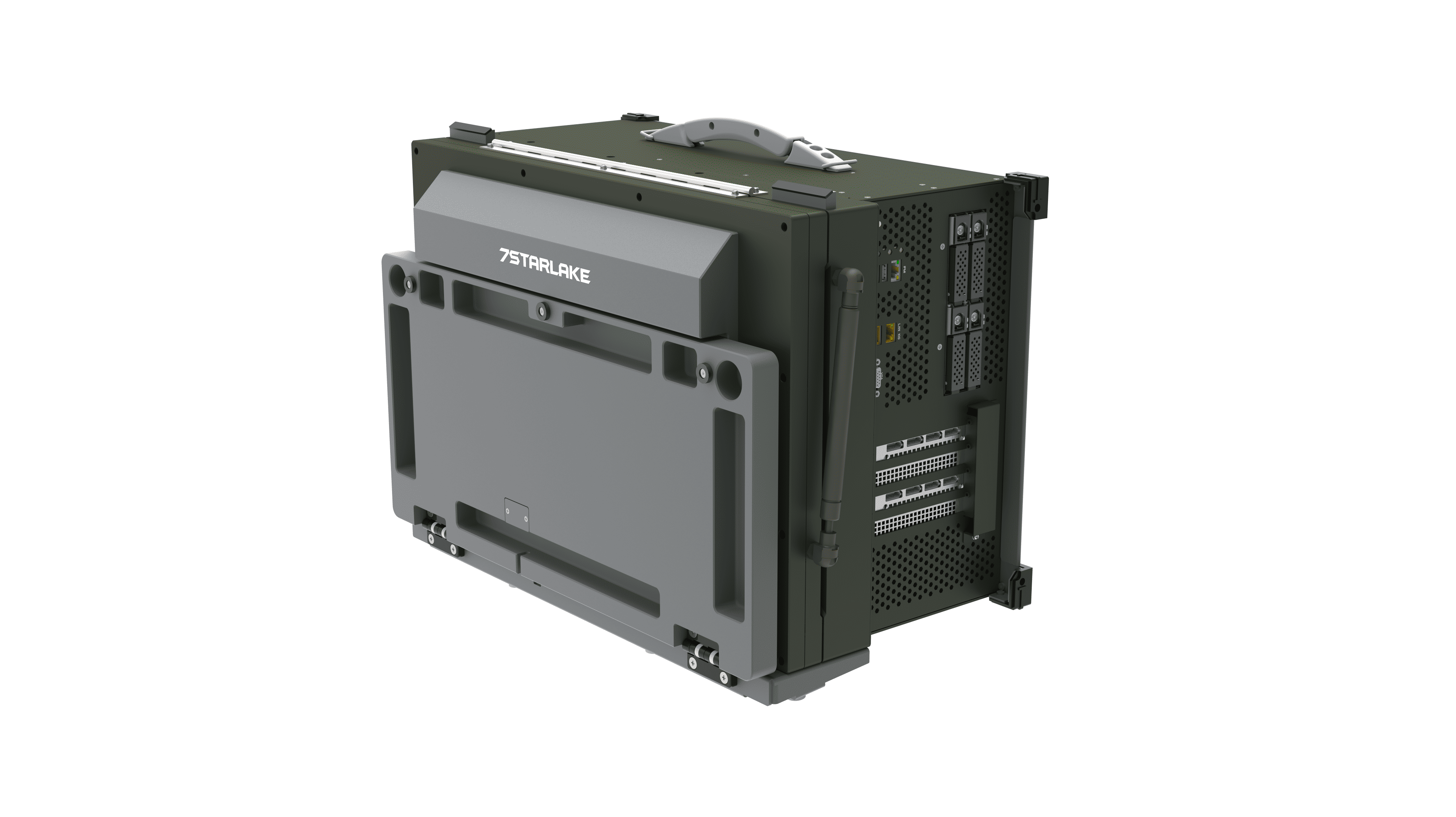

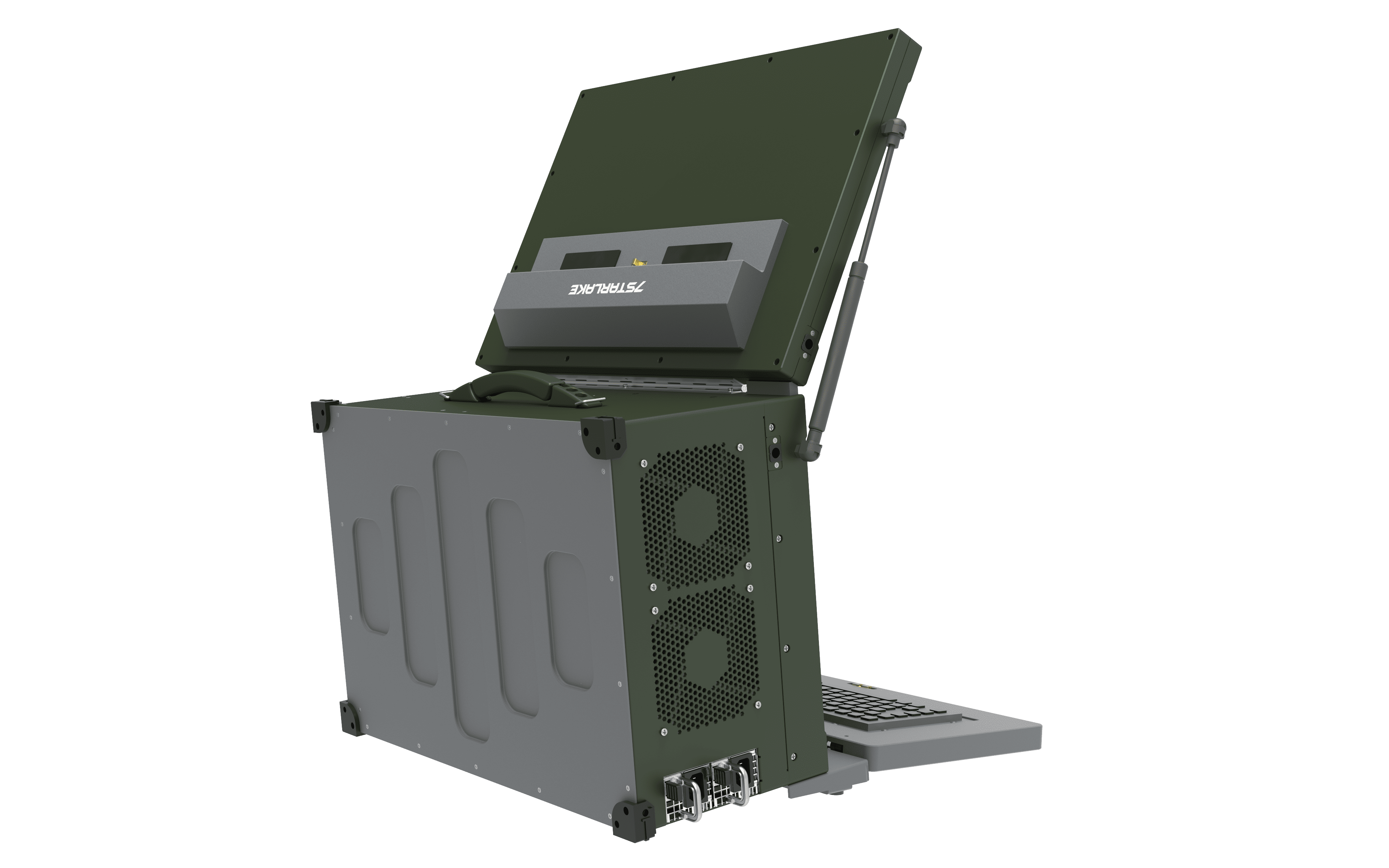

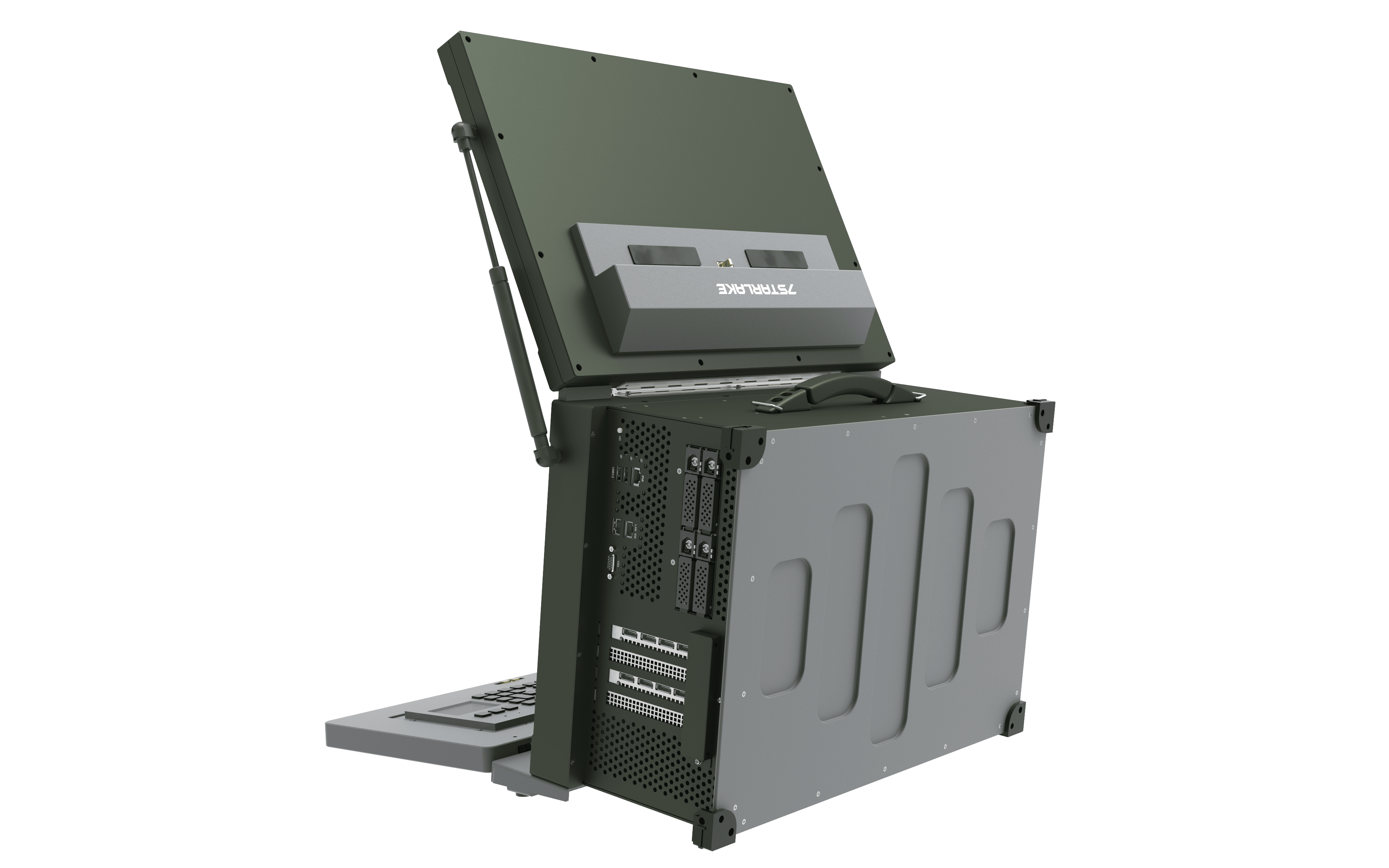

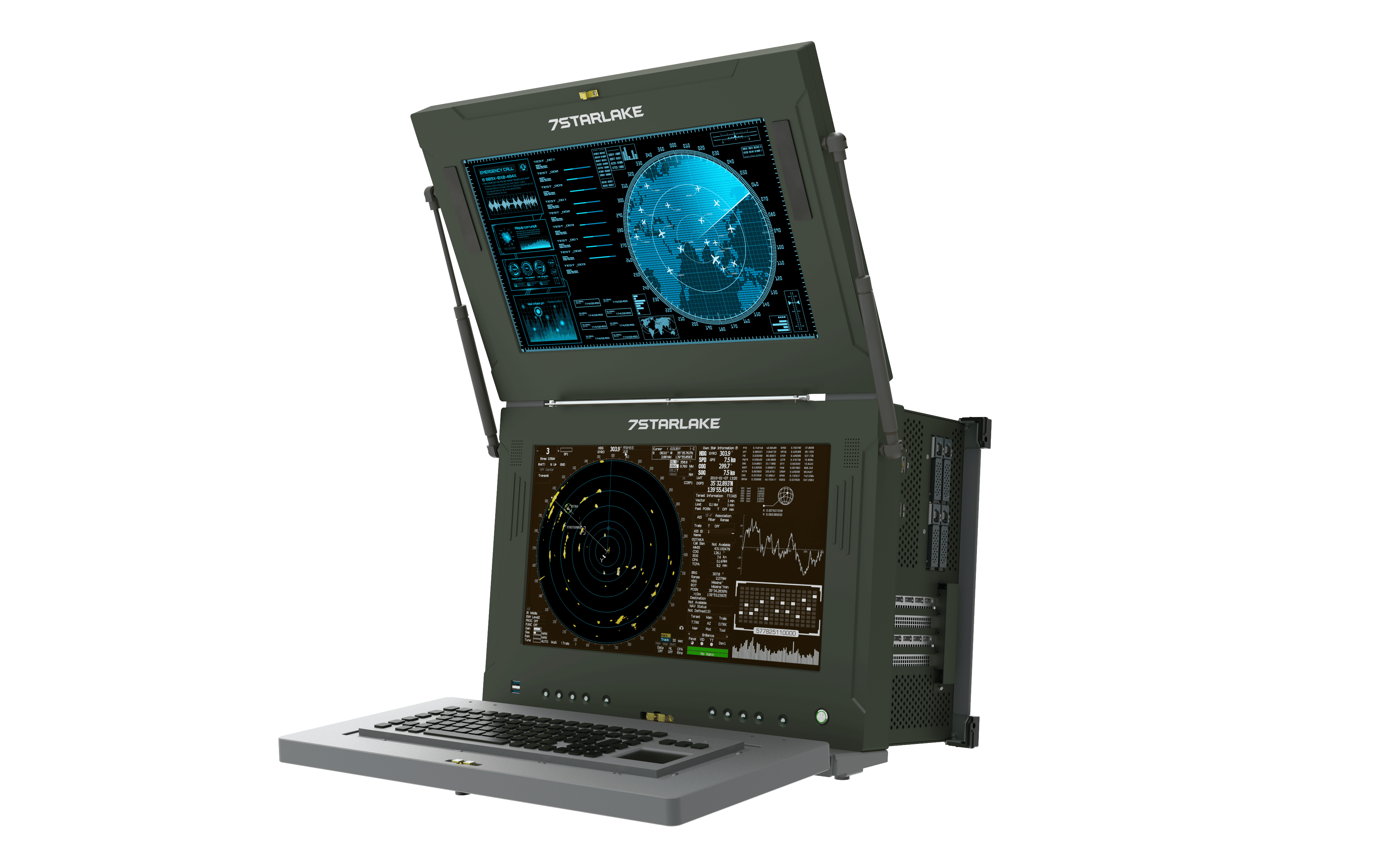

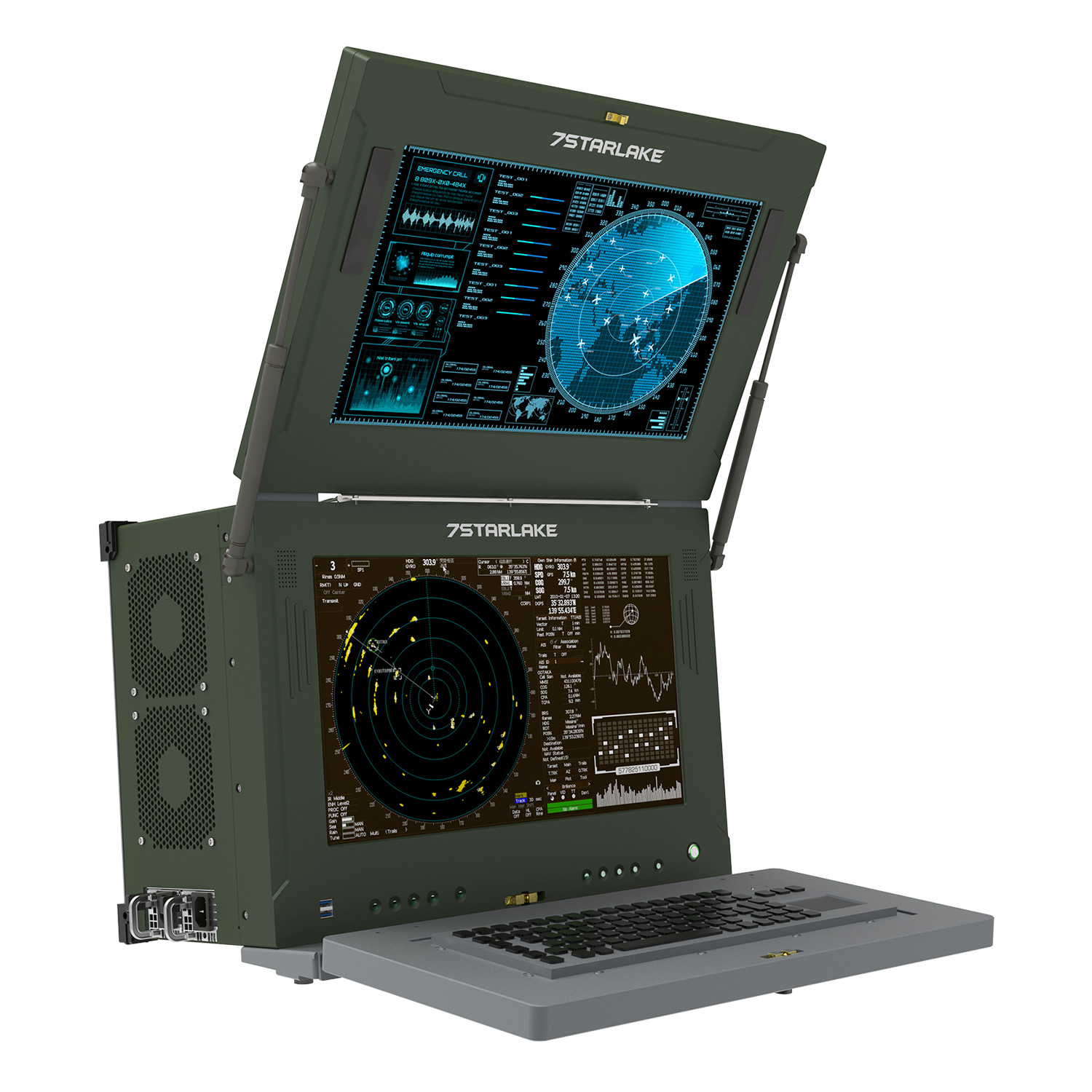

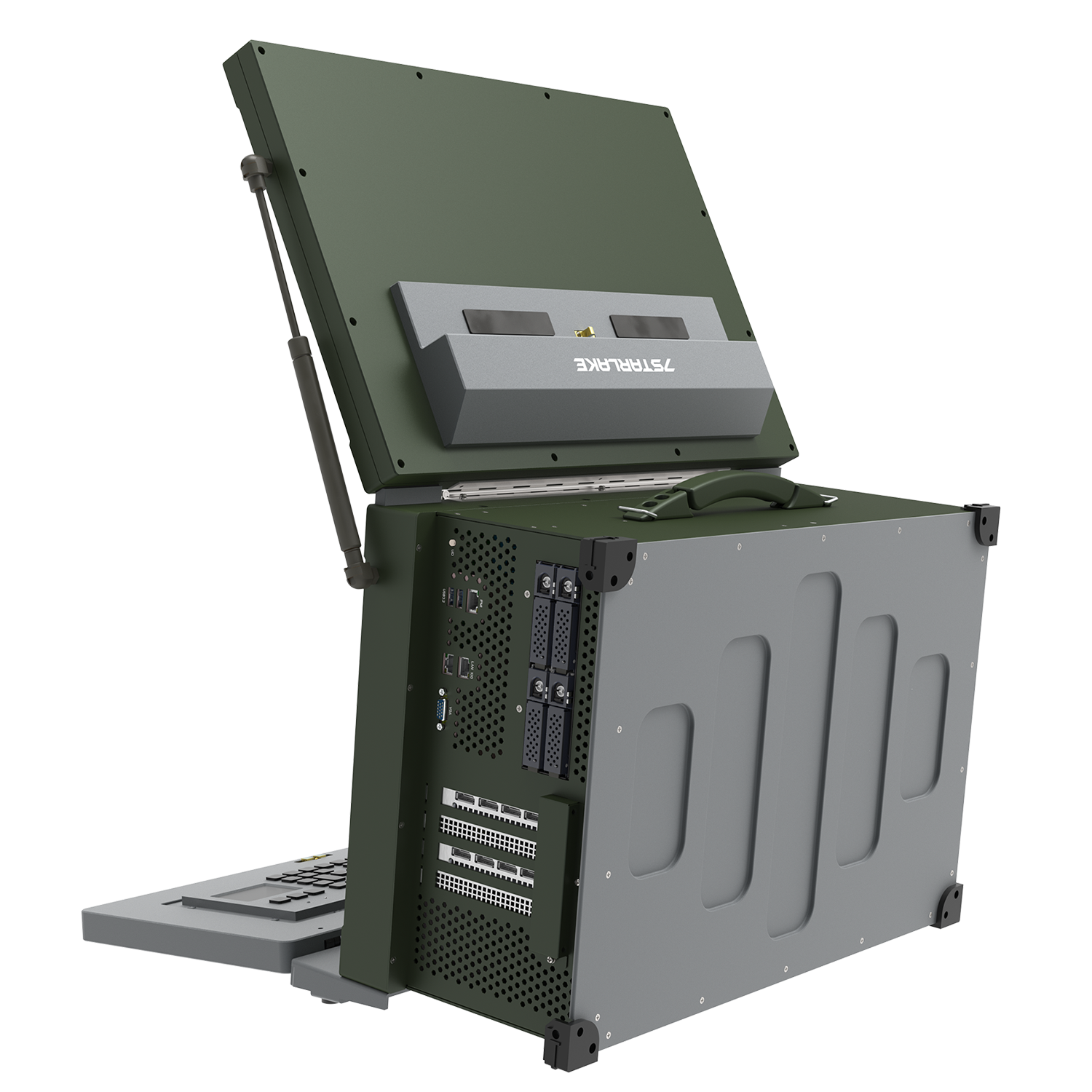

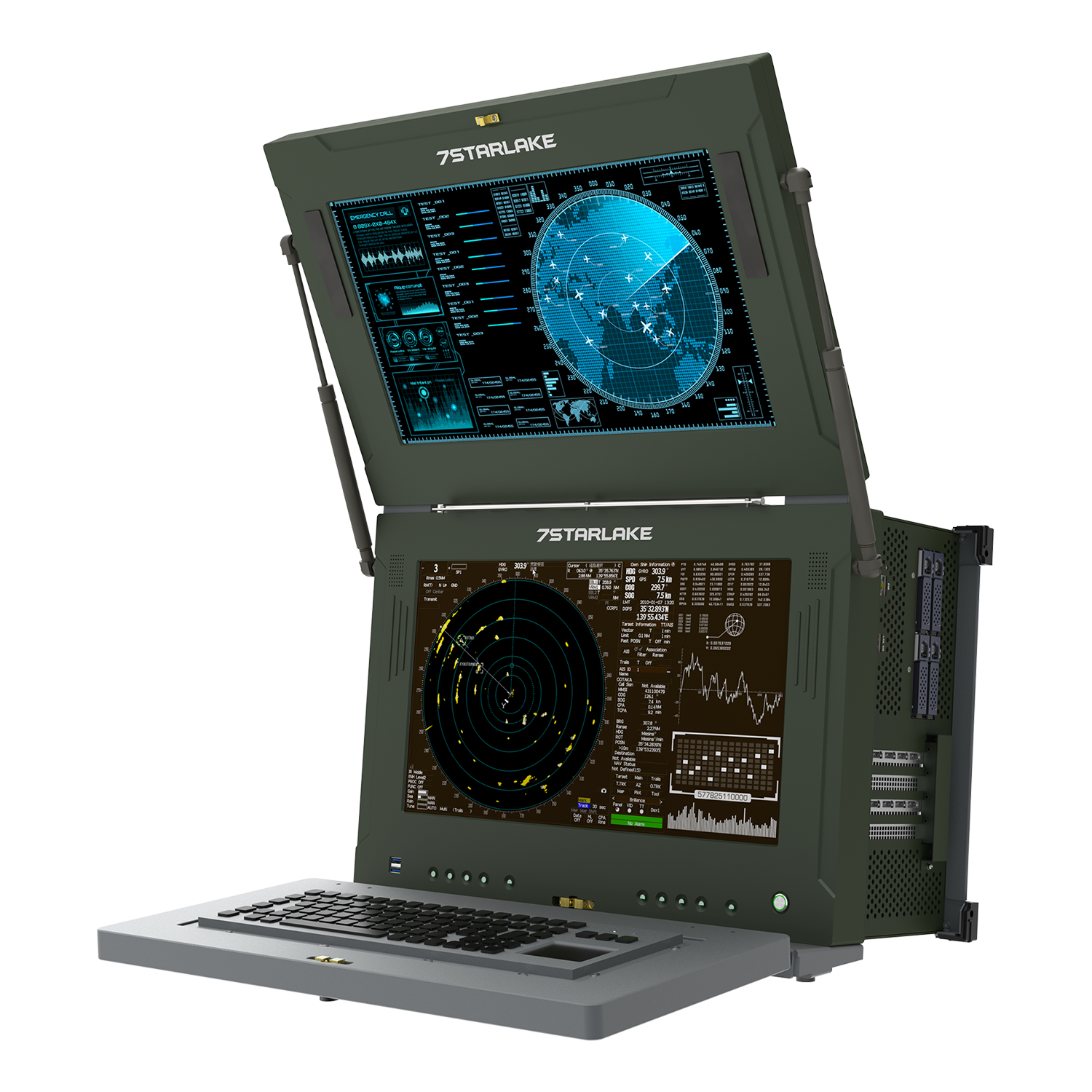

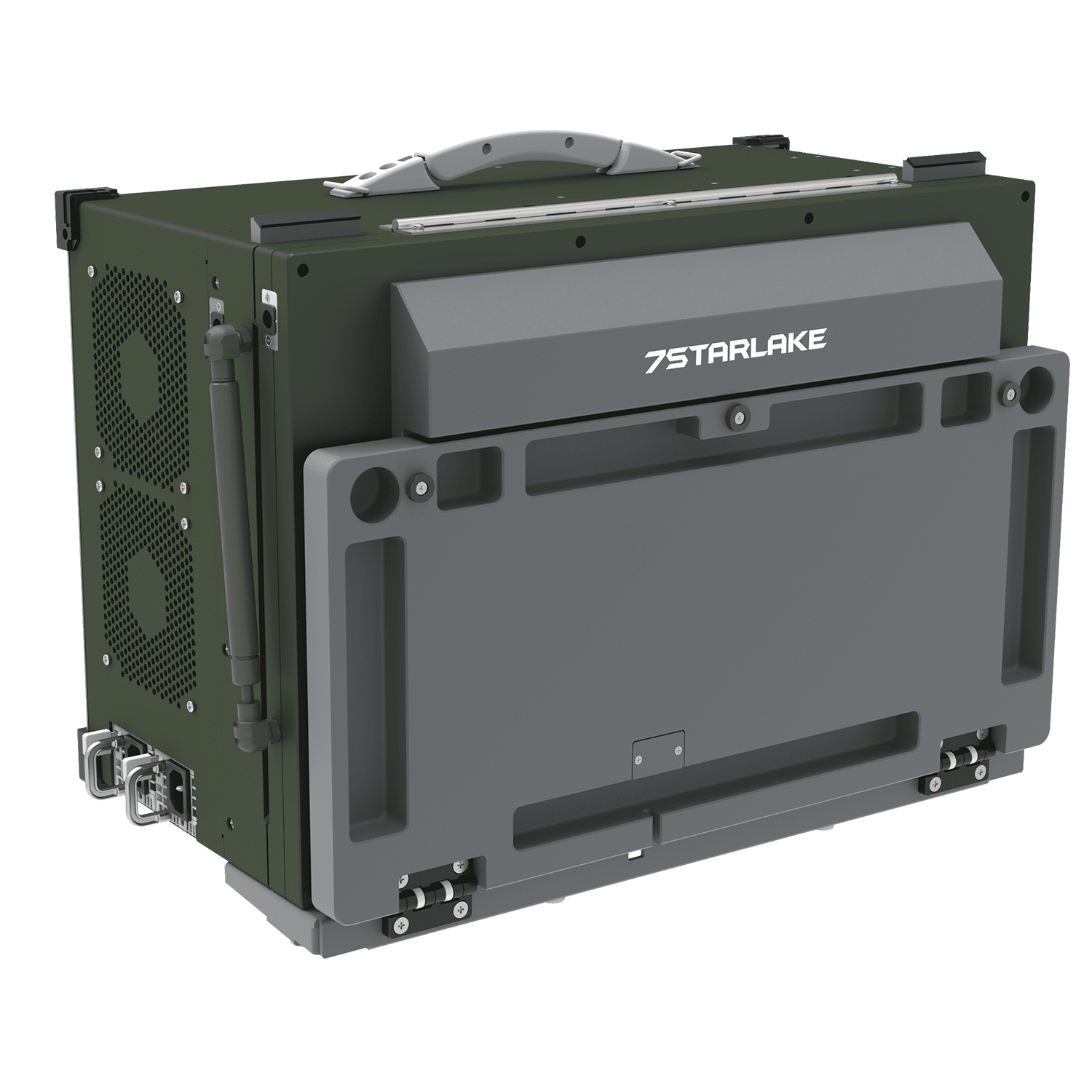

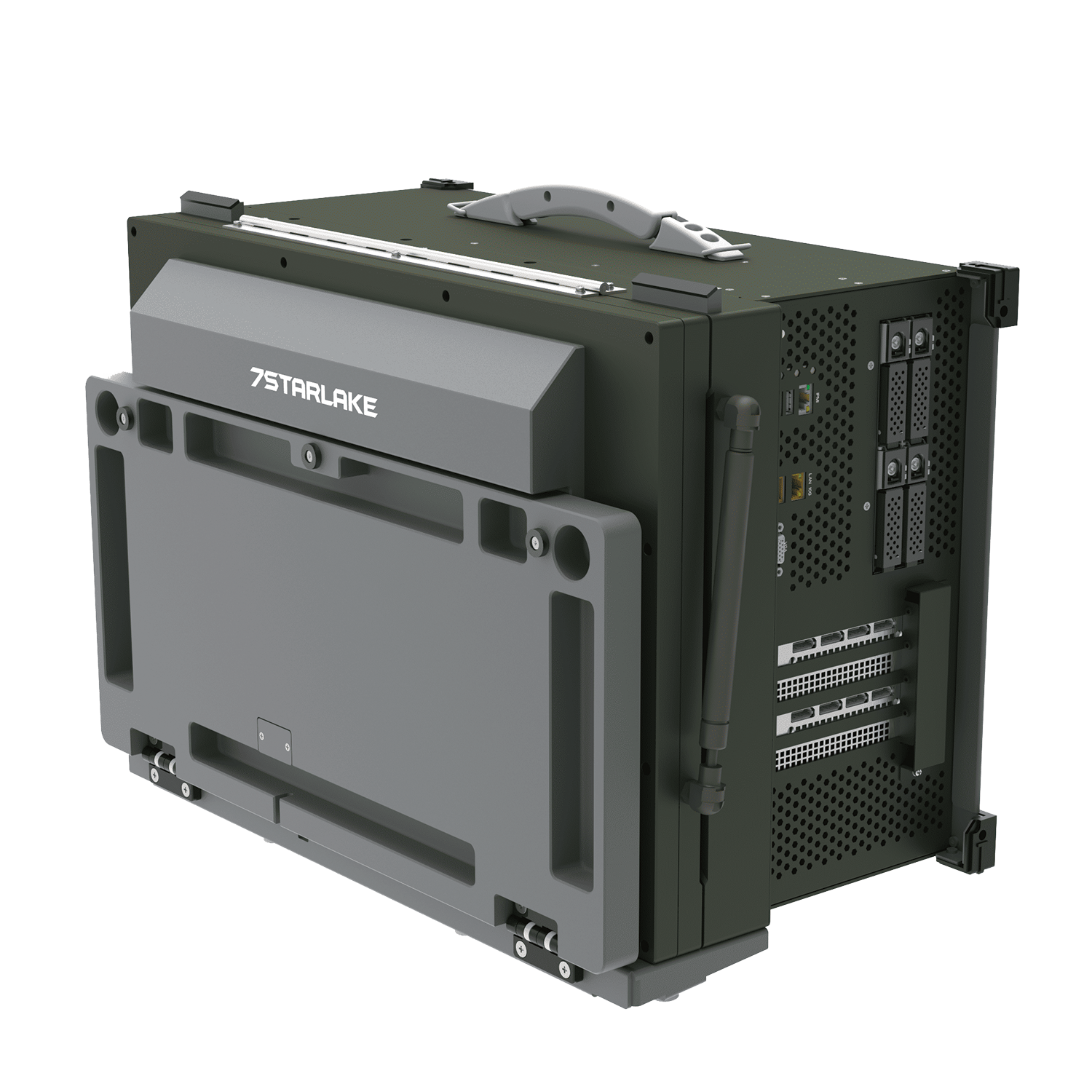

- Appearance
-
|
System |
||
|---|---|---|
|
DISPLAY |
DUAL 24" TFT-LCD , LCM, FULL HD 1920 X 1080 - 1000 NITS |
|
|
CPU |
Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors, LGA 4710, CPU TDP supports up to 350W |
|
|
Memory type |
8 x DDR5 6400MHz RDIMM up to 1TB |
|
|
Graphics |
ASPEED AST2500 BMC |
|
|
GPU |
Nvidia RTXA4000, NVIDIA Ampere GPU architecture 6,144 NVIDIA® CUDA® Cores, 192 NVIDIA® Tensor Cores 16GB GDDR6 Memory with ECC, Up to 448 GB/s Memory Bandwidth Max. Power Consumption: 140 W |
|
|
Display |
||
| Display | Dual 24” TFT LCD FHD (1920 x 1080),1,000 Nits Brightness Display Sunlight readable, P-capacitive multi-touch screen | |
|
Storage |
||
|
SATA |
4 x Swappable 2.5” SATAIII SSD |
|
|
Ethernet |
||
|
Ethernet |
Intel® E610-XAT2 |
|
| Front I/O | ||
| Front I/O |
2 x USB3.2 |
|
|
Right I/O |
||
|
Right I/O |
1 x IPMI LAN |
|
|
Left I/O |
||
| Left | 2 x AC Power Plug | |
|
Keyboard |
||
|
Keyboard |
86-key with backlight / Touchpad |
|
|
Operating System |
||
|
OS Support |
Windows® Server 2022 64bit |
|
|
Physical |
||
|
Dimensions(W x D x H) |
520 x 295 x 350 mm |
|
|
Weight |
15KG |
|
|
Chassis |
SECC |
|
|
Heatsink |
Heatsink Aluminum Alloy with Fan |
|
|
Environmental |
||
|
Operating Temp. |
-20°C to 50°C |
|
|
Storage Temp. |
-40°C to 85°C |
|
|
Relative Humidity |
5% to 95%, non-condensing |
|
|
Power |
||
| Power | 1300W AC100~240V 1+1 Redundant | |
| MIL-STD-810 Environment testing standards | ||
| Method 501, Operational Temperature, high | Procedure II: +50°C, two-hour dwell, four cycles | |
|
Method 501, Storage Temperature, high |
Procedure I: +75°C, two-hour dwell, four cycles | |
| Method 502, Operational Temperature, low | Procedure II: -20°C, two-hour dwell, four cycles | |
| Method 502, Storage Temperature, low | Procedure I: -40°C, two-hour dwell, four cycles | |
| Method 514, Vibration | Category 24/Non-Operating (Category 20 & 24, Vibration) | |
| Method 514, Vibration | Category 20/Operating (Category 20 & 24, Vibration) | |
| Method 516, Shock | Procedure V Non-Operating (Mechanical Shock) | |
| Method 516, Shock | Procedure I Operating (Mechanical Shock) | |
| Method 507, Humidity | Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) | |
| Method 500, Altitude (Low Pressure) | 15,000 feet transport, -200÷2500[m] ground operation and exposed to +55°C and -20°C operation (optional) | |
| Method 510, Sand-Dust | Procedure I: Blasting dust, 12 hours (optional) | |
PS2-24
Rugged Dual 24" Portable GPU Server: Featuring high-brightness sunlight-readable displays , powered by Intel® Xeon® processors and NVIDIA RTX A4000 GPU. Equipped with a 1300W AC 1+1 redundant power supply and engineered for mission-critical operations across an extreme operational temperature range from -20°C to +50°C.
