X7-PS3
X7-PS3

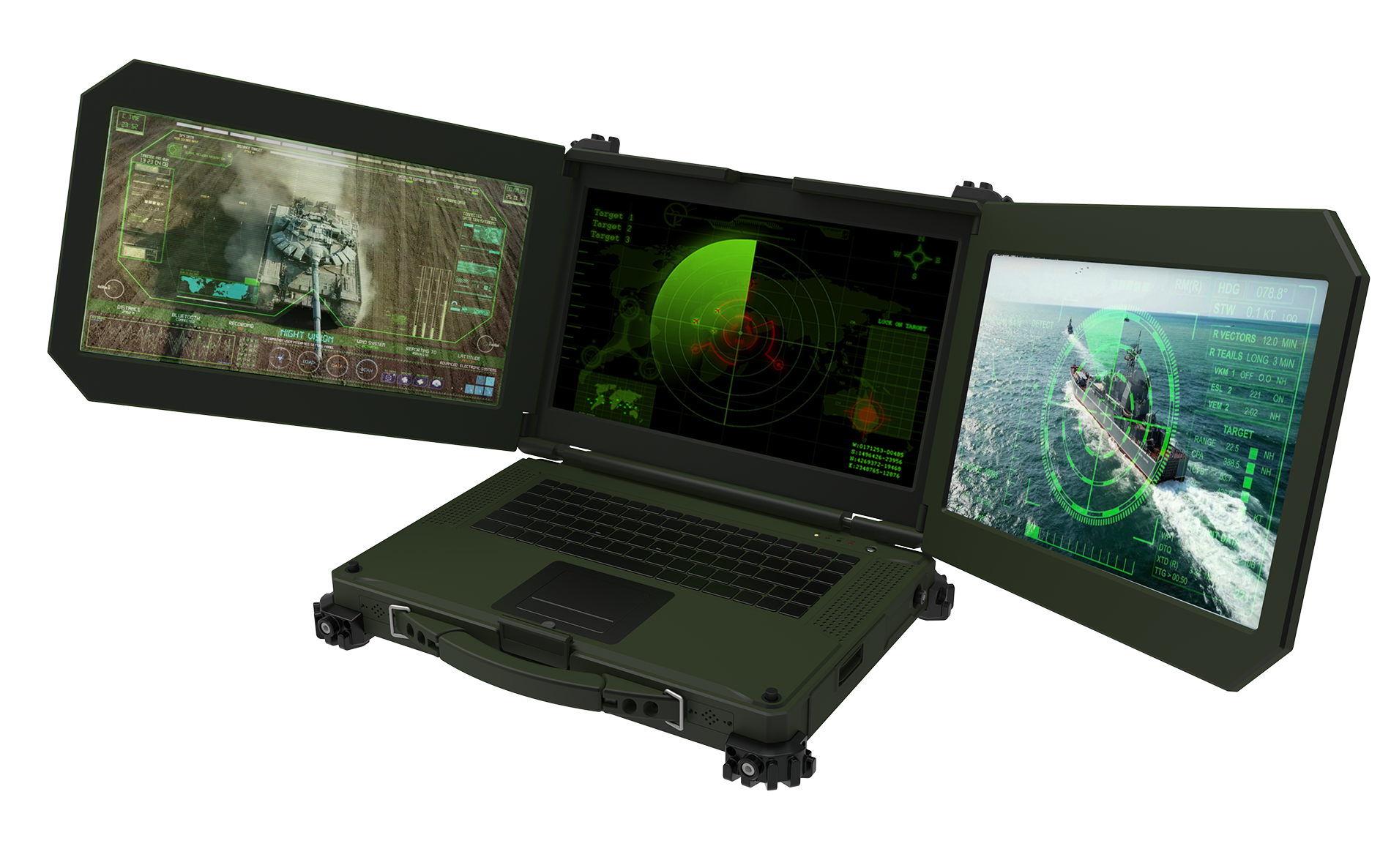

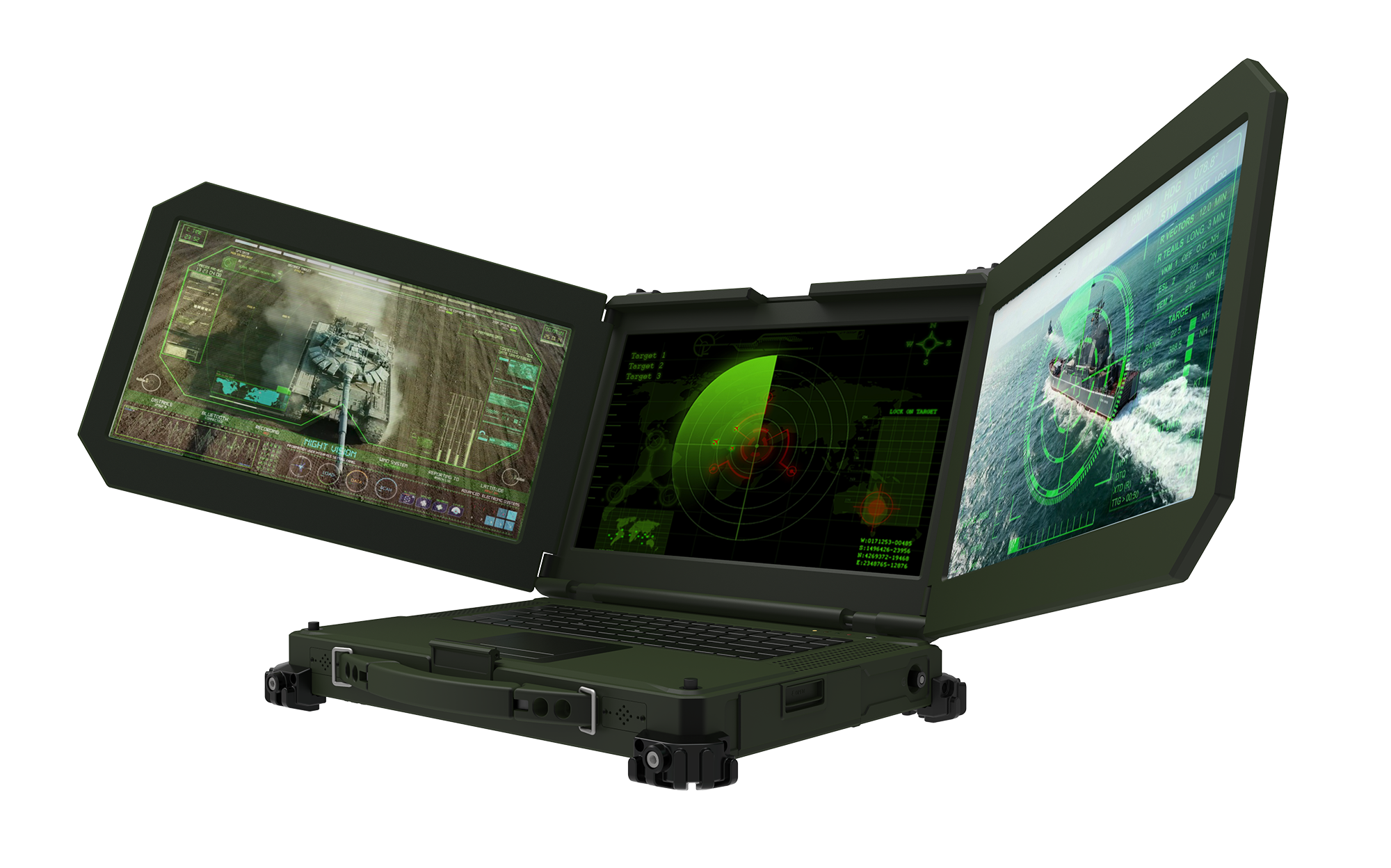

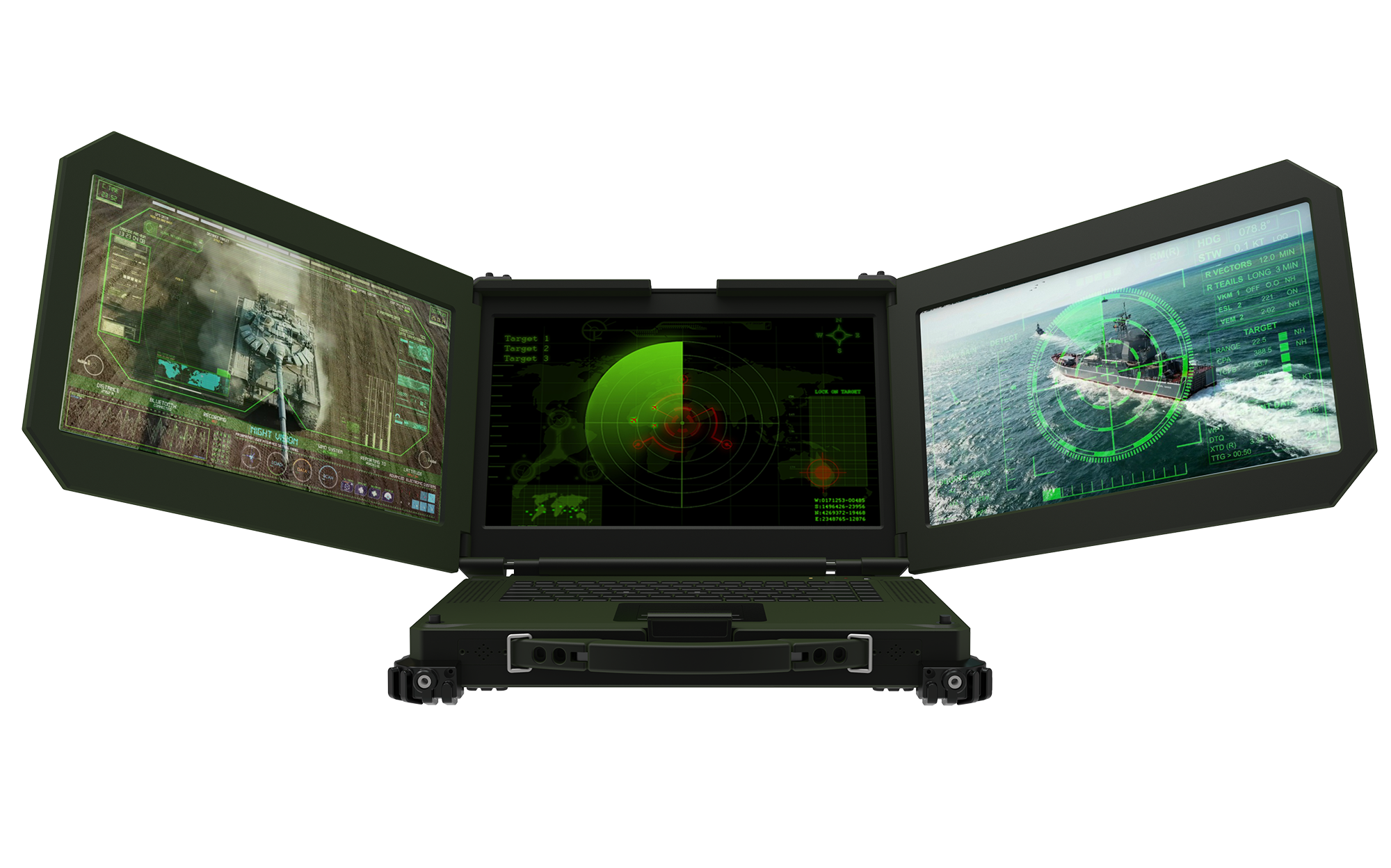

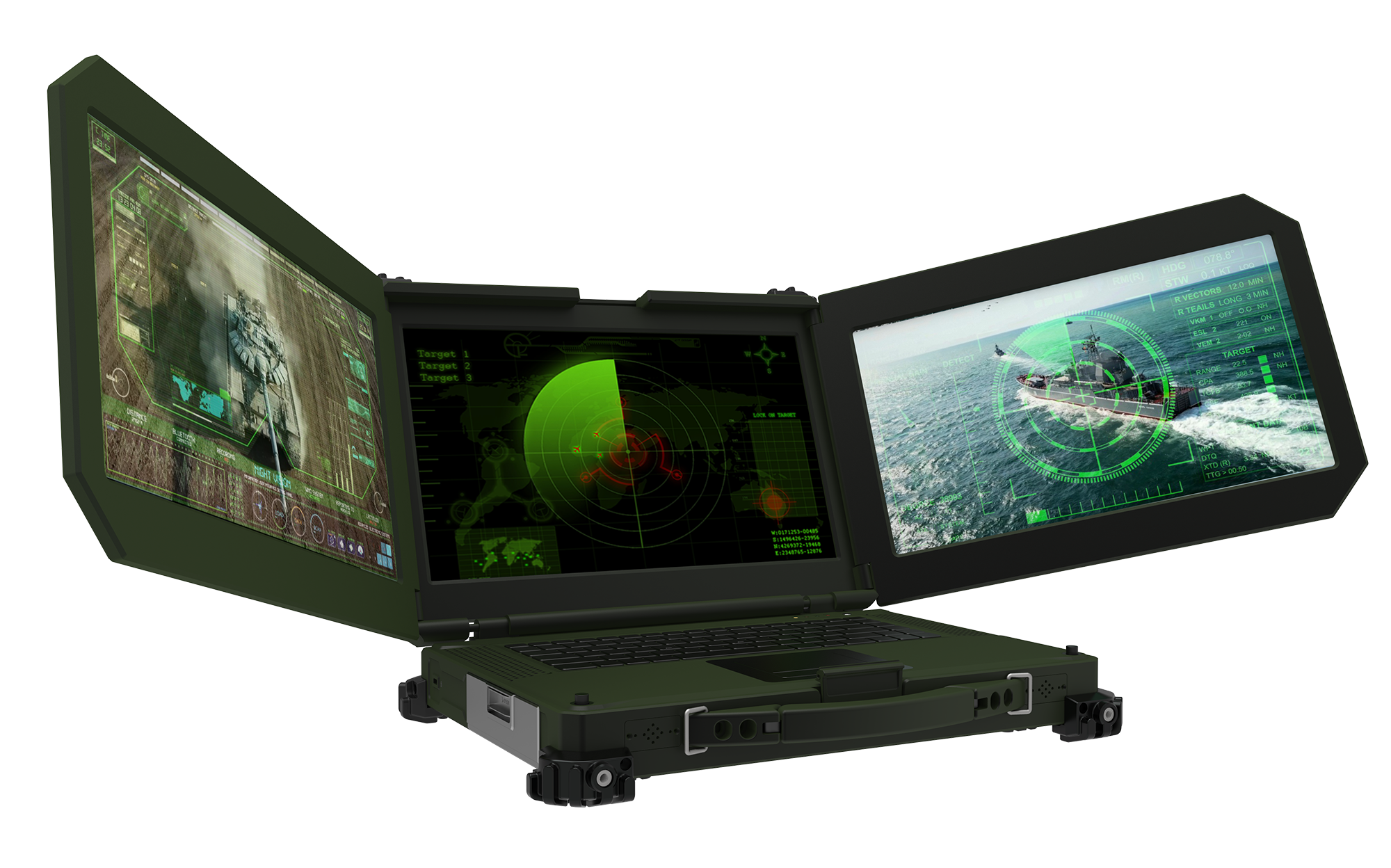

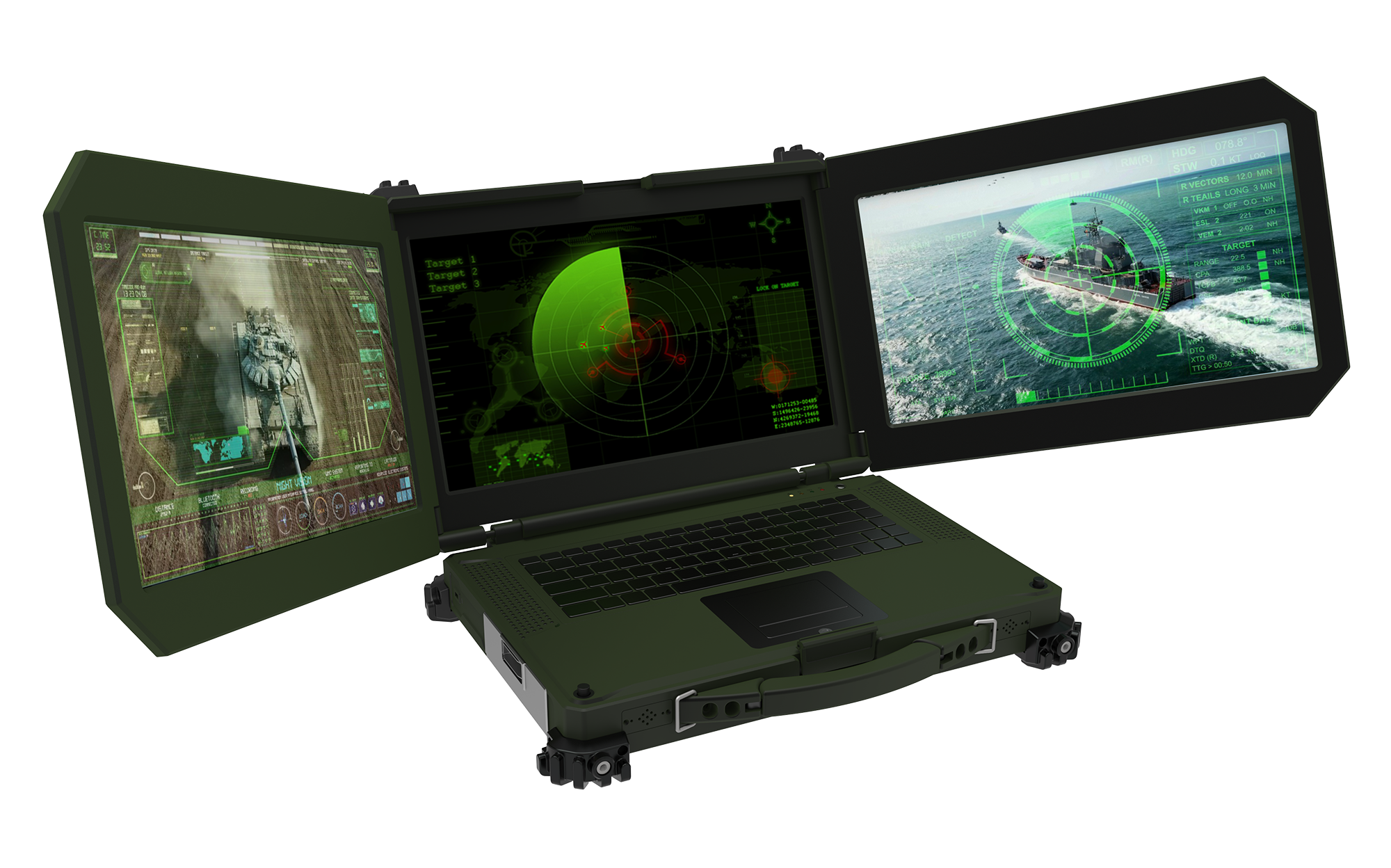

Triple Display Military GPU Laptop
- Intel® 14th Gen Core™ i7 Processor
- NVIDIA MXM Blackwell 5000 Pro GPU
- 3 x 15.6" (1920x1080) TFT-LCD
- Sunlight Readable 1000 Nits
- IP65 Rated Triple Display
- 2 x 3G-SDI Port (optional)
- 2 x 10G Fiber Port (optional)
- Swappable NVMe M.2 Storage (optional)
- MIL-STD-810 for Extreme Temperatures, Shock and Vibration
- Technical Profile
- Specifications

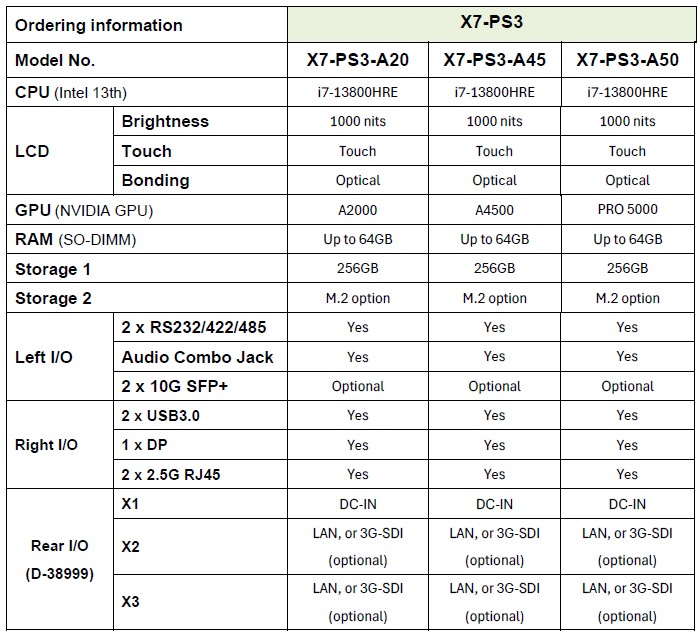

- Order Information

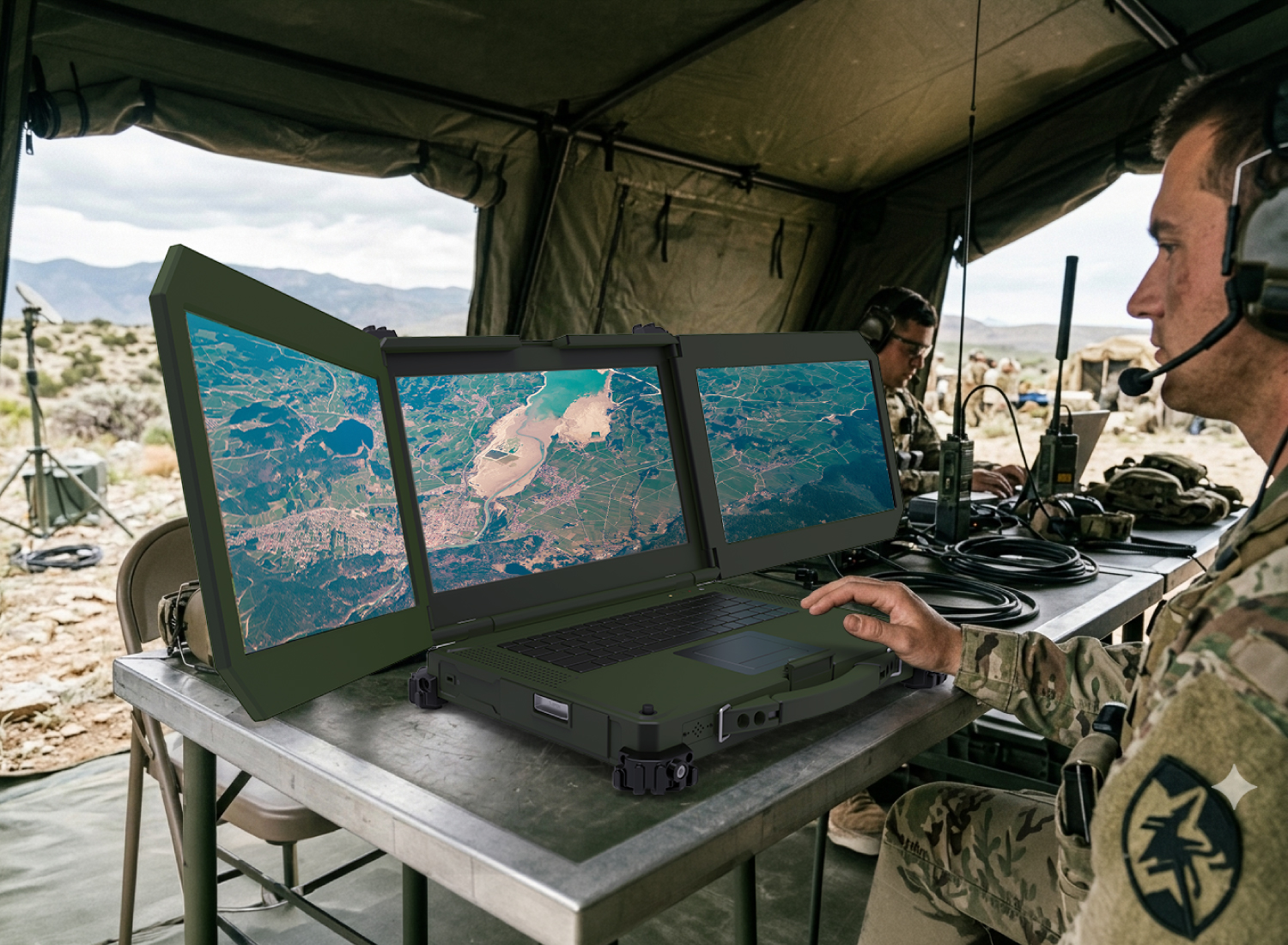

- Mission-Ready, Triple Display for Real-Time Intelligence and Control
-
The 15.6” Triple-Display Military Laptop X7-PS3 delivers enhanced situational awareness and high-performance computing for mission-critical environments. Powered by Intel® 14 th Gen Core™ i7 processors and configurable with NVIDIA RTX PRO 5000 Blackwell GPU, the system enables AI edge processing, real-time analytics, and multi-stream visualization.
Featuring three 15.6” sunlight-readable multi-touch displays, the system supports simultaneous monitoring of maps, sensor data, and live video, improving operational efficiency and decision-making.
With optional dual 3G-SDI input, it enables stable, low-latency video ingestion from cameras and UAV systems. Combined with swappable NVMe storage, it ensures fast data access and flexible deployment.
Built with an IP65-rated rugged design, the X7-PS3 withstands shock, vibration, and extreme temperatures, making it a reliable portable multi-display command platform for modern tactical operations.

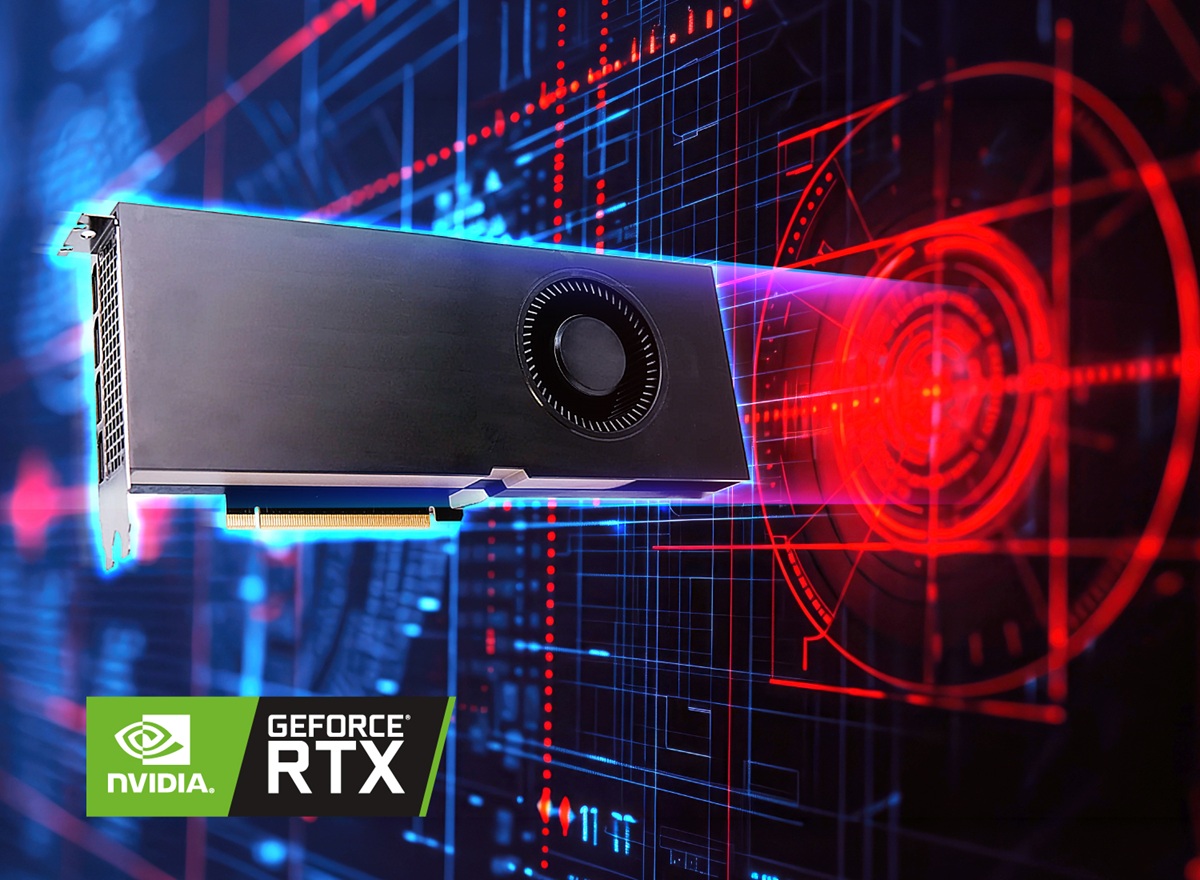

- Accelerated AI and Graphics Computing at the Tactical Edge
-
Equipped with NVIDIA RTX Blackwell 5000 GPU (14,080 CUDA Core, 2,064 AI TOPS, 1,344 GB/s, PCIe 5.0 x16), the ruggedized military laptop delivers exceptional graphics and compute performance for demanding defense applications. Built on NVIDIA’s Blackwell architecture with up to14,080 CUDA cores, it provides high compute density and efficient power management, enabling real-time execution of deep-learning models used for UAV detection, classification, and tracking such as radar signal processing and sensor-fusion algorithms, without reliance on cloud connectivity. When combined with the triple-display configuration, operators can simultaneously visualize AI analytics, sensor feeds, and command-and-control interfaces, maximizing situational awareness and accelerating decision-making in time-critical operations.
- Dual 3G-SDI Connectivity for Tactical Systems Integration
-
Supporting two 3G-SDI ports, the X7-PS3 military laptop delivers low-latency, uncompressed video with high signal integrity, enabling reliable real-time ISR, targeting, and command-and-control operations. Its deterministic performance ensures predictable timing and bandwidth for synchronized, mission-critical tasks, while the physical, closed-link SDI architecture enhances security by reducing exposure to cyber threats compared to IP-based video solutions
- MIL-STD-810 Rugged Design
-
Designed to meet MIL-STD-810 requirements and IP65 waterproof standards, the X7-PS3 military laptop delivers reliable performance under shock, vibration, temperature extremes. Reinforced mechanical structures, ruggedized components, and validated environmental testing ensure consistent performance during transport, mobile operations, and harsh mission conditions. This rugged design minimizes system downtime and supports continuous operation in demanding field deployments.
|
System |
|
|---|---|
|
CPU |
Intel® i7-13800HRE, i5-13600HRE |
|
Memory |
2 x DDR5 SO-DIMM, up to 64GB |
|
GPU |
NVIDIA® MXM PRO 5000 Blackwell (14,080 CUDA Core, 2,064 AI TOPS, 1,344 GB/s, PCIe 5.0 x16) |
|
Display |
|
|
Display |
Triple 15.6" TFT LCD FHD (1920 x 1080) 1,000 Nits Brightness Display Sunlight readable, P-capacitive multi-touch screen |
|
Operating System |
|
|
OS Support |
Windows 10 pro Windows 11 Pro |
|
Storage |
|
|
Storage |
2 x NVMe M.2 storage (PCIe x4) |
|
Ethernet |
|
|
Ethernet |
2 x 2.5 Gigabit |
|
Back I/O (Rugged Connector DTL-38999) |
|
| X1 | DC-IN |
| X2 | LAN, or 3G-SDI (optional) |
| X3 | LAN, or 3G-SDI (optional) |
|
Left I/O |
|
|
Left I/O |
2 x RS232/ 422/ 485 1 x Audio Combo Jack 2 x 10G SFP+ (optional) |
|
RIGHT I/O |
|
|
Right I/O |
2 x USB 3.0 1 x DP 2 x 2.5GbE RJ45 |
|
Camera |
|
|
Camera |
1 x 5M webcam (optional) |
|
Wireless |
|
|
Wi-Fi |
Intel® Wi-Fi 6E AX210 WLAN 802.11 a/b/g/n/ac/ax (optional) |
|
Bluetooth |
Bluetooth 5.3 Ublox M9N GPS/GLONASS/BeiDou/ Galileo (optional) |
|
Keyboard |
|
|
Keyboard |
83-key with backlight |
|
Rugged Feature |
|
|
Rugged Feature |
IP65, Aluminum-Magnesium Alloy Case |
|
Environment |
|
|
Operating Temp. |
-20°C to +50°C |
|
Storage Temp. |
-40°C to +71°C |
|
Accessories |
|
|
Accessories |
AC adapter: 230W 100-240VAC, 50/60Hz MIL-STD-461 AC adapter (230W, 100-240VAC) |
|
MIL-STD-810 Environment Testing Standards |
|
|
Method 501, Operational Temperature, high |
Procedure II: +50°C, two-hour dwell, four cycles |
|
Method 501, Storage Temperature, high |
Procedure I: +75°C, two-hour dwell, four cycles |
|
Method 502, Operational Temperature, low |
Procedure II: -20°C, two-hour dwell, four cycles |
|
Method 502, Storage Temperature, low |
Procedure I: -40°C, two-hour dwell, four cycles |
|
Method 514, Vibration |
Category 24/Non-Operating (Category 20 & 24, Vibration) |
|
Method 514, Vibration |
Category 20/Operating (Category 20 & 24, Vibration) |
|
Method 516, Shock |
Procedure V Non-Operating (Mechanical Shock) |
|
Method 516, Shock |
Procedure I Operating (Mechanical Shock) |
|
Method 507, Humidity |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30°C to 60 °C with conformal coating (optional) |
|
Method 500, Altitude (Low Pressure) |
15,000 feet transport, -200÷2500[m] ground operation and exposed to +55°C and -20°C operation (optional) |
|
Method 510, Sand-Dust |
Procedure I: Blasting dust, 12 hours (optional) |
