7STARLAKE Launches 1U Rugged Xeon 6 Short-Depth Servers for Radar Processing and Precision Timing

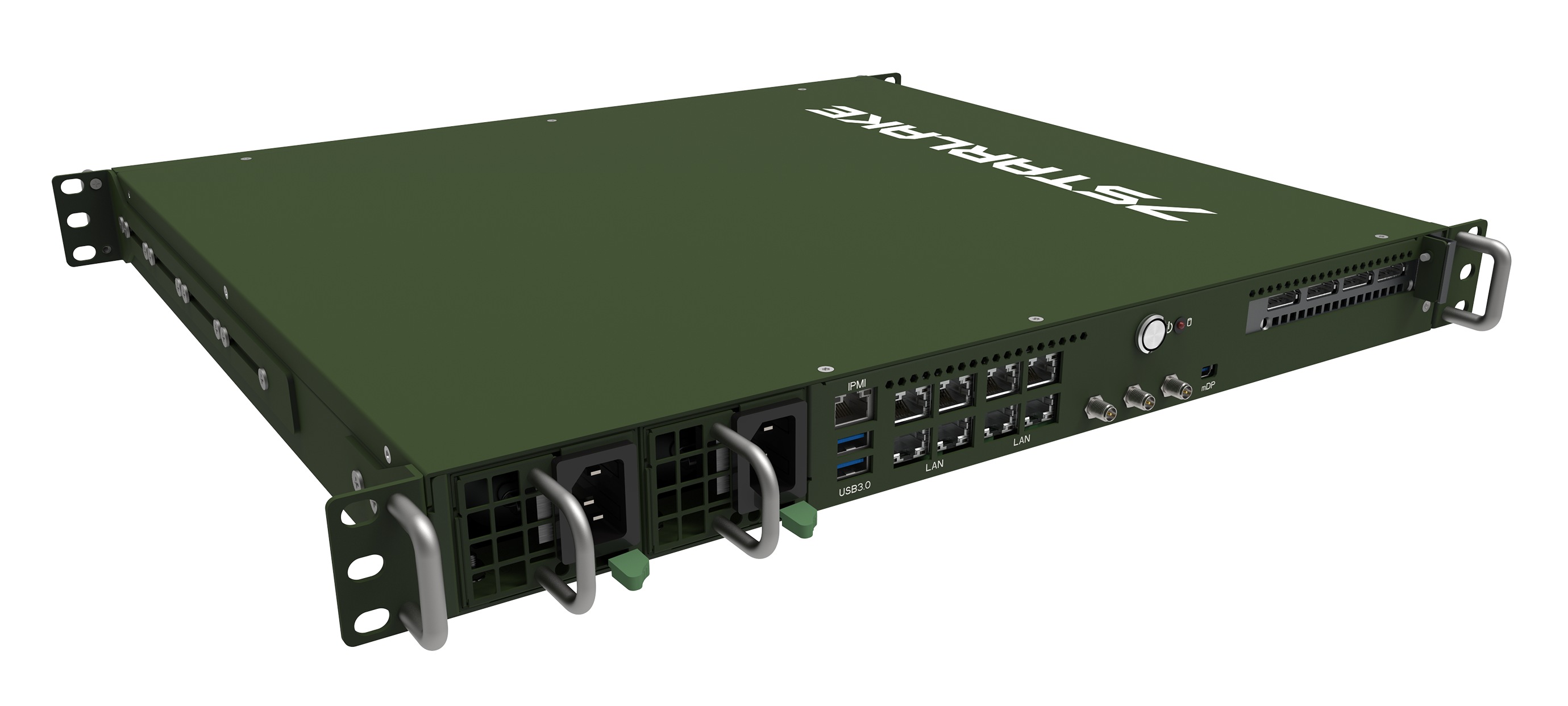

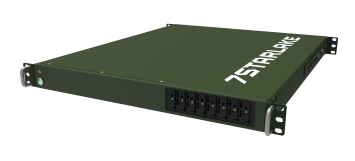

7STARLAKE, a leading provider of rugged military and defense-grade computing solutions, has unveiled its new THOR11-H6 and THOR11-X6 1U short-depth servers powered by Intel® Xeon® D-6 Granite Rapids SoCs. Purpose-built for demanding 5G networks, radar signal processing, and time-sensitive defense applications, these compact servers are optimized for deployment across military aircraft, ground vehicles, and shipboard environments.
High-Density Intel® Xeon® D-6 Granite Rapids SoCs
Powered by Intel® Xeon® D 6556P-B or 6726P-B SoCs, these short-depth servers deliver exceptional compute density and reliability at the tactical edge. Integrating up to 42 high-performance cores, 84 threads, advanced I/O, and built-in accelerators, this high-density architecture enables AI workloads, virtualized RAN (vRAN), media processing and network security, meeting the demand for defense networking and edge computing.
Ultra Low Latency and High-Bandwidth Performance
Supporting up to 512GB of high-speed DDR5 memory, 8TB SSD storage, and MCIO Gen 5.0 x8 connectivity, the THOR11-H6 and THOR11-X6 enable rapid data ingestion, deterministic processing, and high-throughput data transfer in a compact, power-efficient 1U short-depth form factor. For networking, these servers support up to eight SFP28 25GbE ports or dual QSFP28 100GbE interfaces, enabling high-bandwidth, low-latency connectivity for modern defense and communications infrastructures. To maintain reliability, a redundant 860W power supply ensures continuous operation and mission readiness in critical environments.
Precision Timing and GNSS Synchronization for Time-Sensitive Missions

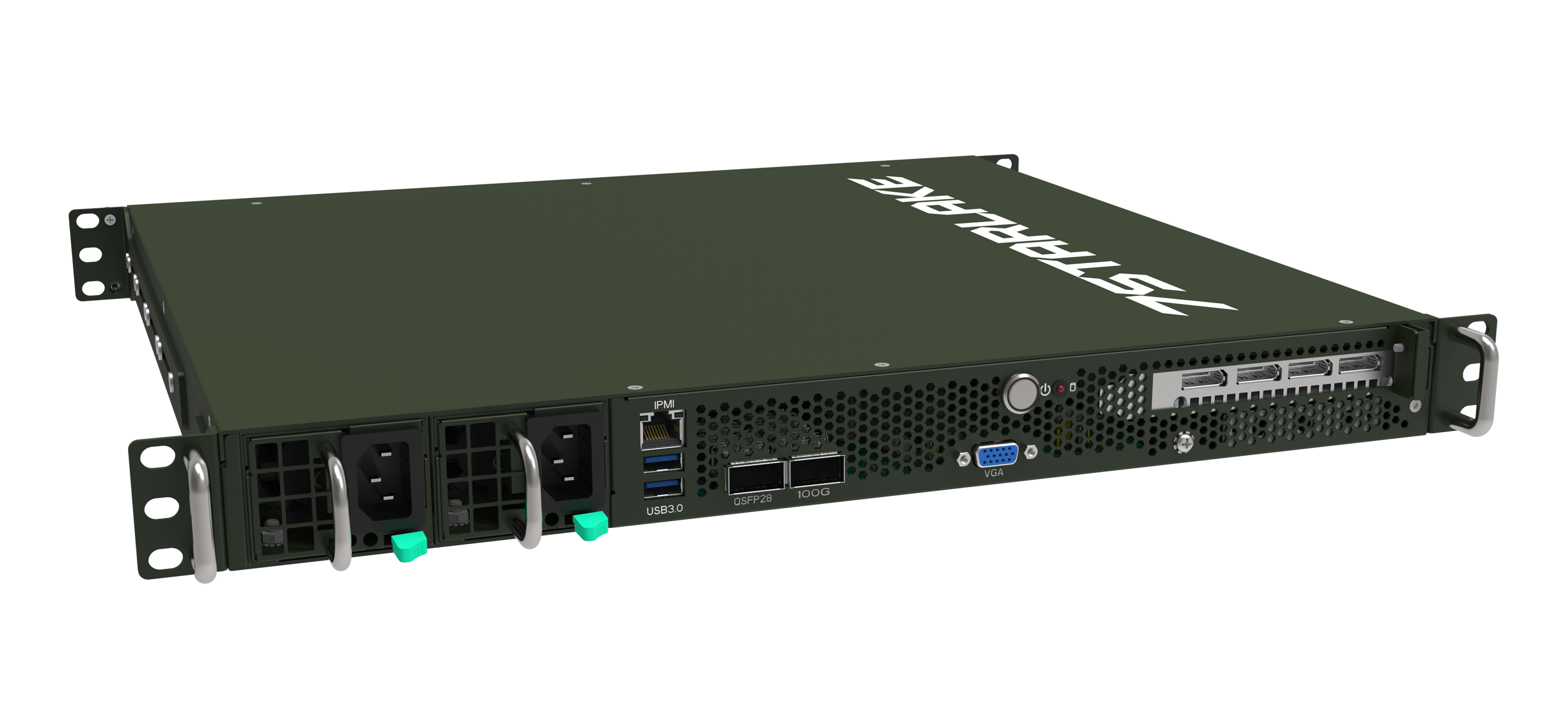

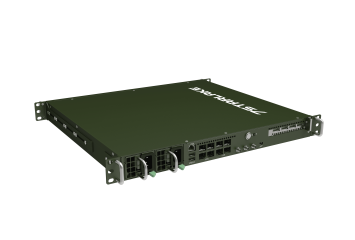

The THOR11-H6 further distinguishes itself with integrated high-precision timing capabilities. It features three dedicated SMA connectors, including one PPS input, one PPS output, and one GNSS port. This configuration allows the system to function as a timing master or as a GNSS-disciplined standalone time source, making it ideal for radar, electronic warfare, and other time-sensitive defense applications. Engineered to operate reliably in harsh conditions, the THOR11-H6 and THOR11-X6 support a wide operating temperature range from -40°C to +60°C, ensuring stable performance in airborne, vehicular, and maritime deployments where environmental resilience is critical.
| THOR11-H6 | THOR11-X6 | |
 |  | |
| Processor | Intel® Xeon® 6 SoC 6556P-B, 36 Core, TDP 215W | Intel® Xeon® 6 SoC 6726P-B, 42 Cores, TDP 235W |
| IPMI | ASPEED AST2600 | ASPEED AST2600 |
| GPU | SoC | NVIDIA Ada Lovelace L4 |
| Memory | Up to 512GB RDIMM, 4CH DDR5 4800/6400 MH | Up to 512GB RDIMM, 4CH DDR5 4800/6400 MH |
| HDD/SSD | 1 x MCIO, Gen5 x8 connector slot | 2 x MCIO, Gen5 x8 connector slot |
| Ethernet | 8 x 25GbE SFP28 (SoC) + IPMI shared LAN 1 x GbE RJ45 | 2 x 100GbE QSFP28 (SoC) + IPMI shared LAN 1x GbE RJ45 |
| MCIO | 1 x PCIe 5.0 x8 via MCIO connector slot | 2 x PCIe 5.0 x8 via MCIO connector slot |
| Dimensions | 410 x 400 x 44 mm | 410 x 400 x 44 mm |
| Switch | 1 x Power On switch | 1 x Power On switch |
| Antenna | 3 x SMA: 1 x PPS input, 1 x PPS output, 1 x GNSS port | N/A |
| Power | 100~264 VAC 860W Redundancy PSU | 100~264 VAC 860W Redundancy PSU |
| Operating Temp. | -40°C to +60°C | 0°C to +60°C |
