PCIe104-MH
PCIe/104 Processing Unit Intel 14th Meteor Lake (H)
- PCIe/104 Express Type2 Slot for Open Modular Architecture
- Standard MXM Type 3.1 Support NVIDIA QUADRO® GPU
- NVIDIA® MXM RTX 5000 Ada
(115W, 16GB GDDR6, 9,728 CUDA Cores) - Intel® 14th Meteor Lake-H Core-I Processor
(16C, 22T 2.5/5.0 GHz, 24MB, 45W) - Multi-Expansions include Dual Mini PCIe Express Slots
- GPU can be targeted for 4 Mini Display port outputs
- Extreme Temperature Support -40°C to 85°C (Options)
-
- Technical Profile
- Specifications

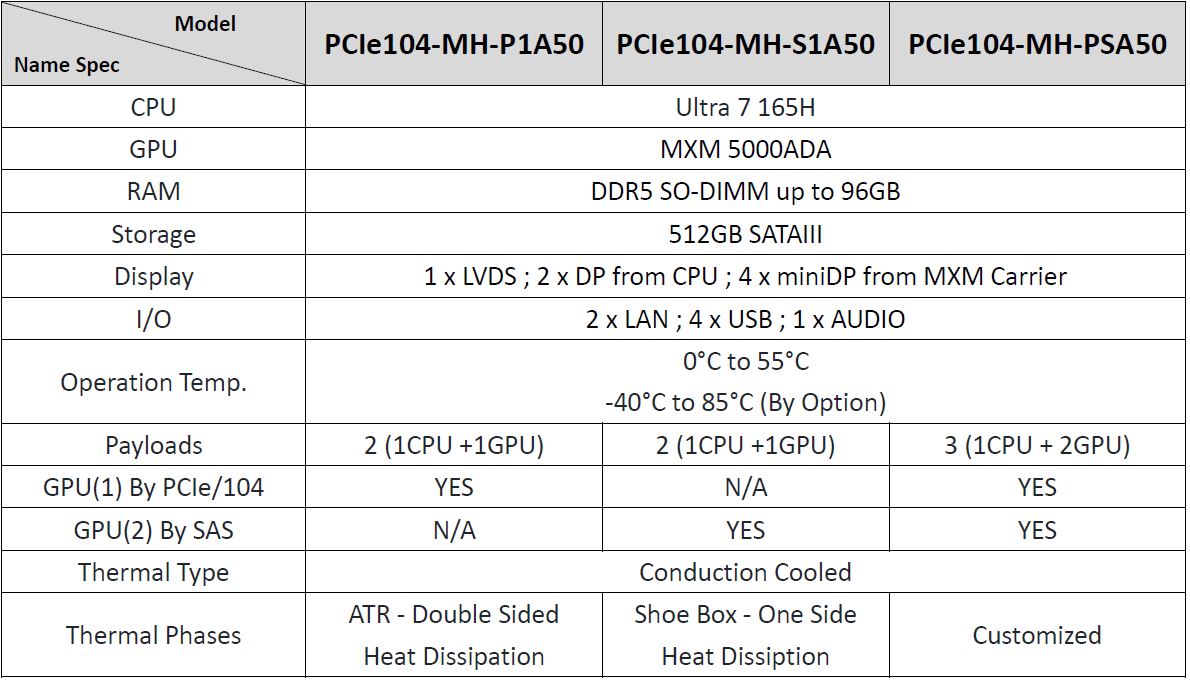

- Order Information
- What is PCIe/104?
-
PCIe/104 is an optimum Small Form Factor solution with stackable and interchangeable embedded computing standard. Designed to be rugged, PCIe/104 stack can be assembled CPU, GPU, Supply and Peripheral Modules into a singular and extremely compact unit. With the unique Open Scalable Modular Architecture, PCIe/104 solution creates the opportunity to reducing time-to-market and minimizes development costs, and it is born to address the SWaP restriction especially for defense, AI-enabled and mission-critical industry.
The heart of PCIe/104 architecture is its stacked-board technique. With standardize and stackable PCIe/104 connectors, multiple modules can be plugged and stacked into a block unit. From common need like CPU, GPU and CAN to more customer-designed expansion like frame grabber and 10 GbE Fiber, PCIe/104 solution creates a simplified but diverse embedded system that can achieve every designer’s unique project requirements.
- Block Diagram
PCIe104-MH Kits Stack concept
- Carrier Board Appearance
|
System |
||
|---|---|---|
|
CPU Options |
Intel® Core™ Ultra 7 165H, 28W(Turbo power limit 115W), Meteor Lake-H 14th Gen, 16C(6P+10E) , Freq. 2.5 /5.0 GHz, 24MB cache Intel® Core™ Ultra 7 155H, 28W(Turbo power limit 115W), Meteor Lake-H 14th Gen, 16C(6P+10E) , Freq. 2.5 /4.8 GHz, 24MB cache |
|
| GPU Options |
NVIDIA® RTX 2000 Ada, 56.5W, 8GB GDDR6, 3,072 CUDA Cores NVIDIA® RTX 3500 Ada, 110W, 12GB GDDR6, 5,120 CUDA Cores NVIDIA® RTX 5000 Ada, 115W, 16GB GDDR6, 9,728 CUDA Cores |
|
|
Memory |
DDR5 5600MHz SO-DIMM up to 64GB |
|
|
MXM Carrier |
SK231 |
|
|
Expansion |
||
| MiniPCIe Expansion |
1x mini-PCIe 1 1x min-PCIe 2 |
|
|
PCIe/104 Expansion(Type2) |
2x PCIe x4 ; 4x PCIe x1 ; 2x USB2.0 |
|
| M.2 | 1x M.2 2280, PCIe x4 | |
| SlimSAS | 1x SlimSAS 8i Connector | |
Storage |
||
| SATAIII | 1x SATAIII | |
|
Display |
||
| Mini DP | 4x Mini Display Port outputs from GPU | |
| VGA |
1x from GPU/SK231(option) |
|
| LVDS | 1x Dual channel 18/24bit LVDS | |
|
Ethernet |
||
|
Gigabit Ethernet |
2x 10/100/1000/2.5G Ethernet Ports |
|
|
I/O |
||
|
USB |
2x USB3.0 |
|
| 2x USB2.0 | ||
|
COM port |
2x RS232/422/485 |
|
| DIO | 4x DI / 4x DO | |
| eSPI | 1x 10Pin | |
|
Audio |
1x Line-out, 1x Mic-In |
|
|
Power System |
||
|
Input Power |
9V~36V DC-IN 12V DC-IN for CPU FAN |
|
| Input Power by MXM Carrier Board | 12V DC-IN for GPU FAN | |
|
Mechanical and Environment |
||
|
Dimensions |
146 mm x 110 mm |
|
|
Operating Temperature |
0°C to 55°C -40°C to 85°C (By Option) |
|
|
Storage Temperature |
-40°C to 85°C |
|
| Relative Humidity | 10% to 90%, non-condensing | |
|
Standard Compliance |
||
|
Standard Compliance |
CE/FCC |
|
| OS | ||
| OS Support |
Windows® 10/11 64bit Linux(Support by request) |
|
