AV1000-10L-60A
Intel® Xeon® 6th IP65 Rugged Liquid Cooled GPU Server
- Conduction Liquid Cooled Rugged Platform
- Thermal Dissipation Coefficient: 10KW
- Liquid Cooled Platform: Gun Drilled -10 x 500 x 10 mm Pass (W x L x H)
- CPU: 6th Xeon® Granite Rapids SP Processor
- GPU: 1/2x NVIDIA RTX 6000Ada 48GB GDDR6, 18,176 CUDA Cores
- DDR5-4400MHz, up to 2TB
- 12V~60V Wide Range DC Input
- Storage: 1 x M.2 NVMe 4TB SSD
- Storage: 4 x NVMe SSD, up to 64TB (optional)
- Dimensions: 440 x 500 x 100 mm (W x D x H)
- Technical Profile
- Specifications
- Order Information
- Download
- Introduction
-
Powered by the Intel® Xeon® 6th Gen Granite Rapids processor, the AV1000-10L-60A is a rugged, IP65-rated liquid-cooled GPU server designed for extreme edge AI workloads in harsh environments. With support for up to two NVIDIA RTX 6000 Ada GPUs (offering 48GB GDDR6 memory and over 18,000 CUDA cores), it delivers unmatched parallel computing power. Its advanced gun-drilled conduction liquid cooling system handles thermal loads up to 10kW, ensuring stable performance even under full load. The system supports up to 2TB of high-speed DDR5 memory, making it ideal for real-time processing in defense, aerospace, and field-deployed AI applications.
Designed for mission-critical deployments, the AV1000-10L-60A offers flexible 12V~60V DC input, making it suitable for both vehicle and stationary platforms. It features ultra-fast storage with a 4TB M.2 NVMe SSD and support for up to 64TB of additional NVMe storage. With its SWaP-C compact rugged form factor, wide thermal tolerance, and GPU-accelerated compute capabilities, the AV1000-10L-60A is built for AI inference, video analytics, and data-heavy edge applications in the toughest environments.

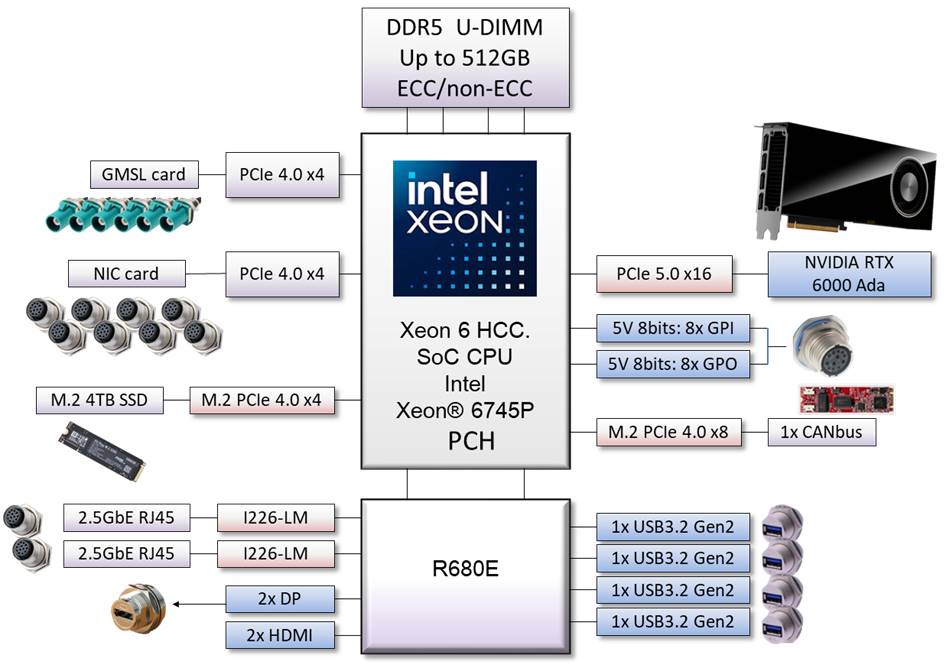

- System Block Diagram

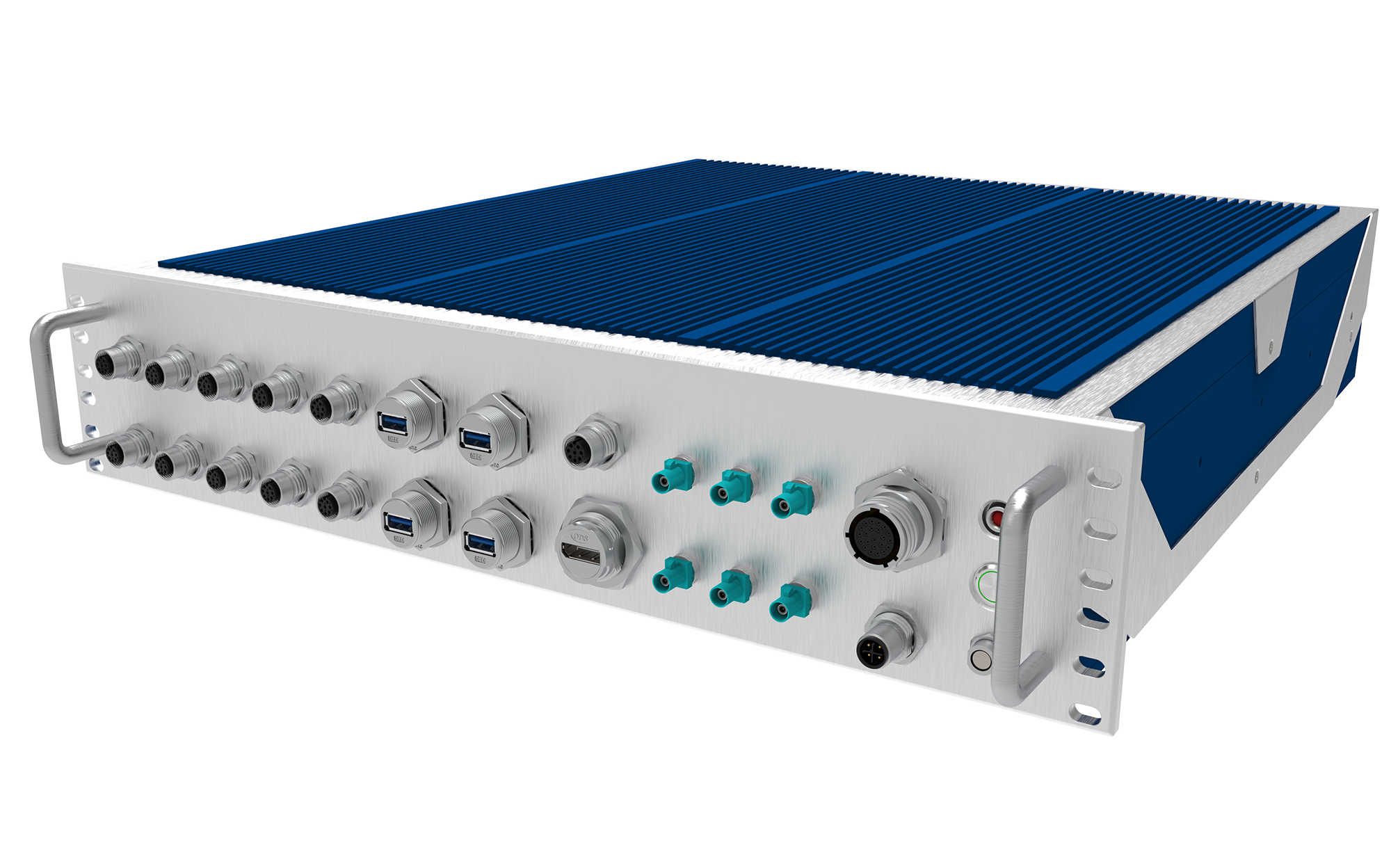

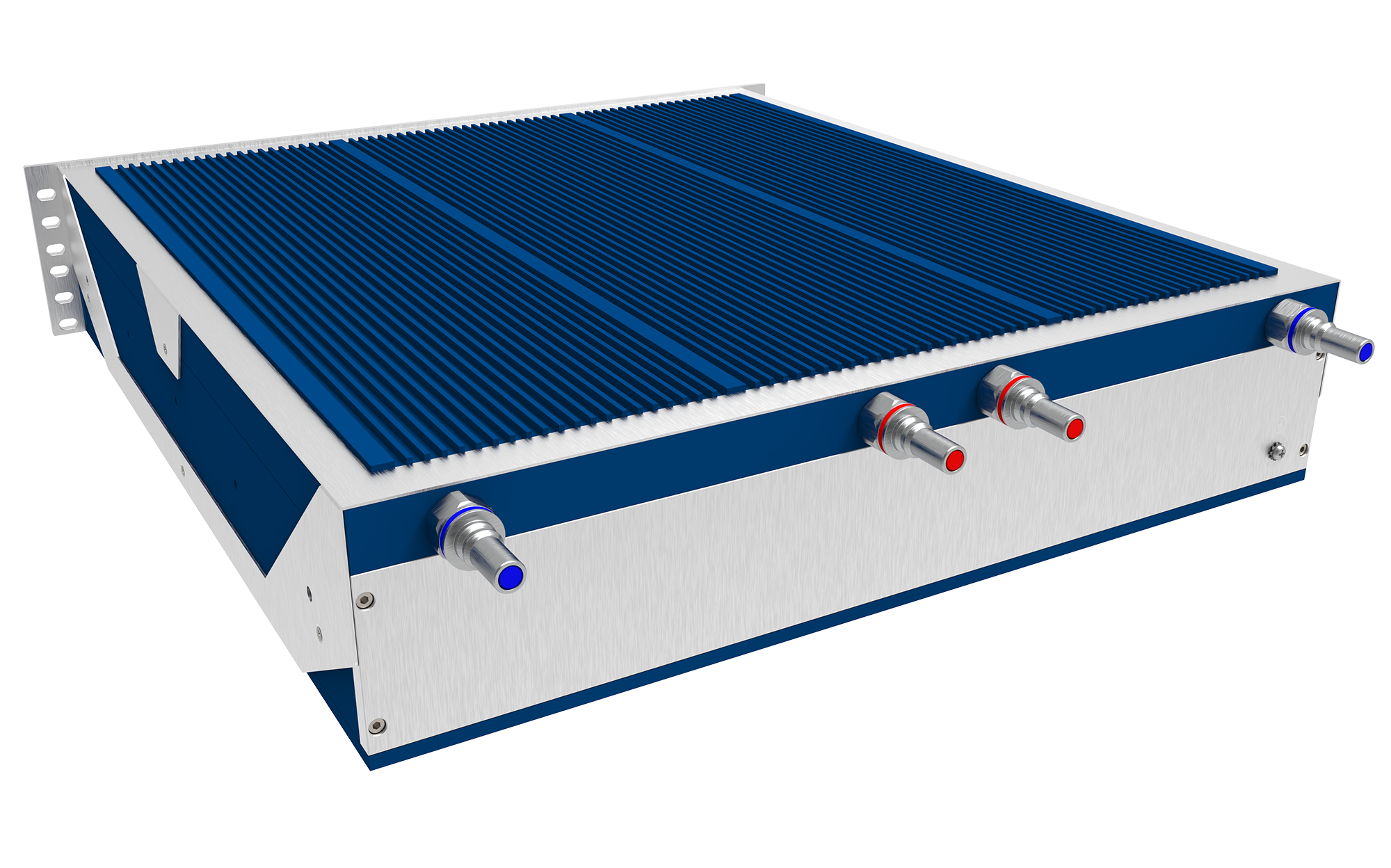

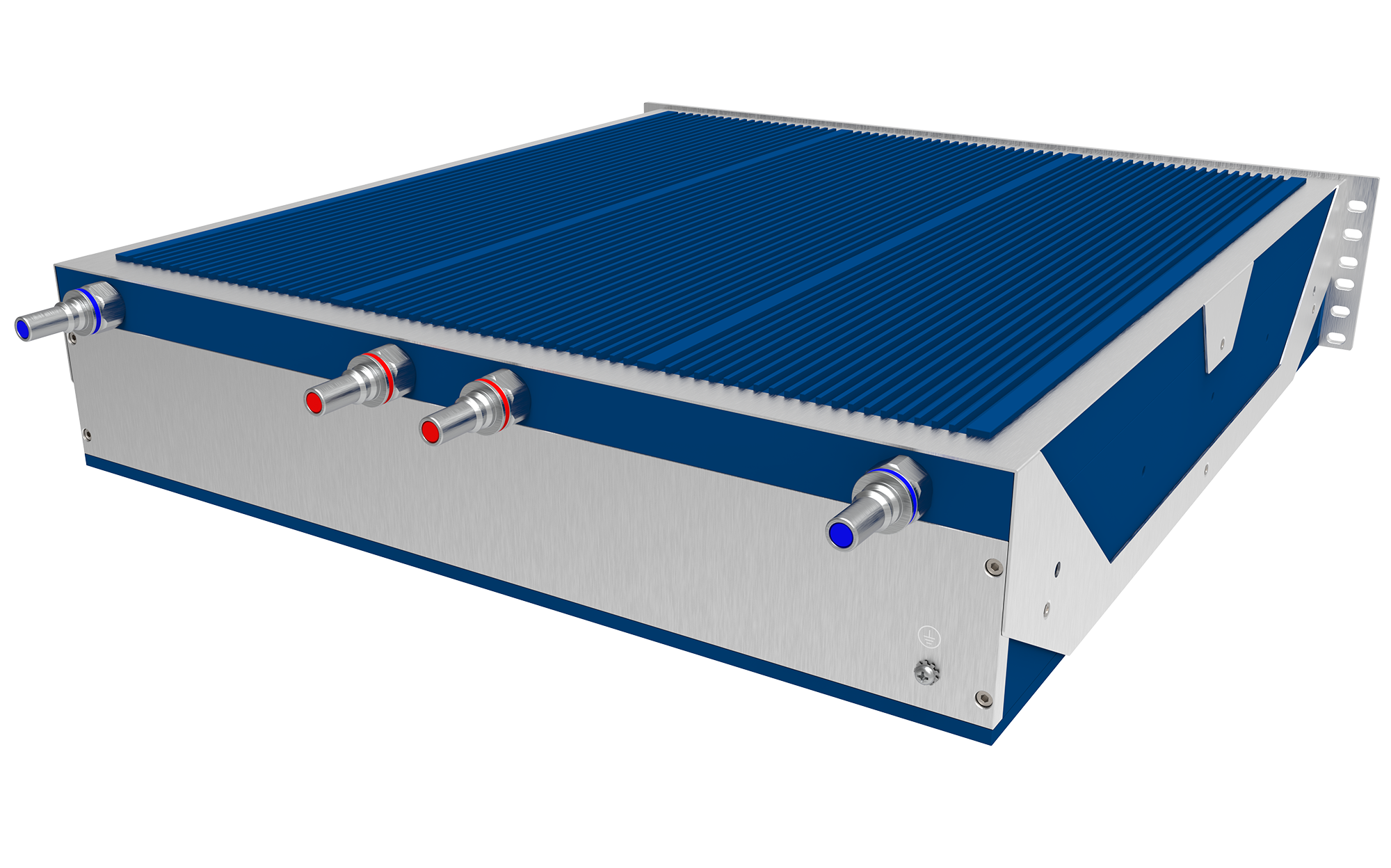

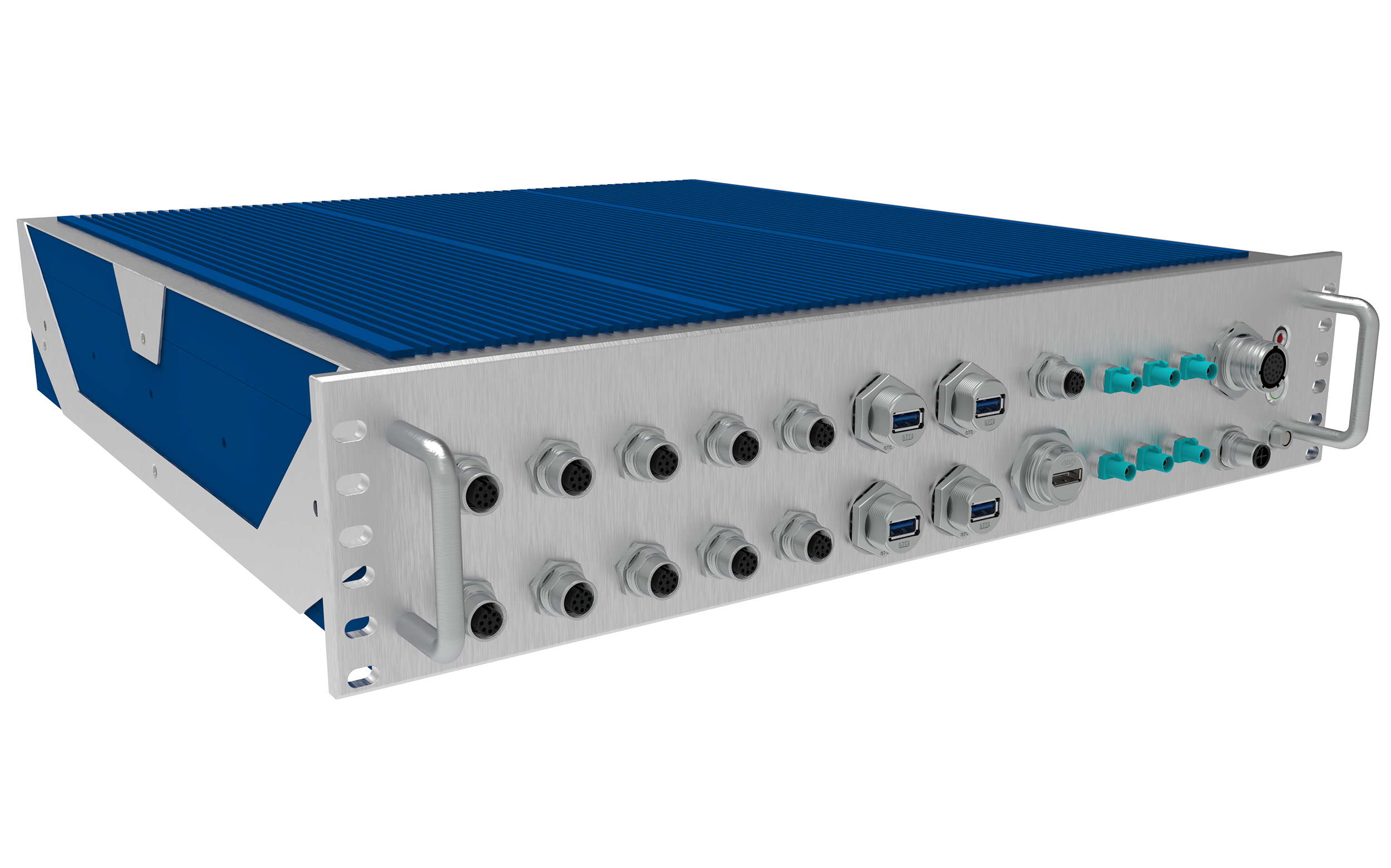

- Appearance
| System | |
|---|---|
| CPU | Intel® i7-13700TE processor (Raptor Lake), 16C/24T, TDP 35W or Intel® Xeonl® 6 Granite Rapids Processor, 32C/64T, TDP 250W |
| Memory type | 4 x DDR5-4400/5600 MT/s ECC/non-ECC UDIMM, up to 128GB |
| GPU | 1/2x NVIDIA® RTX 6000 Ada, 48GB, 18,176 CUDA, Max. 300/600W |
| Storage | |
| M.2 | 1 x M.2 2280 NVMe 4TB SSD |
| NVMe (options) | 4 x NVMe 16TB SSD |

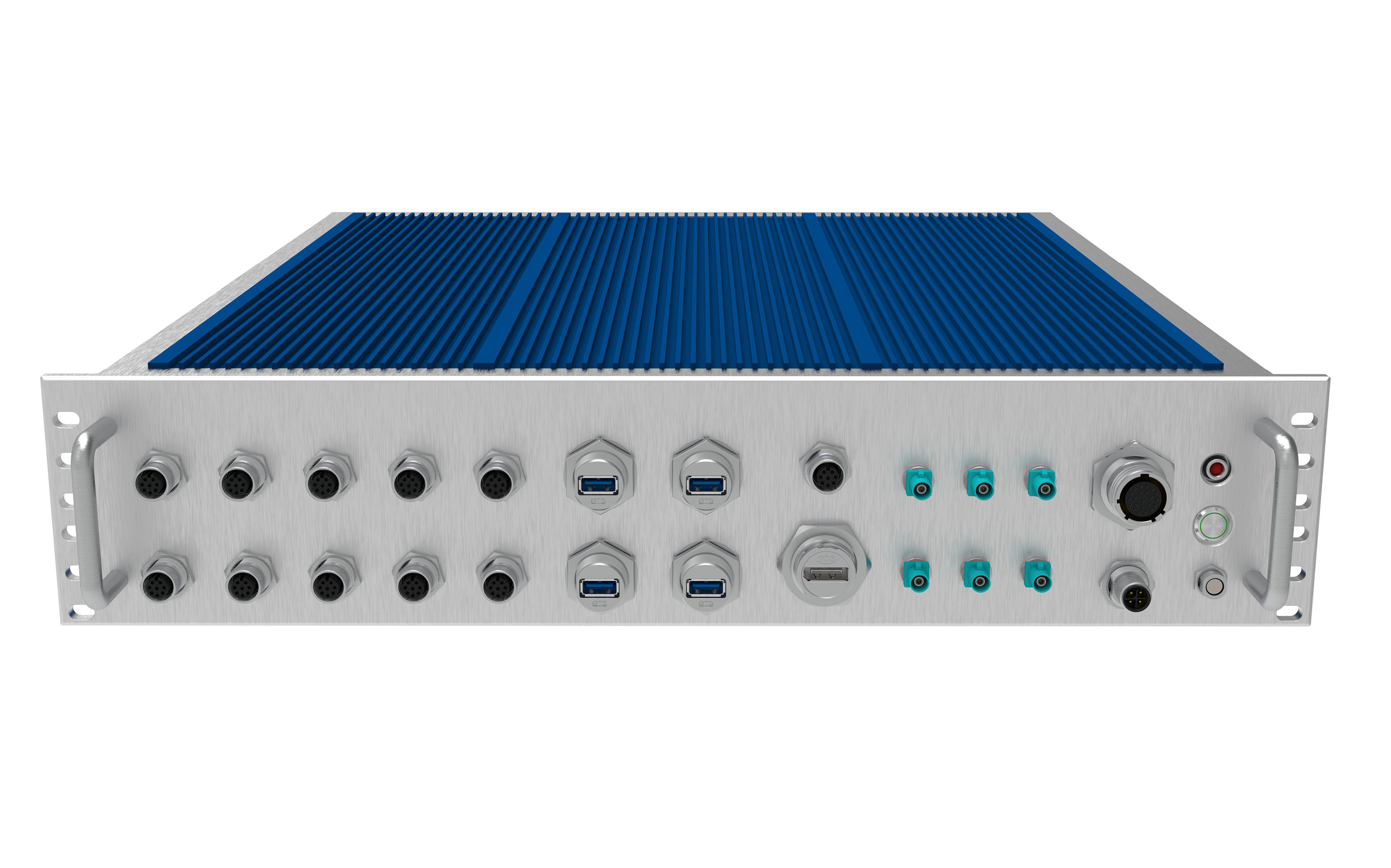

| Front I/O (M8/M12/M20/D38999) | |
| X1-X10 | 10 x 1GbE LAN with M12 connector |
| X11-X14 | 4 x USB3.0 with M20 connector |
| X15 | 1 x CAN bus with M12 connector |
| X16 | 1 x DP with M20 connector |
| X17-X22 | 6 x GMSL with FAKRA(Z code) connector |
| X23 | GPIO 8in/8out with D38999 connector |
| DC-IN | 1 x 12V~63V DC with M12 connector |
| Power button | 1 x IP67 power button |
| RES | 1 x Remote Switch with M8 connector |
| Rear I/O | |
| GND | 1 x GND screw |

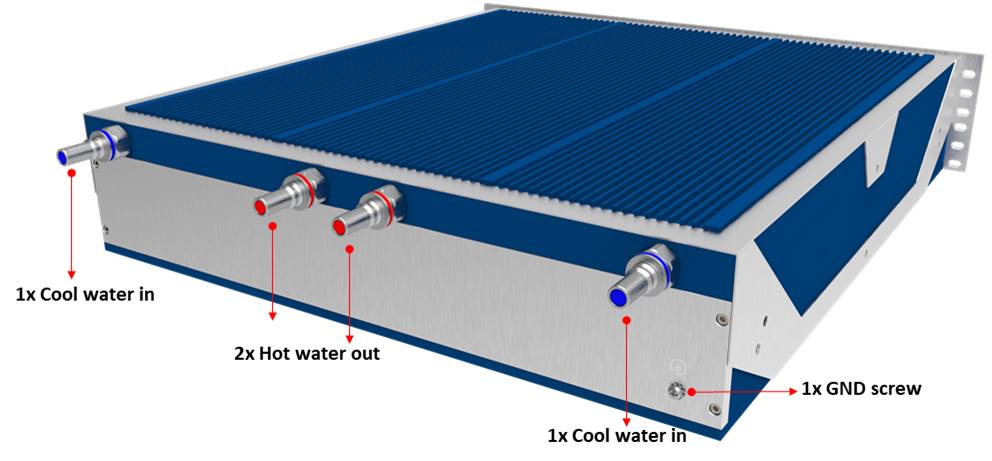

| Water in | 2 x LQ4 with 1/4" G-thread/BSPP, Blue color |
| Water out | 2 x LQ4 with 1/4" G-thread/BSPP, Red color |
| OS support list | |
| OS | X86_64 Architecture, Ubuntu 20.04/22.04 |
| Thermal | |
| Liquid Cooled | Liquid Cooled Plate by Liquid-to-Liquid thermal exchange |
| Mechanical | |
| Power Requirement | 12V~63V DC-IN |
| Dimensions | 450 x 500 x 100 mm (W x D x H) excluding shock isolation plate |
| Weight | 21 kg |
AV1000-10L-60A
Liquid Cooled GPU server System, with Intel® i7-13700TE Processor, 1x NVIDIA RTX 6000 Ada GPU, 10x 1GbE LAN ports , 6x GMSL ports, IP54 rating, IEC metric screw sized connectors- M8/M12/M20 & MIL-STD-D38999 Connectors, 12V~63V DC-IN.
AV1000-X6S
Liquid Cooled GPU server System, with Single Intel® Xeon 6 Processor, 1x NVIDIA RTX 6000 Ada GPU, 10x 1GbE LAN ports , 6x GMSL ports, IP54 rating, IEC metric screw sized connectors- M8/M12/M20 & MIL-STD-D38999 Connectors, 12V~63V DC-IN.
AV1000-X6D
Liquid Cooled GPU server System, with Dual Intel® Xeon 6 Processors,2x NVIDIA RTX 6000 Ada GPU, 10x 1GbE LAN ports , 6x GMSL ports, IP54 rating, IEC metric screw sized connectors- M8/M12/M20 & MIL-STD-D38999 Connectors, 100V~240V AC-IN.
| Attachment | Size |
|---|---|
| AV1000-10L-60A Inside Inspection Report.pdf (1.15 MB) | 1.15 MB |
