THOR11-D27-HSC
Military Virtualization Super Computer Server
- Intel® Xeon® ICELAKE-D HCC D-2796NT, 20Cores 2.0 GHz Processor
- 128GB RDIMM ECC
- 1TB/8TB SSD Storage
- 1 PCIe 4.0 x16 FHFL slot and 1 PCIe 4.0 x16 HHHL slot
- 100~264 VAC 800W Redundancy PSU
- Dual 25GbE SFP, Dual 10Gbase-T, Quad 1Gbase-T
Download
- Technical Profile
- Specifications
- Intel® Xeon® D-2700 processors
-
THOR11-D27 shipboard server packs high-performance multi-core processing into an ultra-low profile rack space. With 1 PCIe add-on expansion slot and NVidia MXM module the 1U server can support RAID, x16 graphics, or other technologies for specific workstation requirements. The THOR11-D27 shipboard server is the ideal powerhouse workstation for optimizing rack space and performance.
The Intel® Xeon® D-1700 and D-2700 processors with up to 20 cores, with Integrated AI acceleration, support for hard-real-time workloads, extreme temperature range and industrial use conditions.1 This makes them ideal for demanding applications in high-bandwidth video analytics, as well as manufacturing, aerospace, etc.
Intel® Xeon® D processors, enhanced for IoT, are a high-density platform that packs server-class computing and I/Os, plus accelerated AI, into compact BGA packages for soldered-down embedded and rugged designs.
Extended operating temperature ranges and industrial-class reliability make Intel® Xeon® D-1700 and D-2700 SoCs ideal for high-performance rugged equipment and sealed fanless devices that must run nonstop in the toughest environments.
- MAIN FEATURE
-
- 1U rack short depth server
- Lightweight, all aluminum enclosure
- 6 x front access Anti-Drop Storages Tray
- Support Intel® ICELAKE-D HCC Processor up to 20 Cores
- Up to 512GB LRDIMM/256GB RDIMM DDR4 3200MHz
- Support for 1 PCIe GEN4.0 x16 add-on slots
- Latest NVidia MXM RTXA2000 2560CUDA Module or PEG RTXA4000 6144CUDA
- Total 8 LANS support (2x25GbE SFP, 2X10GBase-T,4X1GBase-T)
- RAID configurable data storage
- MIL-STD-461 EMI 18-36V or IEC61000 AC100~240V PSU
- EMI Power filter
- MIL-STD Environment
-
- Operating Temperature High: 50°C, MIL-STD-810G, Method 501.5, Procedure I
- Operating Temp Low: 0°C, MIL-STD-810G, Method 502.5, Procedure I
- Non-Operating Temperature High: 70°C, MIL-STD-810G, Method 501.5, Procedure II
- Non-Operating Temperature Low: -40°C, MIL-STD-810G, Method 502.5, Procedure II
- Operating Altitude: Up to 15,000 ft., MIL-STD-810G, Method 500.5
- Non-Operating Altitude: Up to 45,000 ft., MIL-STD-810G, Method 500.5
- Humidity: MIL-STD-810G, Method 507.5, Procedure Ib (Natural Cycle B3)
- Shock: MIL-STD-810G, Method 516.6, 30 g’s, Saw-tooth, 11ms & MIL-DTL-901E, Grade A, Class II; Type B
- Vibration: MIL-STD-167, Type I, Deck Mounted Equipment
- EMI/EMC: MIL-STD-461F, RE101, RE102 (Shipboard Level 1), RS103, CE101, CE102, CS101, CS114, CS116
- Airborne Noise: MIL-STD-740-1 compliance: 43.7dBA (Idle), 52.5dBA (50%), 54.6dBA (80%).
- Appearance
System |
|
---|---|
CPU |
Intel ICELAKE-D HCC D-2796NT, 20Cores 2.0 GHz Processor up to 120W |
Memory type |
128GB DDR4 3200MHz RDIMM ECC |
Chipset |
SoC |
Storage |
|
SSD |
1 TB/8TB SATAIII SSD |
Expansion Slots |
|
PCIe Configuration | 1 PCIe 4.0 x16 FHFL slot and 1 PCIe 4.0 x16 HHHL slot |
Ethernet |
|
Ethernet |
Dual 25GbE SFP28 (SoC) Dual 10GBase-T (Intel X550-AT2) Quad 1GBase-T (Intel i350-AM4) |
RAID |
|
RAID |
Support RAID 0,1,5,10 |
OS |
|
OS |
Windows 10 64bit |
Power |
|
AC PSU | 2 x110/220V 500W Power Supply |
Dimension | 19" Rack mounting |
430 x 400 x 44 mm (W x D x H ) Under 400mm depth | |
Front I/O | |
Front Power Input Port | |
Weight | ≦ 12kg |

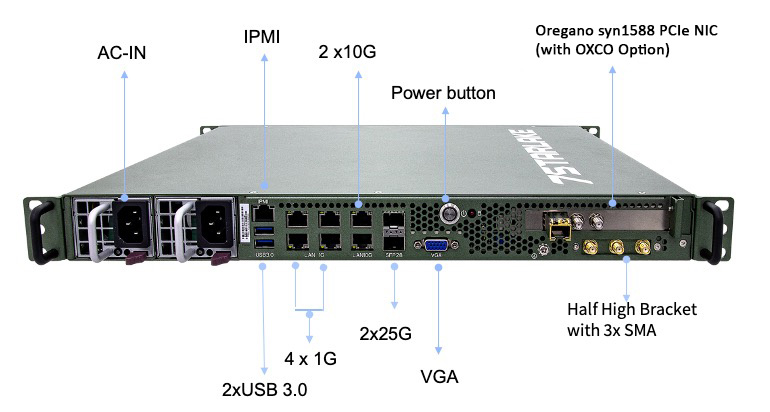

Front I/O | |
IPMI |
1x IPMI |
USB | 2x USB 3.0 |
LAN1, 2 | 2x 25GbE SFP28 |
LAN 3,4 | 2x 10G Base-T |
LAN 5,6,7,8 | 4x 1G Base-T |
Display | 1x VGA |
PCIe Slot | 1 PCEe 4.0 x16 FHFL slot and 1 PCIe 4.0 x16 HHHL slot |
LED | 1x HDD LED(Red) 1x Power on LED(Green) |
AC-IN | 2x Redundant PSU |
Environment | |
Operating Temp. | -32°C to 55°C |
Storage Temp. | -40°C to 71°C |
Relative Humidity | 5% to 95%, non-condensing |
RoHS | RoHS Compliant |
Vibration | MIL-STD-810G, Method 514.7 |
Shock | MIL-STD-810G, Method 516.7 |
