THOR200-DL
THOR200-DL
IP65 Xeon® SoC Radar GPU Server
- Data Acquisition Military AI Xeon® SoC GPU Server
- Intel® Xeon® D-1732TE (10C) Processor
- NVIDIA RTX A2000 (2,560 CUDA)
- Extreme Temperature: -40°C to +60°C
- Options for 4 x 3G-SDI Input
- Options for 2 x CAN Bus
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration: 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD: 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6: ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6: ◎Acceleration: 40G
- Technical Profile
- Specifications
- Order Information
- Introduction
-
The THOR200-DL is powered by the Intel® Xeon® D-1736NT processor, delivering exceptional CPU and graphics performance with up to 8 cores and 16 threads. Engineered for rugged, mission-critical applications, the system features MIL-STD D38999 connectors and full IP65 protection, ensuring reliable operation in harsh and demanding environments. The THOR200-DL supports an extended operating temperature range of –40°C to 60°C and a wide 18V–36V DC input, safeguarding the system against voltage surges and enhancing the long-term reliability of its key components and overall system performance.
- Ultra-High Intel® Xeon® ICE LAKE - D LCC Processor ( 8 Cores, 16 Threads, 15MB Cache )
-
ICE LAKE -D LCC :
Intel® Xeon® processor D-1700 product family offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge.
Enhanced performance per watt:
Intel® Xeon® processor D-1700 product family delivers exceptional value and unmatched performance density per watt. Its TDP of 47W to 90W, industry-leading 14 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.
Enabling more IoT Use Cases:
The Intel® Xeon® processor D-1700 product Family drives a host of new IoT opportunities for a wide range of environments, while addressing real-time optimization, and workload consolidation. Its temperature rating spans from -40°C to 85°C operating ambient conditions, which establishes new possibilities for Intel® architecture in markets that require robust products, like aerospace and industrial.
Dual Removable SSD ( Solid-state Disk )
The dual Removable SSD (Solid-state Disk) provide a compact self-contained system to store and retrieve data from ruggedized and removable 2.5” Flash Disks and have been qualified to meet the most demanding MIL-STD-810 environments. The dual Removable SSD Disk System is the perfect DTU for military, aerospace, avionics and ground vehicle systems. These systems include flight management, cockpit instrument display, terrain awareness and warning, map systems, radar systems, cockpit/ground communications, navigation positioning, and satellite communications.
D38999 connectors offer the highest performance capabilities and reliability for both general duty and severe environment applications. This cylindrical connector family designed for cable-to-panel I/O applications in military, aerospace and other demanding hazardous situations. D38999 connectors are capable of operation within a temperature range -65 to 200°C. They are lightweight and can stand up to environmental challenges. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.

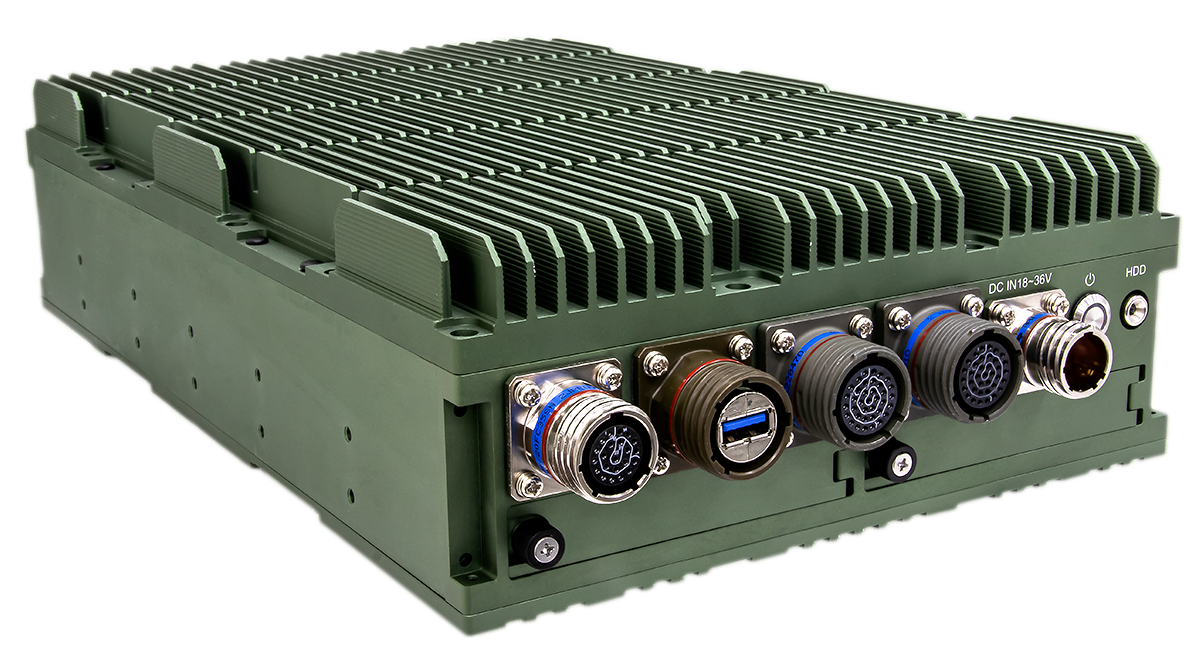

- Appearance
| System | |
|---|---|
| Processor |
Intel® XEON™ D-1732TE, 1.9(3.0) GHz, 15MB, 52W, 8C/eTEMP |
| Chipset | SoC, integrated with CPU |
| Memory type | 64GB DDR4 SO-DIMM |
|
Graphic |
Embedded NVIDIA® RTX™ A2000 - Ampere Architecture - 2560 CUDA® cores, 20 RT Cores, and 80 Tensor Cores - 8GB GDDR6 memory, 128-bit |
| TPM | Chipset: Infineon, Type:TPM 2.0 |
| BIOS | AMI UEFI BIOS |
|
USB |
4x USB 3.0, 2x USB 2.0 |
|
Ethernet |
2x 10/100/1000 Ethernet Ports (1X LAN form mini-PCIE LAN module card) |
|
Power Type |
18V - 36V DC IN MIL-STD 461 EMI DC Module |
|
Storage |
2x 2.5” SATA SSD (2x Swappable SSD Tray) |
|
COM Port |
6x RS232/422/485 (function select by jumper) |
|
Operating Temperature |
-40 to 60°C |
|
Dimension |
220mm(W) x 350mm(L) x 88mm(H) |
| Front I/O | |
|
X1 |
4x USB 2.0 with D38999 connector |
|
X2 |
1x USB 3.0 with D38999 connector |
|
X3 |
2x LAN 2x RS232 with D38999 connector |
|
X4 |
1x VGA, 1x DVI with D38999 connector |
|
X5 |
1x DC-in with D38999 connector |
| Environmental | |
|
Standard |
MIL-STD-810 MIL-STD-461/ MIL-STD-1275 18V~36V DC-Input |
