AV600-MH-A50
Military IP65 GPU Computer
- MIL-STD-810 Thermal, Shock, Vibration, Humidity / EMI / EMC
- IP65 Chassis with D38999 Connectors
- Intel® 14th Gen Meteor Lake Core™ Ultra 165H processor
- Up to 96GB DDR5 5200MHz SO-DIMM, non-ECC
- NVIDIA Lovelace 5000 Ada /16GB GDDR6 memory 9728 CUDA cores
- 18V~36V DC-Input
- Extreme Temperature: -40°C to +60°C
- Dimensions: 250 (W) x 350 (L) x 120 (H) mm
Special Request :
- Optional IP66
- Technical Profile
- Specifications

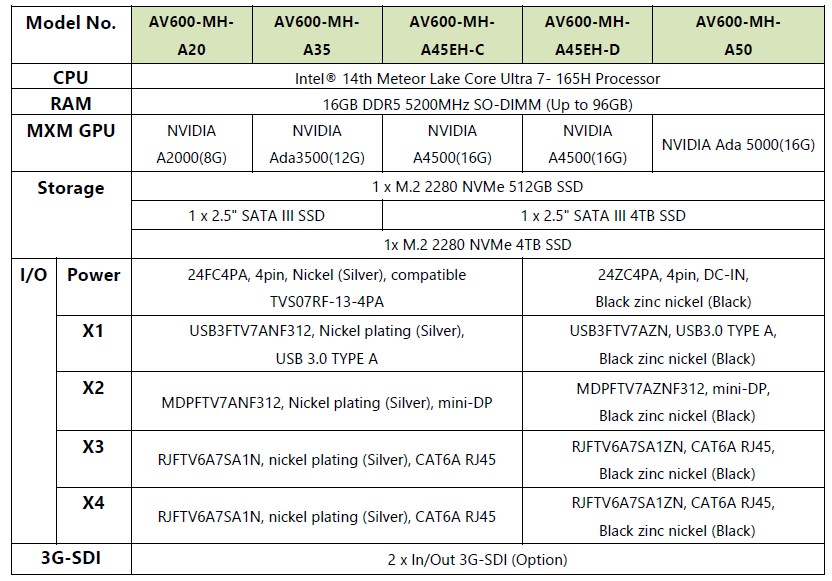

- Order Information
- Thermal Solution
- Video
- Introduction
-
Powered by the Intel® 14th Gen Meteor Lake Core™ Ultra 165H with integrated Intel® Iris® Xe Graphics, the AV600-MH-A50 delivers exceptional computing performance and flexibility for demanding IoT workloads. Built on Intel® 7 SuperFin technology, the Meteor Lake Core™ Ultra 165H processor offers up to 16 CPU cores and clock speeds of up to 5 GHz. Compared to previous generations, it achieves up to a 32% increase in single-thread performance. The AV600-MH-A50 also supports high-bandwidth, high-speed I/O interfaces for extensive expansion and peripheral connectivity.
Engineered for rugged environments, the AV600-MH-A50 features a durable design with MIL-STD Amphenol-type connectors and IP66-rated protection, ensuring reliable operation in harsh conditions. It supports extended temperature ranges from -40°C to 60°C and meets the strict MIL-STD-461 standards. The 18V–36V DC input power supply protects the system against sudden voltage surges, enhancing the reliability and longevity of both critical components and the system as a whole.

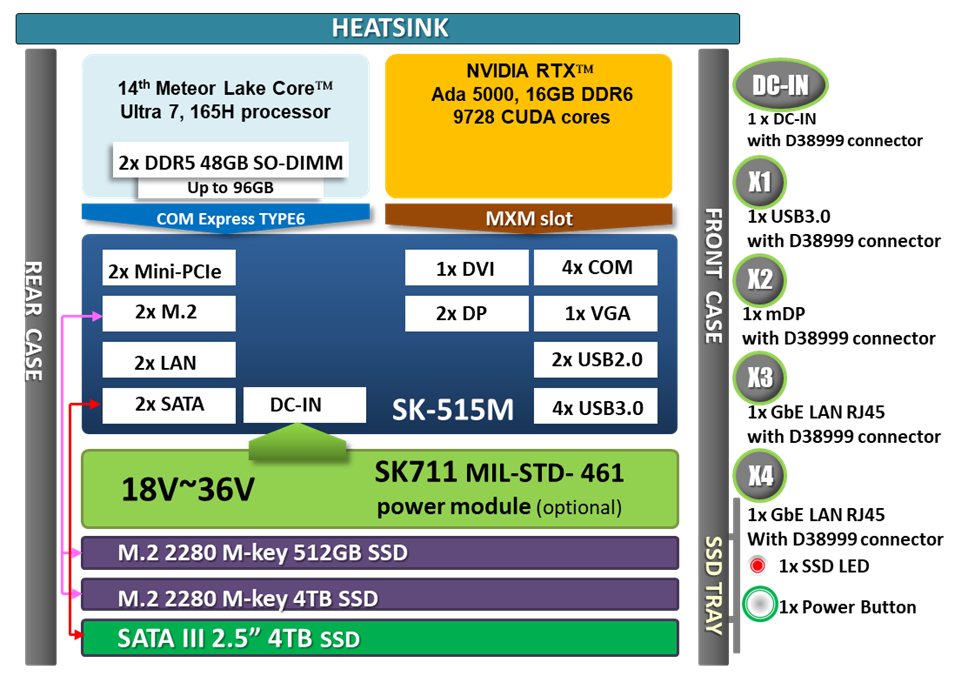

- Block Diagram
-

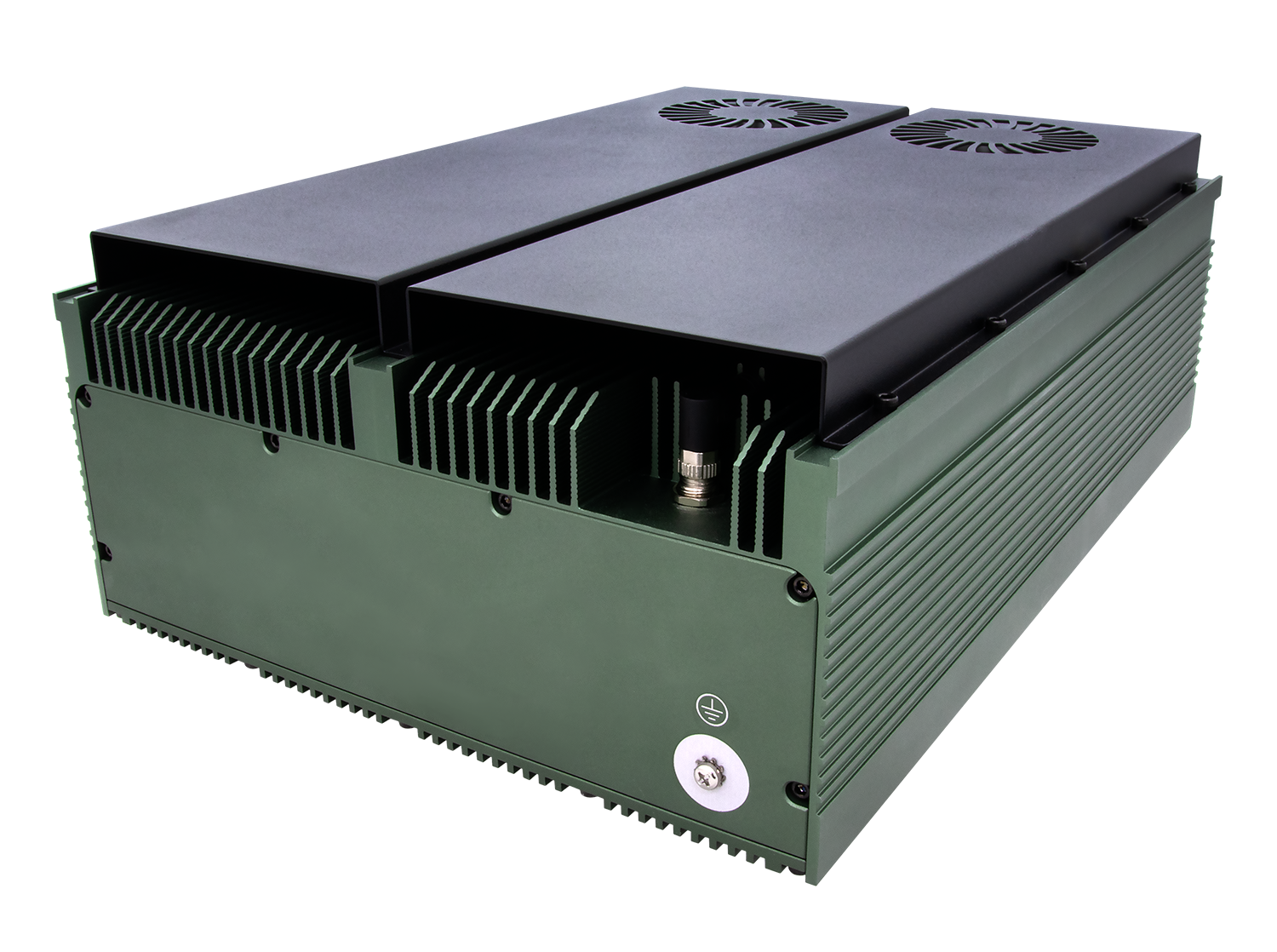

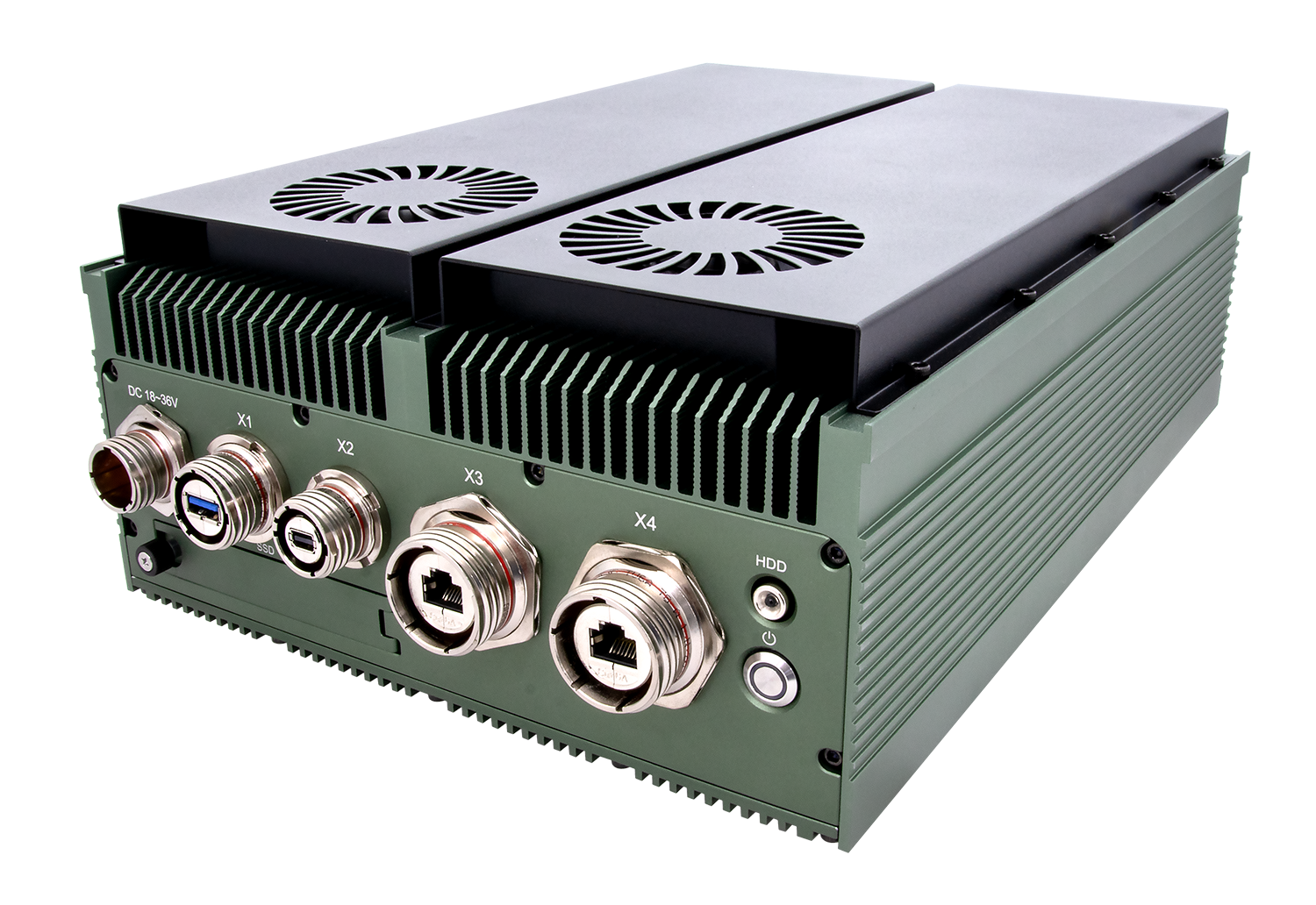

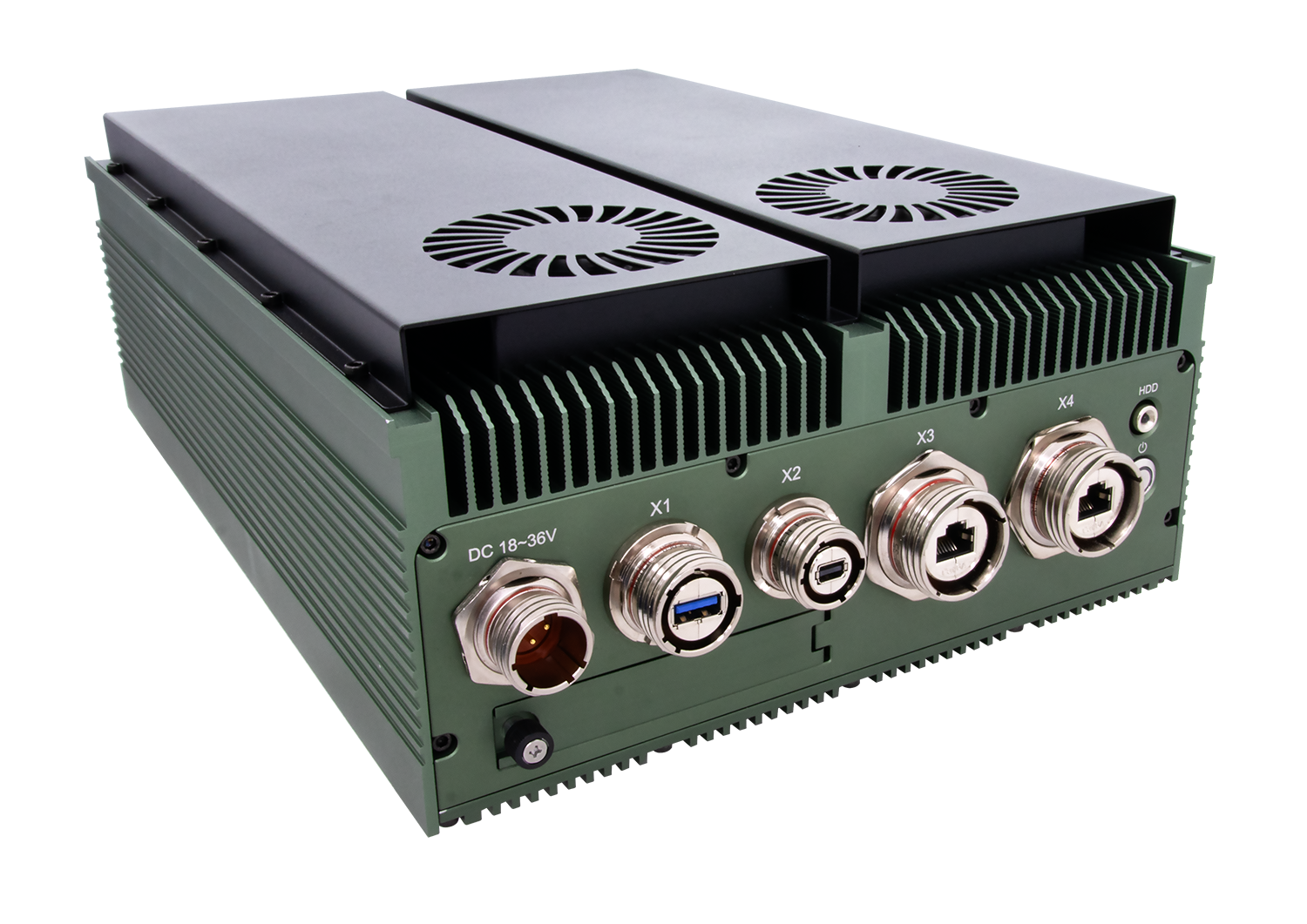

- Appearance
|
System |
||
|---|---|---|
|
CPU |
Intel® 14th Gen Meteor Lake Core™ Ultra 7 Processors, Intel® Arc™ graphics - Intel® Core® Ultra 165H, 65W, 16 Cores, 6P+8E+2LPE/22T, Freq. 1.4/5 GHz, 24MB cache |
|
|
Memory type |
Up to 96GB DDR5 5200MHz SO-DIMM, non-ECC |
|
|
GPU |
NVIDIA Lovelace 5000 Ada /16GB GDDR6 memory 9728 CUDA cores |
|
|
Expansion Slot |
2 x Full-size mini PCIe (with SIM card slot) 2 x M.2 2280 M key (PCIe x4 both) 2 x SATA III |
|
|
Storage |
||
| SATA | 1 x 2.5” 4TB SSD, Swappable SSD/HDD slot | |
| M.2 |
1 x M.2 2280 M key 512GB SSD 1 x M.2 2280 M key 4TB SSD |
|
|
Ethernet |
||
| Ethernet (Internal) |
2 x 10/100/1000/2.5G Ethernet Ports (One from CPU module)
|
|
|

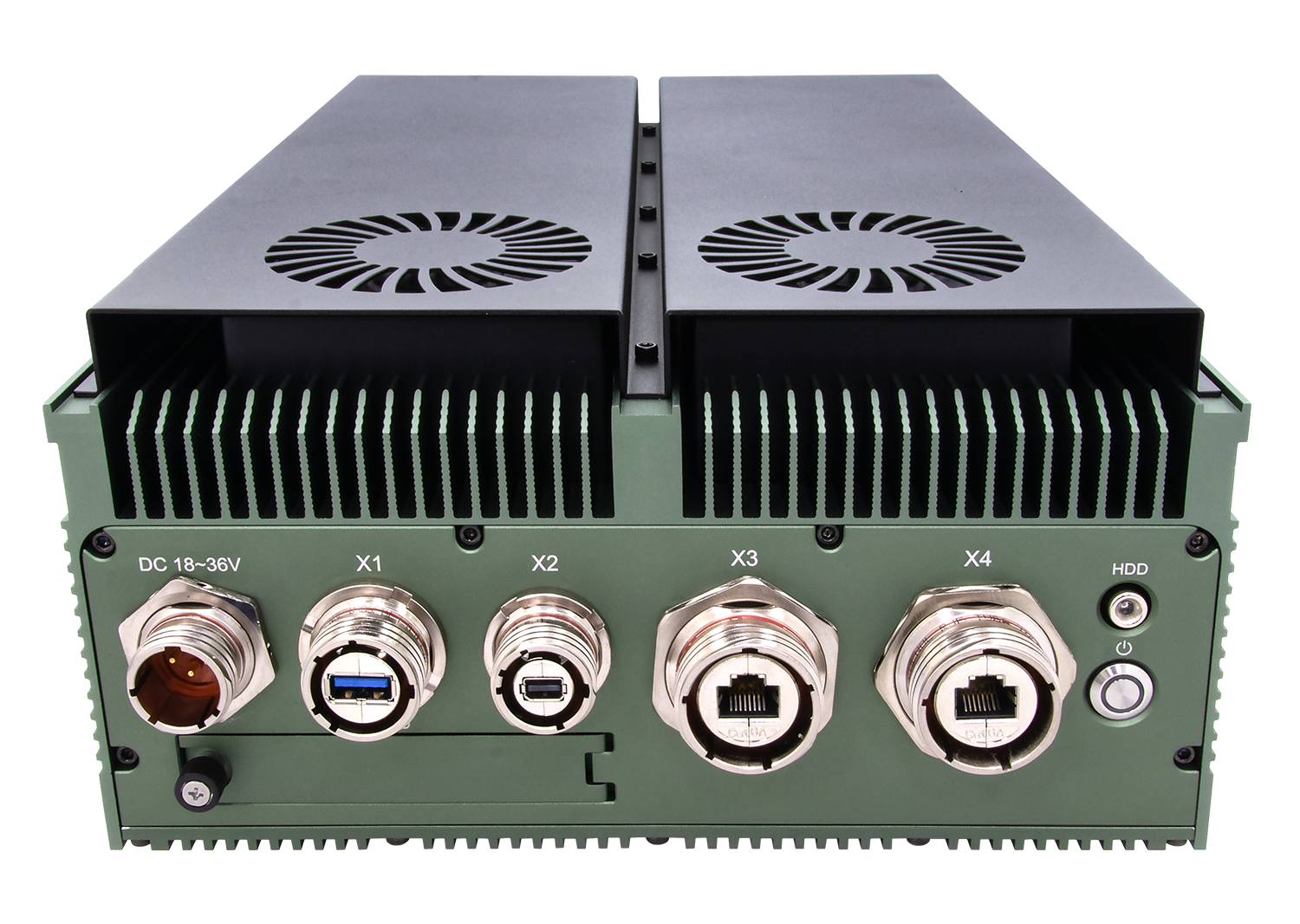

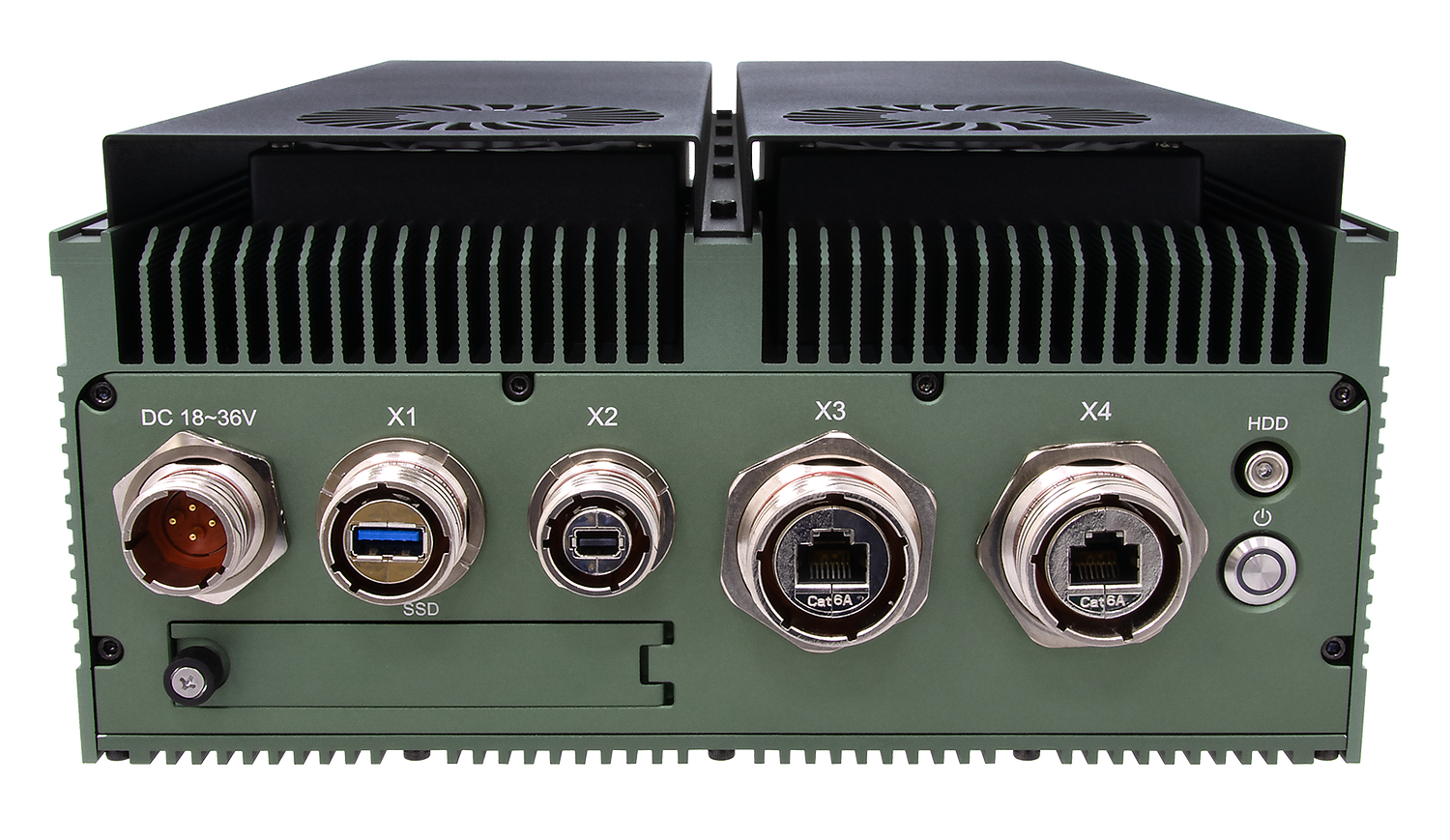

Front I/O |
||
| DC-IN | 1 x DC-IN with D38999 connector | |
| X1 | 1 x USB3.0 with D38999 connector | |
| X2 | 1 x Mini-DP with D38999 connector | |
| X3 | 1 x 1GbE LAN with D38999 connector | |
| X4 | 1 x 1GbE LAN with D38999 connector | |
| LED | 1 x SSD/HDD LED indicator | |
| Switch | 1 x IP65 Power Button, with LED back light | |
| SSD | 1 x 2.5" Easy Swap SSD Tray | |
|
Power |
||
| Power input |
18V~36V DC-Input
|
|
|
Application, Operating System |
||
| Application |
Military Platforms Requiring Compliance for Harsh Temperature, Shock, Vibration, Altitude, and Dust Conditions |
|
| Operating System |
Windows® 10/11 64-bit / Linux (support by request)
|
|
|
Physical |
||
|
Dimensions |
250 x 350 x 120 mm (L x W x H) |
|
|
Weight |
9.8 kg |
|
|
Chassis |
Aluminum Alloy |
|
|
Heatsink |
Heatsink Aluminum Alloy with Air Cooler, Corrosion Resistant |
|
|
Environmental |
||
| Green Product | RoHS, WEEE compliance | |
| Operating Temp. | -20°C to +60°C | |
| Storage Temp. | -40°C to +85°C | |
| Relative Humidity | 5% to 95%, non-condensing | |
| MIL-STD-810 | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock ) |
|
| Reliability |
No Moving Parts; Passive Cooling
|
|
| Designed to Meet Items (Optional) | ||
| MIL-STD-1275 | Steady State: 20V-33V | |
| Surge Low: 18V/500ms | ||
| Surge High: 100V/500ms | ||
| MIL-STD-461 | CE102: 10 KHz - 10 MHz RE102-4: 1.5 MHz -30 MHz - 5 GHz RS103: 200 MHz -3.0 GHz -5.0 GHz, 50 V/m equal for all frequencies |
|
IP65 Military Mission GPU Computer Intel® Meteor Lake Core Ultra 7, 165H Processor, up to 96GB 5200 MHz SO-DIMM, 4x COM, 1x USB3.0, 2x USB 2.0, 1x VGA, 4x DI/DO, MXM GPU RTX A2000 8GB & RTX Ada 3500 12GB & A4500 16GB & Ada 5000 16GB GDDDR6 Memory, MIL-STD-461/1275 Power DC-IN 18~36V, Operation Temp. -40°C to 60°C, RoHS
