AV600-RH-A45
Military IP65 GPU Computer
- MIL-STD-810 Thermal, Shock, Vibration, Humidity / EMI / EMC
- IP65 Chassis with D38999 Connectors
- Intel® 13th Gen Raptor Lake-H Core™ i7-13800 HRE Processor
- Up to 96GB DDR5 5200MHz SO-DIMM, non-ECC
- NVIDIA RTX™ A4500 /16GB GDDR6 memory 5888 CUDA Cores
- 18V~36V DC-Input
- Extreme Temperature: -40°C to +60°C Degree
- Dimensions: 250 (W) x 350 (L) x 120 (H) mm
Special Request :
- Optional IP66
- Technical Profile
- Specifications

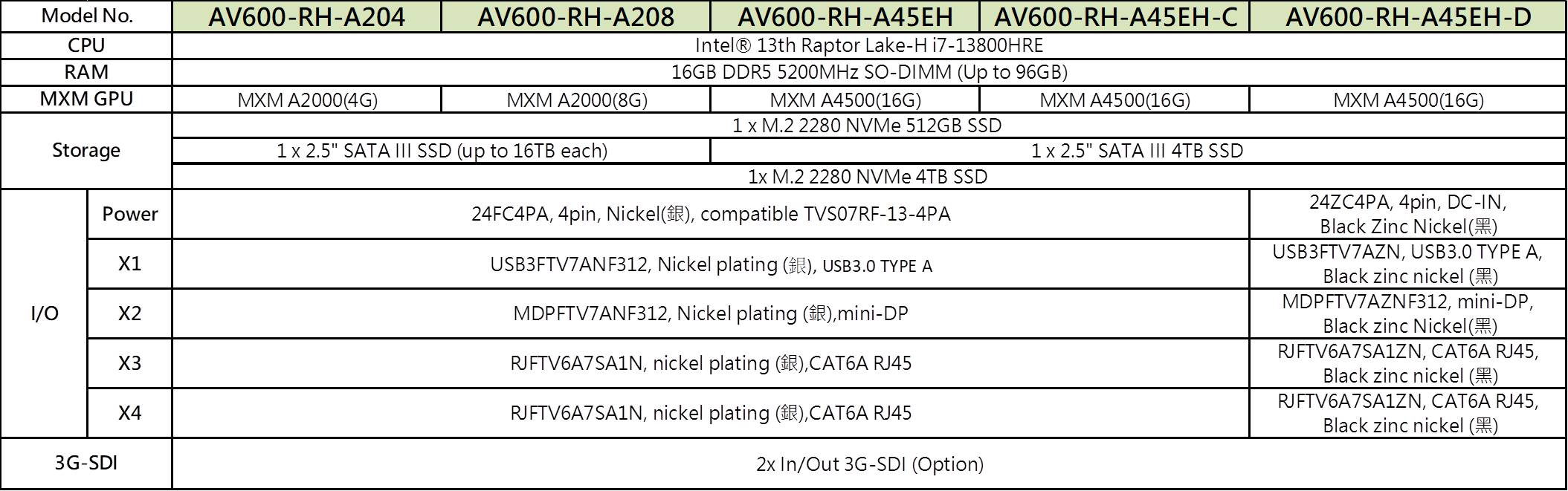

- Order Information
- Thermal Solution
- Video
- Download
- Introduction
-
Powered by the Intel® 13th Gen Raptor Lake-H Processor with integrated Intel® Iris® Xe Graphics, the AV600-RH-A45 delivers exceptional computing performance and flexibility for demanding IoT workloads. Built on Intel® 7 SuperFin technology, the Raptor Lake-H processor offers up to 14 CPU cores and clock speeds of up to 5.0 GHz. Compared to previous generations, it achieves up to a 32% increase in single-thread performance. The AV600-RH-A45 also supports high-bandwidth, high-speed I/O interfaces for extensive expansion and peripheral connectivity.
Engineered for rugged environments, the AV600-RH-A45 features a durable design with MIL-STD Amphenol-type connectors and IP66-rated protection, ensuring reliable operation in harsh conditions. It supports extended temperature ranges from -40°C to 70°C and meets the strict MIL-STD-461 standards. The 18V–36V DC input power supply protects the system against sudden voltage surges, enhancing the reliability and longevity of both critical components and the system as a whole.
-
- Block Diagram

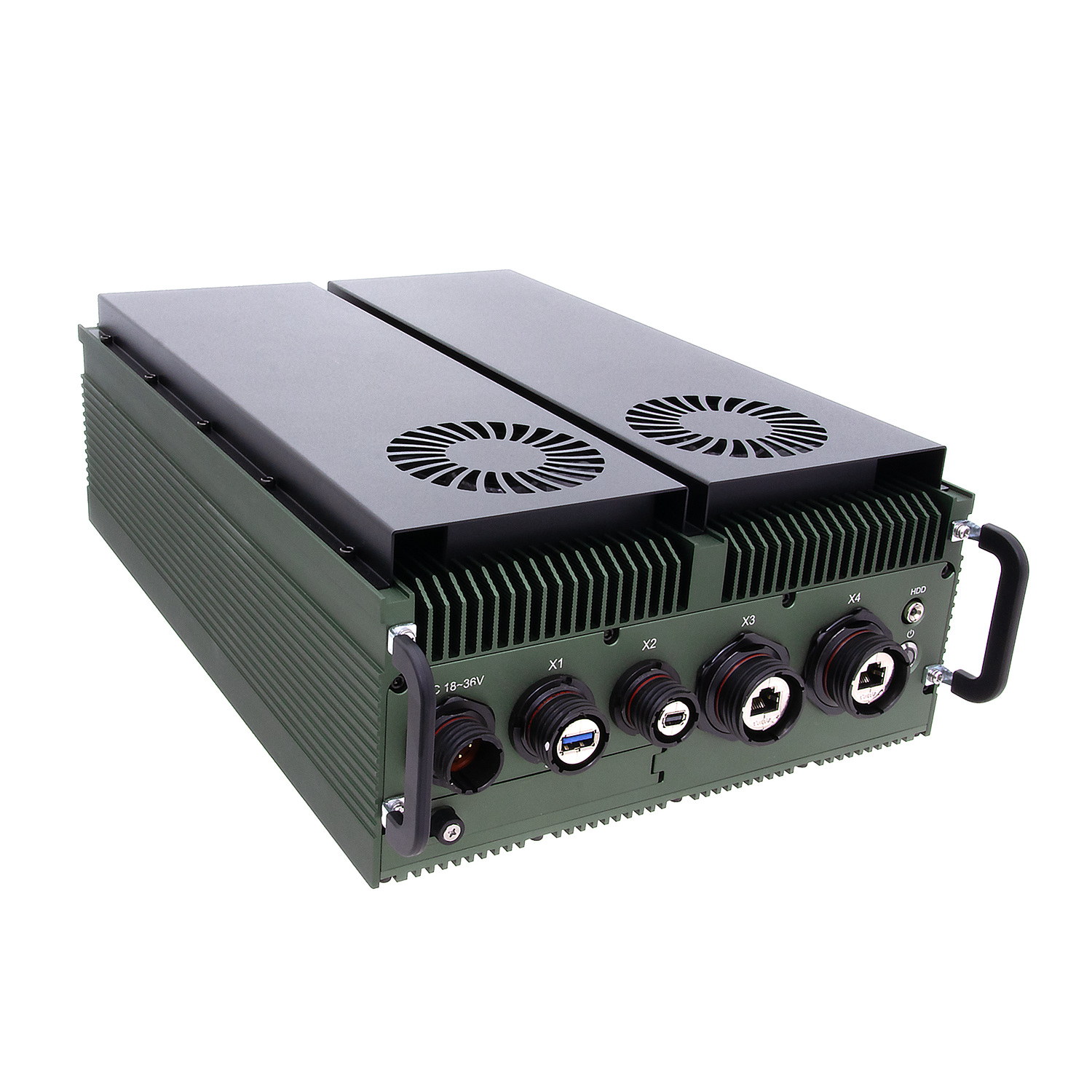

- Appearance
|
System |
||
|---|---|---|
|
CPU |
Intel® 13th Gen. Raptor Lake-H Processors, up to 14 cores, integrated Intel® Iris® Xe Graphics eligible Intel® Core™ i7-13800HRE, 45W Raptor Lake 13th Gen, 14C/20T, Freq. 2.5/5 GHz, 24MB cache |
|
|
Memory type |
Up to 96GB DDR5 5200MHz SO-DIMM, non-ECC |
|
|
GPU |
NVIDIA RTX™ A4500 16GB GDDR6 memory, 5888 CUDA cores |
|
|
Expansion Slot |
2 x Full-size mini PCIe (with SIM card slot) 2 x M.2 2280 M key (PCIe x4 both) 2 x SATA III |
|
|
Storage |
||
| SATA | 1 x 2.5” 4TB SSD, Swappable SSD/HDD slot | |
| M.2 |
1 x M.2 2280 M key 512GB SSD 1 x M.2 2280 M key 4TB SSD |
|
|
Ethernet |
||
| Ethernet (Internal) | 2 x 10/100/1000/2.5G Ethernet Ports (One from CPU module) | |
|

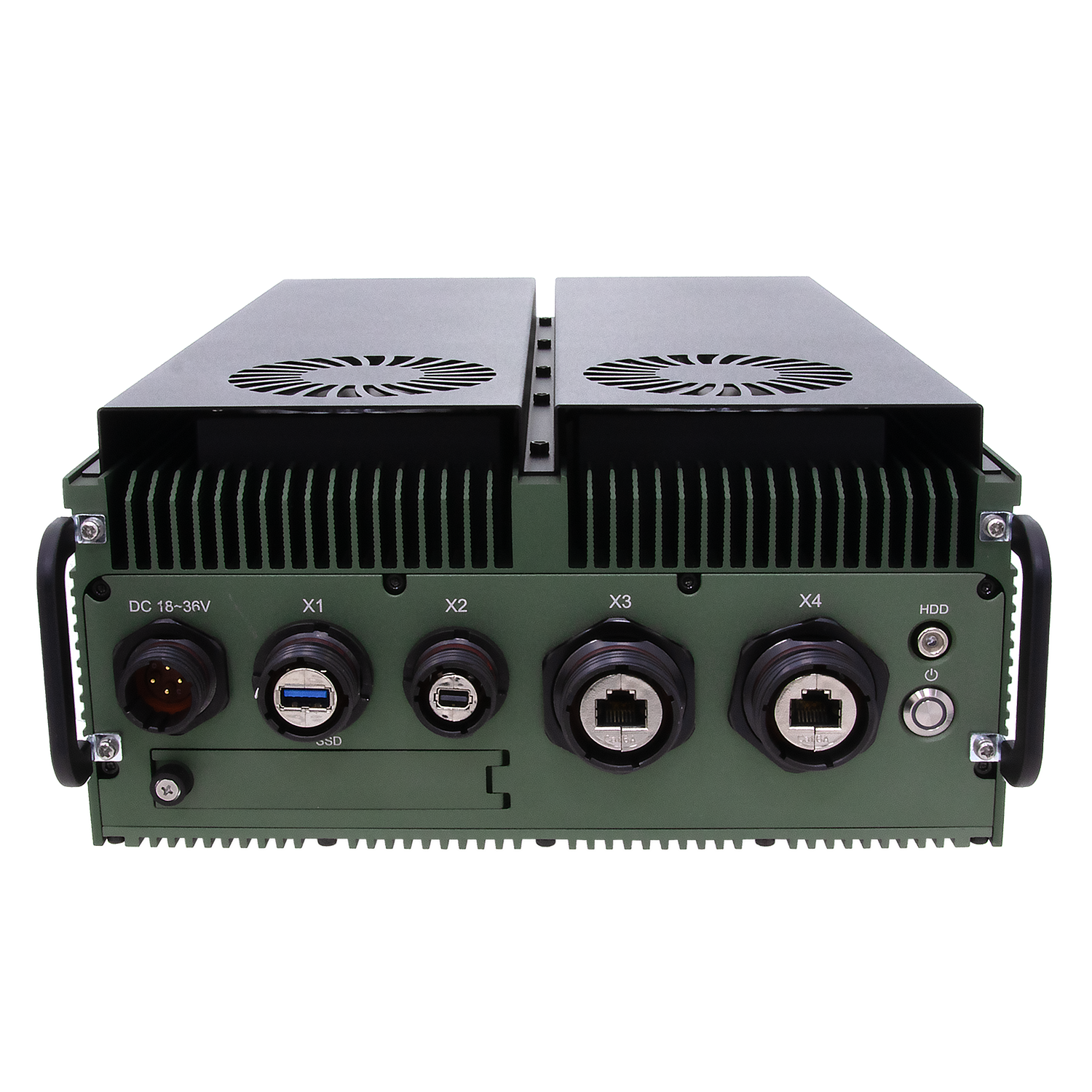

Front I/O |
||
| DC-IN | 1 x DC-IN with D38999 connector | |
| X1 | 1 x USB3.0 with D38999 connector | |
| X2 | 1 x Mini-DP with D38999 connector | |
| X3 | 1 x 1GbE LAN with D38999 connector | |
| X4 | 1 x 1GbE LAN with D38999 connector | |
| LED | 1 x SSD/HDD LED indicator | |
| Switch | 1 x IP65 Power Button, with LED back light | |
| SSD | 1 x 2.5" Easy Swap SSD Tray | |
|
Power |
||
| Power input | 18V~36V DC-Input | |
|
Application, Operating System |
||
| Application | Military Platforms Requiring Compliance to MIL-STD-810 Where Harsh Temperature, Shock, Vibration, Altitude, Dust and MIL-461 EMI Conditions. | |
| Operating System | Windows® 10/11 64-bit / Linux (support by request) | |
|
Physical |
||
|
Dimension |
250 x 350 x 120 mm (L x W x H) |
|
|
Weight |
9.8 kg |
|
|
Chassis |
Aluminum Alloy |
|
|
Heatsink |
Heatsink Aluminum Alloy with Air Cooler, Corrosion Resistant |
|
|
Environmental |
||
| Green Product | RoHS, WEEE compliance | |
| Operating Temp. | -20°C to +60°C | |
| Storage Temp. | -40°C to +85°C | |
| Relative Humidity | 5% to 95%, non-condensing | |
| MIL-STD-810 | Method 507.5, Procedure II ( Temperature & Humidity ) Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) Method 501.5, Procedure I ( Storage/High Temperature ) Method 501.5, Procedure II ( Operation/High Temperature ) Method 502.5, Procedure I ( Storage/Low Temperature ) Method 502.5, Procedure II ( Operation/Low Temperature ) Method 503.5, Procedure I ( Temperature shock ) |
|
| Reliability | No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program. |
|
| Designed to Meet Items ( Optional ) | ||
| MIL-STD-1275 | Steady State: 20V-33V | |
| Surge Low: 18V/500ms | ||
| Surge High: 100V/500ms | ||
| MIL-STD-461 | CE102: 10 KHz - 10 MHz RE102-4: 1.5 MHz -30 MHz - 5 GHz RS103: 200 MHz -3.0 GHz -5.0 GHz, 50 V/m equal for all frequencies |
|
| Attachment | Size |
|---|---|
| AV600 MIL-810 514.6 Operation.pdf (1.4 MB) | 1.4 MB |
| AV600 MIL-810 514.6 None-Operation.pdf (1.38 MB) | 1.38 MB |
| 7StarLake_MIL-STD-461G_Test Report-CE102,RE102,RS103_AV600_3.pdf (3.89 MB) | 3.89 MB |
| AV600-RH-A45 System Test Report.pdf (7.95 MB) | 7.95 MB |
| 7Starlake_AV600-RH-A45_Test Report-CE RE102_20241111.pdf (1.23 MB) | 1.23 MB |
