IV320-RS-X10G
Full IP65 Rugged AI Edge Computer
- AI Optimized IP65 Rugged GPU Computer
- Full IP65 sealed enclosure for harsh, wet and dusty environments
- Support Intel® 14/13th Gen. Raptor Lake-R/S, Core i9/i7
- Up to 64GB DDR4 3200 MHz SO-DIMM, non-ECC
- Support NVIDIA® RTX 4000 SFF Ada (20GB GDDR6, 6,144 CUDA); RTX A1000 (8GB GDDR6, 2,304 CUDA) w/Fan Kit
- Rugged waterproof D38999/M20/M12 connectors
- 3 x LAN(10GbE/2.5GbE/1GbE), 1 x COM ; 1 x miniDP ; 1 x USB3.0
- Extended Operating Temperature -20°C to +60°C
- MIL-STD-810 Anti Vibration, Shock design to meet
- Technical Profile
- Specifications
- Order Information
- Full IP65 Sealed Enclosure
-
Dirt, dust, and moisture in outdoor environments can adversely affect system performance. Exposure to high humidity or dusty conditions may lead to operational failures. The IV320-RS-X10G features a fully IP65-rated sealed enclosure, specifically designed to meet the protection requirements of electrical and electronic systems. It provides reliable protection against dust ingress, condensation, water spray, and low-pressure water jets from any direction, making it suitable for most outdoor enclosure applications.
- Intel CPU Features
-
To enable Edge AI capabilities, the IV320-RS-X10G is powered by Intel® 13th Gen Raptor Lake processors. This generation enhances overall performance through increased core counts—primarily via additional E-Cores—expanded L2 cache capacity, and higher clock speeds. Flagship configurations support up to 8 Performance Cores (P-Cores) and 16 Efficient Cores (E-Cores), delivering a total of 24 cores for demanding workloads.
The x86 hybrid architecture includes two distinct core types, dynamically allocating workloads to optimize performance and power efficiency based on application requirements:
P-Cores (Performance Cores): Built on the Golden Cove architecture, optimized for high-performance and compute-intensive tasks.
E-Cores (Efficient Cores): Based on the Gracemont architecture, designed for low-power operation and efficient multitasking.

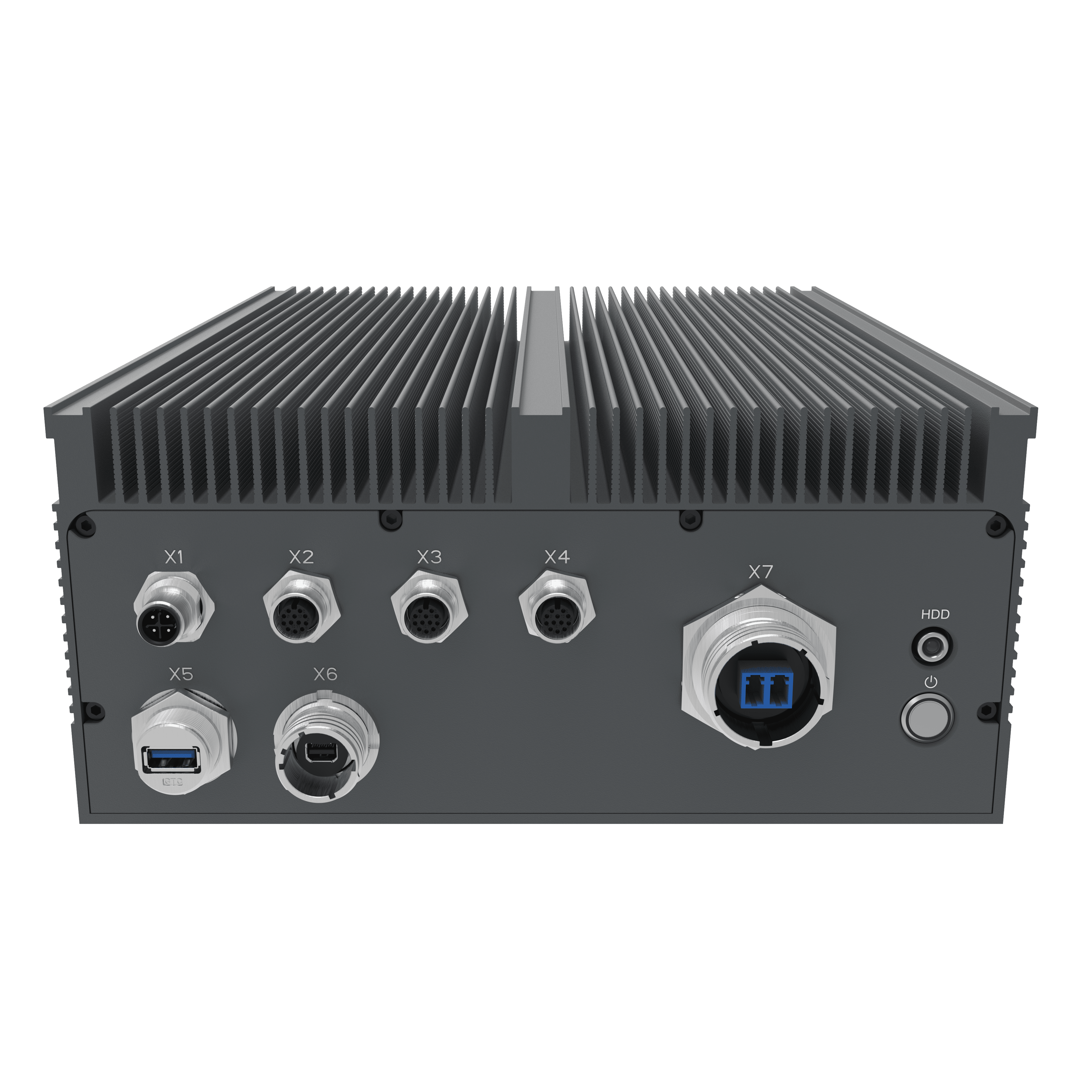

- Appearance
-

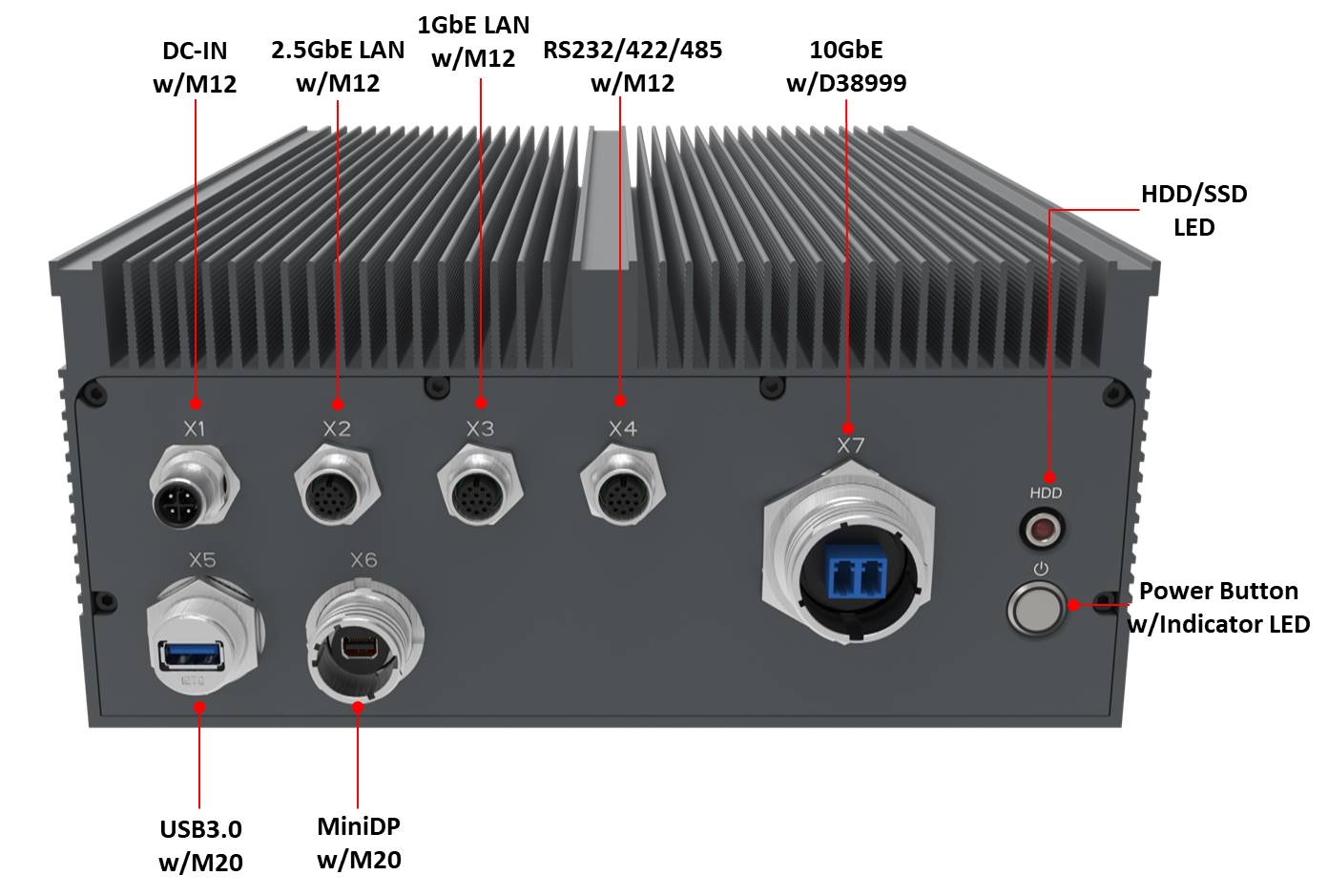

Without GPU

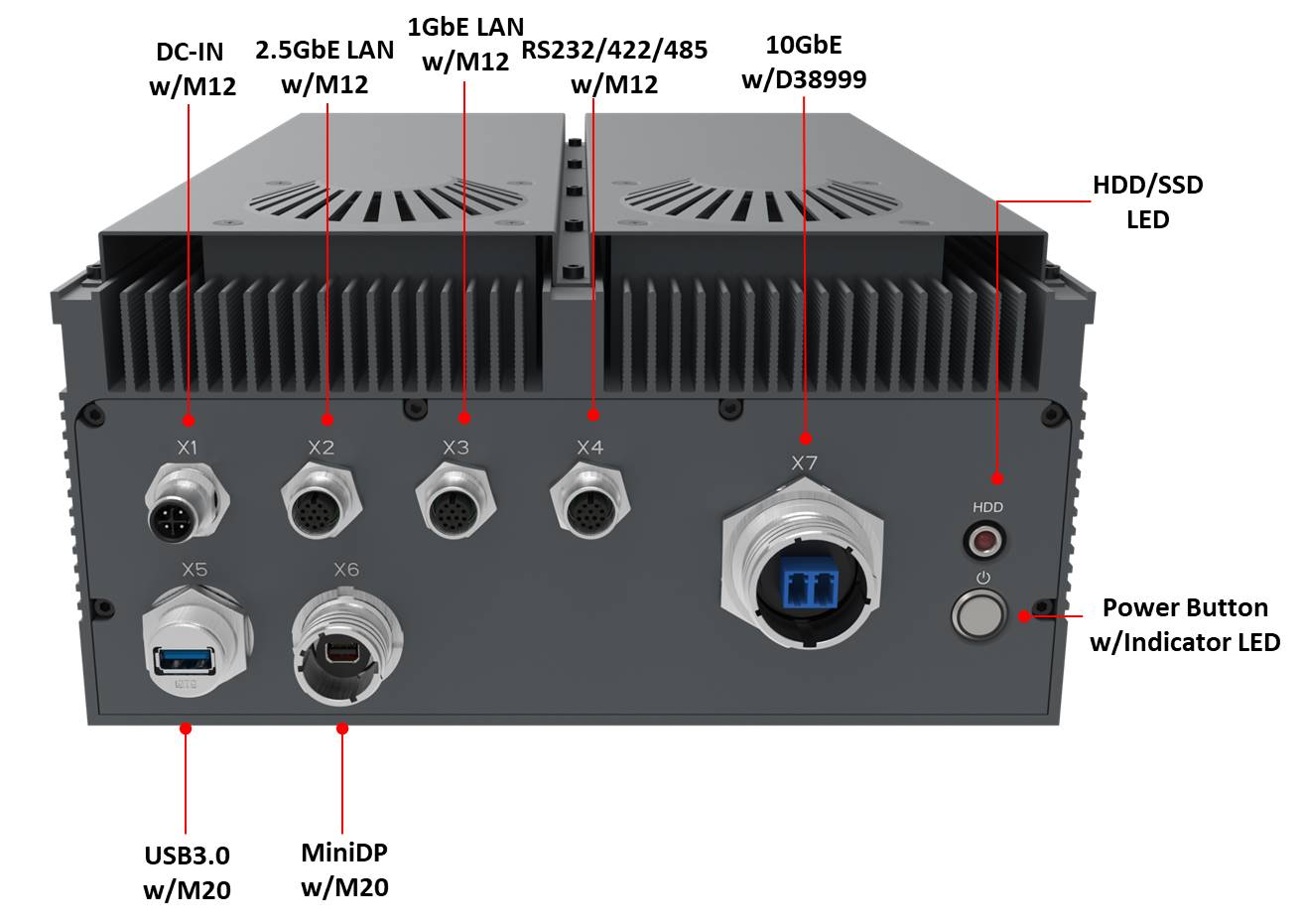

With GPU (FAN Kit)
|
System |
|
|---|---|
|
CPU |
Intel® 14th Raptor Lake-R Core i9-14900T, 24C(8P+16E), 32T, 1.1/5.5GHz, 36M Cache, TDP 35W(Turob mode 106W) |
|
Memory type |
Up to 64GB DDR4 3200 MHz SO-DIMM, non-ECC |
|
CHIPSET |
Intel® Q670 Chipset |
|
GPU |
NVIDIA® RTX 4000 SFF Ada |
|
Expansion Slot |
1 x PCIe 4.0 x 16 |
|
Storage |
|
|
SATA |
2 x 2.5” SSD SATAIII Internal |
|
Ethernet |
|
| TPM | |
| TPM | Onboard TPM2.0 |
|
Front I/O |
|
| X1 | 1 x DC-IN w/M12 waterproof connector |
| X2 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X3 | 1 x 1Giga LAN w/M12 waterproof connector |
| X4 | 1 x RS232/422/485 w/M12 waterproof connector |
| X5 | 1 x USB3.0, with M20 waterproof connector |
| X6 | 1 x miniDP w/M20 waterproof connector |
| X7 | 1 x 10Giga LAN w/M12 waterproof connector |
| SSD LED | 1 x SSD LED |
| Switch | 1 x IP65 power button |
|
Rear I/O |
|
|
Others |
Antenna(Option) |
|
GND |
1 x GND |
|
Power |
|
|
Power input |
18V~36V DC-IN |
|
Operating System |
|
|
OS |
Windows® 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) |
|
Physical |
|
|
Dimensions |
325 x 250 x 100 mm (W x L x H) |
|
Chassis |
Aluminum Alloy |
|
Heatsink |
Heatsink Aluminum Alloy, Corrosion Resistant |
| FAN Kit | W/GPU SKU |
|
Environmental |
|
|
Green Product |
RoHS, WEEE compliance |
|
Operating Temp. |
-20°C to +60°C |
|
Storage Temp. |
-40°C to +85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
MIL-STD-810 Specifications (Operating) |
|
|
Method 502.5 |
Low Temperature -20°C, 4 hours, ±3°C |
|
Procedure 2 |
|
|
Method 501.5 |
High Temperature +55°C, 4 hours, ±3°C |
|
Procedure 2 |
|
|
Method 507.5 |
Humidity 85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles. |
|
Method 514.6 |
Vibration 5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
|
Method 516.6 |
Shock 20 Grms, 11ms, 3 axes. |
|
MIL-STD-810 Specifications (Non-Operating) |
|
|
Method 502.5 |
Low Temperature -33°C, 4 hours, change rate:≦20°C/ Hour Storage -15°C, 72hours (By request) |
|
Procedure 1 |
|
|
Method 501.5 |
High Temperature +71°C, 4 hours, change rate:≦20°C/ Hour Storage +63°C, 240 hours (By request) |
|
Procedure 1 |
|
|
Method 514.6 |
Vibration 5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
|
Method 516.6 |
Shock 20 Grms, 11ms, 3 axes. |

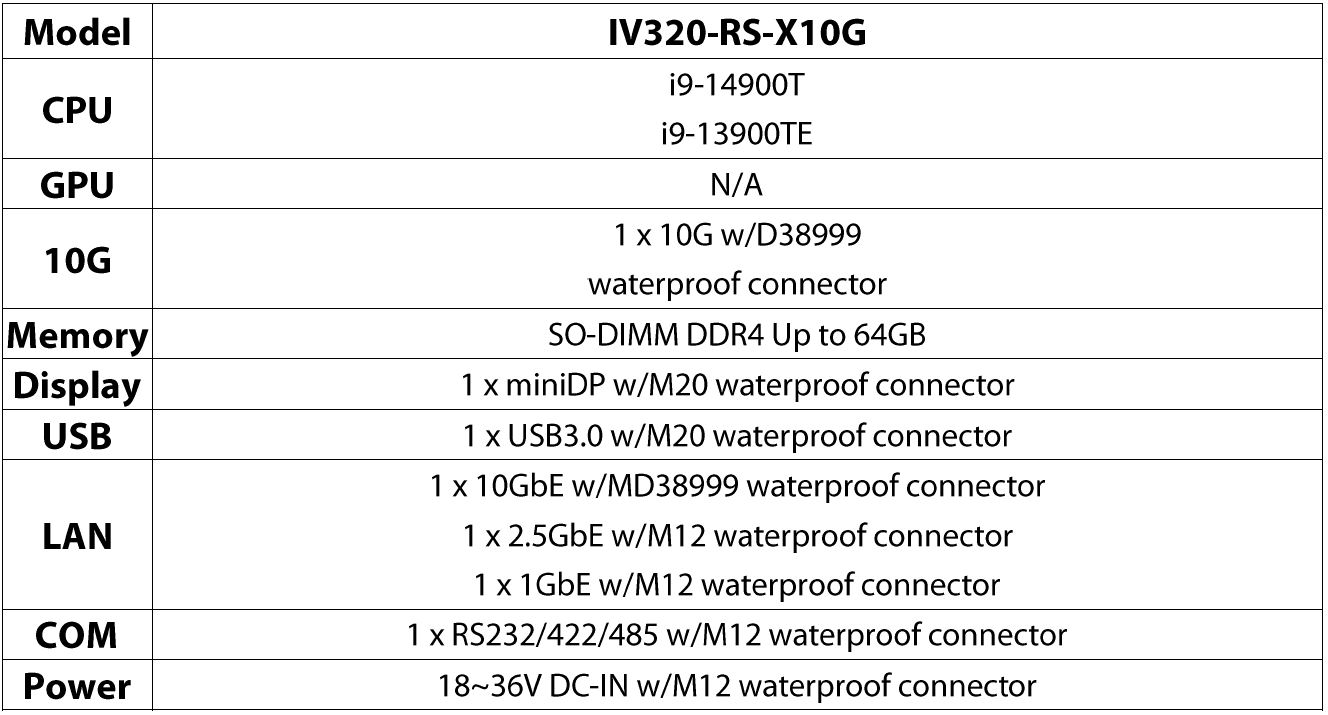

| Model | IV320-RS-X10G | IV320-RS-X10GR40 | IV320-RS-X10GR20 |
|---|---|---|---|
| CPU |
i9-14900T i9-13900TE |
||
| GPU | N/A | RTX 4000 SFF Ada | RTX A2000 |
| 10G | 1 x 10G w/D38999 | ||
| Memory | SO-DIMM DDR4 Up to 64GB | ||
| Display | 1 x miniDP w/M20 waterproof connector | ||
| USB | 1 x USB3.0 w/M20 waterproof connector | ||
| LAN |
1 x 10GbE w/MD38999 waterproof connector 1 x 2.5GbE w/M12 waterproof connector 1 x 1GbE w/M12 waterproof connector |
||
| COM | 1 x RS232/422/485 w/M12 waterproof connector | ||
| Power | 18~36V DC-IN w/M12 waterproof connector | ||
