IV320RS-X
Full IP65 Rugged AI Edge Computer
- AI Optimized IP65 Rugged GPU Computer
- Full IP65 sealed enclosure for harsh, wet and dusty environments
- Support Intel® 14/13th Gen. Raptor Lake-R/S, Core i9/i7
- Up to 64GB DDR5 5200 MHz SO-DIMM, non-ECC and ECC
- Support NVIDIA® RTX 4000 SFF Ada (20GB GDDR6, 6,144 CUDA); RTX A1000 (8GB GDDR6, 2,304 CUDA) w/Fan Kit
- Rugged waterproof M20/M12 connectors
- 2 x LAN(2.5GbE), 1 x COM ; 1 x miniDP ; 1 x USB3.0
- Extended Operating Temperature -20°C to +60°C
- MIL-STD-810 Anti Vibration, Shock design to meet
- Technical Profile
- Specifications

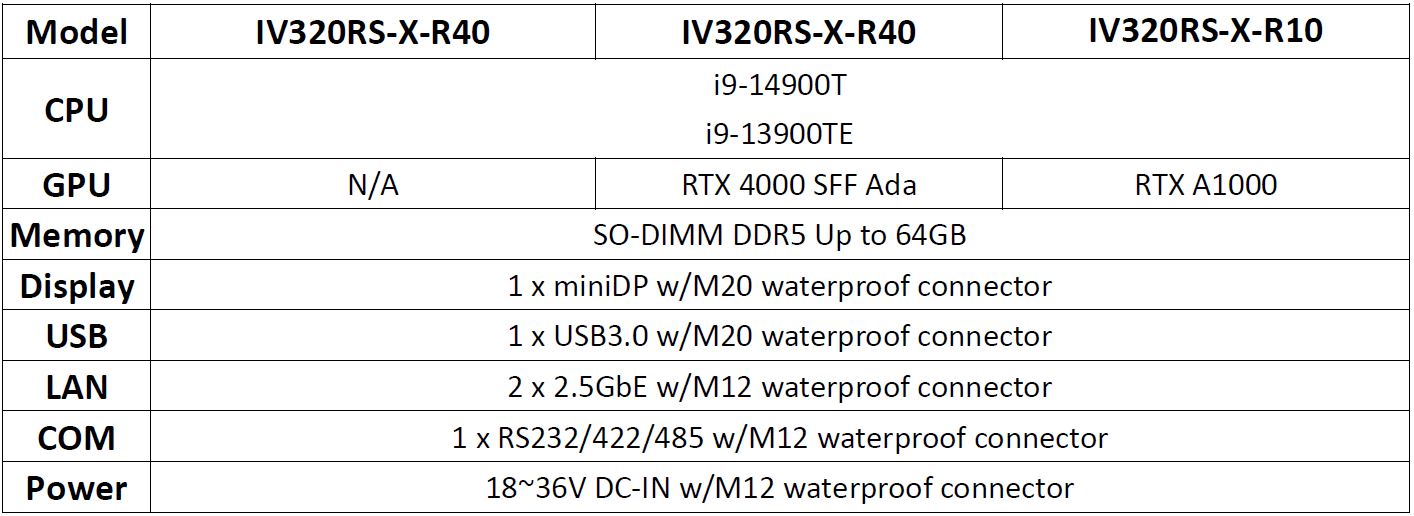

- Order Information
- Full IP65 Sealed Enclosure
-
The dirt, dust, and moisture in the outdoor environment can damage the system, and as the air moves from high humidity or dusty environments, it might lead to the failure of system operation. IV320RH is full IP65 sealed enclosures which are designed to meet the various requirements of engineers when designing electrical and electronic systems which have to be protected. And protect against low pressure water jets from any direction, as well as condensation and water spray. It’s suitable for most outdoor enclosures.
- Intel CPU Features
-
To realize Edge AI technology, IV320-RS is driven by Intel® 13th generation Raptor Lake which builds upon by increasing core count (primarily E-Cores), expanding L2 cache memory, and raising clock speeds to ultimately enhance processor performance. This results in an impressive configuration of up to 8 P-Cores and 16 E-Cores, culminating in a total of 24 cores within flagship offerings.
The x86 hybrid architecture consists of the following two core types, with the CPU activating different cores based on various usage applications to achieve high efficiency and low power consumption:
P-Core: Adopts the Golden Cove architecture which is suitable for high-performance and gaming applications.
E-Core: Adopts the Gracemont architecture which is suitable for low-power and multitasking applications.
- Appearance
-

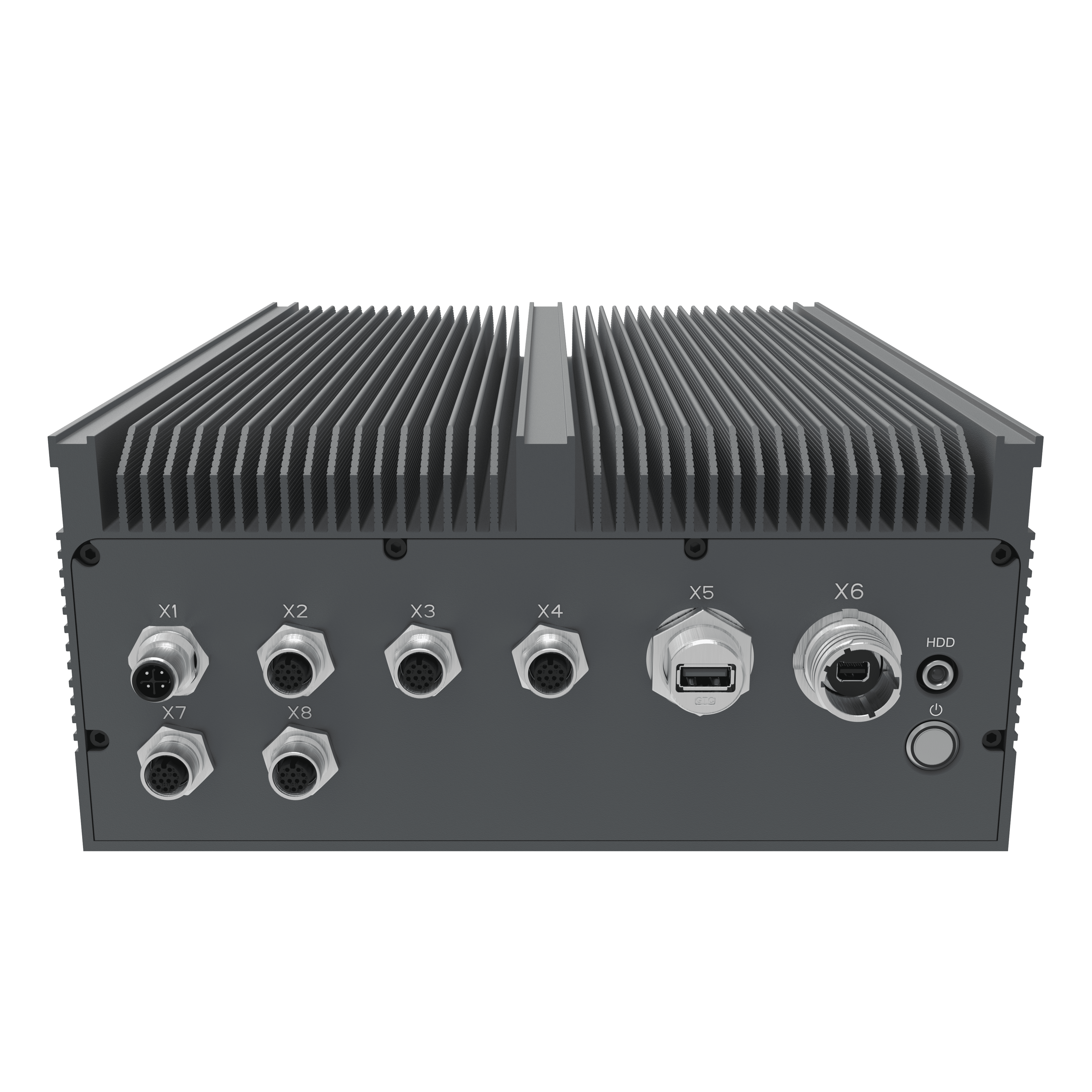

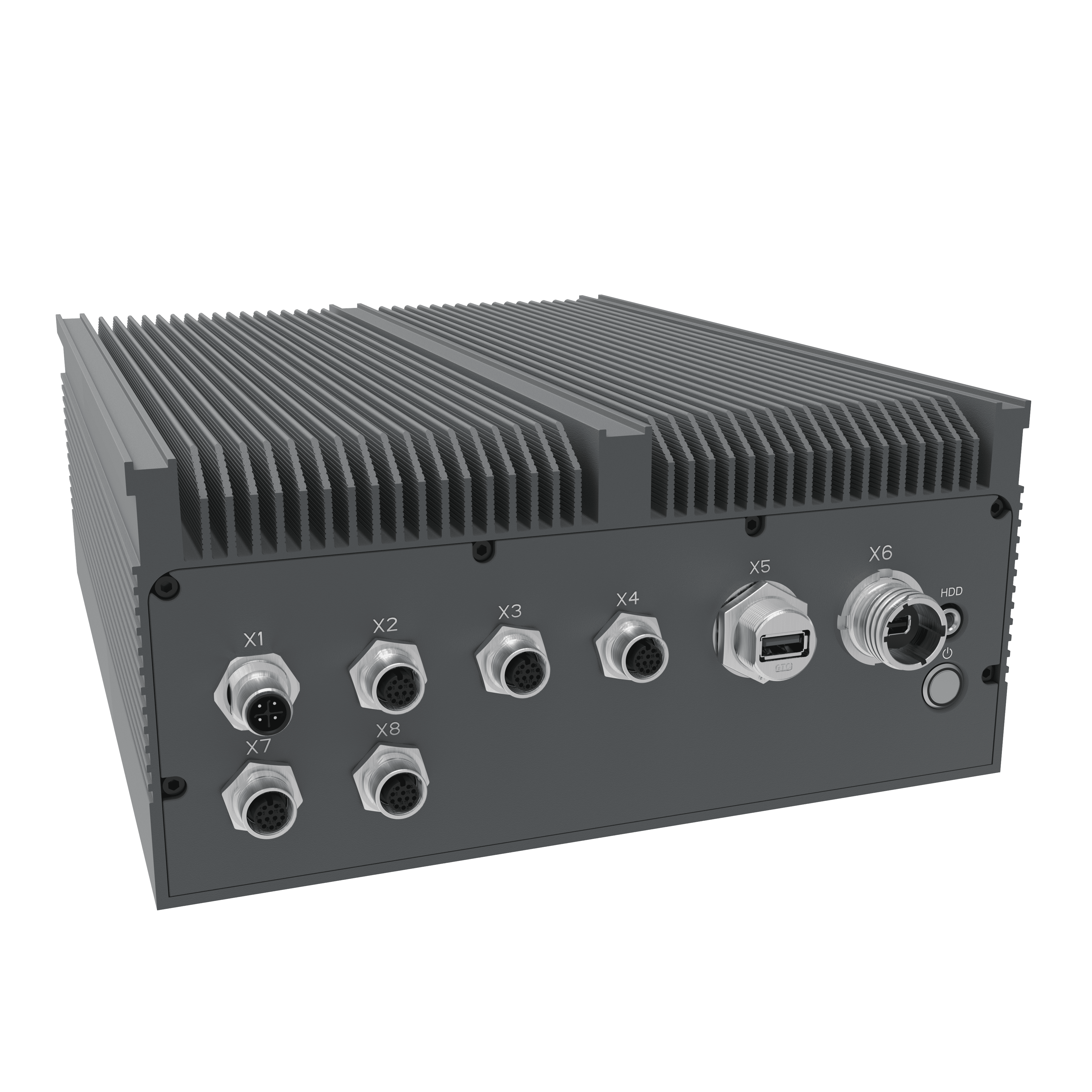

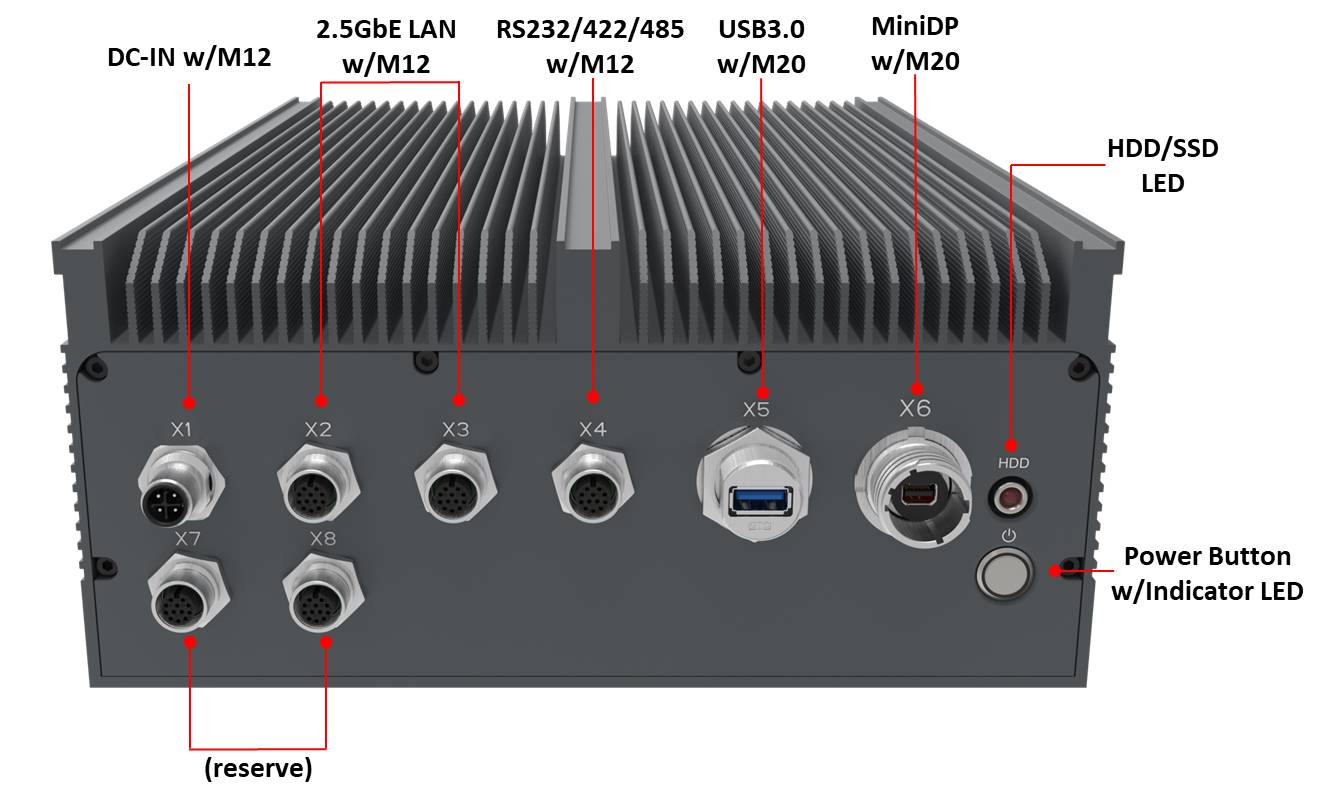

Without GPU

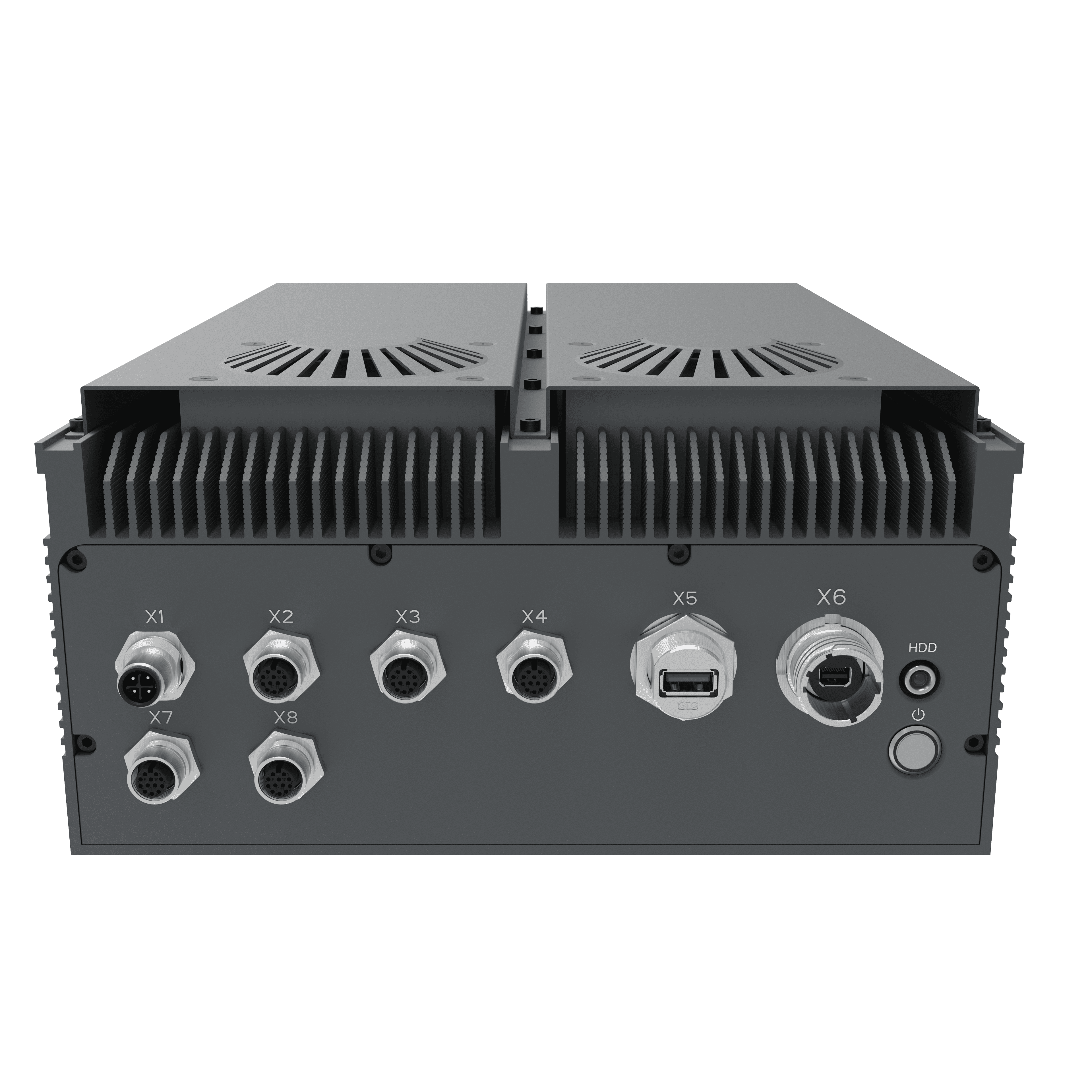

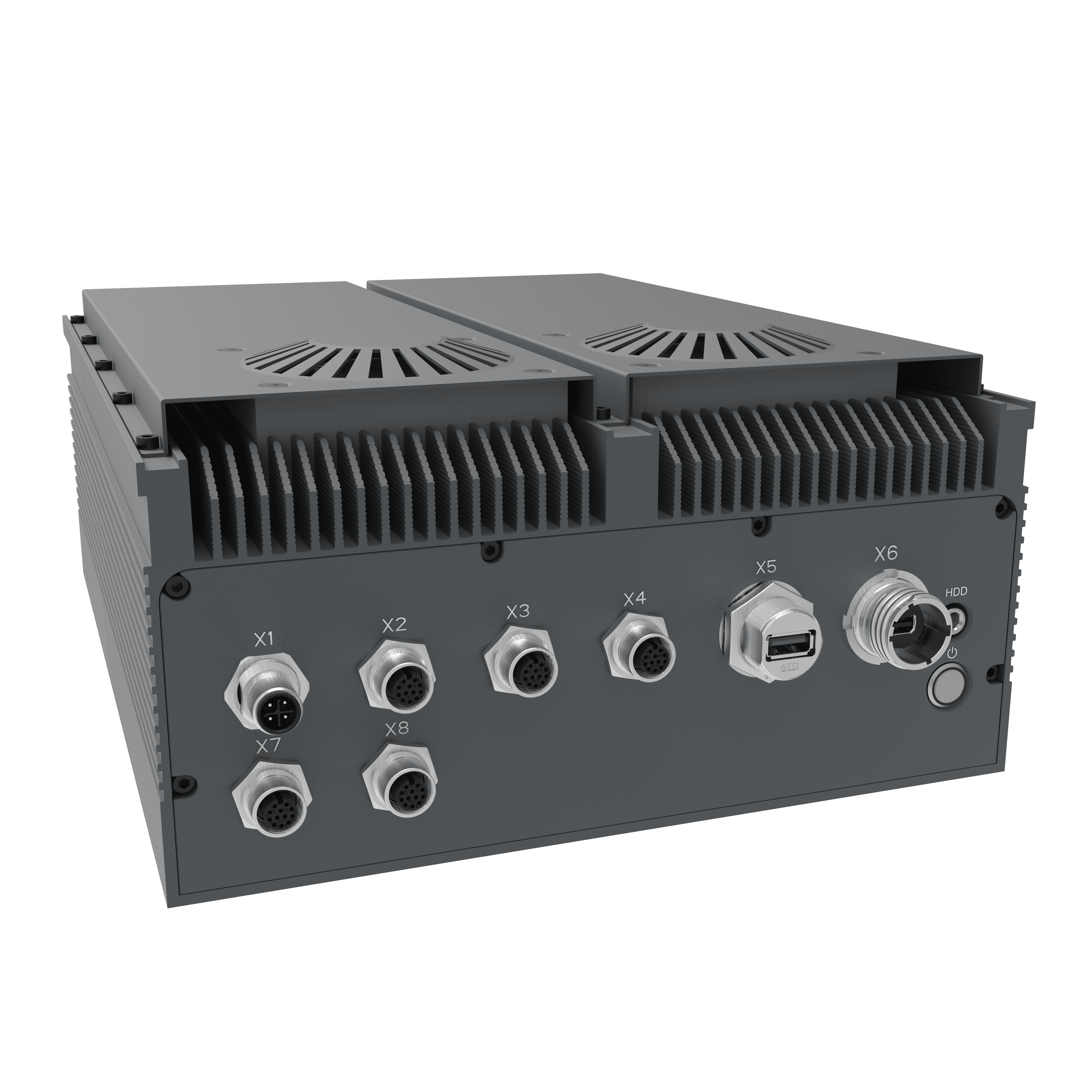

With GPU (FAN Kit)
|
System |
|
|---|---|
|
CPU |
Intel® 14th Raptor Lake-R Core i9-14900T, 24C(8P+16E), 32T, 1.1/5.5GHz, 36M Cache, TDP 35W(Turob mode 106W) |
|
Memory type |
Up to 64GB DDR5 5200 MHz SO-DIMM, non-ECC and ECC |
|
CHIPSET |
Intel® Q670E/R680E Chipset |
|
GPU |
NVIDIA® RTX 4000 SFF Ada |
|
Expansion Slot |
1 x PCIe 4.0 x 16 |
|
Storage |
|
|
SATA |
2 x 2.5” SSD SATAIII Internal |
| TPM | |
| TPM | Onboard TPM2.0 |
|

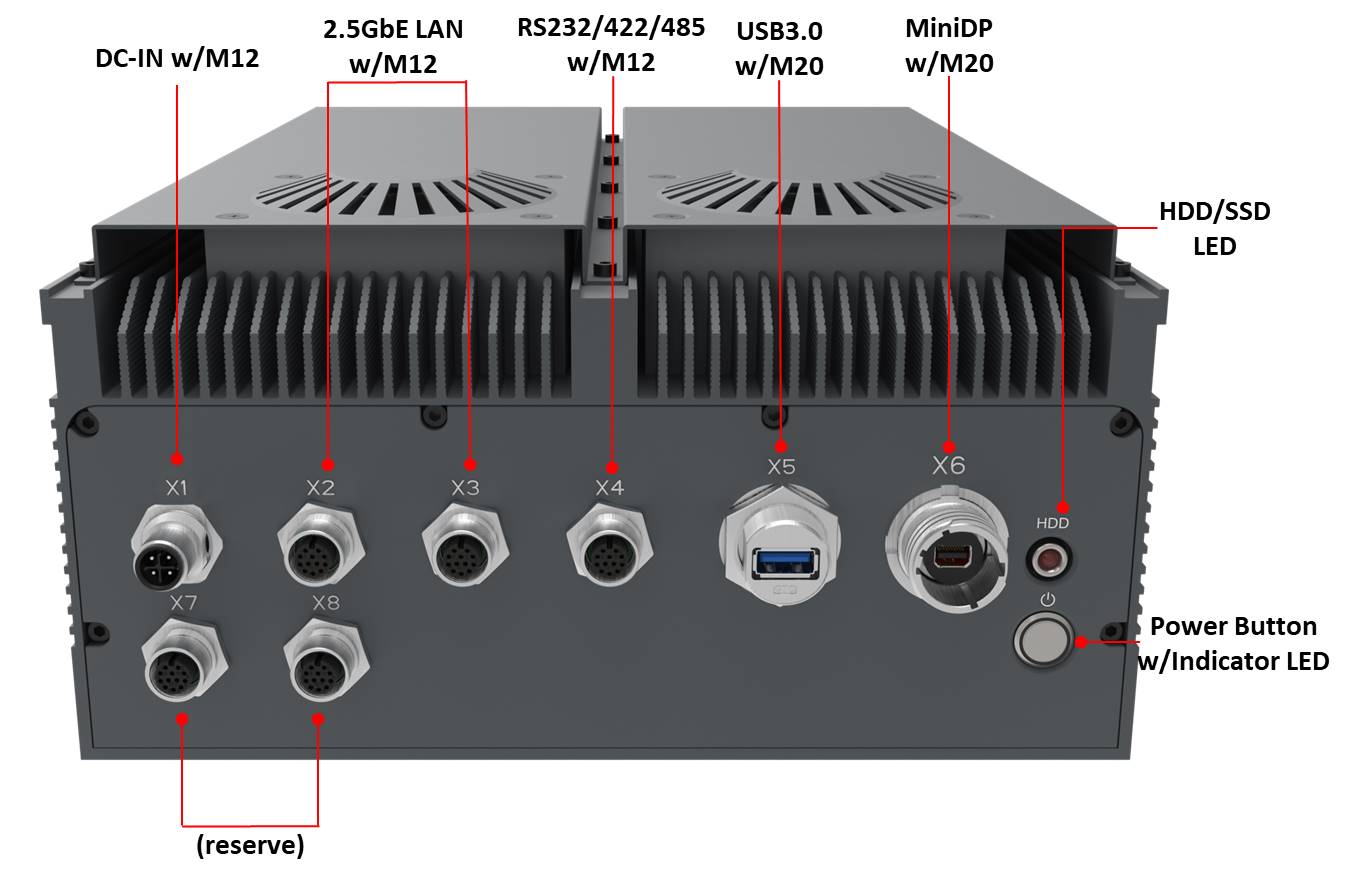

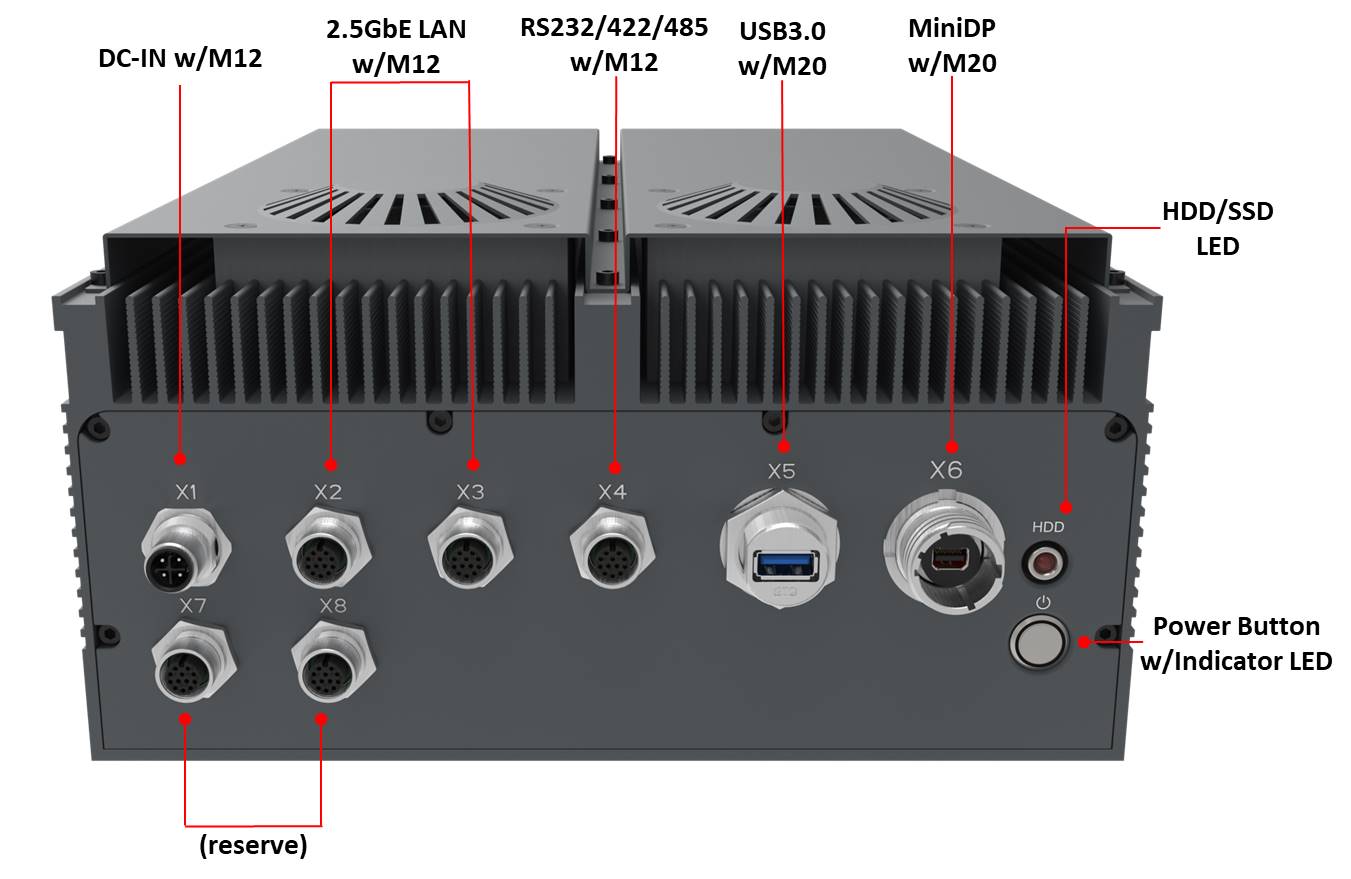

Front I/O |
|
| X1 | 1 x DC-IN w/M12 waterproof connector |
| X2 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X3 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X4 | 1 x RS232/422/485 w/M12 waterproof connector |
| X5 | 1 x USB3.0, with M20 waterproof connector |
| X6 | 1 x miniDP w/M20 waterproof connector |
| X7 | (reserve) |
| X8 | (reserve) |
| SSD LED | 1 x SSD LED |
| Switch | 1 x IP65 power button |
|
Rear I/O |
|
|
Others |
Antenna(Option) |
|
GND |
1 x GND |
|
Power |
|
|
Power input |
18V~36V DC-IN |
|
Operating System |
|
|
OS |
Windows® 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) |
|
Physical |
|
|
Dimension |
325 x 250 x 100 mm (W x L x H) |
|
Chassis |
Aluminum Alloy |
|
Heatsink |
Heatsink Aluminum Alloy, Corrosion Resistant |
| FAN Kit | W/GPU SKU |
|
Environmental |
|
|
Green Product |
RoHS, WEEE compliance |
|
Operating Temp. |
-20°C to +60°C |
|
Storage Temp. |
-40°C to +85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
MIL-STD-810 Specifications (Operating) |
|
|
Method 502.5 |
Low Temperature -20°C, 4 hours, ±3°C |
|
Procedure 2 |
|
|
Method 501.5 |
High Temperature +55°C, 4 hours, ±3°C |
|
Procedure 2 |
|
|
Method 507.5 |
Humidity 85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles. |
|
Method 514.6 |
Vibration 5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
|
Method 516.6 |
Shock 20 Grms, 11ms, 3 axes. |
|
MIL-STD-810 Specifications (Non-Operating) |
|
|
Method 502.5 |
Low Temperature -33°C, 4 hours, change rate:≦20°C/ Hour Storage -15°C, 72hours (By request) |
|
Procedure 1 |
|
|
Method 501.5 |
High Temperature +71°C, 4 hours, change rate:≦20°C/ Hour Storage +63°C, 240 hours (By request) |
|
Procedure 1 |
|
|
Method 514.6 |
Vibration 5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
|
Method 516.6 |
Shock 20 Grms, 11ms, 3 axes. |
