IV320-RS-XL4
IV320-RS-XL4
IP65 Military GPU Computer -10G (SFP) Input for Sensor Payload Connectivity
- AI Optimized IP65 Rugged GPU Computer
- Intel® 14 Gen. Raptor Lake-R/S, Core i9/i7
- Up to 64GB DDR5 5200 MHz SO-DIMM, non-ECC
- 1× 10G (SFP) data input for sensor payload connectivity
- Support NVIDIA® L4 (24GB GDDR6, 7,424 CUDA)
- Rugged waterproof D38999/M20/M12 connectors
- 3 x LAN(10GbE/2 x 2.5GbE), 1 x miniDP ; 2 x USB3.0
- Extended Operating Temperature -20°C to +60°C
- MIL-STD-810 Anti Vibration, Shock design to meet
- Technical Profile
- Specifications
- Order Information
- Unleash Next-Gen AI Performance in the Harshest Environments
-
Engineered for extreme reliability and high-performance edge computing, the IV320-RS-XL4 is an AI-optimized IP65 rugged computer built to thrive in wet, dusty, and demanding industrial conditions. Featuring a full IP65-sealed enclosure alongside heavy-duty waterproof D38999/M20/M12 connectors, it delivers maximum protection without compromising processing power.
At its core, the IV320-RS-XL4 supports 14th/13th Gen Intel® Core™ i9/i7 processors (Raptor Lake-R/S) paired with up to 64GB DDR5 5200 MHz SO-DIMM memory. To handle intensive AI inference and computer vision tasks, it integrates the powerful NVIDIA® L4 GPU—featuring 24GB GDDR6 memory and 7,424 CUDA cores—bringing server-grade intelligence straight to the edge.
Designed to withstand severe field environments, the system operates flawlessly across an extended temperature range of -20°C to +60°C and meets MIL-STD-810 standards for anti-vibration and shock resistance. Exceptional connectivity is ensured with high-speed networking and I/O options, including triple LAN ports (1 x 10GbE and 2 x 2.5GbE), miniDP, and dual USB 3.0 ports.
Empower your mission-critical edge deployments with the ultimate combination of rugged durability and AI horsepower.

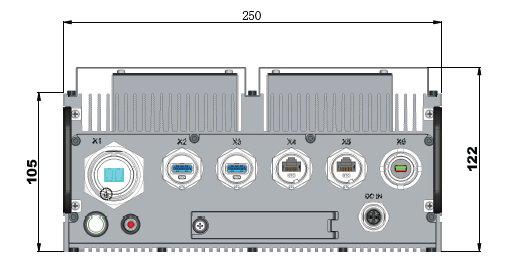

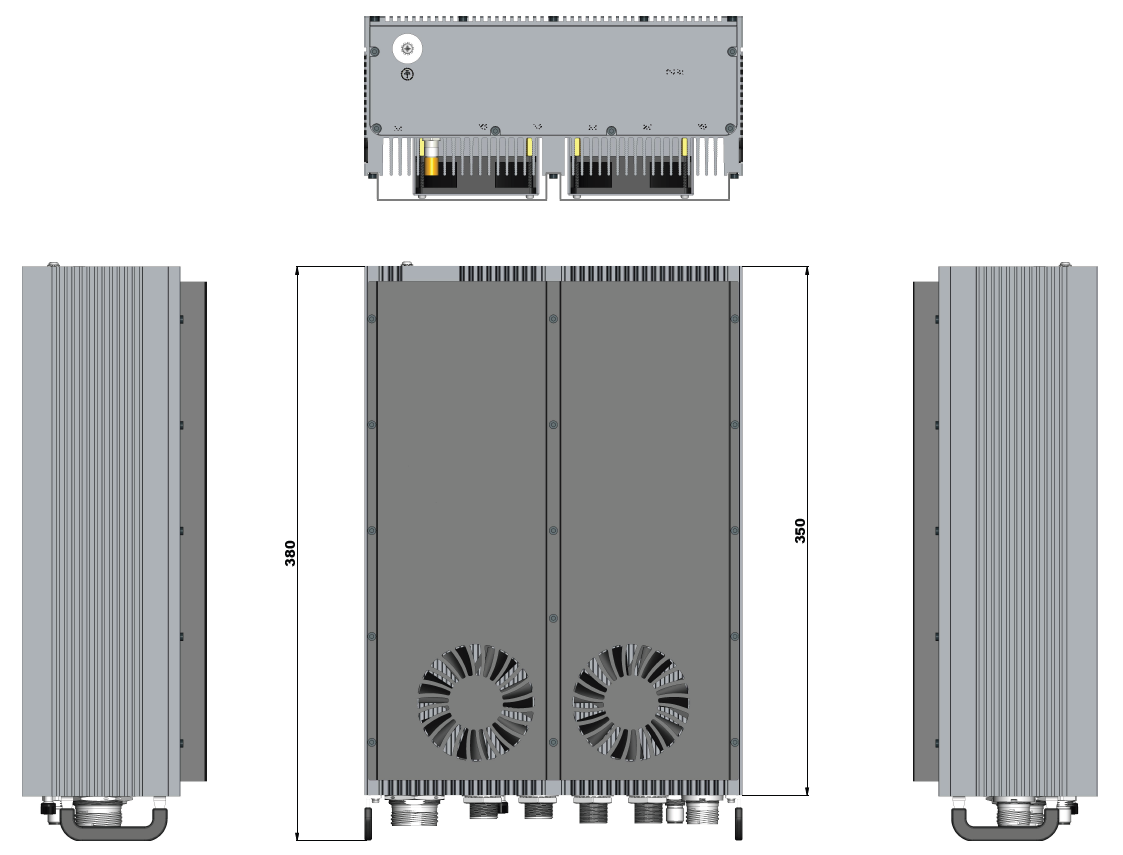

- Dimension

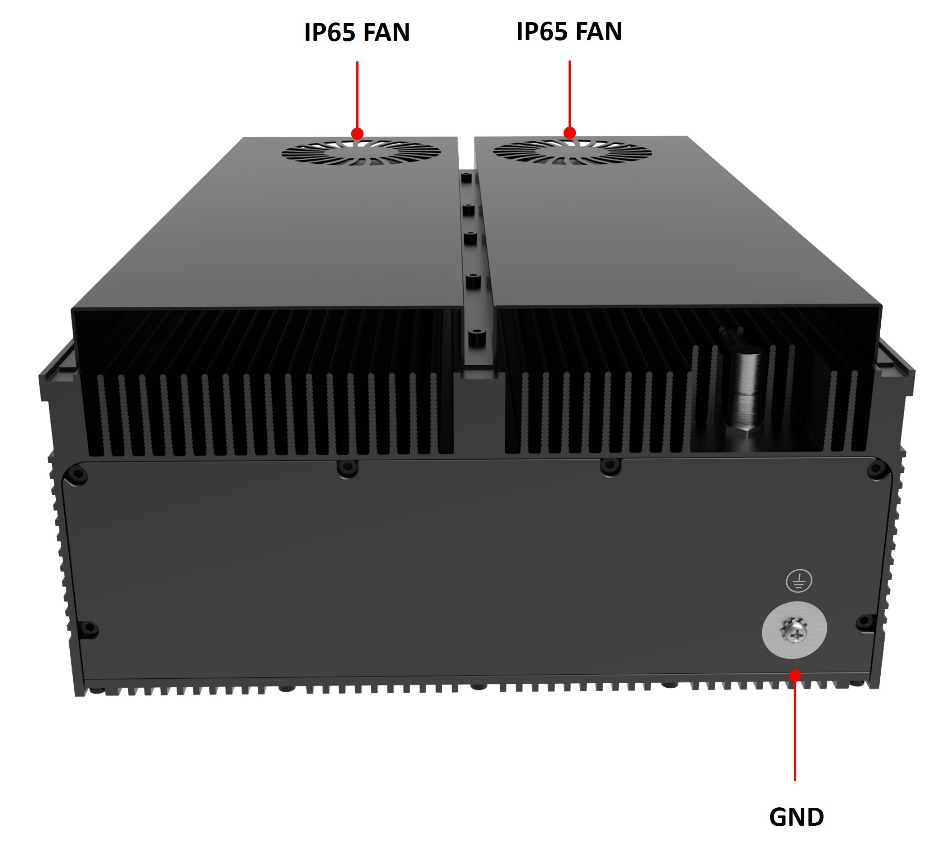

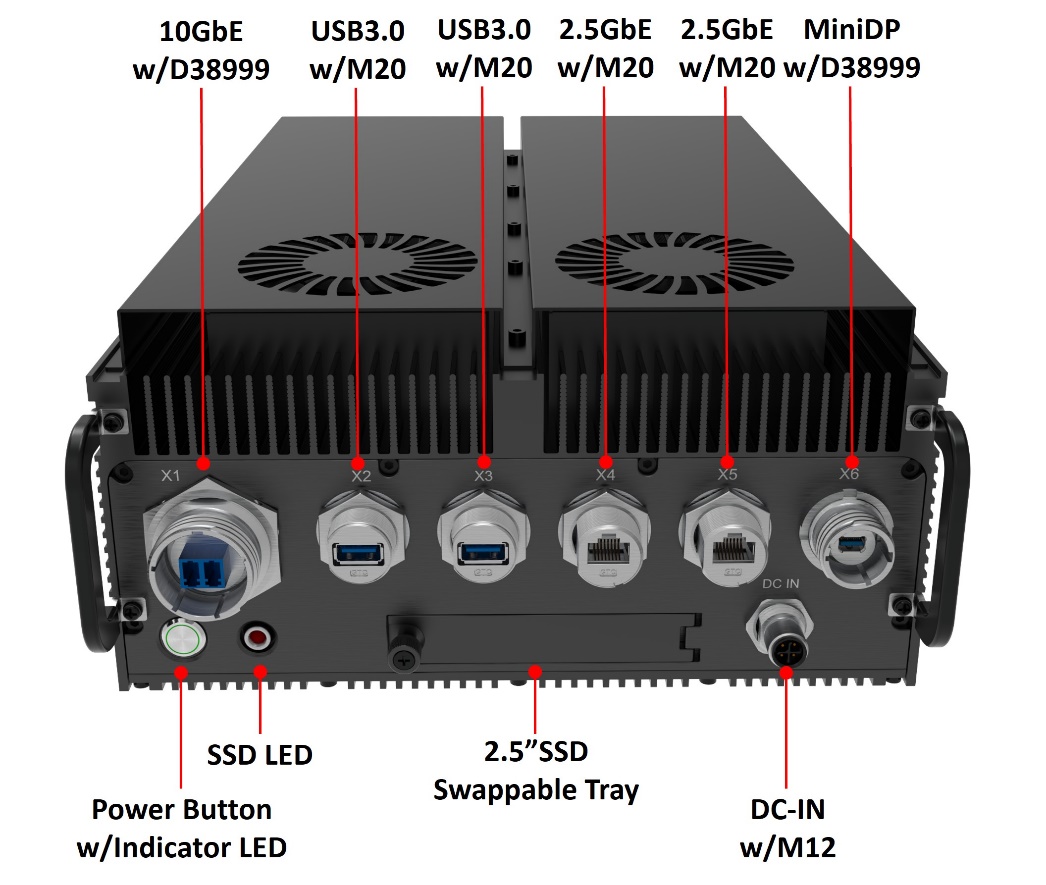

- Apperance
|
System |
|
|---|---|
|
CPU |
Intel® 14th Raptor Lake-R Core i9-14900T, 24C (8P+16E), 32T, 1.1/5.5GHz, 36M Cache, TDP 35W (Turob mode 106W) Intel® 13th Raptor Lake Core i9-13900TE, 24C (8P+16E), 32T, 1.0/5.0GHz, 36M Cache, TDP 35W Intel® 13th Raptor Lake Core i7-13700TE, 16C (8P+8E), 24T, 1.3/4.8GHz, 30M Cache, TDP 35W |
|
Memory Type |
Up to 64GB DDR5 5200 MHz SO-DIMM, non-ECC or ECC (Base on chipset) |
|
CHIPSET |
Intel® Q670E/R680E Chipset |
|
GPU |
NVIDIA® L4 |
| Storage | |
| SATA | 1 x 2.5” SSD SATAIII Internal |
| TPM | |
| TPM | Onboard TPM2.0 |

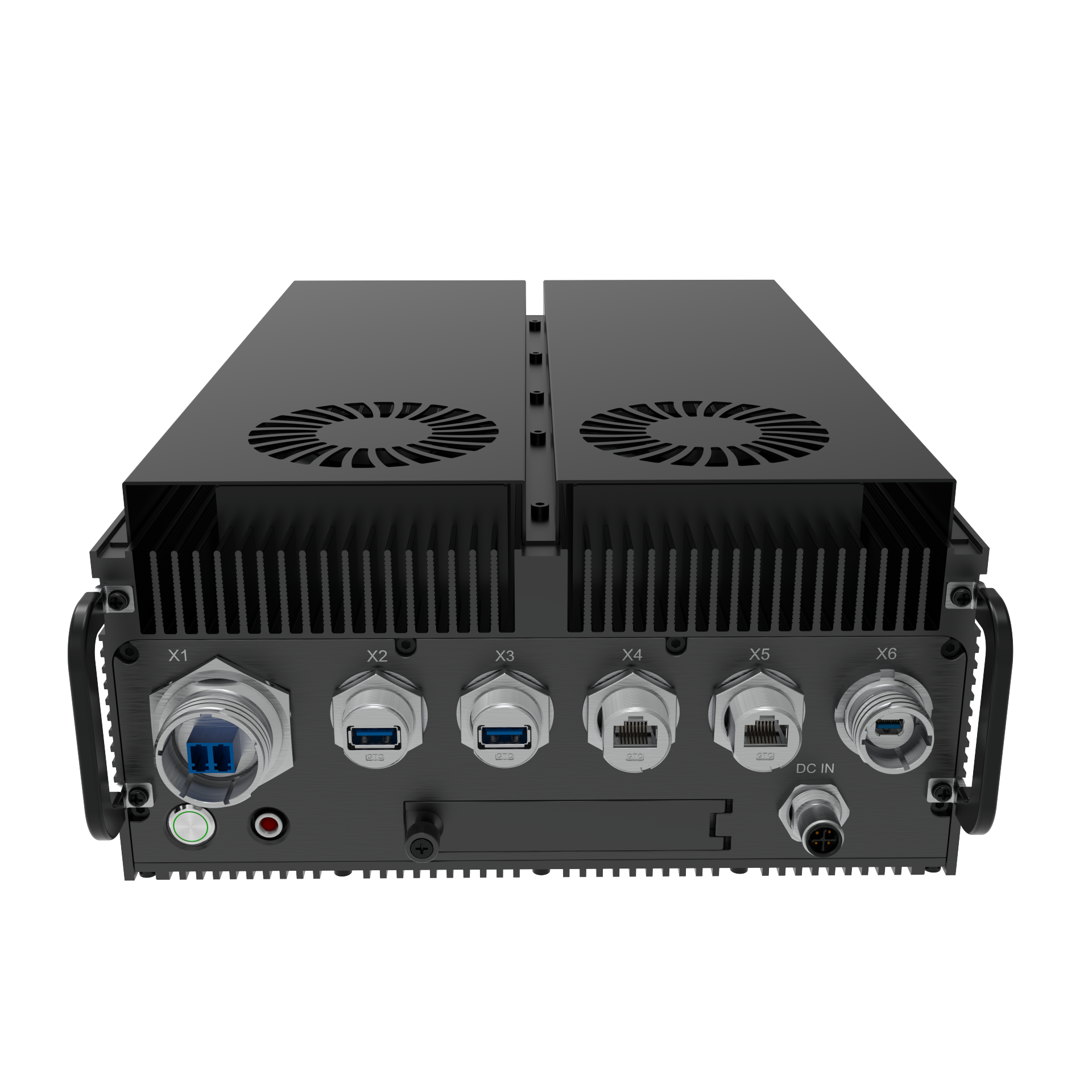

| Front I/O | |
| X1 | 1 x 10Giga LAN w/D38999 waterproof connector |
| X2 | 1 x USB3.0, with M20 waterproof connector |
| X3 | 1 x USB3.0, with M20 waterproof connector |
| X4 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X5 | 1 x 2.5Giga LAN w/M12 waterproof connector |
| X6 | 1 x miniDP w/D38999 waterproof connector |
| DC-IN | 1 x DC-IN w/M12 waterproof connector |
| SSD LED | 1 x SSD LED |
| Switch | 1 x IP65 power button w/Indicator LED |
| Rear I/O | |
| GND | 1 x GND |
| Power Requirement | |
| Power Input | 18V~36V DC-IN w/MIL-STD-461 |
| Operating System | |
| Operating System | Windows® 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows® 11 IoT Enterprise 24H2 LTSC (64-bit) Linux (Support by request) |
| Physical & Environment | |
| Dimension | 250 x 325 x 100 mm (W x L x H) |
| Chassis | Aluminum Alloy |
| Heatsink | Heatsink Aluminum Alloy, Corrosion Resistant |
| Fan Kit | W/GPU SKU |
| Green Product | RoHS, WEEE design to meet |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
|
MIL-STD-810 (Design To Meet) |
MIL-STD-810 Design to meet : Method 514, Vibration/ Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514, Vibration/ Category 20/Operating (Category 20 & 24, Vibration) Method 516, Shock / Procedure V Non-Operating (Mechanical Shock) Method 516, Shock / Procedure I Operating (Mechanical Shock) |
|
MIL-STD-461 (Design To Meet) |
CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 80 MHz - 3 GHz |
IV320-RS-XL4
Full IP65 rugged AI edge computer supporting Intel 14th/13th Gen processors, NVIDIA L4 GPU, and 64GB DDR5 memory. It meets MIL-STD-810/461 standards and features waterproof D38999/M20/M12 connectors for 3xLAN, 2xUSB, and miniDP. DC-IN 18-36V, Extended operating temperature: -20°C to +60°C.
