SK2060S
NVIDIA GeForce® RTX2060SUPER MXM 3.1 Graphic Module, supporting 4 Channel outputs, and 8GB GDDR6 High-Speed Memory
- Powered by NVIDIA GeForce RTX 2060 Super
- NVIDIA CUDA technology with 2176 Cores
- MXM 3.1 Type B
- Support DirectX 12, OpenGL 4.6, Vulkan API
- Support for 4 outputs
- 256-bit width, 8GB , GDDR6 High-Speed Memory
- Power Consumption: 175W
- Technical Profile
- Specifications
- Download
- I. Introduction
-
MXM Graphic Solutions
7StarLake’s MXM modules are the compact, thinnest graphics module solution based on the industrial standard Mobile PCI Express Module (MXM) Version 3.1 specification, delivering the latest and cutting-edge GPU benefits for your embedded systems. Its superior graphics performance, GPU computing and video capabilities are the ideal solution for performance demanding systems such as digital signage, medical image, defense, aerospace applications, and AI computing.
NVIDIA CUDA Platform
Powered by NVIDIA, CUDA® is a parallel computing platform and programming model developed by NVIDIA for general computing on graphical processing units (GPUs). With CUDA, developers are able to dramatically speed up computing applications by harnessing the power of GPUs. In GPU-accelerated applications, the sequential part of the workload runs on the CPU – which is optimized for single-threaded performance – while the compute intensive portion of the application runs on thousands of GPU cores in parallel.
7StarLake’s Computing Accelerating CPU Module

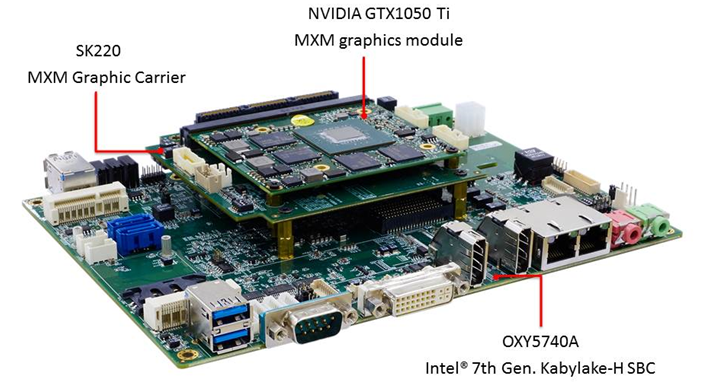

7StarLake’s high-performance GPU-based modules (OXY5740 - 7th Gen. EBX Platform) can provide exceptional processing power to applications which benefit from advanced parallel processing. Typical applications include image processing, video stabilization, filtering, terrain analytics, 3D visualization of Geospatial data, object recognition and tracking. The latest generation modules include tensor cores and other specialized circuitry which can be used for AI inference, where a model created by training a neural network can be used by a processing module in the field to analyze real world data.

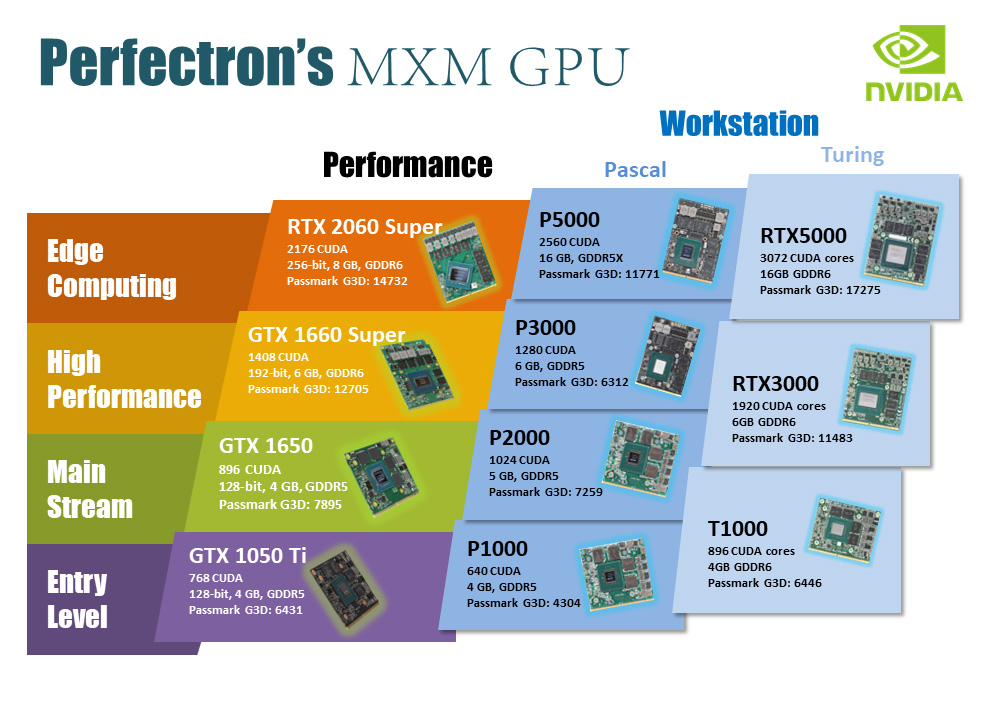

- II. GPU Roadmap
- RXT2060 Super Diagram
- III. Related Products
-
- EBX Form factor
- Intel® 7th Gen. Kabylake-H® Core™ i7-7820EQ processors
- Stackable with StackPC & FPE Expansion
- Capable of connecting to various MXM GPU Module such as GTX-1660SUPER/GTX-1650 /GTX-1050Ti
- Extended Temperature - 40°C to 85°C
2. SK513 (COM Express Type 6 carrier board)
- COM Express Type 6 Support Up to Intel XEON E-2276ME, i7-9850H Processor
- Standard MXM Type 3.1 Supporting NVIDIA GeForce® GPUs
- PCI/104 Express Expansion Slot for Modular Open Structure
- 2 x VGA, 1 x LVDS, 4 x COM, 6 x USB, 2 x miniPCIe, 1 x M.2, 2 x SATA Slots
- Extreme Temperature Support -40~+85 degree
- 9V-36V DC Input
3. SR800-X1 GPGPU Radar Subsystem
- IP65 VMware GPGPU rugged workstation with NVIDIA NVIDIA 1050Ti CUDA 768/GTX 1650 CUDA896 /GTX 1660S CUDA1408 ) , Intel® Xeon® D-1577 Processor (16 Cores), 128GB DDR4 ECC RDIMM, MIL-DTL-38999 , MIL-STD 461/1275 Compliant
- 16 Cores INTEL® Xeon® D-1577 VMware Support
- 128GB DDR4 ECC RDIM
- Quadro P3000 MXM Support
- Dual Removable 2.5” SSD Tray
- MIL-STD 461/1275 18V~36V DC Input
- M12/ DTL38999 Connector
Operating Temperature |
|
|---|---|
0℃ to 50℃ |
|
Graphic Module Information |
|
| GPU | NVIDIA RTX 2060S |
| Process Technology | 12 nm |
| GPU Clock (max.) | 1530 MHz |
| CUDA Cores | 2176 CUDA |
| MXM type | MXM 3.1, Type B |
| Bus Interface | PCI Express® 3.0 (X16) |
| DirectX® Capability | DirectX® 12 |
| OpenGL™ | OpenGL 4.6 |
| OpenCL™ | OpenCL 1.2 |
| Memory Configuration, type | 256-bit, 8 GB, GDDR6 |
| G3D Mark Ref. Scores | 12705 |
| TDP | 175W |
| Attachment | Size |
|---|---|
| SK2060 test report_0.pdf (2.08 MB) | 2.08 MB |
