CPT100
In Vehicle Computer By Intel Meteor Lake-U
- Intel® Meteor Lake U Core™ Ultra 7 155U
- 1 x DDR5 SO-DIMM up to 48GB
- Supports Triple Displays for HDMI, DisplayPort, and Type-C (DP Alt Mode)
- 4 x Intel® i226-LM 2.5G LAN
- 4 x PoE on 2.5G LAN (optional)
- 8V~26V wide voltage power input
- Operation Temperatures -20°C~60°C
- MIL-STD-810 standards for Shock and Vibration
- Technical Profile
- Specifications

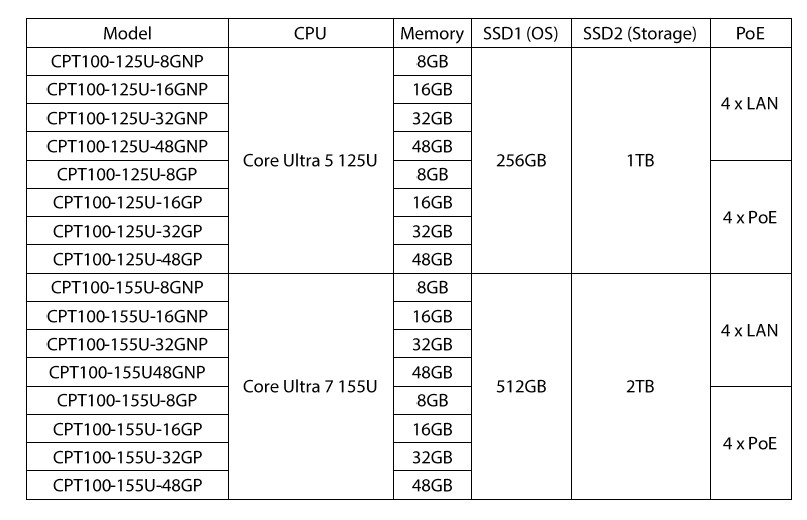

- Order Information
- AI Acceleration from Intel® Core™ Ultra Processors
-
Powered by Intel® 14th Gen Core™ Ultra 7 or 5 processors (Meteor Lake-U), the rugged CPT100 brings AI acceleration directly to the edge with efficient offload and low-power inference performance. Its integrated CPU, GPU, and Intel® AI Boost (NPU) architecture delivers a balanced approach to compute, graphics, and AI workloads, ensuring robust performance without sacrificing energy efficiency. With support for up to 12 cores, the CPT100 is purpose-built for defense applications such as sensor fusion, real-time media processing, 3D rendering, and advanced situational awareness. By combining high-performance compute with a dedicated NPU, the system enables faster decision-making, reduces CPU/GPU load, and improves energy efficiency—critical advantages for mission-ready AI in the field.
- Seamless Networking Optimized for Edge Workloads
-
Engineered with high-speed connectivity and versatile I/O, the CPT100 is designed to support a wide range of edge workloads. Featuring 1 x DDR5 SO-DIMM with support for up to 48GB, it delivers the memory bandwidth required for data-intensive AI processing. Triple-display output via HDMI, DisplayPort, and Type-C (DP Alt Mode) provides flexible visualization options for monitoring and control. With support for four PoE-enabled 2.5G LAN ports, the CPT100 can simultaneously connect and power cameras, sensors, and other devices. Additional expansion is available through 3 x USB 2.0, 4 x USB 3.2 Gen2, 1 x USB Type-C, and 4 x COM ports, ensuring broad compatibility with diverse peripherals. Purpose-built for AI-driven solutions, intelligent surveillance, and environmental monitoring, the CPT100 delivers reliable performance at the edge.
- Rugged and Reliable Design for Extreme Environments
-
Designed for the most challenging conditions, the CPT100 meets rigorous MIL-STD-810 standards, ensuring exceptional resilience against extreme temperatures, shock and vibration. These standards establish the CPT100 as a mission-ready, high-performance solution for demanding edge deployments, capable of sustaining critical AI, surveillance, and industrial workloads in harsh and unpredictable conditions.

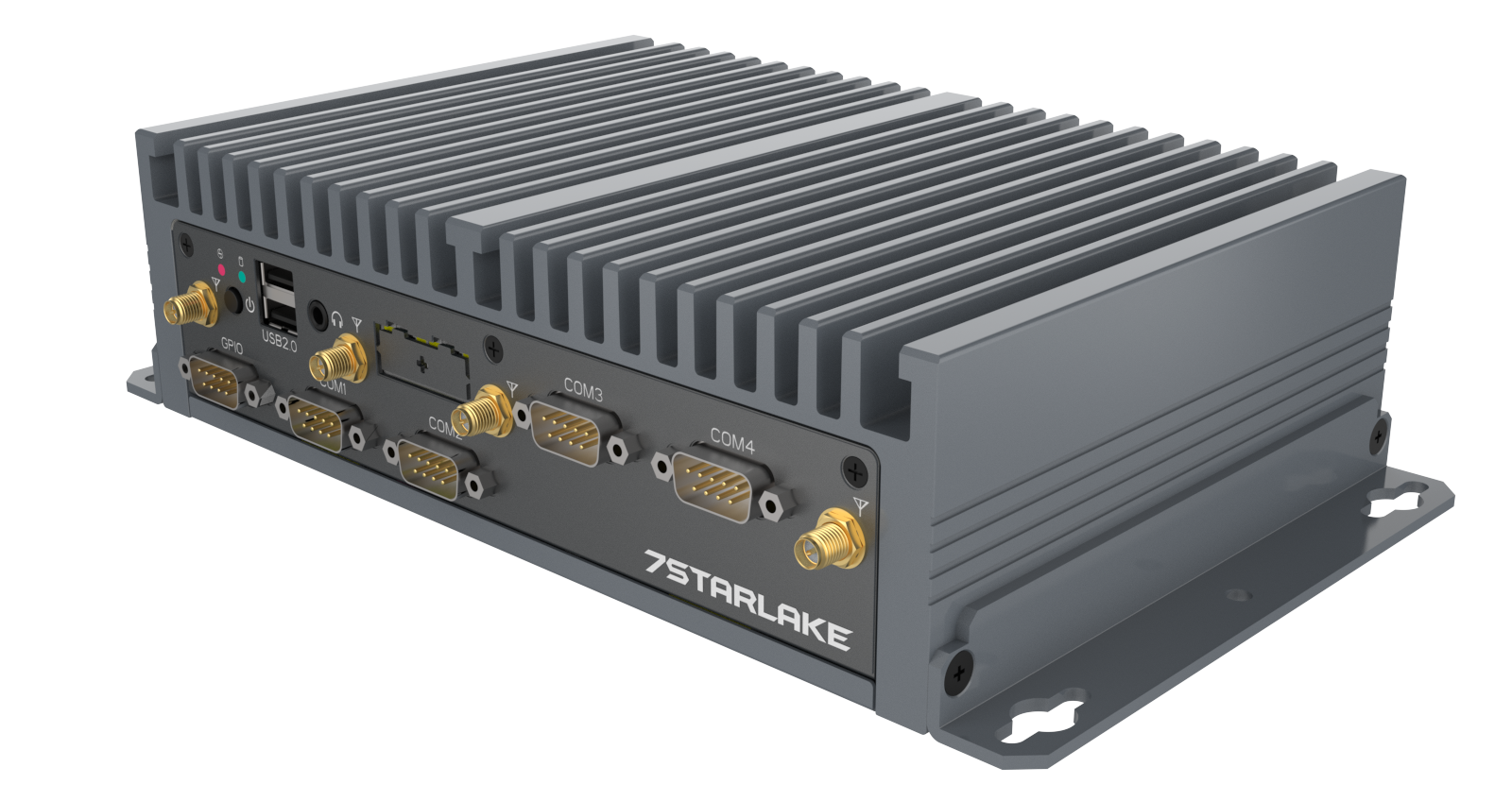

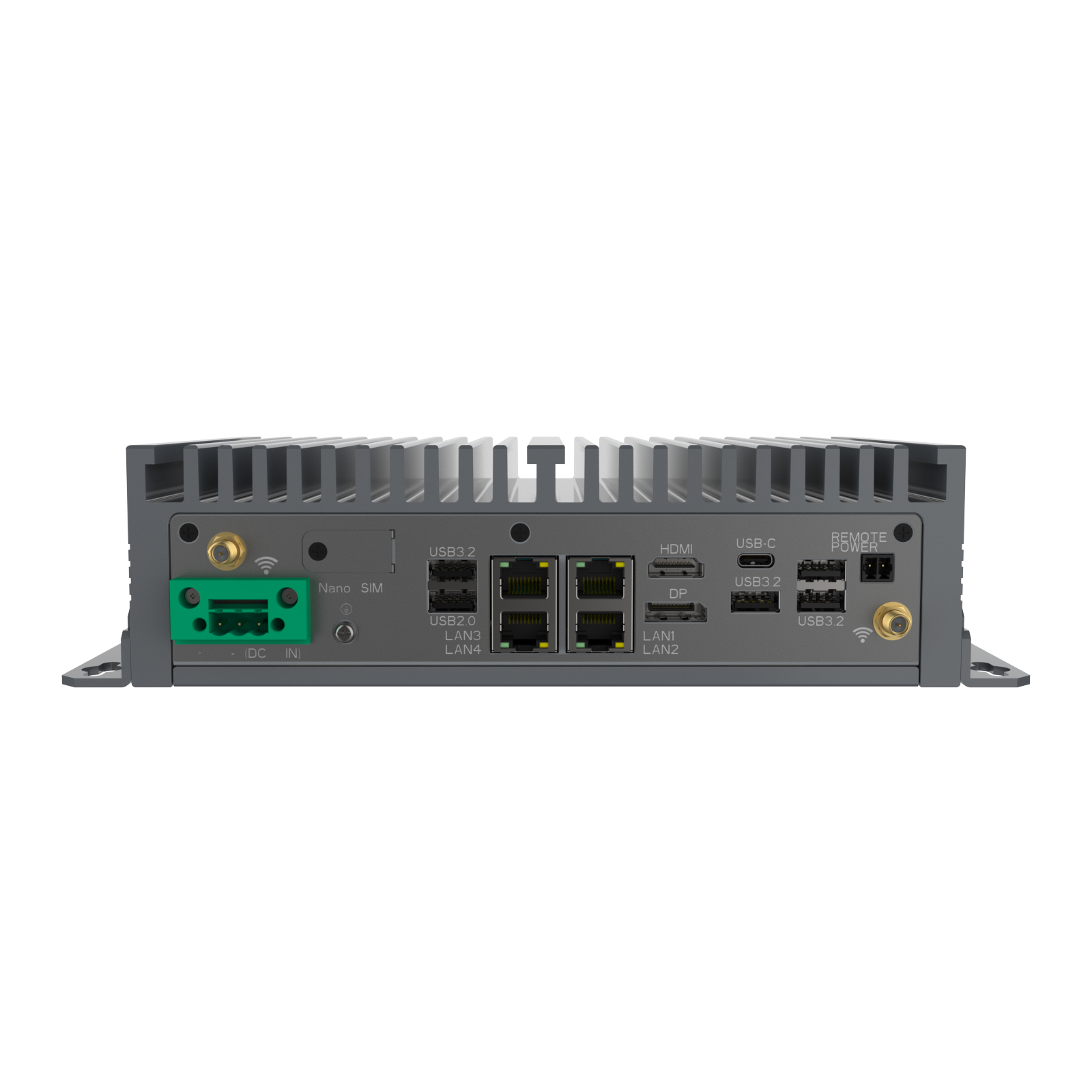

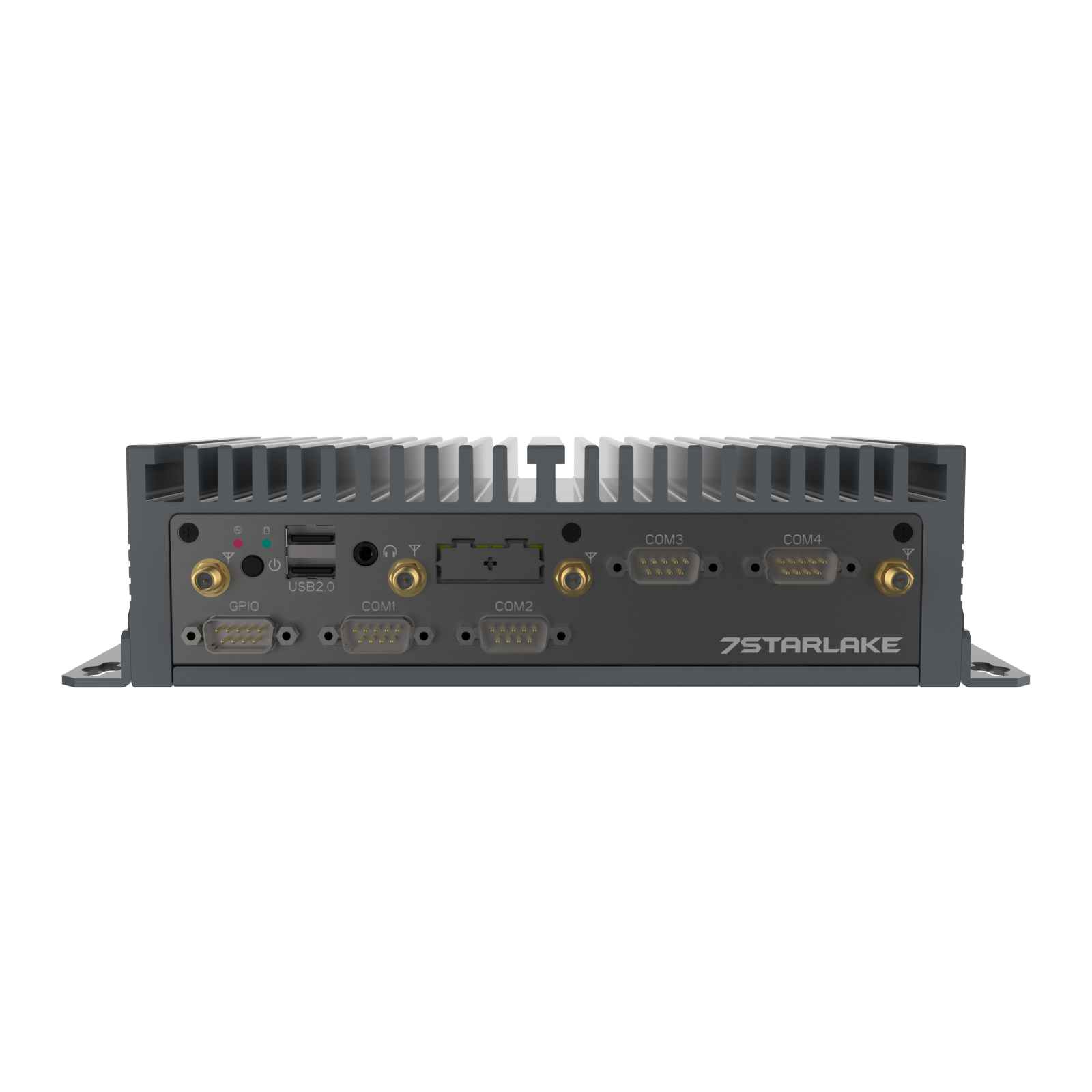

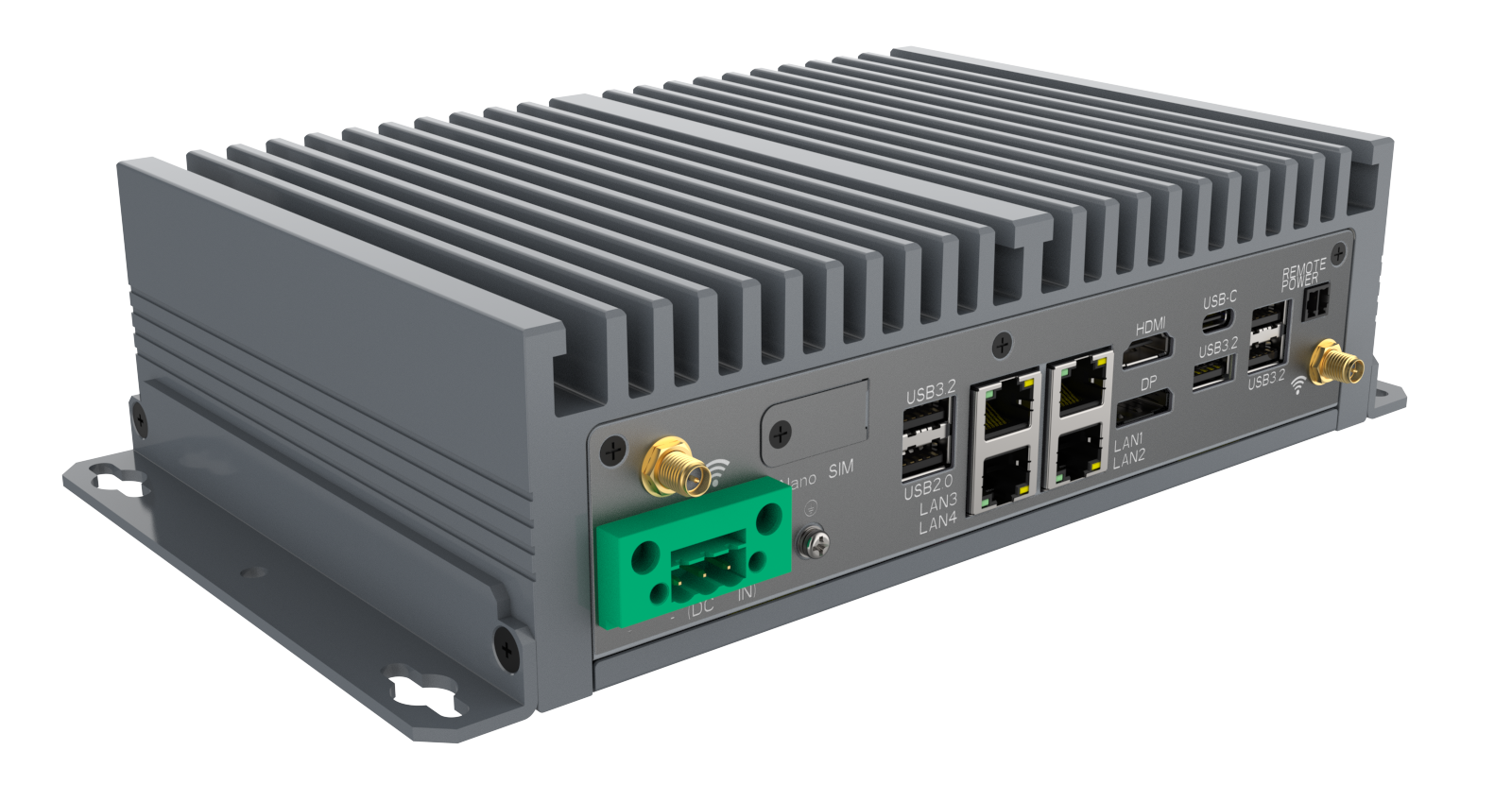

- Appearance
-
|
System |
|
|---|---|
|
High Performance Processor |
Intel® Meteor Lake U Core™ Ultra 7 155U / Ultra 5 125U Processor |
|
Memory type |
DDR5 4800 MHz / 1 x 262-pin SO-DIMM / Max. 48GB (Non-ECC) |
|
Chipset |
Intel® SoC Integrated |
|
Graphics |
Intel® Iris Xe Graphics |
|
Display |
|
|
DP |
Resolution up to 4096 x 2304 @60Hz |
|
HDMI |
Resolution up to 4096 x 2304 @60Hz |
|
Storage |
|
|
HDD/SSD |
1 x 2.5" Solid State Disk (SSD) 1 x M.2 M Key 2280 NVMe/SATA SSD Slot |
|
Ethernet |
|
|
Ethernet |
4 x Intel® I226-LM 2.5 Giga LAN (Optional 4 x PoE) |
|

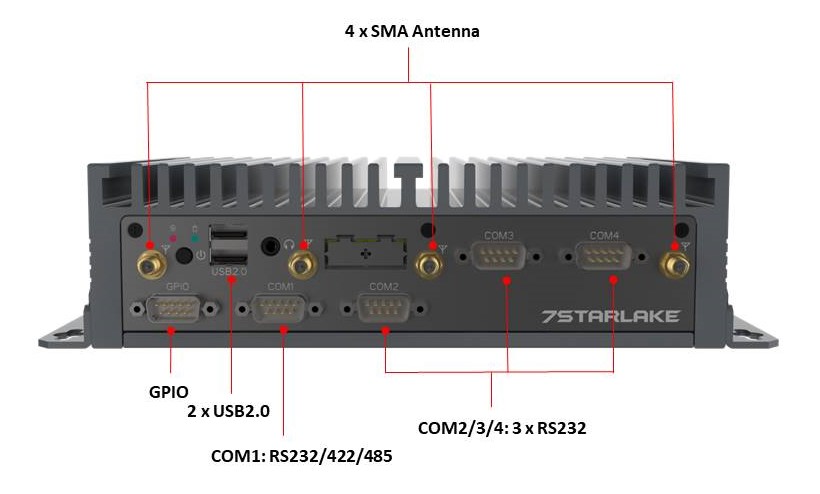

Front I/O |
|
|
COM |
3 x RS232 ; 1 x RS232/422/485 |
|
USB |
2 x USB 2.0 |
|
GPIO |
8 bit GPIO (4 in/ 4 out) in DB9 type |
|
SMA |
2 x SMA Antenna |
|
Line-Out |
1 x Line-Out |
|
LED |
1 x SSD LED |
|
Power Button |
1 x w/indicator Power Button |
|

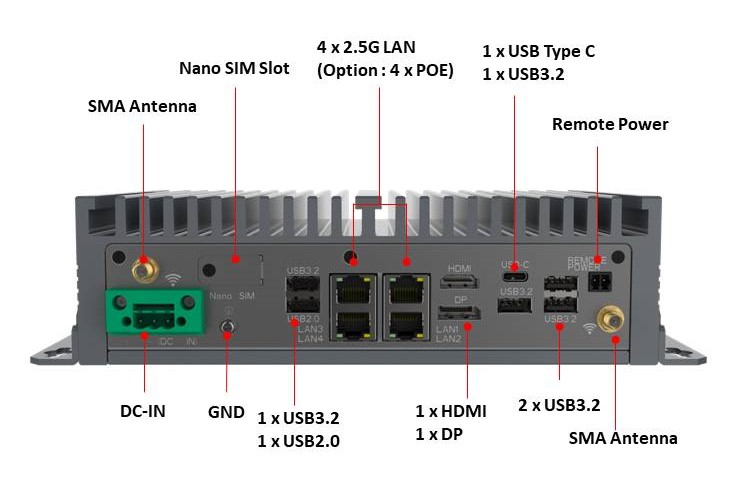

Rear I/O |
|
| Display Port |
1 x DP |
| HDMI |
1 x HDMI |
| Ethernet |
4 x 2.5 GbE RJ45 |
| USB |
4 x USB3.2 ; 1 x USB2.0 ; 1 x USB Type C |
| SIM |
1 x Nano SIM slot w/Cover |
| Power Input |
1 x 3-pin Terminal Block Power Input |
| Remote Power |
1 x 2-pin Terminal Block Remote Power on/ off |
| SMA |
2 x SMA Antenna |
|
Power Requirement |
|
|
Power Input |
DC-IN 8~26V |
|
Applications, Operating System |
|
|
Operating System |
Windows 10/11 64Bit Linux (support by request) |
|
Physical |
|
|
Dimensions (W x D x H) |
220 x 150 x 64.2 mm |
|
Chassis |
Aluminum |
|
Heatsink |
Aluminum Alloy, Corrosion Resistant |
| Finish |
Anodic aluminum oxide |
|
Environmental |
|
| Green Product |
RoHS (designed to meet) |
|
Operating Temperature |
-20 to 60°C |
|
Storage Temperature |
-40 to 85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
EMC |
CE and FCC (design to meet) |
|
MIL-STD-810 Environment Testing Standards |
|
|
Method 501, Operational Temperature, high |
Procedure II: +60°C, two-hour dwell, four cycles |
|
Method 501, Storage Temperature, high |
Procedure I: +70°C, two-hour dwell, four cycles |
|
Method 502, Operational Temperature, low |
Procedure II: -20°C, two-hour dwell, four cycles |
|
Method 502, Storage Temperature, low |
Procedure I: -30°C, two-hour dwell, four cycles |
|
Method 514, Vibration |
Category 24/Non-Operating (Category 20 & 24, Vibration) |
|
Method 514, Vibration |
Category 20/Operating (Category 20 & 24, Vibration) |
|
Method 516, Shock |
Procedure V Non-Operating (Mechanical Shock) |
|
Method 516, Shock |
Procedure I Operating (Mechanical Shock) |
|
Method 507, Humidity |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) |
CPT100-125U
Fanless Embedded System with Intel® Core Ultra 5 125U Meteor Lake-U Processor (Up to 15W , Turbo up to 57W), 1 x DDR5 4800MHz SO-DIMM up to 48GB, 1 x DisplayPort, 1 x HDMI,4 x USB3.2, 2 x USB2.0, 4 x LAN (Optional: 4 x POE), 1 x GPIO , 4 x COM , 6 x SMA Antenna ,8~26V DC-IN, Operating Temperature: -20°C ~+60°C
CPT100-155U
Fanless Embedded System with Intel® Core Ultra 7 155U Meteor Lake-U Processor (Up to 15W, Turbo up to 57W), 1 x DDR5 4800MHz SO-DIMM up to 48GB, 1 x DisplayPort, 1 x HDMI, 4 x USB3.2, 2 x USB2.0, 4 x LAN (Optional: 4 x POE), 1 x GPIO , 4 x COM , 6 x SMA Antenna ,8~26V DC-IN, Operating Temperature: -20°C ~+60°C
