HORUS440

Intel 4/5th XeonSP 2U Military Rugged HPC-front

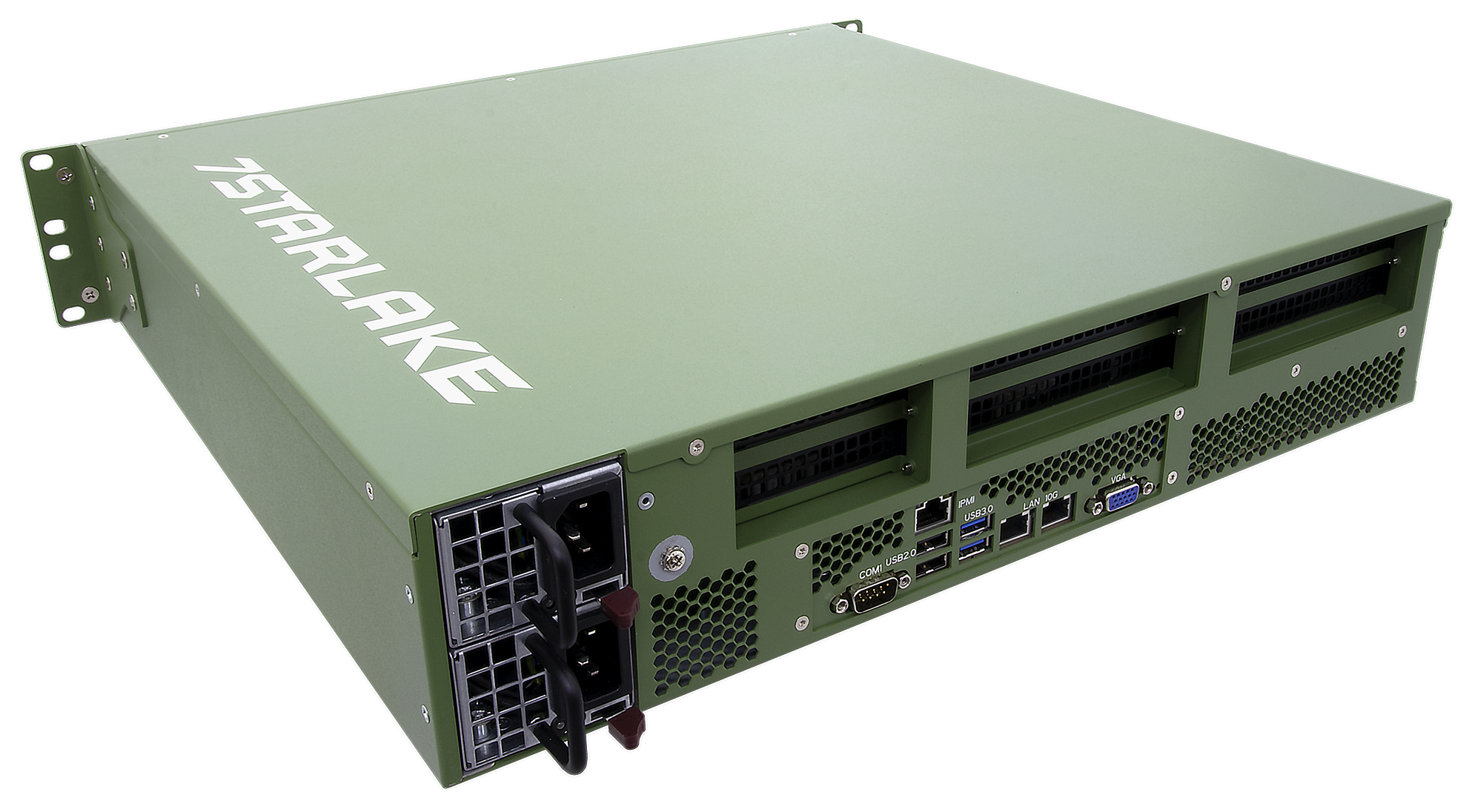

HORUS440-Intel 4/5th XEON SP 2U Military Rugged Server
HORUS440-Intel 4/5th XEON SP 2U Military Rugged Server
Intel 4/5th XEON SP 2U Military Rugged HPC-front
Intel 4/5th XEON SP 2U Military Rugged HPC-front

2U Military GPU Server – Dual Intel 5th Xeon-SP, 350W GPU Card Support

  • Dual Intel 4/5th Xeon-SP , Dual GPU Card Support
  • Up to 3 selection PCIe 5.0 slot
    • 1 x PCIe 5.0 x16 FHFL - 350W Double Width GPU
    • 2 x PCIe 5.0 x16 HHHL- NIC , FPGA or RAID Card
  • 8 x 2.5” Swappable SATA SSD up to (RAID 0,1,5,10)
  • 2 x 10G LAN,1 x IPMI LAN,2 x USB2.0,1x VGA
  • DC 18V~36V or 100/240V AC
  • MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
  • MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
  • MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
  • MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 20G

Intel Partner 7STARLAKE

Download
Datasheet
Get A Quote
  • Technical Profile
  • Specifications
  • Video
  • Download
From Routine to Revolution: A Prelude to Future Narrative

In the domain of AI Visual Inspection, the current version excels in routine tasks but faces challenges when dealing with real-world complexities. A transformative wave is sweeping through this field, driven by the fusion of state-of-the-art Artificial Intelligence (AI), Machine Learning (ML), and powerful high-performance computing.

Imagine this: Robotics Arm dynamically perceive and adapt swiftly, going beyond static programming. The amalgamation of AI and ML algorithms, coupled with advanced cameras and robust servers, propels these controllers into a league of their own. What sets them apart is their intelligent, rapid calculation of optimal actions—no longer confined to predefined scenarios but seamlessly extending into domains such as logistics, manufacturing, agriculture.

This signifies the future of Robotics AI Visual Inspection, emerging as problem-solving virtuosos that embody the remarkable synergy of AI, ML, and high-computing power. It marks the dawn of a new era for autonomy solutions, where the seamless convergence of efficiency and adaptability takes center stage, echoing the unmistakable cadence of innovation.



5th SP_2



5th SP





banner
Precision Redefined, Future Aligned

Introducing the HORUS440 HORUS440-M DIAGRAMby 7StarLake, a groundbreaking leap toward unparalleled precision in dynamic environments. Crafted with the cutting-edge Intel® Generation 4/5th Xeon® Scalable Processors, NVIDIA RTX™ 6000 Ada(18176 CUDA cores), and Intel® Ethernet Controller I350, the HORUS440 emerges as a powerhouse designed to deliver peak performance and flexibility, seamlessly navigating hybrid environments. This formidable combination not only guarantees zero-latency processing of ultra-high-speed frame rates from diverse sensor inputs but also excels in adapting to the intricacies of the most demanding high-density AI visual inference workloads.

To fully harness Intel's potent compute-intensive capabilities and elevate real-time awareness and control to unprecedented levels, the HORUS440 utilizes the unified, open, and standards-based software Intel OpenVINO and REALSENSE technology. This strategic integration maximizes hardware resources efficiently, ensuring a streamlined experience in identifying patterns, extracting insights, and executing swift actions in harsh environments.

In unpredictable settings, HORUS440 stands as a testament to predictability, showcasing higher speeds, enhanced maneuverability, and increased range. It provides a comprehensive, all-in-one processing solution, reaffirming its commitment to delivering predictable performance even in the face of unpredictable challenges.

Diagram

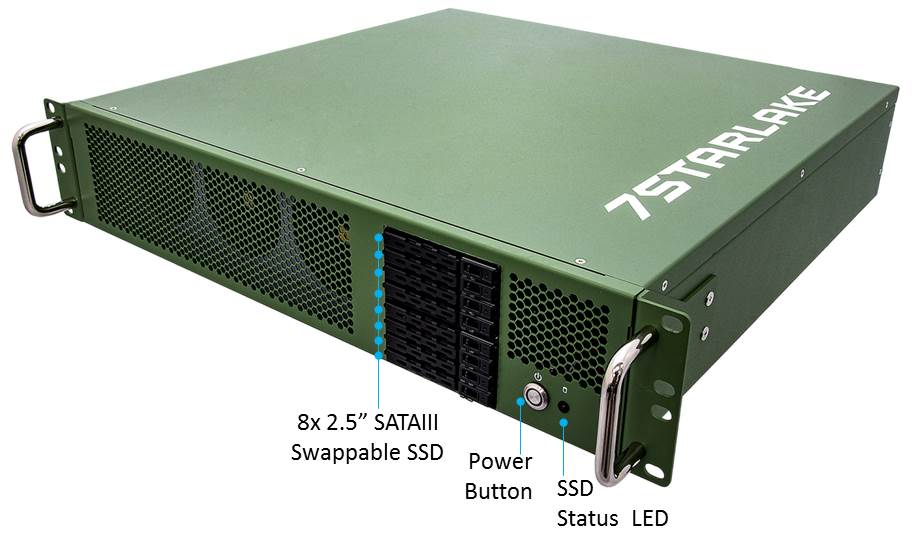

拉線圖1





System
CPU 5th Gen Intel® Xeon® /4th Gen Intel® Xeon® Scalable processors, Single Socket E (LGA-4677)
CPU Core Count Up to 60C/120T; Up to 112.5MB Cache
Memory type DDR5-5600 MT/s RDIMM ECC, Up to 4TB in 8+8 DIMM slot
Graphic NVIDIA® RTX 6000 ADA Generation 18176 CUDA cores, 48GB GDDR6, 960MB/s
TPM Chipset: Infineon, Type: TPM 2.0
IPMI ASPEED AST2500 IPMI 2.0
BIOS AMI UEFI BIOS
USB

2 x USB 2.0 ports: rear I/O Type-A

2 x USB 3.2 (Option)
Ethernet

2 x 10G

1 x RJ45 Dedicated IPMI

2 x SFP28 (Option)
Power Type 18V~36V DC IN
Storage 4 x 2.5” Swappable SATA SSD
COM Port 1 x RS232
Operating Temp -20°C to +55°C
Dimensions 440 mm(W) x 500 mm(D) x 88 mm(H)

Front I/O
Power Button x 1
SSD LED indicator x 1
Swappable Tray x 4

Rear I/O
DC-IN x 1
IPMI LAN x 1
USB2.0 x 2
10G LAN x 2
VGA x 1

Environmental

MIL-STD-810 Test

Method 500.5, Procedures I and II (Altitude, Operation):
12,192M, (40,000 ft) for the initial cabin altitude (18.8Kpa or 2.73 Psia)
Method 500.5, Procedures III and IV (Altitude, Non-Operation):
15,240, (50,000 ft) for the initial cabin altitude (14.9Kpa or 2.16 Psia)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
Method 507.5, Procedure II (Temperature & Humidity)
Method 509.7 Salt Spray (50±5)g/L(Optional for Conformal Coating)
Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration)
Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration)
Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6, Shock-Procedure I Operating (Mechanical Shock)

Reliability

Rugged Air Cooling

Designed & Manufactured using ISO 9001 Certified Quality Program.
